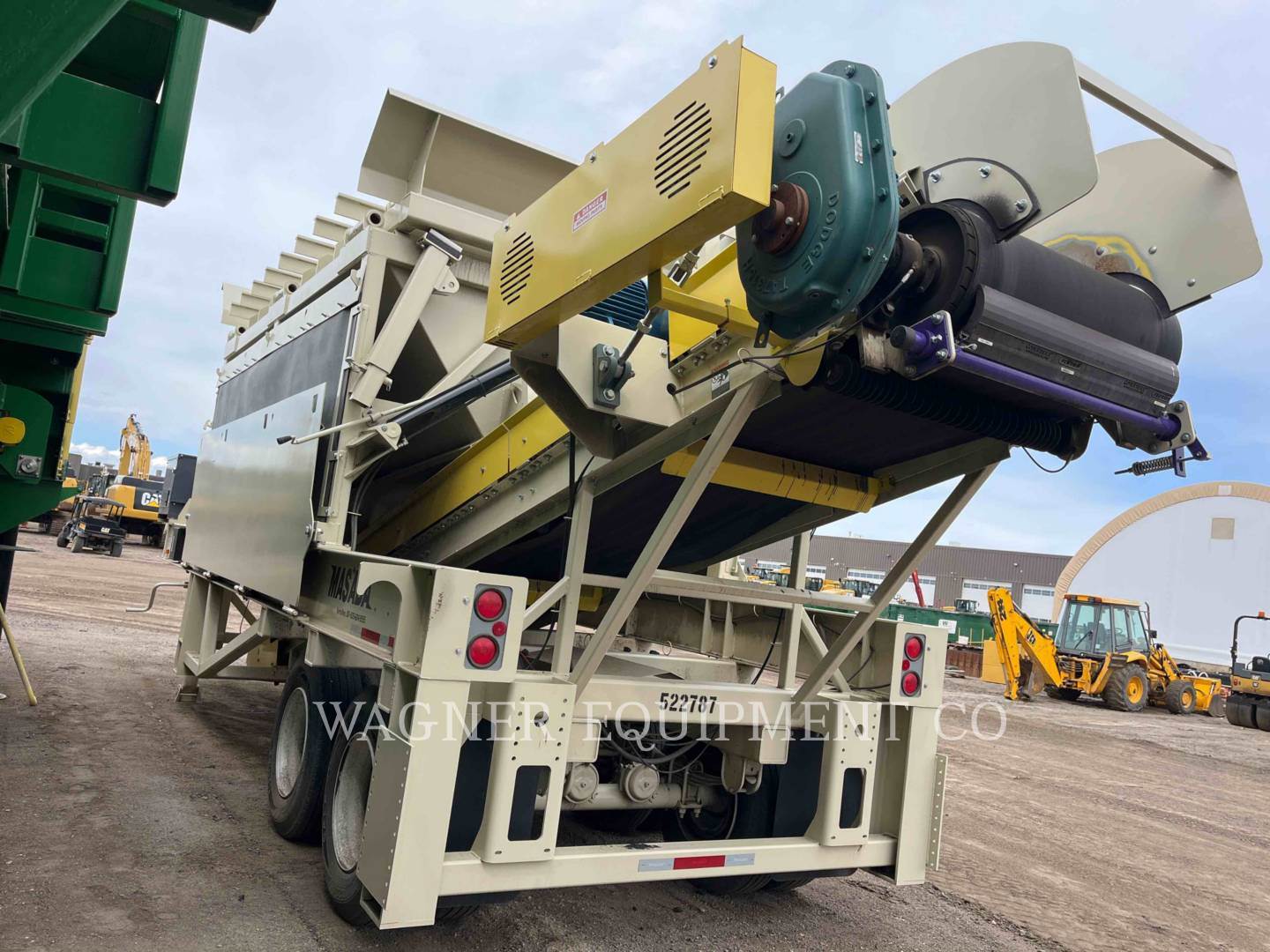

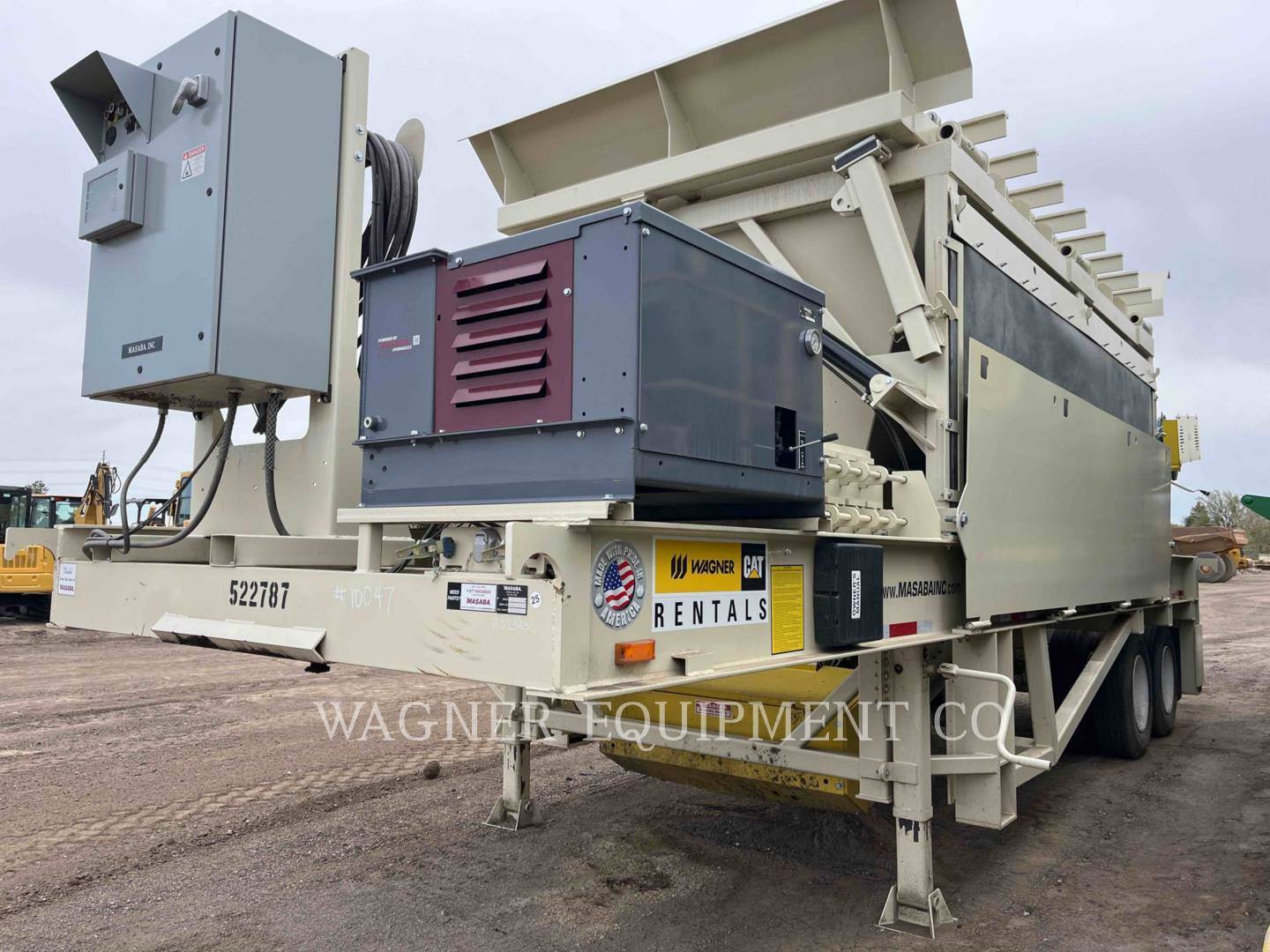

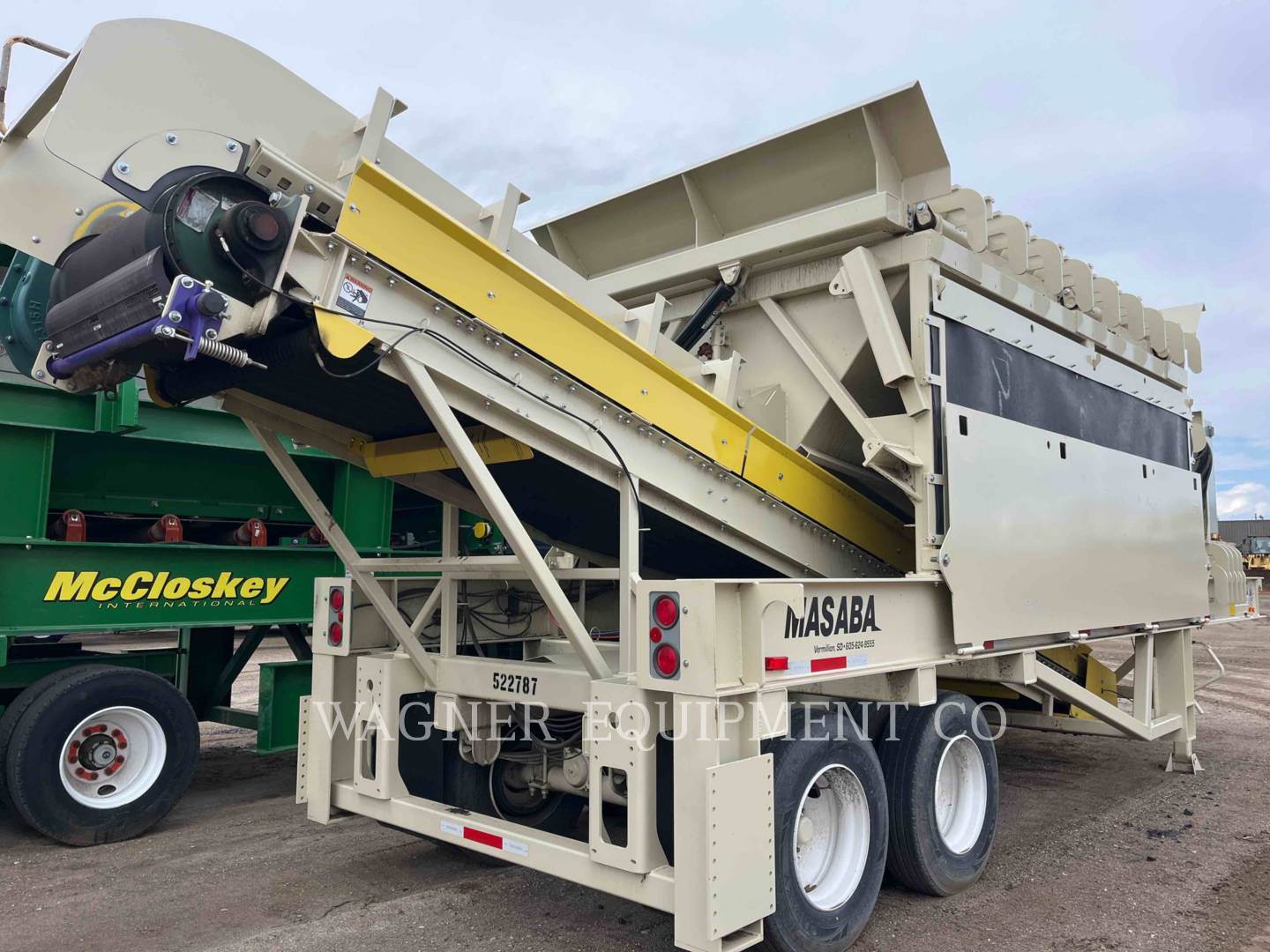

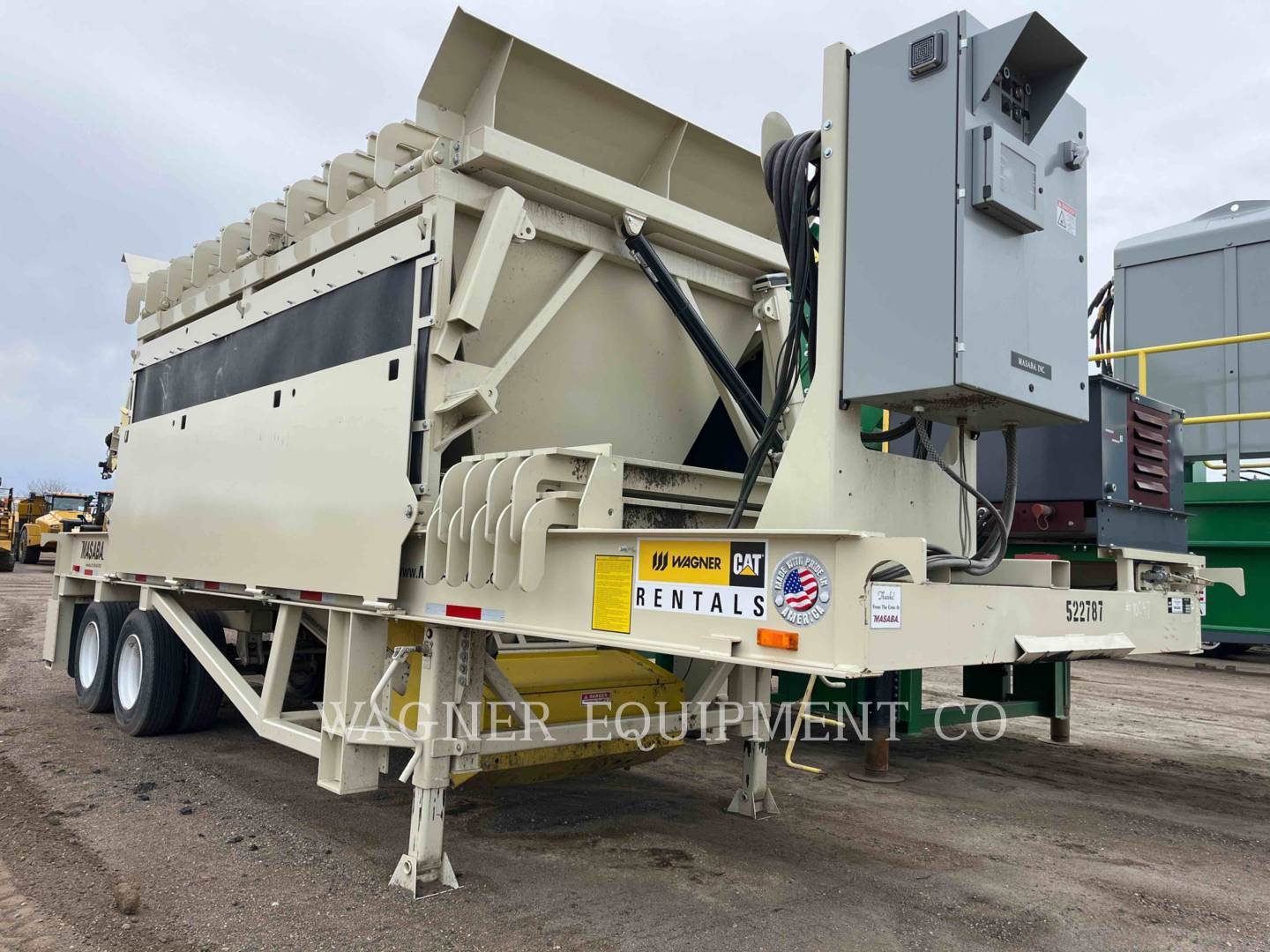

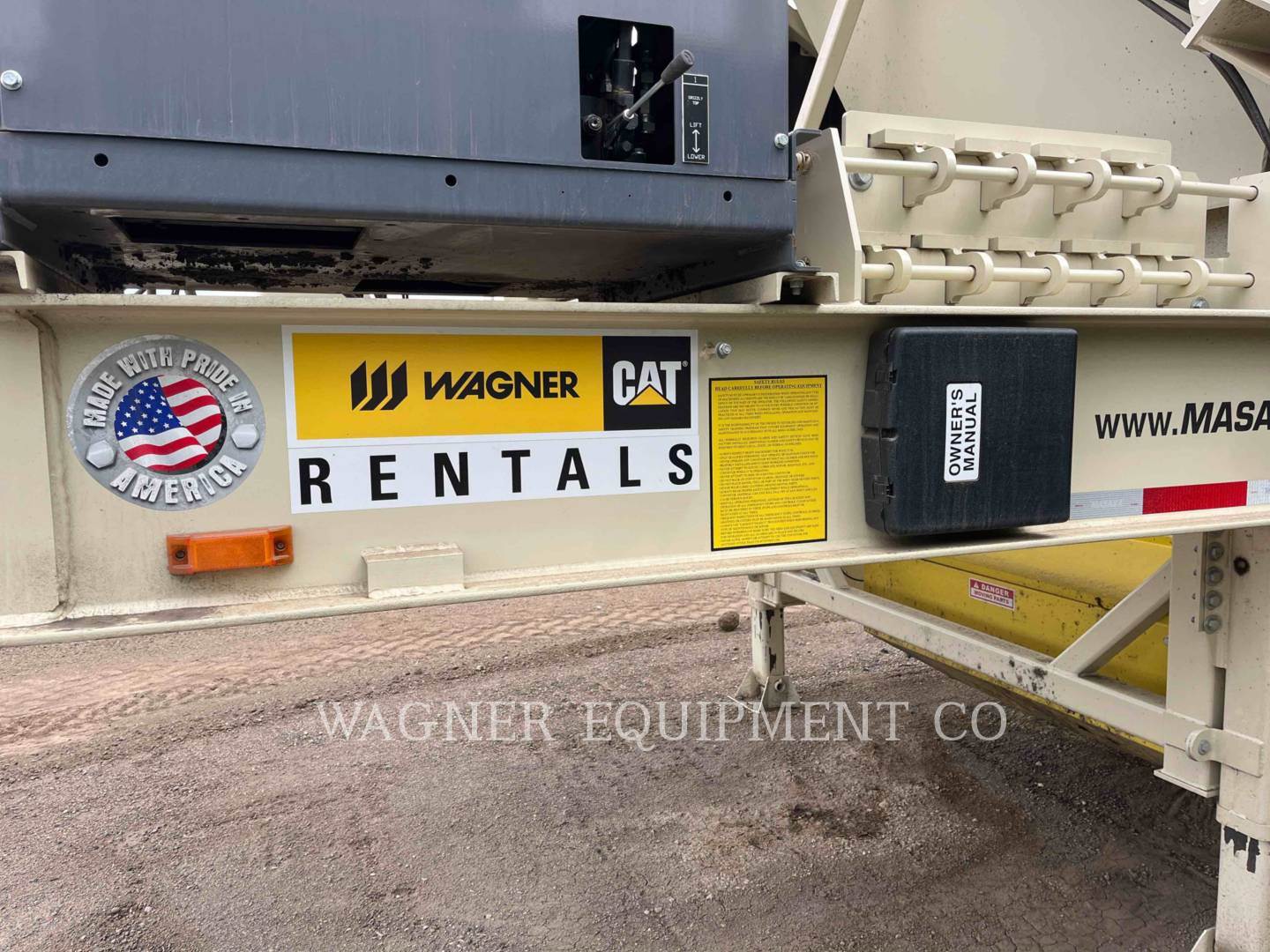

2024 Masaba 9X16FEEDER Crushing Plant

18.5CY HOPPER
2 HINGED BULKHEADS

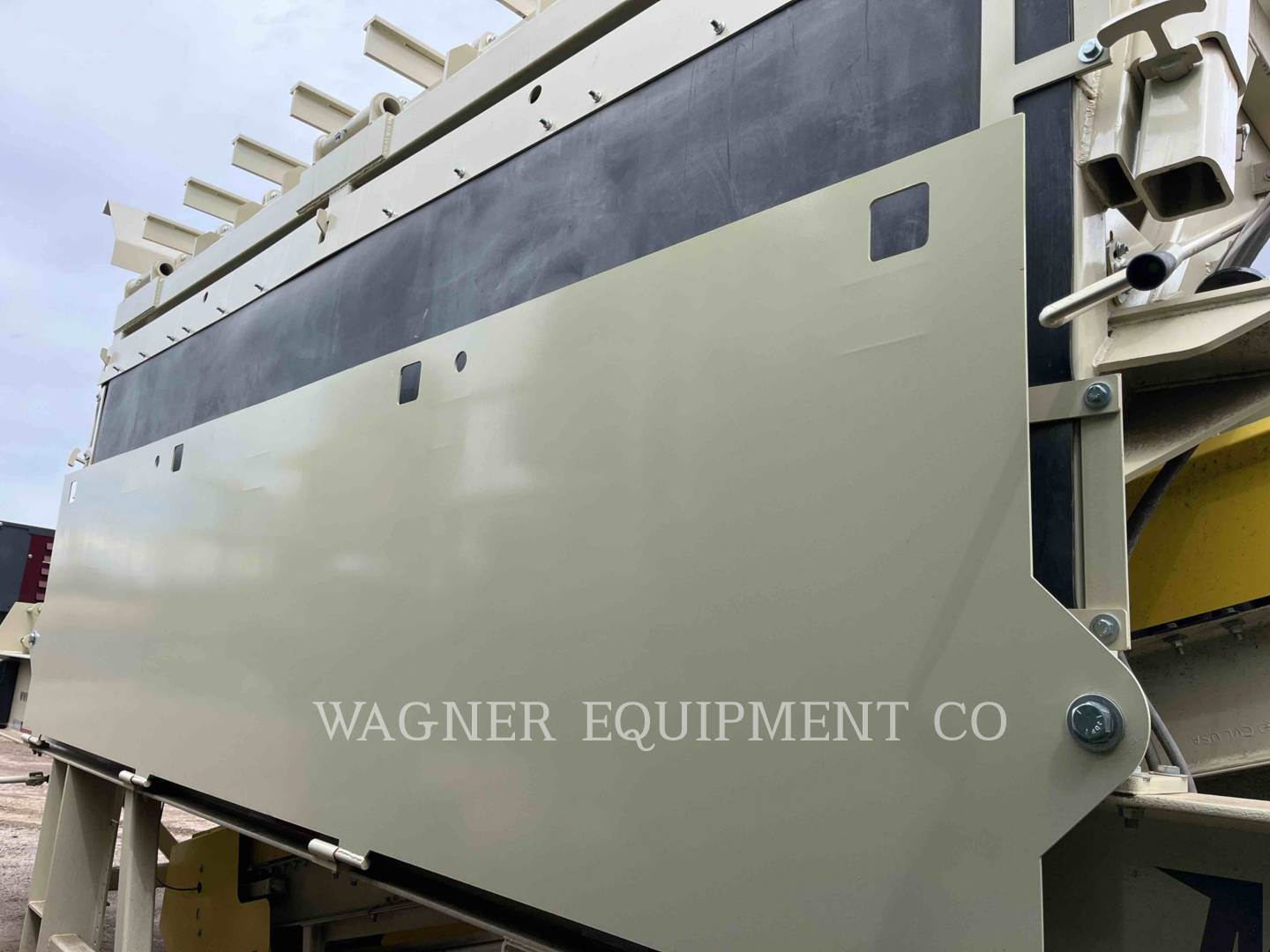

2 HOPPER SIDE CURTAINS
2-EARTHQUAKE EQV-1200-2 BIN VIBR
4'11"DISCHARGE HEIGHT

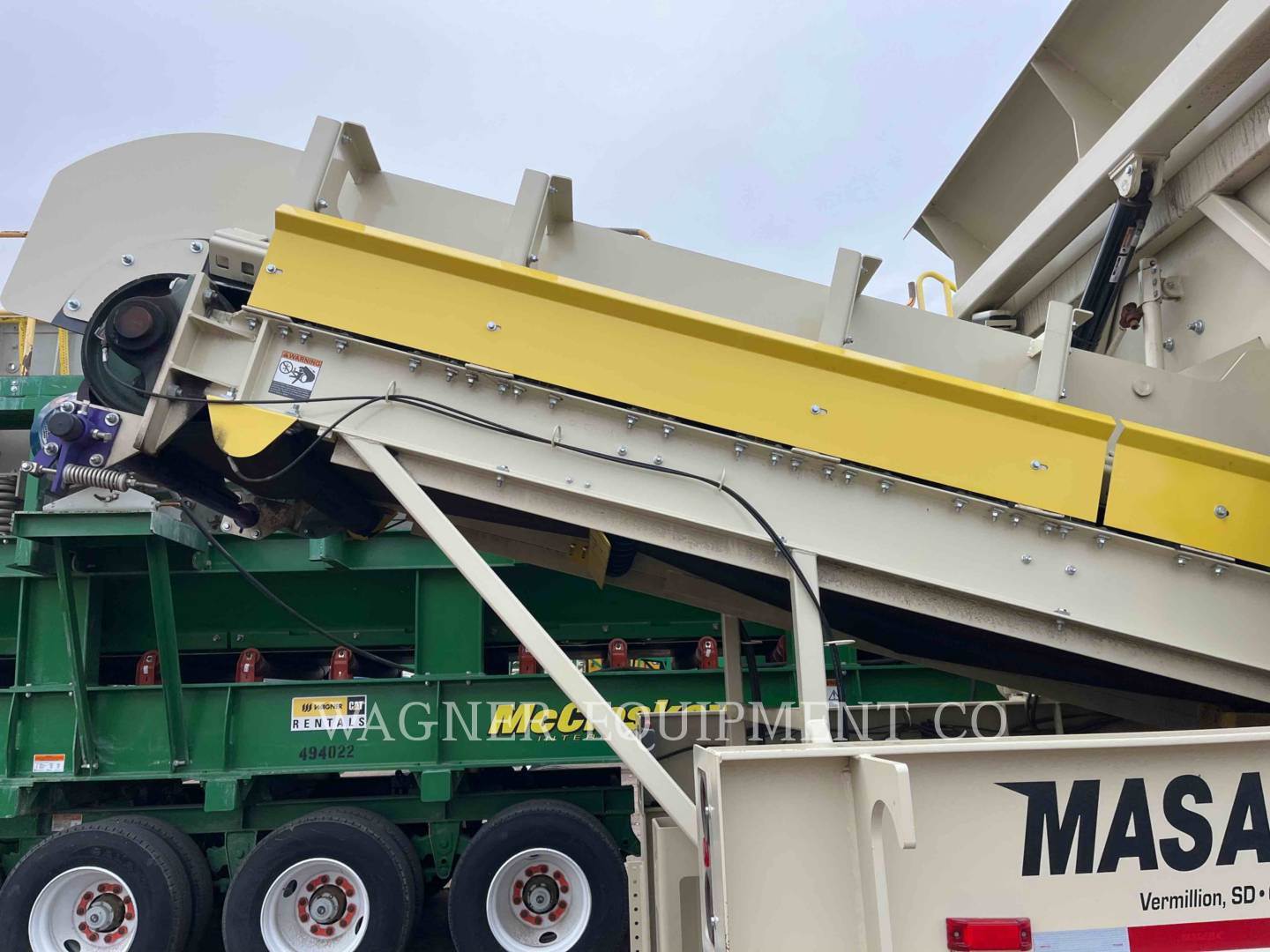

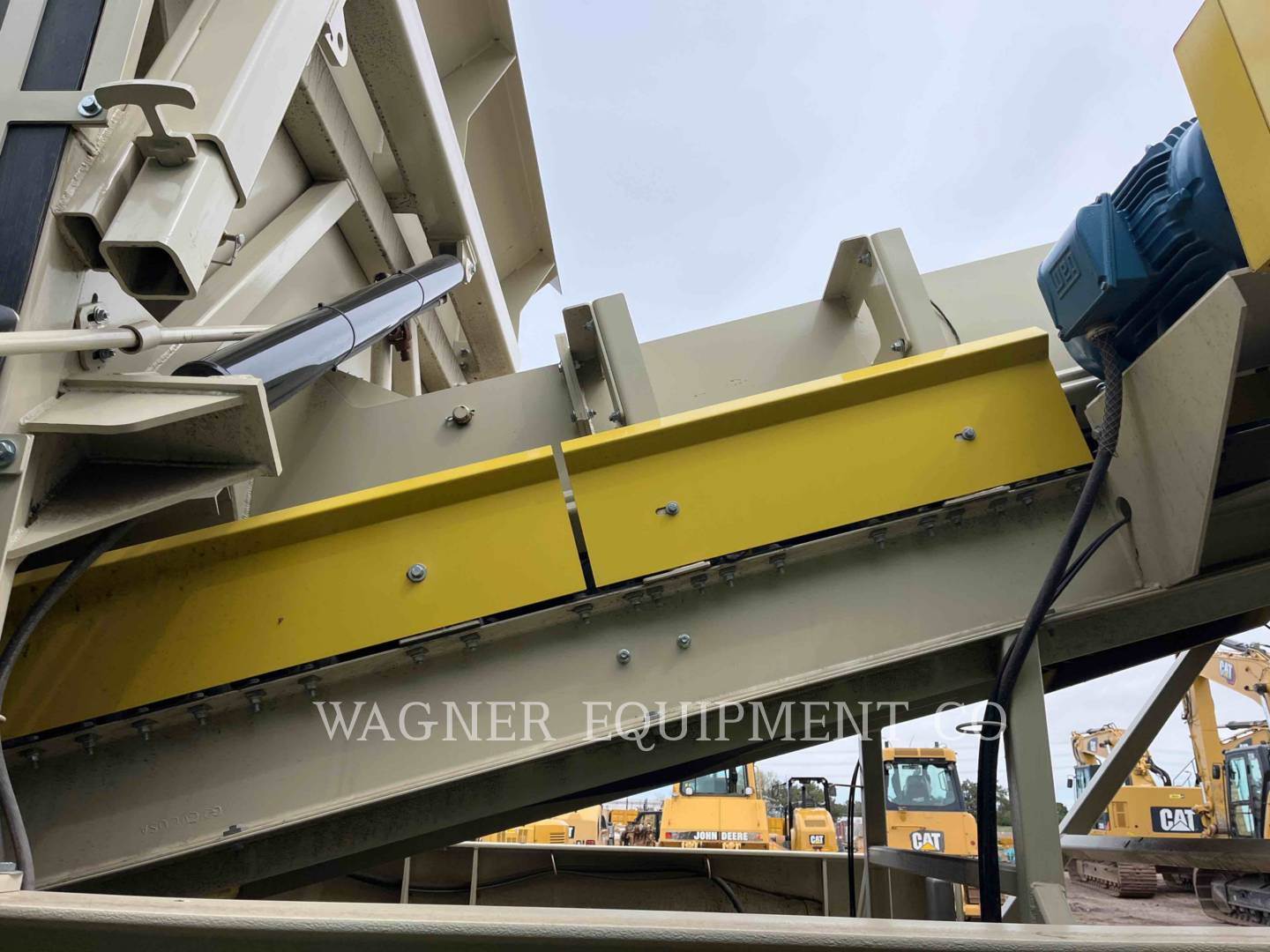

42'X25' INCLINED BELT FEEDER
8/12/24
ADJ METERING GATE
BELT SPEED-100FPM MAX
BELT SPLICE-MECH STEEL FASTNERS
BELTING-3PLY,330PIW,3/16"X1/16"
BRAKE APCKAGE-AIR,EMER VALVE
CAPACITY-UP TO 825 TPH@100#/CF
CONV FRAME-10" CHANNEL
CORD HOLDER
DR SHAFT&BRNGS-1-7/16"
DRIVE PULLEY-PPI,16"DIA
DRIVE-CLASSII,VBELT W/GUARD

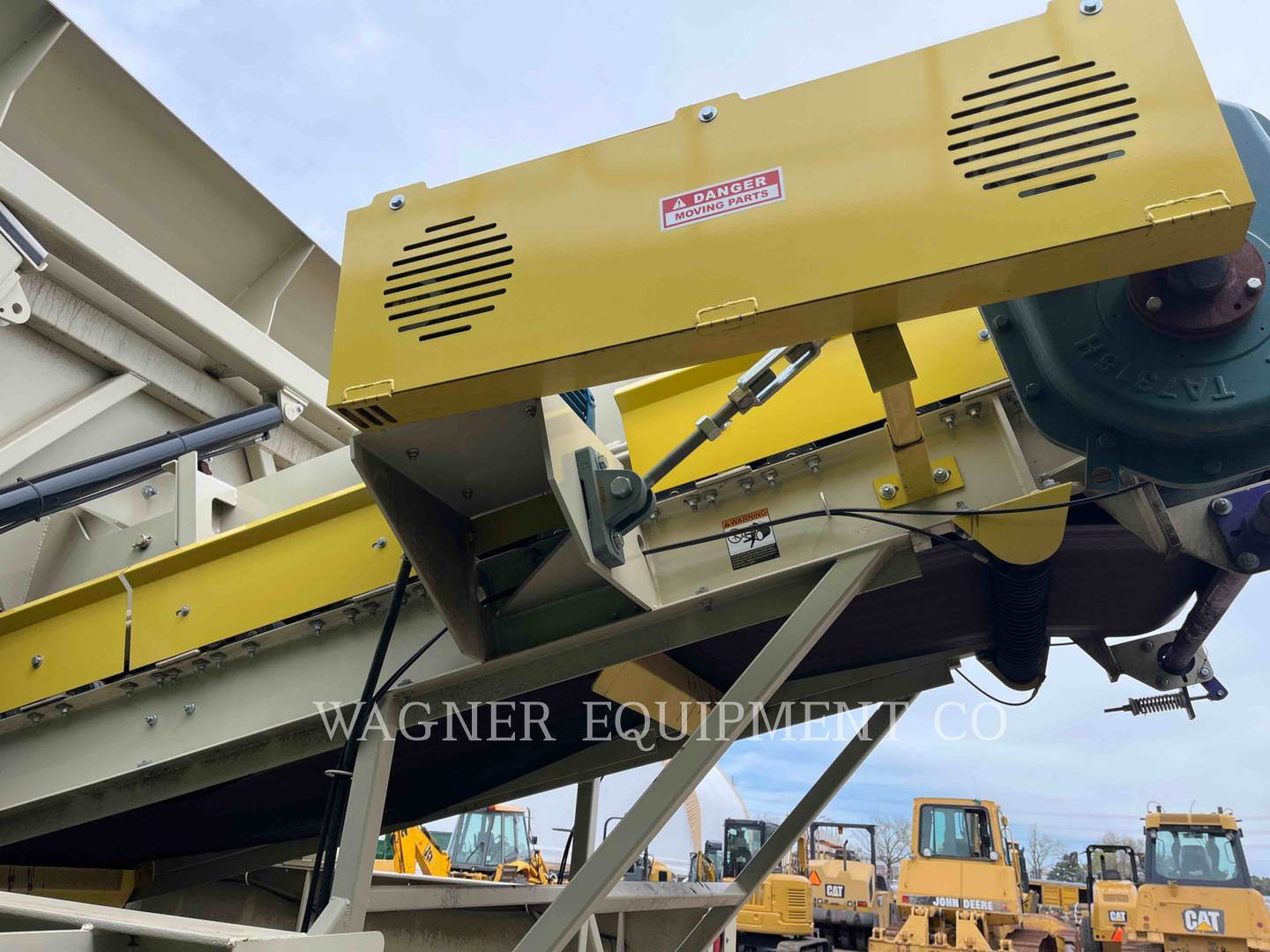

GEAR REDUCER-DODGE TXT#8
GRIZZLY BARS
GUARDS-TAILPULLEY,VBELT,RETRN
HEAVY DUTY 25,000LB SUSPENSION

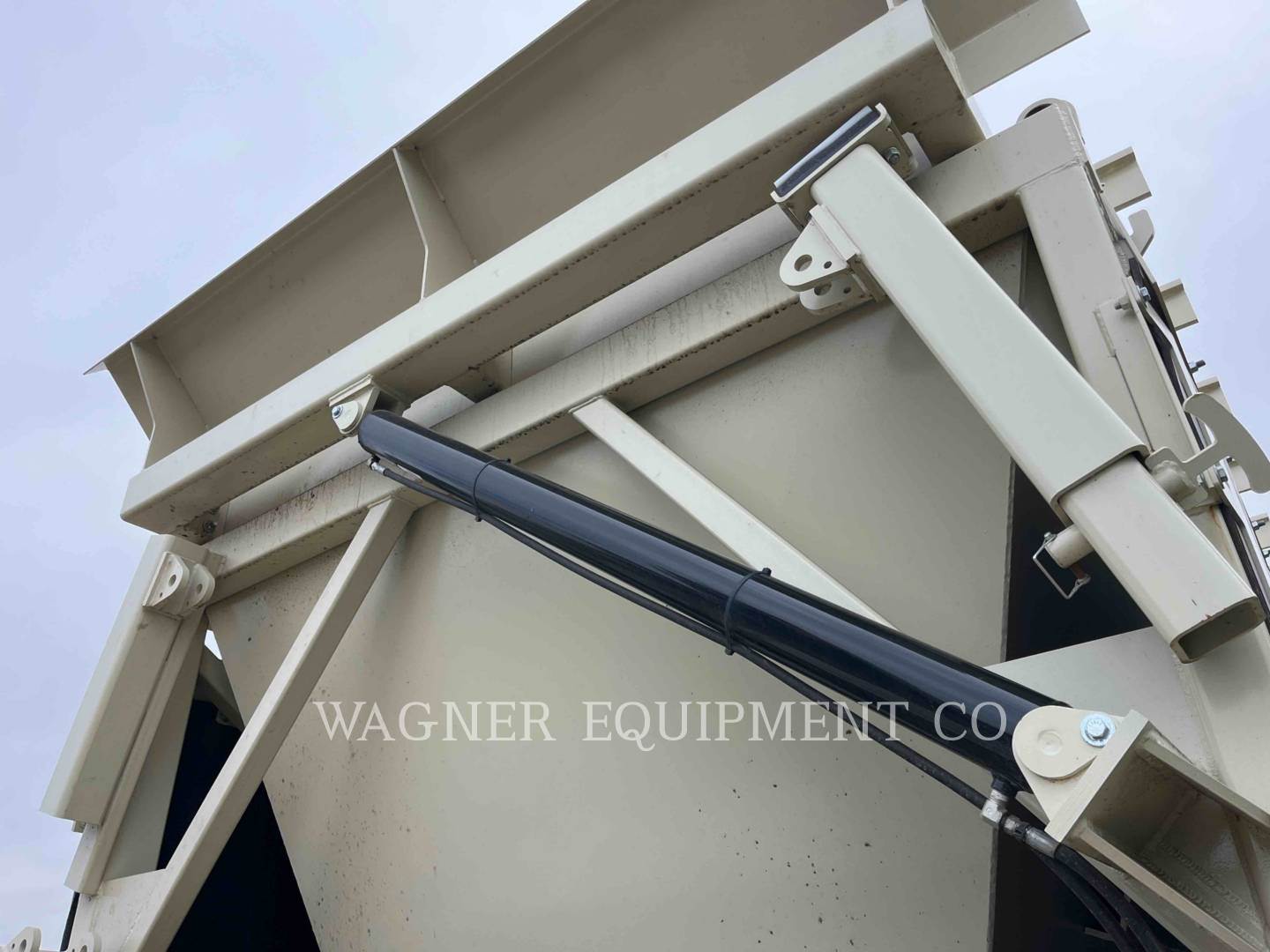

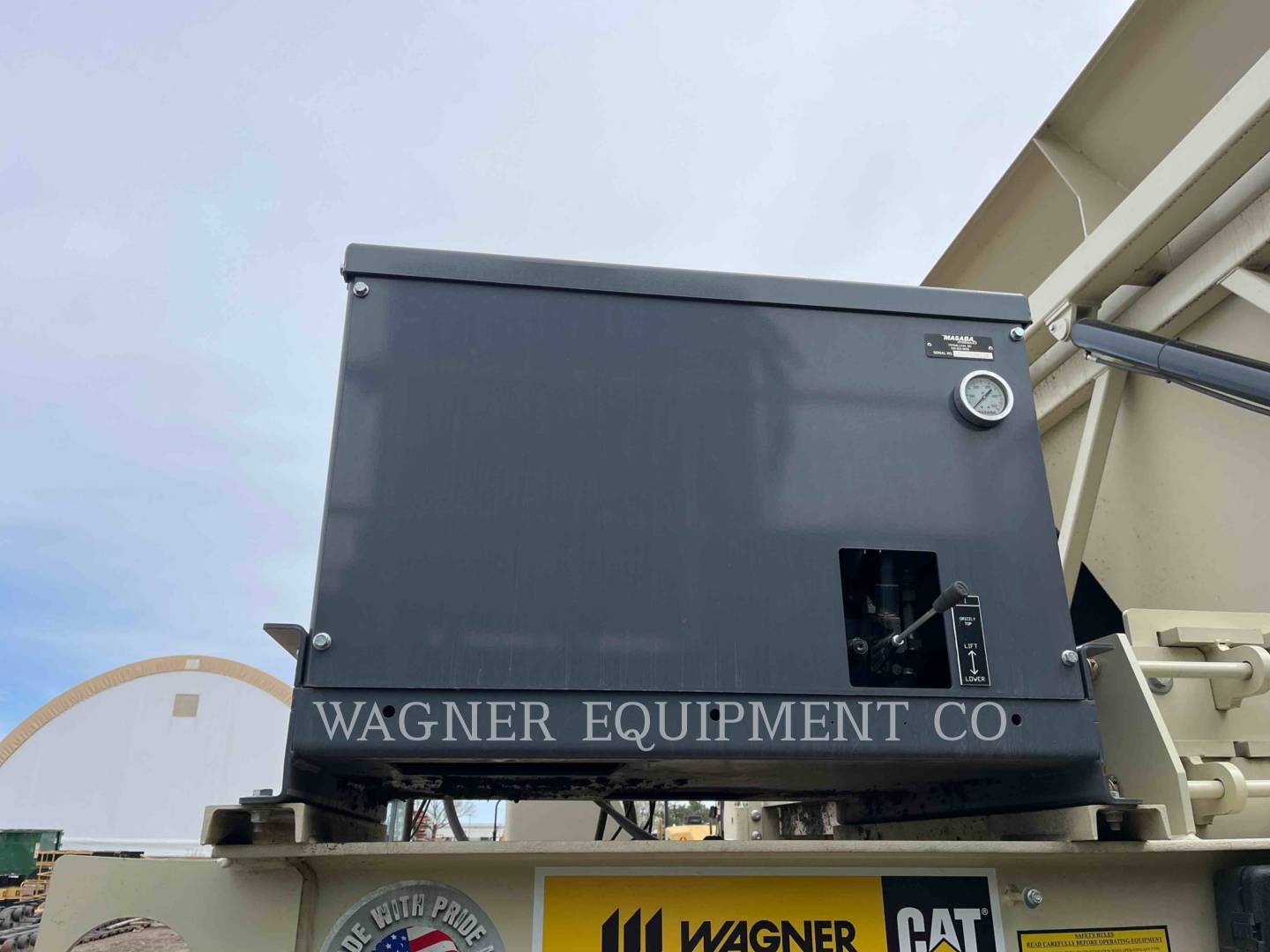

HYD LIFT GRIZ & HYD PACKAGE
IMPACT IDLERS-PPI//CEMA C 5"DIA
INTRAFLOW AUTOTLUBE SYST
LANDING JACKS
LIFT HOOKS@KINGPIN
LIGHTS-BRAKE,DIRECTIONAL SIGNAL
MAN REV DUMPING GRIZZLY

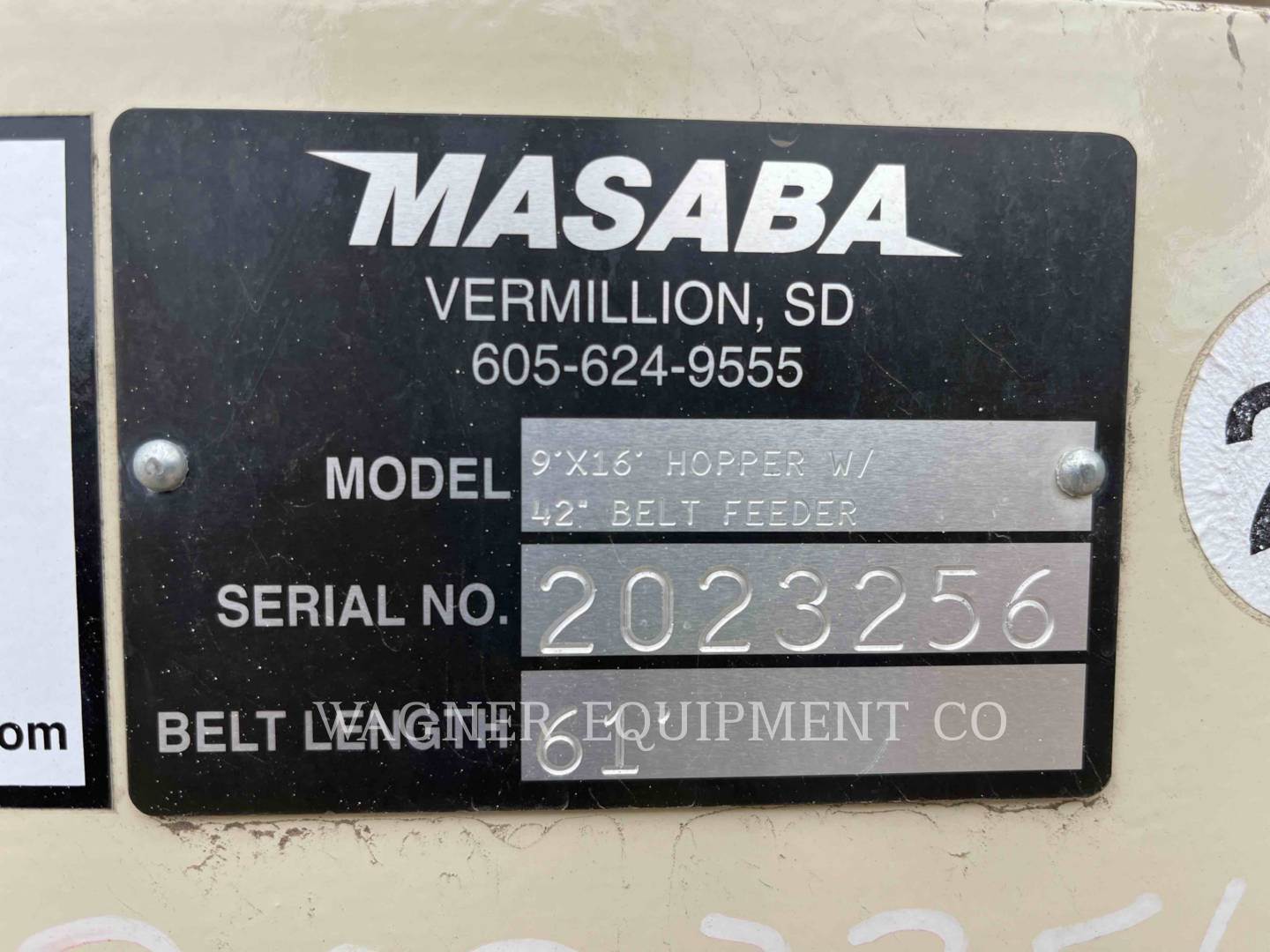

MASABA 9' X16' FEEDER-HOPPER
MOTOR-WEG 30HP ELEC
MUD FLAPS
OPTIONS:
REMOTE CNTRL

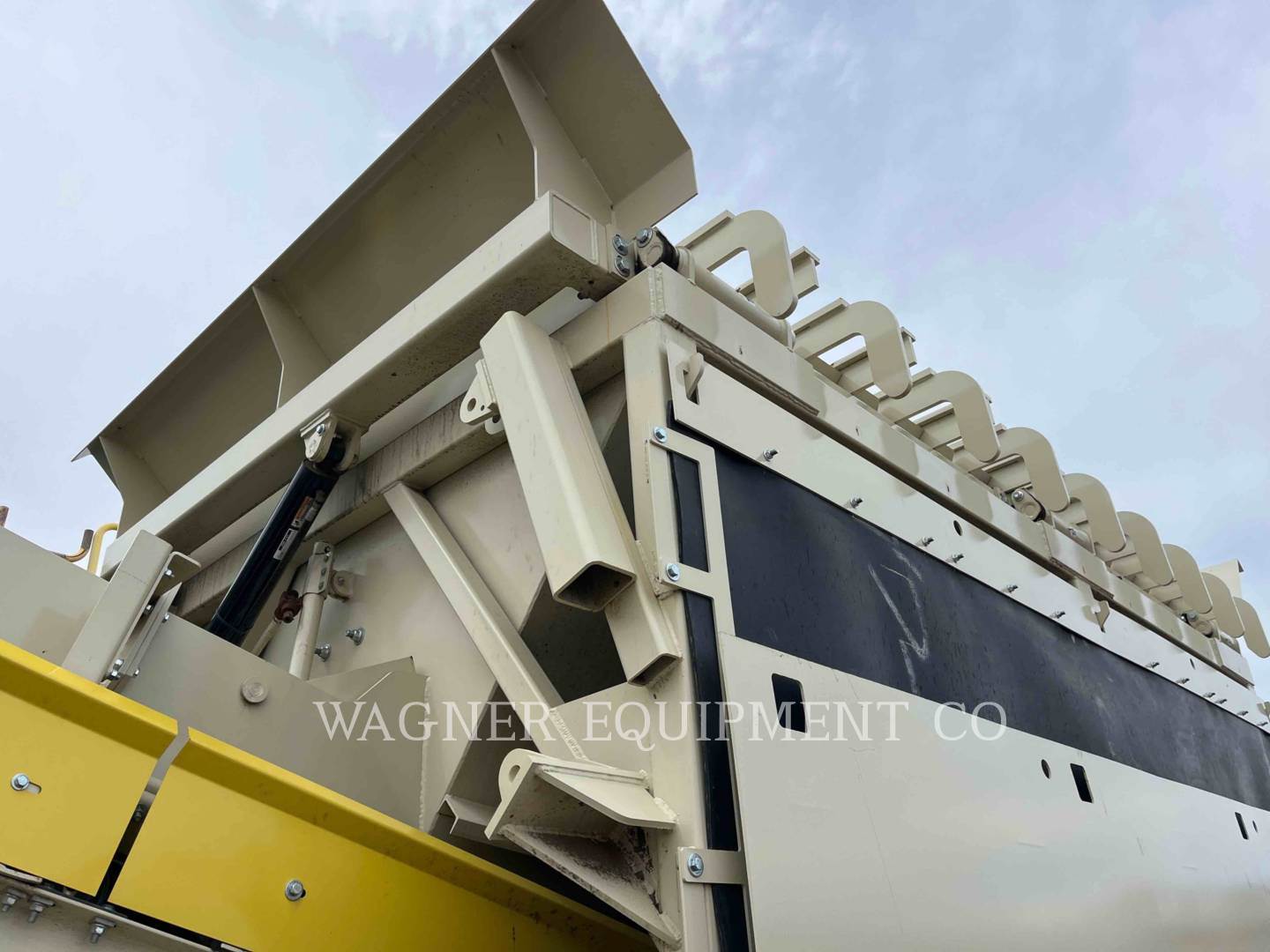

SELF-RELVNG GRIZ BARS 6"/8"OPNGS
SNUB BRNGS-1-15/16"DODGE SCM
SNUB PULLEY-5"DIA LIVE SHAFT

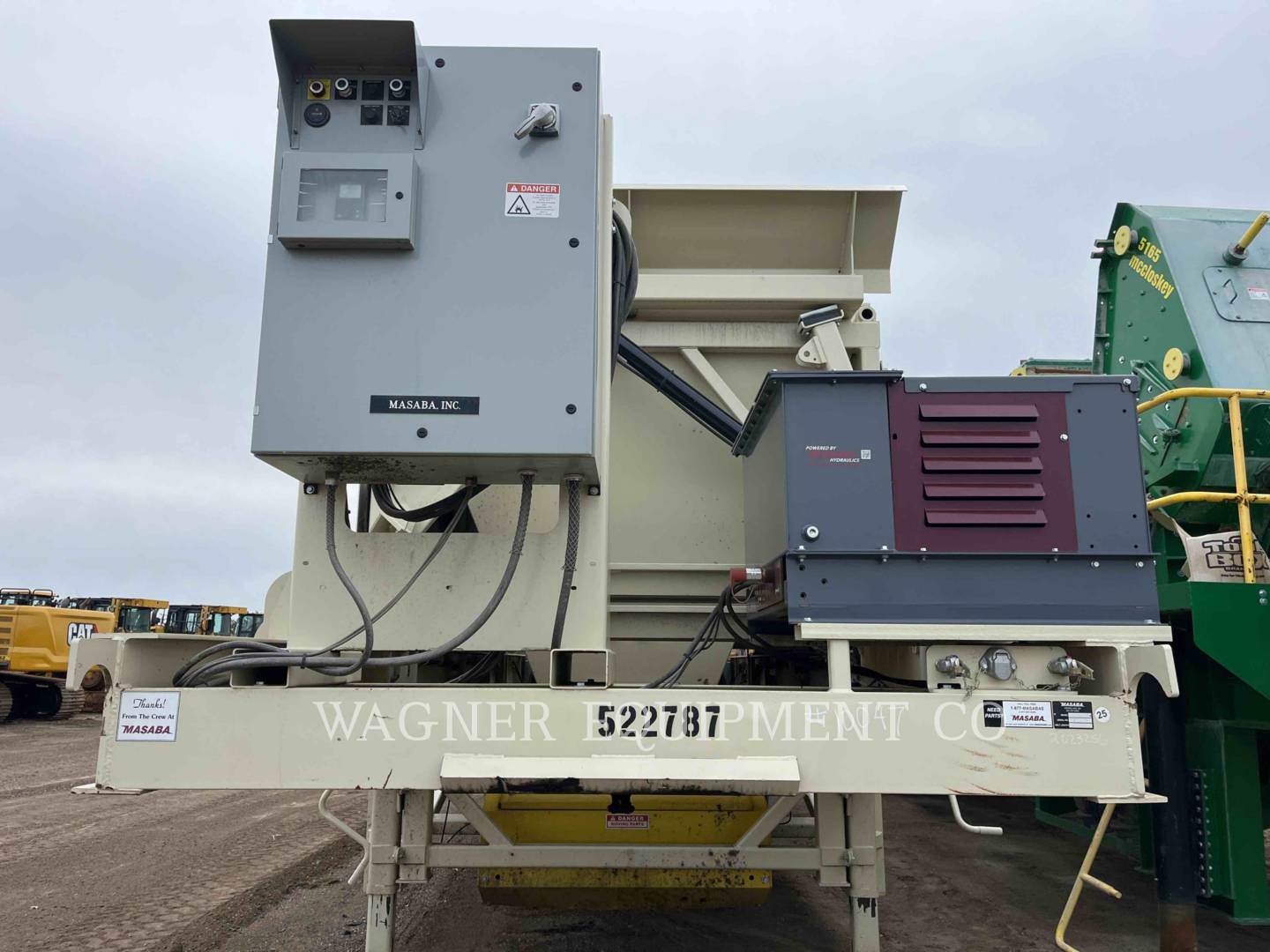

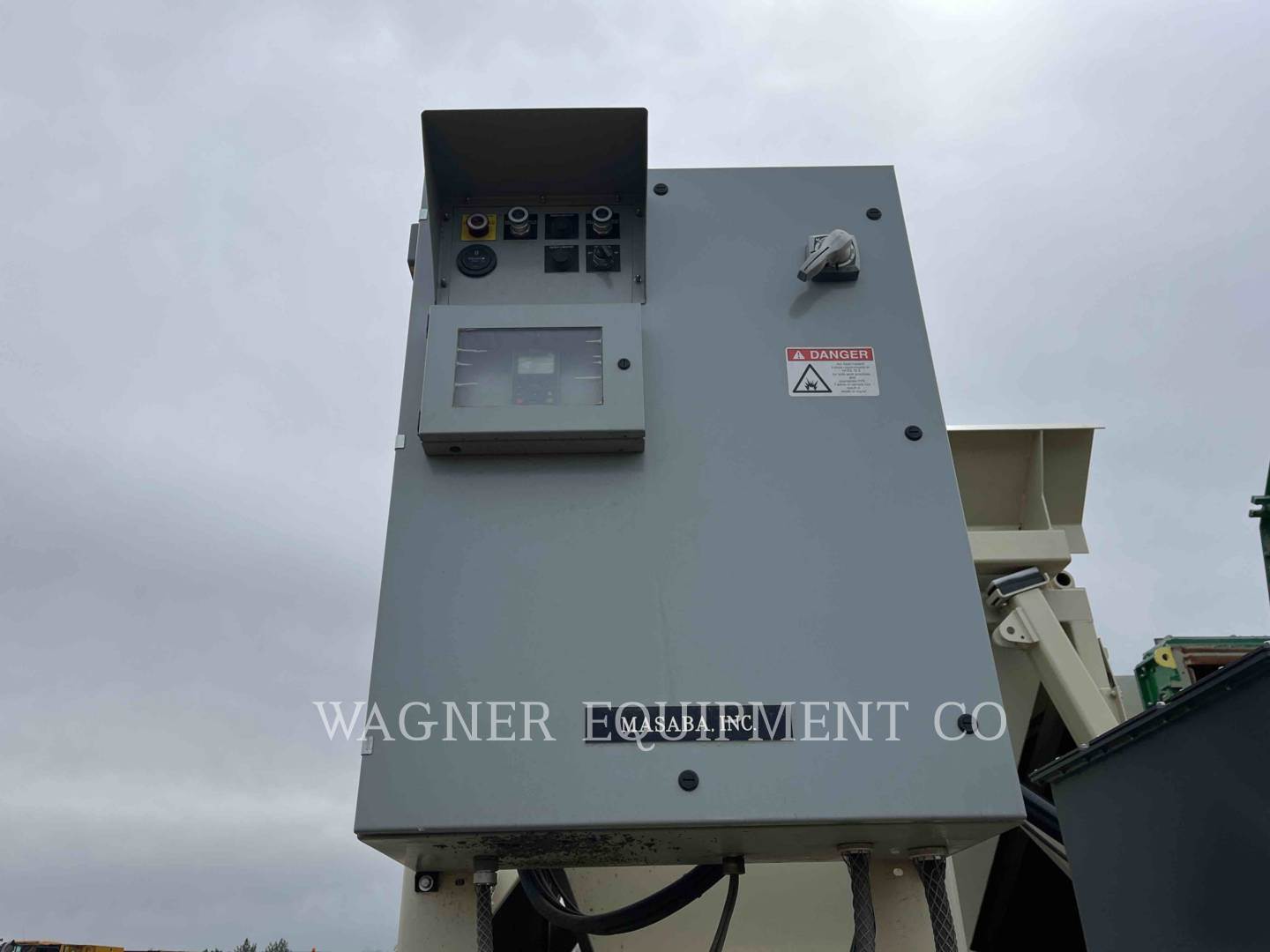

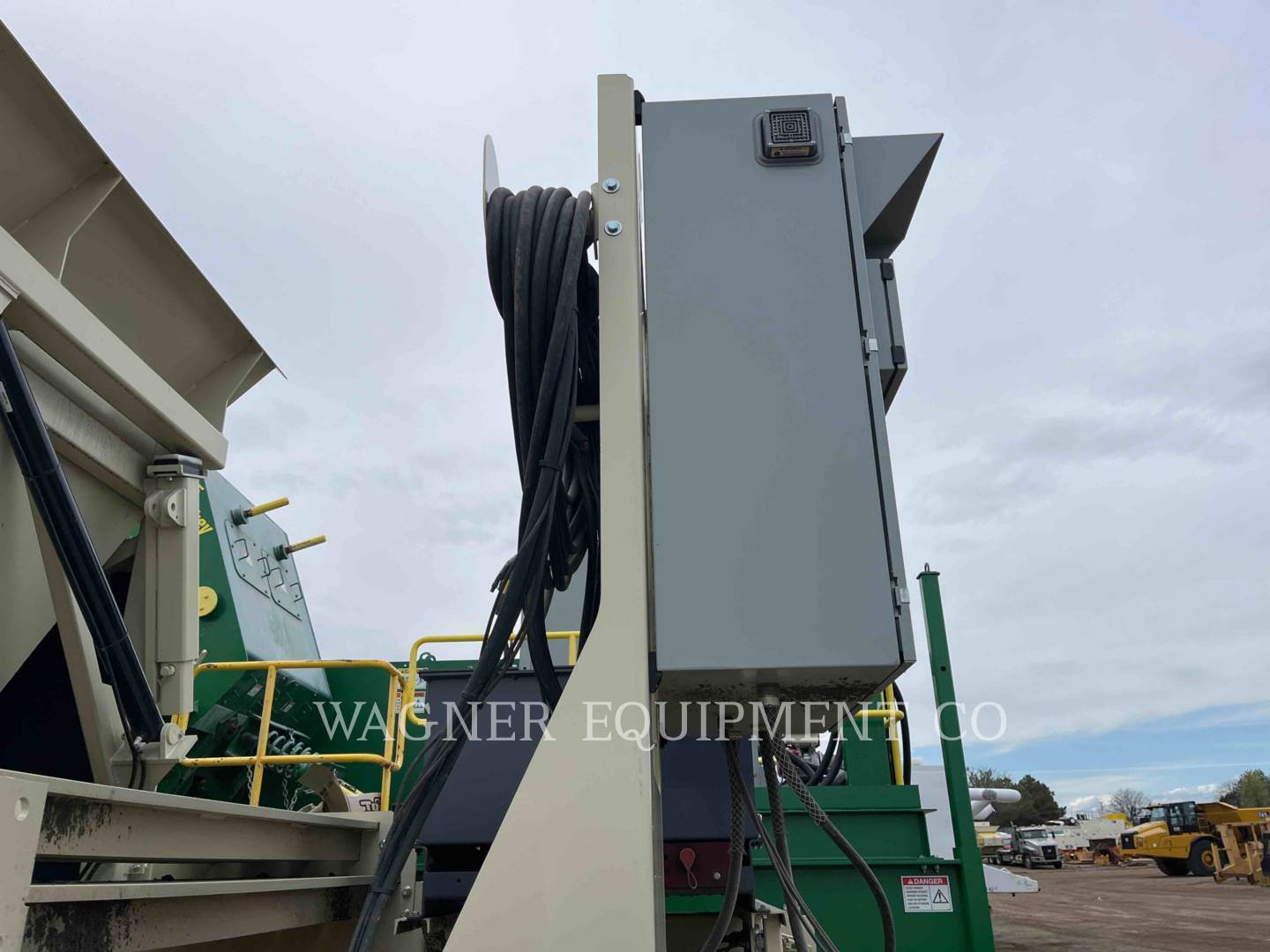

SWITCHGR-NEMA 4ENCLW/LOCKOUT
TAIL PULLEY-PP1,14"DIA
TAIL SHFT BRNGS-2-15/16"W/DODGE
TAKE UPS-SCREW TYPE

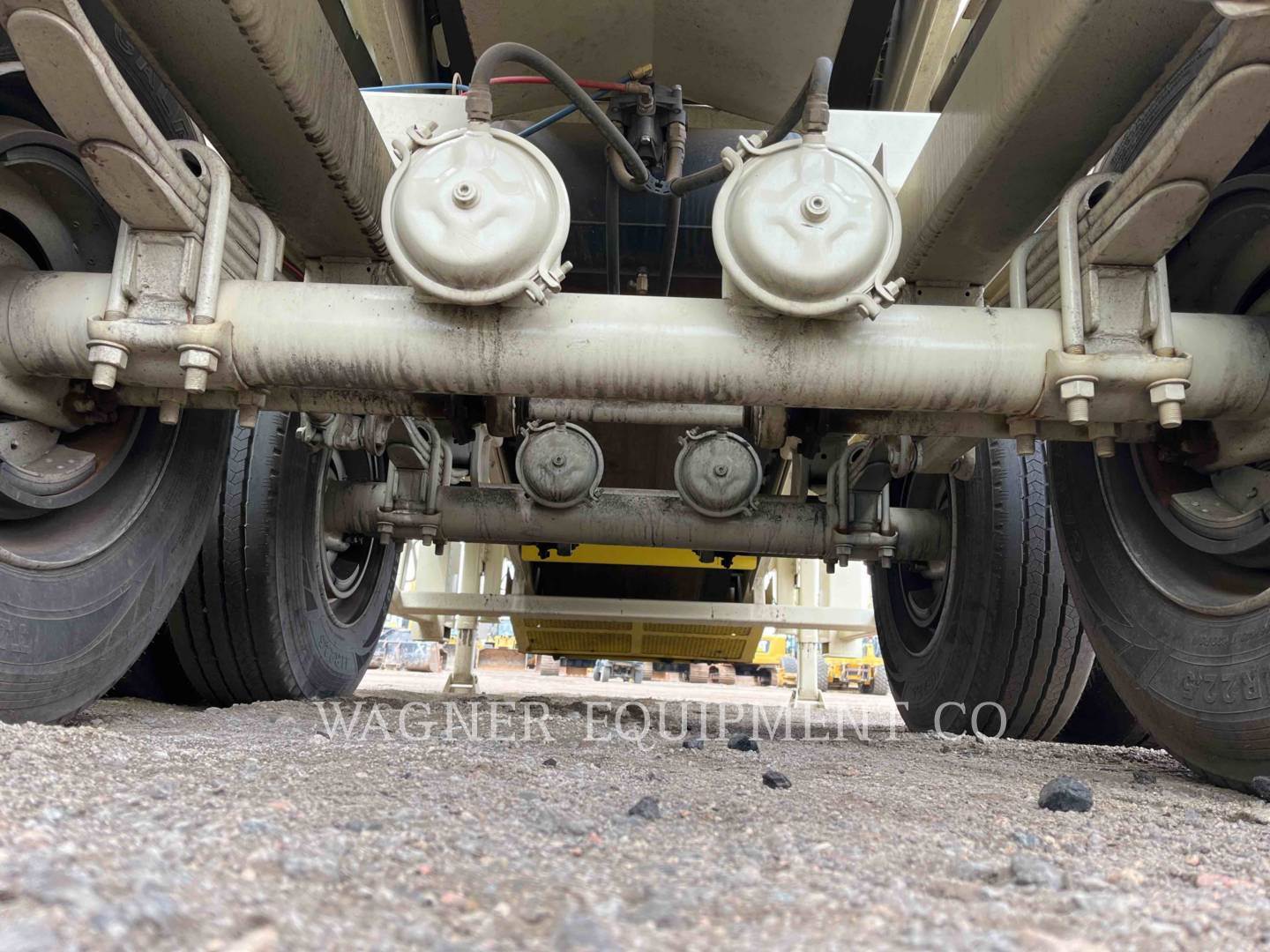

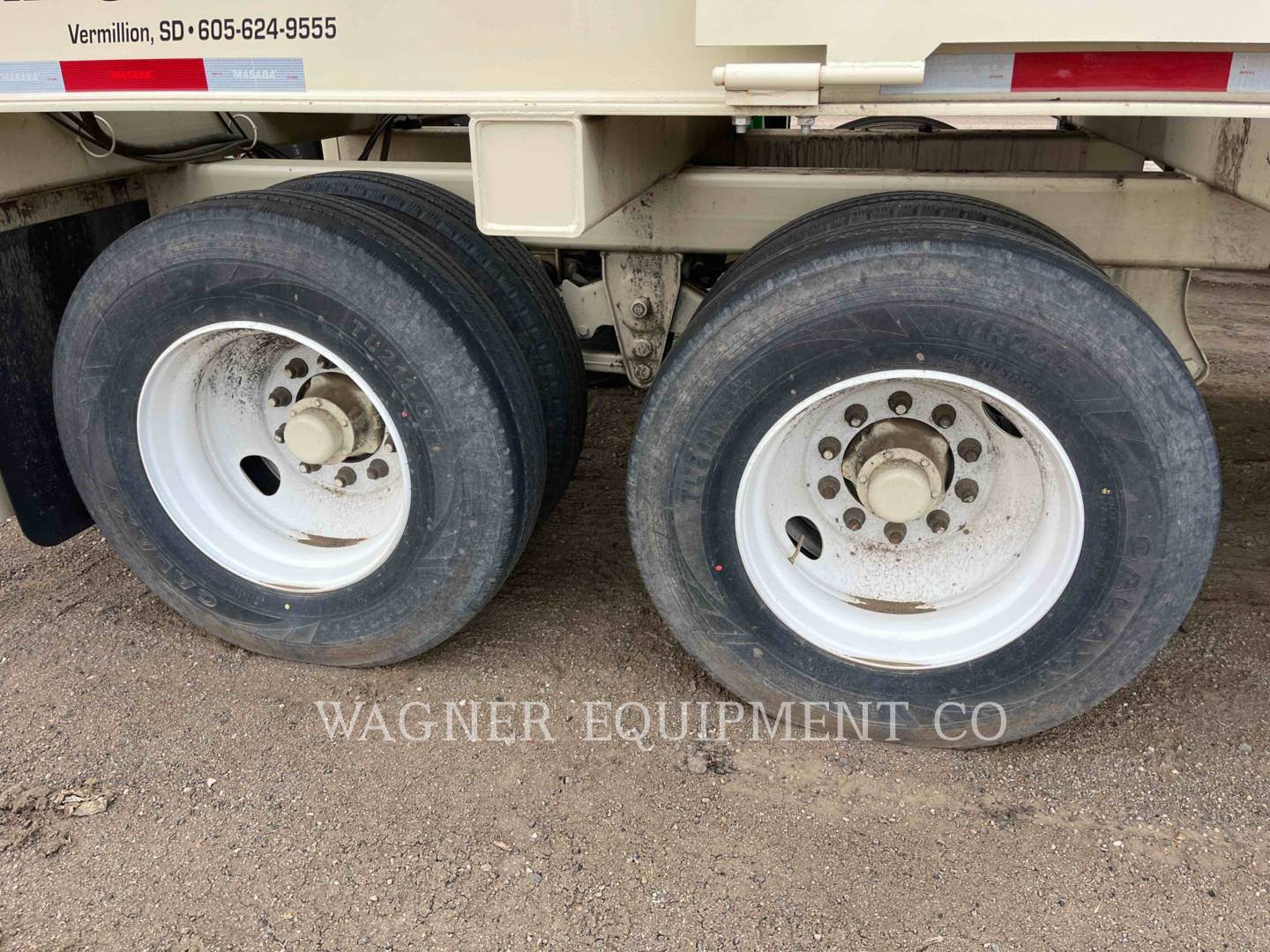

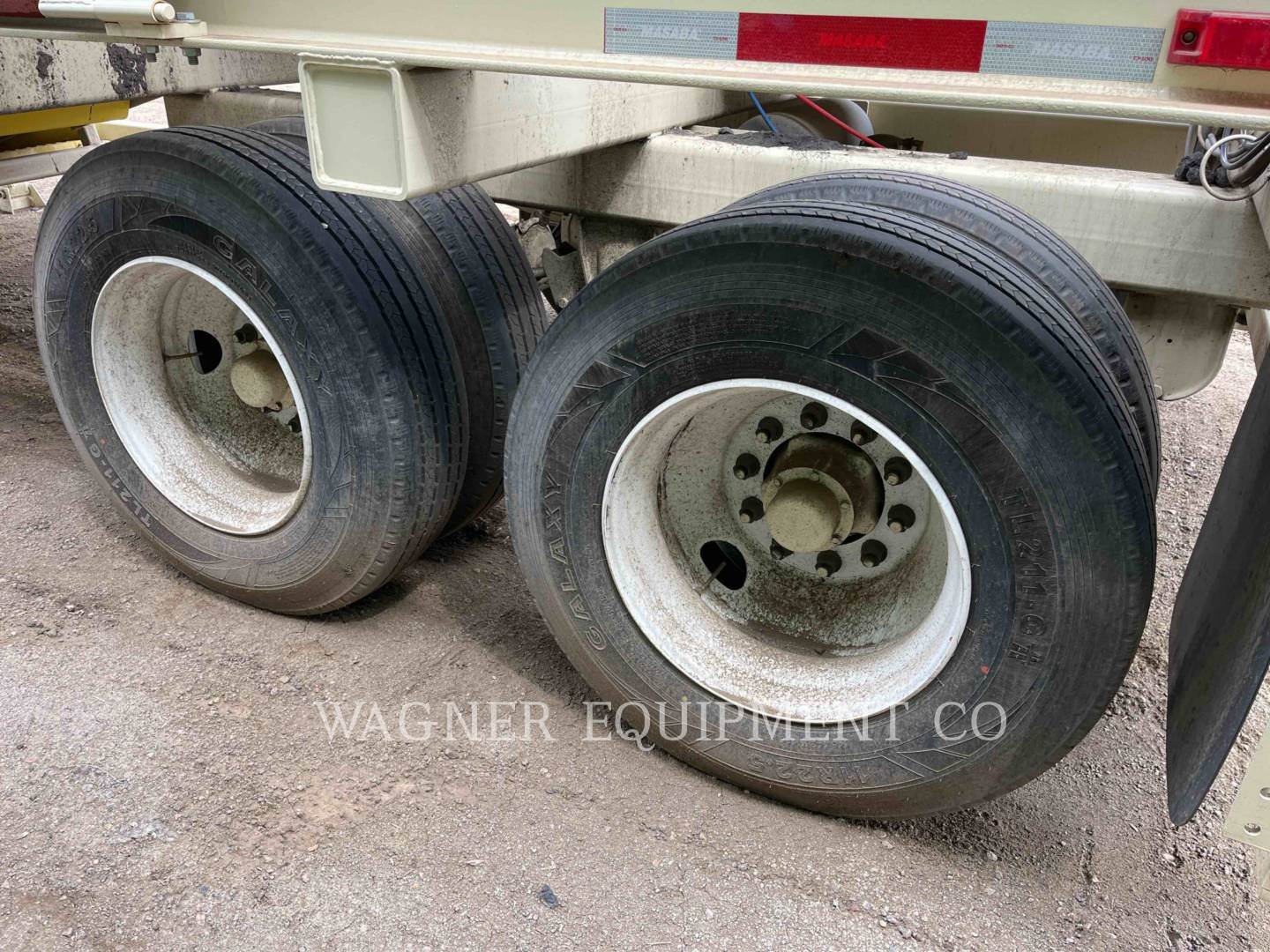

TANDEM AXLE CHASSIS
VARIABLE FREQUENCY DRIVE
VULCANIZED BELTS ON FEEDER BELT
W/DODGE E BEARINGS
WARNING HORN
