2024 Rock Systems 502-3040 Conveyor

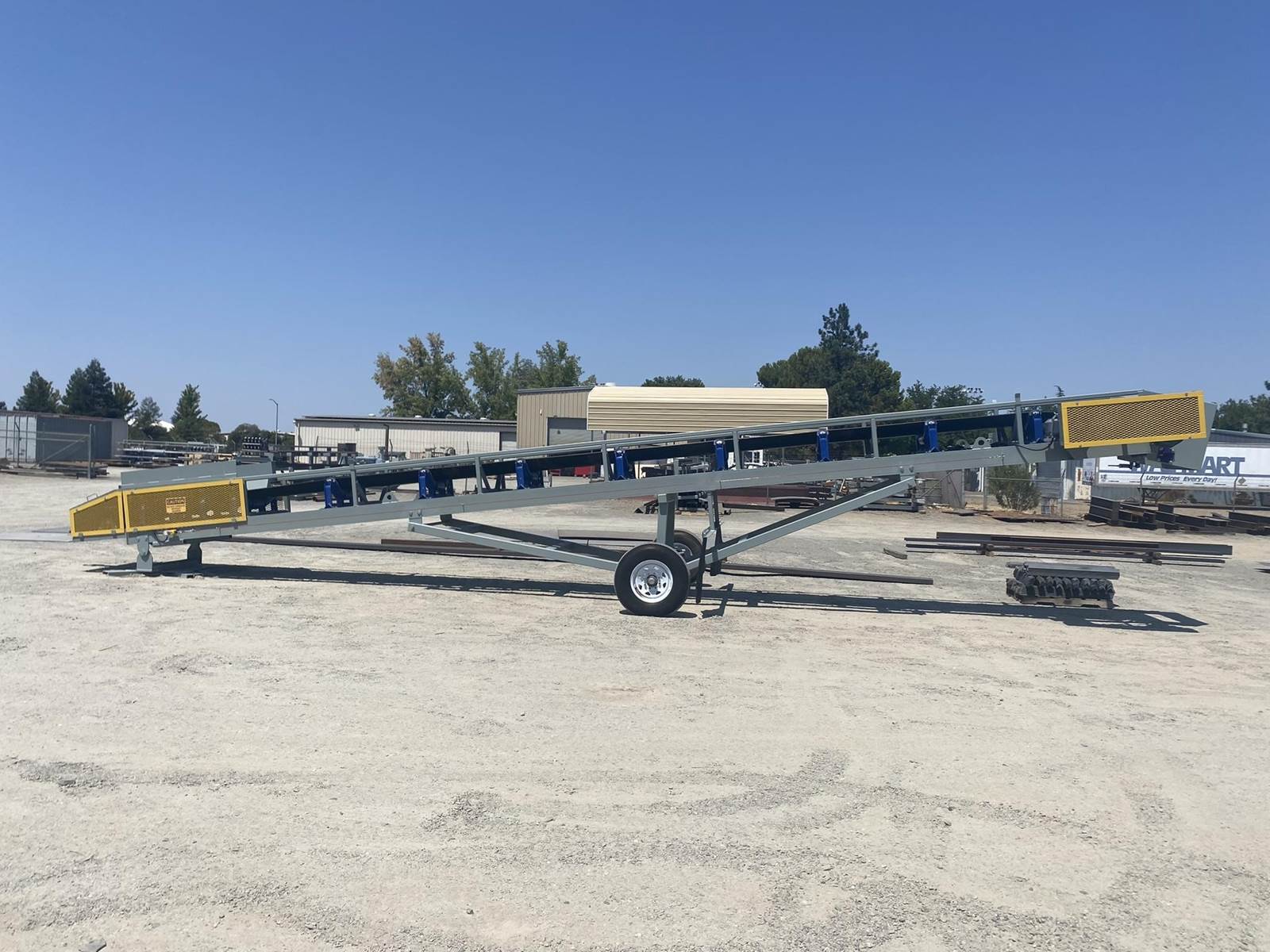

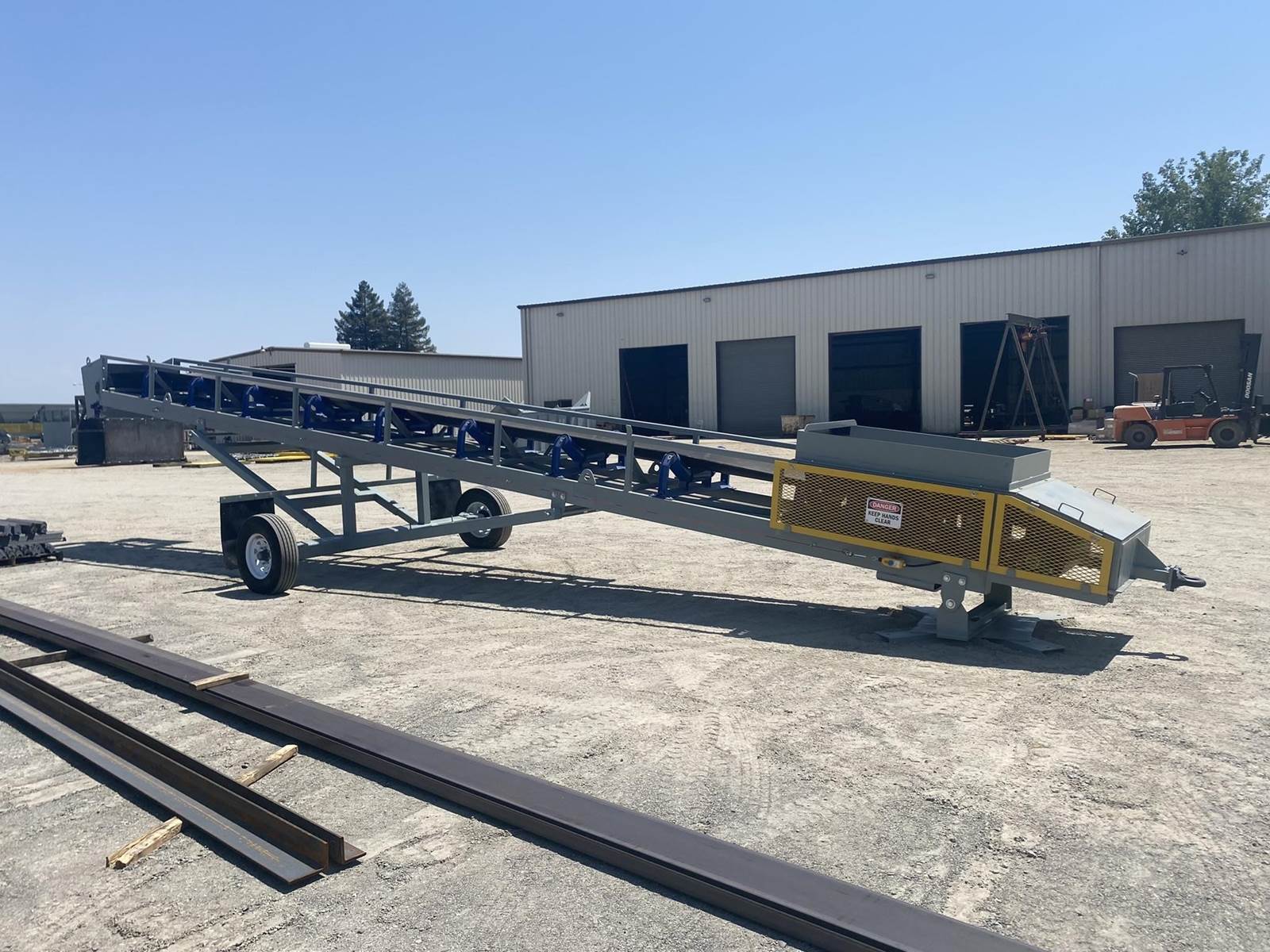

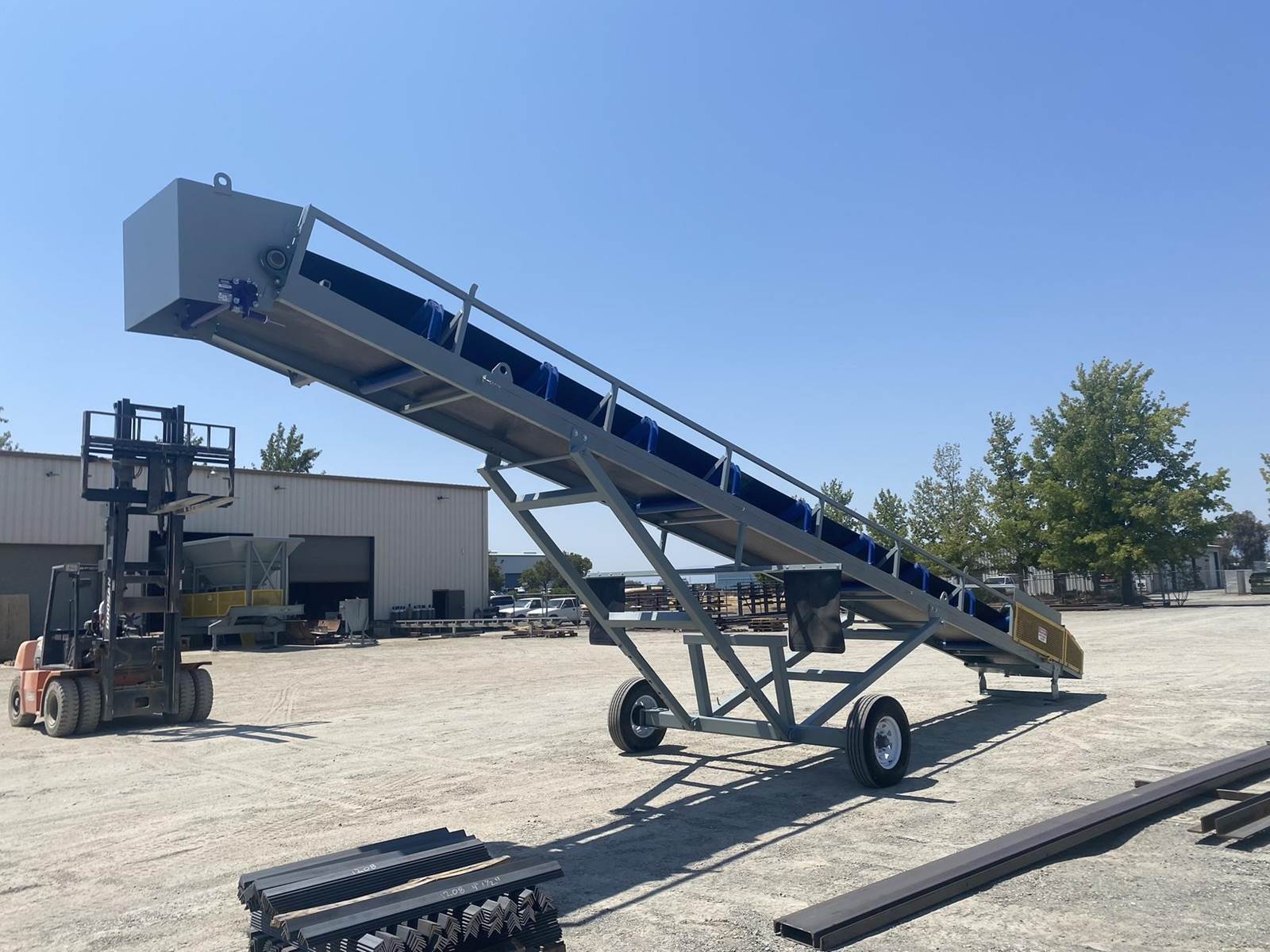

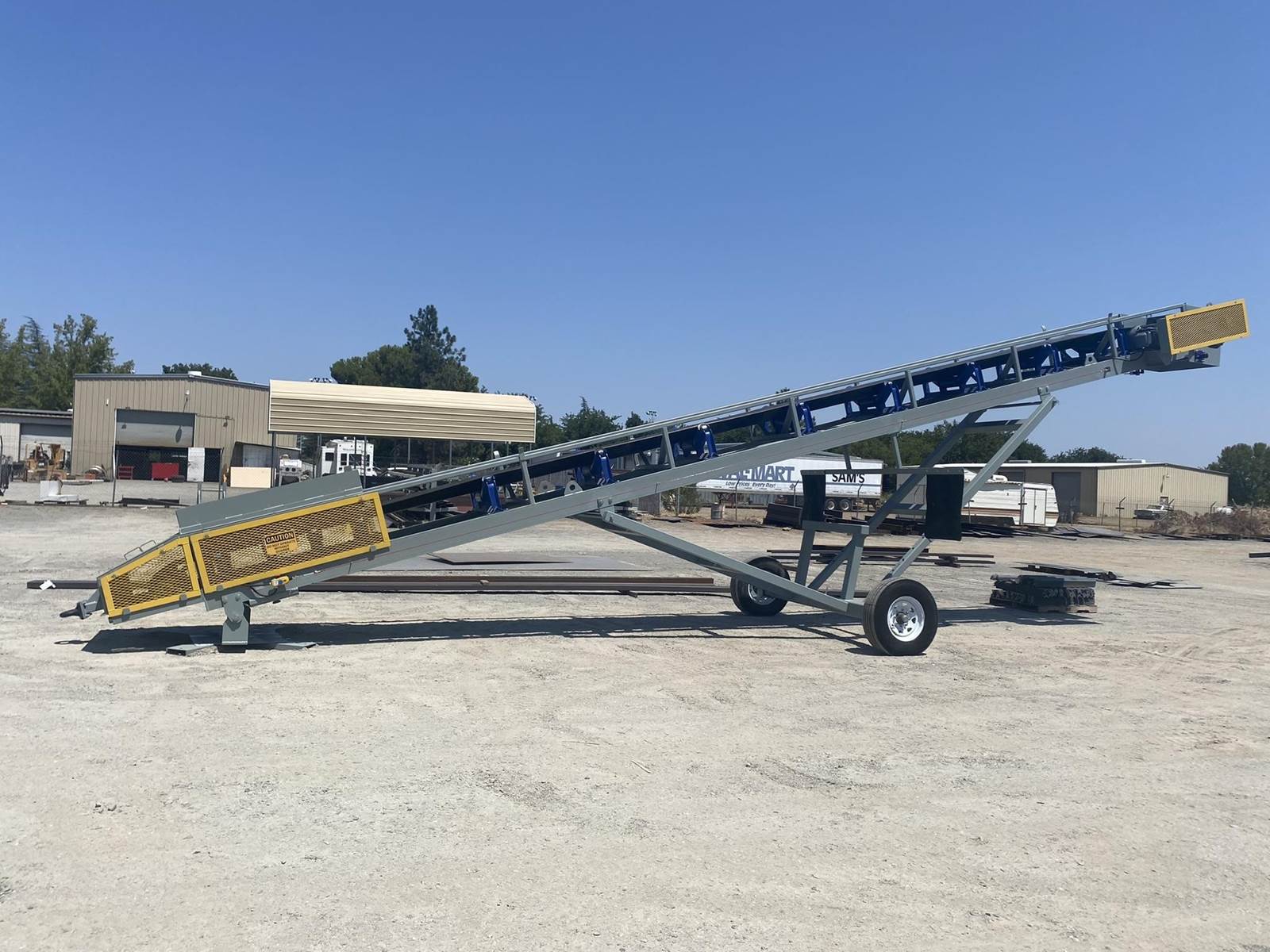

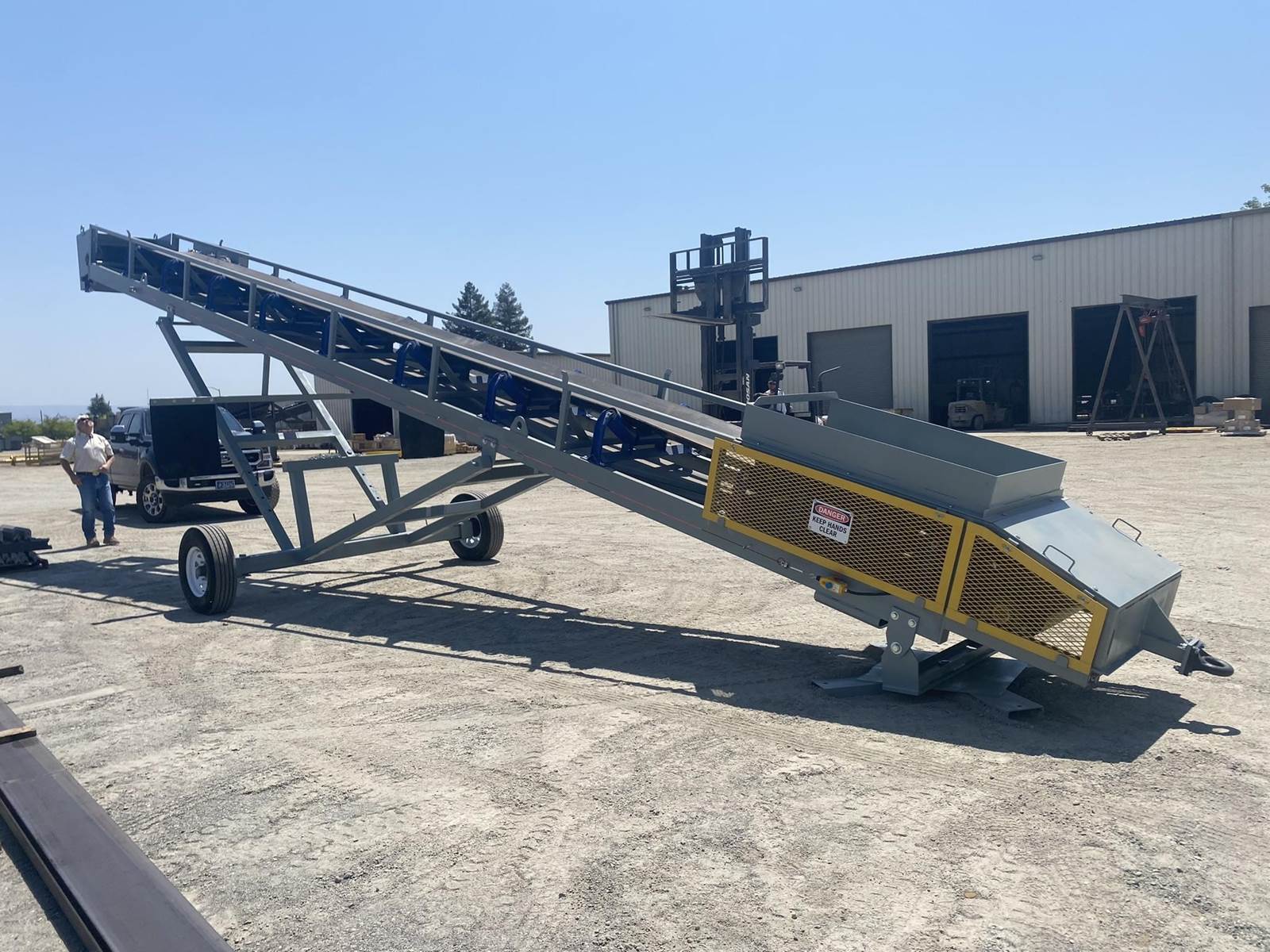

Rock Systems 30” wide x 40’ long radial stockpiling conveyor, model 502-3040, complete with 15 h.p. electric motor, v-belt drive with drive guard, Dodge shaft mount speed reducer with internal backstop, 14” diameter rubber lagged head pulley, belt scraper, 12” diameter self-cleaning tail pulley, screw take-up assemblies, Dodge SCM pillow block bearings, receiving hopper with skirtboards and bolt on wing extensions, tail terminal guard, stackable conveyor frame construction, CEMA “C” troughing and return idlers with 5” diameter steel rolls, 2 ply conveyor belting with 3/16” x 1/16” rubber covers and Flexco mechanical belt splice, adjustable height undercarriage with swivel wheels and pneumatic tires, pivot plate assembly, tow hitch. Electric motor control panel.
