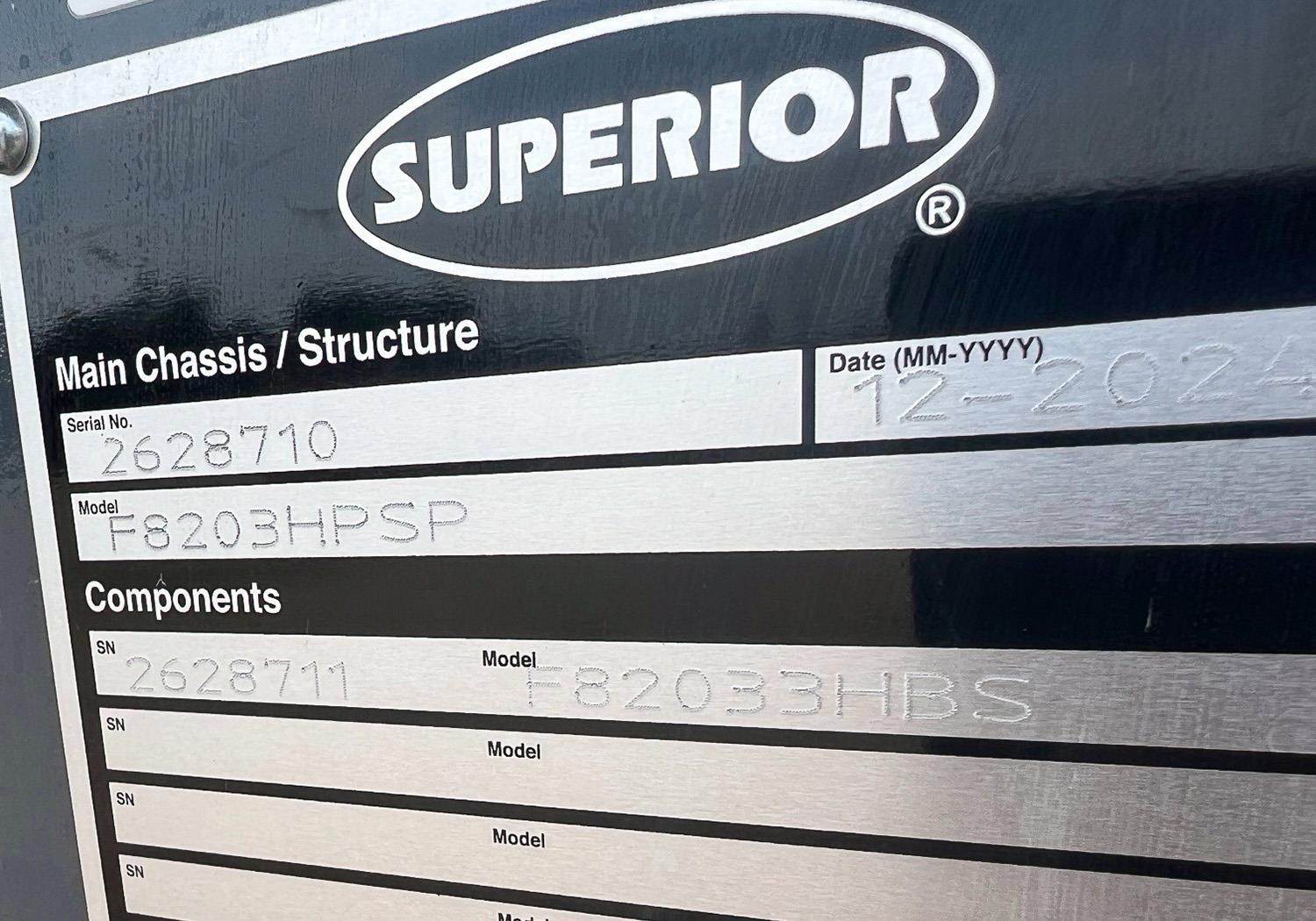

2024 Superior F82023HBS Screening Plant

Superior 8203 Guardian Horizontal Screen Portable Plant

PLANT SPECIFICATION:

- TRAVEL HEIGHT: 14'
- TRAVEL WIDTH: 12'-6
- CONSTRUCTION: MAIN FRAME CONSTRUCTED OF WIDE FLANGE STRUCTURAL BEAMS
- DISCHARGE CHUTE: MANUAL ROLLAWAY CHUTE CONSTRUCTED OF 1/4" AR 400
- RUBBER FLASHING: RUBBER FLASHING ON THE TOP DECK OVERS DISCHARGE CHUTE TO SLOW DISCHARGE VELOCITY OF MATERIAL, AND HELPS MITIGATE CROSS CONTAMINATION ON CROSS CONVEYORS IF APPLICABLE*
- BLENDING GATES: 1/4 PANEL BLENDING UP GATES IN DISCHARGE CHUTE SYSTEM*
- TOP DECK DISCHARGE: OVER THE KINGPIN OR BLENDS DOWN TO MIDDLE DECK CROSS CONVEYOR
- MIDDLE DECK DISCHARGE: TO MIDDLE DECK CROSS CONVEYOR OR BLEND UP TO MIDDLE DECK CROSS CONVEYOR
- BOTTOM DECK DISCHARGE: TO BOTTOM DECK CROSS CONVEYOR OR BLEND UP TO MIDDLE DECK CROSS CONVEYOR

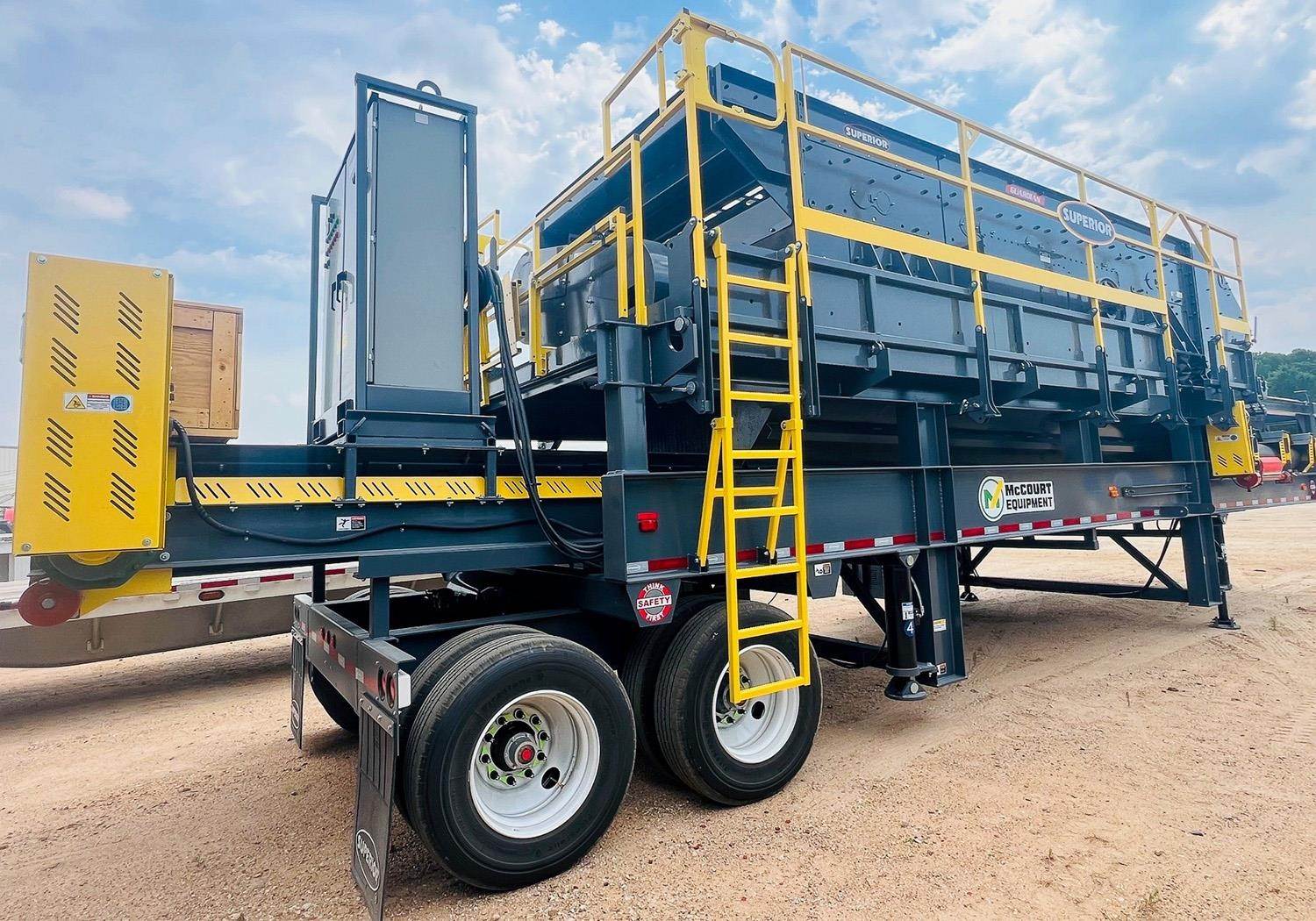

- WALKWAY: WALKWAY AROUND BOTH SIDES AND FEED END OF SCREEN; ENDS WHERE SCREEN MEETS DISCHARGE CHUTE, MANUALLY FOLDS BOTH SIDES
- WRAPAROUND: NOT INCLUDED
- HYDRAULIC FOLDING WALKWAY: NOT INCLUDED
- WALKWAY ACCESS: ACCESS TO BOTH SIDES OF CHASSIS WITH (2) VERTICAL SLIDING LADDERS
- ACCESS GATES: SELF CLOSING HINGED GATES AT ALL WALKWAY ACCESS POINTS
- HANDRAIL: WELDED SQUARE HANDRAIL WITH TOE KICKS
- GREASE PACKAGE: NOT INCLUDED
- TOOL BOX: NOT INCLUDED
- CORD HOLDERS: NOT INCLUDED
- TIEOFF: NOT INCLUDED
- CRIBBING STORAGE: NOT INCLUDED
- CENTERING HOPPER: NOT INCLUDED
- PAINT: STANDARD SUPERIOR PAINT; GRAPHITE GRAY WHOLE PLANT WITH YELLOW GUARDING AND HANDRAIL
- GUARDING: FOR ALL DRIVE AND TAIL PULLEYS, GUARDS MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING INSPECTED
- *HYDRAULIC LEVELING LEGS: HYDRAULIC LIFT-ONLY LEVELING LEGS WITH 9 HP POWER UNIT
- *CHUTE LINER: CHUTE CONSTRUCTED OF 1/4 STRUCTURAL STEEL WITH WELD IN 1/4" AR 400 LINER
- *SLIDING LADDER: VERTICAL SLIDING LADDER FOR ACCESS TO WALKWAY
- *SELF CLOSING HINGED GATE: SELF CLOSING HINGED GATES AT ALL WALKWAY ACCESS POINTS IN LIEU OF SAFETY CHAIN

CHASSIS SPECIFICATIONS:

- AXLE: TANDEM AXLE WITH (8) 11RX22.5 RADIAL TIRES
- SUSPENSION: SPRING SUSPENSION
- BRAKES: COMPLETE AIR BRAKE PACKAGE
- FIFTH WHEEL: INCLUDED
- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- MUD FLAPS: INSTALLED BEHIND TRANSPORT WHEELS
- CRIBBING LEGS: (4) FIXED STRUCTURAL STEEL CRIBBING LEGS
- LANDING GEAR: HYDRAULIC LIFT-ONLY LEVELING LEGS WITH 9 HP HONDA POWER UNIT
- TOW EYE: NOT INCLUDED

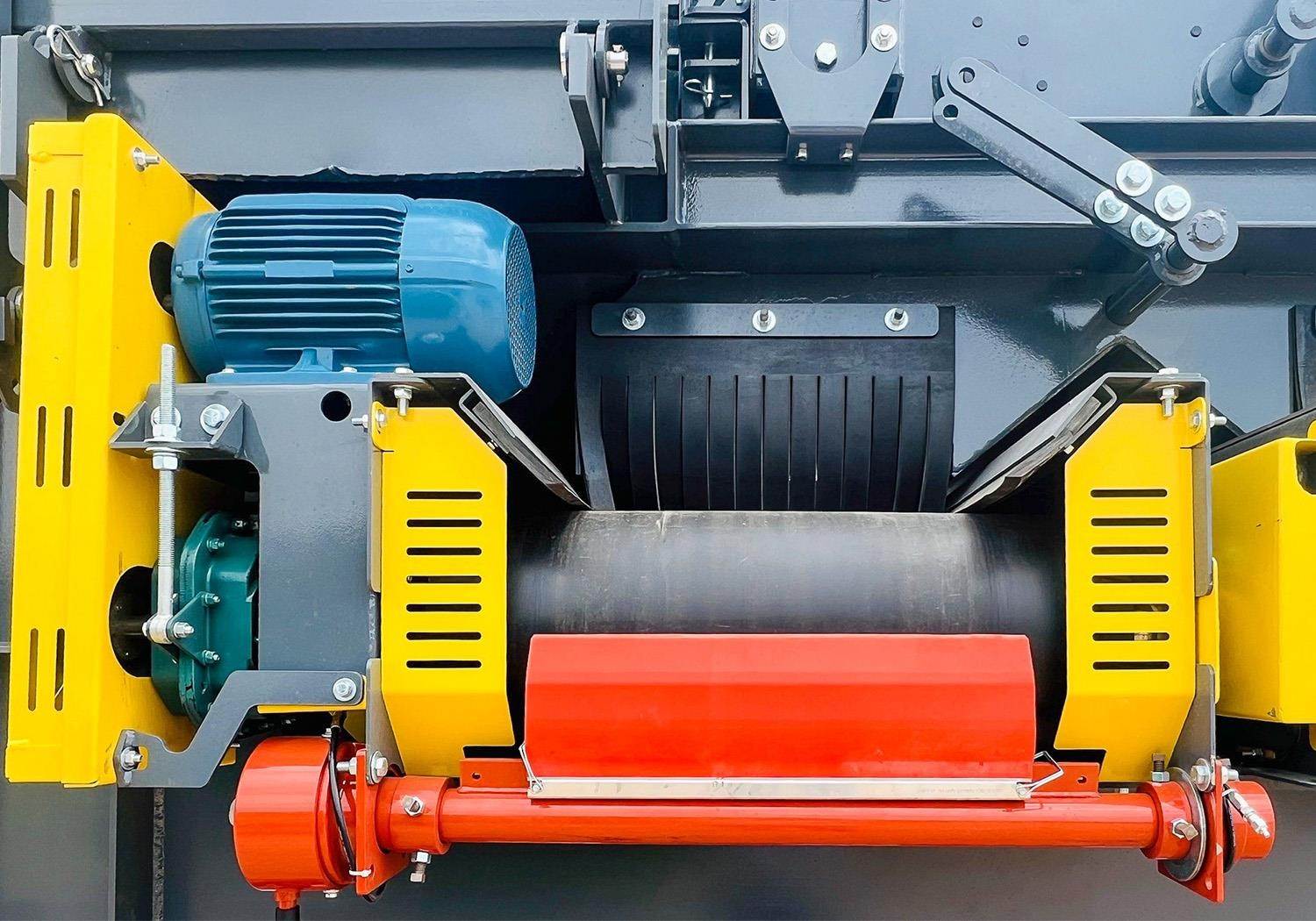

FINES HOPPER AND CONVEYOR

- HOPPER CONSTRUCTION: ¼” AR PLATE STEEL SIDES
- FINES HOPPER LINER: NOT INCLUDED
- GATHERING TROUGH: FULL LENGTH WITH ADJUSTABLE RUBBER FLASHING
- CONVEYOR SIZE: 60" WIDE FINES DISCHARGE CONVEYOR
- CONVEYOR CONSTRUCTION: STRUCTURAL STEEL CHANNEL MAIN FRAME
- DRIVE: CLASS II HEAD END
- GEAR REDUCER: SHAFT MOUNT
- MOTOR: 15 HP TEFC
- DRIVE PULLEY: 12" DIAMETER, 3/8" HERRINGBONE LAGGED MD DRUM
- TAIL PULLEY: 12" DIAMETER, CEMA CHEVRON® WING PULLEY
- BEARINGS: CLASS II, 60,000 L10 LIFE
- IDLERS: CEMA C, 5" DIA. ROLLS, SEALED FOR LIFE BALL BEARINGS
- RETURNS: CEMA C, 5" DIA. STEEL ROLLS ON 10' SPACING
- BELTING: 3 PLY 3/16 X 1X16 330 PIW
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICE
- SEAL SYSTEM: NOT INCLUDED

CROSS CONVEYOR SPECIFICATIONS

- CROSS CONVEYORS: (2) 30" X 12' LONG SLIDE-IN REVERSING CROSS CONVEYORS*
- DRIVE: CLASS I HEAD END
- GEAR REDUCER: SHAFT MOUNT
- MOTOR: 7.5 HP MOTOR(S) TEFC
- DRIVE PULLEY: 10" DIAMETER, 3/8" DIAMOND LAGGED MD CROWN FACED DRUM
- TAIL PULLEY: 10" DIAMETER CEMA WING PULLEY
- TAKE UP: SCREW TYPE
- BEARINGS: NOT APPLICABLE
- IDLERS: CEMA C, 5" DIA. ROLLS, SEALED FOR LIFE BALL BEARINGS, 20*
- BELTING: 3 PLY 3/16 X 1/16 330 PIW
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICE(S)
- BELT SCRAPER: (1) SUPERIOR CLICK TENSIONING EXTERRA PRIMARY BELT SCRAPER*
- SEAL SYSTEM: NOT APPLICABLE

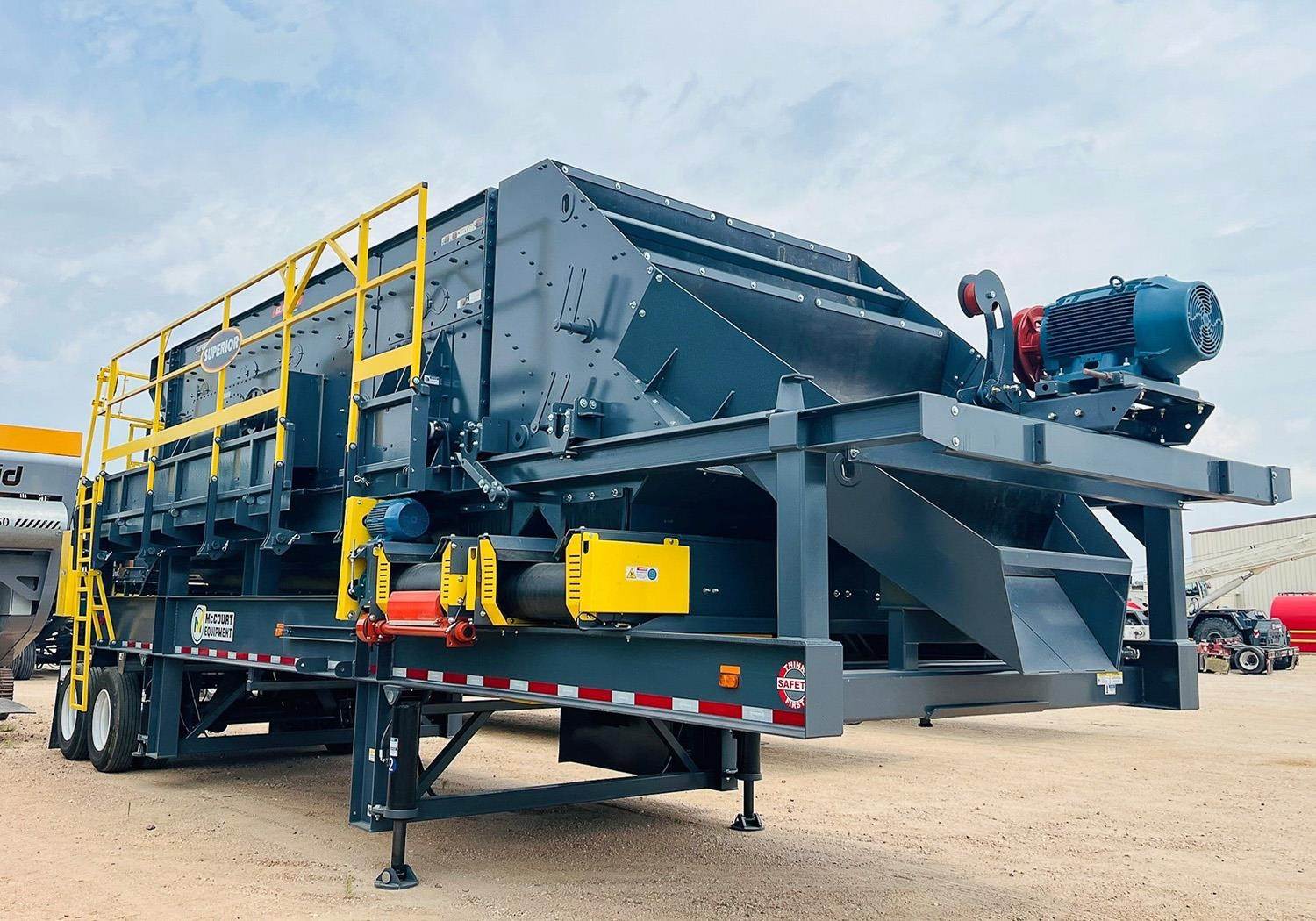

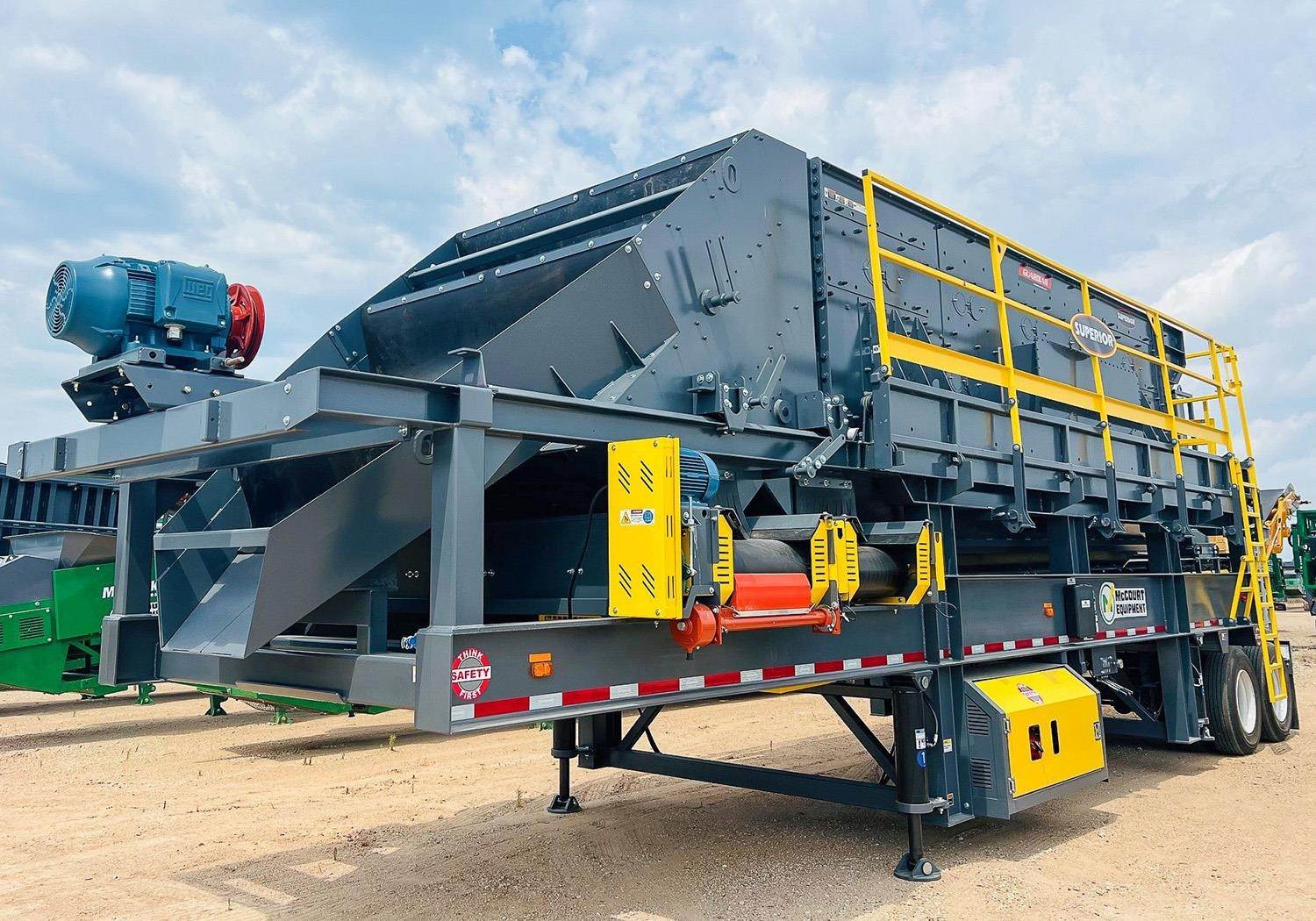

SCREEN SPECIFICATIONS

- SCREEN SIZE: GUARDIAN 8X20 3-DECK HORIZONTAL SCREEN
- SCREEN DRIVE: RIGHT HAND
- CONFIGURATION: OPERATE IN TRUE HORIZONTAL POSITION
- SCREEN MOTOR: 1200 RPM 50 HP, TEFC, HI TORQUE WITH MINIMUM 200% LRT
- FOLDING MOTOR: NOT INCLUDED MUST BE REMOVED FOR TRANSPORT
- SHAFT HOUSING PROTECTION: MILD STEEL PROTECTION CLAMPED TO SHAFT HOUSING
- SPRINGS: STANDARD COIL SPRINGS
- FEEDBOX: 24” FEEDBOX WITH ¼” AR LINERS
- SCREEN PAINT COLOR: GRAPHITE GRAY
- DRIVE GUARD PAINT COLOR: GRAPHITE GRAY

TOP DECK

- TOP DECK TYPE: HEAVY X-BRACE SINGLE CROWN DECK TO ACCOMMODATE 4’ SINGLE CROWN WIRE CLOTH MEDIA SECTIONS
- TOP DECK SCREEN MEDIA: SUPPLIED AND INSTALLED BY CUSTOMER
- TOP DECK TAKE UP: STANDARD TAKE UP RAILS
- TOP CROSS MEMBER PROTECTORS: NOT INCLUDED

MIDDLE DECK

- MIDDLE DECK TYPE: HEAVY X-BRACE SINGLE CROWN DECK TO ACCOMMODATE 4’ SINGLE CROWN WIRE CLOTH MEDIA SECTIONS
- MIDDLE DECK SCREEN MEDIA: SUPPLIED AND INSTALLED BY CUSTOMER
- MIDDLE DECK TAKE UP: STANDARD TAKE UP RAILS
- MIDDLE CROSS MEMBER PROTECTORS: NOT INCLUDED

BOTTOM DECK

- BOTTOM DECK TYPE: HEAVY X-BRACE SINGLE CROWN DECK TO ACCOMMODATE 4’ SINGLE CROWN WIRE CLOTH MEDIA SECTIONS
- BOTTOM DECK SCREEN MEDIA: SUPPLIED AND INSTALLED BY CUSTOMER
- BOTTOM DECK TAKE UP: STANDARD TAKE UP RAILS
- BOTTOM CROSS MEMBER PROTECTORS: NOT INCLUDED

ELECTRICAL SPECIFICATIONS

- VOLTAGE: 460 V / 3 PH / 60 HZ - 1800RPM
- CONTROL VOLTAGE: 120 VAC
- PANEL STAND: DEFINE DIMENSIONS
- PANEL SUN SHADE: NOT INCLUDED
- CONTROL PANEL: SKID MOUNTED PANEL, WITH LIFTING EYES. TRAVELS ON PLANT AND REMOVED FOR OPERATION. INCLUDES STARTERS FOR ALL ON-BOARD MOTORS AND (2) ADDITIONAL #2 STARTERS AND NEMA RATED COMPONENTS. PANEL IS WIRED TO ALL ON PLANT MOTORS. CUSTOMER RESPONSIBLE TO BRING POWER TO AND WIRE IN POWER CABLE.*
