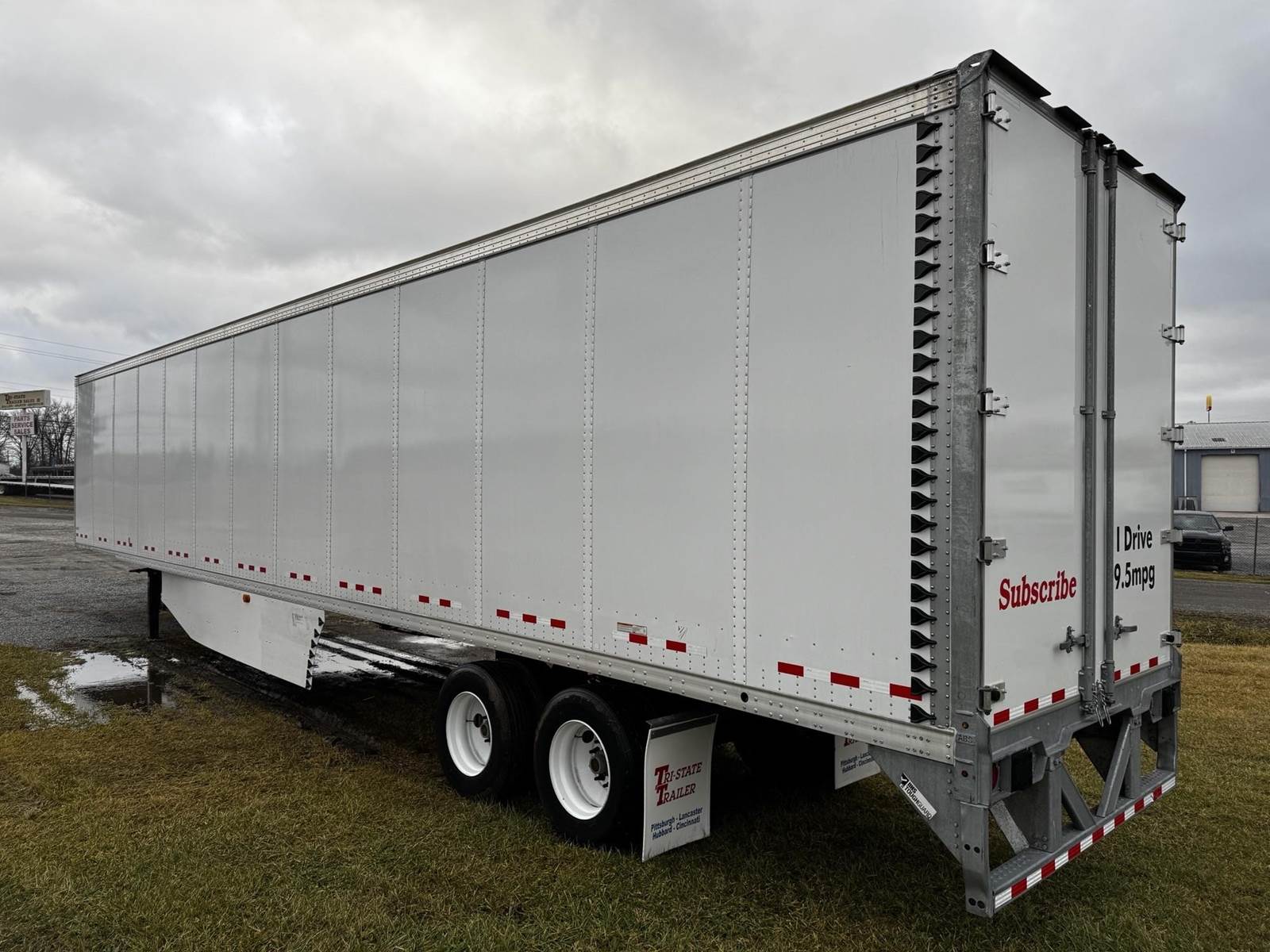

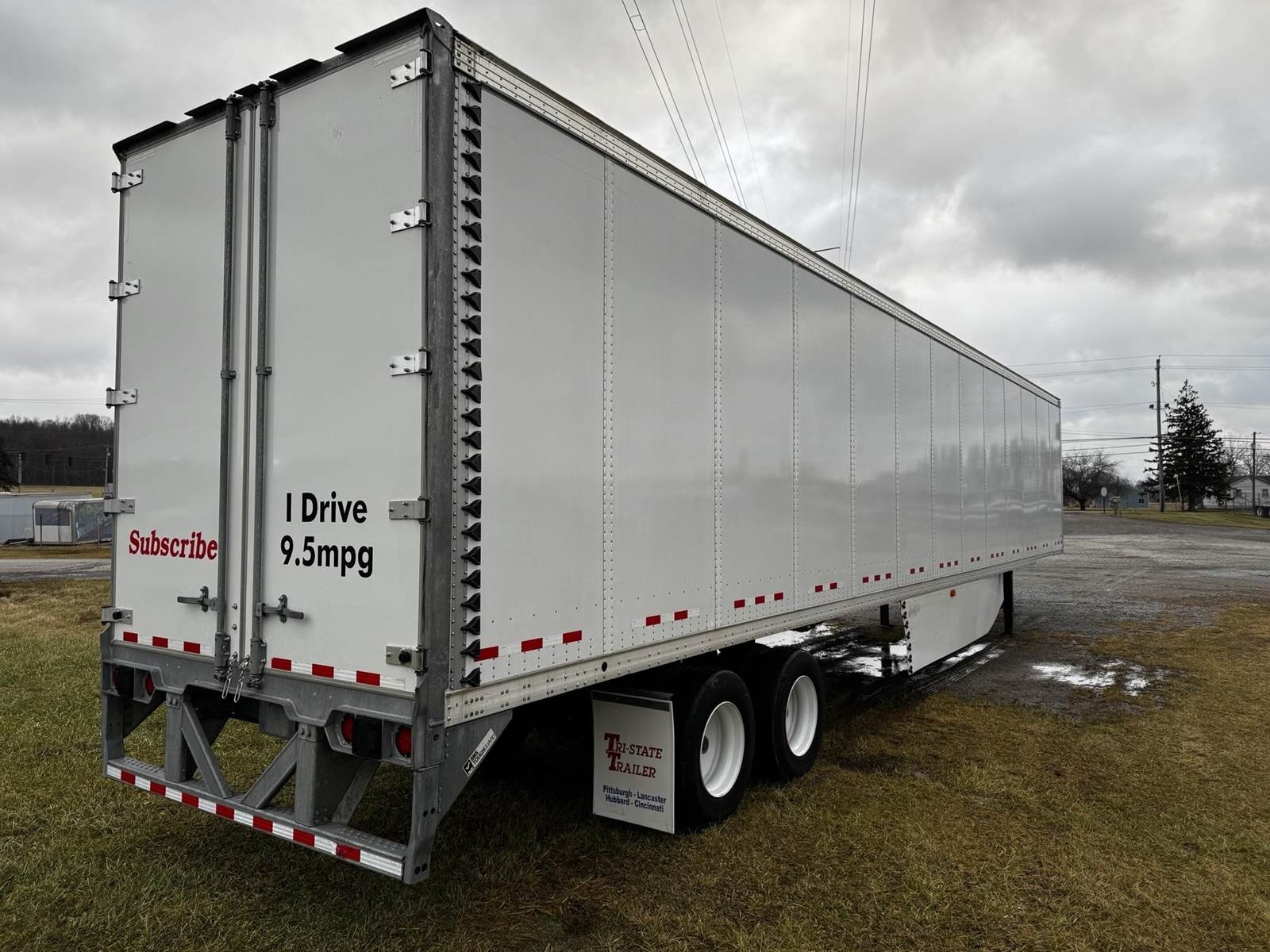

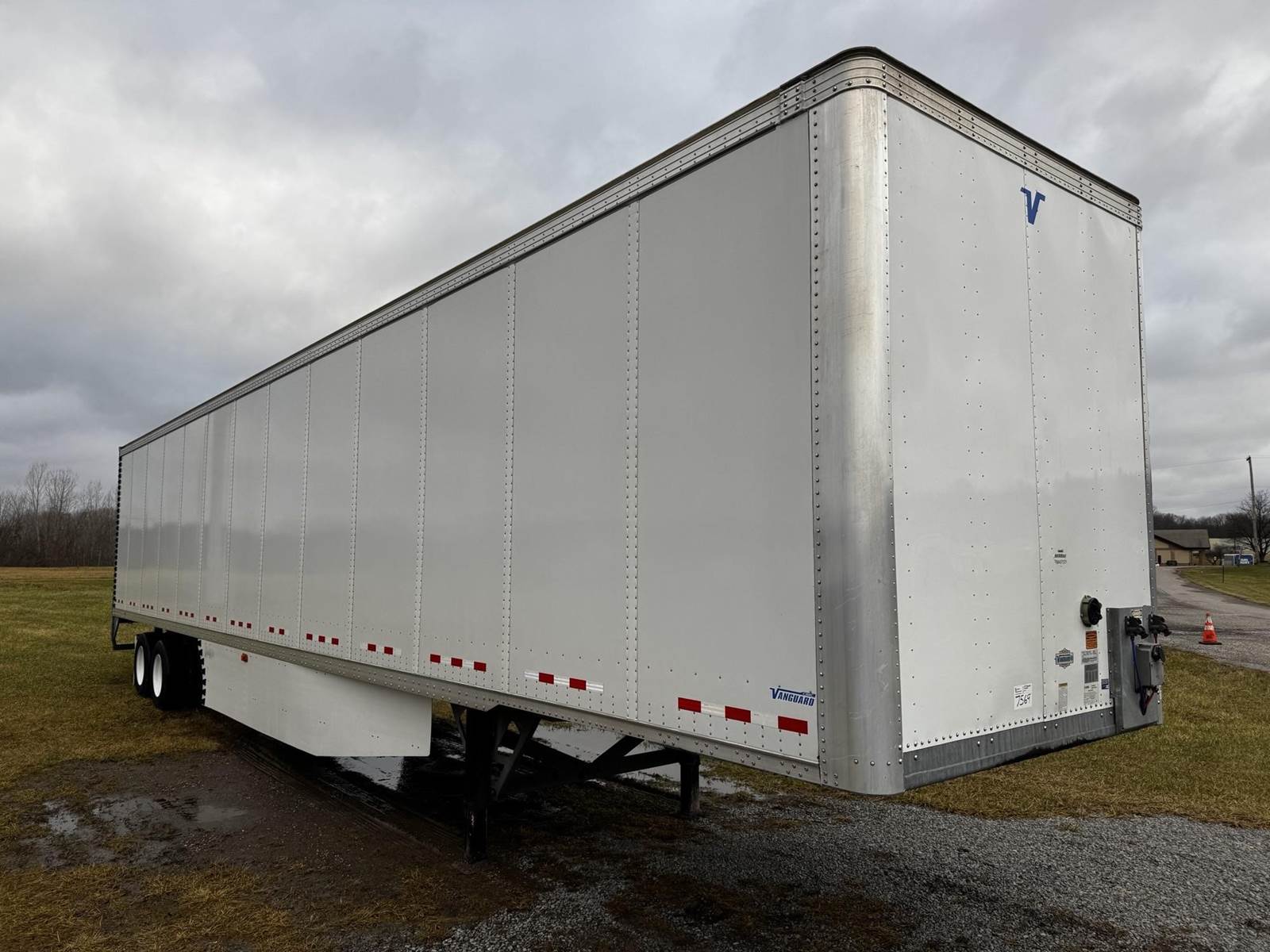

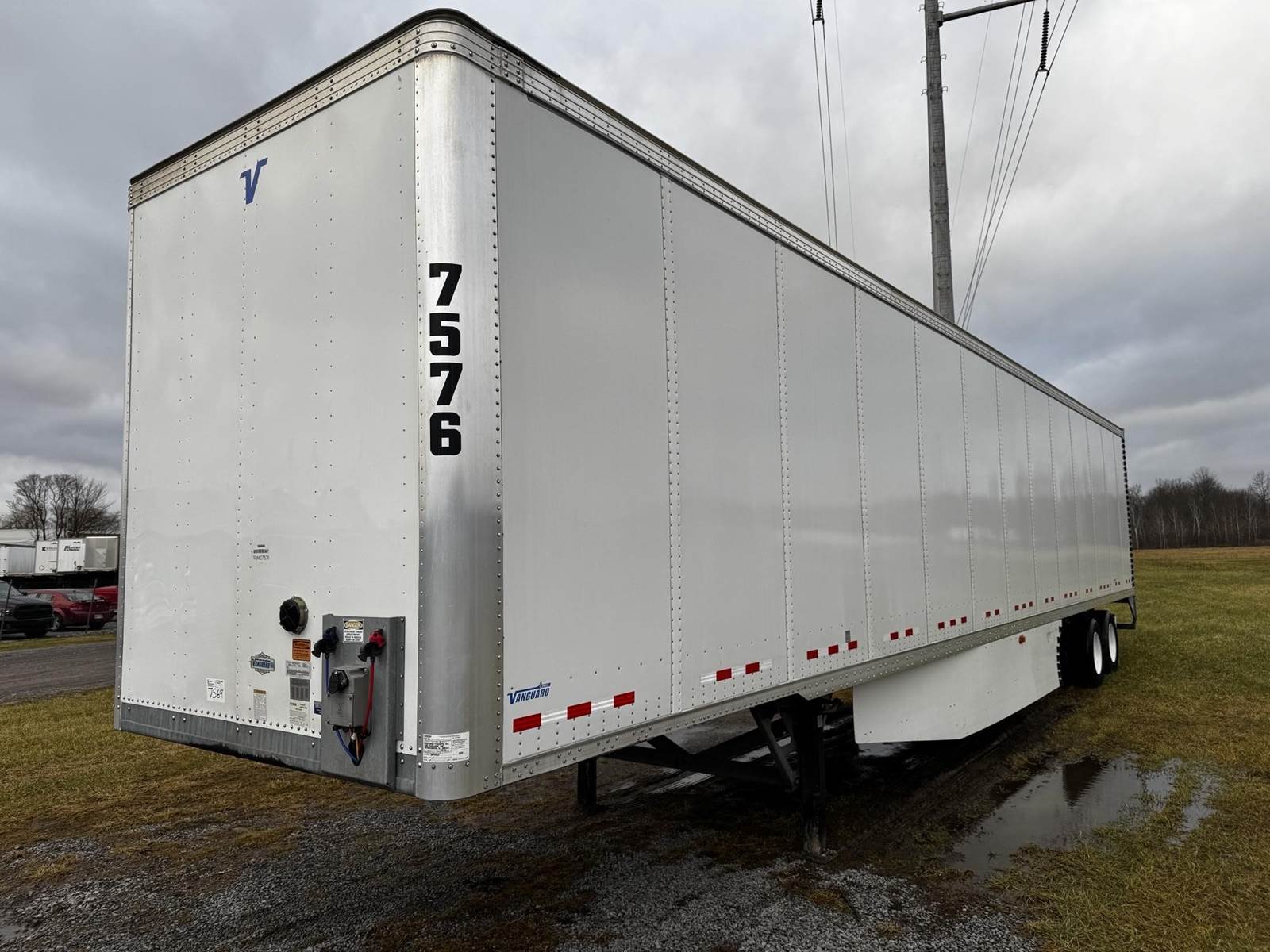

2024 Vanguard VXP 53 ft Dry Van Trailer - Swing Door, Air Ride, Sliding Axle

Length 53'
Width 102"
Height 13' 6"
Inspection Out
Unit Description Plate Van
Body

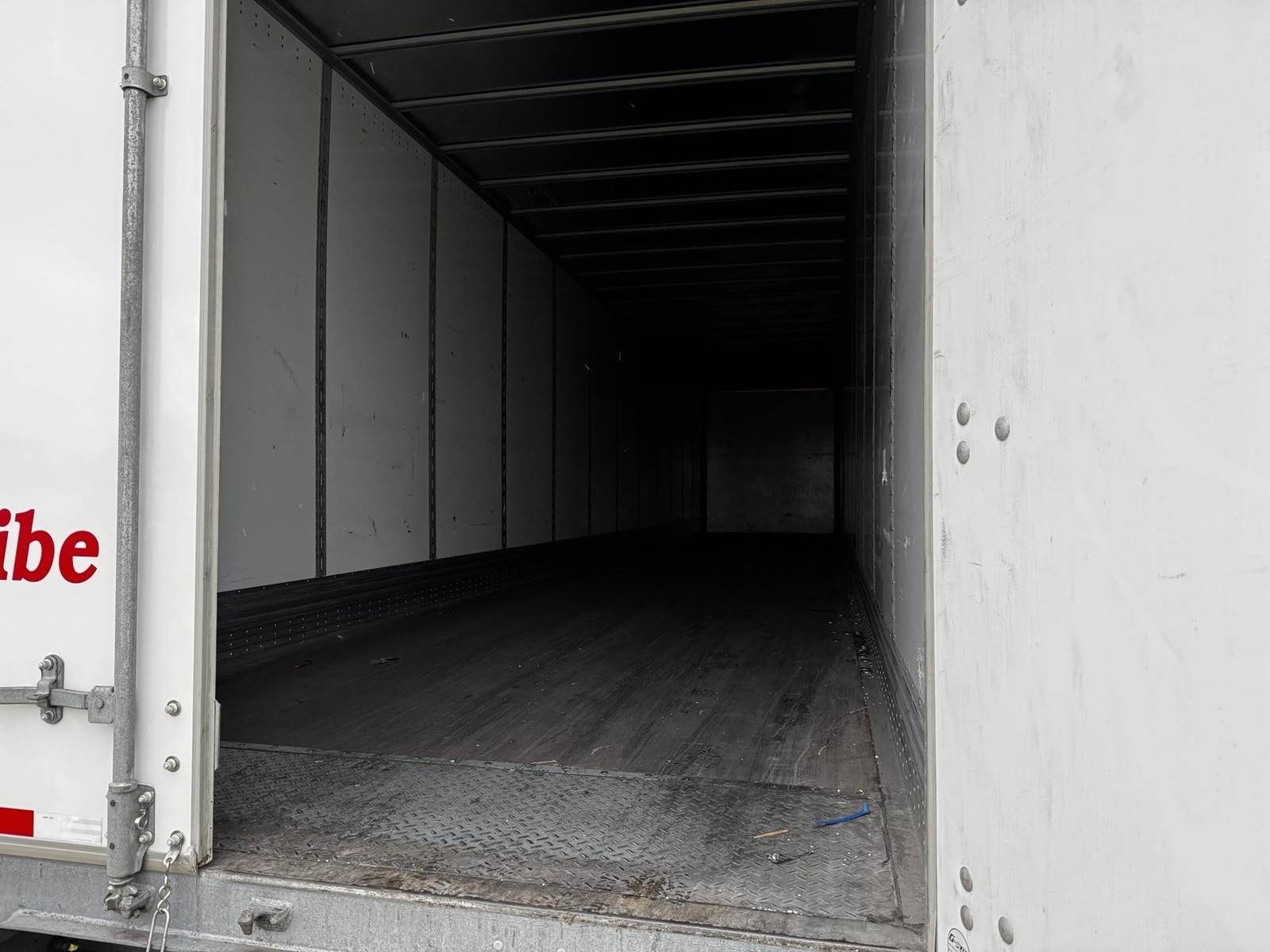

Inside Width 101" Scuff to Scuff (101-1/4" Panel to Panel)
Inside Height 110"
Door Opening 110" Tall, 99" Wide
Sides .313 Composite Plate (10 year warranty)
Color White
Type Posts Series "A" logistics posts
Post Spacing 48"
Side Scuff 6" Corr. Steel above Integral Alum, 12" Total
Side Lining Plate
Nose Lining .180" Ridge OGRE Full Height
Internal Bulkhead 10 ga x 12" Smooth Steel
Rear Doors 1/2" Composite PPW Galvanized Panels
Hinges Five per Door
Roof Aluminum
Roof Bows 1" Deep Galvanized Anti-Snag on 16"/24"
Rear Frame GALVANIZED
Bumper GALVANIZED, Reinforced for Dock-Lock
Rubber Dock Bumpers One Pair Recessed Between Lights
Floor/Body
Van Floor 1 3/8" Oak with Three 5/16" Screws per Board
Threshold Plate 27" Galvanized Steel
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson HKANT40K, SureLok & QuikDraw
Suspension Setting 49" Sliding Tandem, 216" Slide Rails
Tire Size 295/75R22.5
Wheels Steel, Powder Coated White
Tire % All 60%
Brake % Both 75%
UnderFrame
King Pin Setting 36"
Cross Member Center 12"


Landing Gear Jost, Two-Speed
