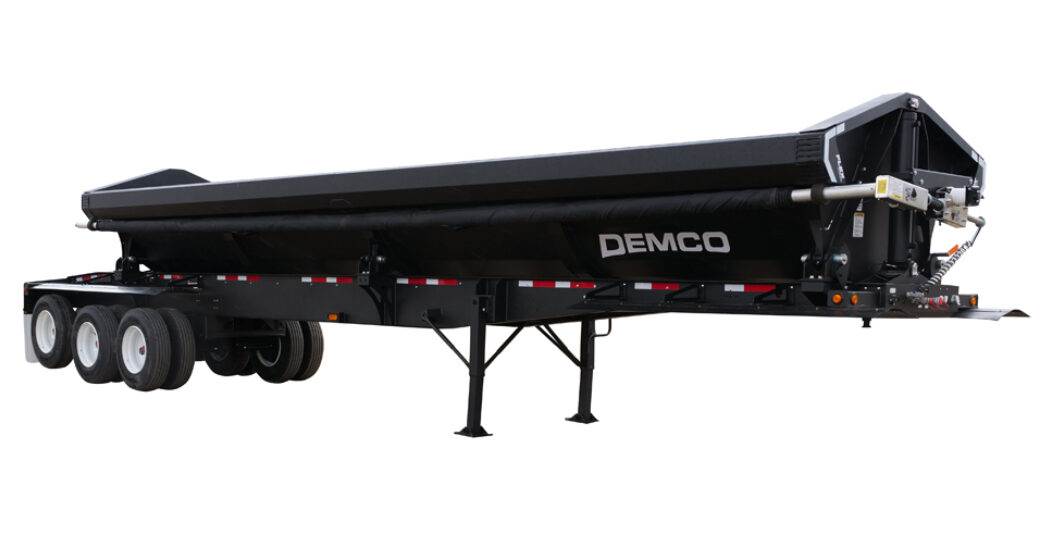

Demco 42' Side Dump Trailer Model 9CCR423AR3424
SPECIFICATIONS
Suspension Type Air Ride: SAF Holland CBX23-245 Air Suspension with Integrated Axles
Spring Ride: 3-leaf heavy duty SAF Holland spring suspension
23K Axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims,
1/4" AR450 Steel with trademarked FlexCorner® Design
FEATURES
Low center of gravity for stability
Massive Single G-Rail
Six Integrated Tub Pivot Points with Greaseless Pivot Bearings
Single Sided Dump Change
Quick Left to Right Dump Change
Dump Direction Indicators
20" Deep I-beam Chassis Frame
Rounded Vee Dump Body Design
EdgeFlex Fenders
Bolt-On UnderRide
Large Body Side Stiffener, Maintain 102" Loaded
20 Sec. Dump Time (30 Sec. Cycle) @33 GPM Hydraulic Flow

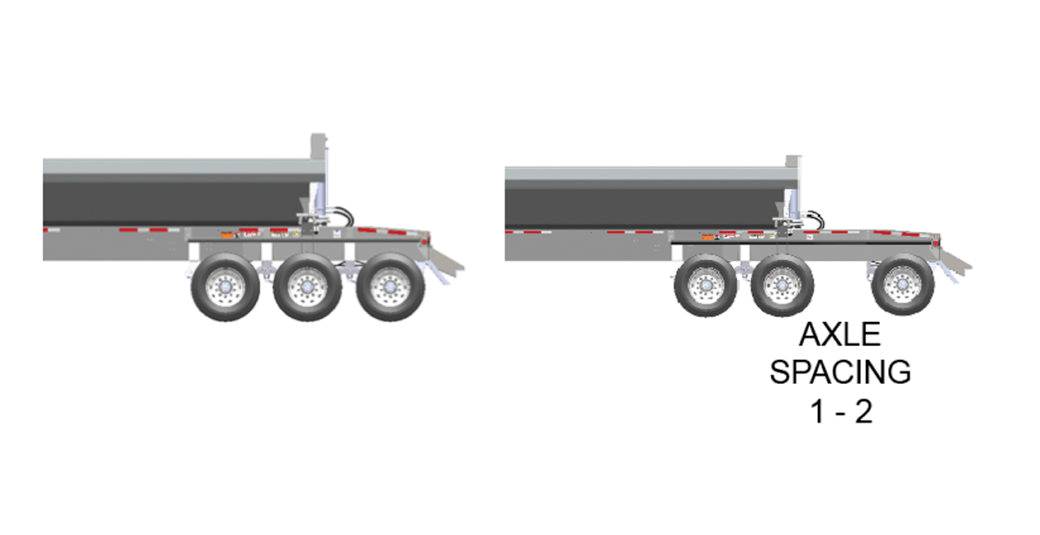

77-1/2" Track w/ABS on one Axle (23K#)
LED Lighting
------------------
OPTIONS
6” Dia. Dump Cylinder 62K# Payload @2250 psi
¼” FLX-500 Tub with Original FlexCorner Design
Black, White, Yellow, or Custom Paint Color
ABS Installed on 2nd Axle
Lead Trailer Pintle Hook
Air Weigh Scale Kit
Bolt-On Extended Push Block
TIRE & RIM OPTIONS
11R 22.5 LRH Domestic Radial Tires or Import Radial Tires *
385/65R 22.5 LRJ Domestic Radial Tires or Import Radial Tires *
All Polished Aluminum Rims *
Outside Polished Aluminum Rims, Inside Steel Rims *
TARP OPTIONS
Black Mesh Tarp (Roll-Rite or Aero)
Tarp Lock-Out Kit (with Electric over Hydraulics ONLY)
Product Manual P/N 8C000302
