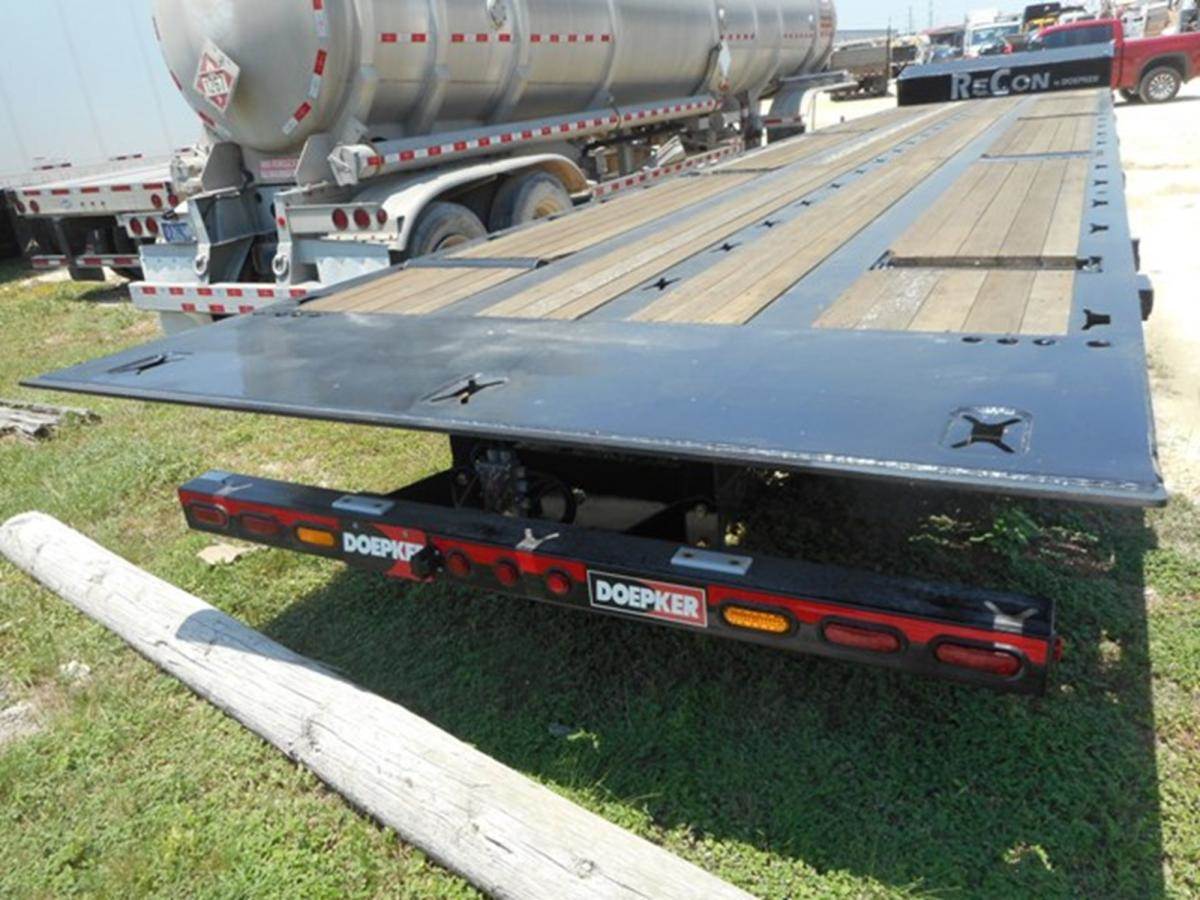

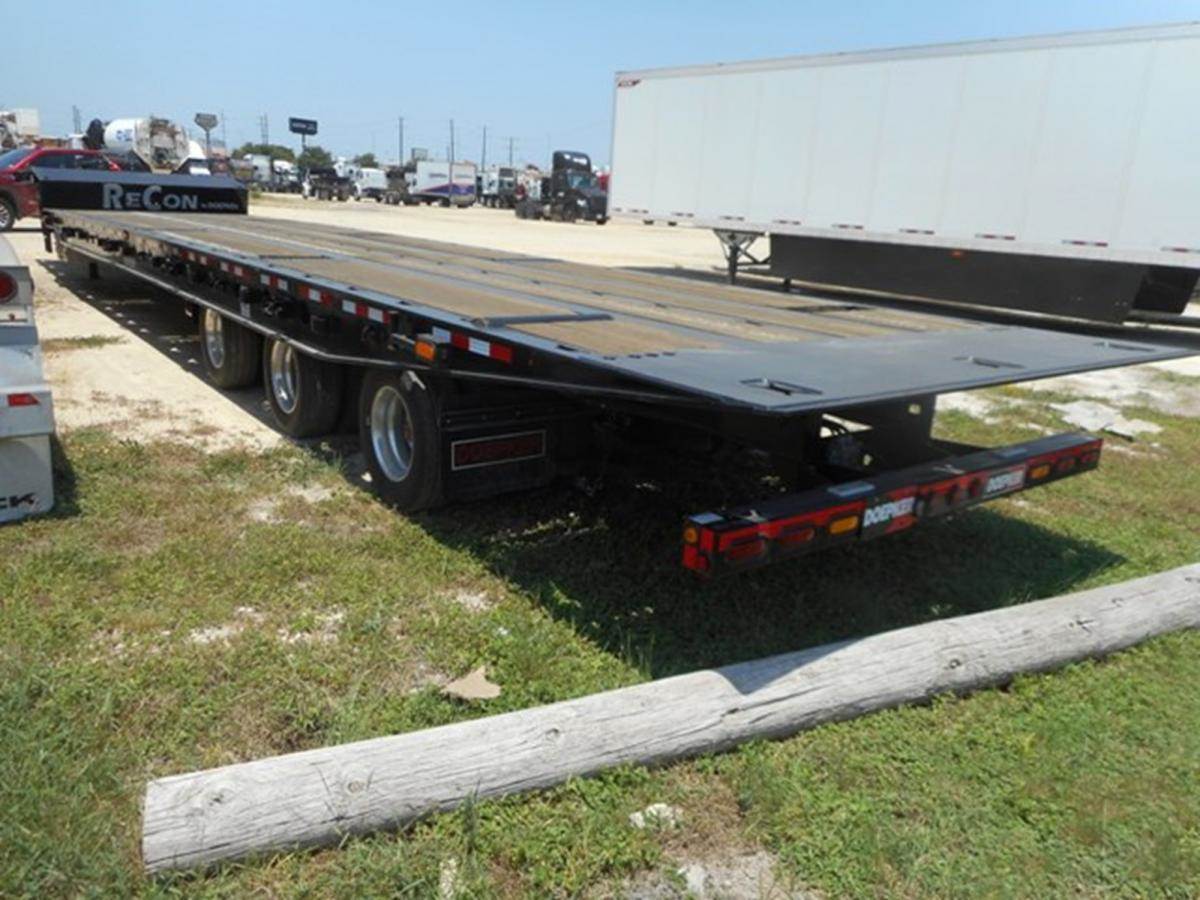

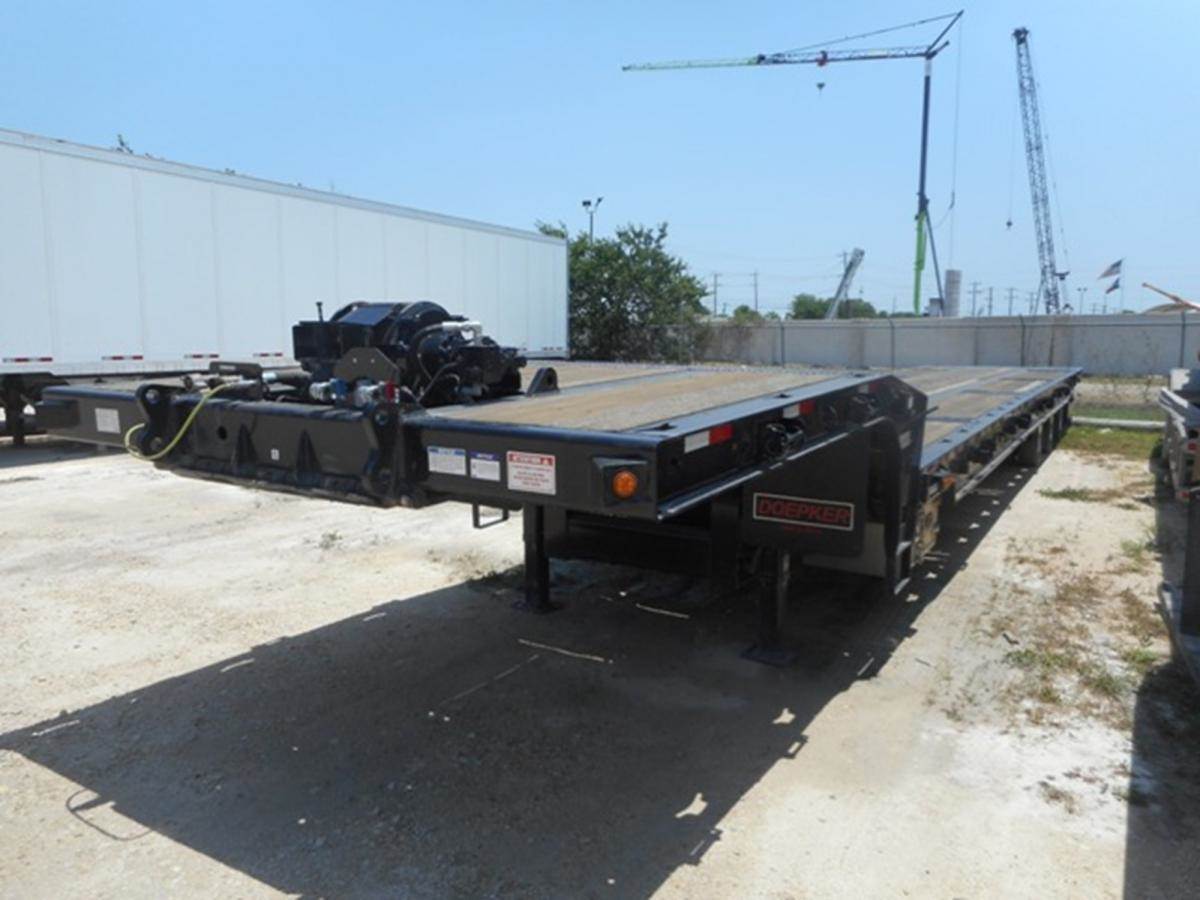

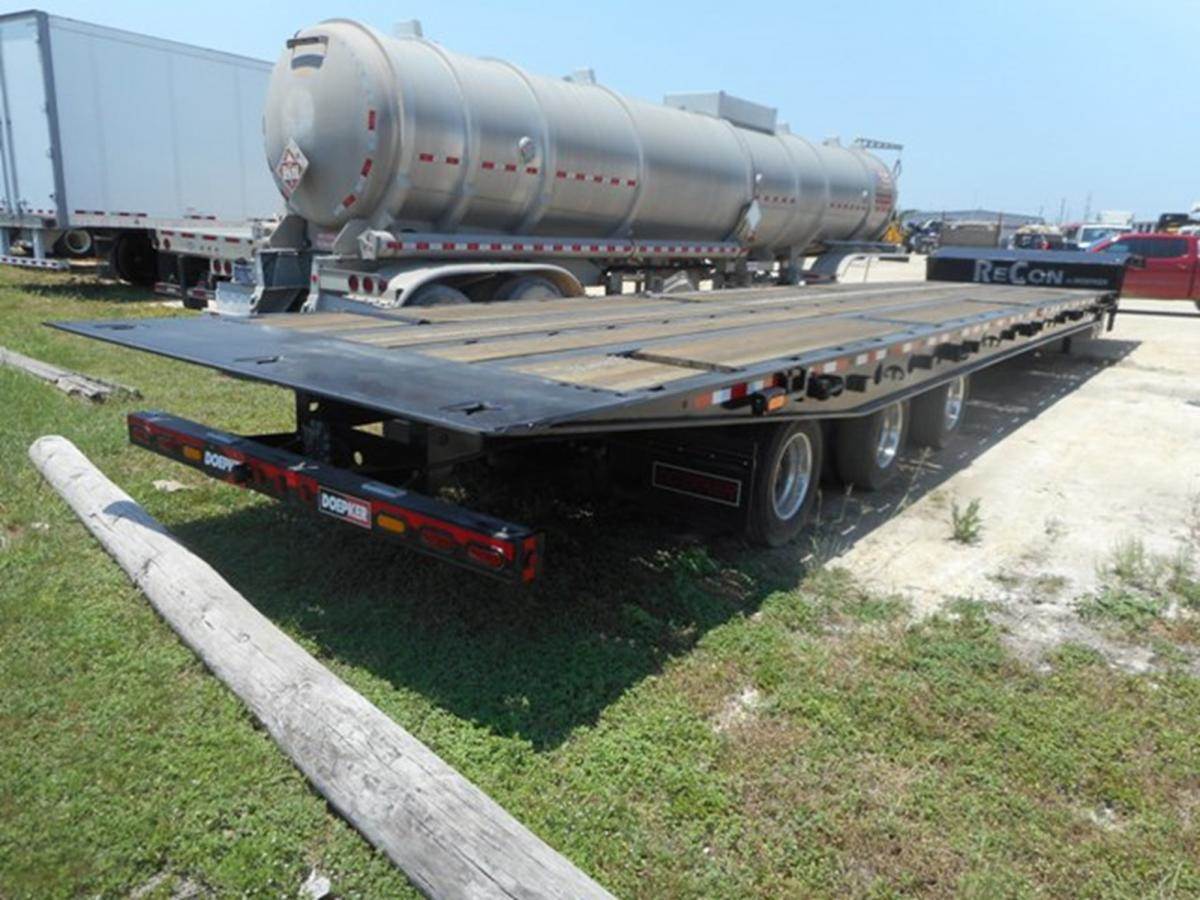

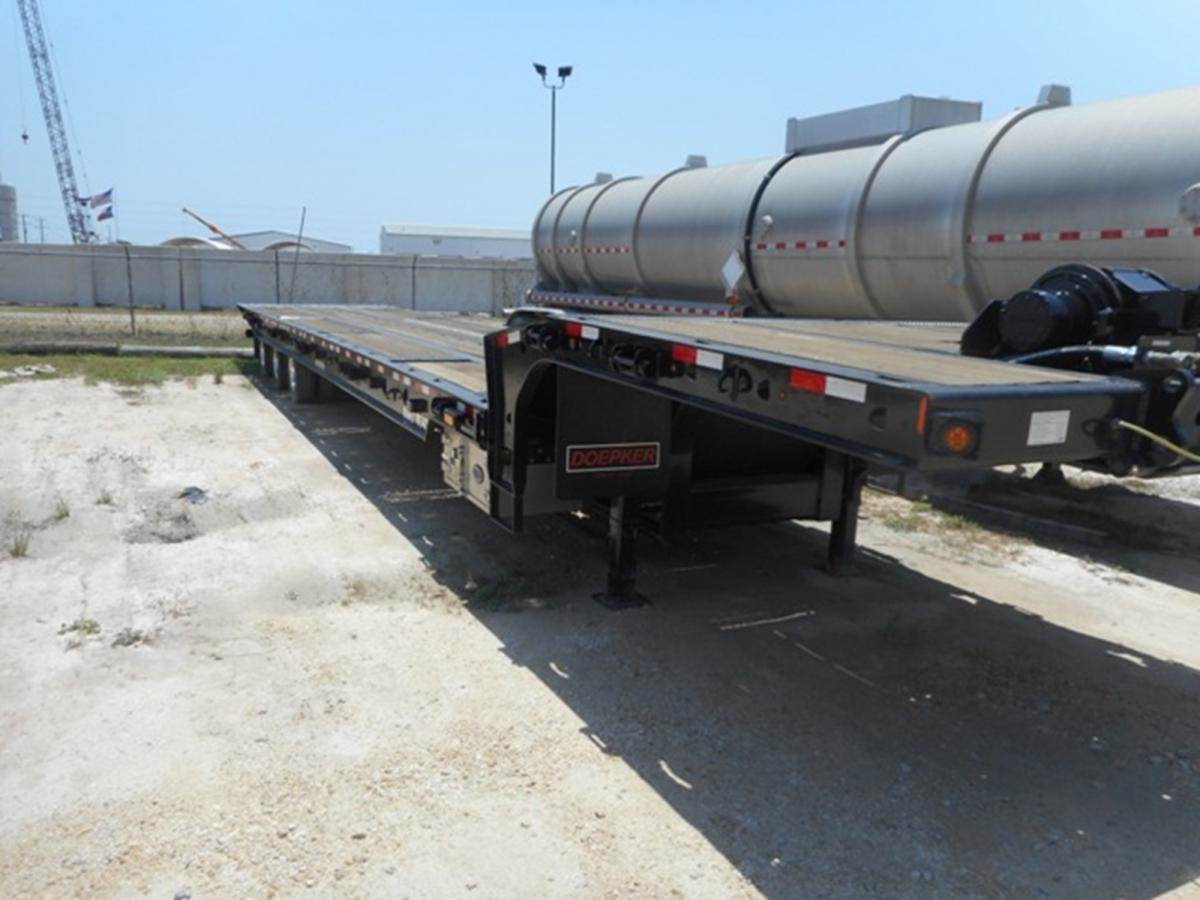

2025 Doepker Traveling Axle Trailer - Air Ride

- Concentrated Load (lower deck): 40 Ton over 15', 35 Ton over 10'

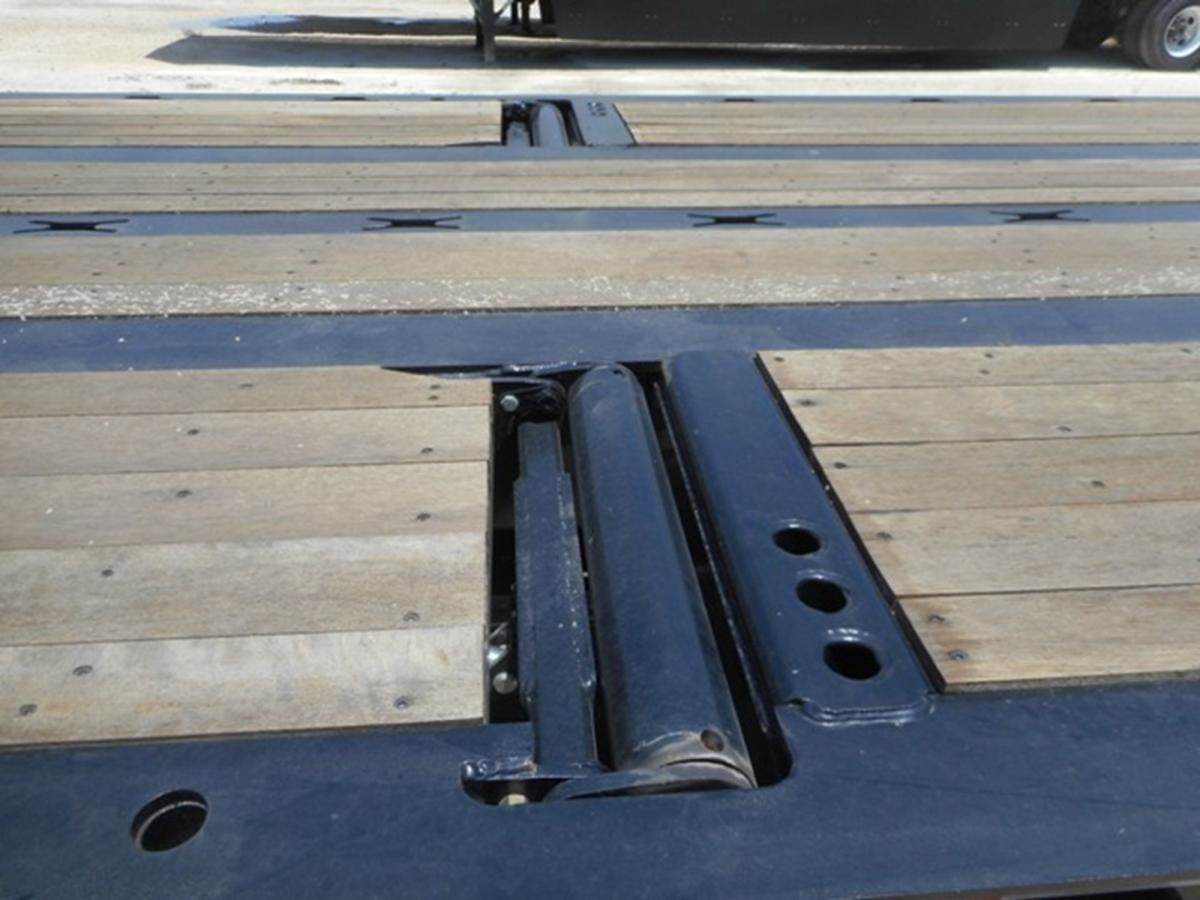

- Hydraulic Roller Option, Lift Capacity: approx. 14,700lb per roller at 2,500 psi cylinder pressure
- 7 degree loading angle, 13 degree max tilt angle based on 8'6" wide model, 60" spread on 245/70R17.5 tires
- 7.5 degree loading angle, 13 degree max tilt angle based on 8'6" wide model, 72" spread on 245/70R17.5 tires
- 7 degree loading angle, 14 degree max tilt angle based on 9' and 10' wide models, 60" spread on 245/70R17.5 tires
- 8 degree loading angle, 14 degree max tilt angle based on 9' and 10' wide models, 60" spread on 255/70R22.5 tires
- Hinge down upper coupler plate operated with air operated lock pin
- Live roll at rear of gooseneck and at front of main deck

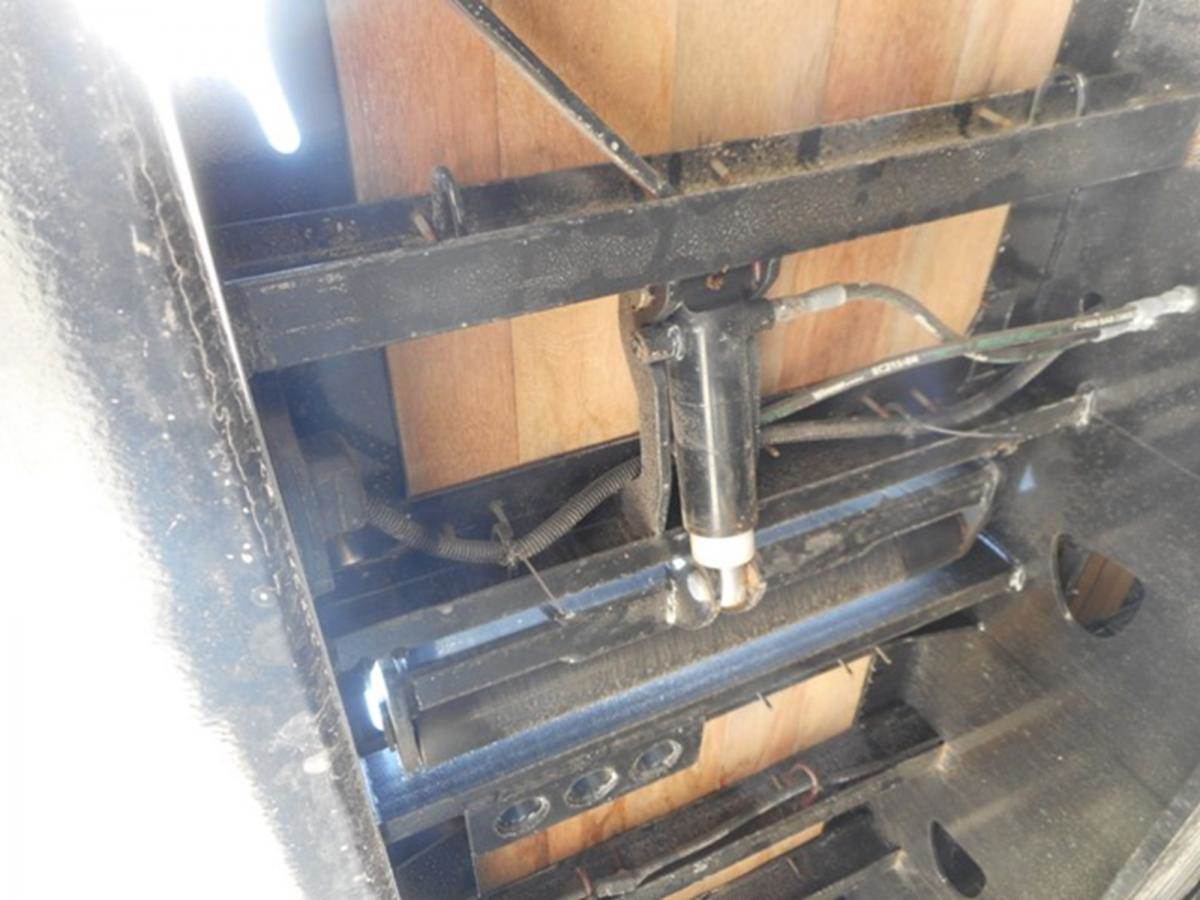

- Heavy Duty 6" bore x 3" rod x 190" stroke cylinder designed to be fully closed when trailer in transport position
