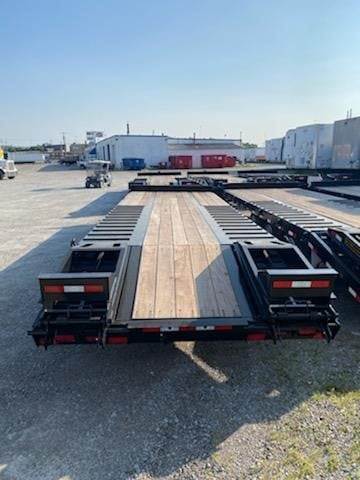

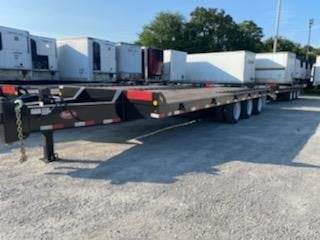

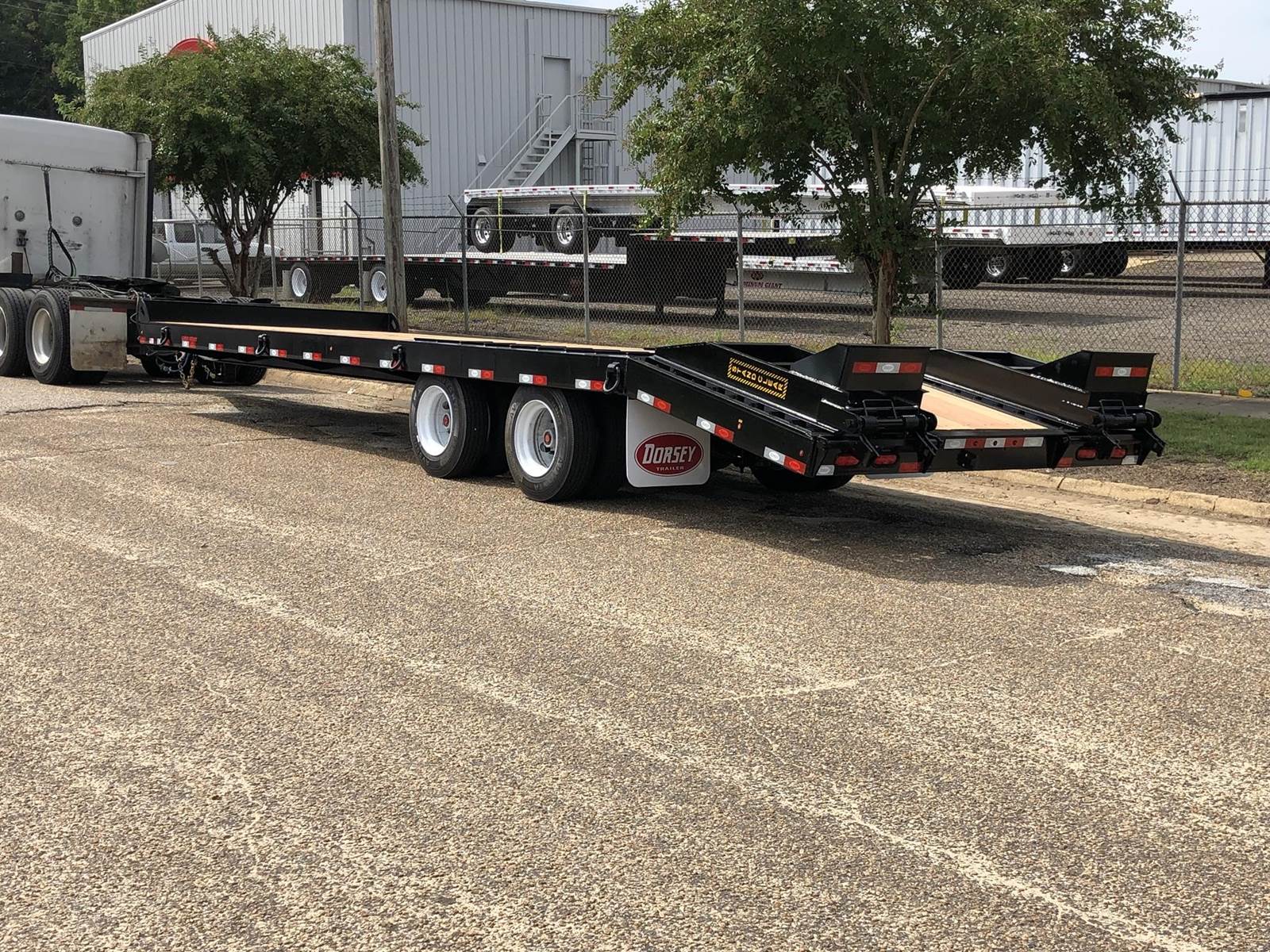

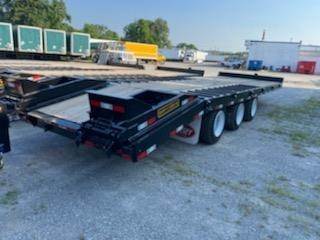

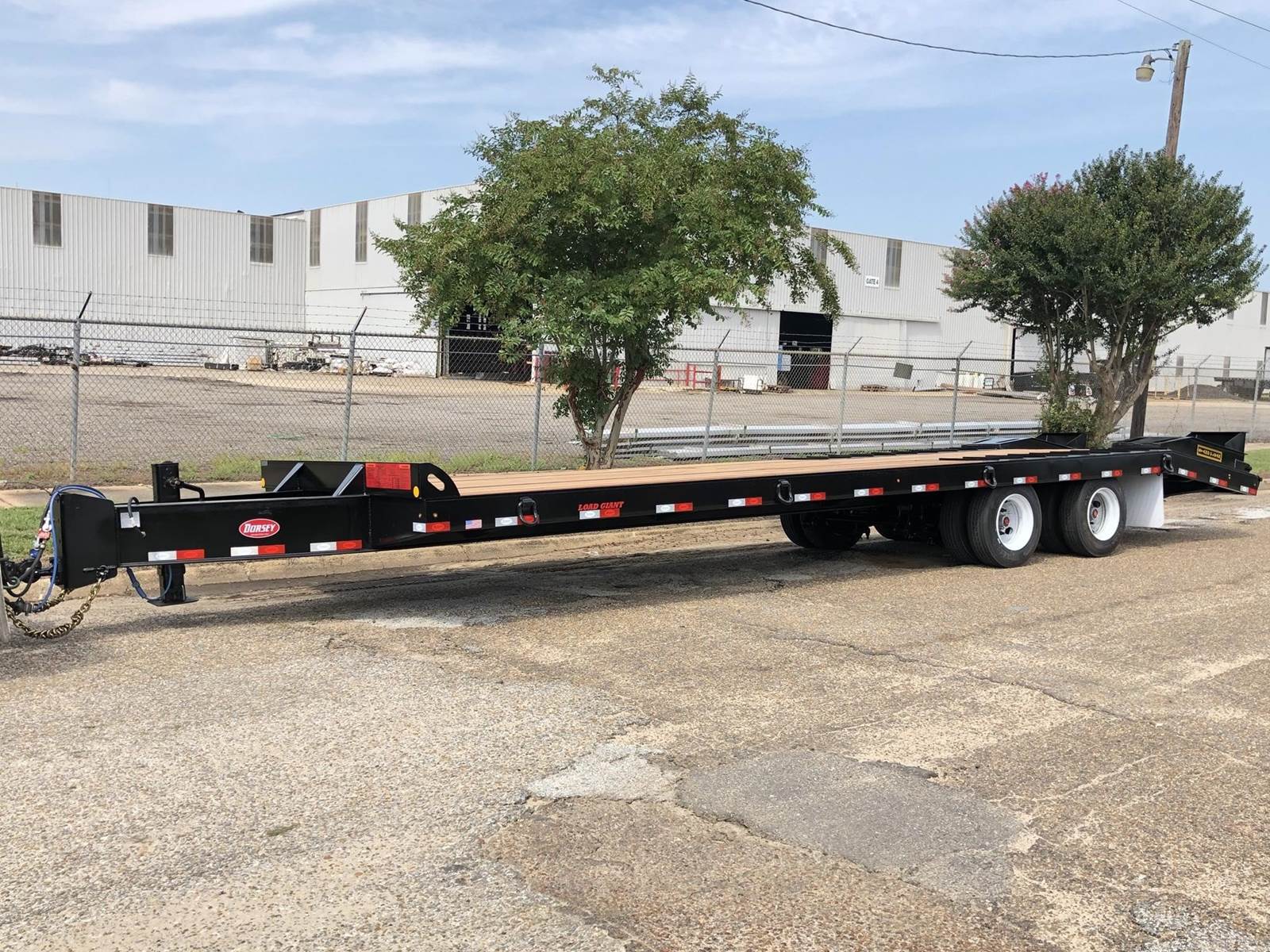

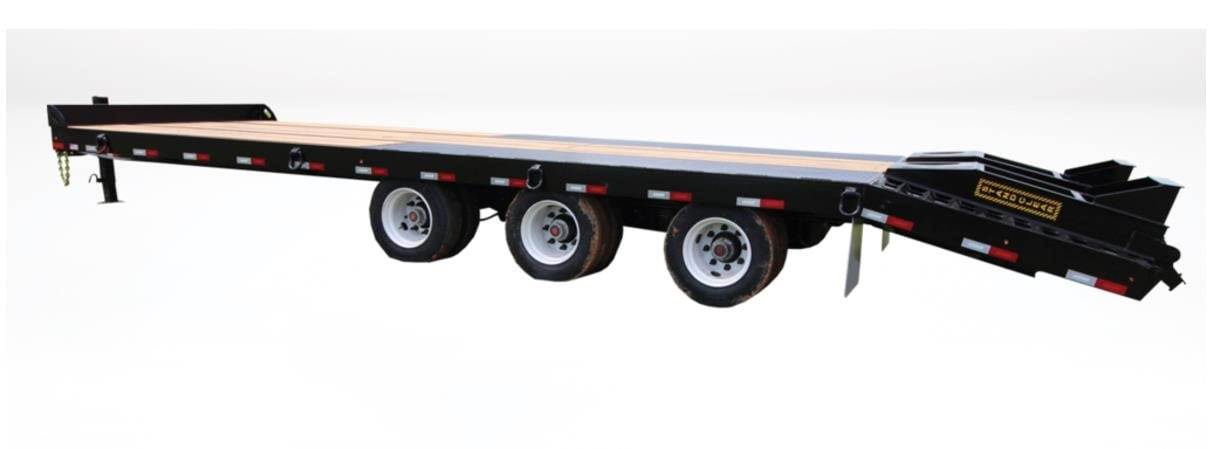

2025 Dorsey LOAD GIANT TA25 Tag Trailer

2025 Dorsey 25 Ton Tag Trailer

➢ CAPACITY: 25 tons
➢ DIMENSIONS: 35’ x 8’ 6”, deck length of 24’, deck height of 33” (loaded)

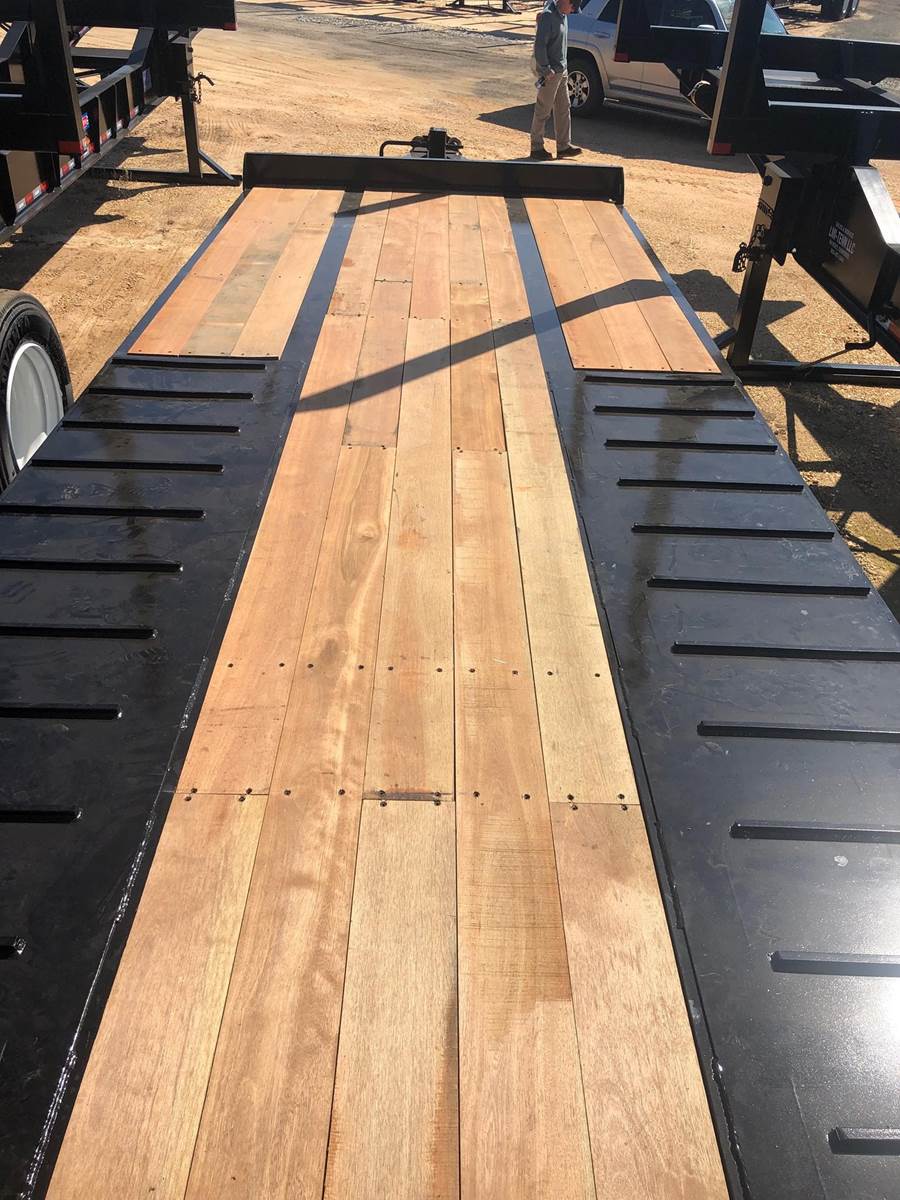

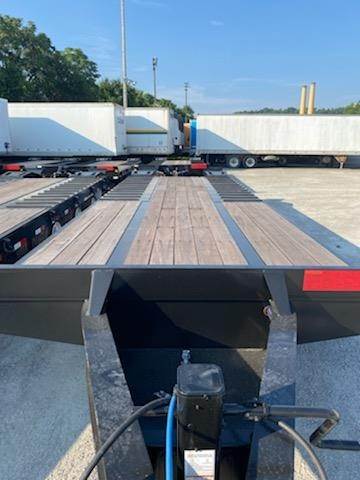

➢ DECK FLOORING: Apitong –1 ½” covering entire deck
➢ MAINBEAMS: 14” wide flange mill roll I-beam, SIDE RAILS: 8” channel iron

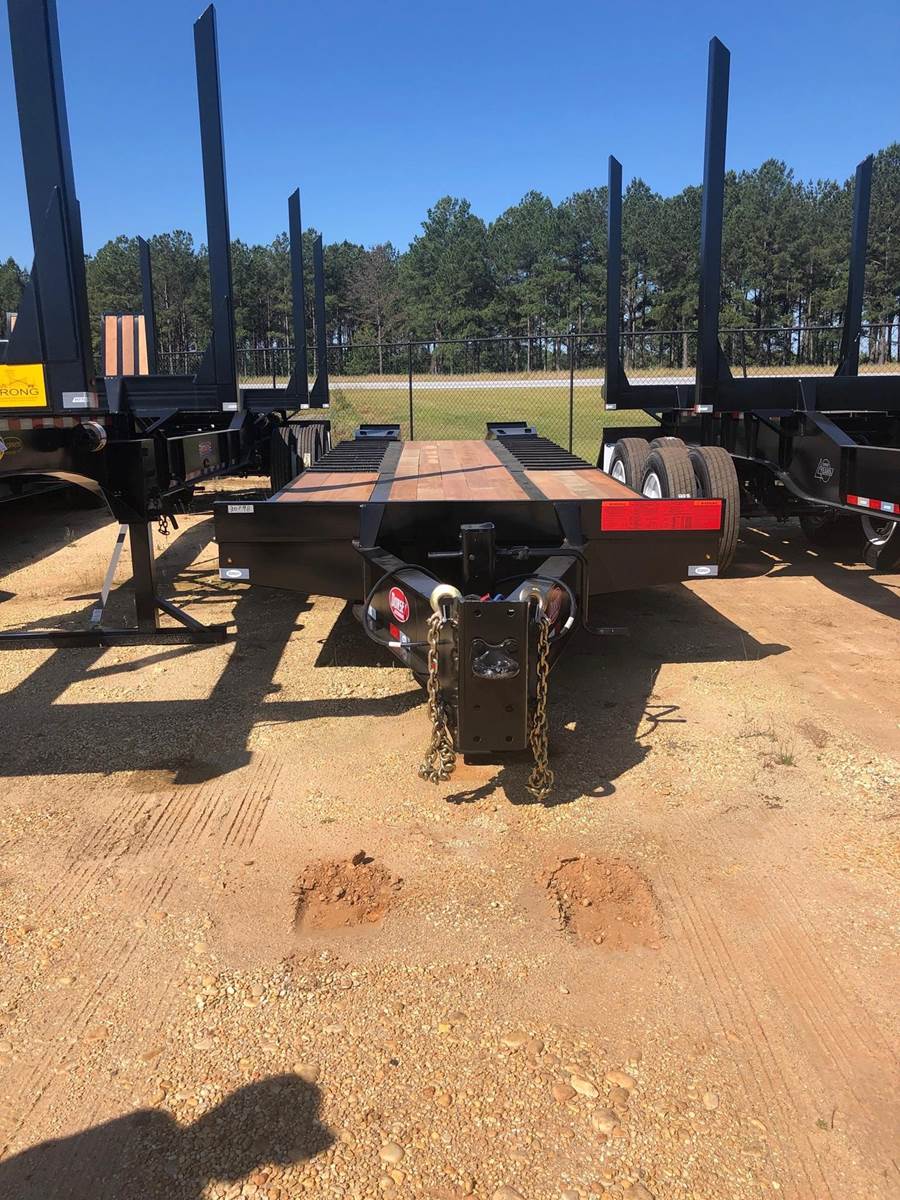

➢ TOUNGE / DRAW BAR: 6’ continuation of mainframe –3” eye 4 position
➢ KING PIN HEIGHT: 32” adjustable

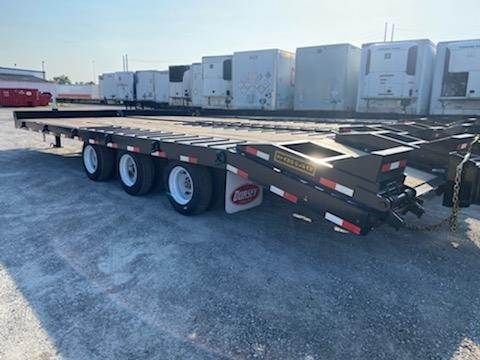

➢ AXLES: (3) 22,500lb capacity w/ 49” axle spacing, auto slacks, ABS
➢ SUSPENSION: Hutchens –3 point, 4 spring, 56,000lb capacity
➢ TIRES / WHEELS: Steel disc –hub piloted wheels, 215/75R 17.5 tires
➢ BRAKES: Electric brakes with spring parking brakes on 2 axles
➢ DOVETAIL: 5’ self cleaning –angle iron
➢ WHEEL WELL: covered w/ steel checkplate

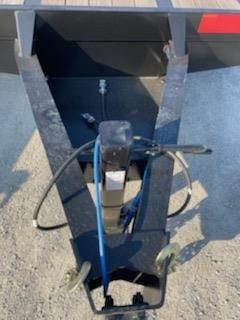

➢ LANDING GEAR: Single –drop leg, two speed

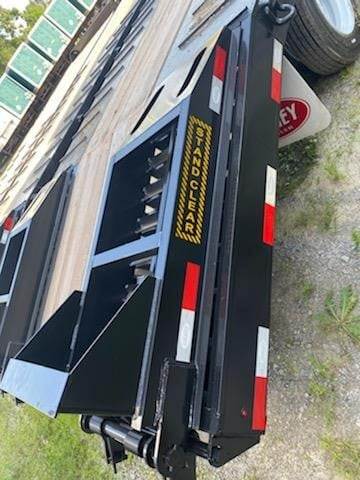

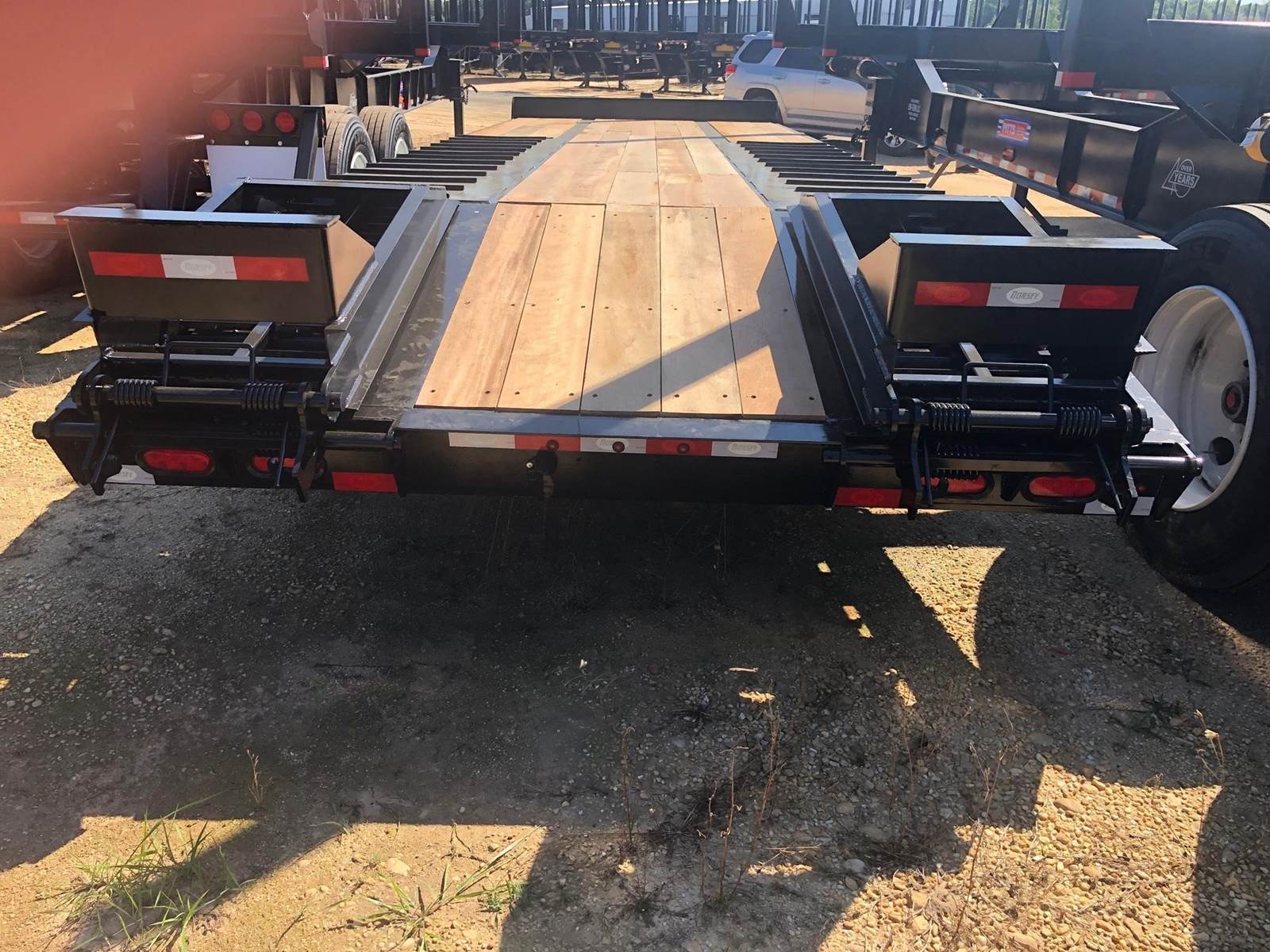

➢ LOADING RAMP: Spring assisted –60” x 24” –lay flat on dovetail –triangle foot
➢ LIGHTING: Sealed rubber mounted LED package, DOT sealed wiring harness
➢ D Rings: 12 (six per side)
➢ TOOL BOX IN GOOSENECK
➢ PAINT: Black

$31,337 including FET. FOB Elba, AL

Financing available

Contact Mike or Bryan for more information.
