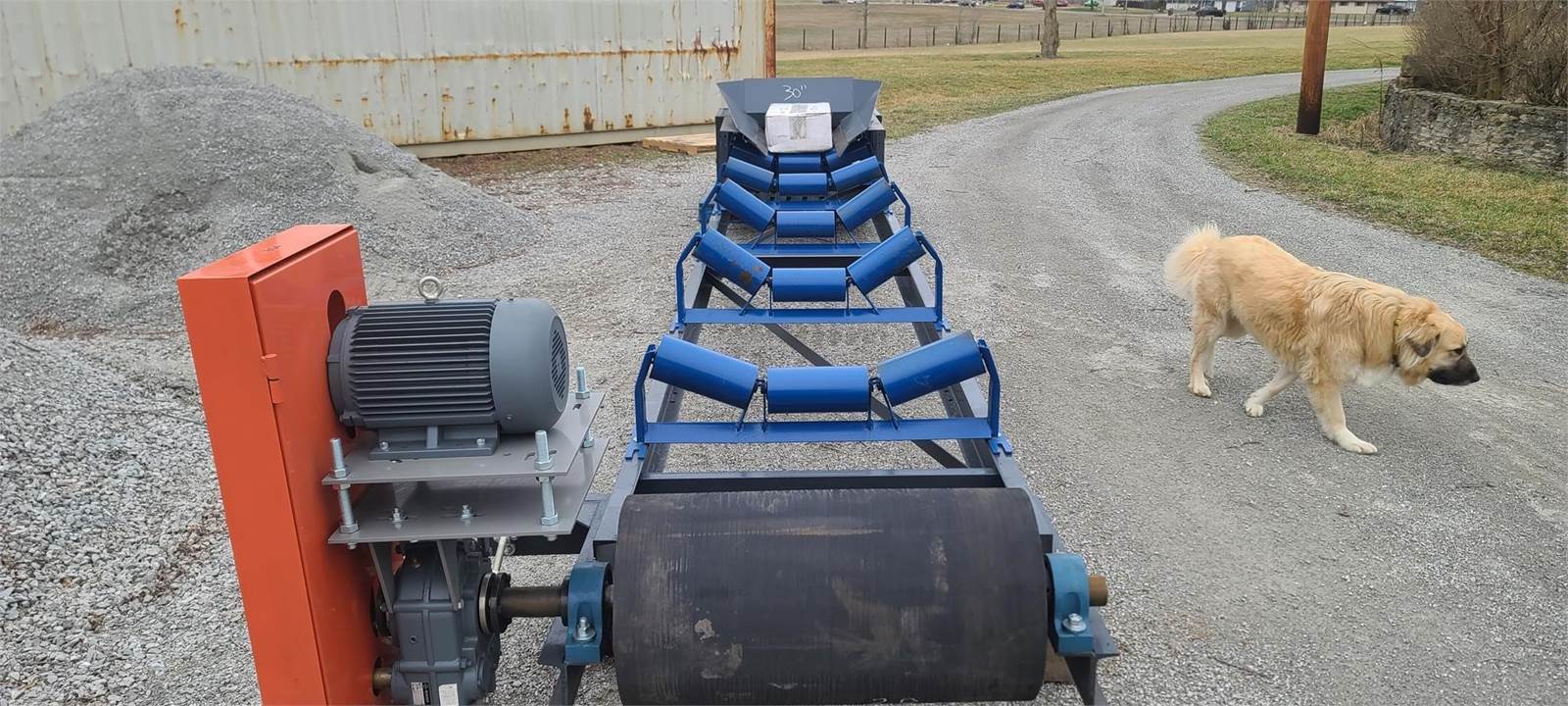

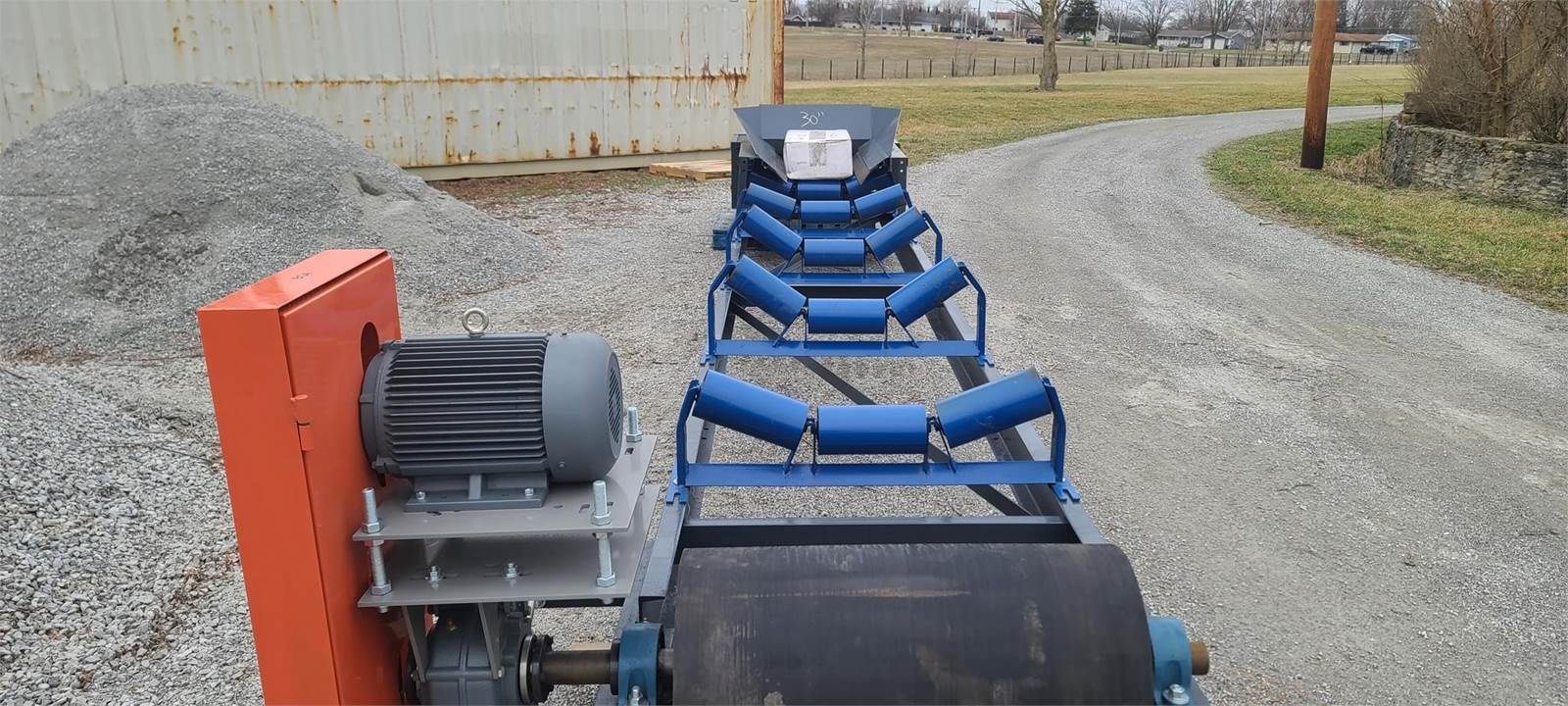

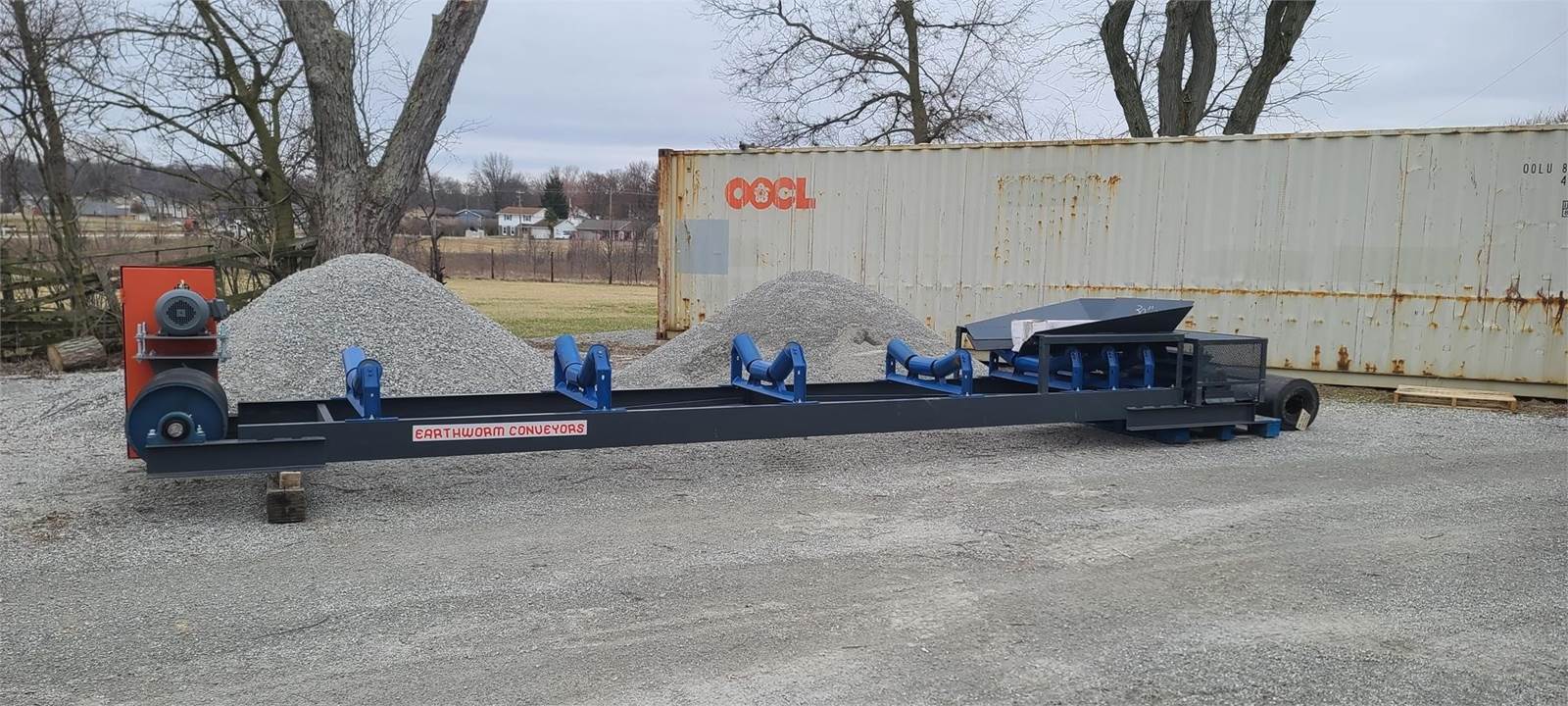

2025 Earthworm Conveyors 18X45 Conveyor

18 x 45 CHANNEL FRAME CONVEYOR



8” CHANNEL FRAME
o 2 x 2 x ¼ Cross Bracing
o 4” Channel Laterals
Head
o 12” Lagged Head
o 1 15/16 Shaft
o Ball Bearings
Tail
o 12” Winged Tail
o 1 15/16 Shaft
o Ball Bearings
o Screw take-ups

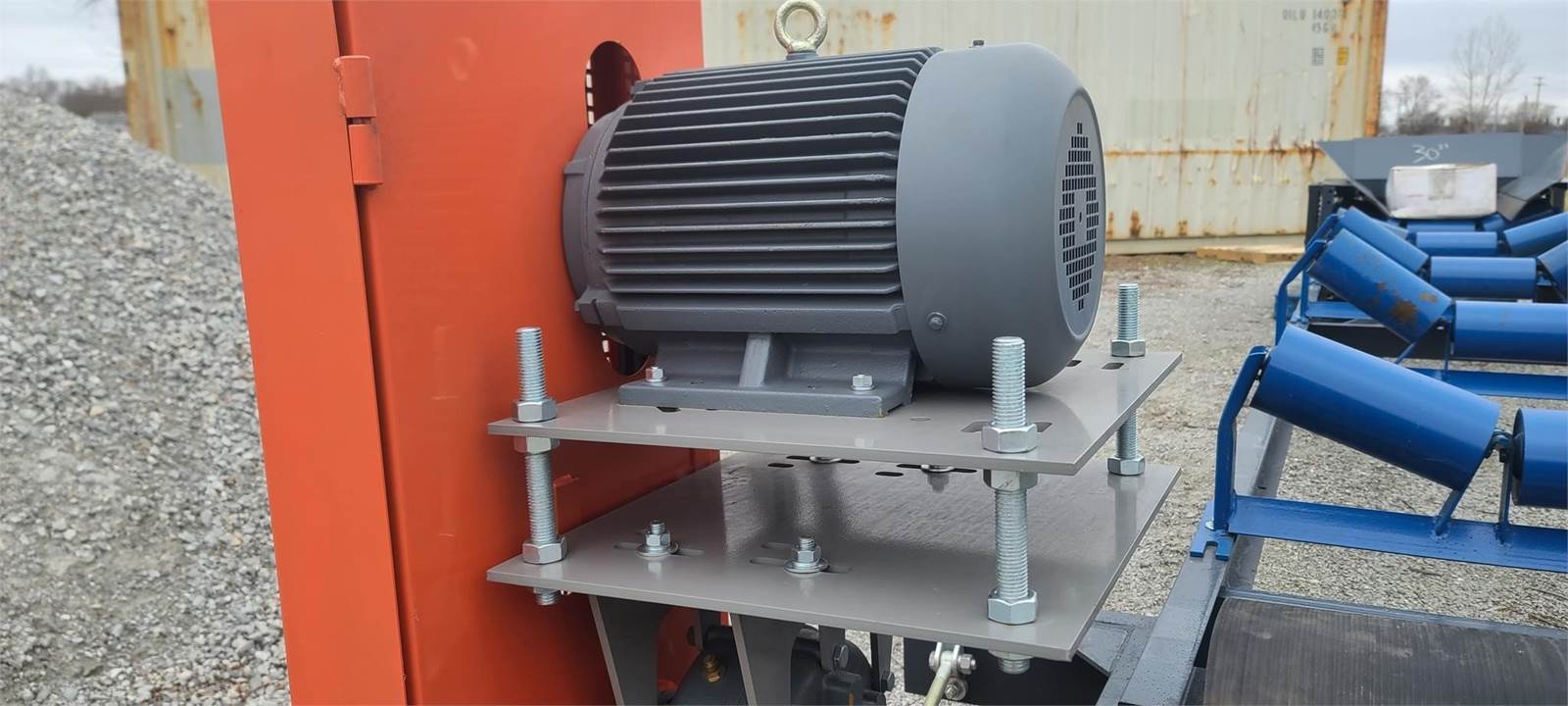

Motor
o 5 HP
o TEFC
o 1800 rpm
o 230/460V 60 Hz)

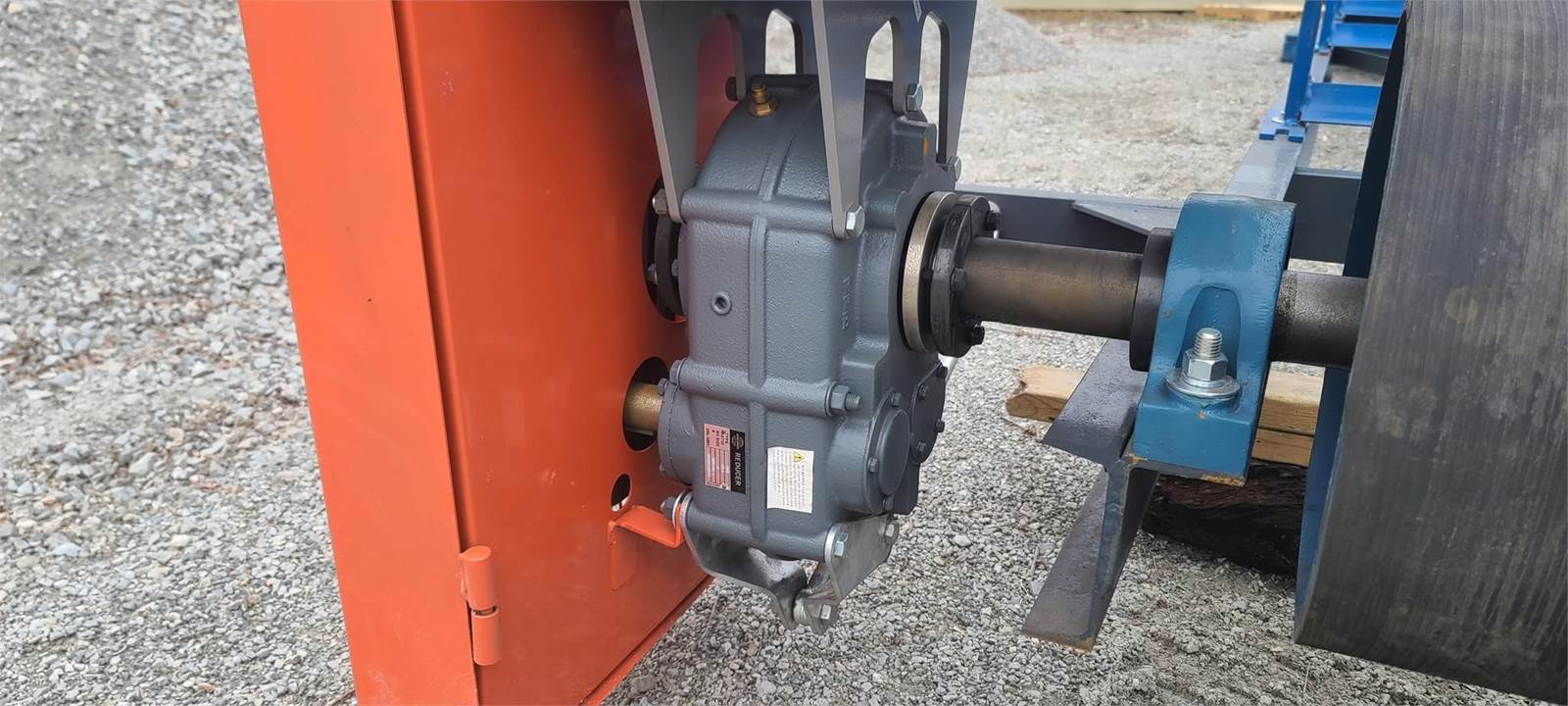

World Wide Drive
o #2-25
o Motor Mount
o Belt Guard
Pioneer Idlers – CEMA C – 20 Degree Idlers
Pioneer Return rollers, CEMA C – 10 ft Centers
Belt – 2 Ply – 220 3/16 Top
o Mechanical Hinge Splice
4 ft Load Zone w/Skirting
Tail Guard –
Primed and Painted Gray

Options:



Back Stop……………………………………………………………………..ADD………………….....................................................$ INC.
12” Load Zone Extensions…………………………………………………ADD…………………………………………………………$ INC.
“ H” Leg Supports…………………………………………………………...ADD…………………………………………………………$ INC.
Chevron Belt…………………………………………………………………ADD………………………………………………………...$ INC.
