2025 Earthworm Conveyors 48 X 30 Conveyor

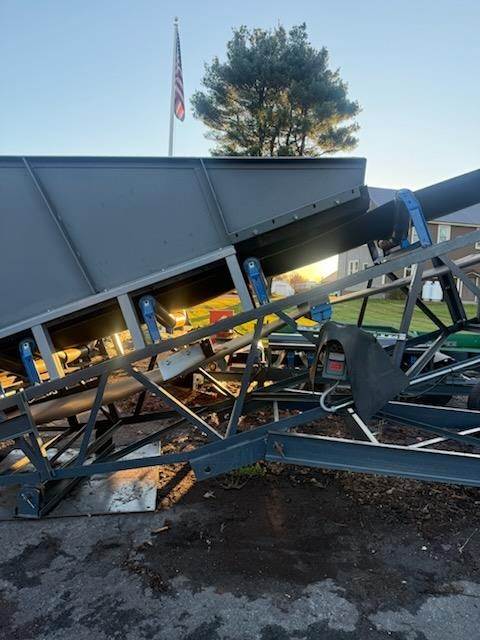

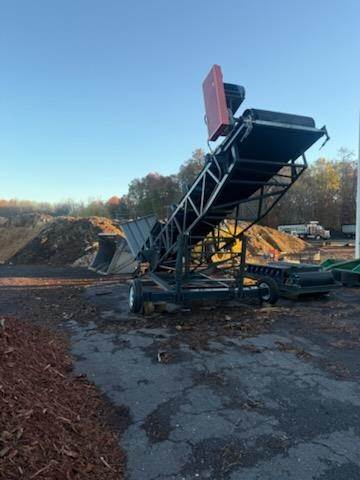

EARTHWORM 48’’ x 30’ RADIAL STACKER

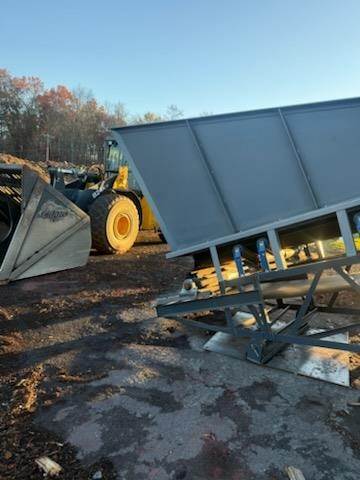

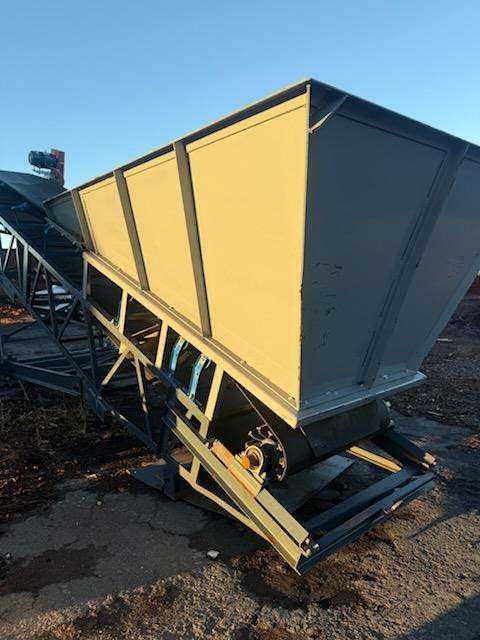

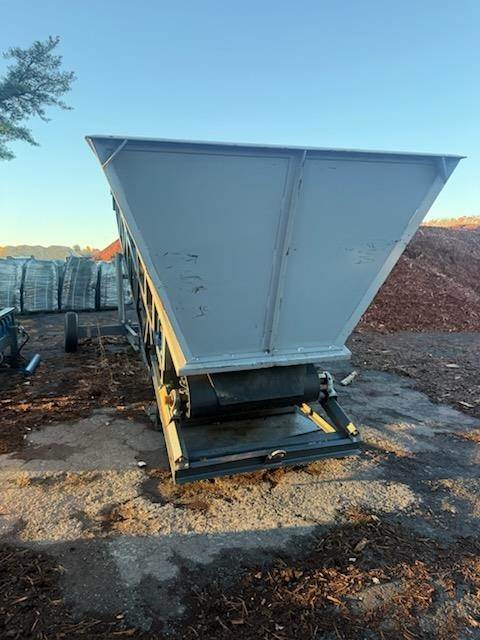

2025 48'' X 30' Radial stacker, designed to move 450 tons of woodchips per hour. Its had very little use as the project changed direction. it has a cleated belt and a Variable drive. It has a purpose built large volume feed hopper option at extra cost. This unit is ready to work.
WE CAN FINANCE THIS UNIT AND SHIP ANYWHERE IN THE USA.
• 36” Deep Truss
◦ 3 x 3 x ¼ Cord Angle
◦ 2 x 2 x ¼ Lattice

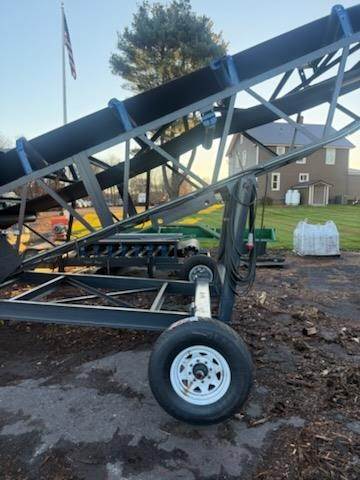

• Heavy Duty Undercarriage, 8x8 Tubing Axle, 16” Tires & Rims
• 16” Lagged Head –
◦ 2 15/16 Shaft
◦ Ball Bearings
• 14” Winged Tail
◦ 2 15/16 Shaft
◦ Ball Bearings
◦ Screw take-ups
• Motor
◦ 15 HP
◦ TEFC - 1800 rpm - 230/460V 60 Hz
• World Wide VHD WD4X110-4 Variable-Frequency
• Drive
◦ #5-15
◦ Motor Mount
◦ Belt Guard
• Pioneer Idlers – CEMA C – 20/35 Degree – 48” Centers
• Pioneer Return rollers, CEMA C – 10 ft Centers
• Belt – 2 Ply – 220 PIW – 3/16 x 1/16
◦ Mechanical Hinge Splice
◦ Belt Scraper
• 4’-0” Load Zone with Skirt Board
• Tail Guard
• Primed and Painted Gray
2-Year Warranty

PRICE……………………………………………...……………………………..……$ 32,700.00
Transport At Cost

Notes/Exceptions:
• 410 tph @ 50 pcf @ 10 ft of Lift
BUILT HERE IN THE USA.
