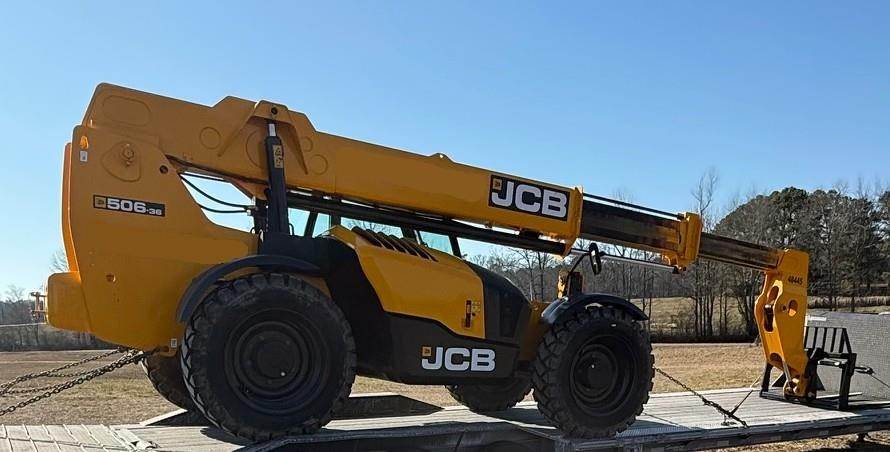

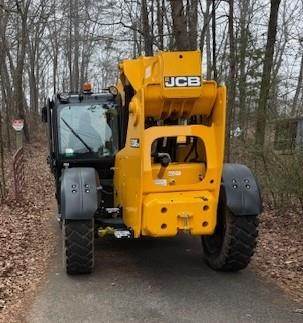

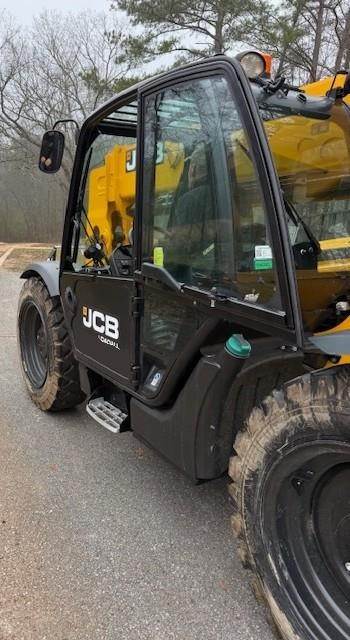

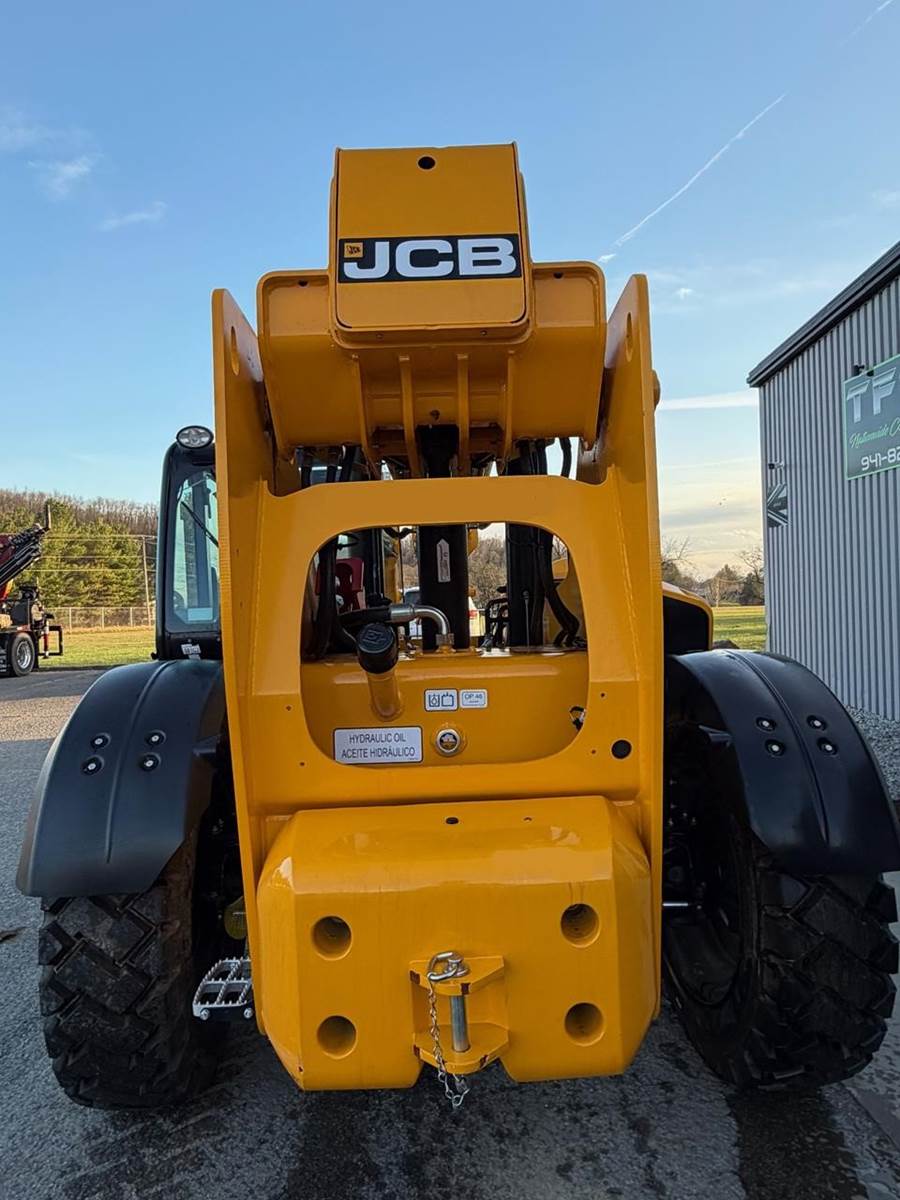

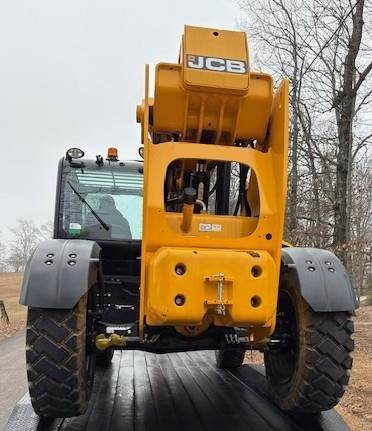

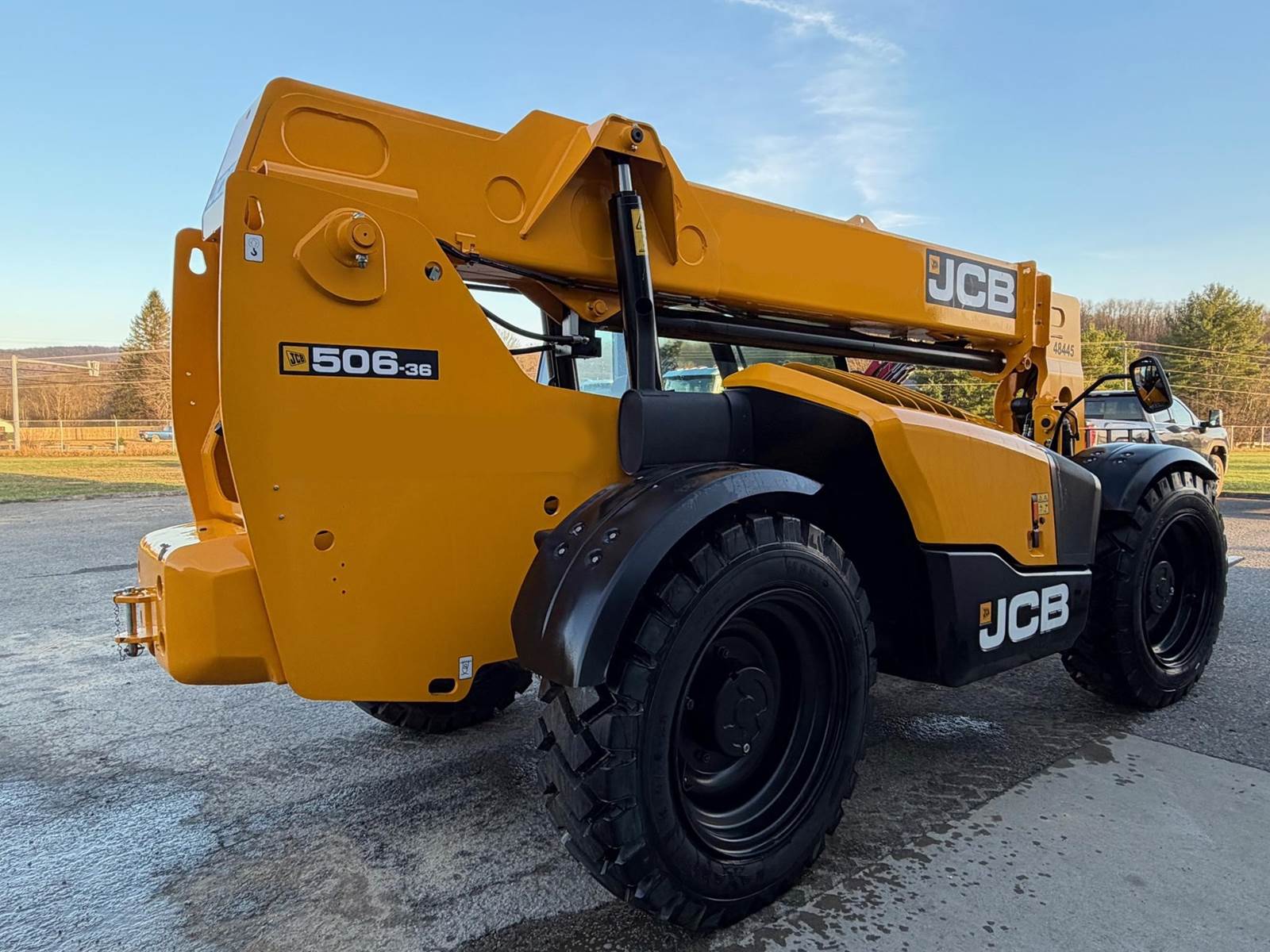

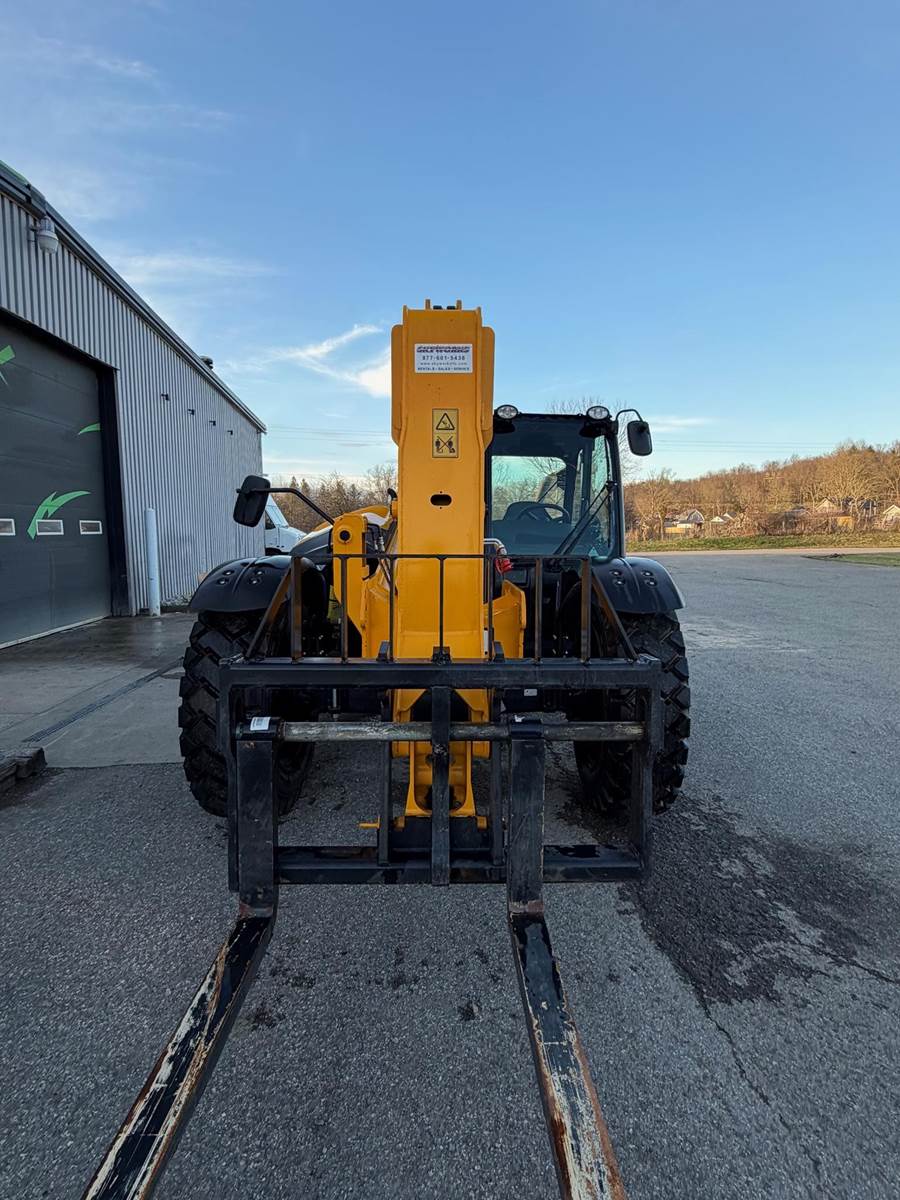

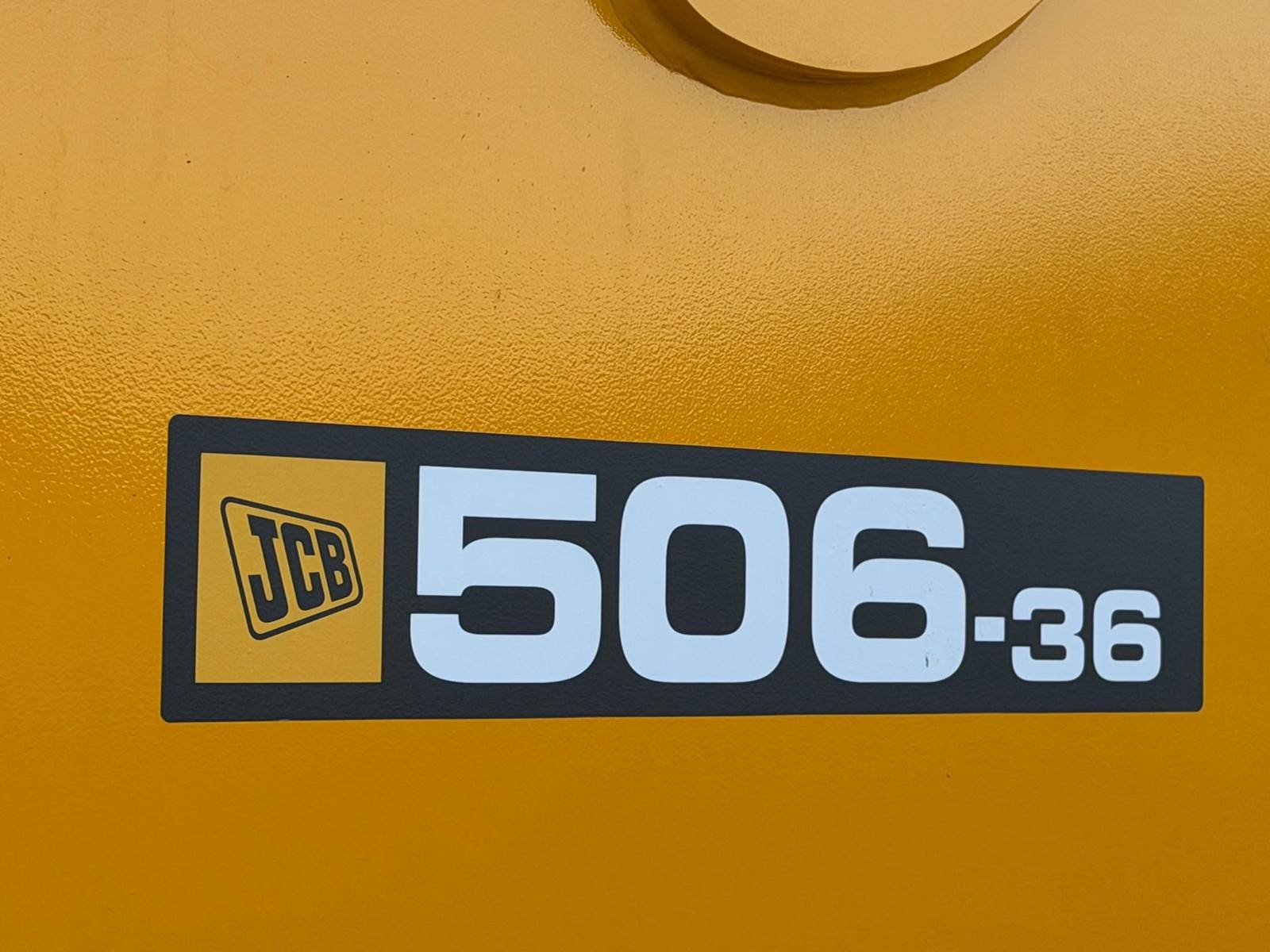

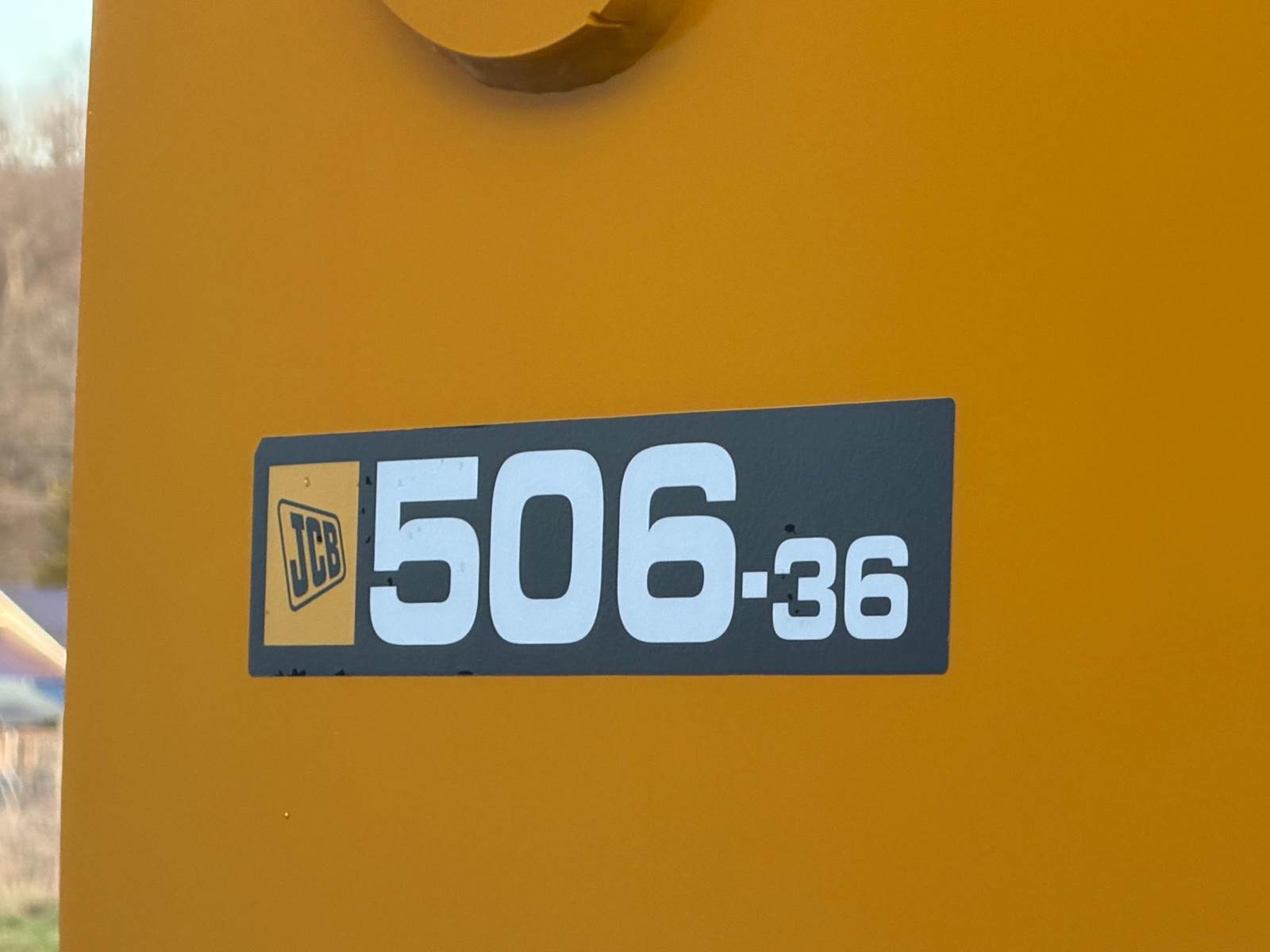

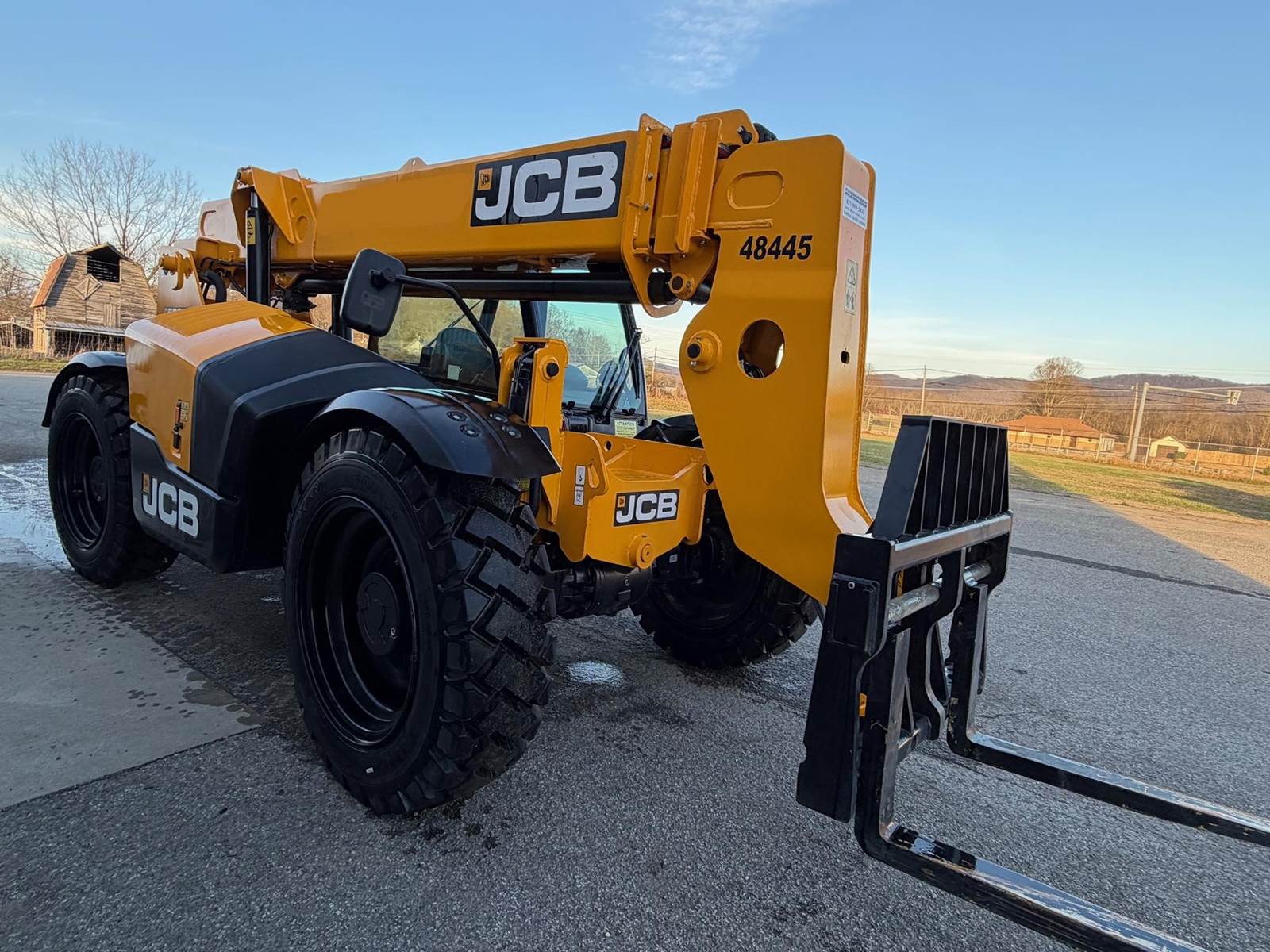

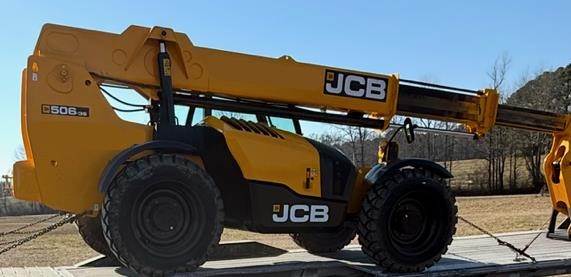

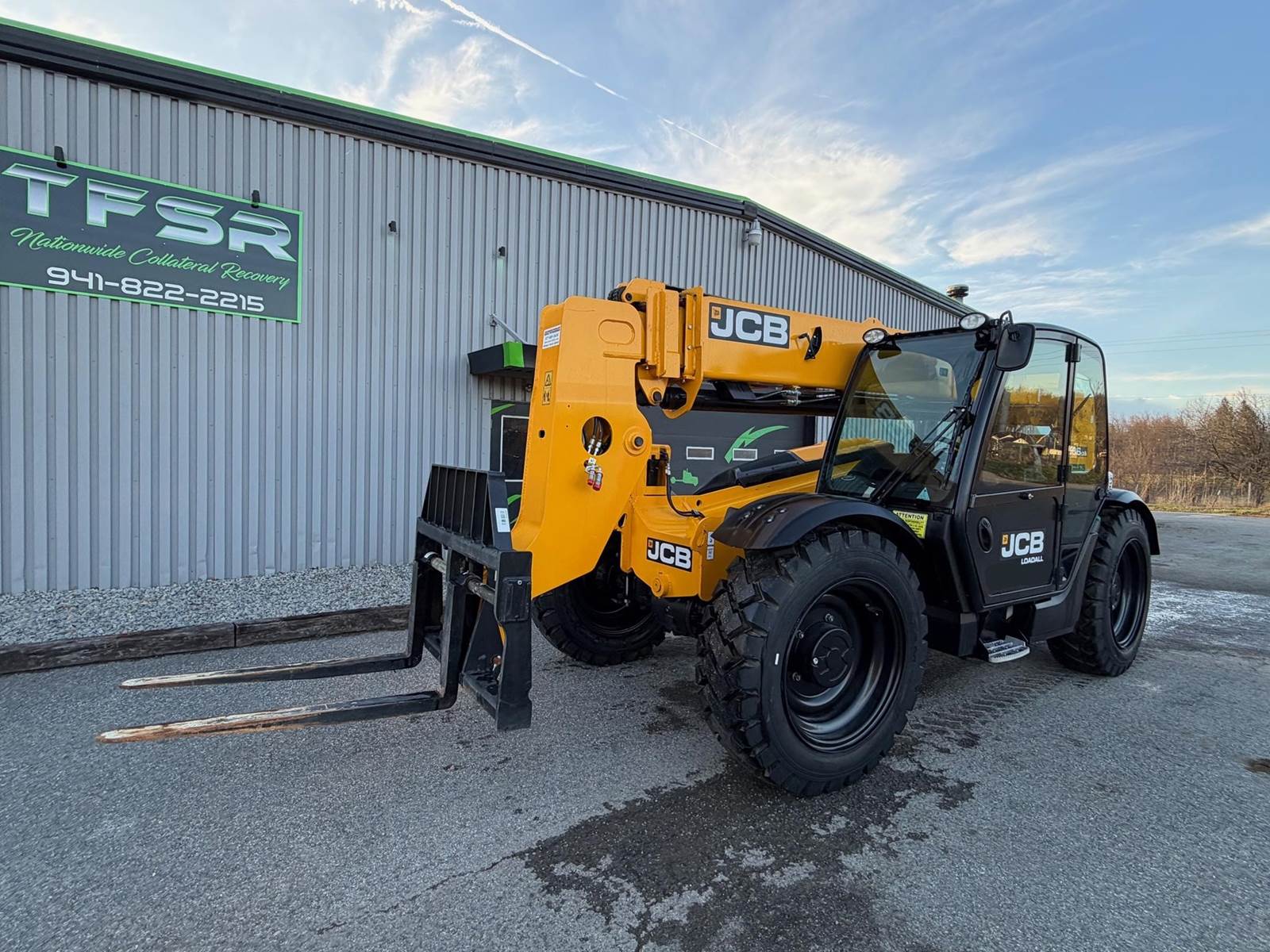

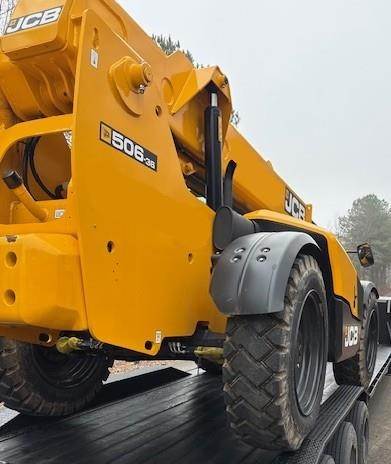

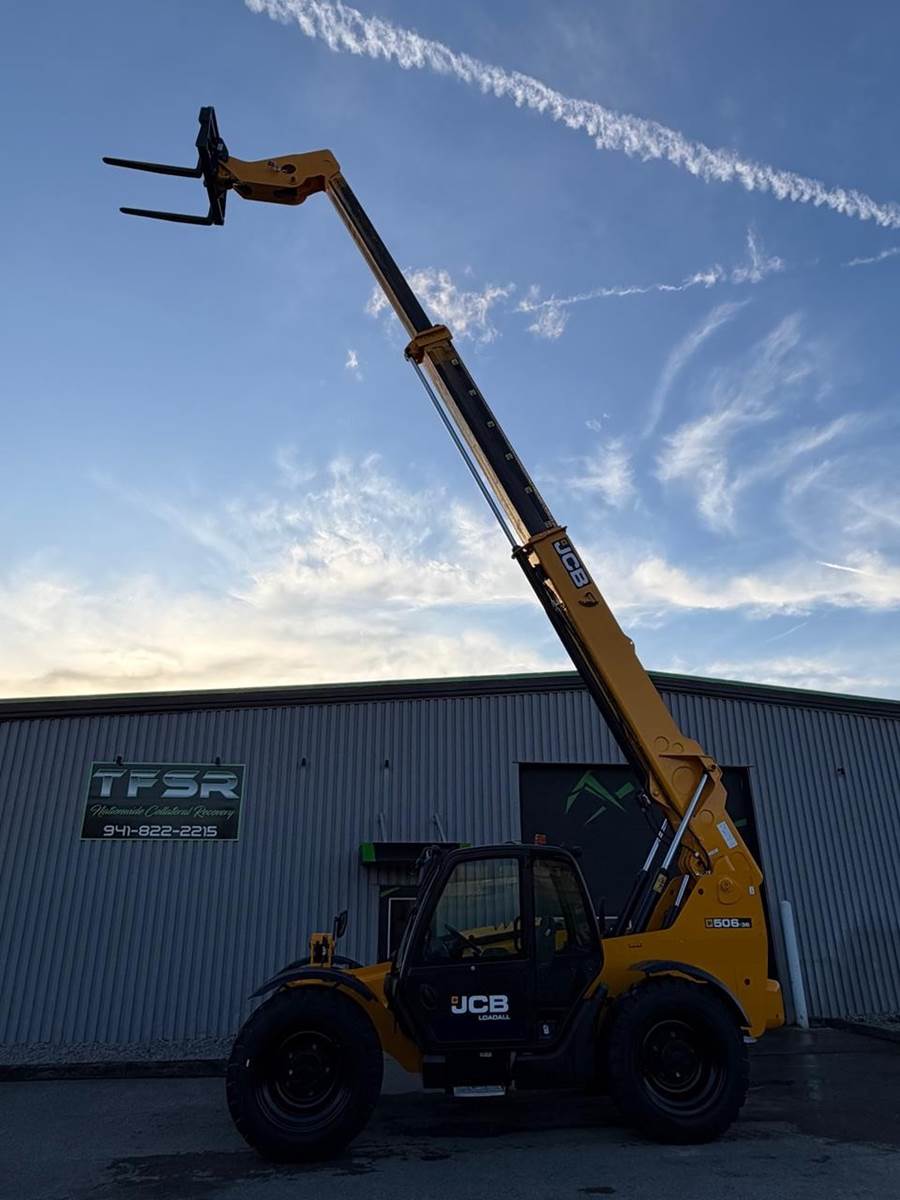

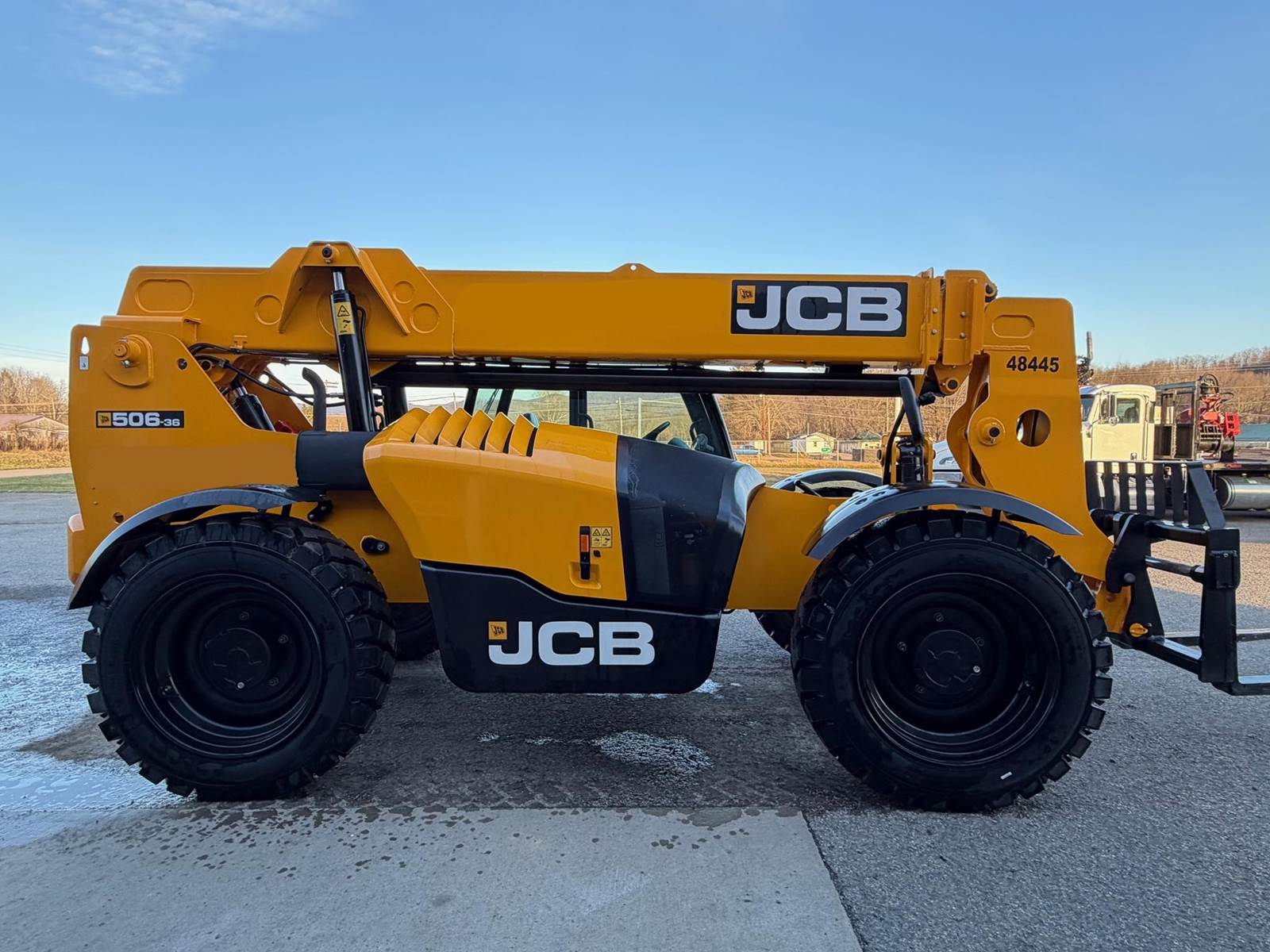

2025 JCB 506-36 Telehandler - 6000lb Capacity, 36ft Lift Height, 24ft Reach

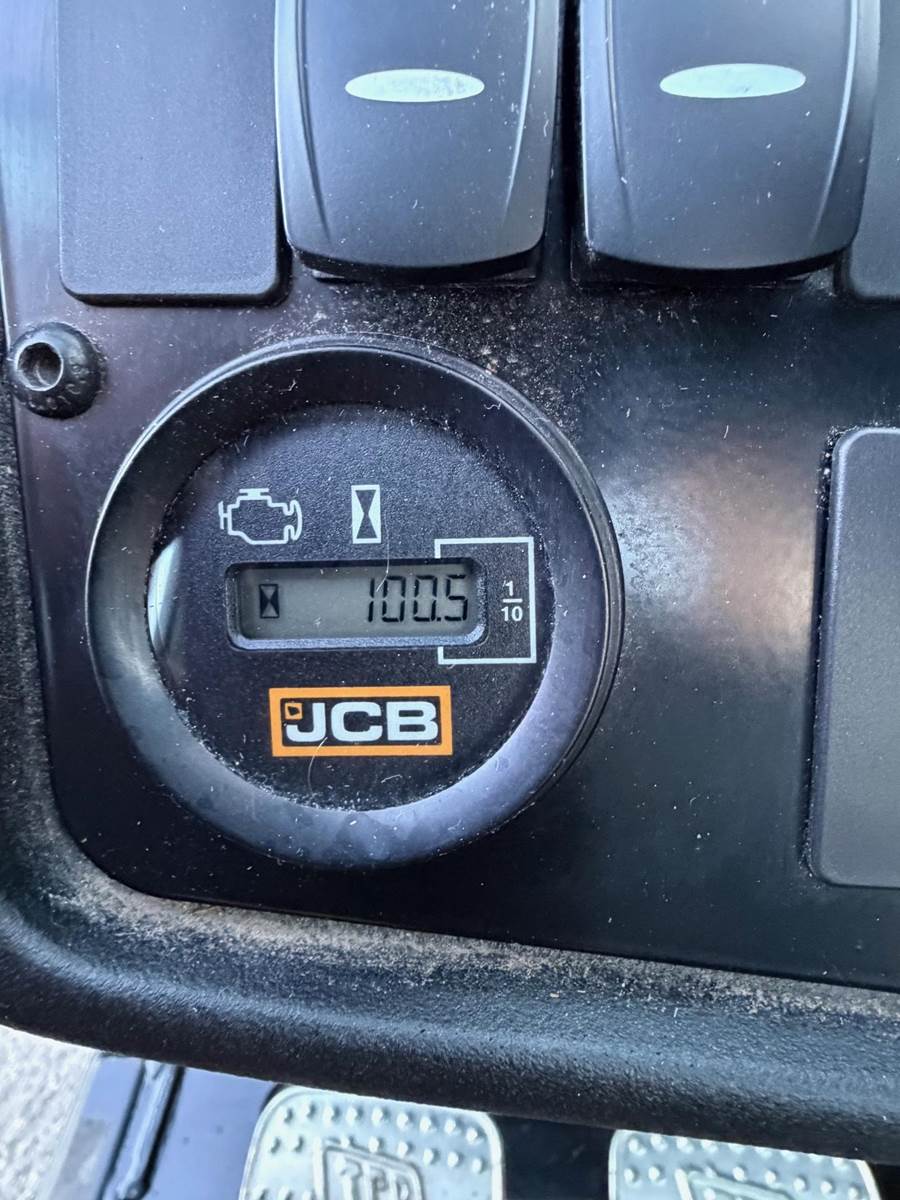

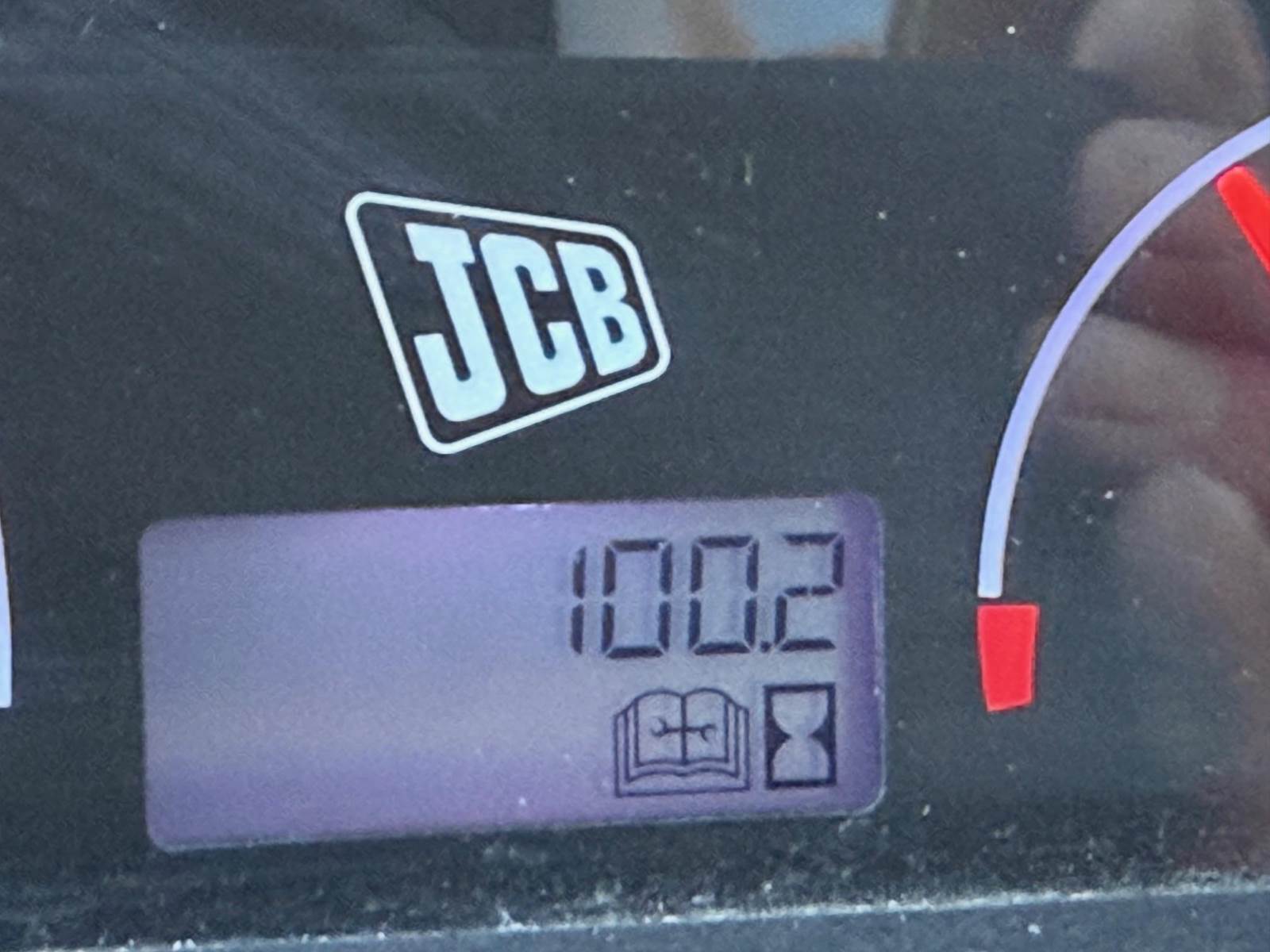

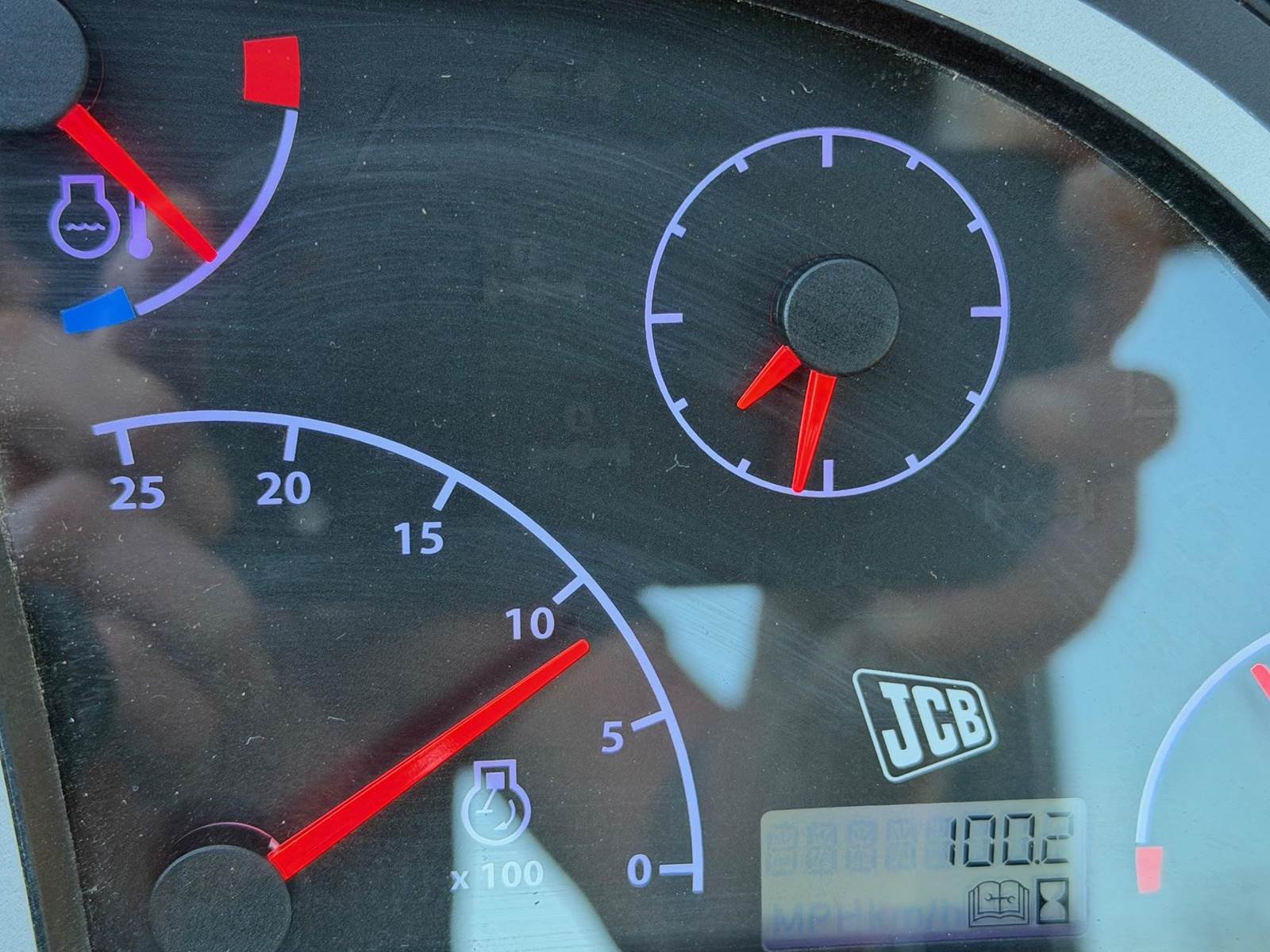

New condition with only 100 hours.

A Overall Height ft-in (mm) 8-3 (2510)
B Overall Width ft-in (mm) 7-10 (2388)
C Inside Width of Cab ft-in (mm) 3-3 (940)
D Front Track ft-in (mm) 6-4 (1936)
E Wheelbase ft-in (mm) 10-0 (3048)
F Overall Length to Front Tires ft-in (mm) 17-1 (5211)
G Overall Length to Front of Carriage ft-in (mm) 19-5 (5918)
H Ground Clearance ft-in (mm) 1-3½ (396)
Outside Turn Radius (over tires) ft-in (mm) 14-6 (4420)

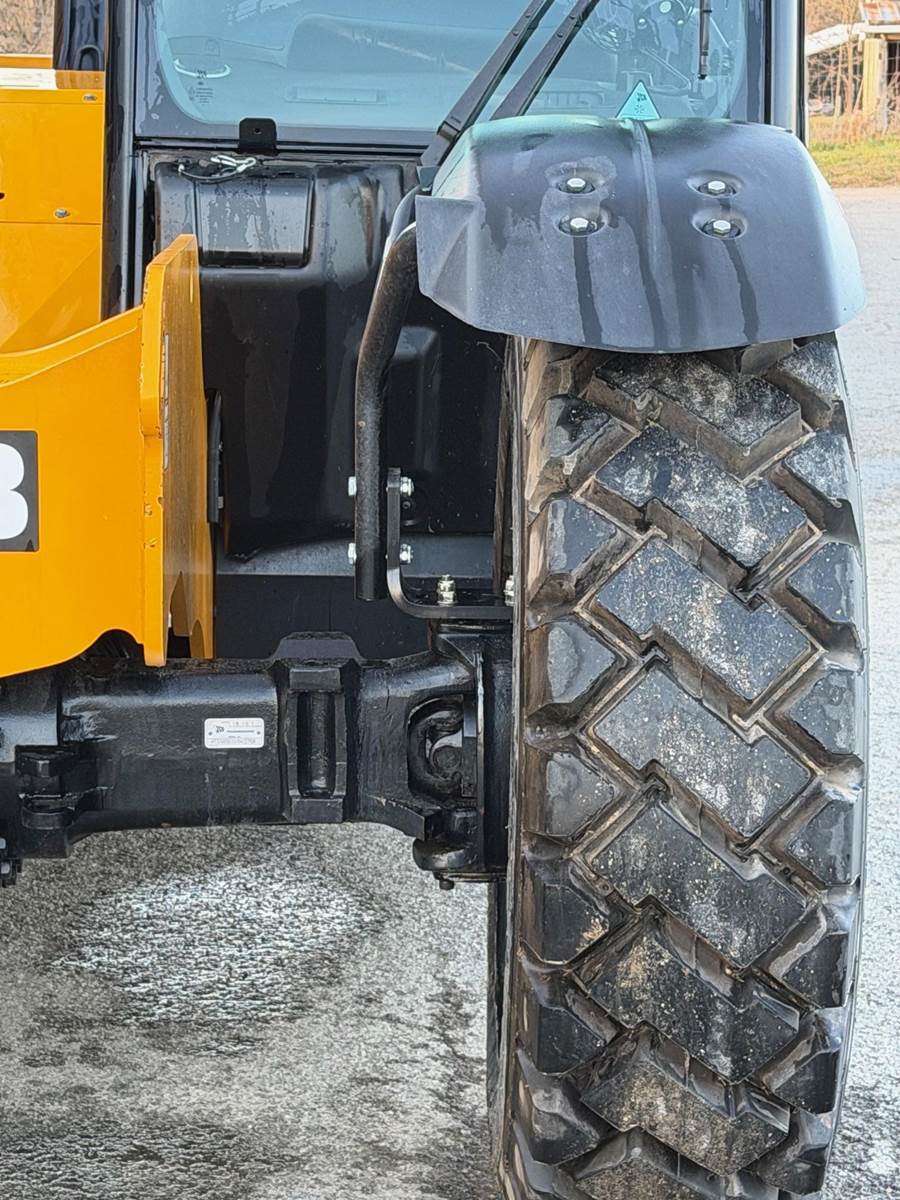

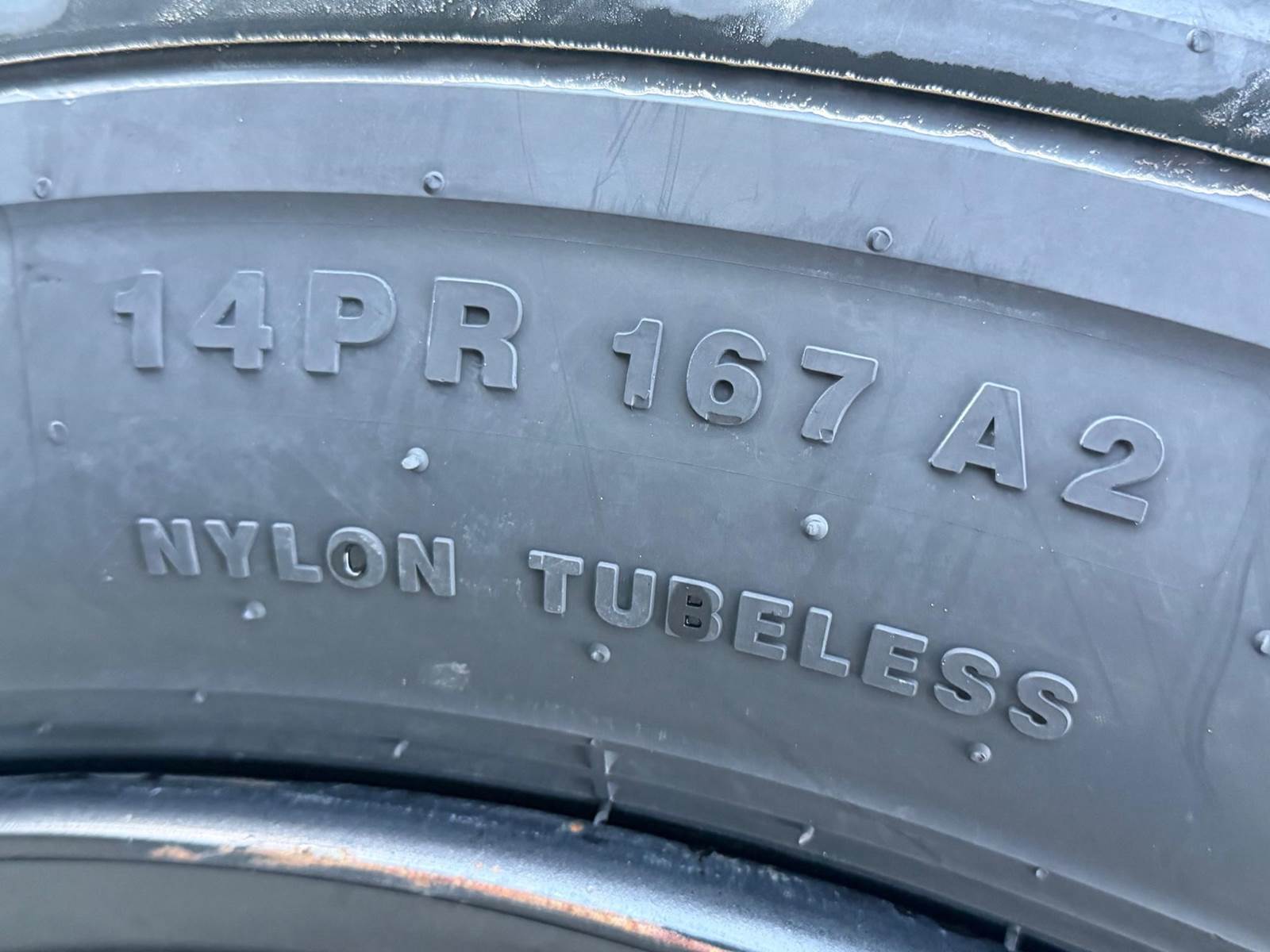

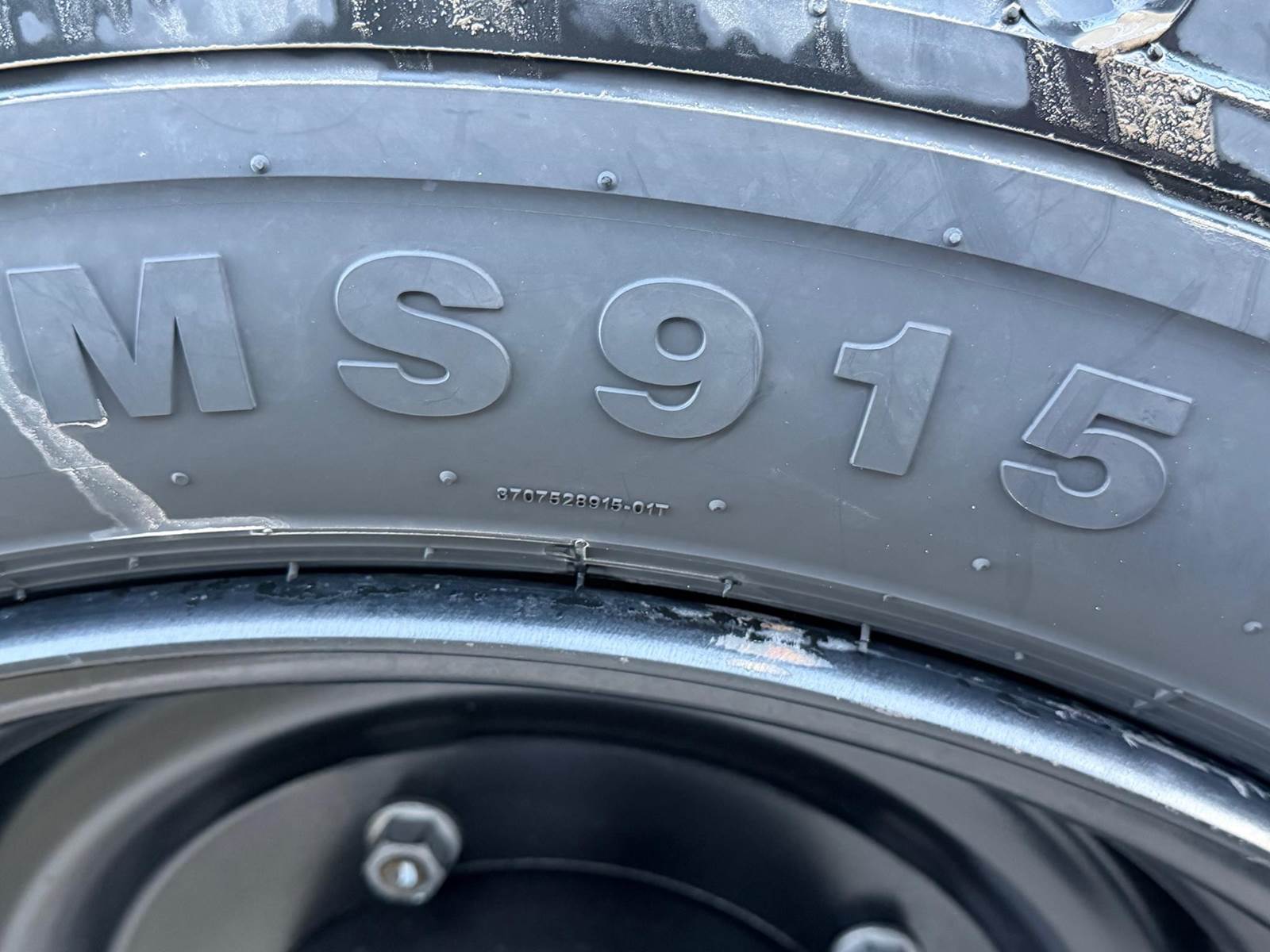

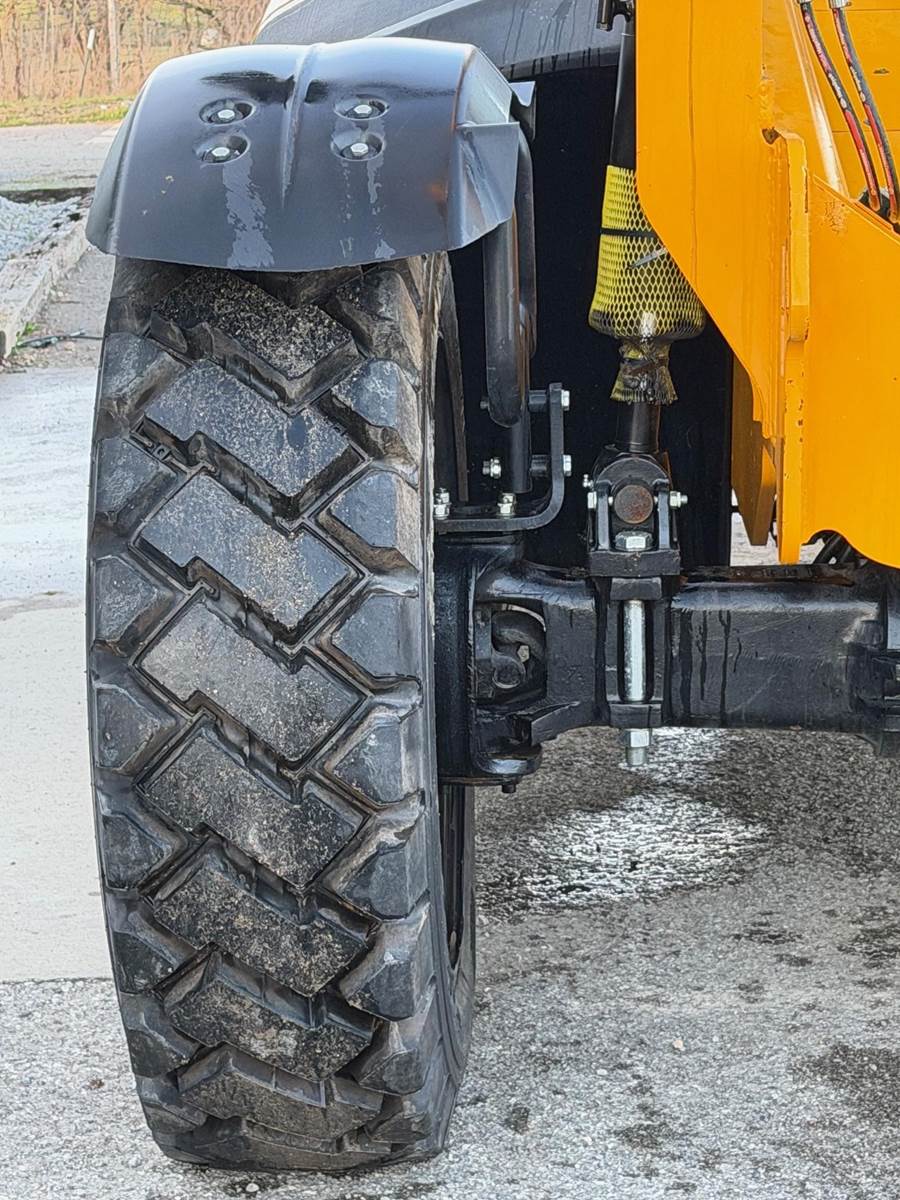

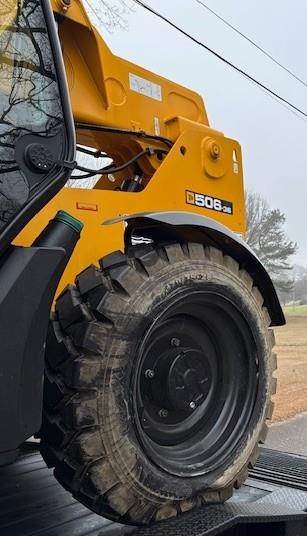

Tires 13.00-24
Weight (unladen) lb (kg) 20,270 (9193)

Maximum Lift Capacity lb (kg) 6000 (2722)
Lift Capacity to Full Height lb (kg) 6000 (2722)
Lift Capacity at Full Reach lb (kg) 1800 (816)

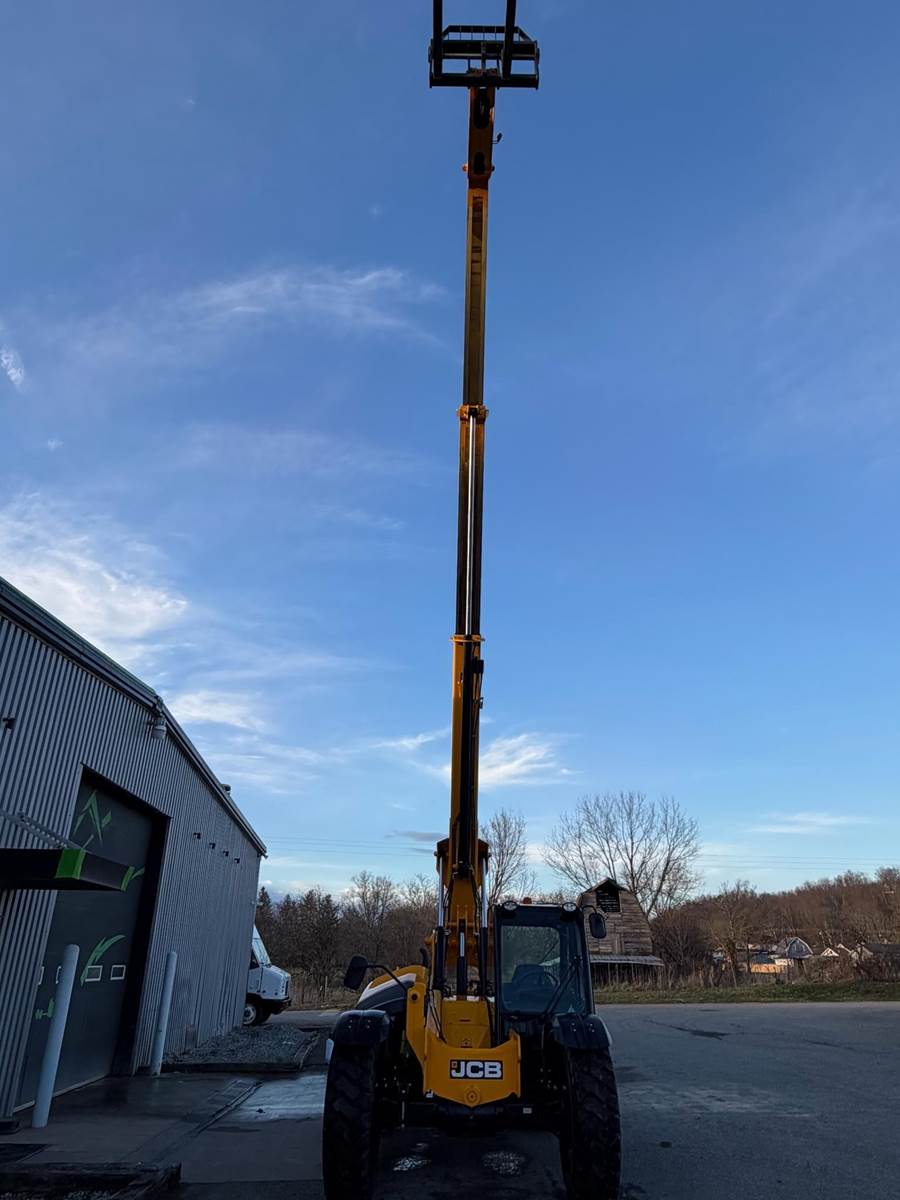

Lift Height ft-in (m) 36-4 (11.07)
Reach at Maximum Lift Height ft-in (m) 6-4 (1.93)
Maximum Forward Reach ft-in (m) 24-0 (7.31)

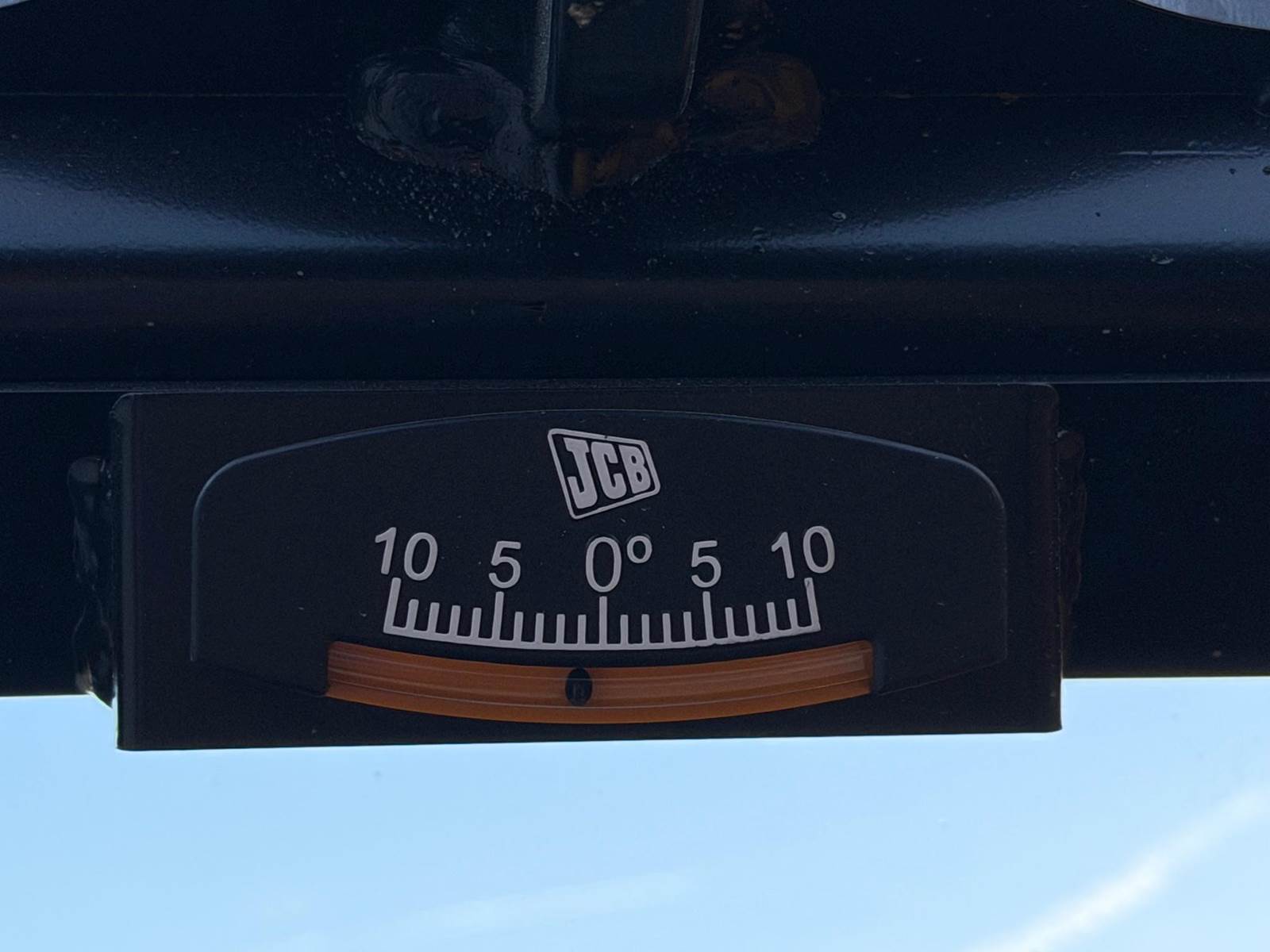

Frame Sway Left or Right degrees 10°
