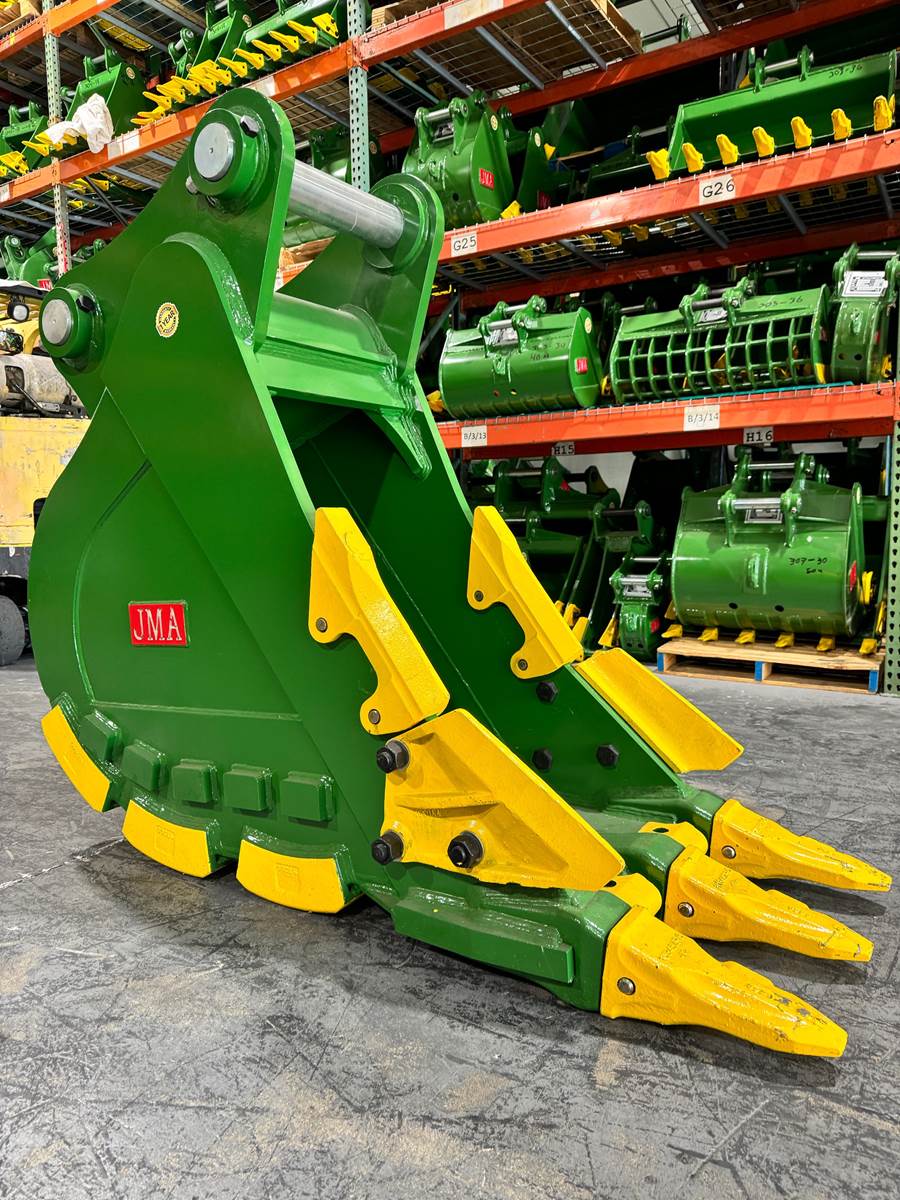

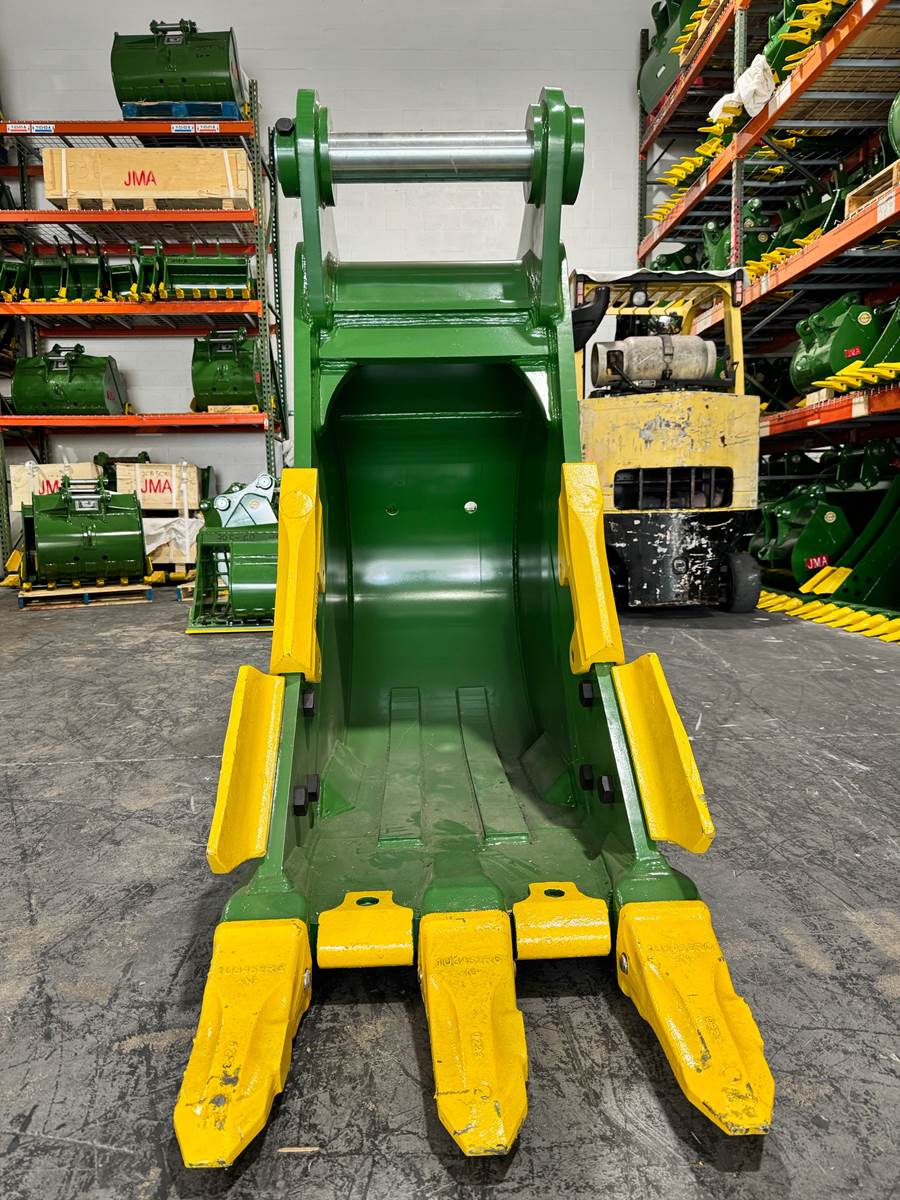

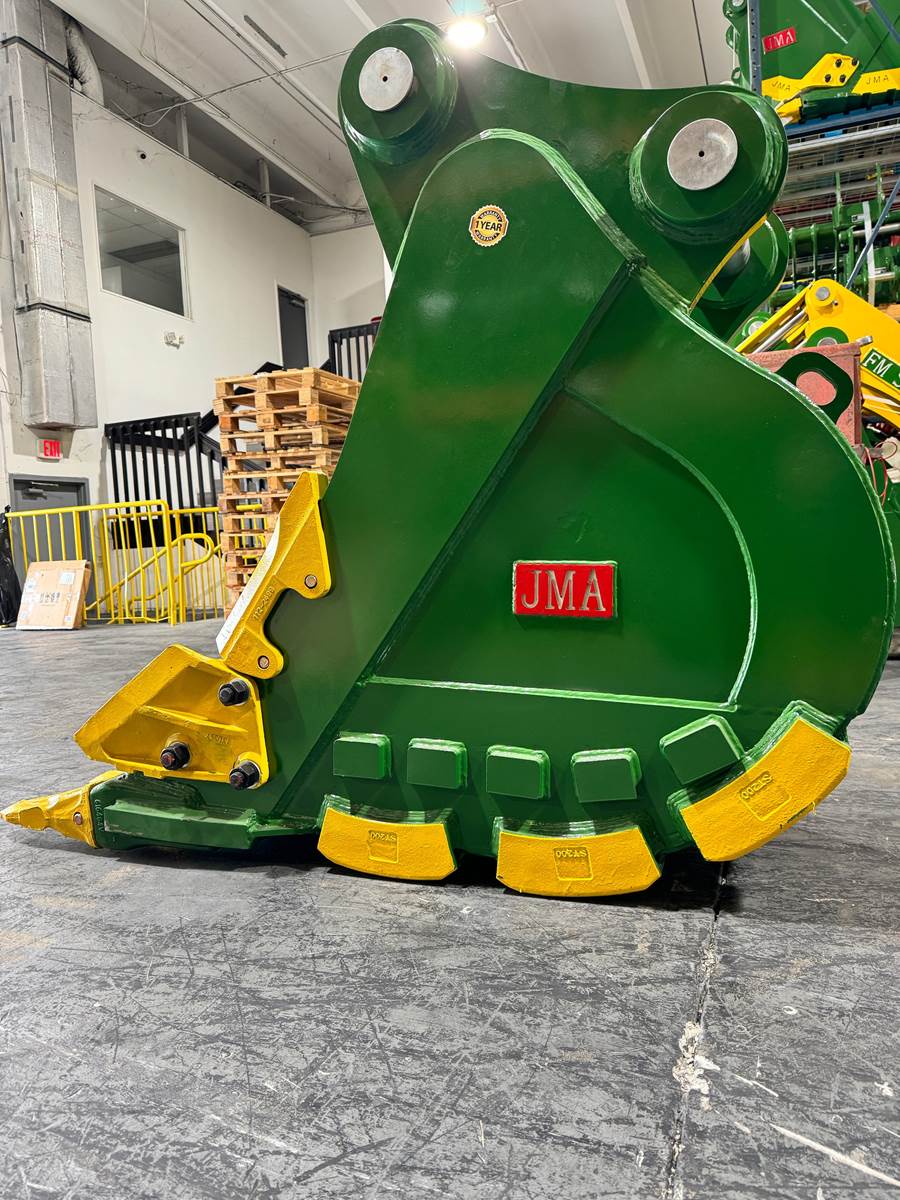

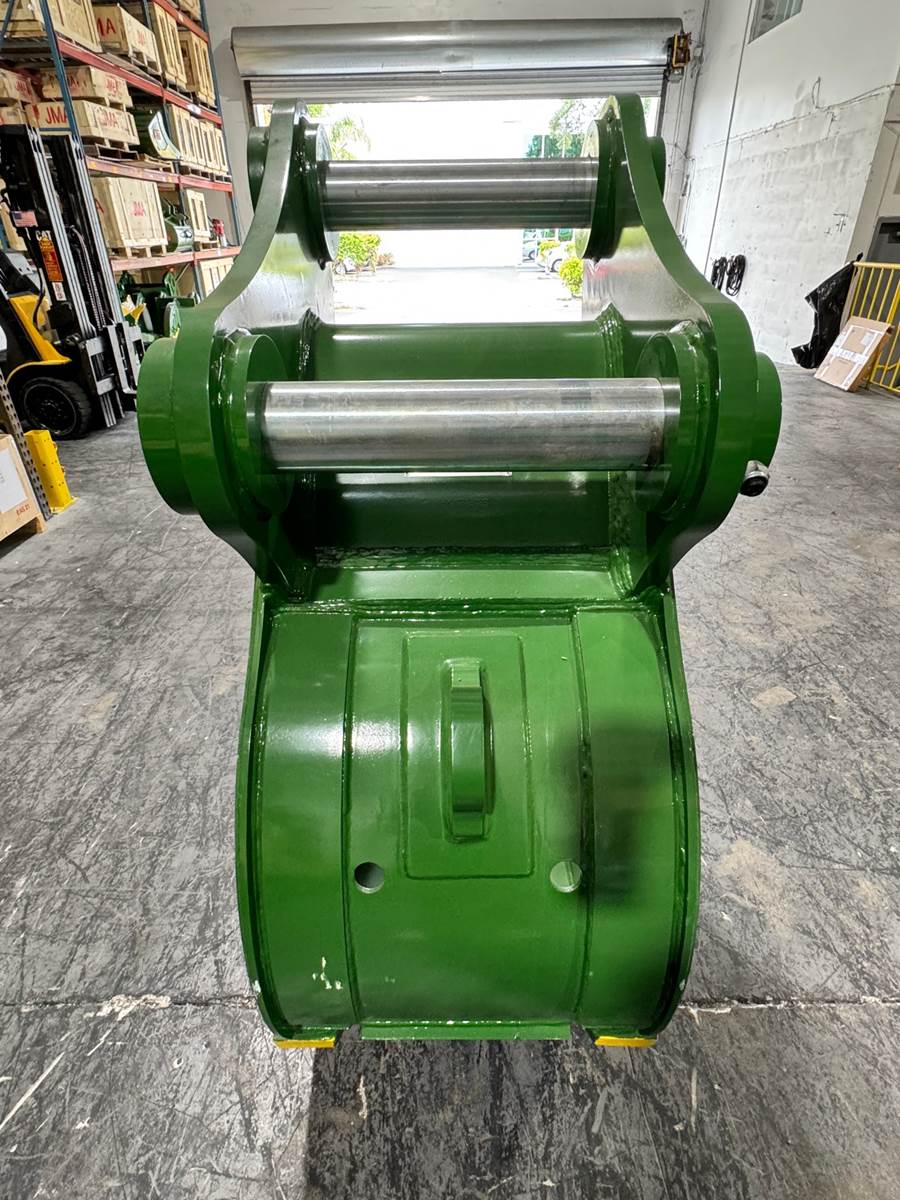

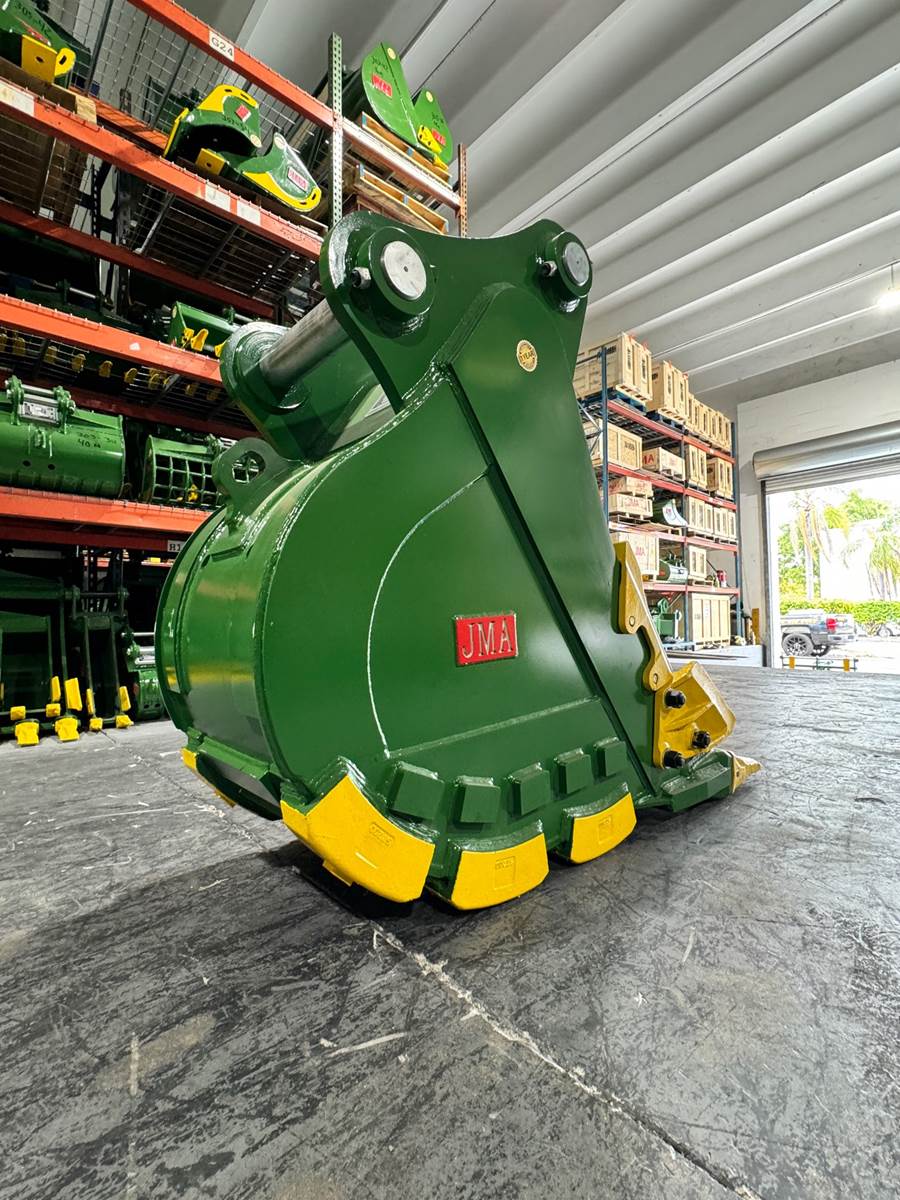

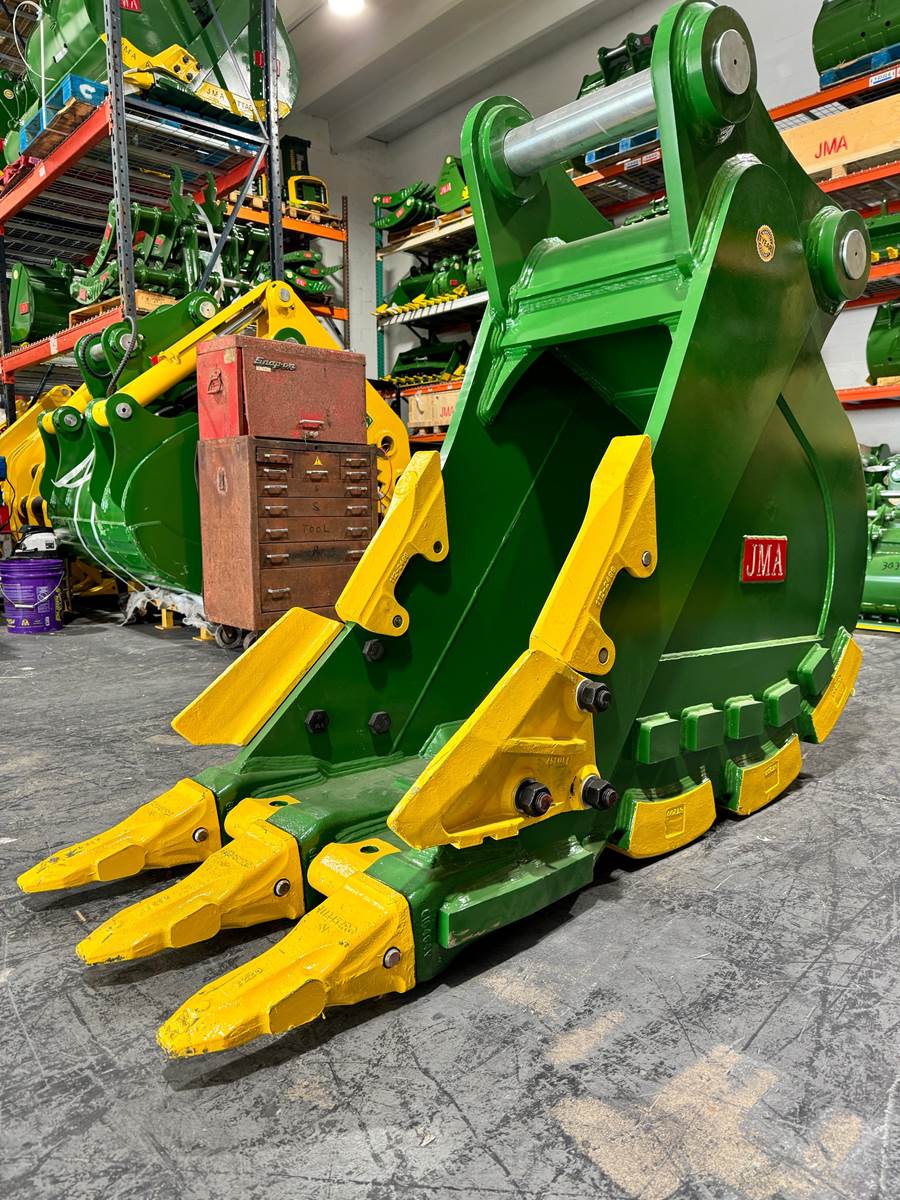

Introducing our JMA 24" Severe Duty Bucket Specifically for Caterpillar 330, 330
D-LINKED, 330L, 330BL, 330CL, 336, 330D, 336D, 336D2, 336E, 336F, 340D2, 340F Excavators.
Unlock superior excavation power with the 24" Severe Duty Bucket for 33 - 55 Tons Excavators. 100mm | 90mm Pins. Precision-engineered for professionals, this 24" Severe Duty Bucket is the ultimate solution for conquering the most demanding digging and material handling tasks.
Technical Specifications:
✅ SKU Number: CAT336XBRHD24
✅ Width: 610 mm / 24” inches
✅ Capacity: 1.16 CU M / 0.89 CU yds.
✅ HEAD Dimension: 100/90mm x 500mm x 387mm
✅ Teeth: 3 Teeth, 2 side cutter, 2 side protectors (Included)
✅ Total Weight: 1200kgs / 2645 Lbs.
Unrivaled Capabilities:
• Excavator Optimized: Designed for seamless integration with your heavy machinery.
• Extreme Durability: Crafted from AR450 Steel with 35 mm side wall thickness to withstand the toughest conditions.
• Powerful Ground Engagement: 3 Teeth heavy-duty teeth provide superior penetration and material flow.
• Impressive Capacity: 1.16 m³ volume for handling substantial loads with ease.
• Wear-Resistant Design: 3x Reinforced Side Plates to maintain productivity in harsh, abrasive environments.
• Enhanced Versatility: Includes AMH 40 Ton Weld-on Bucket Hook for improved functionality and efficiency.
Take your excavation performance to the next level. With the 24" Severe Duty Bucket for 33 - 55 Tons Excavators. 100mm | 90mm Pins, you're investing in a tool that combines superior strength with intelligent design to deliver unmatched results in the most demanding projects.
