Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost – Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro, or Westminster. Contact us for details!

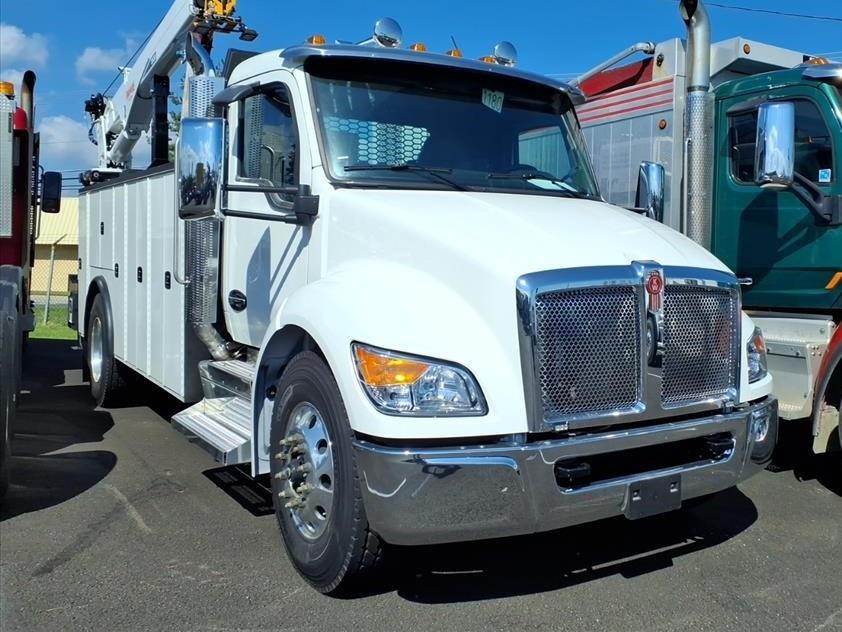

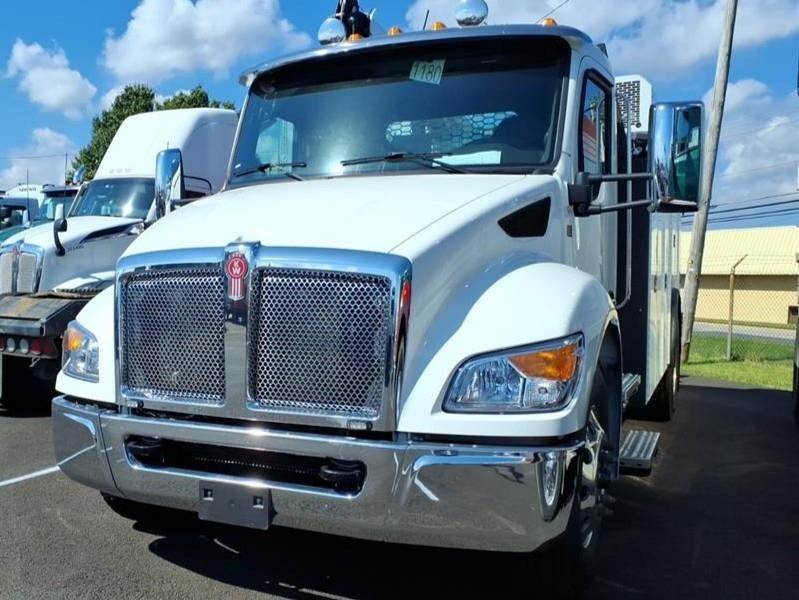

Model Year: 2025

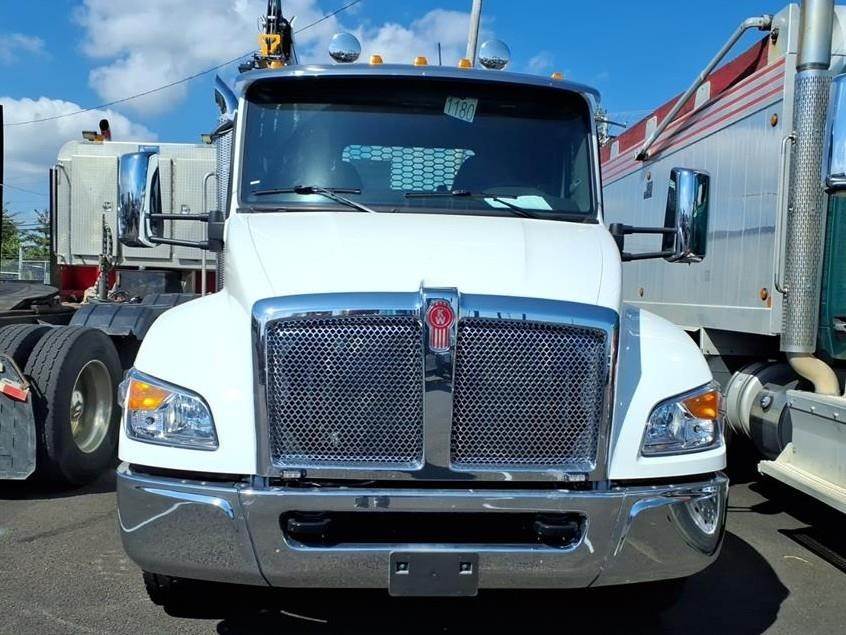

Model: T380
Engine: PACCAR PX-7, 325 HP @ 2400 RPM, 750 lb-ft Torque @ 1600 RPM, Engine Brake

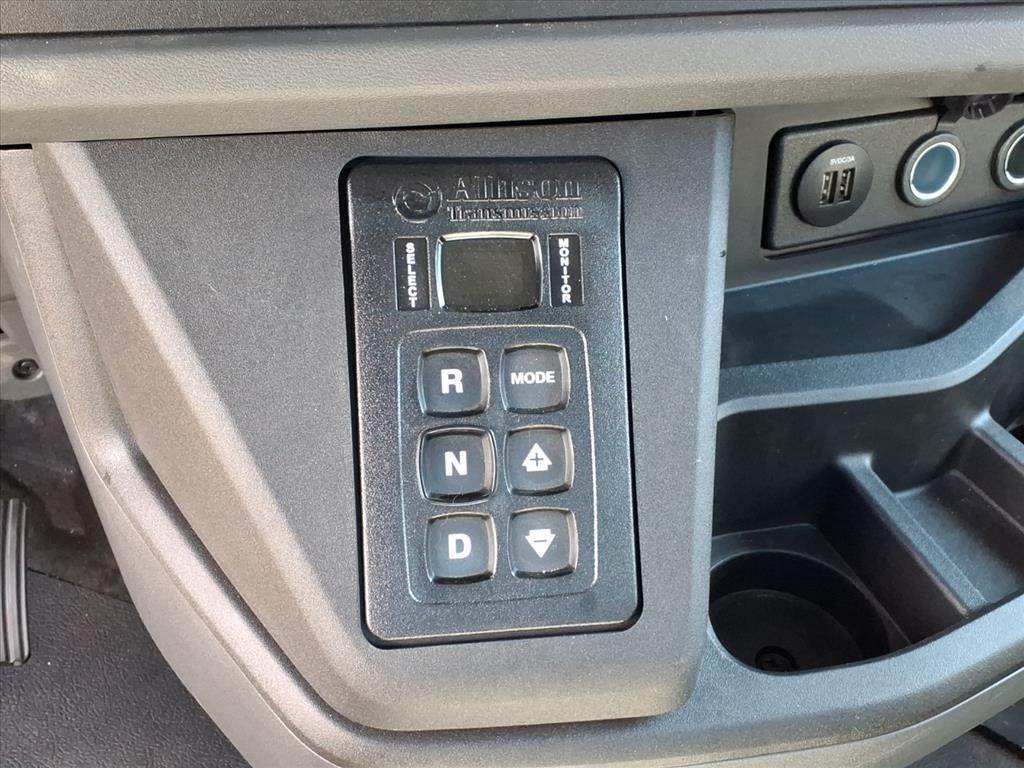

Transmission: Allison 3000RDS, 6-speed Automatic with PTO
Front Axle: Dana Spicer E-1202IL, 12,000 lbs., 3.5" Drop
Rear Axle: Dana Spicer P22060S, 21,000 lbs. Single
Front Suspension: Taperleaf 12K with Shocks
Rear Suspension: Hendrickson HAS 230L, 8.3" Height
Gross Vehicle Weight Rating (GVWR): 33,000 lbs.
Wheelbase: 192 inches
Cab-to-Axle: 124.5 inches
Rear Axle Ratio: 6.17
Front Brakes: Bendix ES Drum Brakes, 16.5" x 5"
Rear Brakes: Bendix ES Drum Brakes, 16.5" x 7" Single
Tires: Front: Michelin X Works Z 11R22.5 16PR, Rear: Michelin XDA5+ 11R22.5 14PR
Wheels: Front: Alcoa ULA18 22.5X8.25 Aluminum High Polish, Rear: Alcoa ULA18 22.5X8.25 Aluminum High Polish
Fuel Tank: 50 US gallon D-shape aluminum
DEF Tank: 5.5 gallon small
Exterior Color: White
Interior: Medium Duty Gray foam backing cloth headliner with gray visor/seat color

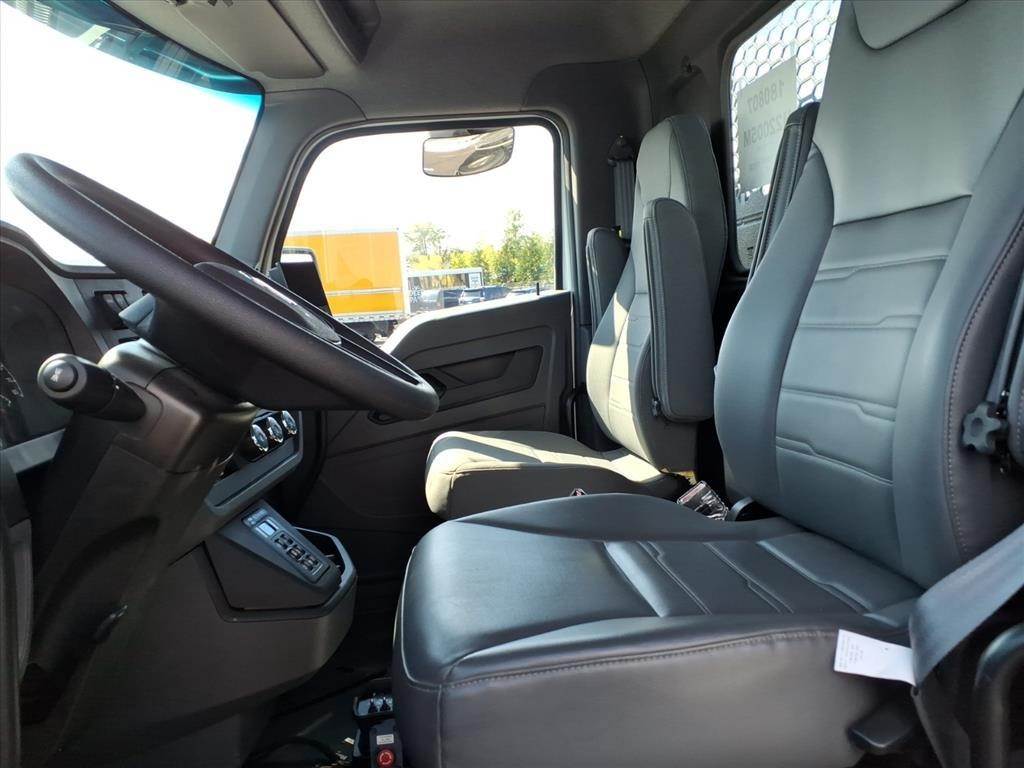

Driver Seat: Kenworth Air Seat High Back Vinyl with dual armrests and cover
Passenger Seat: Kenworth Battery Box High Back Tough Cloth with dual armrests and occupancy sensor

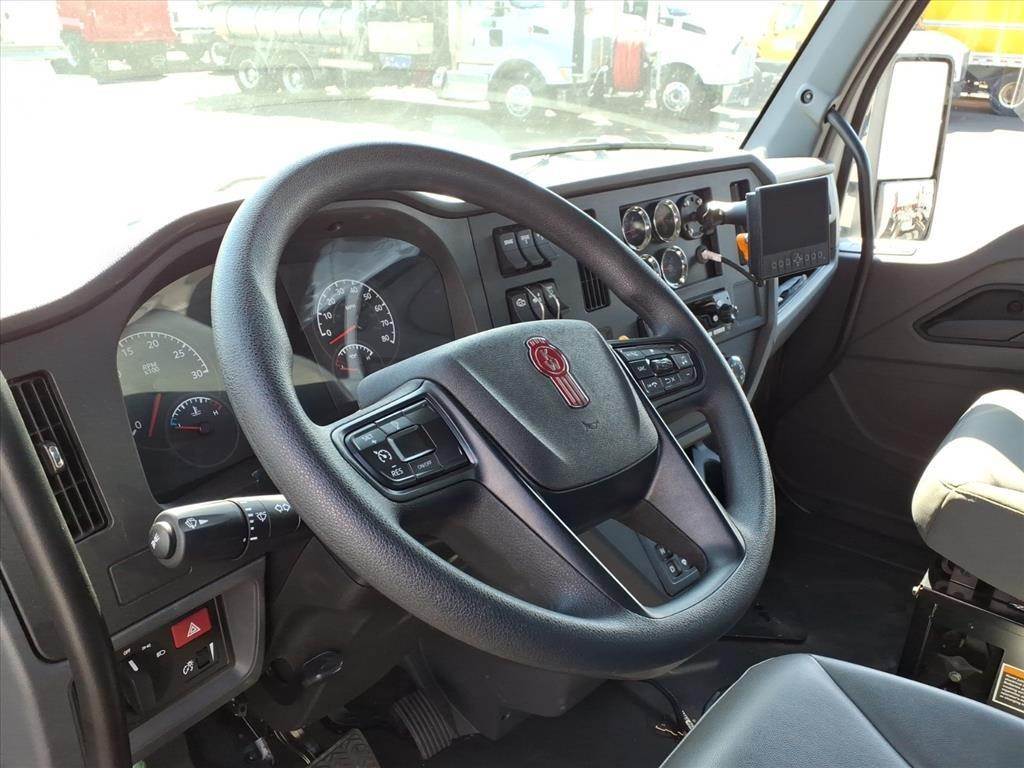

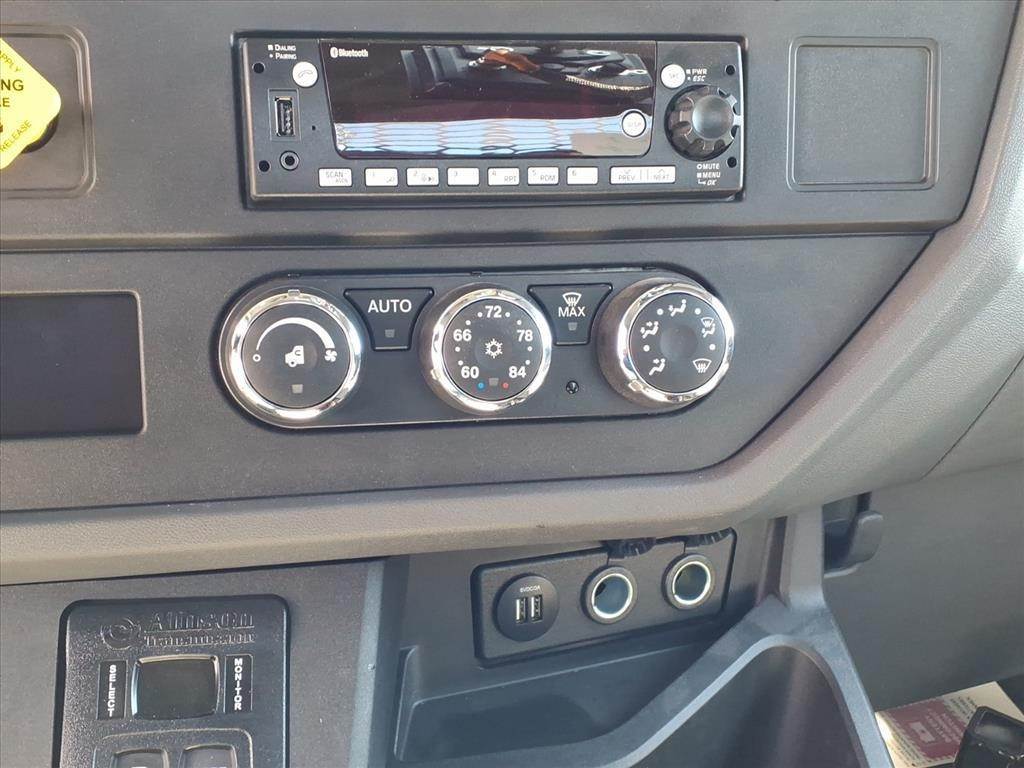

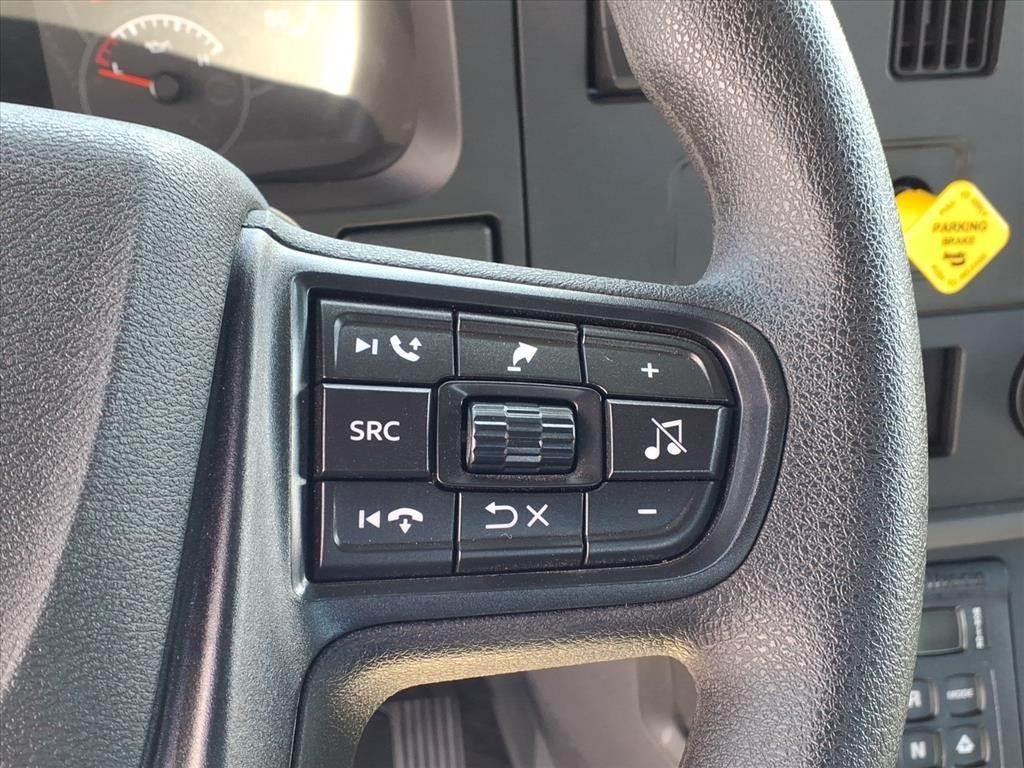

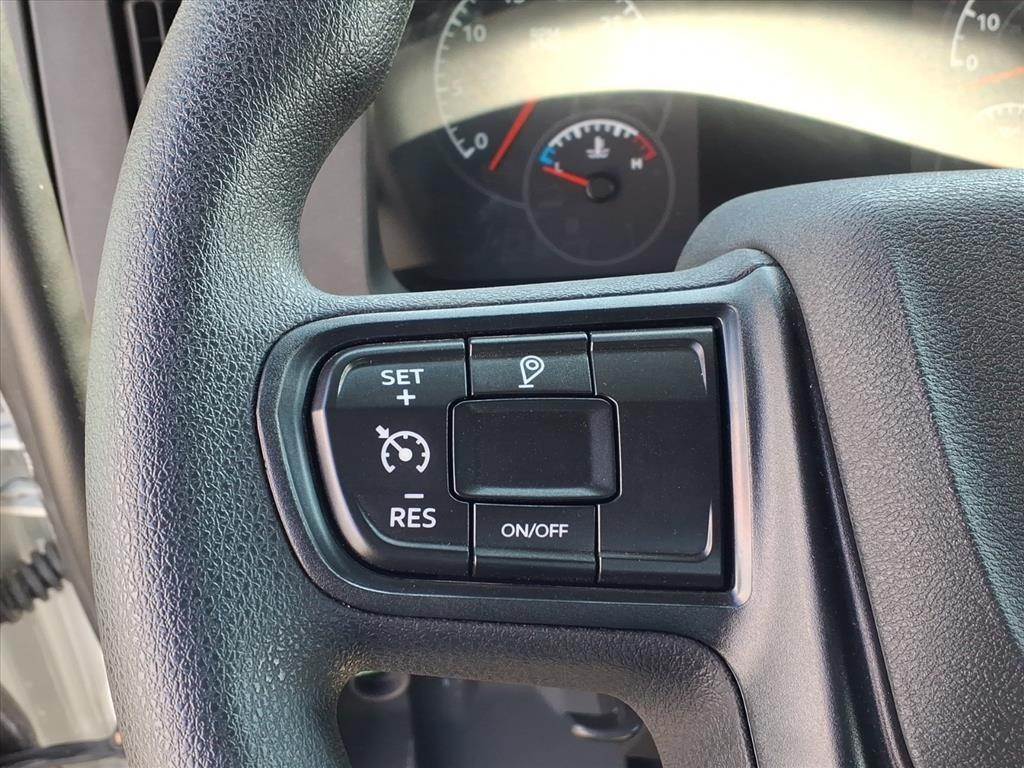

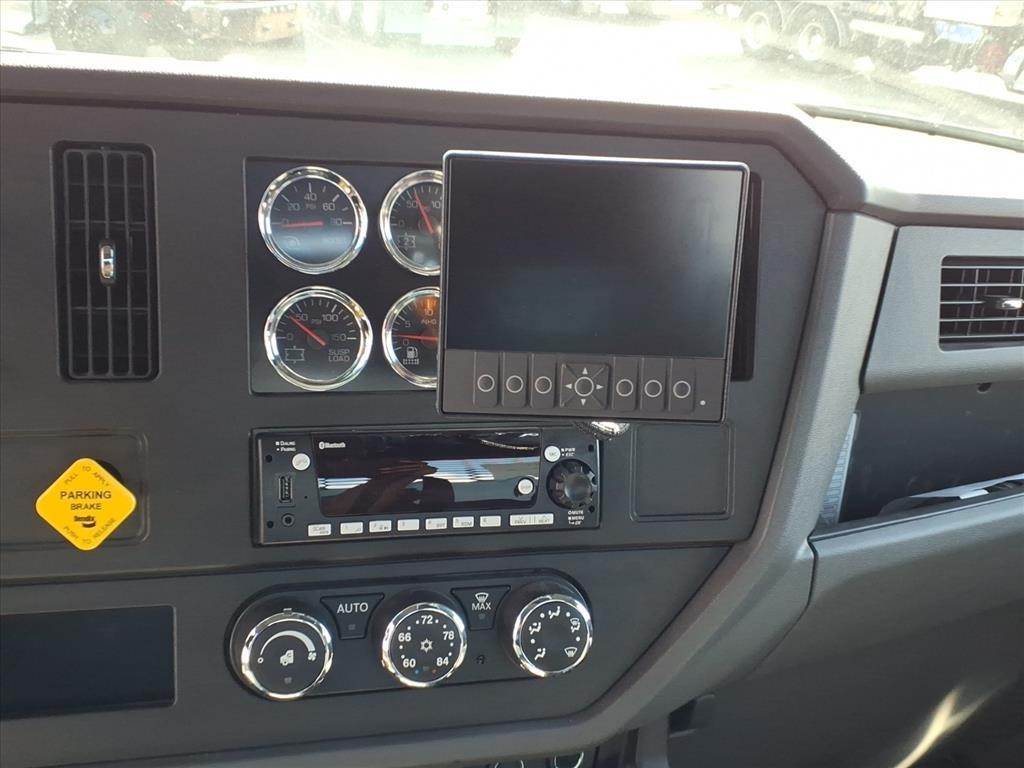

Chrome aerodynamic bumper, dual round air horns with covers, stainless steel sunvisor, stainless steel exterior mirrors, polished aluminum wheels, polished aluminum fuel tank, polished straps, Kenworth Radio DEA710 AM/FM/WB/USB with Bluetooth, 2 speakers, 18" Smartwheel with integrated radio and cruise controls, tilt/telescoping steering wheel, power windows, power door locks, air suspension pressure gauges, backup alarm, Kenworth TruckTech+ (Remote Diagnostics)

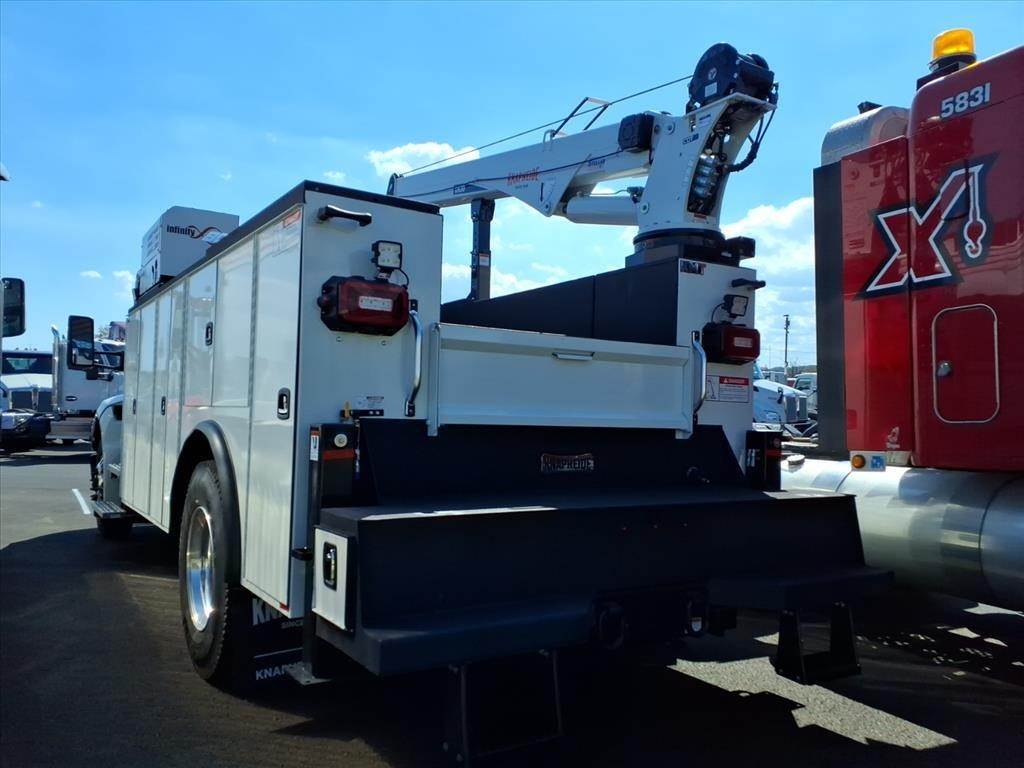

Knapheide Body Specifications:
KMT2-14 14-foot crane body with 14-gauge two-sided A-40 galvanneal body shell
Overall length: 169-1/4 inches
Overall width: 94 inches
Floor width: 50 inches
Floor height: 32 inches
Side compartment height: 60 inches
Side compartment depth: 22 inches
Torsion box floor with no wheel housings in cargo area
Crane Equipment:

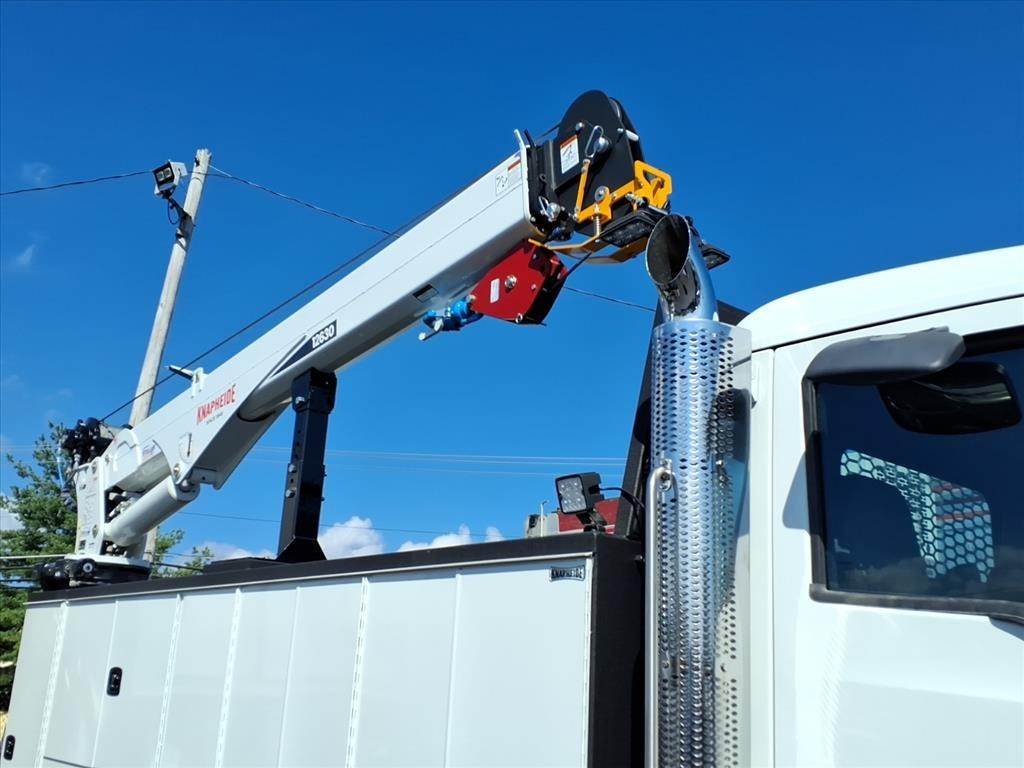

Stellar 12630 CDT Pro Crane
Maximum horizontal reach: 30 feet from center line of crane
Maximum vertical lift: 31'9" from crane base
Crane rating: 77,800 ft-lbs
Lifting capacity: 12,000 lbs at 6'5" / 2,665 lbs at 29'3"
7/16" rope diameter
55 ft/min line speed
400-degree power rotation

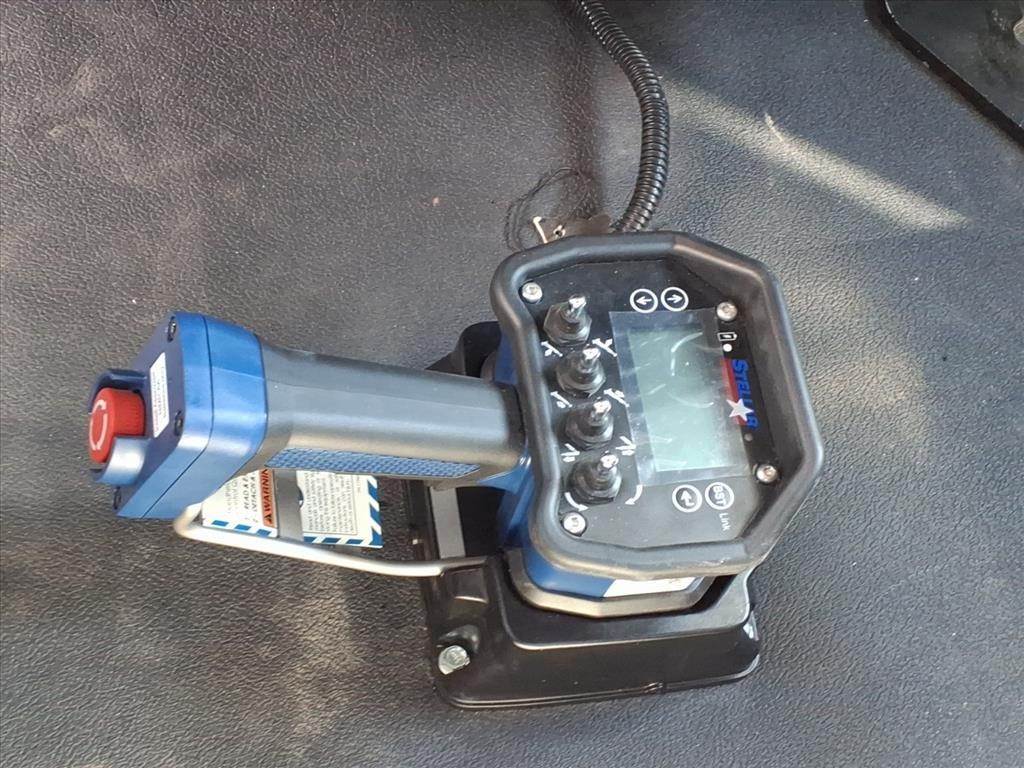

Hydraulic unit with radio remote control

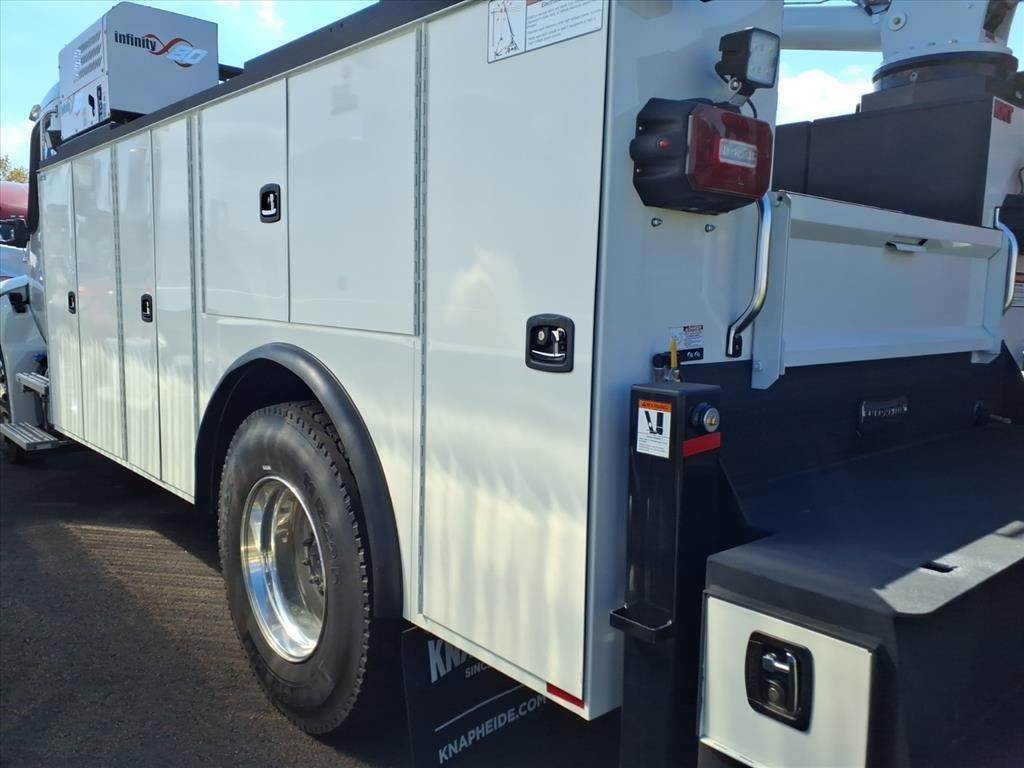

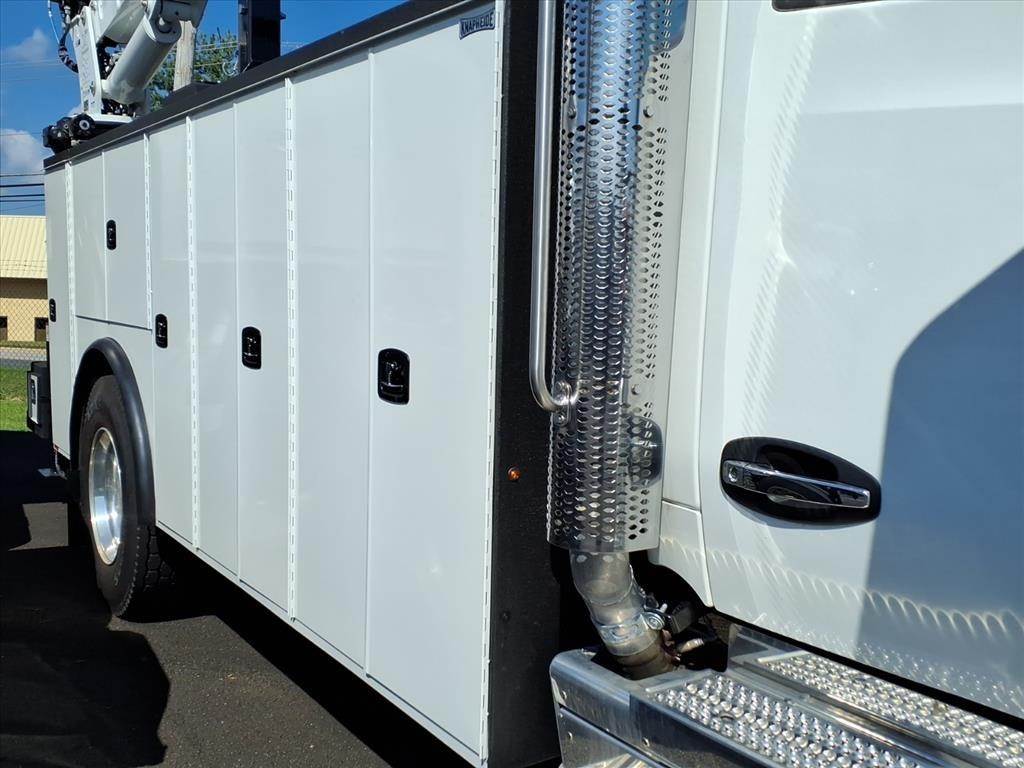

Storage Compartments:
Street Side:
1V: 55-1/4" length x 60" high
2V: 36" length x 60" high with fenderettes
H: 53-1/4" length x 30-1/2" high
3V: 24-3/4" length x 60" high
Curbside:
1V: 39-1/4" length x 60" high
2V: 32-3/4" length x 60" high
3V: 19-1/4" length x 60" high
H: 52-3/4" length x 30-1/2" high
3V: 25-1/4" length x 60" high
Interior Organization:
7-drawer unit with extreme duty drawer slides, drawer liners, and front-to-back dividers
Multiple adjustable shelving systems throughout compartments
Bolt bin storage unit
Bottle gas holders for (2) bottles with vertical partition and (3) adjustable shelves
Crane compartment with roller fairlead and FLR system

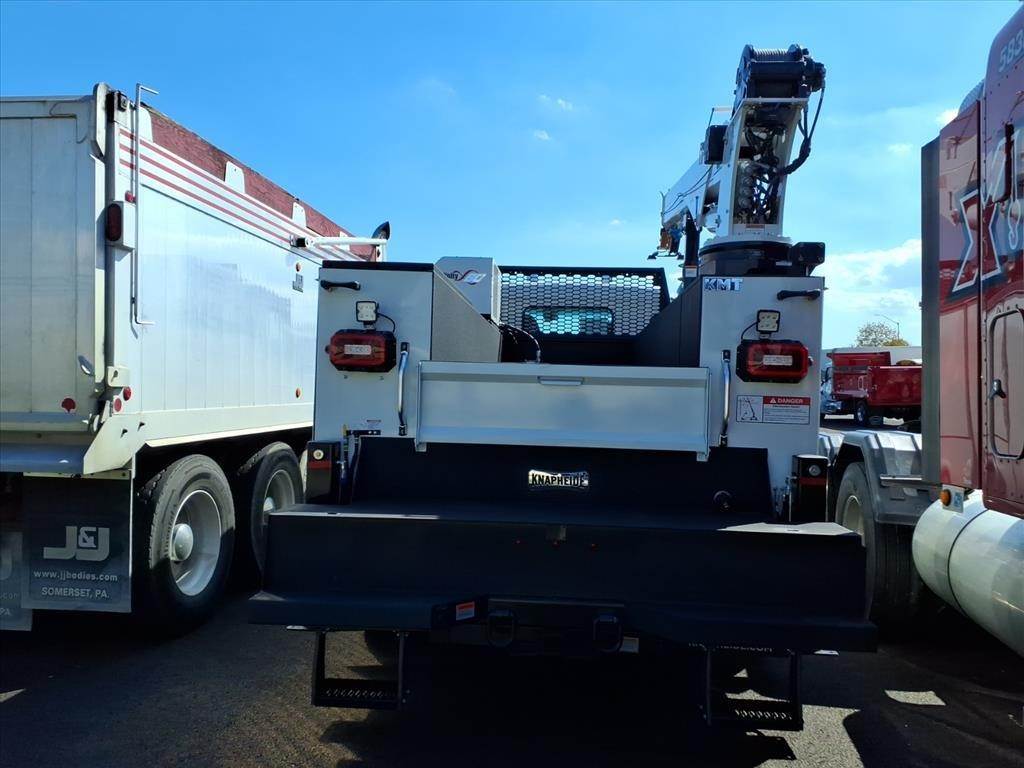

Key Features:
Automotive quality 3-point T-handle latches
(6) Recessed D-ring tie downs
24" work surface bumper with pintle plate installed underneath
Master lock system
Cab guard
Bolt-on slammable tailgate
(2) Rear flex steps (one each side)
(2) Aluminum grab handles
Vise mount stand
Hydraulic and Air Systems:
Boss Infinity I80 Series hydraulic air compressor: 65 CFM at 150 PSI
50' x 1/2" spring retract air hose reel installed right rear vertical with roller fairlead
35-gallon hydraulic reservoir installed in cargo area front with reservoir guard
22-gallon underbody air tank
PTO system
Tandem hydraulic pump
Rear outriggers: hydraulic out and down curbside, hydraulic down street side
Electrical and Lighting:
Light kit with 6-circuit wire harness including stop/turn/tail, backup, marker, and RID lights
(4) LED work lights
LED compartment lights
Dual LED boom tip lights
KMT control system with power cell, controller, and (8) button switch panel
In-cab display
Front strobe kit with (2) amber strobes installed on grille
Additional Equipment:
18,000 lbs maximum trailer weight receiver hitch with 3,600 lbs maximum tongue weight
Rear mud flaps
Weight ticket provision
Chassis spring work
Finish and Protection:
Body exterior painted single stage color with interior compartments painted white
Knapliner commercial grade spray-on bed liner applied to cargo floor, sides, compartment tops, bulkhead, tailgate, rear bumper, and entire front of body
Prepunched fenderette holes and fenderettes included
Standard limited warranty coverage
