Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost – Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro, or Westminster. Contact us for details!

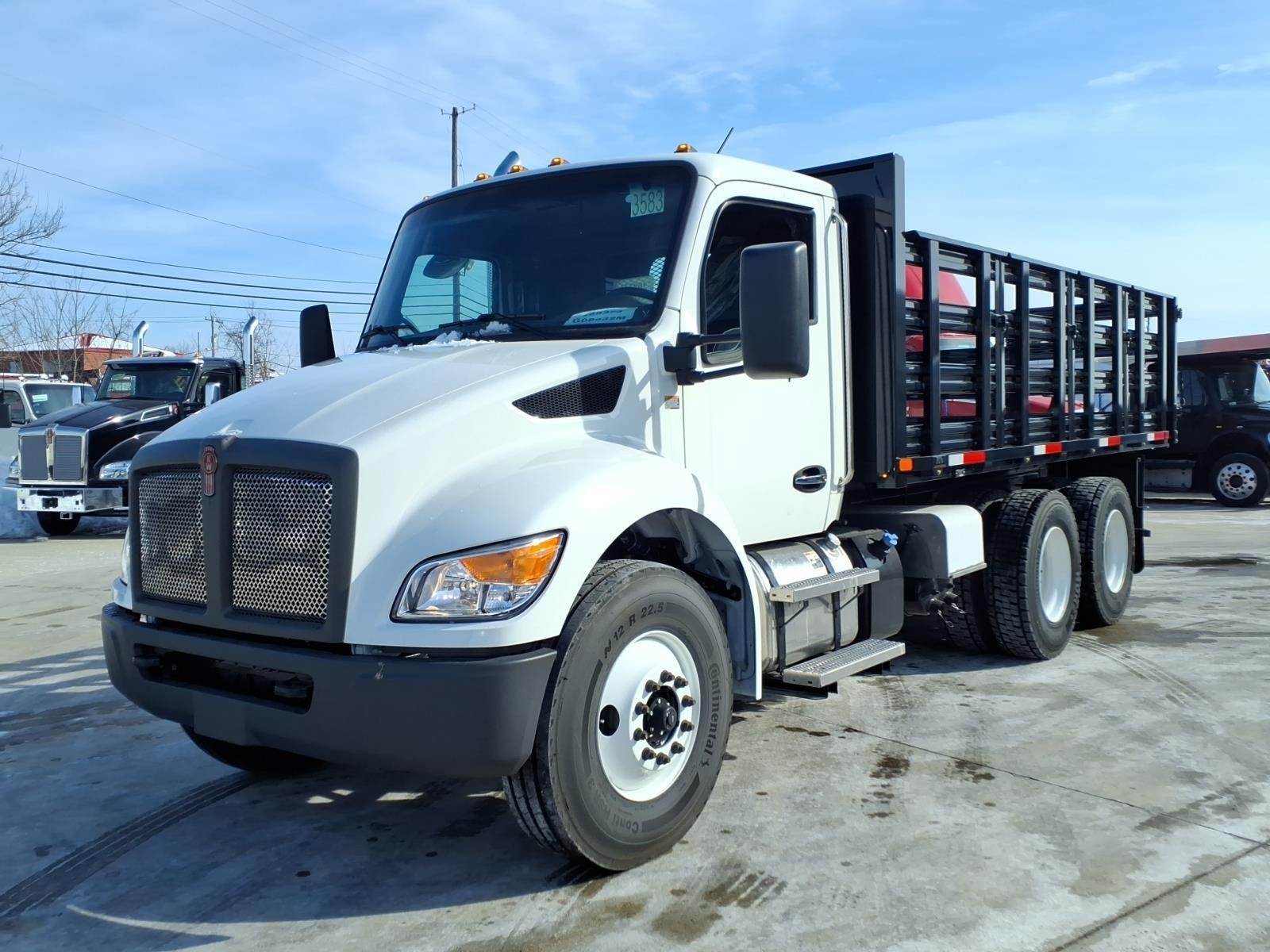

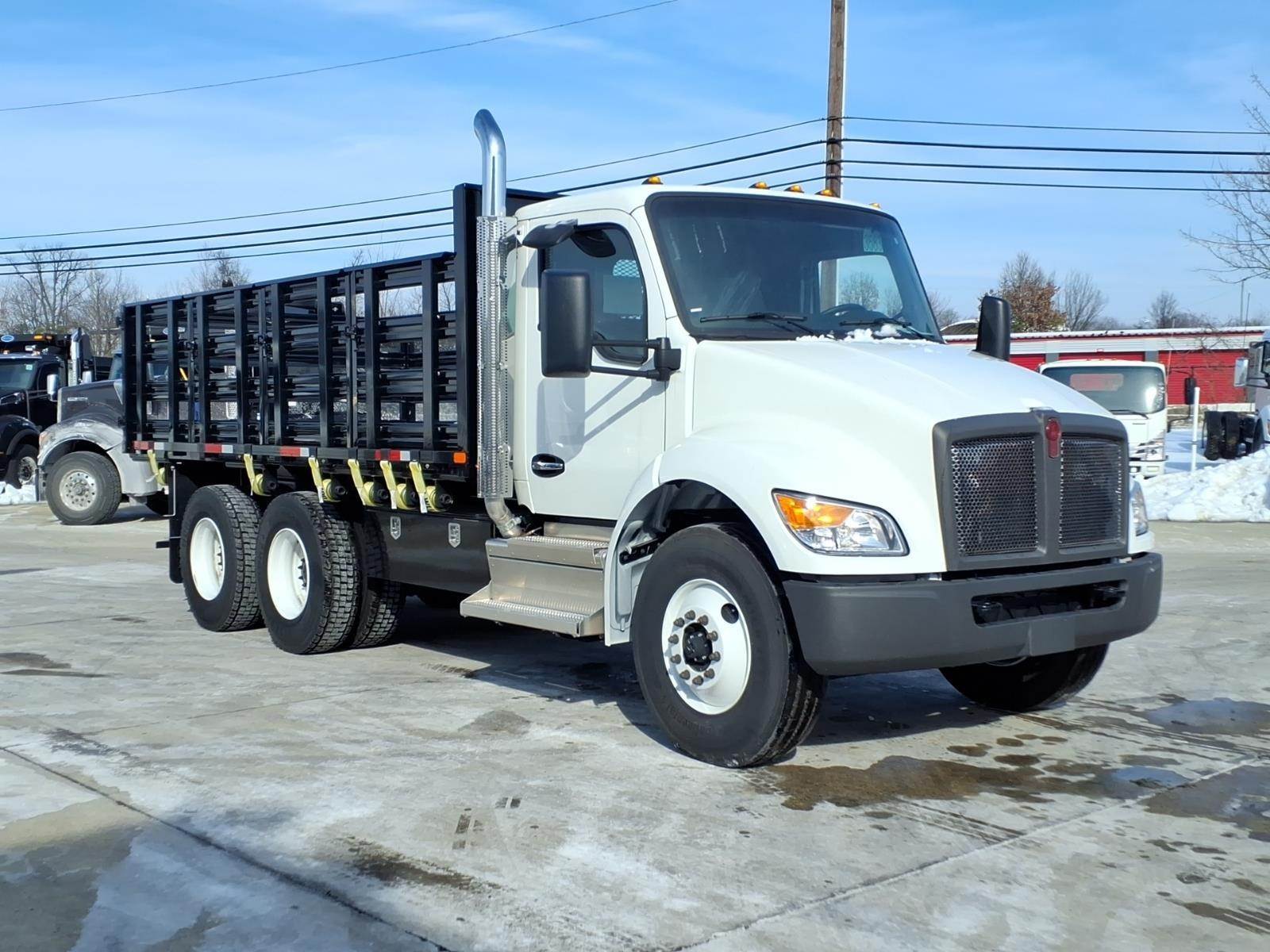

Model: T480 SERIES CONVENTIONAL
Exterior Color: White (L0006EY)

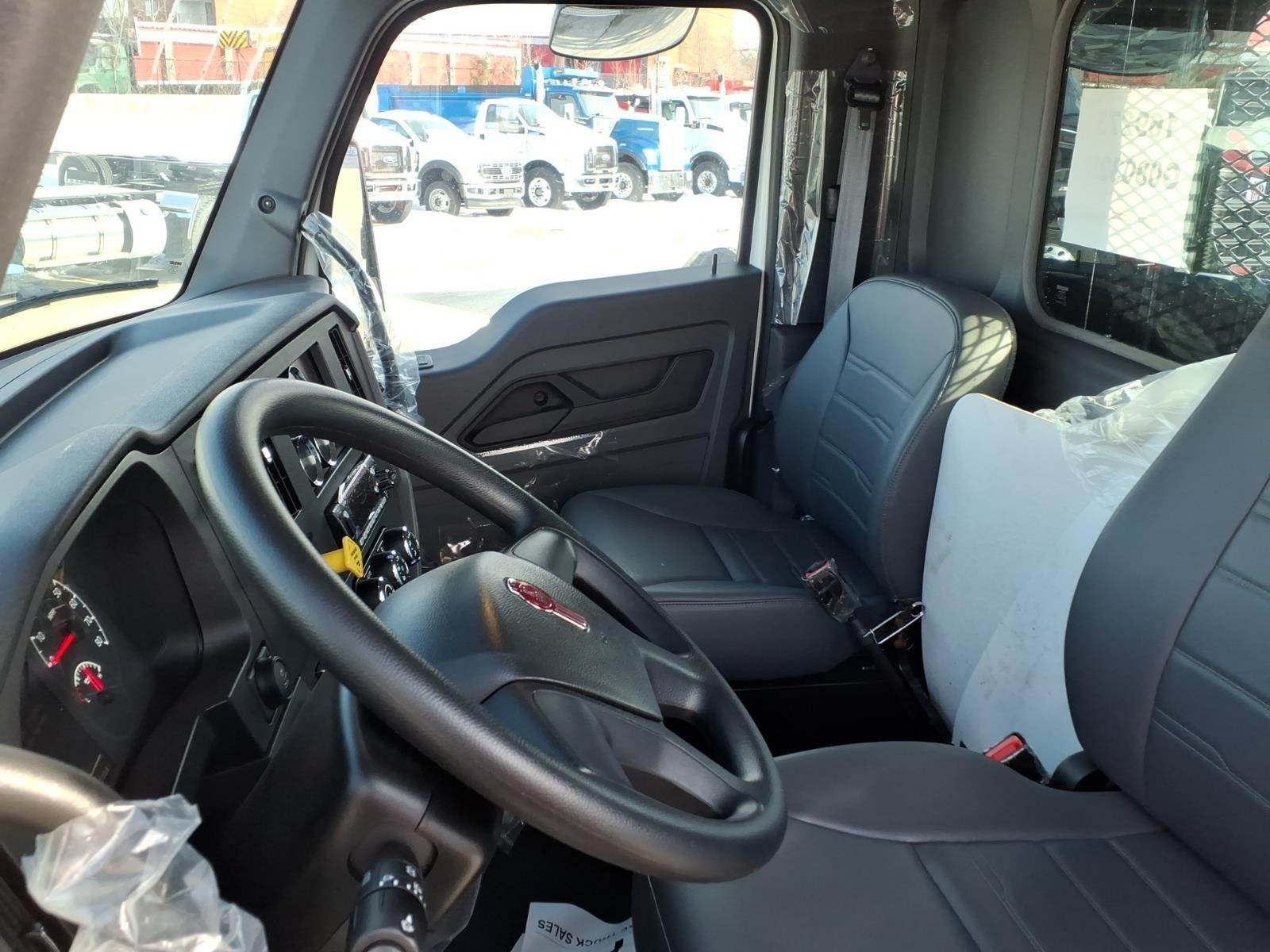

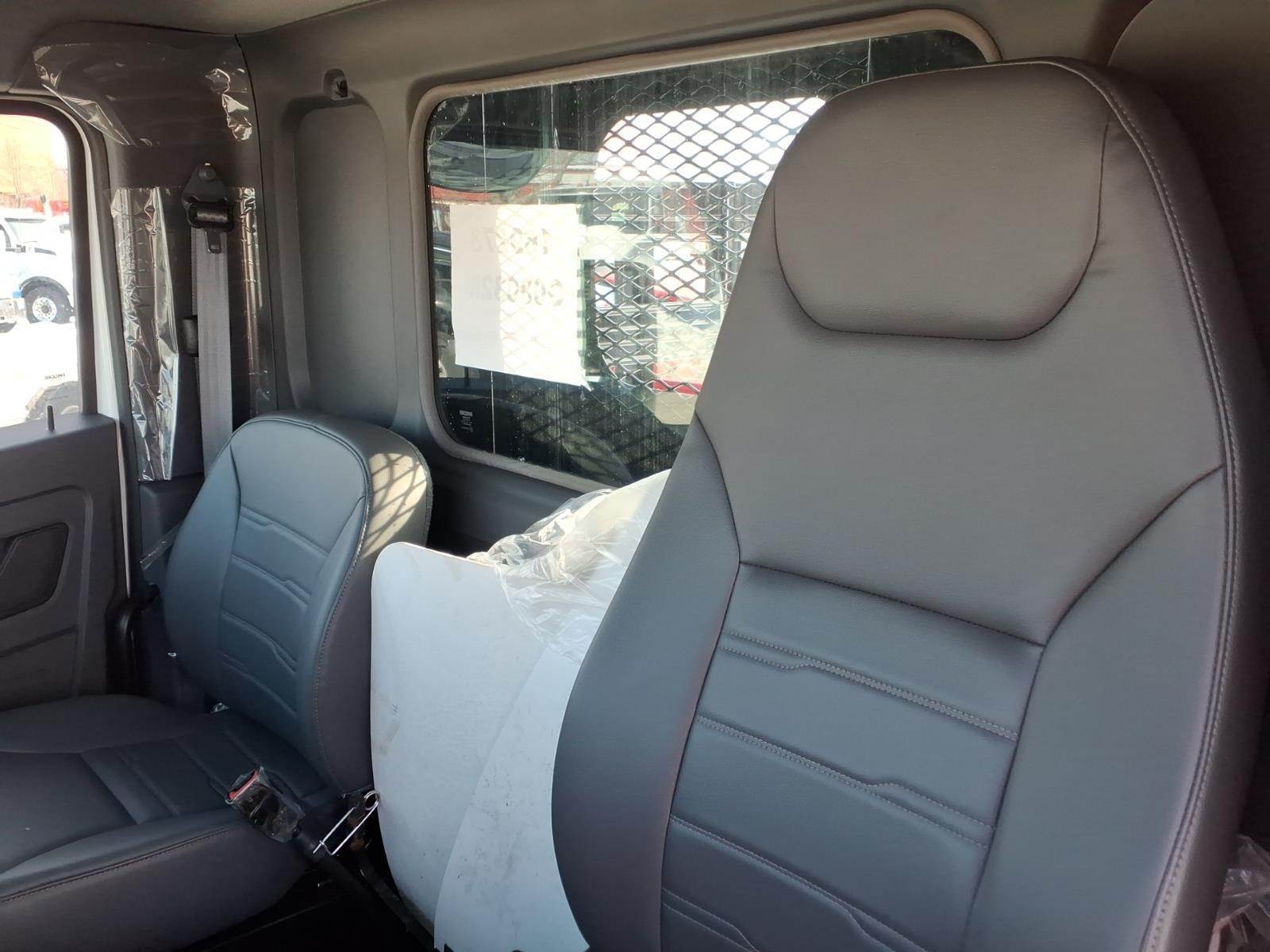

Interior Trim Level: INT TRIM PKG: 2.1M MD GRAY FOAM BACKING CLOTH HEADLINER W/GRAY VISOR/SEAT COLOR
Interior Color: GRAY (Implied by trim pkg, seat color)
Engine: PACCAR PX-9, 300 HP @ 1850 RPM, 860 lb-ft @ 1200 RPM, W/ TURBO EXH BRK (Engine Brake is present)
Transmission: ALLISON 3500RDS, 5 SPD, GEN 6
Front Axle: DANA SPCR E-14621, 14,000.00 LBS
Rear Axle(s): RR DANA SPCR DSP41P, 40,000 LBS
Suspension: HEND RT403, 40K DUAL, 52" AS STD HT
GVWR: 54,000.00 LBS
Wheelbase: 185.00 IN
Cab-to-Axle: 117.50 IN
Rear Axle Ratio: 5.29
Brakes (Front): MERITOR Q+ 16.5X5" MAX CAP 14.6K (Drum)
Brakes (Rear): MERITOR Q+ 16.5X7" DUAL 46K (Drum)
Wheels (Front): ACCUR 50291 22.5X8.25 HD STL HUB PIL STEEL ARMOR PWDR COAT
Wheels (Rear): ACCUR 50291 22.5X8.25 HD WHT HUB PIL STL ARMOR PWDR COAT
Tires (Front): CN HSR3 12R22.5 16PR
Tires (Rear): CN HDR2+ 11R22.5 16PR

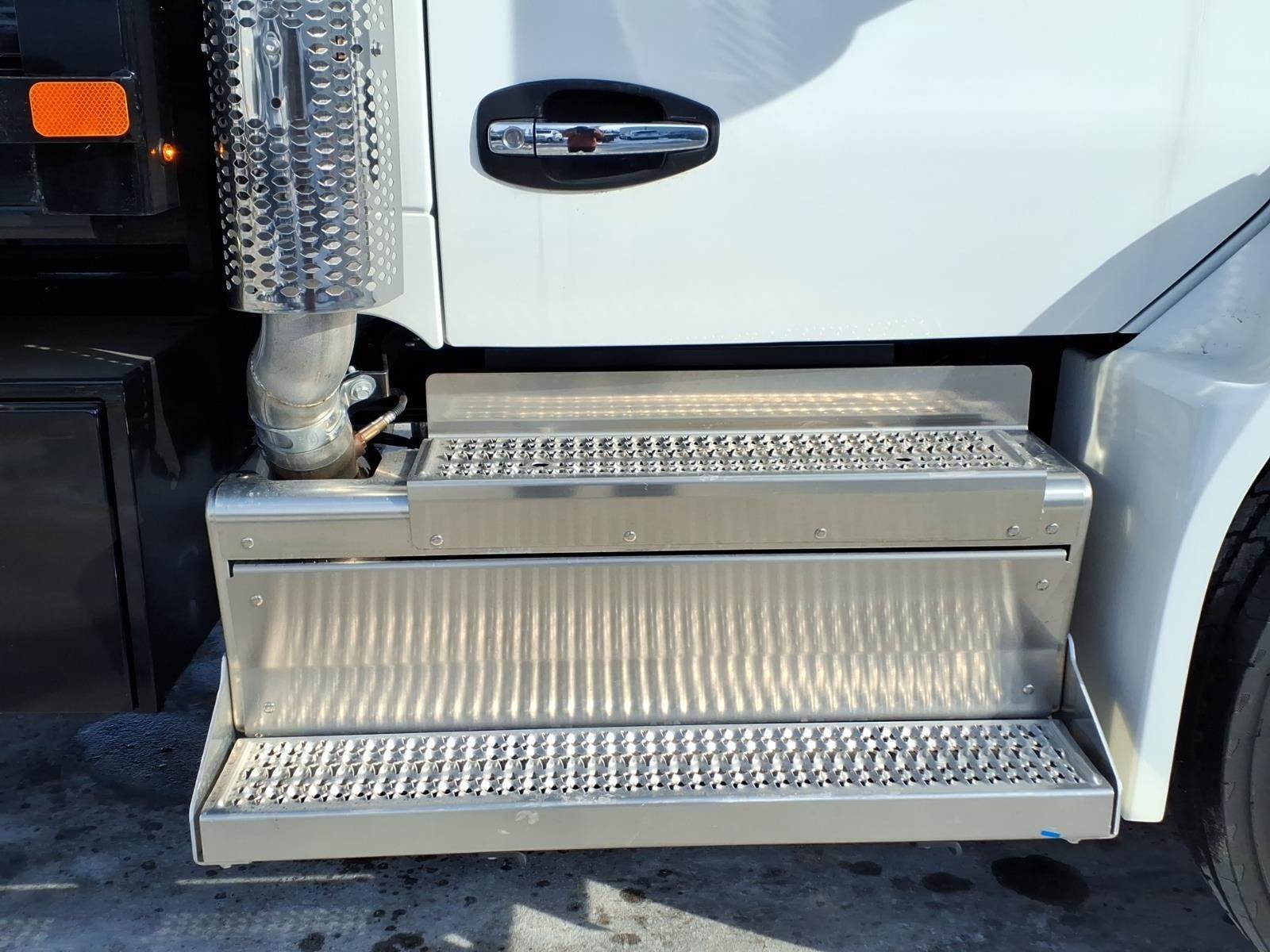

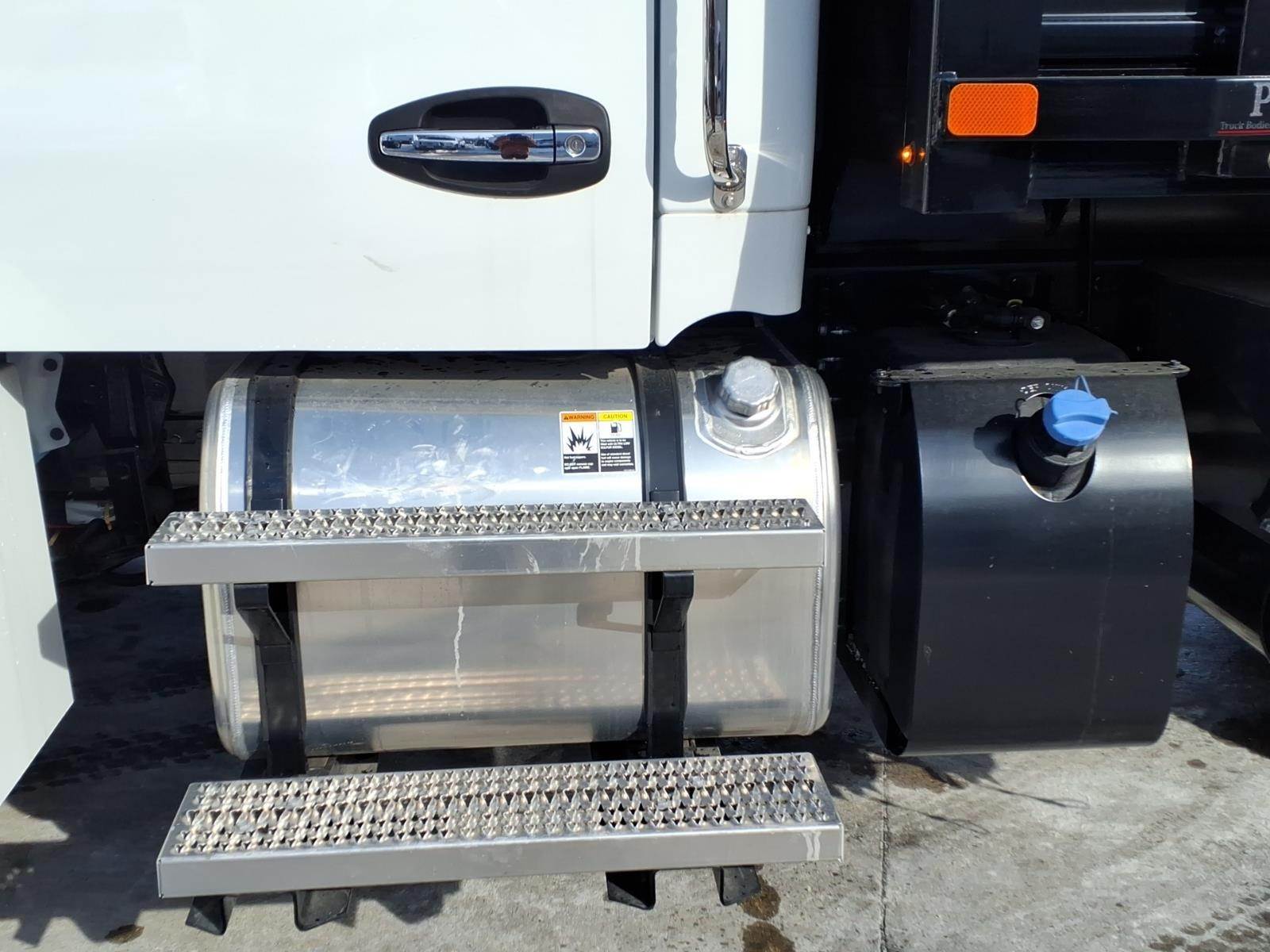

Fuel Tanks: 50 US GAL, D-SHAPE RECT AL UND RPL, WITH NON-SLIP STEP
Options & Features:

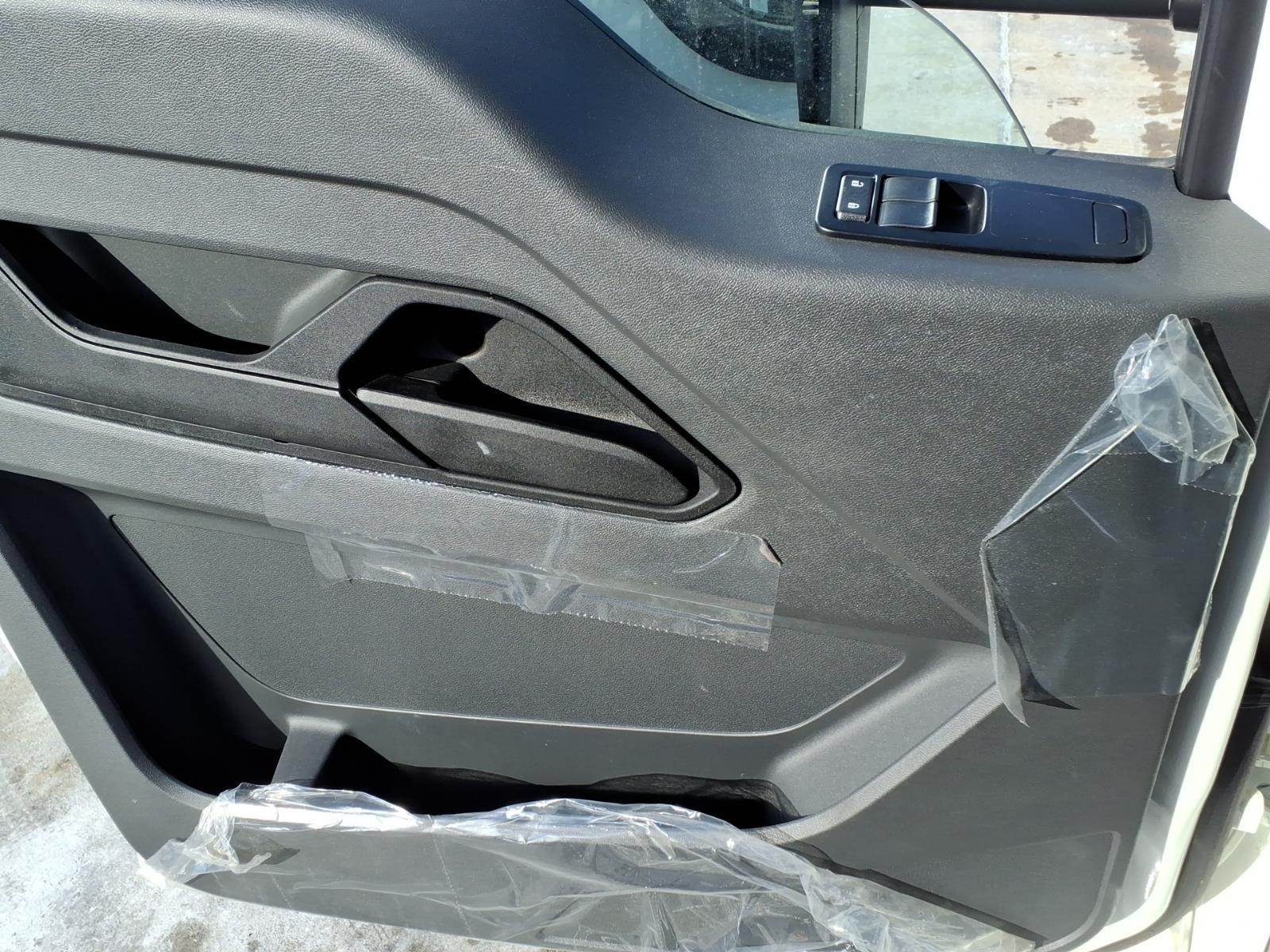

Power windows, power door locks
Tilt/telescoping steering wheel
Power windows
Power door locks
Kenworth TruckTech+ (Formerly Remote Diagnostics)
Htr/Air Con w/defrst & auto temp ctrl

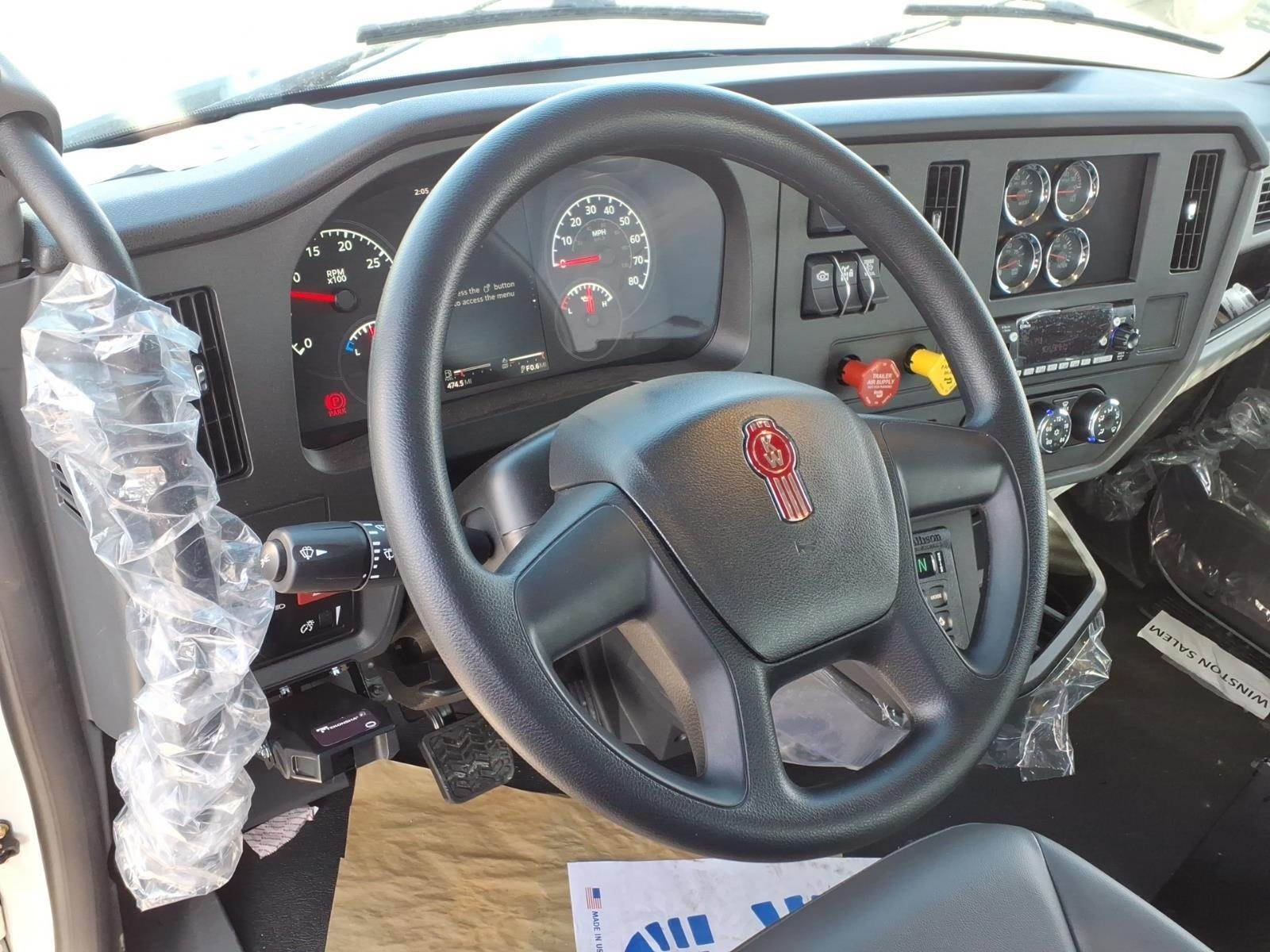

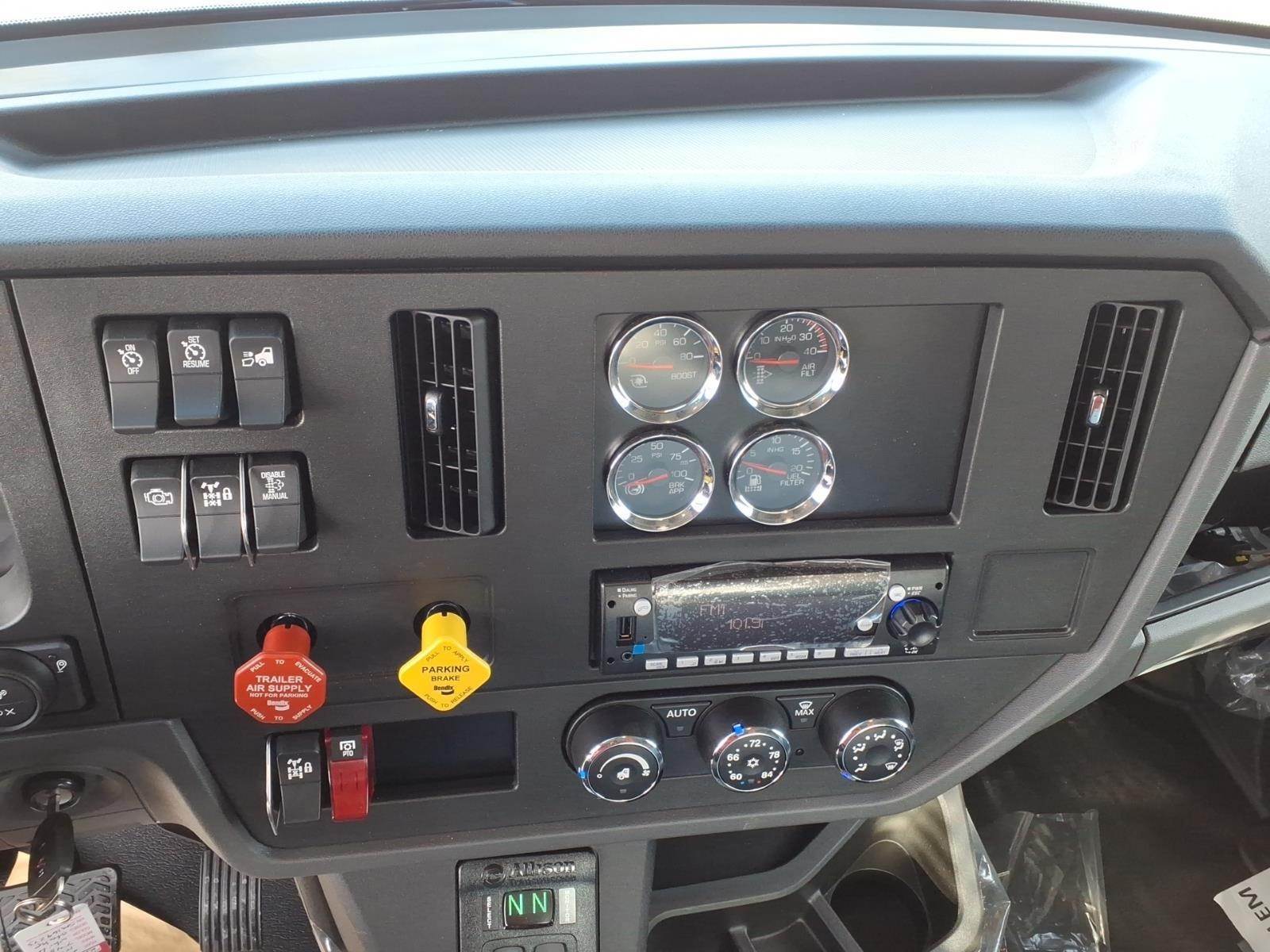

Main Instrument Pkg: 7" DISPLAY

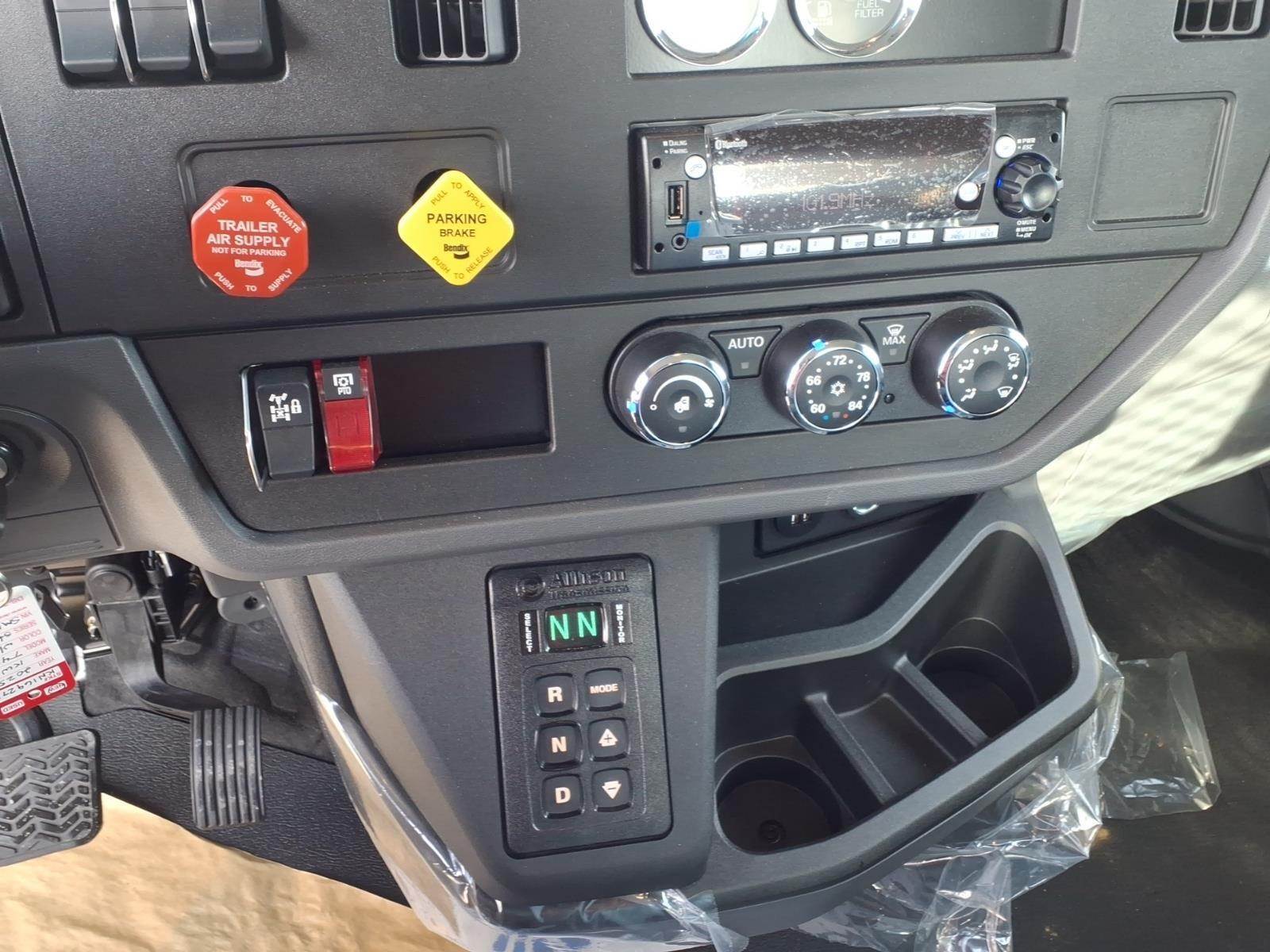

Kenworth Radio DEA710 AM/FM/WB/USB
Back-up alarm

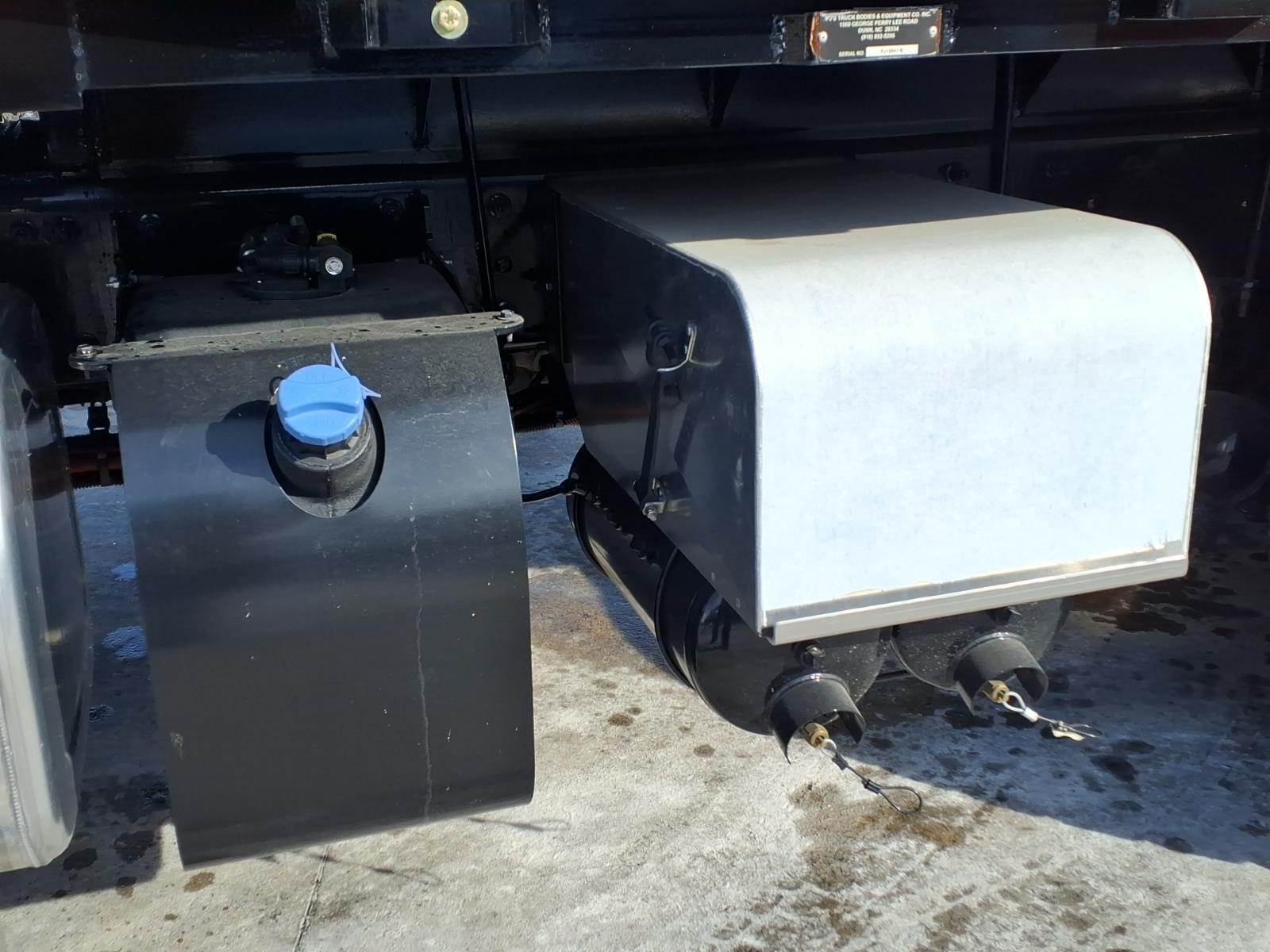

DEF TANK: LARGE, 15 GAL
Exterior Chrome/Polished Items: None listed (Battery box is smooth natural finish alum, DPF/SCR box natural end plates and natural cover)

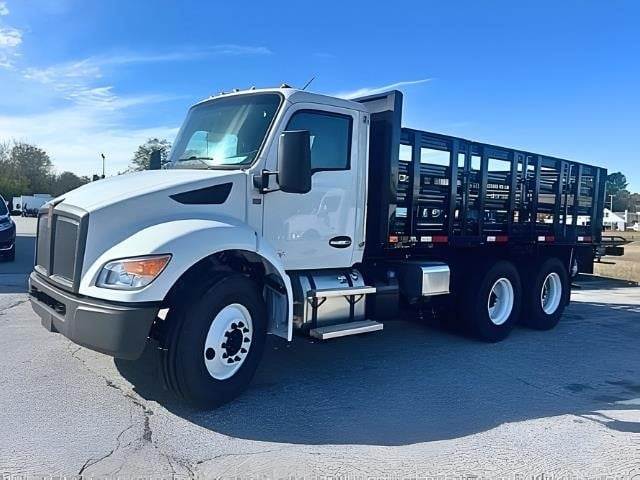

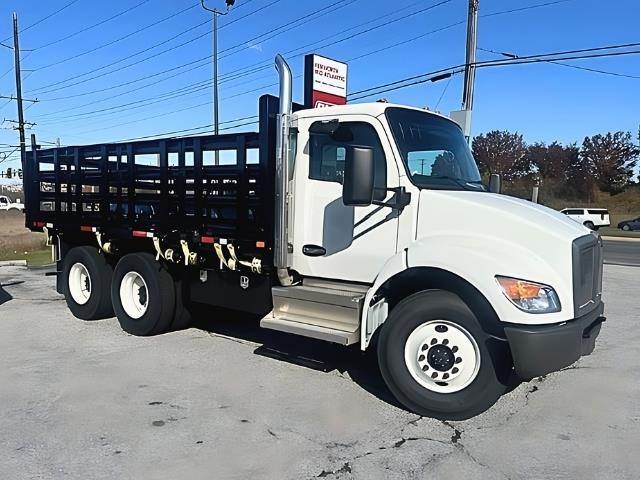

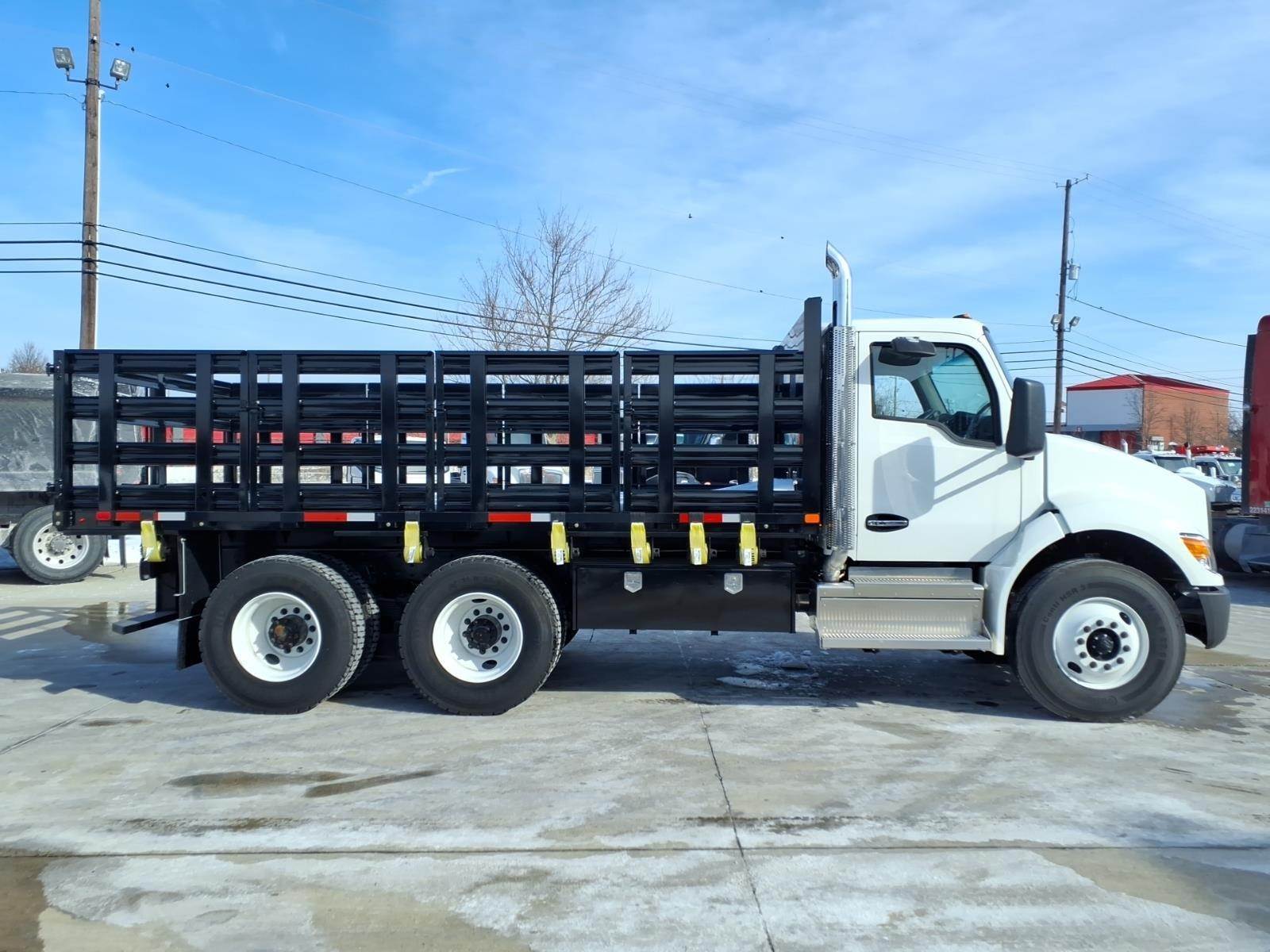

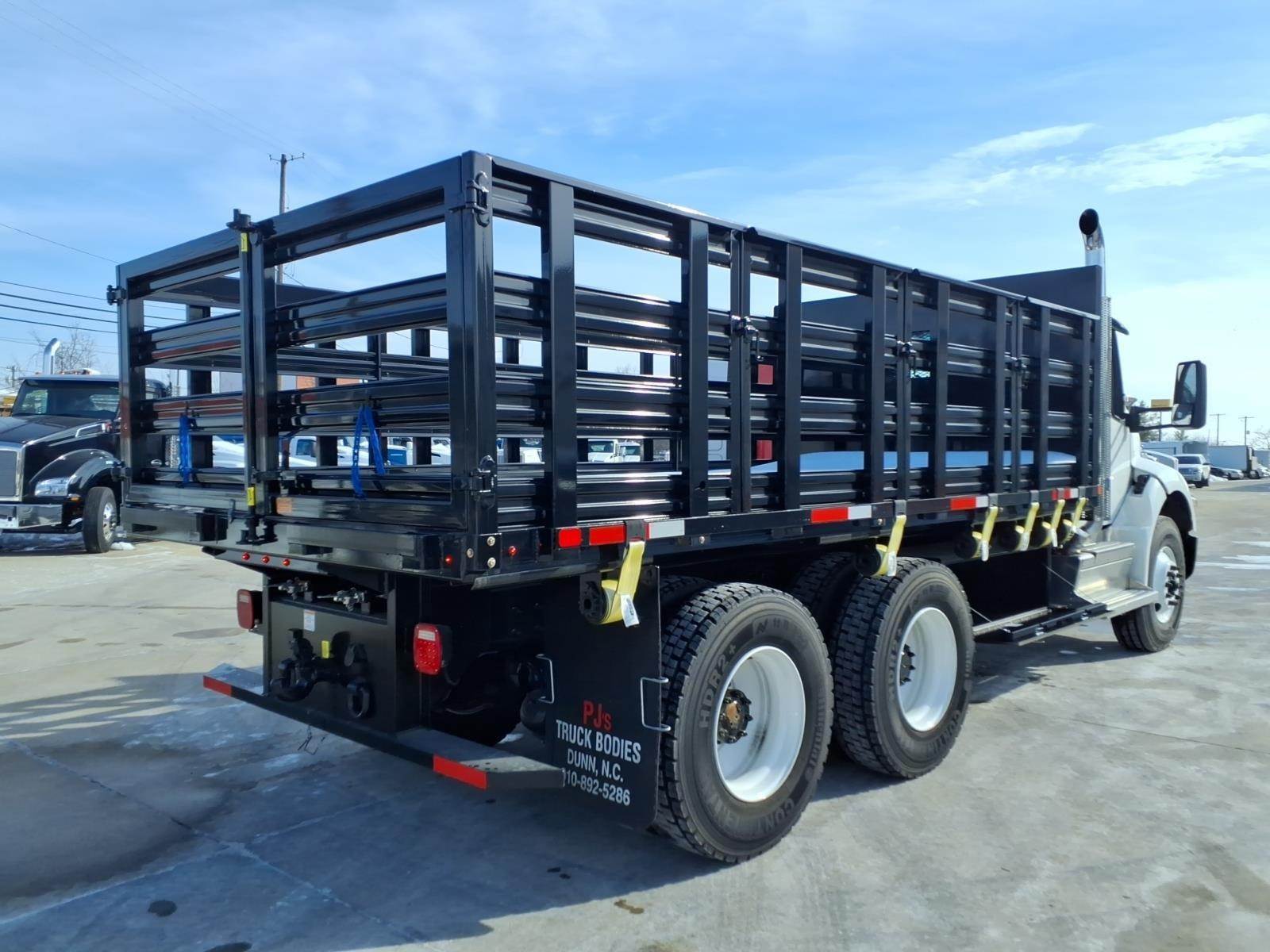

Body Summary – PJ’s Truck Bodies Stake Body
Body Length: 16'6" flatbed
Width: 102" overall (replaces standard 96")
Floor: 1/4" steel plate (upgraded from 3/16")
Longsills: 7"
Crossmembers: 4" XBMRS
Rub Rail: Included
Outside Stake Pockets: Included
Crossmember Spacing: 8" on center (upgrade from 12")
Headboard: 56" with window (measured before building)
Sides: 42" slatted metal, four removable sections

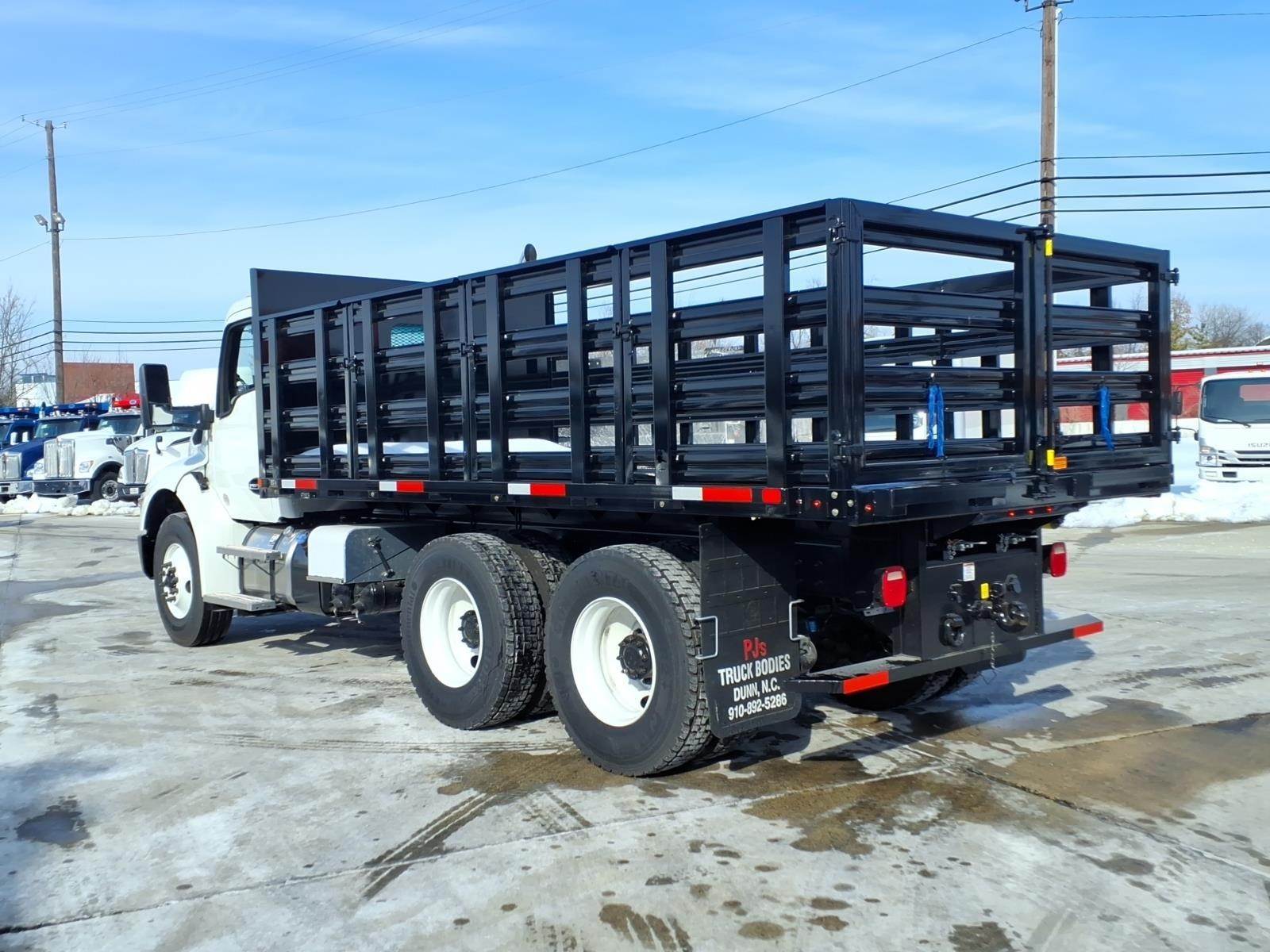

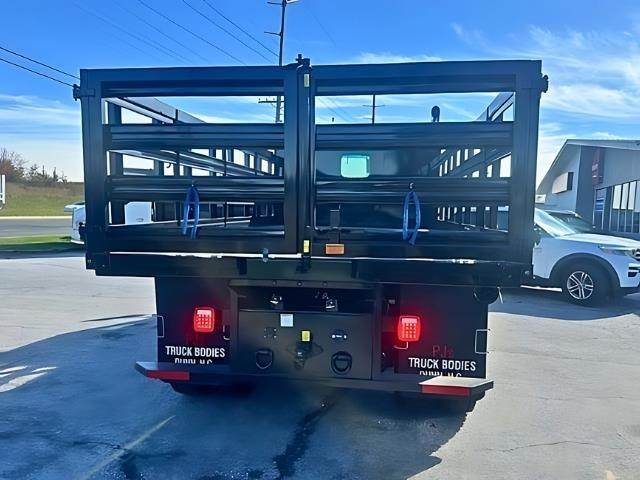

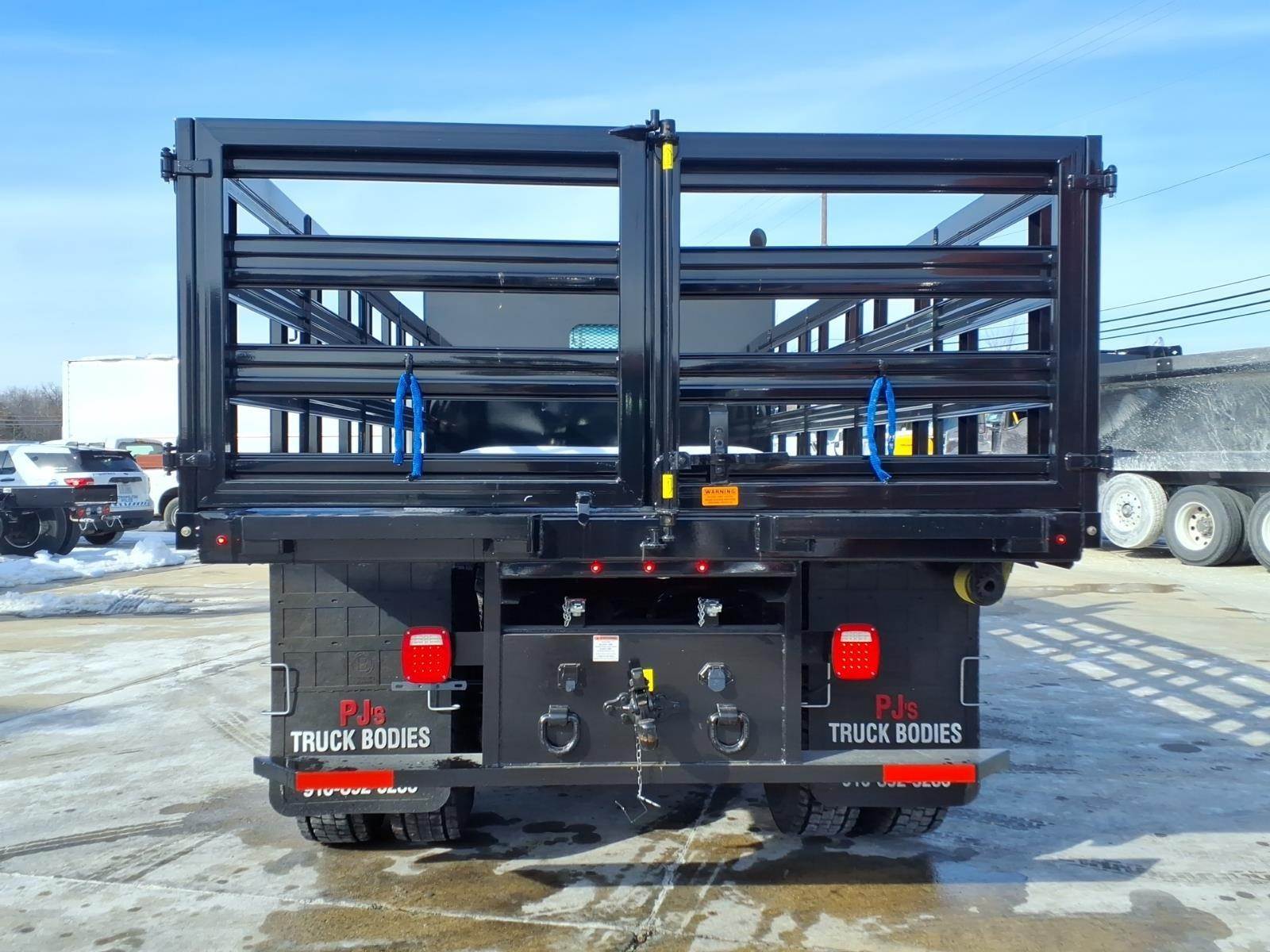

Rear Doors: 2-piece 42" slatted metal barn door
Hitch Plate: Heavy-duty pintle hitch plate
Pintle Hitch: BP200 forged swivel pintle, mounted with D-rings
Electrical:
7-pin flat receptacle
7-pin round receptacle
Electric brake controller
Glad hands with protection valve and air lines to rear
Cargo Control:
Slide track on curbside (17 ft.)

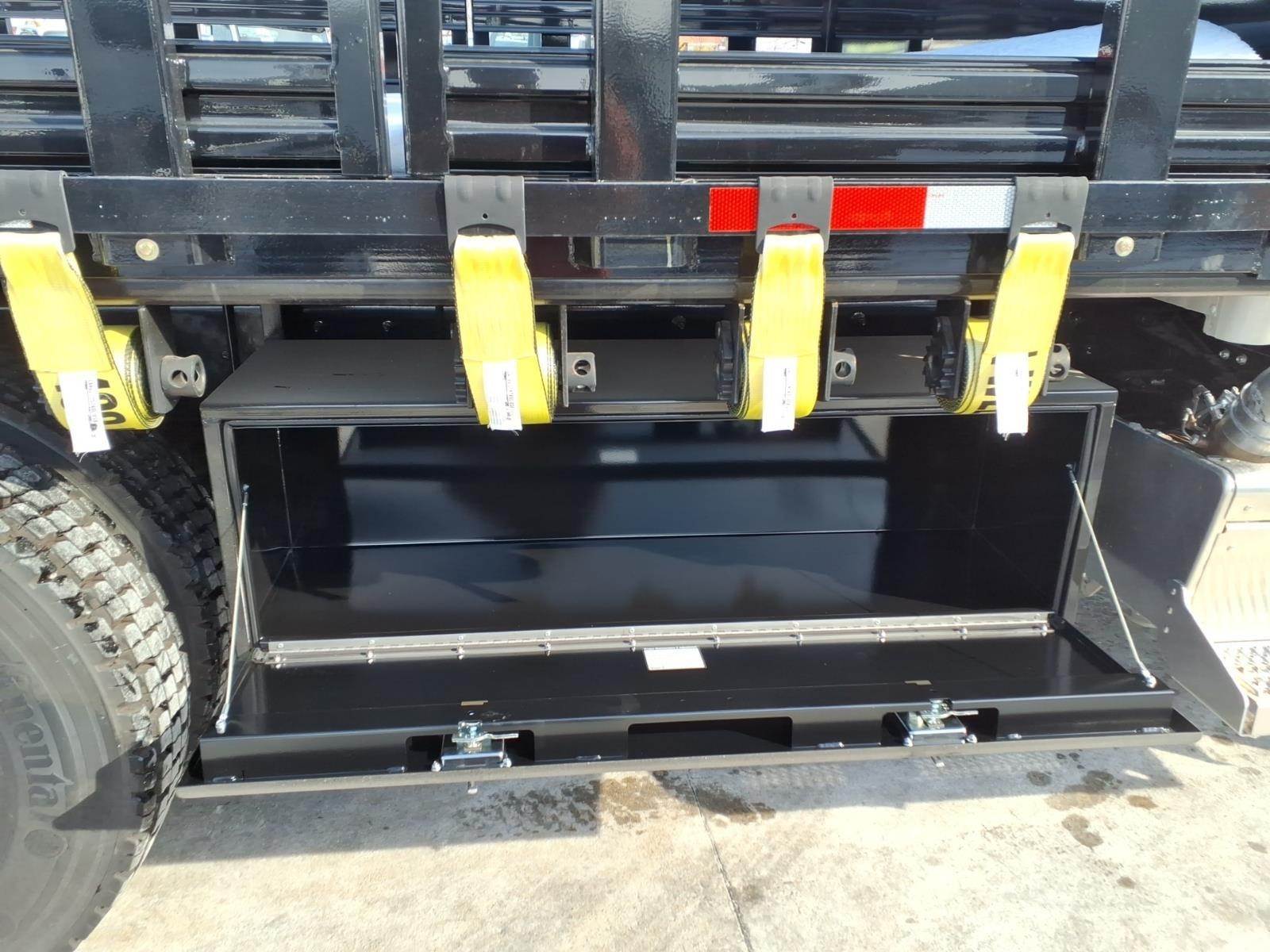

(6) 4" winches with 30’ straps and (1) tie-down bar
Toolbox: 18"x18"x60" steel, black, underbody curbside mount
Finish: Powder coated black
Lights & Safety:
FMVSS lights
Mud flaps with anti-sail brackets
Back-up alarm
