Product Description
Transfer this unit to your nearest South Florida location at no additional cost! Fort Lauderdale, Fort Pierce, Riviera Beach, or Naples. Contact us for details!

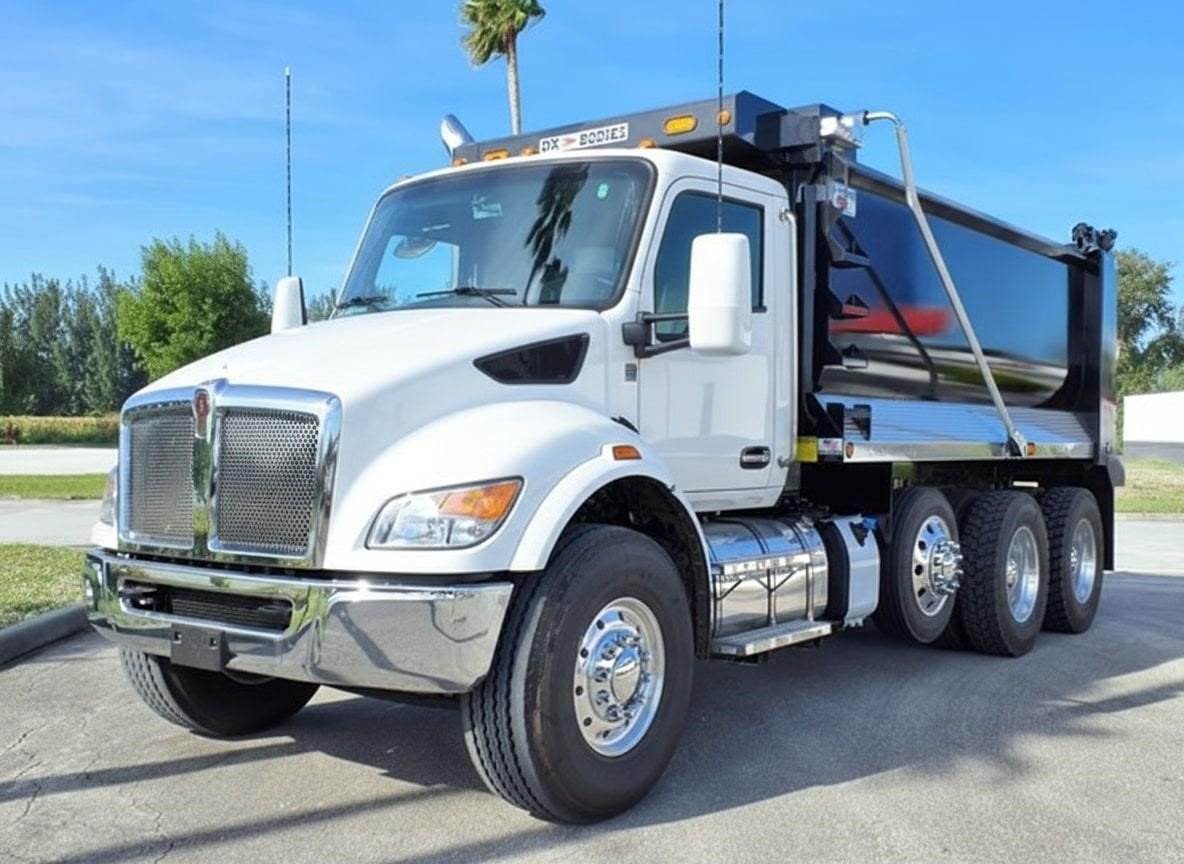

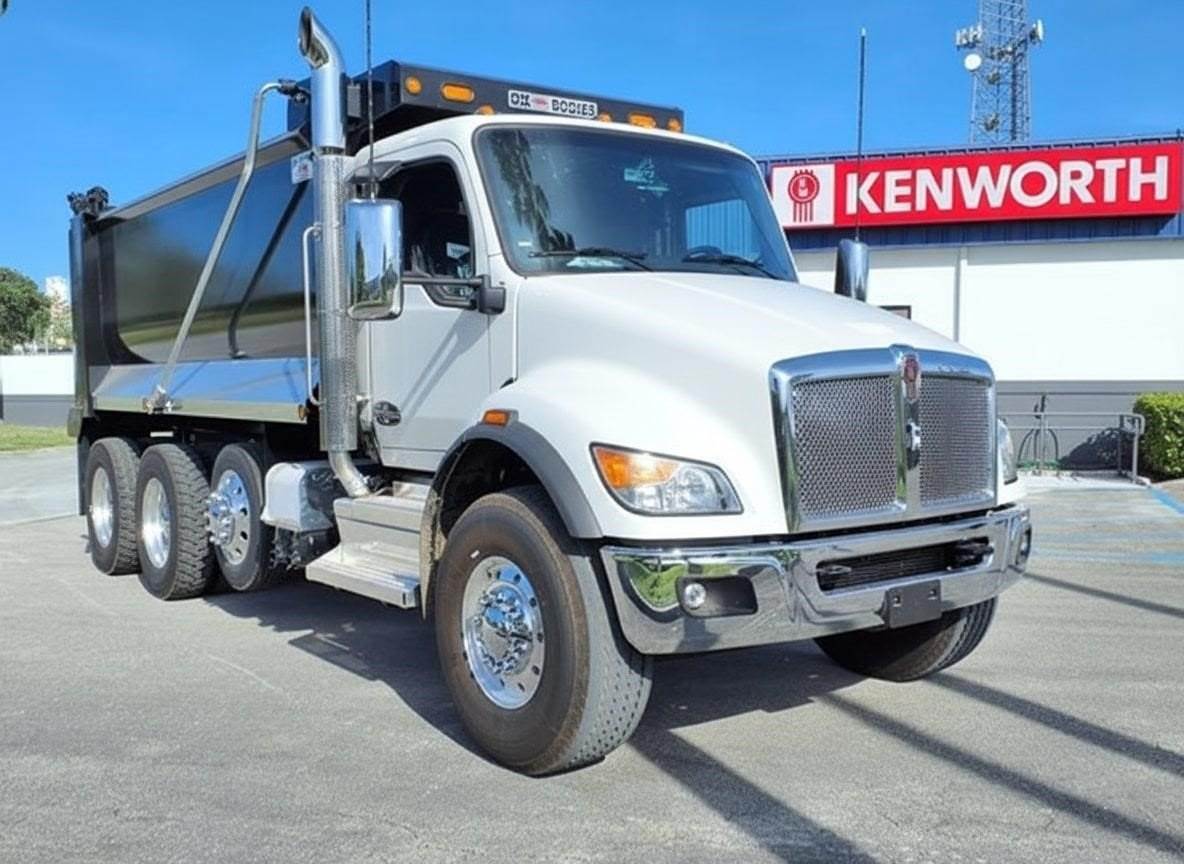

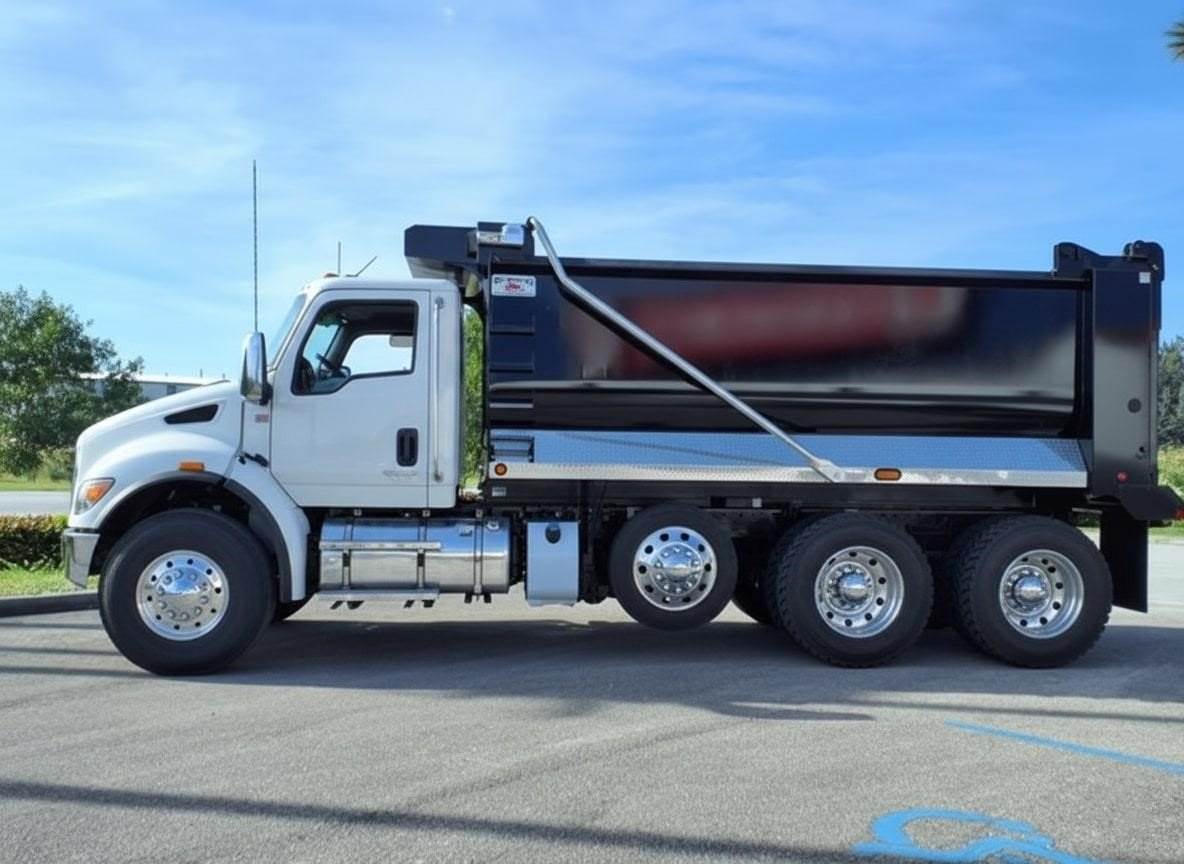

Model Year: 2025
Model: T480
Exterior Color: White (L0006EY)
Interior Color: Black Seat Color
Engine: PACCAR PX-9, 330 HP @ 1750 RPM, 1000 lb-ft Torque @ 1200 RPM, Turbo Exhaust Brake
Transmission: Allison 3500RDS 6-Speed Generation 6 with PTO
Front Axle: PACCAR FX-20, 20,000 lbs
Rear Axle: Meritor RT46-160P, 46,000 lbs Dual Single Reduction with Pump

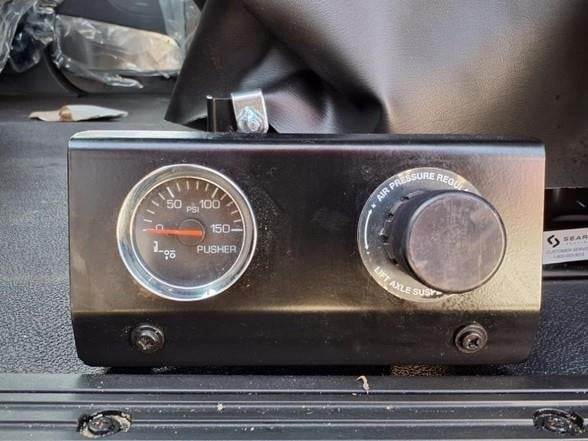

Pusher Axle: Watson & Chalin SL13, 13,500 lbs Steerable
Front Suspension: Taperleaf 20,000 lbs with Shocks
Rear Suspension: Hendrickson HaulMaxx EX (HMX) 460, 46,000 lbs Dual 54" with 17.5" Saddle Height and Shocks
GVWR: 77,020 lbs
Wheelbase: 209 inches
Cab-to-Axle: 139.5 inches
Rear Axle Ratio: 5.63
Brakes: Front: Meritor Q+ 16.5" x 6" Drum, Rear: Meritor Q+ 16.5" x 7" Drum, Pusher: Meritor 15" x 4" Drum

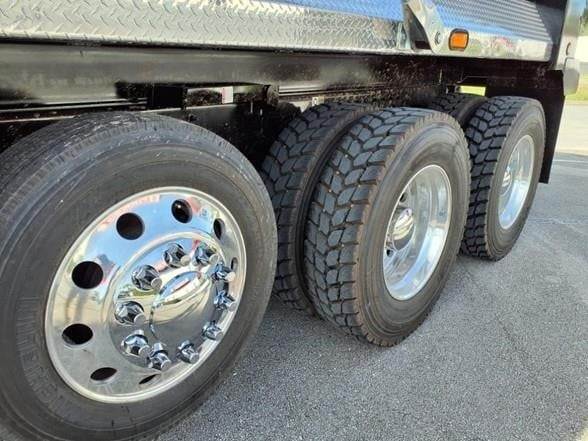

Front Wheels: Alcoa 82462 22.5" x 12.25" Aluminum Hub Piloted, High Polish

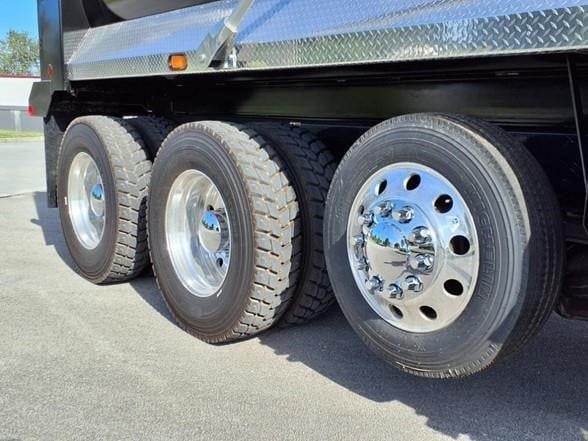

Rear Wheels: Alcoa 98565 24.5" x 8.25" Aluminum Hub Piloted, Severe Service, High Polish
Pusher Wheels: Alcoa ULA18 22.5" x 8.25" Aluminum Hub Piloted, High Polish
Front Tires: Michelin XZE 425/65R22.5 20PR
Rear Tires: Michelin X Works D 11R24.5 16PR
Pusher Tires: Michelin XZE 255/70R22.5 16PR
Fuel Tank: 80 US Gallon D-Shape Rectangular Aluminum Undercab with Non-Slip Step
DEF Tank: Large 15 Gallon

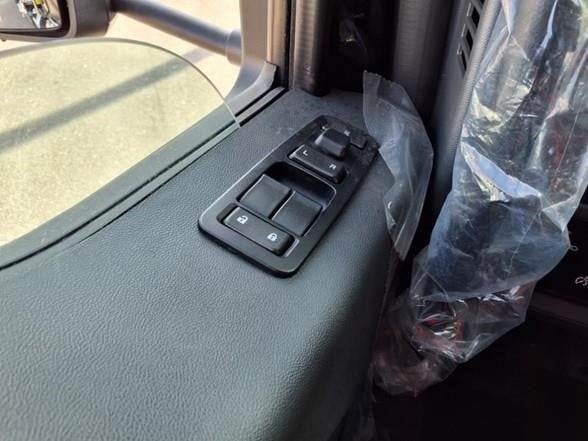

Options & Features: Power windows and power door locks
Tilt/telescoping steering wheel
CB
Radio: Cobra 29 Weatherband with Dual Antenna
Kenworth TruckTech+ Remote Diagnostics

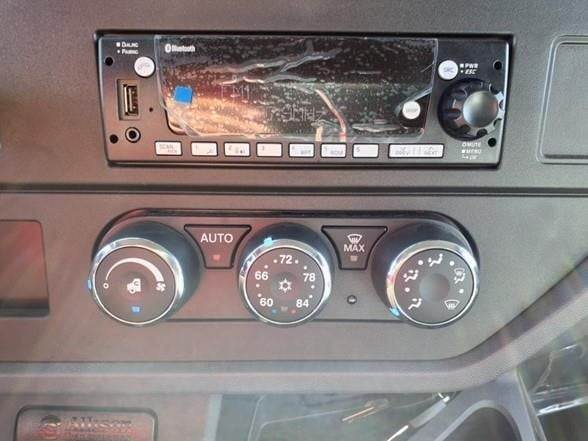

Air conditioning with auto temperature control
Kenworth Radio DEA710 AM/FM/WB/USB with Bluetooth

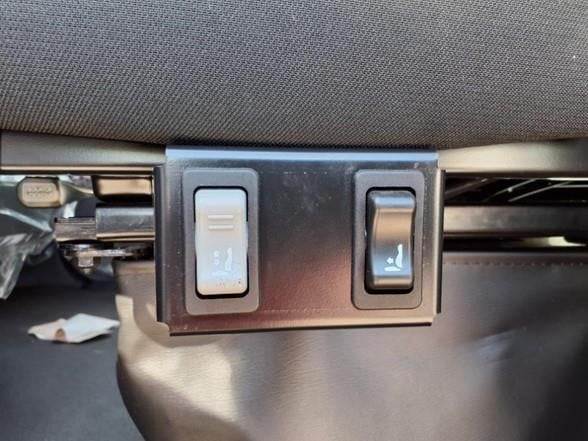

Driver Seat: Kenworth Air Seat High Back Tough Cloth with Dual Armrest
Passenger Seat: Kenworth Toolbox High Back Tough Cloth with Dual Armrest

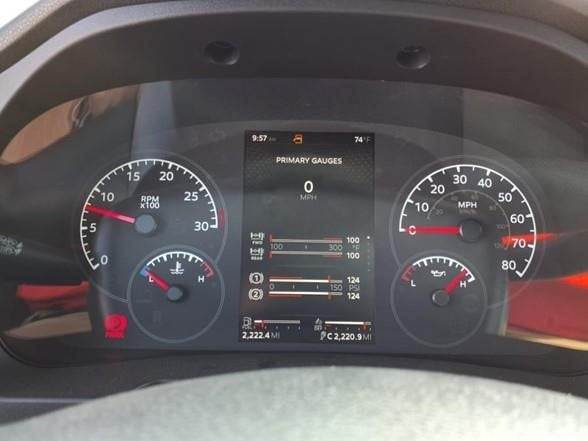

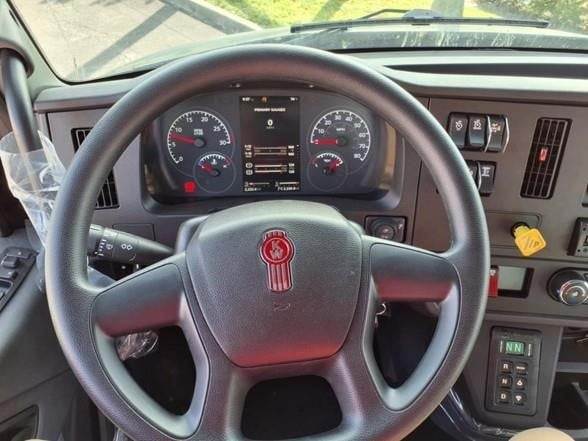

7" Main Instrument Package Display
Self-cancelling turn signals
Single air horn under cab
Battery disconnect switch

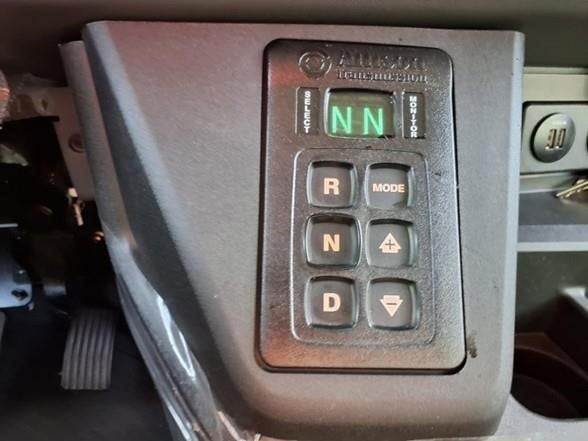

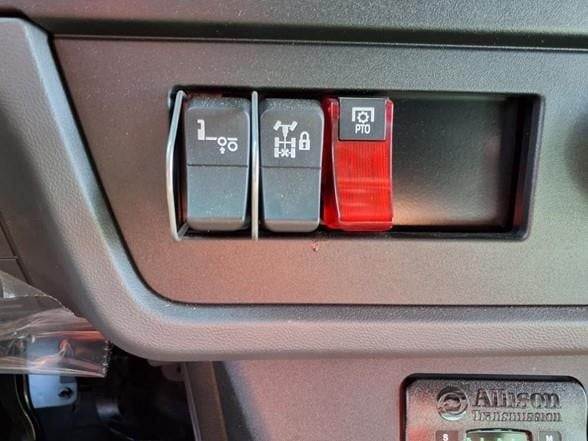

Push button control console mounted for Allison transmission
Remote PTO/Throttle provision
Exterior Chrome/Polished Items:
Aerodynamic chrome steel bumper
Chrome crown hood

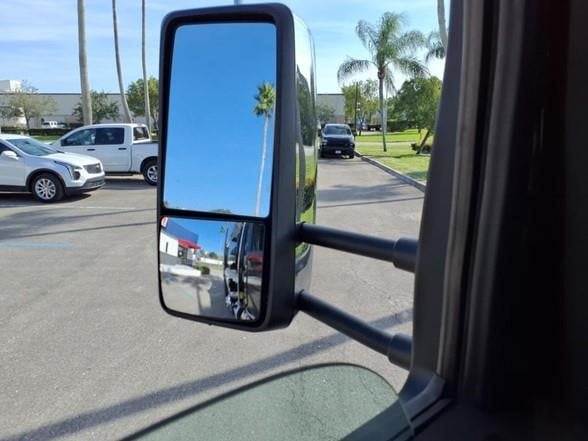

Dual aero chrome mirror shells
Polished aluminum fuel tank
Polished DEF tank cover
Polished fuel tank straps
Polished fuel tank steps
Polished DPF/SCR box end plates and cover
Mirror polish on dual rear axle wheels (outboard surface)
Dura-Bright mirror polish on front axle wheels (outboard surface)

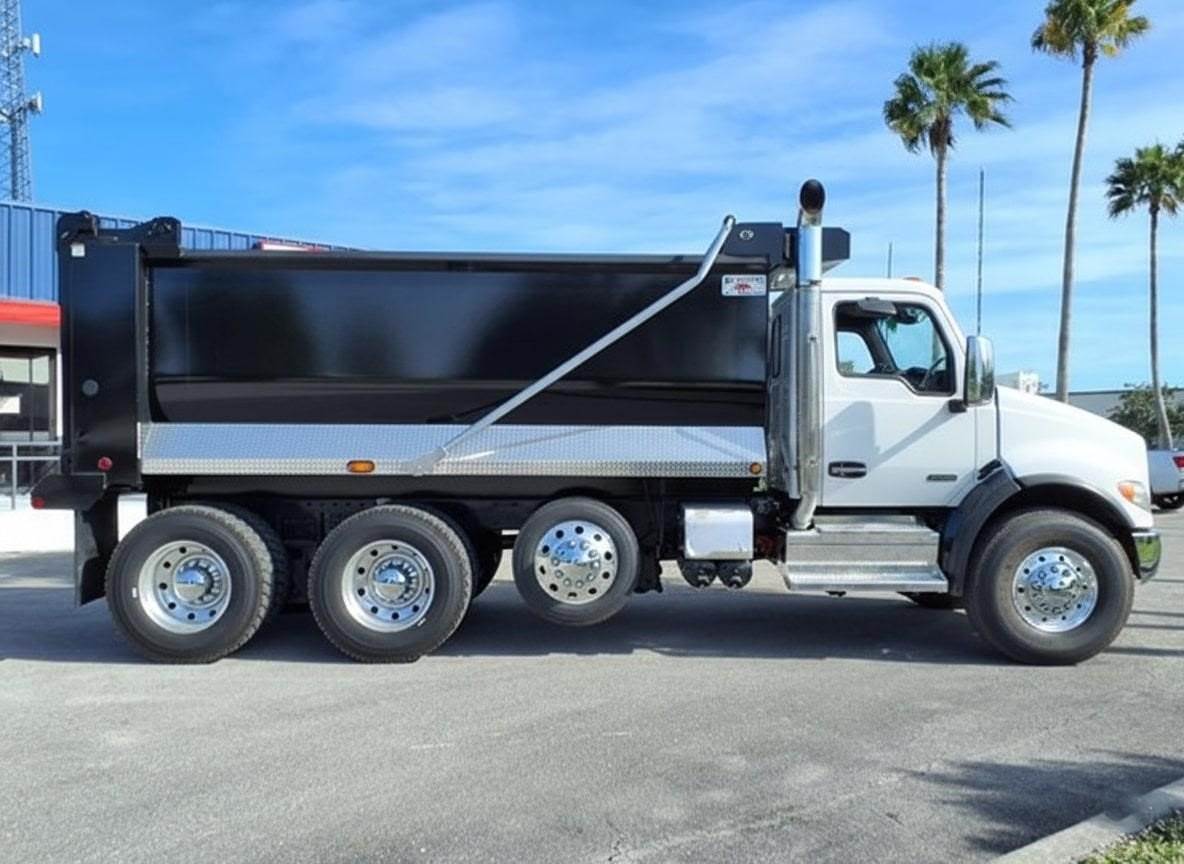

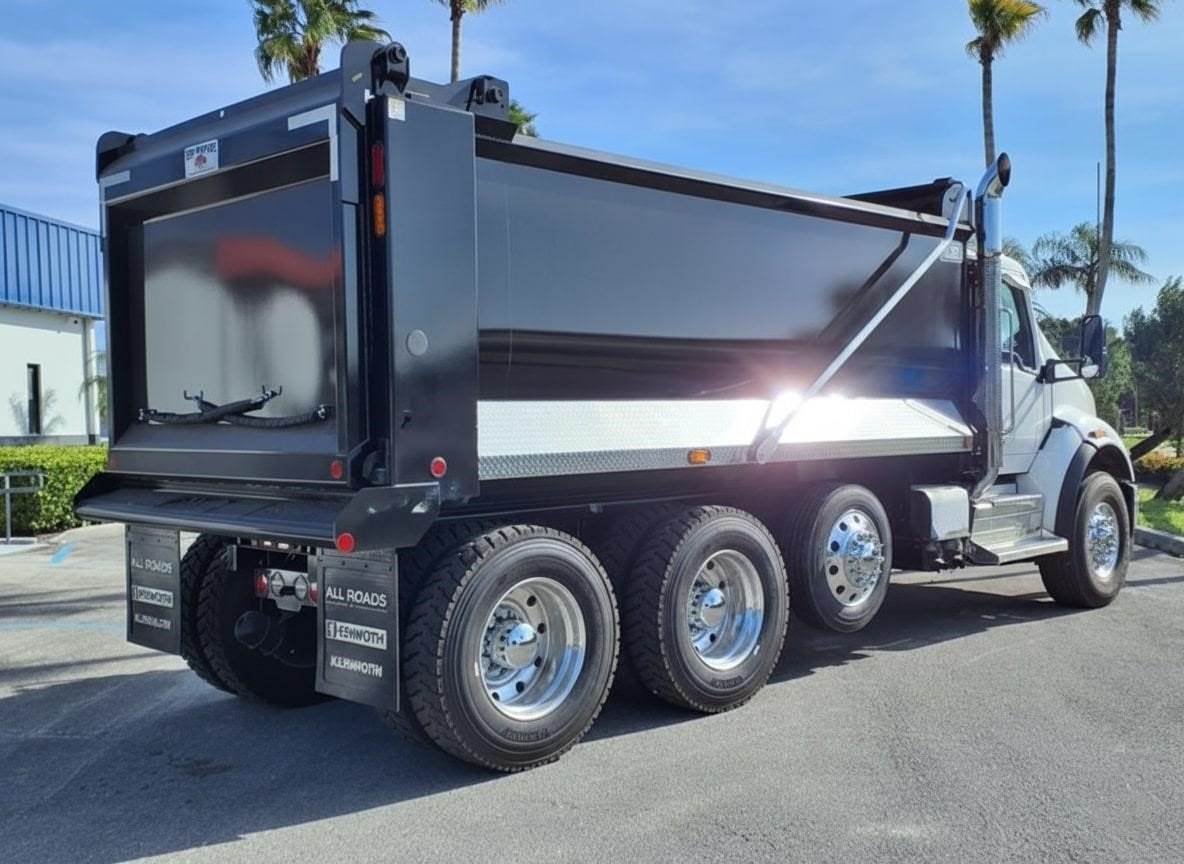

16' Stampede dump truck body specifications
Body Specifications:
Model: Stampede Body ID 87
Length: 16 feet

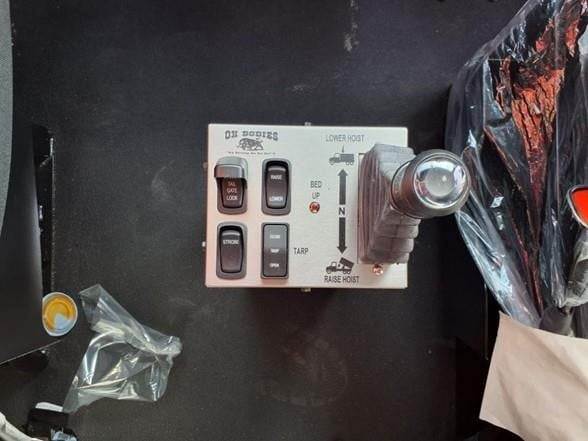

Hoist
Model: 74133
Frame: Standard 2x8 RT with straight front and rear styling
Construction Materials:
Side Walls: 1/4" AR450 plate
Front Wall: 1/4" AR450 plate
Floor: 1/4" AR450 plate
Tailgate: 3/16" AR450 sheet
Skirt: 7GA A36 sheet

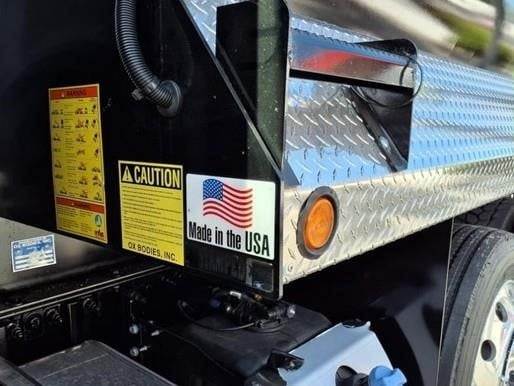

Side Top Rail: 4x4x.250 Diamond
Height Dimensions:
Front Height: 62"
Side Height (Front): 62"
Side Height (Rear): 62"
Rear Height: 68"
Cab shield Configuration:
Style: Narrow and centered
Projection: 24"
Width: 72"
Features: Oval light cutouts

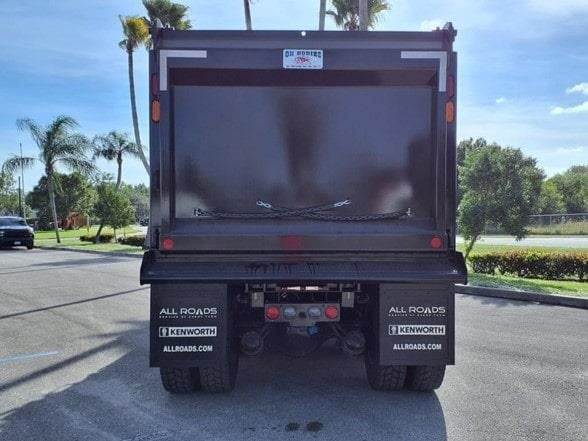

Tailgate Features:
Type: Air high lift
Bracing Style: Outer frame only with formed panel
Operation: Air-operated closing system
Additional Features: Tarp System: Electric Mountain tarp for 10-16ft bodies
Dump Apron: Heavy duty, 10" size
Lighting: Lower front with mid-turn lights, 2 metro lights
Body Prop: Single prop system
Gravel Guards: Steel construction
Reversing Alarm: Included

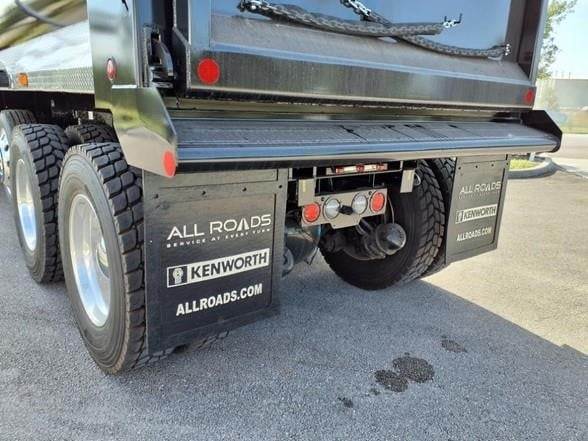

Mudflaps: 30-inch standard
Hydraulics: Standard 74133 cylinder with nestled pyramid flat bottom reservoir
Lighting Package: Multiple light kits for cab shield, sides, and rear
Rear Hinge: Removable pin design (no hitch plate)
Exhaust: 5-inch turnout
The body includes aluminum skirt coverings suitable for bodies up to 16ft and features standard Stampede branding and logos.
This represents a heavy-duty configuration designed for demanding dump truck applications with premium material choices like AR450 steel for high-wear areas.
