Product Description
Transfer this unit to your nearest South Florida location at no additional cost! Fort Lauderdale, Fort Pierce, Riviera Beach, or Naples. Contact us for details!

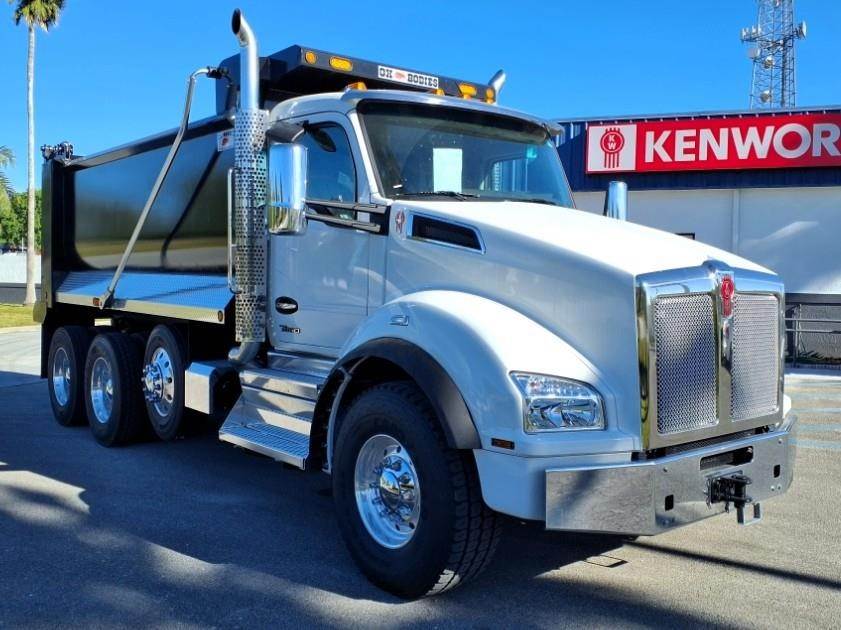

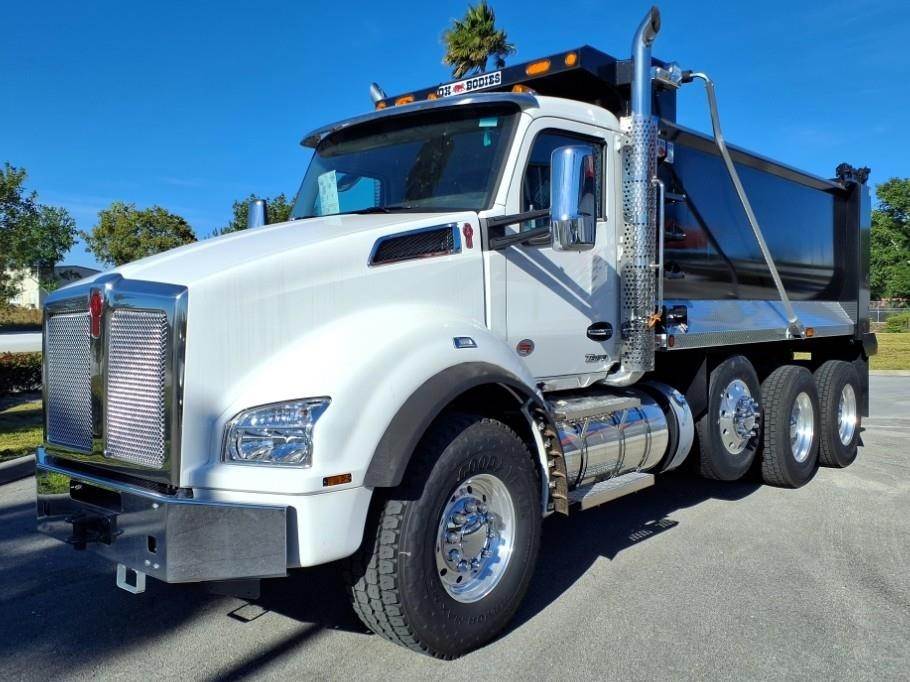

Model Year: 2025

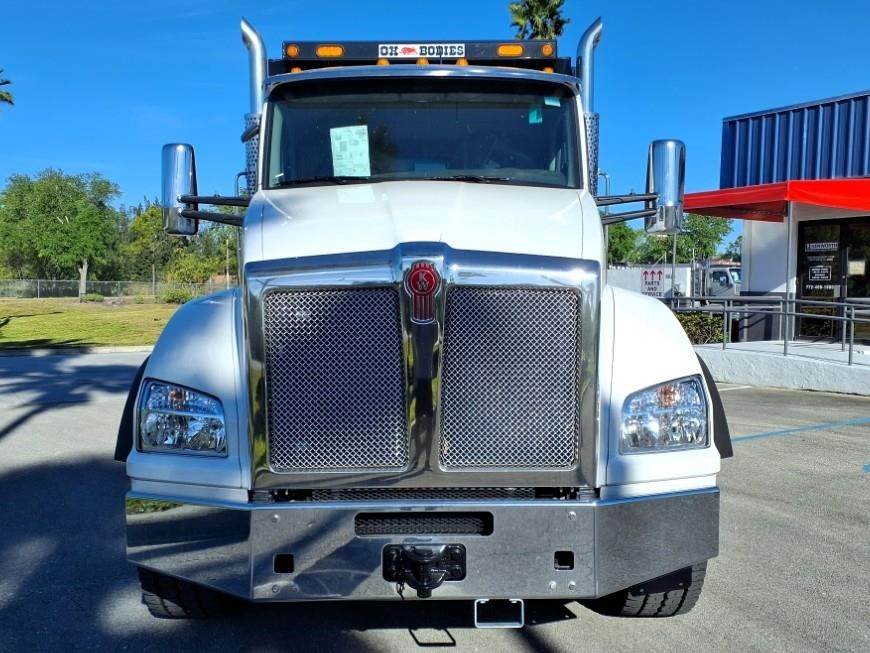

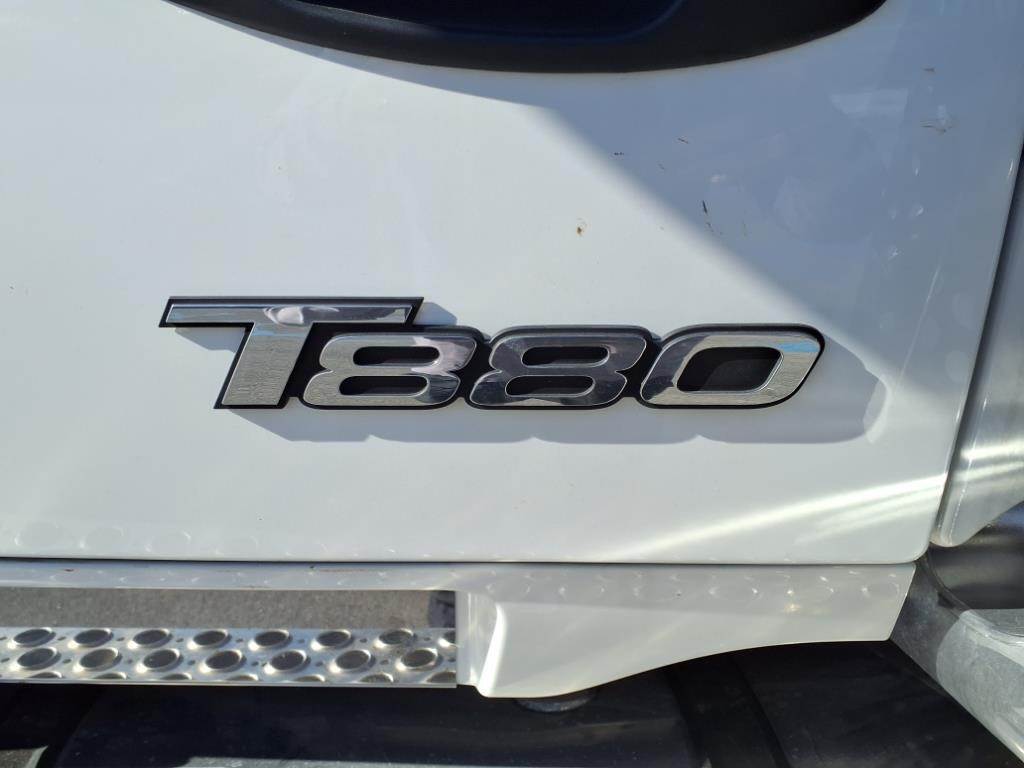

Model: T880
Engine: Cummins X15 450V, 450 HP @ 1900 RPM, 1650 lb-ft Torque @ 900 RPM, Engine Brake

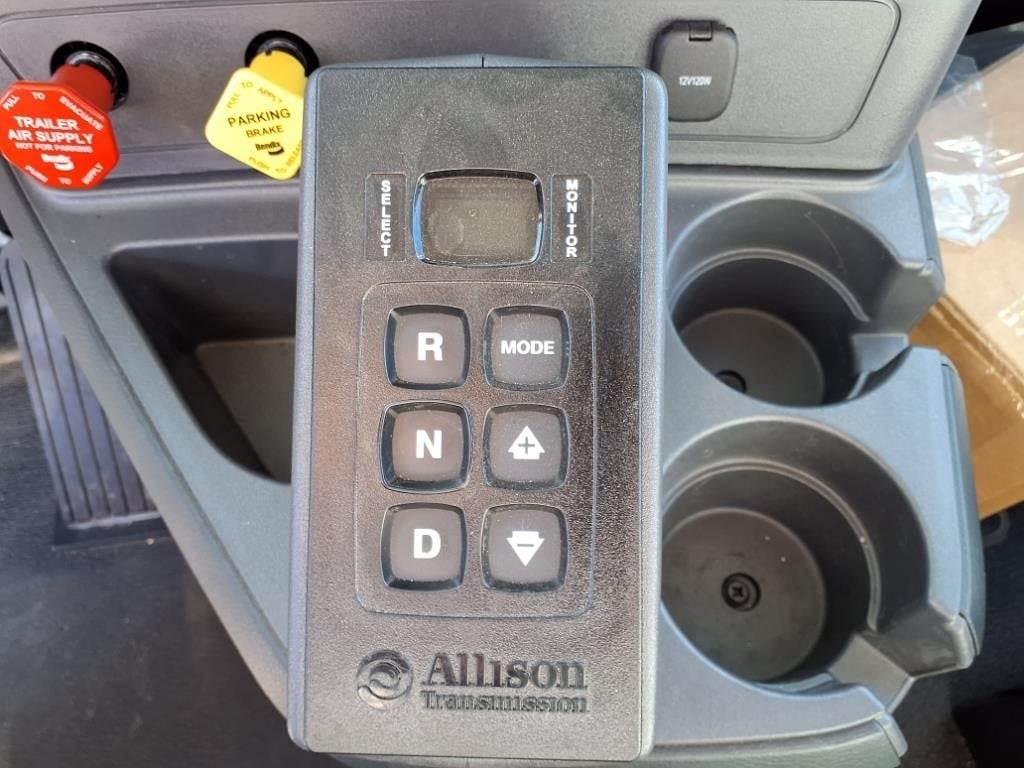

Transmission: Allison 4000RDS 6-speed Automatic with PTO
Front Axle: Dana Spicer D2000, 20,000 lbs.
Rear Axle: Dana Spicer D46-172P, 46,000 lbs. Dual

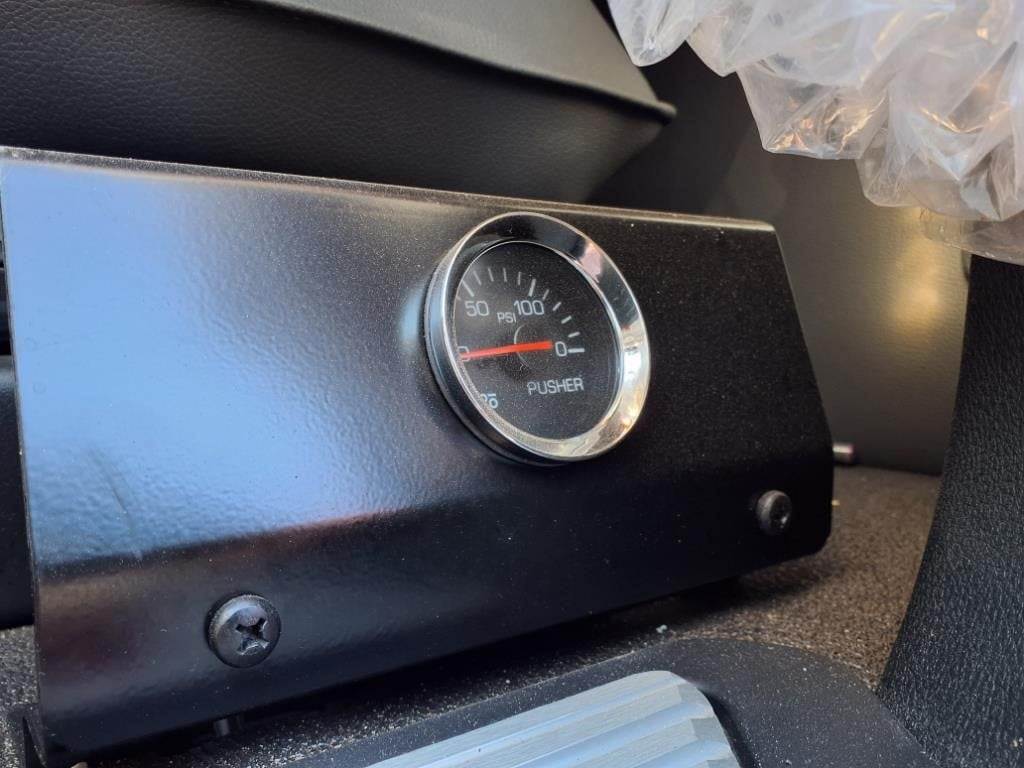

Pusher Axle: Watson & Chalin SL13, 13,500 lbs.
Front Suspension: Taperleaf 20,000 lbs. with Shocks
Rear Suspension: Hendrickson HaulMaxx EX (HMX) 460, 46,000 lbs. Dual, 54" Air Suspension with Shocks
Gross Vehicle Weight Rating (GVWR): 79,200 lbs.
Wheelbase: 217 inches
Cab-to-Axle: 143 inches
Rear Axle Ratio: 3.91
Locking Rear Differential / Crosslock: Dana Spicer Wheel Differential Lock D46-170/172
Brakes: Front and Rear Drum Brakes, Bendix Extended Service

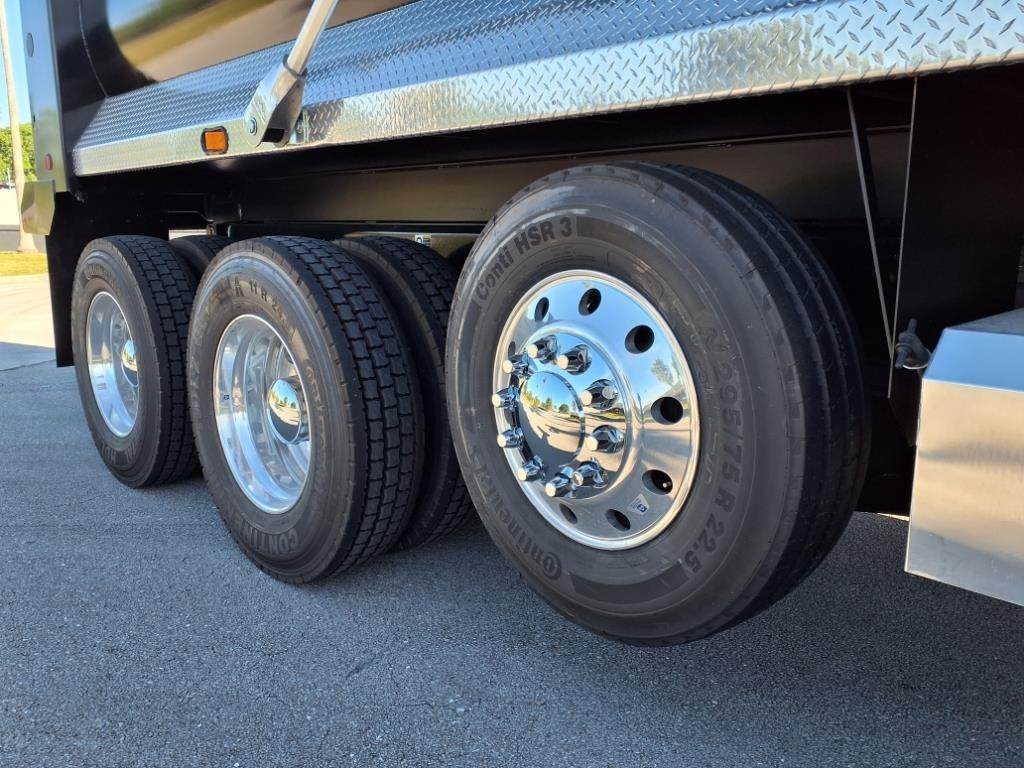

Wheels: Front: Alcoa 89U64 22.5X9 Ultra One High Polish Aluminum, Rear: Alcoa ULA18 22.5X8.25 High Polish Aluminum, Pusher: Alcoa ULA18 22.5X8.25 High Polish Aluminum

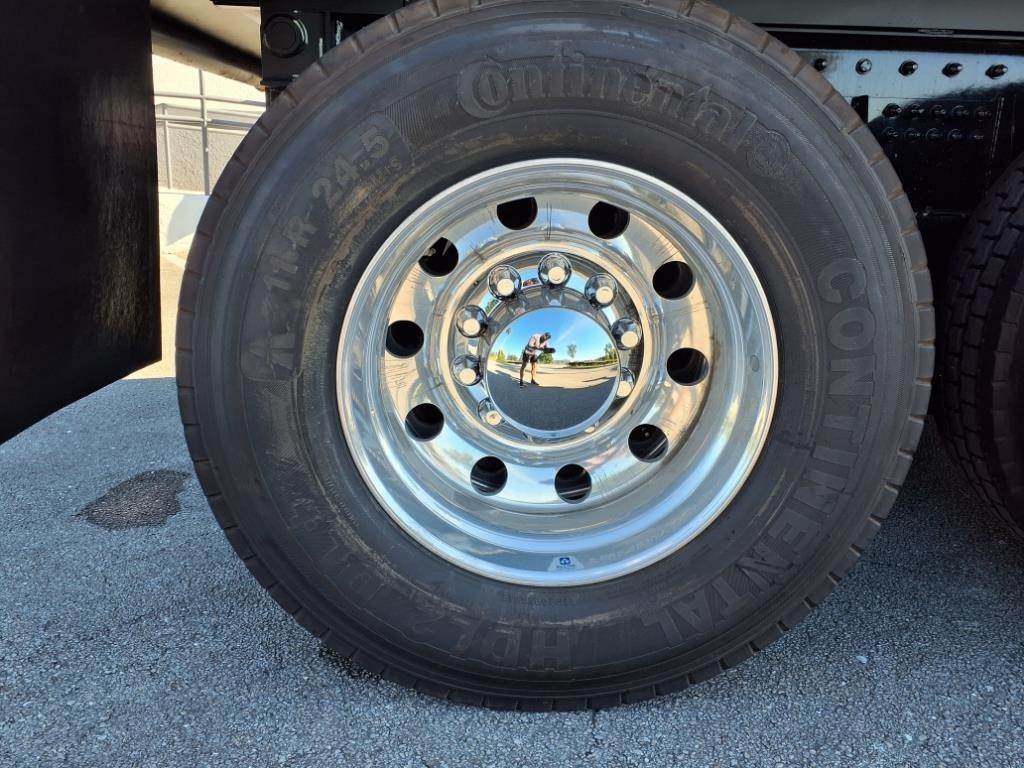

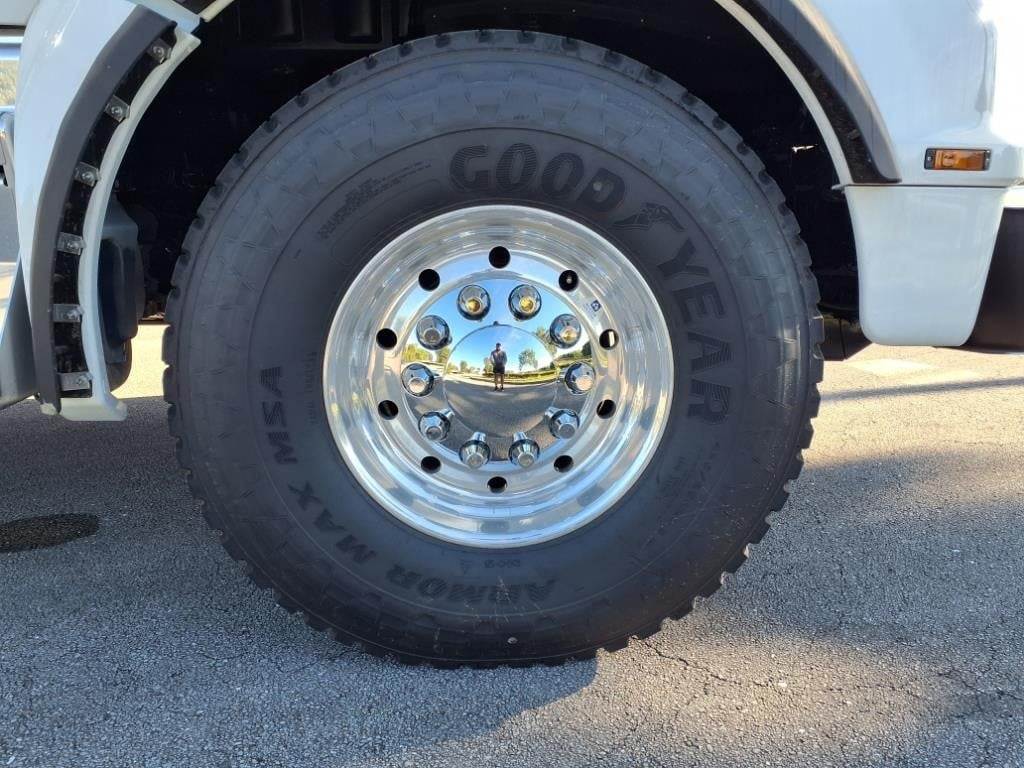

Tires: Front: Goodyear G289 WHA 315/80R22.5 20PR, Rear: Goodyear Fuel Max LHD2 11R22.5 14PR, Pusher: Continental HSR3 295/75R22.5 16PR
Fuel Tank: 90 US gallon 24.5" Aluminum
DEF Tank: 14 gallon Small Round
Double Frame: Full Steel Inserts
Exterior Color: White

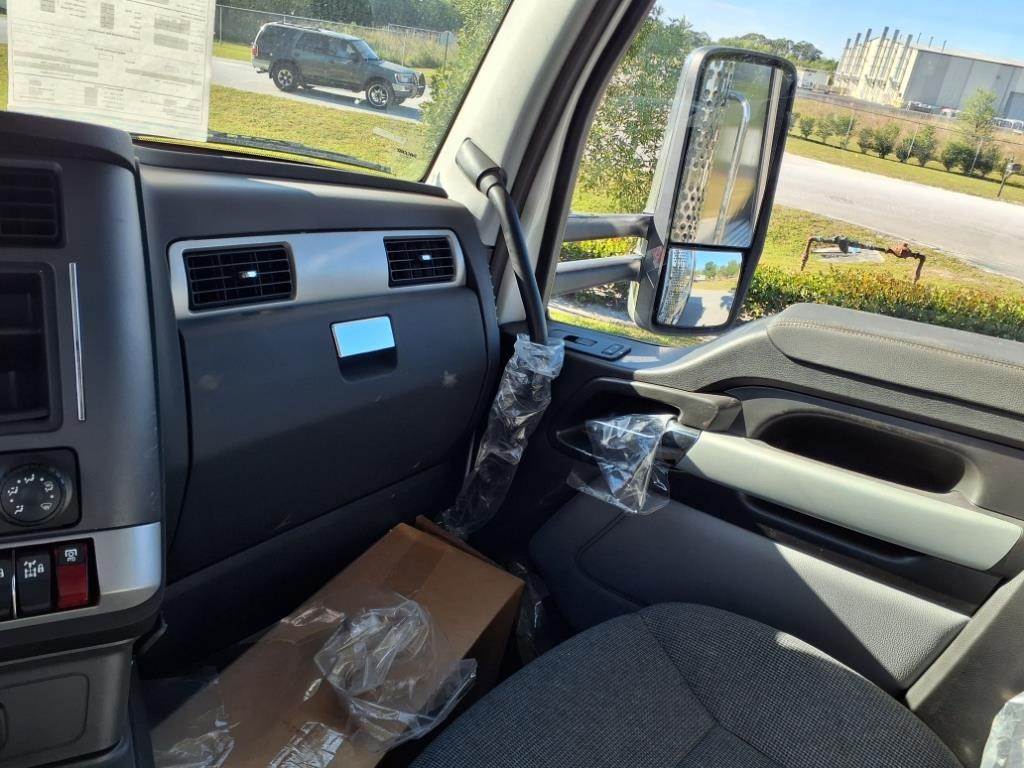

Interior: Vantage Daycab
Interior Color: Slate Gray
Driver Seat: Kenworth GT701 High Back Vinyl Air-Ride Suspension
Passenger Seat: Kenworth GT100 High Back Battery/Utility Box Seat Vinyl

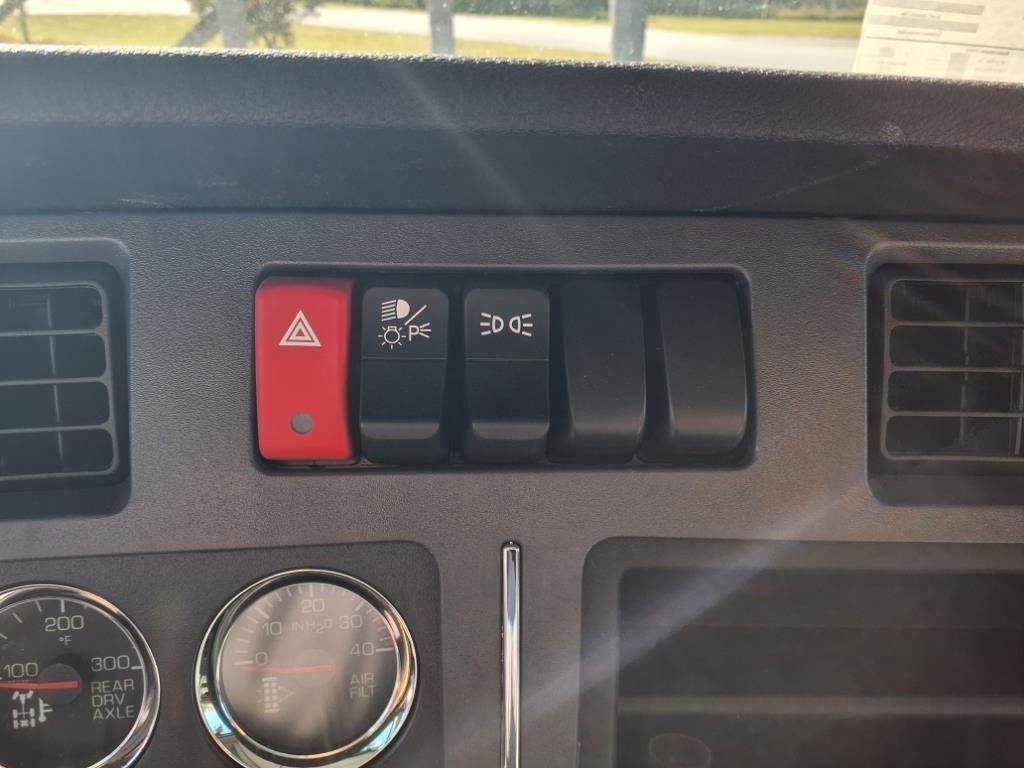

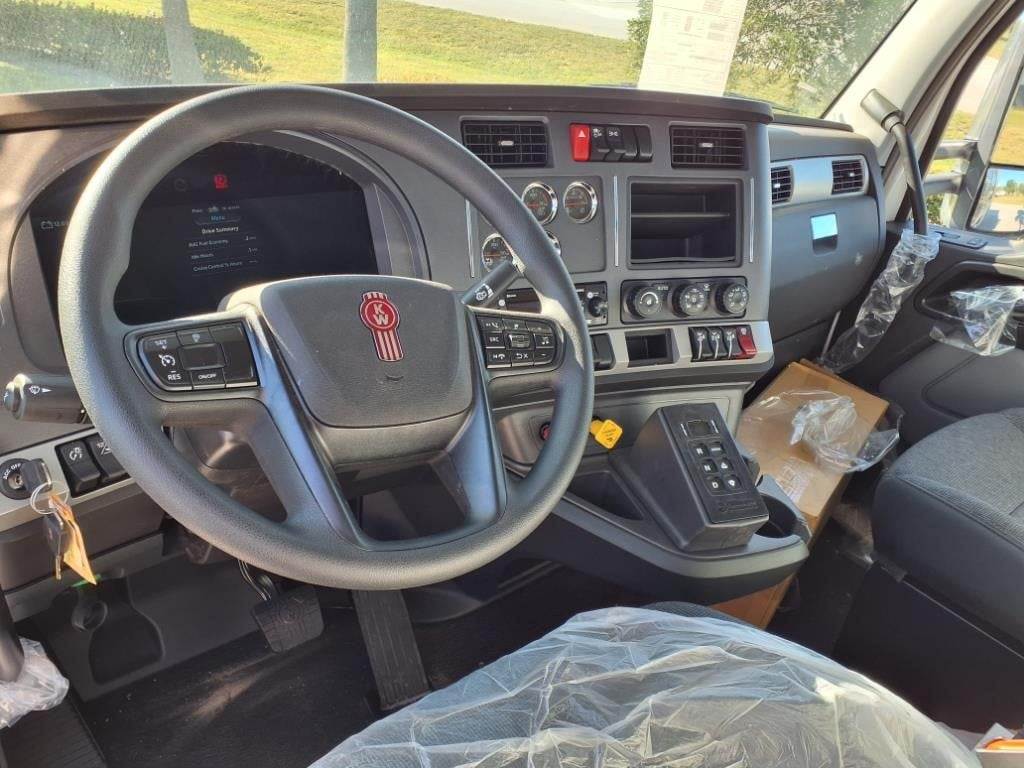

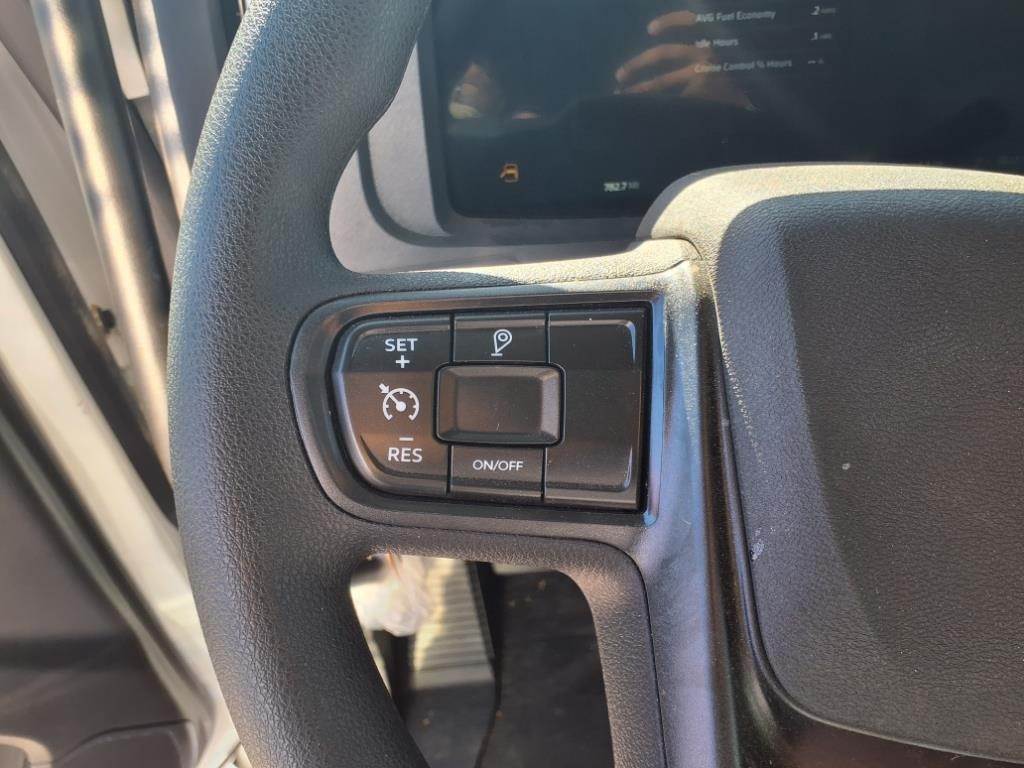

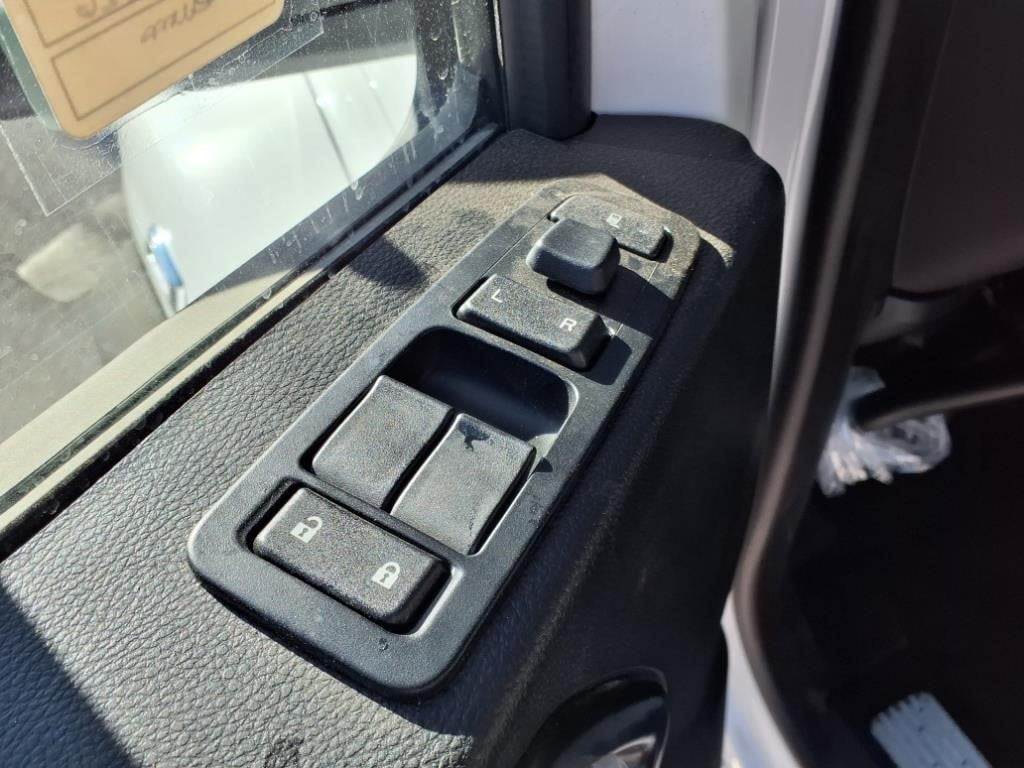

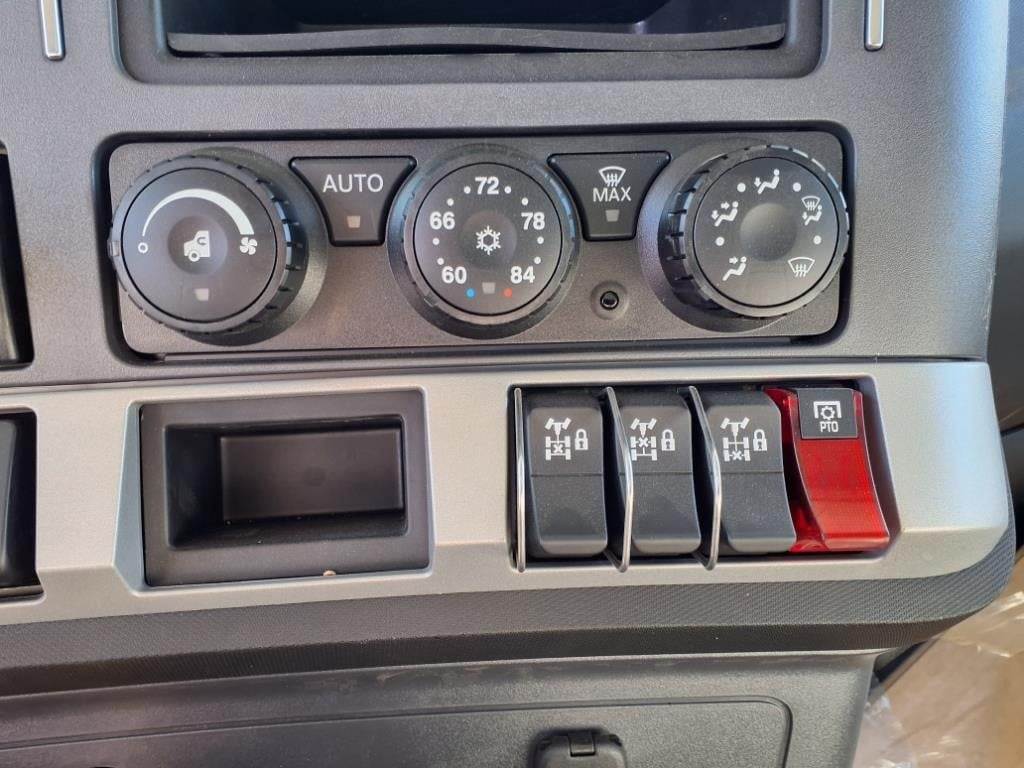

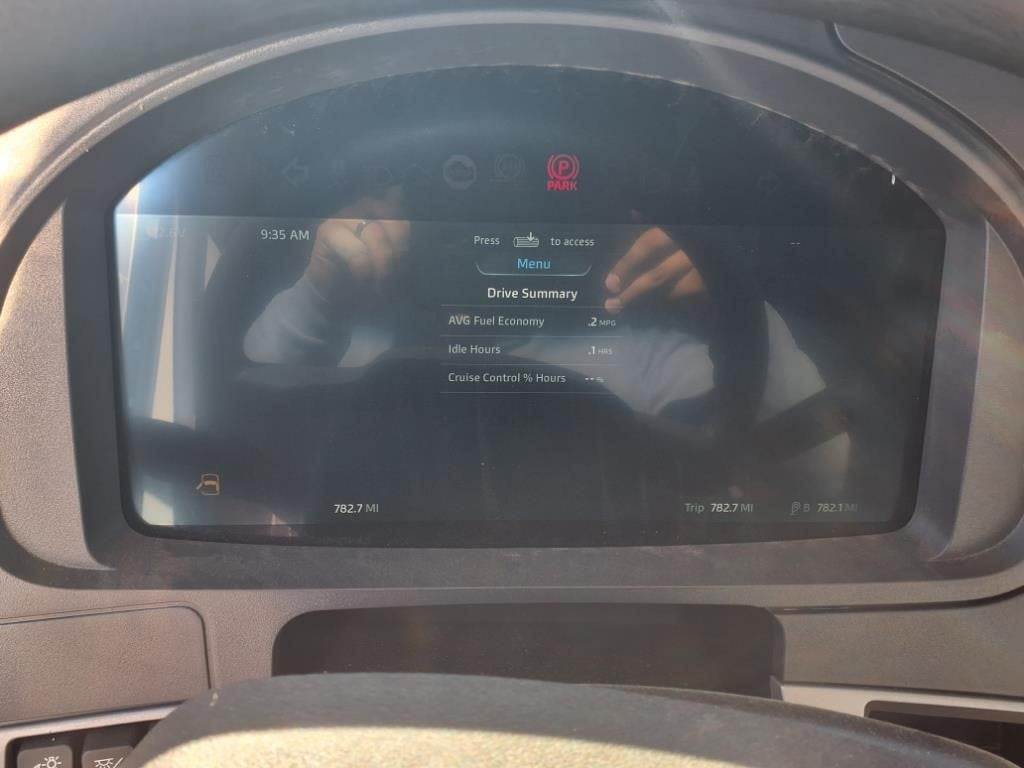

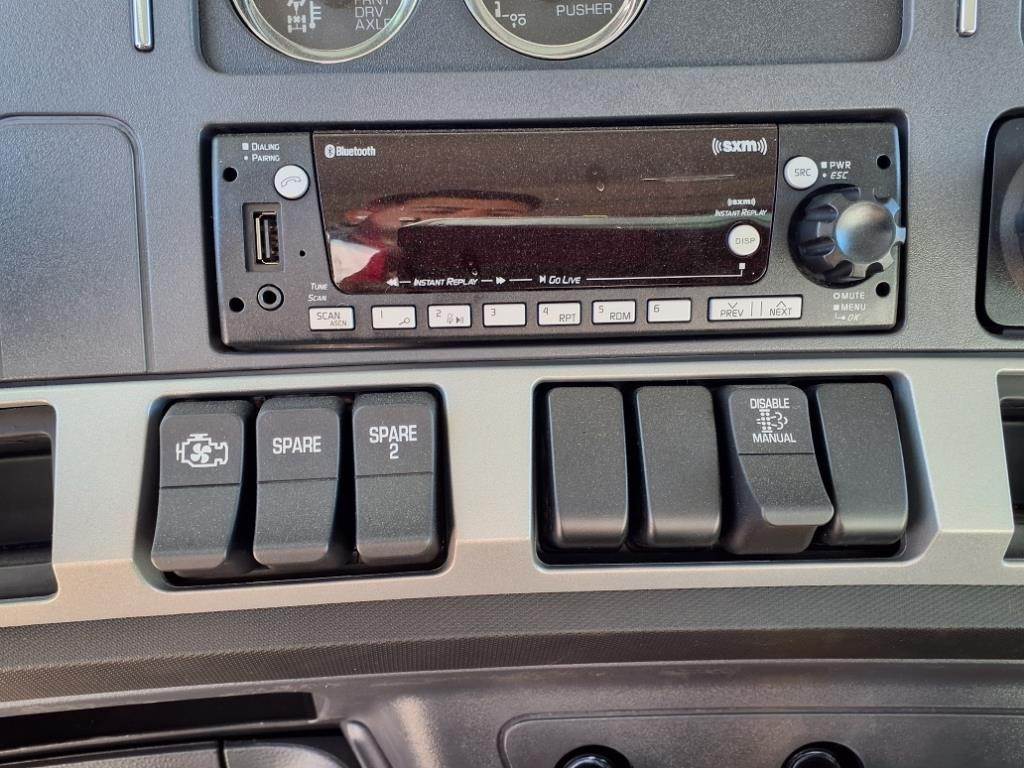

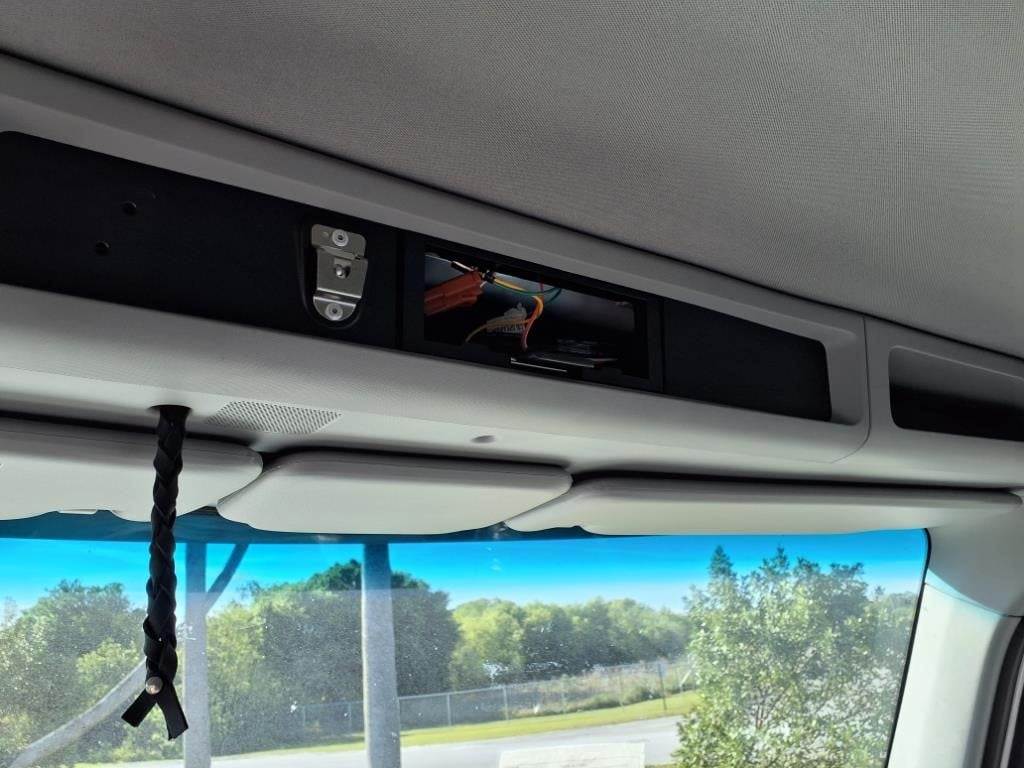

Kenworth TruckTech+ (Remote Diagnostics), 15" Digital Display Main Instrument Package, Air Conditioning with Auto Temperature Control, Adjustable Telescoping Tilt Steering Wheel, Power Door Locks, Power Windows, Kenworth Radio DEA710 AM/FM/WB/USB with Bluetooth, Dual Air Horns, Heated Power Mirrors, CB Radio Installation Kit, Stainless Steel Sun Visor

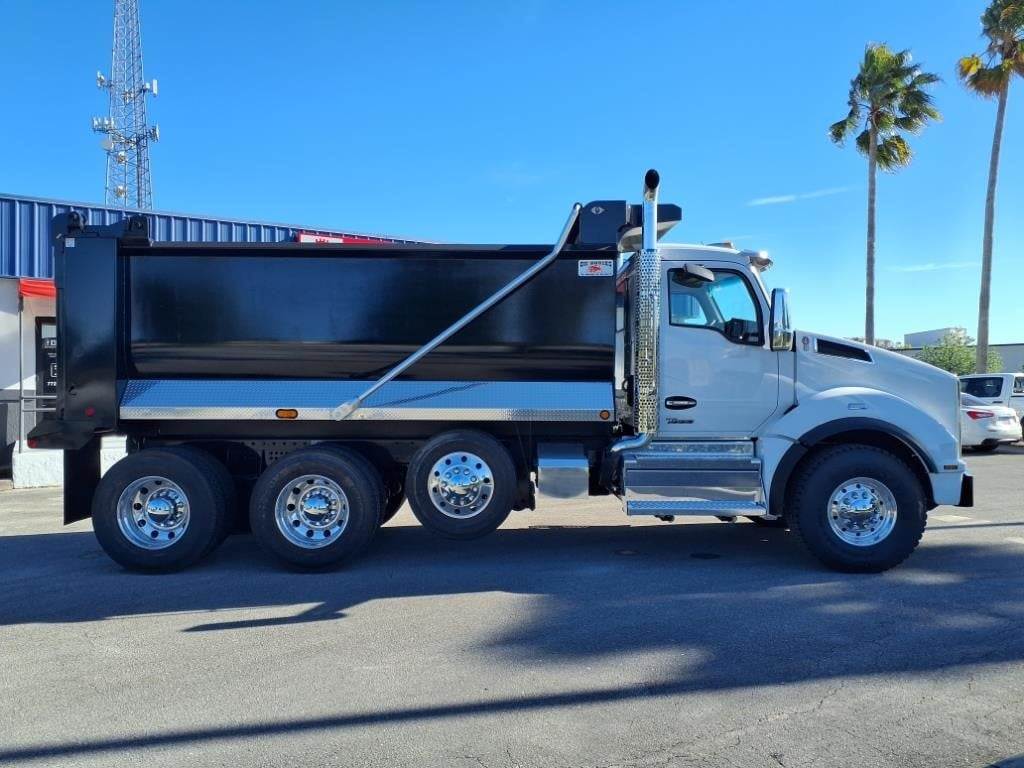

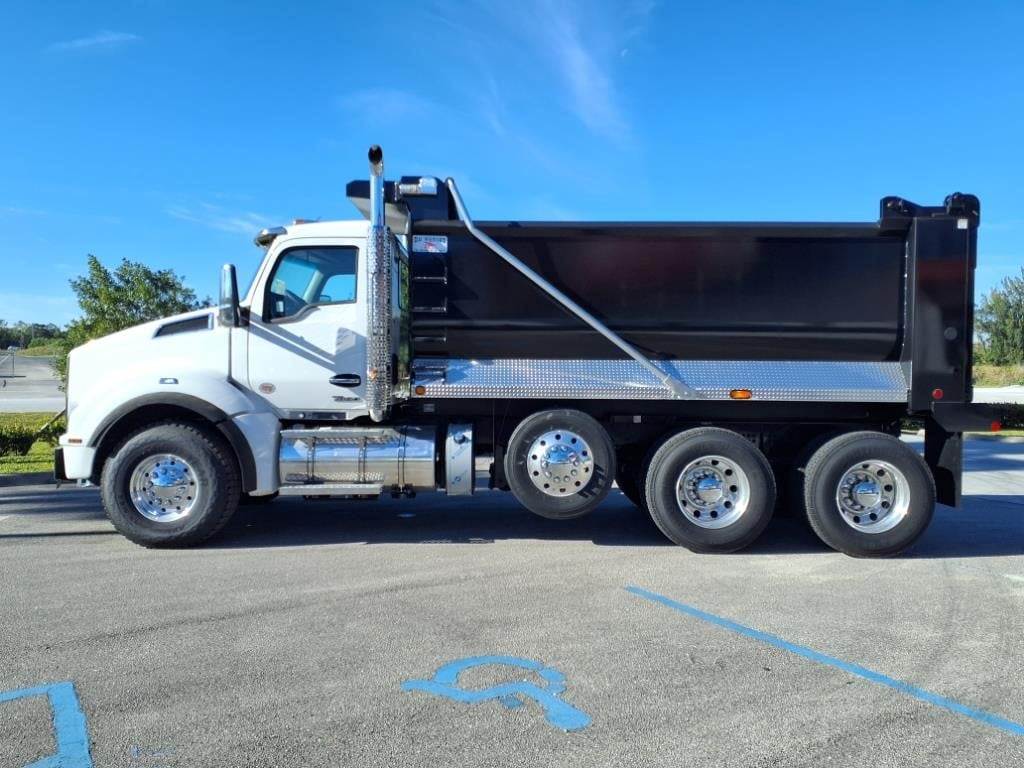

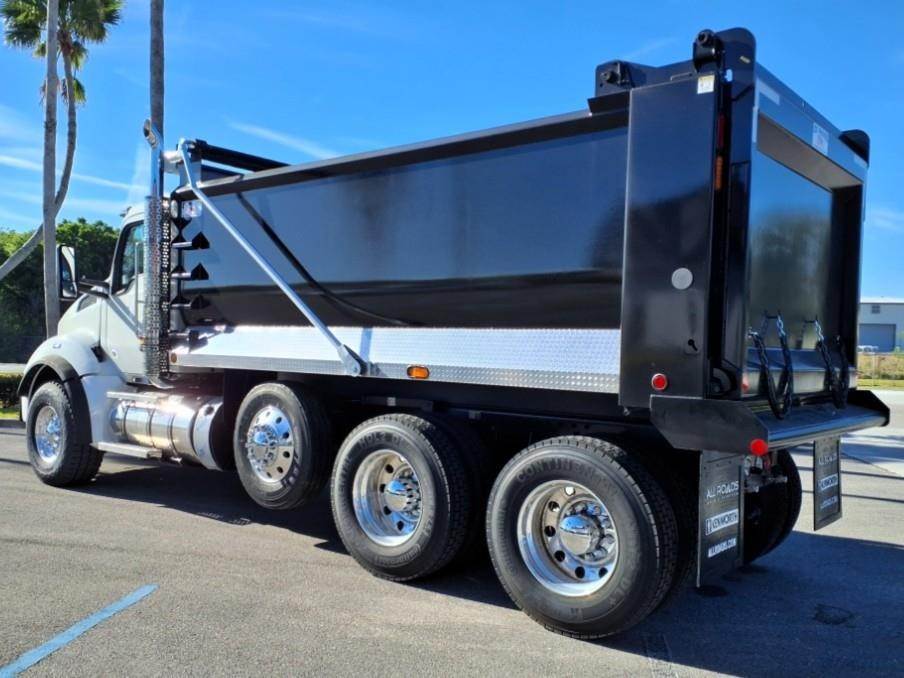

16' Stampede dump truck body specifications
Body Specifications:
Model: Stampede Body ID 87
Length: 16 feet
Hoist Model: 74133
Frame: Standard 2x8 RT with straight front and rear styling
Construction Materials:
Side Walls: 1/4" AR450 plate
Front Wall: 1/4" AR450 plate
Floor: 1/4" AR450 plate
Tailgate: 3/16" AR450 sheet
Skirt: 7GA A36 sheet
Side Top Rail: 4x4x.250 Diamond
Height Dimensions:
Front Height: 62"
Side Height (Front): 62"
Side Height (Rear): 62"
Rear Height: 68"
Cab shield Configuration:
Style: Narrow and centered
Projection: 24"
Width: 72"
Features: Oval light cutouts

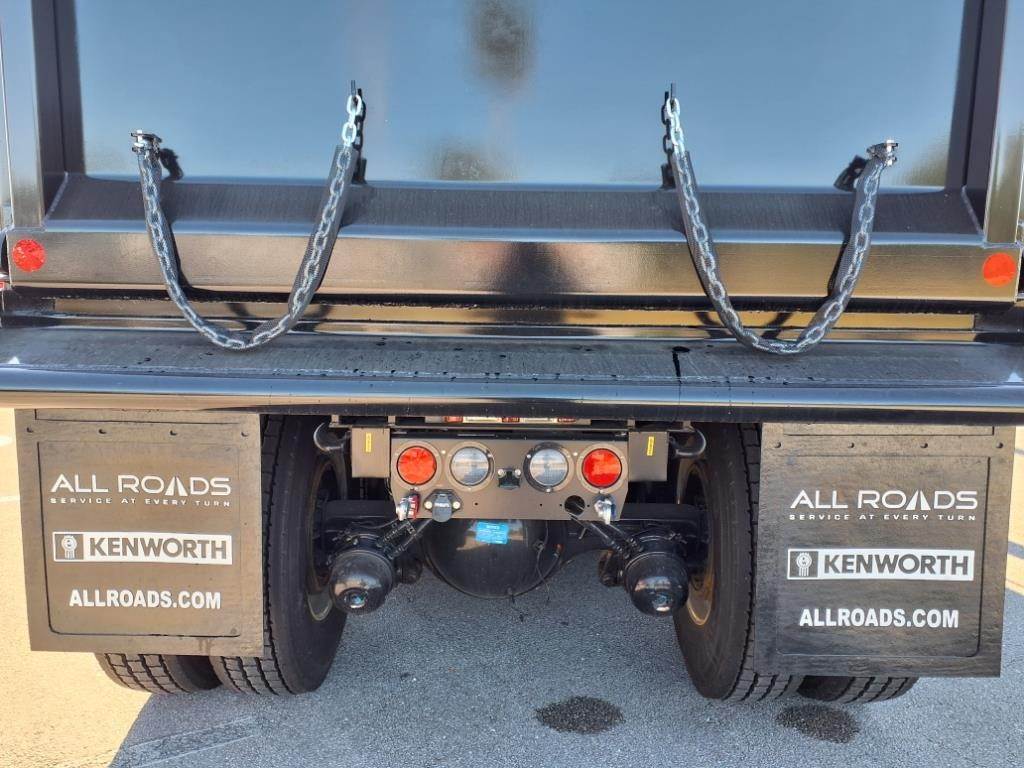

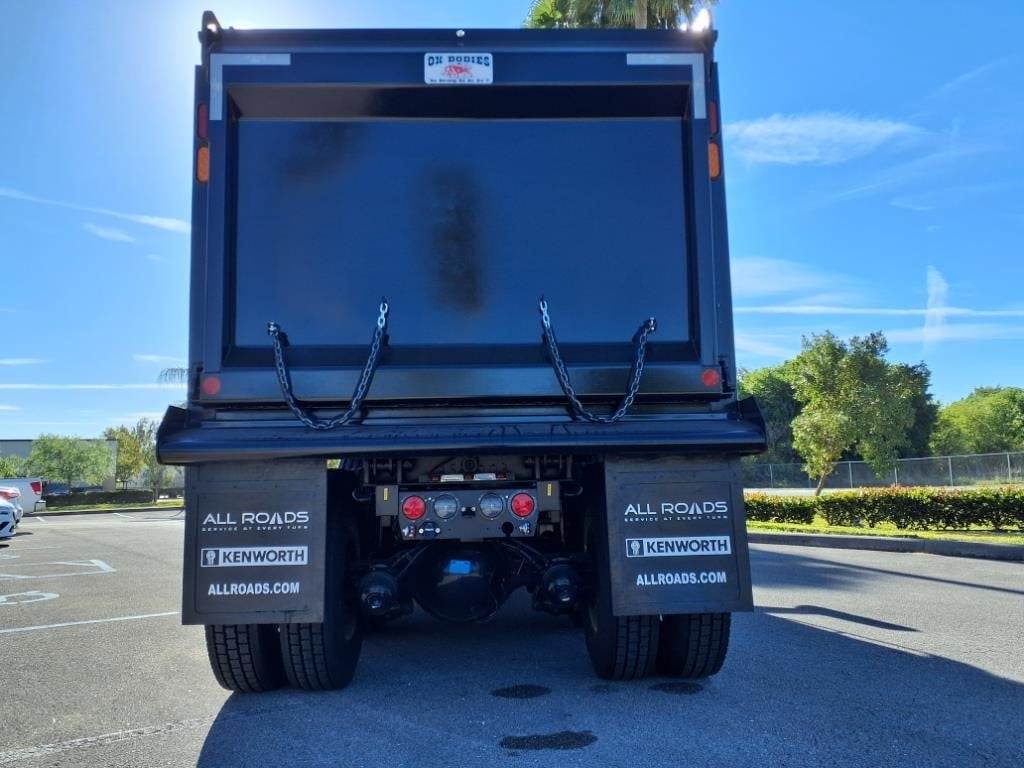

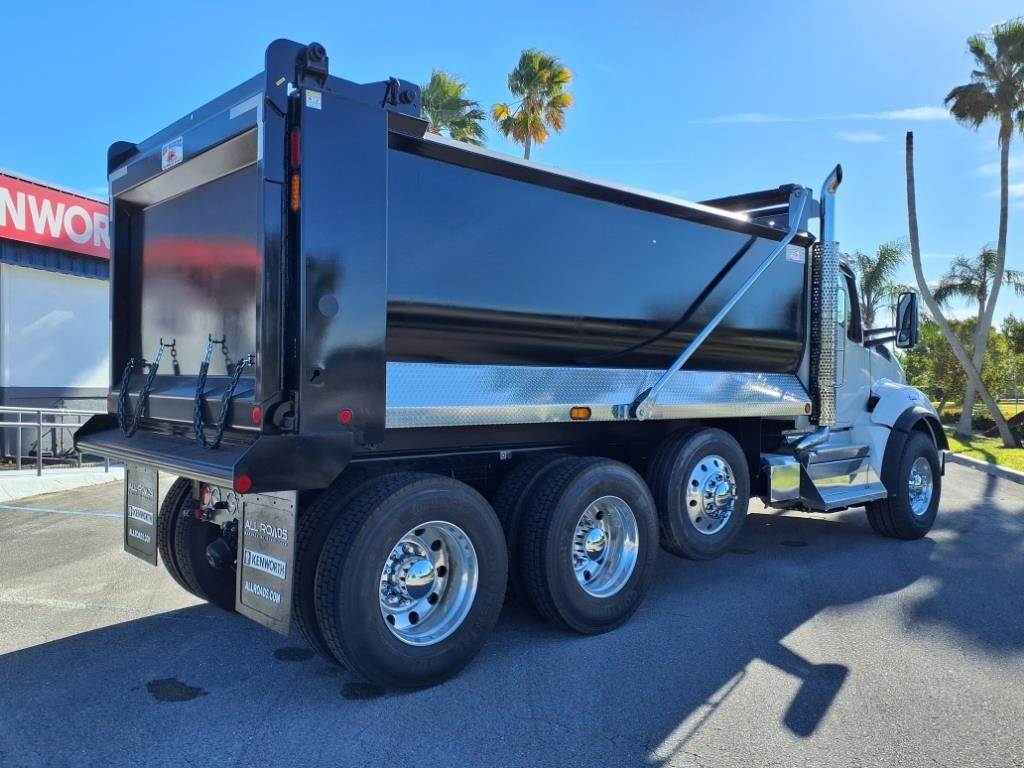

Tailgate Features:
Type: Air high lift
Bracing Style: Outer frame only with formed panel
Operation: Air-operated closing system
Additional Features:

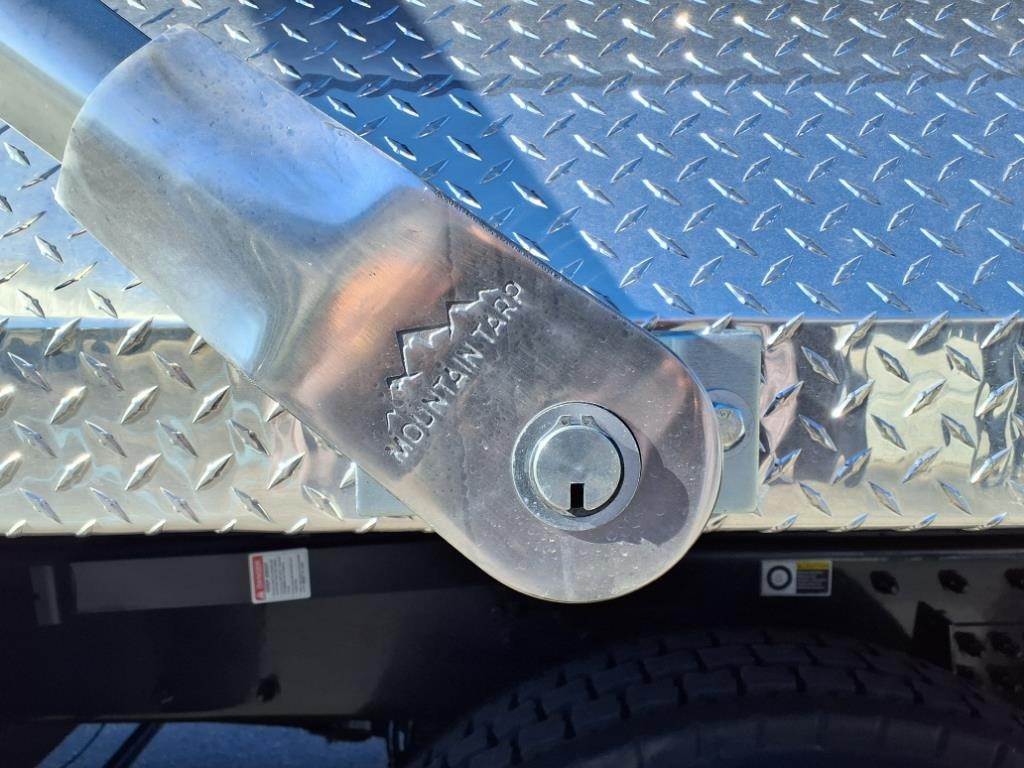

Tarp System: Electric Mountain tarp for 10-16ft bodies
Dump Apron: Heavy duty, 10" size
Lighting: Lower front with mid-turn lights, 2 metro lights
Body Prop: Single prop system
Gravel Guards: Steel construction
Reversing Alarm: Included
Mudflaps: 30-inch standard
Hydraulics: Standard 74133 cylinder with nestled pyramid flat bottom reservoir
Lighting Package: Multiple light kits for cab shield, sides, and rear
Rear Hinge: Removable pin design (no hitch plate)
Exhaust: 5-inch turnout

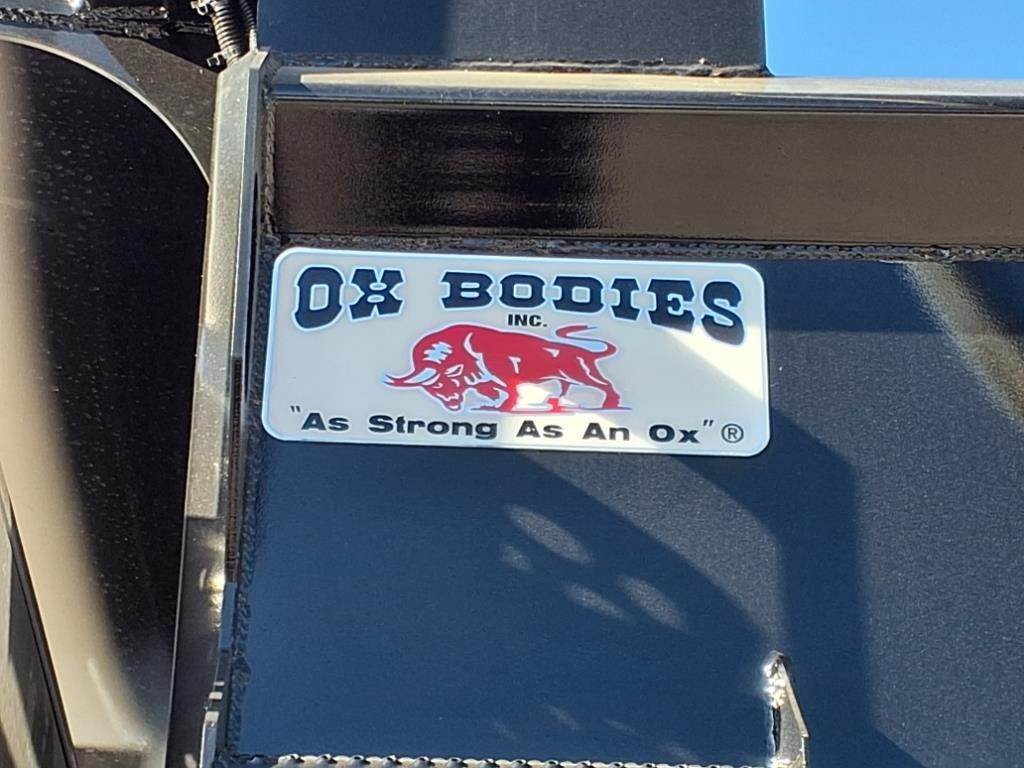

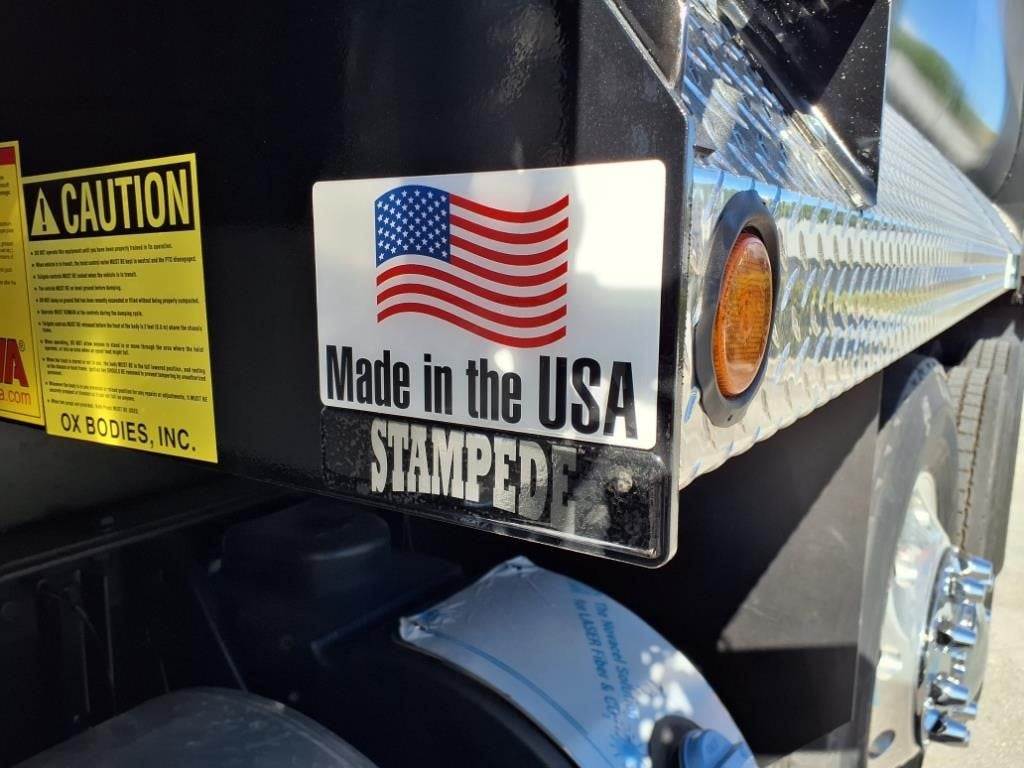

The body includes aluminum skirt coverings suitable for bodies up to 16ft and features standard Stampede branding and logos.
This represents a heavy-duty configuration designed for demanding dump truck applications with premium material choices like AR450 steel for high-wear areas.
