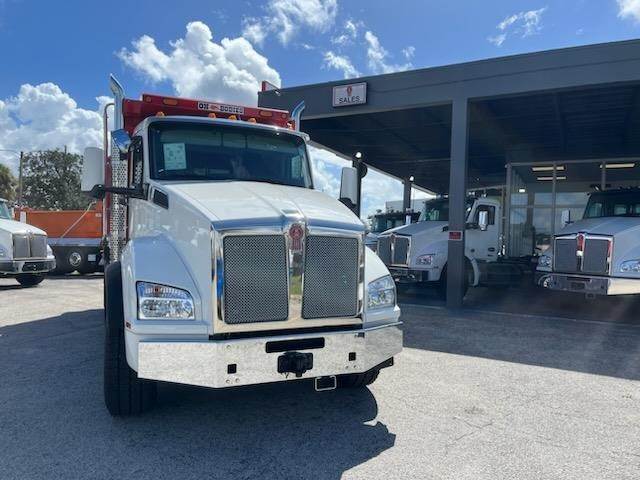

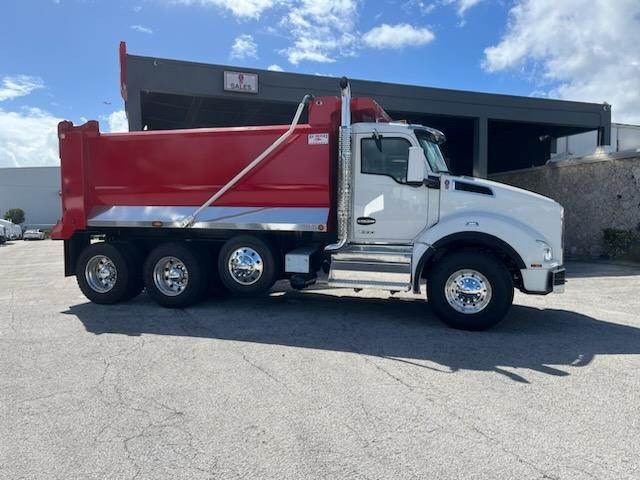

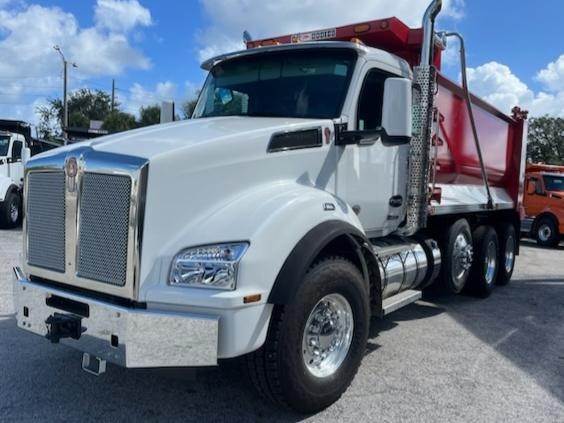

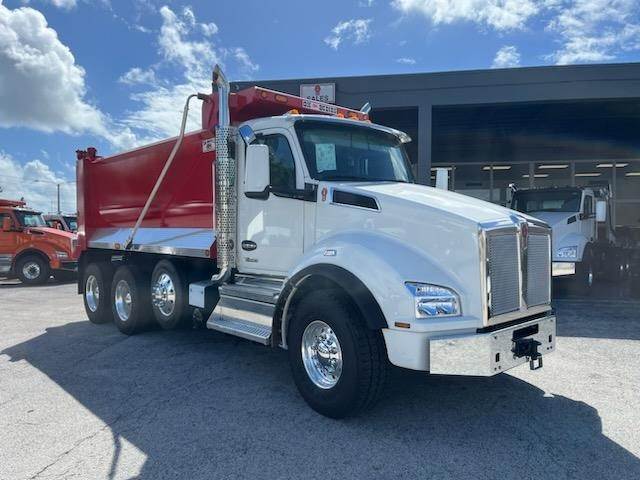

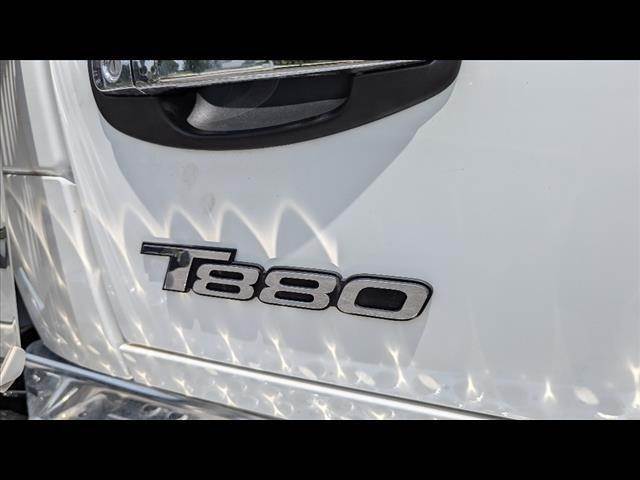

2025 Kenworth T880
Exterior Color: White

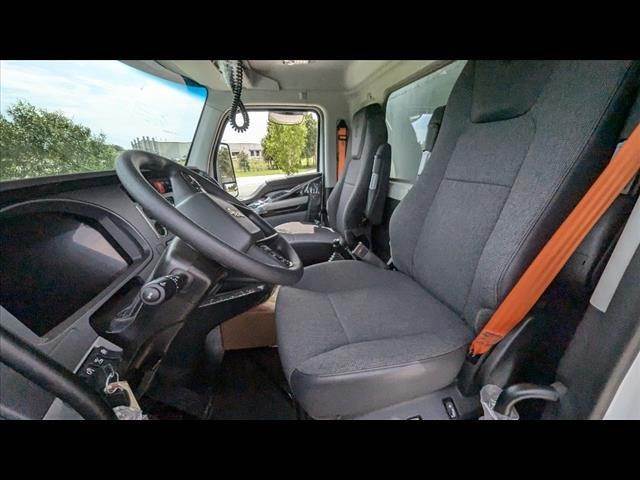

Interior Trim Level: Vantage
Interior Color: Slate Gray
Engine: PACCAR MX-13, 485 HP, 1650 lb-ft Torque, Engine Brake

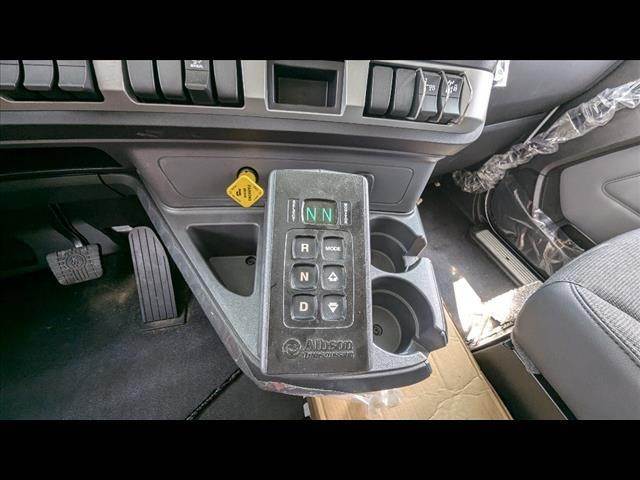

Transmission: Allison 4500RDS 6-speed automatic
Front Axle: PACCAR FX-20, 20,000 lbs.
Rear Axle: Meritor RT46-160, 46,000 lbs.
Pusher Axle: Watson & Chalin, Steerable, 13,500 lbs.
Suspension: Front: Taperleaf 20K with shocks Rear: Hendrickson HaulMAXX EX 460 46K
GVWR: 79,200 lbs.
Wheelbase: 213 inches
Cab-to-Axle: 139 inches
Rear Axle Ratio: 4.56
Brakes: Front: Bendix ES-16.5x6 drum brakes Rear: Bendix ES S-Cam 16.5x7 drum brakes

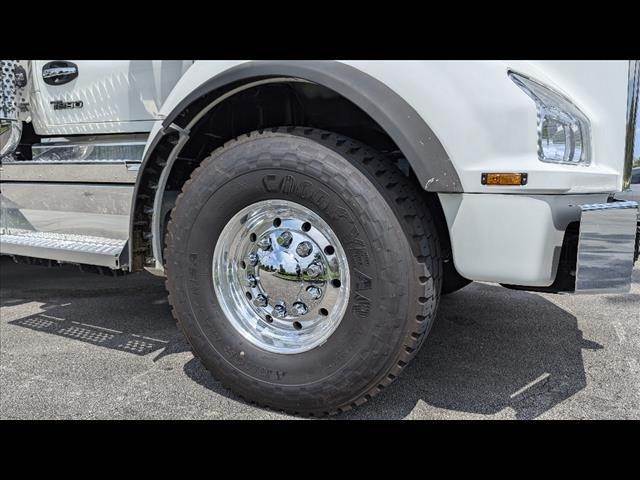

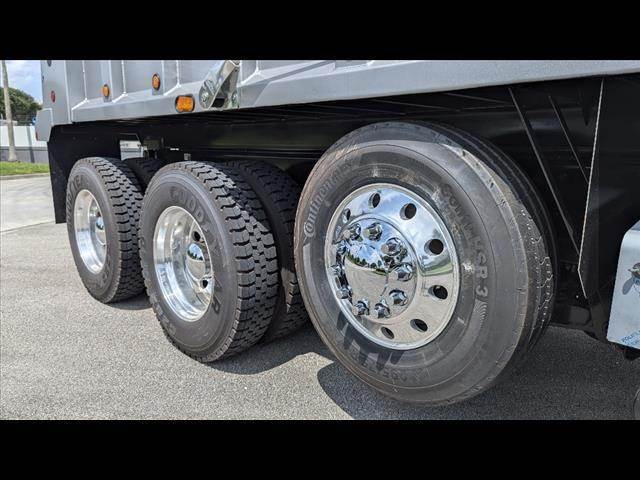

Wheels: Front: Alcoa aluminum 22.5x12.25 high polish Rear: Alcoa aluminum 24.5x8.25 Ultra ONE high polish Pusher: Alcoa aluminum 22.5x8.25 high polish
Tires: Front: Goodyear Armormax MSA 425/65R22.5 20PR Rear: Goodyear G282 MSD 11R24.5 16PR Pusher: Continental HSR3 295/75R22.5 16PR
Fuel Tanks: 110-gallon aluminum

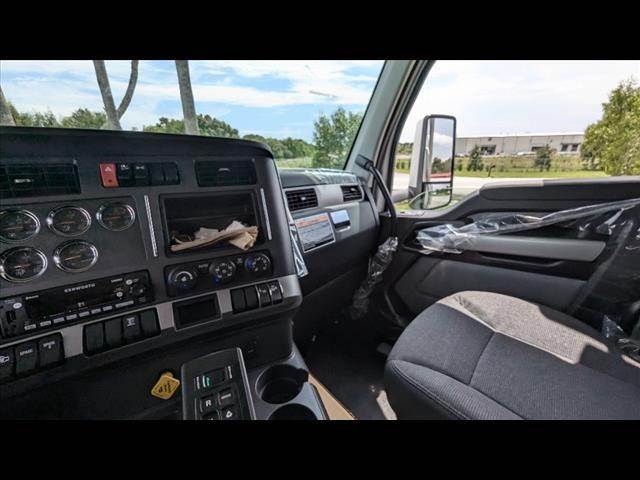

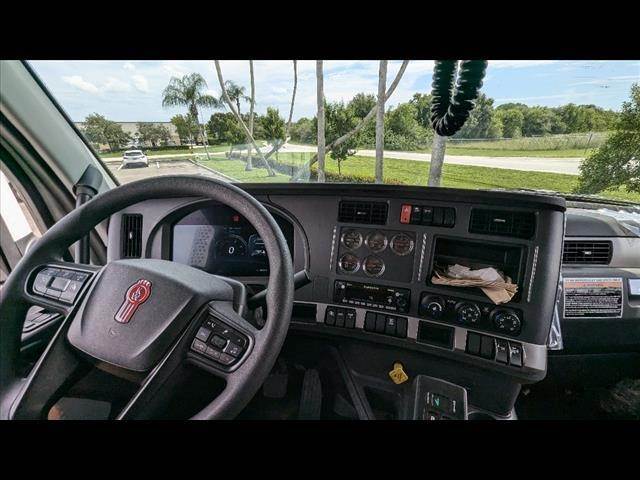

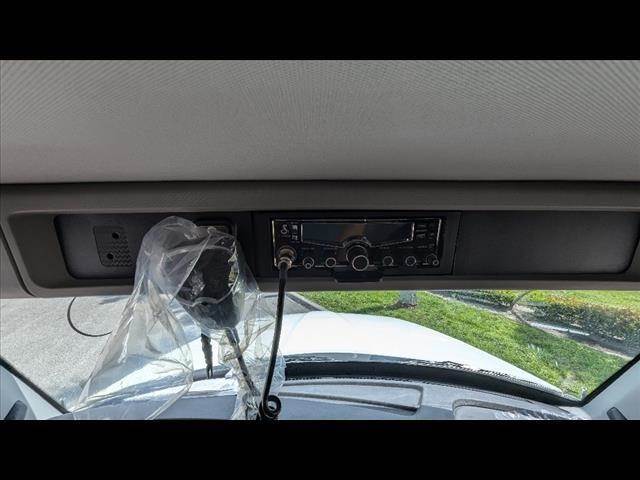

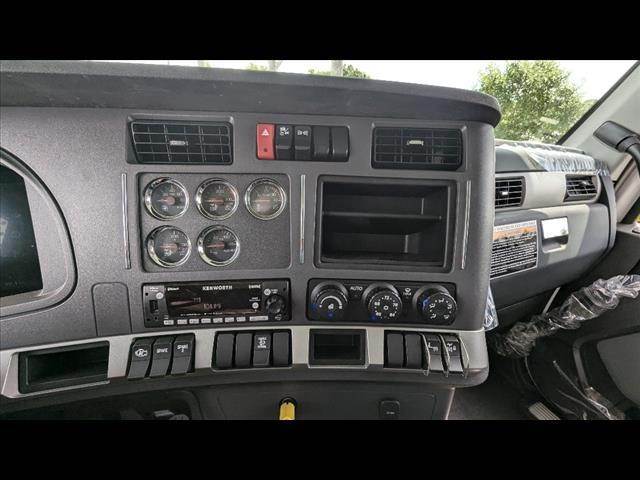

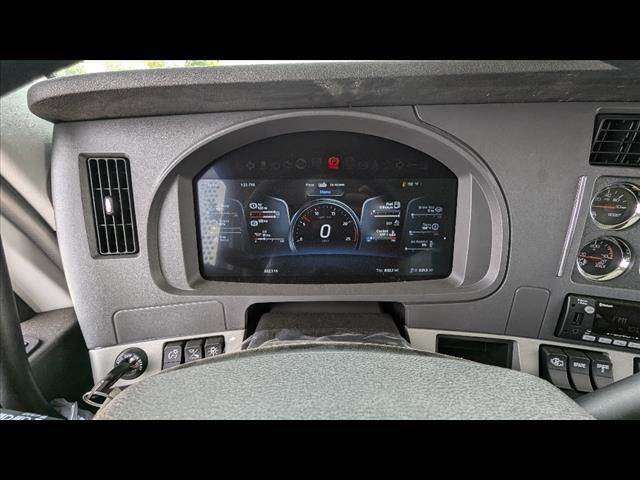

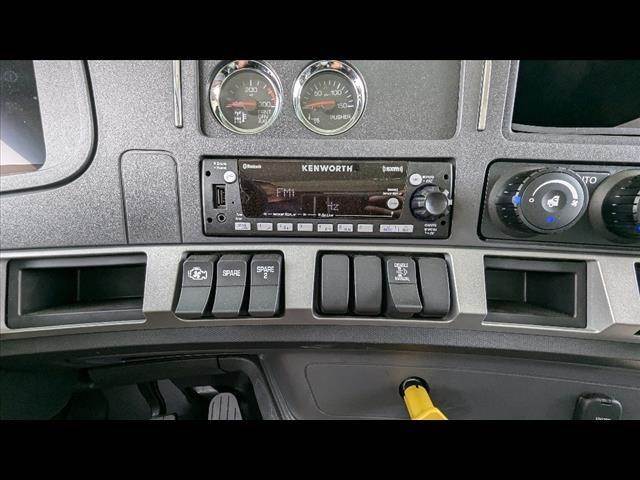

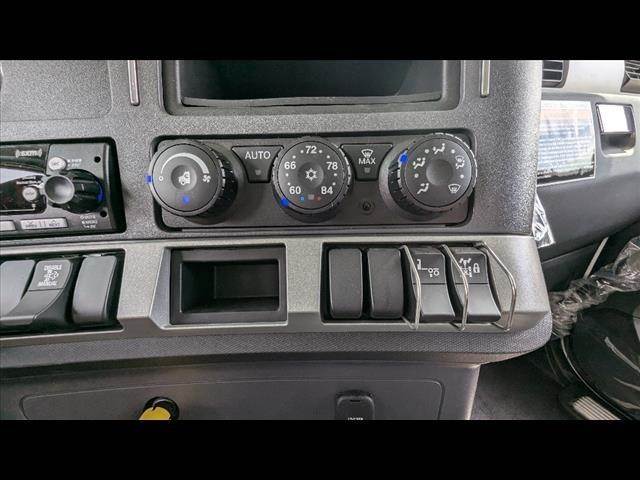

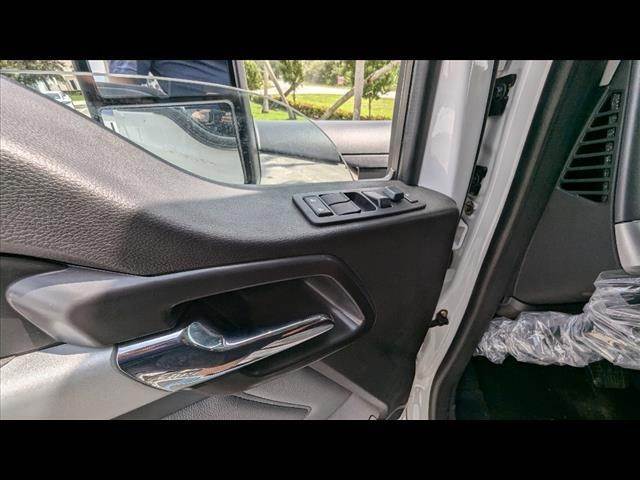

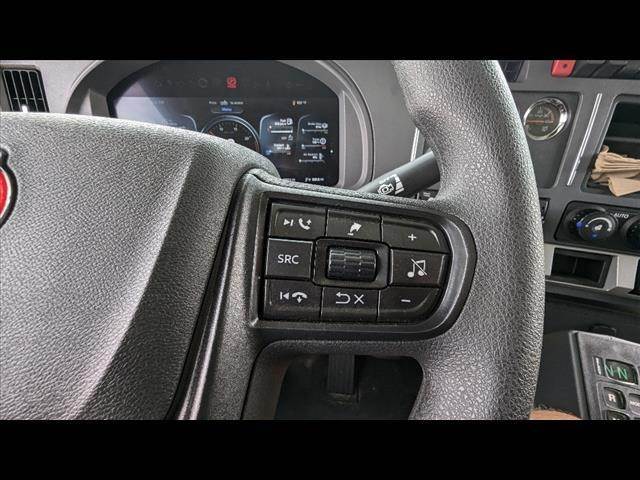

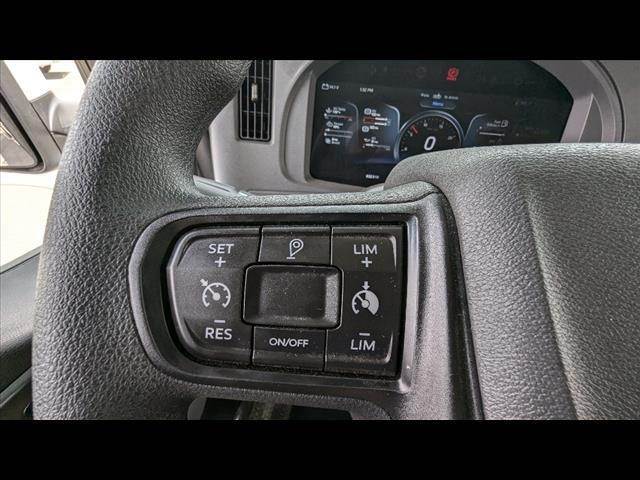

Power windows, power door locks, Tilt/telescoping steering wheel, Kenworth SmartWheel, Kenworth TruckTech+, CB radio, Air conditioning
Exterior Chrome/Polished Items: Dual Kenworth Aero heated 7"x13" chrome mirrors, dual chrome exhaust elbows, polished fuel tank, polished DEF tank cover, stainless steel sun visor, bright engine air intake
16' Stampede dump truck body specifications
Body Specifications:
Model: Stampede Body ID 87
Length: 16 feet
Hoist Model: 74133
Frame: Standard 2x8 RT with straight front and rear styling
Construction Materials:
Side Walls: 1/4" AR450 plate
Front Wall: 1/4" AR450 plate
Floor: 1/4" AR450 plate
Tailgate: 3/16" AR450 sheet
Skirt: 7GA A36 sheet
Side Top Rail: 4x4x.250 Diamond
Height Dimensions:
Front Height: 62"
Side Height (Front): 62"
Side Height (Rear): 62"
Rear Height: 68"
Cab shield Configuration:
Style: Narrow and centered
Projection: 24"
Width: 72"
Features: Oval light cutouts
Tailgate Features:
Type: Air high lift
Bracing Style: Outer frame only with formed panel
Operation: Air-operated closing system
Additional Features:
Tarp System: Electric Mountain tarp for 10-16ft bodies
Dump Apron: Heavy duty, 10" size
Lighting: Lower front with mid-turn lights, 2 metro lights
Body Prop: Single prop system
Gravel Guards: Steel construction
Reversing Alarm: Included
Mudflaps: 30-inch standard
Hydraulics: Standard 74133 cylinder with nestled pyramid flat bottom reservoir
Lighting Package: Multiple light kits for cab shield, sides, and rear
Rear Hinge: Removable pin design (no hitch plate)
Exhaust: 5-inch turnout
The body includes aluminum skirt coverings suitable for bodies up to 16ft and features standard Stampede branding and logos.
This represents a heavy-duty configuration designed for demanding dump truck applications with premium material choices like AR450 steel for high-wear areas.
