Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost! Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro or Westminster. Contact us for details!

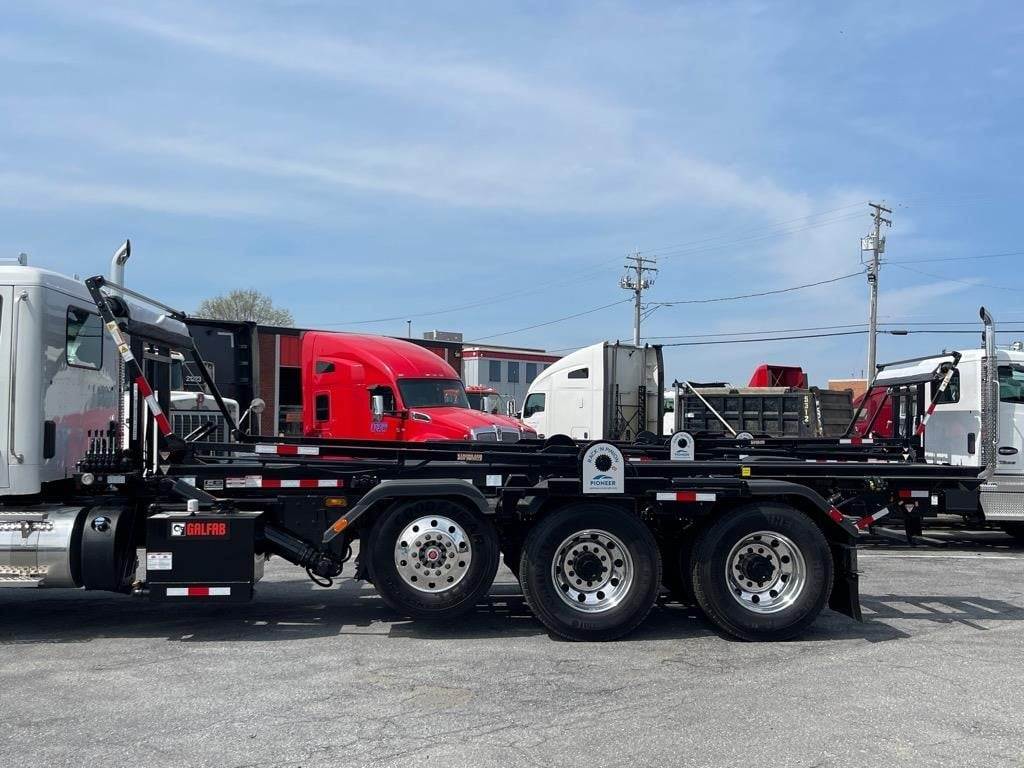

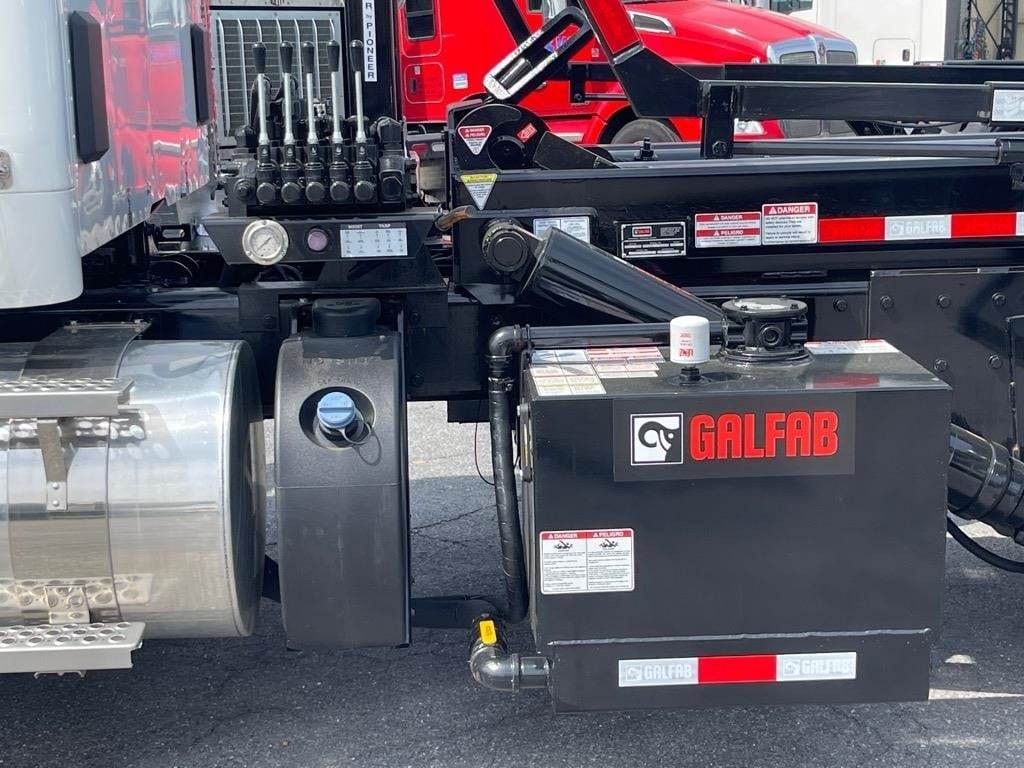

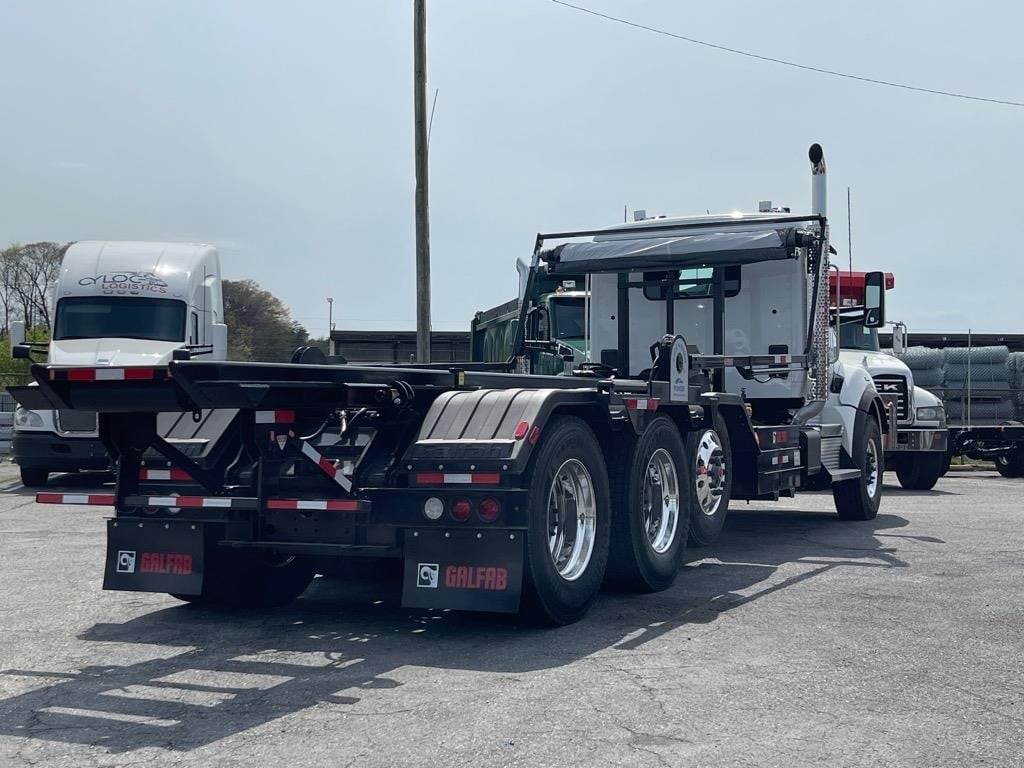

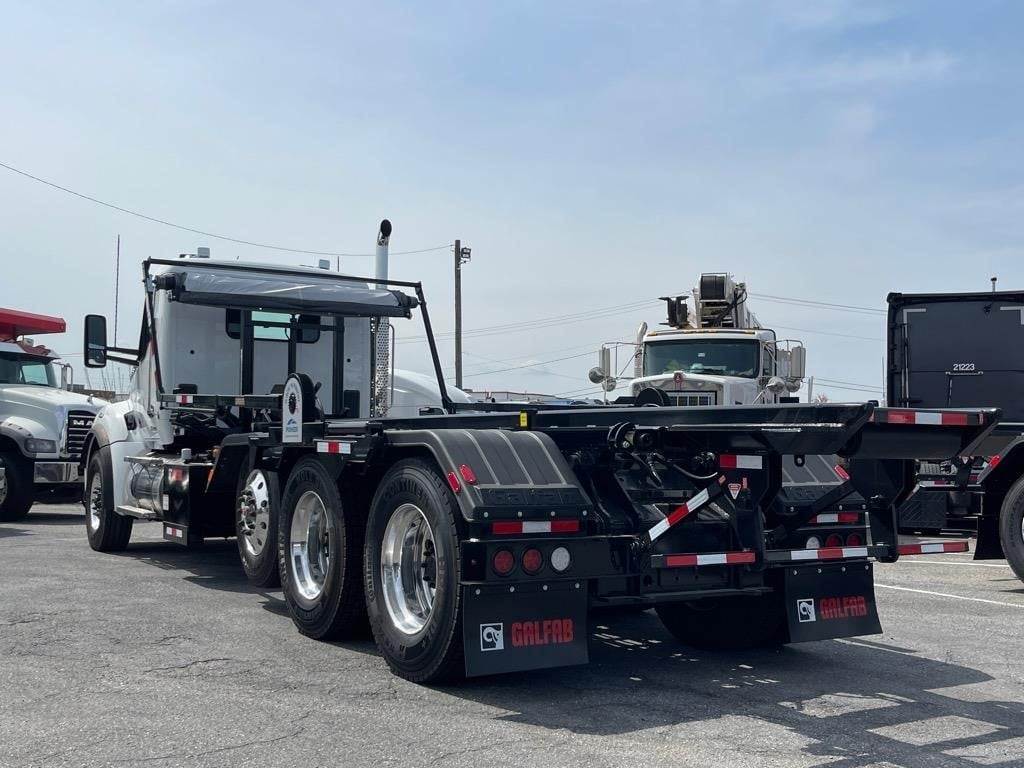

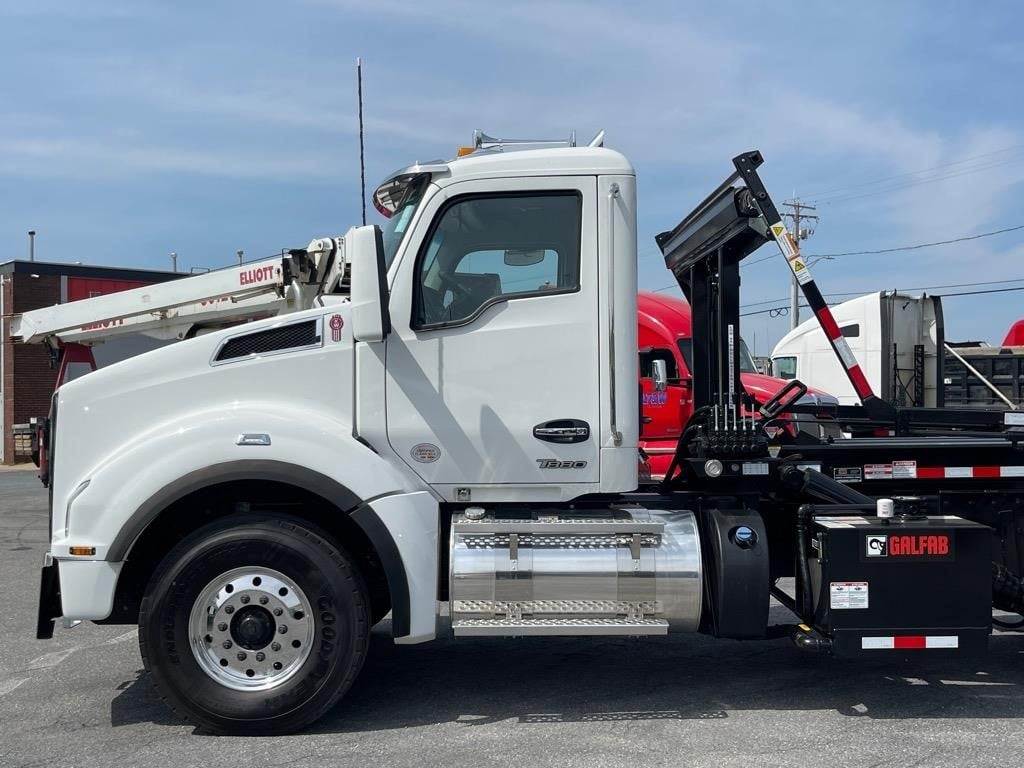

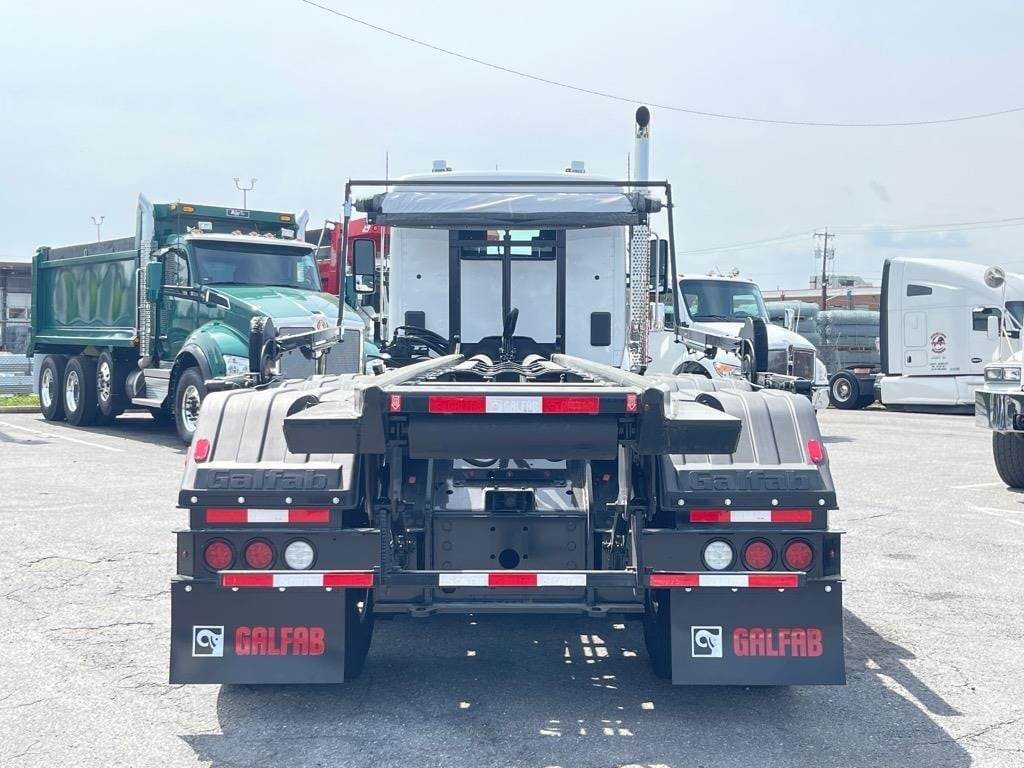

Equipped with Galfab 60k Outside Rail Roll-off Hoist, Pioneer tarp
Model Year: 2025

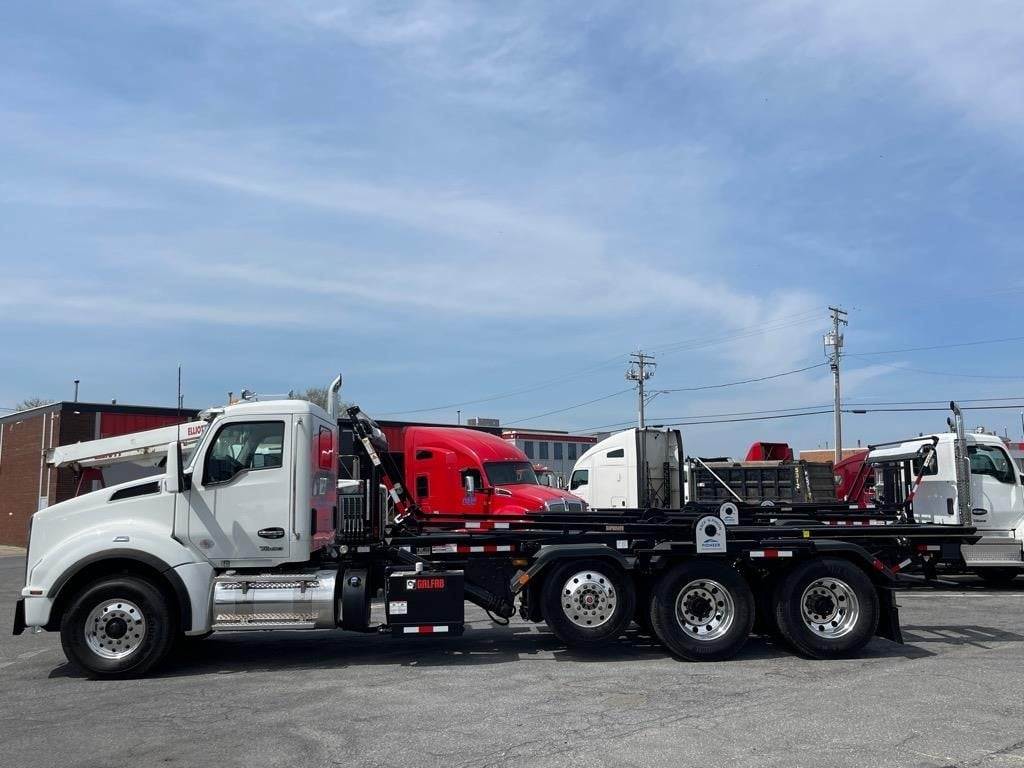

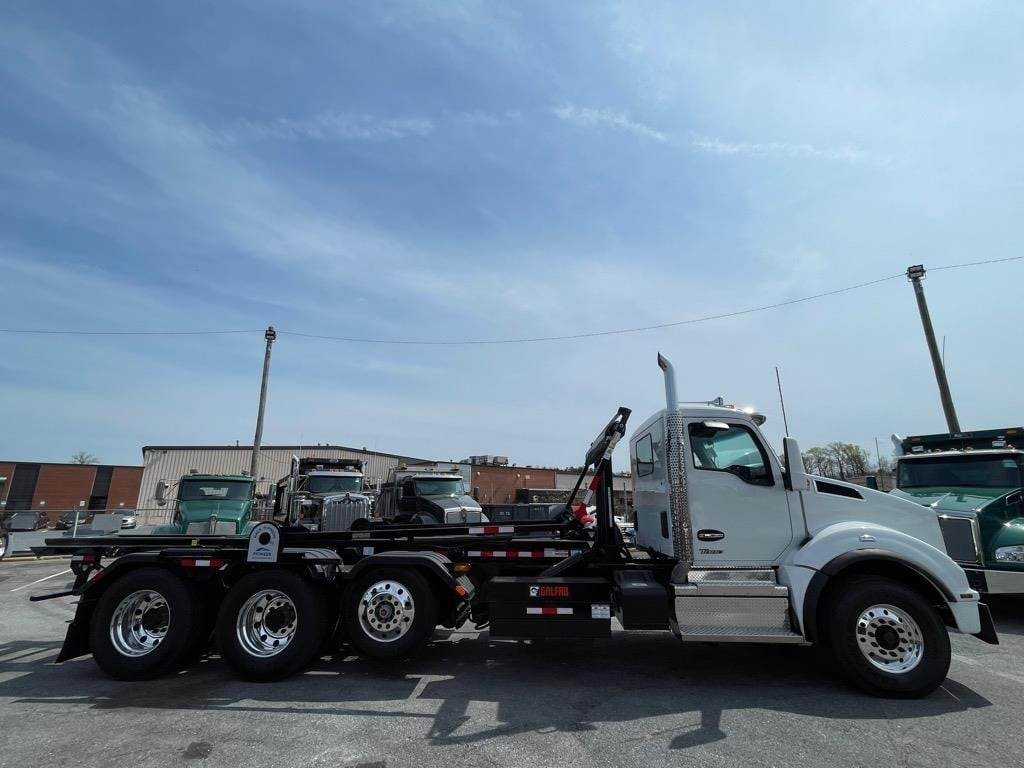

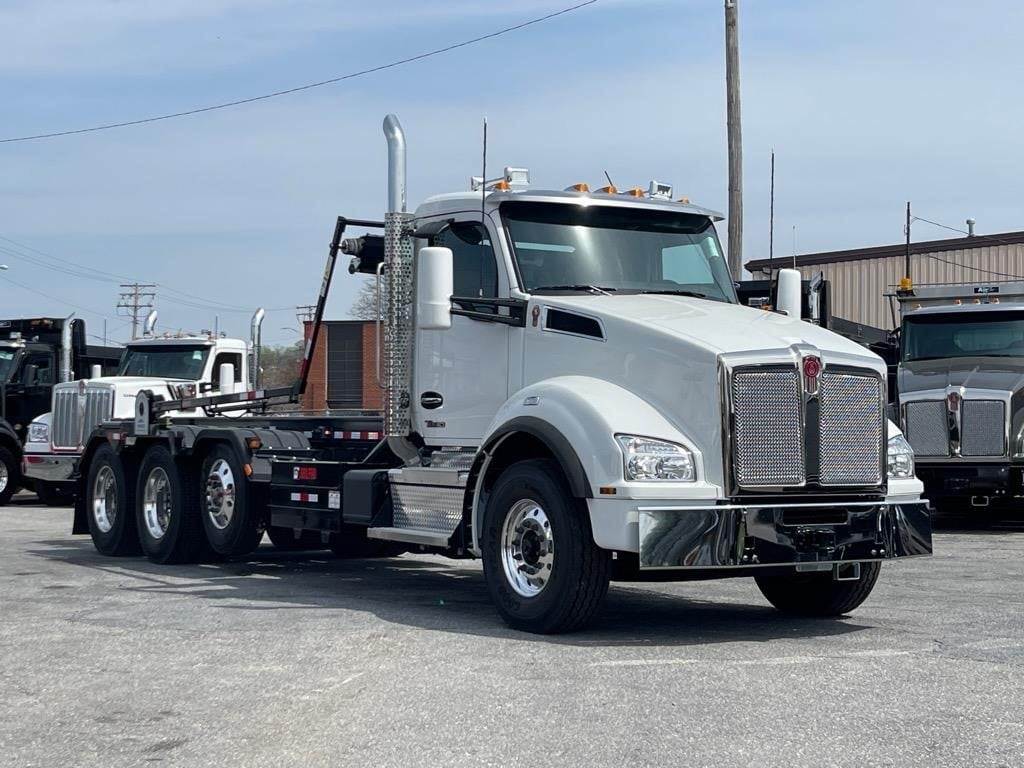

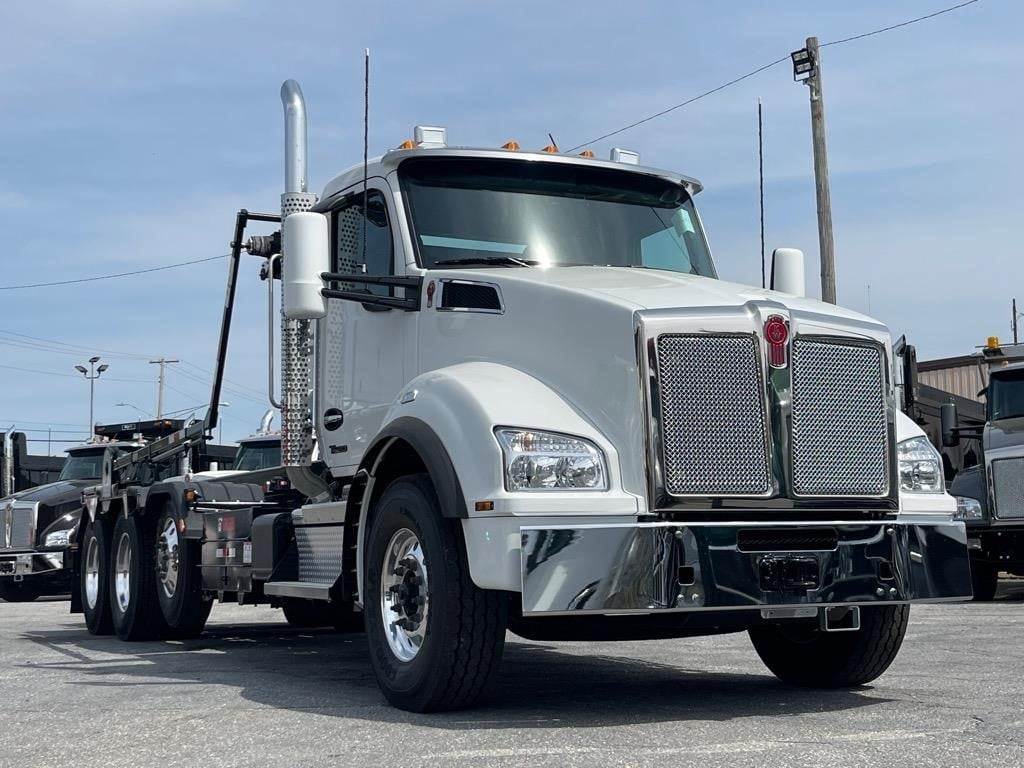

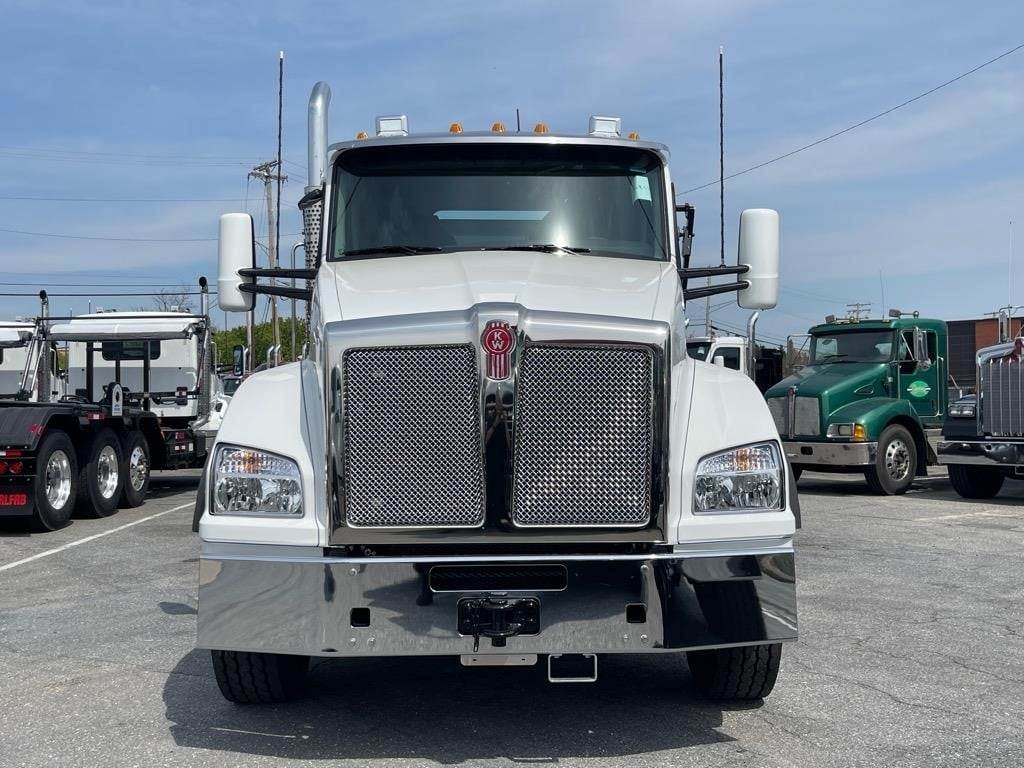

Model: Kenworth T880
Exterior Color: White (L0006EY)
Interior: Vantage Daycab
Interior Color: Slate Gray
Engine: Cummins X15 500V Productivity Series, 500 horsepower @ 1900 RPM, 1850 lb-ft torque @ 900 RPM, engine brake
Transmission: Allison 4500RDS, 6-speed automatic Generation 6 with PTO, without retarder
Front Axle: Dana Spicer D2000, 20,000 lbs, standard track
Rear Axle: Dana Spicer D46-172HP, 46,000 lbs, dual, heavy-duty with pump
Steerable Pusher Axle: Watson & Chalin SL13, 13,500 lbs
Front Suspension: Taperleaf, 20,000 lbs, with shocks
Rear Suspension: Hendrickson Primaax EX 462, 46,000 lbs dual, 54" air suspension, 10" ride height, steel crossmembers and gussets
Gross Vehicle Weight Rating (GVWR): 79,200 lbs
Wheelbase: 268 inches
Cab-to-Axle: 194 inches
Rear Axle Ratio: 4.30
Brakes: Front Bendix ES drum brakes 16.5x6, rear Bendix ES S-CAM drum brakes 16.5x7" dual extended service, pusher Bendix non-RSD 15x4"
Front Wheels: Alcoa 89U63, 22.5x9, aluminum Ultra One high polish, mirror polish outboard surface
Rear Wheels: Alcoa 98U63, 24.5x8.25, aluminum Ultra One high polish, mirror polish outboard surface of outer wheels (8 wheels total)
Pusher Wheels: Alcoa 88565, 22.5x8.25, aluminum hub piloted severe service Level 1 high polish, mirror polish outboard surface (4 wheels total)
Front Tires: Goodyear Endurance WHA, 315/80R22.5, 20PR
Rear Tires: Goodyear Endurance LHD, 11R24.5, 14PR (8 tires total)
Pusher Tires: Goodyear Endurance LHS, 11R22.5, 16PR (4 tires total)
Fuel Tank: 100 US gallons, 24.5" aluminum, polished, underbody mounted
DEF Tank: 14 gallons, small round
Power Windows
Power Door Locks

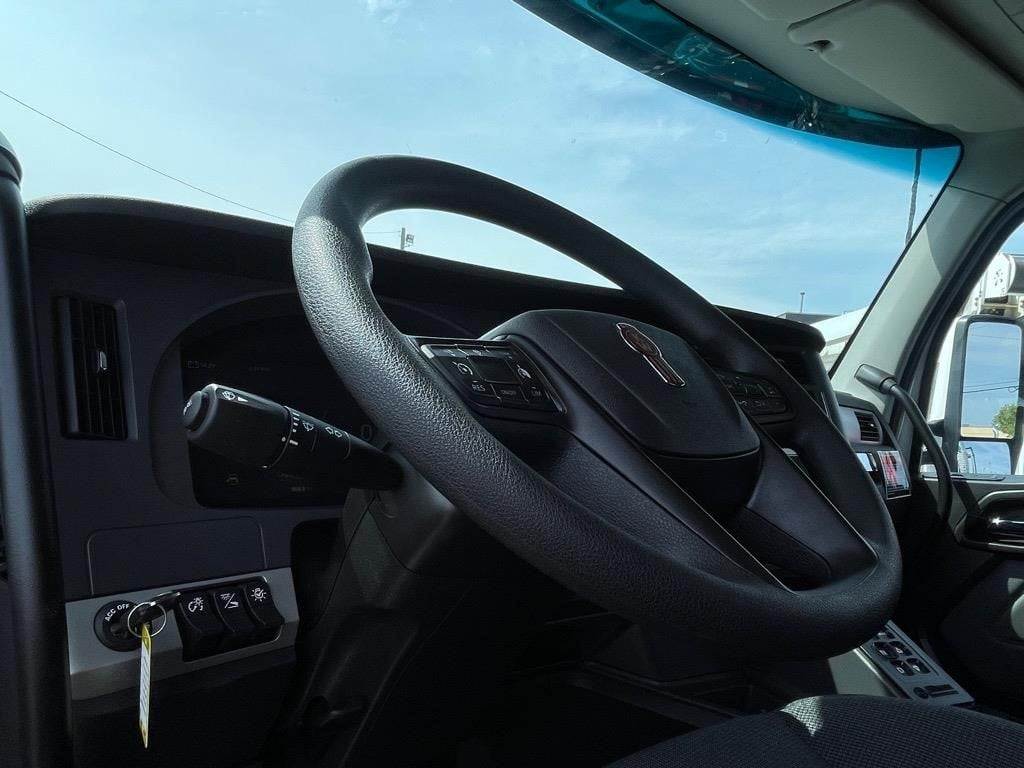

Tilt/Telescoping Steering Wheel

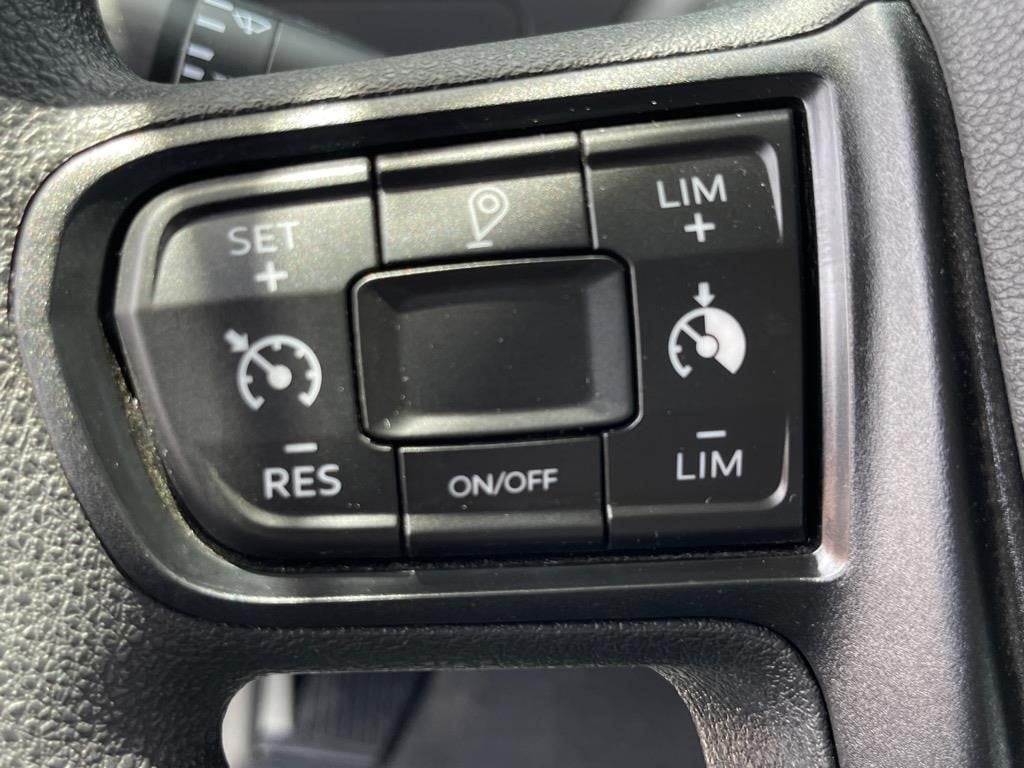

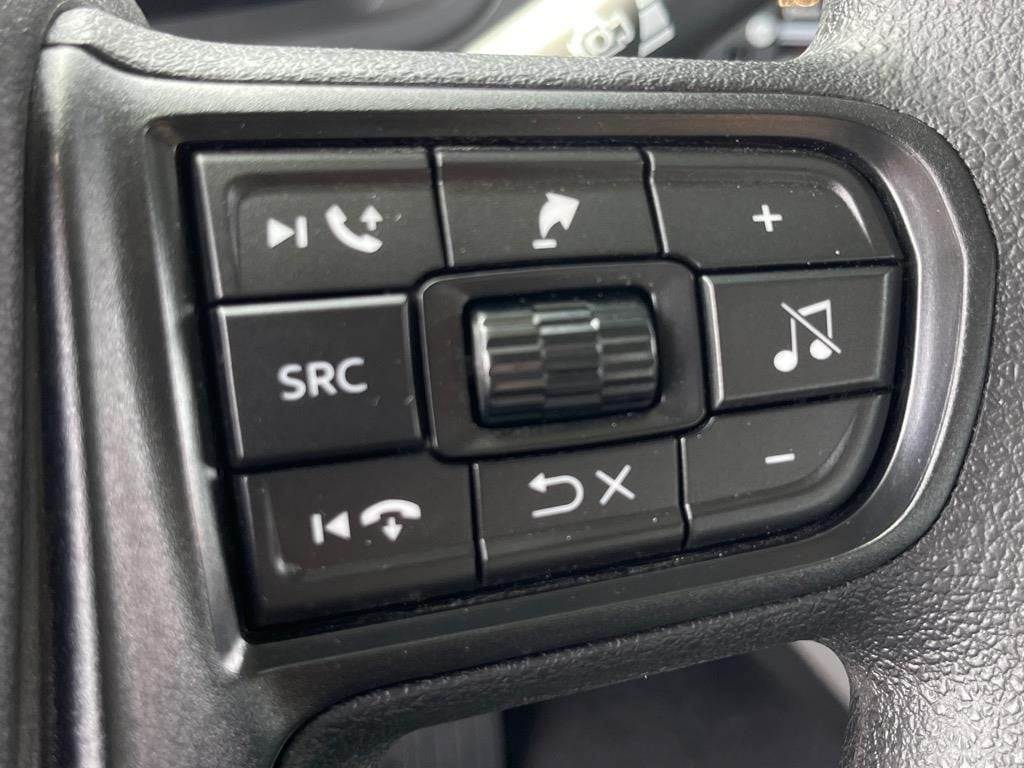

Kenworth Smart Wheel (18" non-leather with integrated radio and cruise controls)
Heated Power Mirrors (dual Kenworth Aero motor heated, 7"x13" shell cab color with black arms, 6"x7" convex mirror)
Air Conditioning with Auto Temperature Control
Kenworth Radio DEA710 (AM/FM/WB/USB, Bluetooth)
Mid-Level Audio System with high performance door and B-pillar speakers
CB Installation Kit (center mounted header with quick mount release, dual antenna)
USB Charging Port (dash panel)
TruckTech+ Remote Diagnostics (3-year subscription)
Prognostics Connection

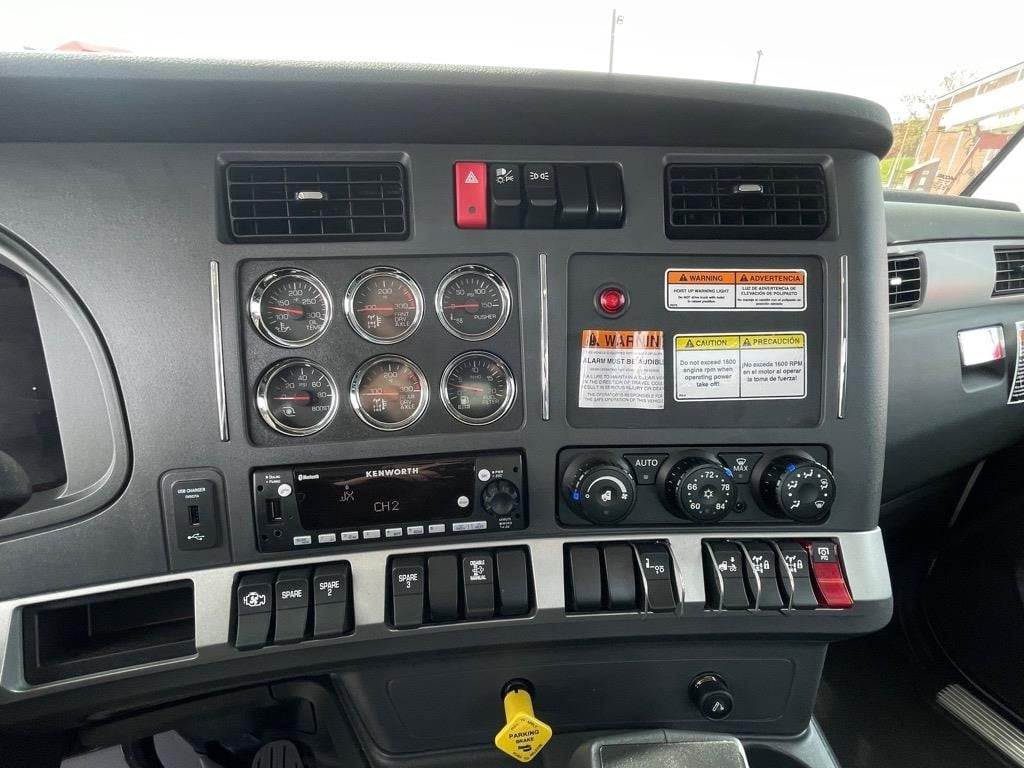

15" Digital Display Main Instrument Package
Air Filter Restriction Gauge (dash mounted)
2 Air Suspension Pressure Gauges for air suspension with dual leveling valve
Virtual Gauges: Engine oil temperature, air filter restriction, manifold pressure boost, engine percent torque, fuel filter restriction, manifold pressure, single pusher axle gauge
Engine Oil Temperature Gauge with integral warning light
Pusher/Tag Axle Gauge/Switch dash mounted
Axle Oil Temperature Gauge for dual drive axle (2 gauges) with integral warning light
Immersion Engine Block Heater (110-120V/1500W, plug located under door)
Fuel Cooler (Kenworth)
Column-Mounted Retarder Control (RH side)

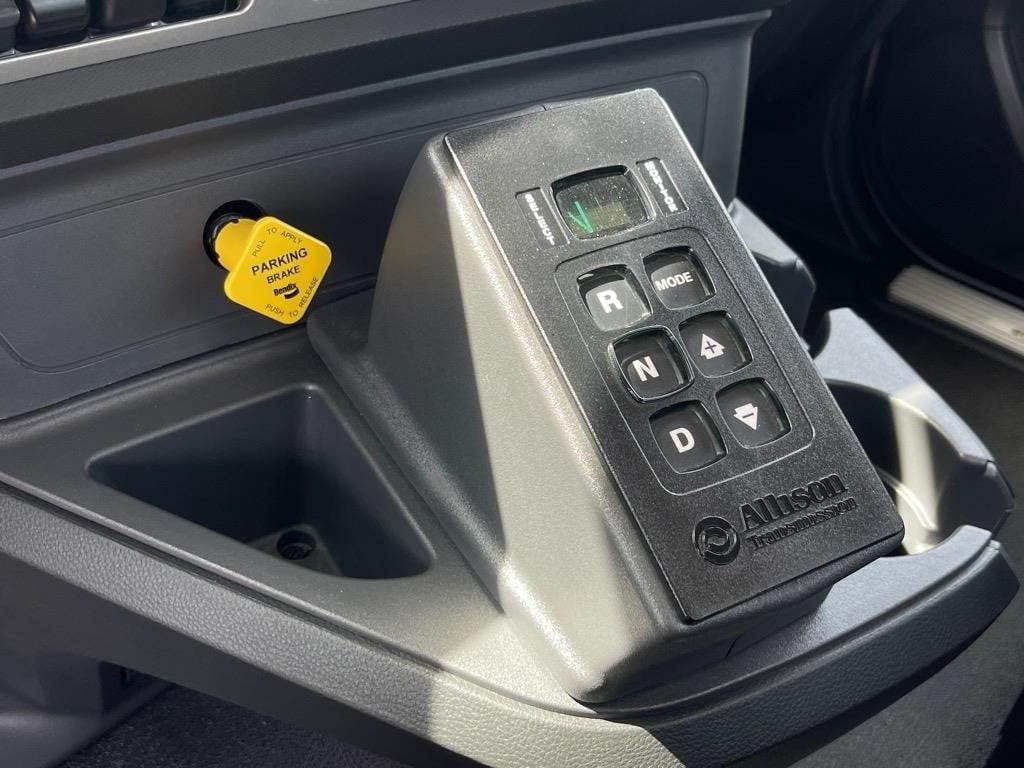

Push Button Control: Console mounted for Allison
Allison J1939 Park Brake Auto Neutral
Allison Neutral at Stop
Allison RDS Package 223
Torque Converter: TC541 for 4000 Series
Dash Switch: 1st Allison-Mounted PTO
Three Spare Switches Wired to Power
Remote PTO/Throttle (12-pin, 250K, behind cab/behind sleeper, J1939, remote control provision)
Muncie 10-Bolt PTO Compatible
Dual Interior Grabhandles (A-pillar dash wrap and B-pillar mounted)

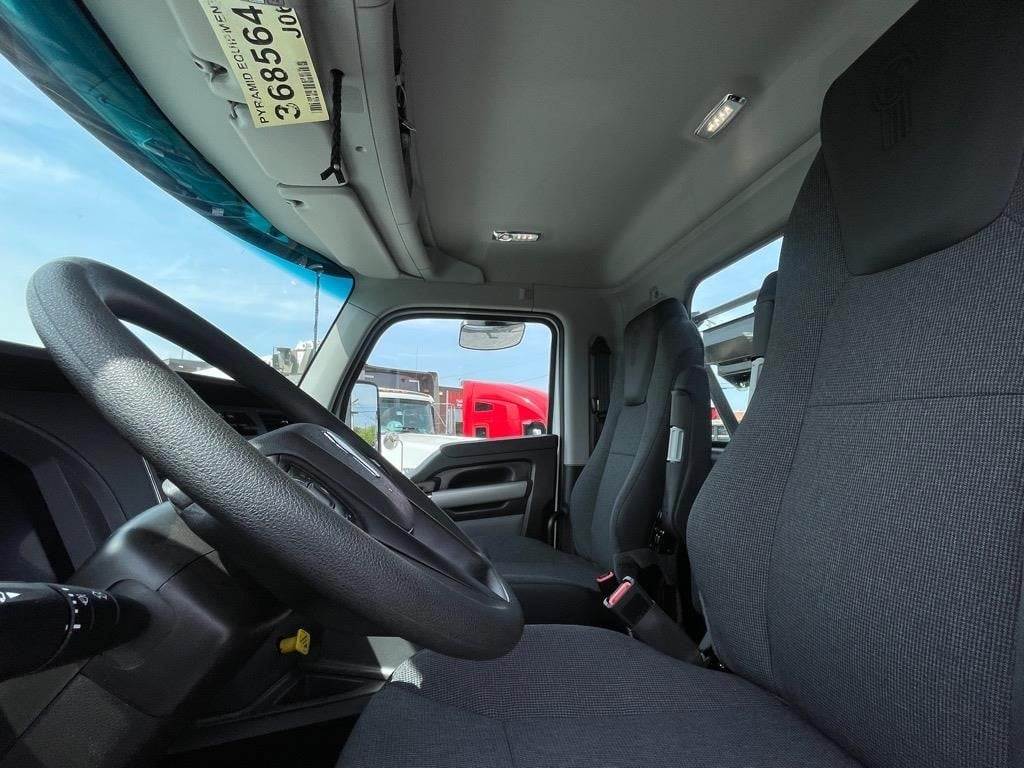

Driver Seat: Kenworth GT701 High Back Duracloth with Vinyl, air-ride suspension, black
Passenger Seat: Kenworth GT100 High Back Toolbox Seat, Duracloth with Vinyl, black
Rubber Floormats
Fire Extinguisher (5 lb dry chemical, Class ABC, mounted outboard of driver seat)
Warning Triangle Reflector Kit (3 triangles in plastic case)
Rear Cab Window (fixed 19"x36")
3.5"x11.5" Plastic Record Holder (mounted rear cab panel)
LH & RH Trip Ledge Rain Deflectors
Stainless Steel Permit Panel on cab (driver side only)
Look-Down Passenger Door Mirror (black 11x6)
Exterior Stainless Steel Sunvisor
Fender Close-Out Below Headlamp Behind Bumper
Wheel Well Fender Extension: 2.5"
Tapered Chrome Steel Channel Bumper (48.5" bumper setting)
Cast Center Mounted Front Tow Hook
Steel Shackle Links
Cantilever Aluminum Battery Box behind cab with fiberglass cover (RH side)
Heavy-Duty Behind Cab Crossmember Assembly
Custom Frame Layout (5-9 chassis)
Clear Frame Spaces: First - 50" RH outside, Second - 60" LH outside
Polished Aluminum Fuel Tank
Polished Fuel Tank Straps (1 tank)
Anti-Siphon Device for tank filler neck
Mechanical Anti-Roll Channel (1 tank)
Fuel Tank Steps: 6" wide lower for 1 tank 22" or 24.5" LH
DEF Tank Location: LH
5" Single Vertical Exhaust Tailpipe (36" length, 45 degree curved, RH stack on chassis)
Bright Engine Air Intake
Bug Screen (between hood and grille, semi-rigid, not removable)
LED Headlamps (SAE dual halogen complex reflector)
LED Marker Lights (5 rectangular)
LED Turn Signal Lights (flush mounted at top of fender wheel arc)
LED Stop/Turn/Tail Lights with 2 LED backup lights and LED license plate light
Marker Light Interrupter Switch
Polyswitches Replace Fuses (auto reset after removal of excess load)
Wiring Only for C/I Backup Alarm (junction box at end of frame)
Reflectors: 2 amber midframe mounted for full truck
Air Horn (dual rectangular 23" LH/RH roof, includes air horn covers)
Bendix AD-HF Heated Air Dryer with Puraguard and extended purge
Moisture Ejector Valve (pull cable drain)
Nylon Air Tubing (frame/cab)
Bendix LQ-5 Ratio Valve for Kenworth installed pusher/tag
ABS: Bendix 4S/4M (front wheels plus 2 groups rear wheels)
Rear Wheel Differential Lock: Dana D40-170/172 and D46-170/172, 2 wheel differential, rear rear
Driveline: 1 Dana SPL170XL inter-axle, 3 Dana SPL250XL with 2 center bearings
PACCAR HDS 160 Amp Brushed Alternator
3 PACCAR Group 31 Heavy-Duty Batteries (2100-2190 CCA dual purpose)
Mitsubishi 105P55 12V Starter
Battery Disconnect Switch (2 mounted on battery box)
12V Low Voltage Disconnect for battery protection
Power Steering: Dual gears, TRW THP60, 16,000-22,000 lbs
Power Steering Cooler (radiator mounted)
Heavy-Duty Track Rods for Hendrickson Primaax EX tandem (replace standard duty)
Dual Leveling Valves for tandem air suspension (standard Neway AD252)
Delete Standard Heavy-Duty Air Springs for rear suspension
Threaded Bushings for taperleaf spring
Auto Slack Adjusters for drum brakes (front and rear)
Rear Spring Brakes: 3030 longstroke dual for drum brakes
Rear Dust Shields for drum brakes
Pusher Axle Location: 49" from centerline forward rear/single rear axle
Front Wheels: Conmet PreSet Plus hub package
Rear Wheels: Conmet PreSet Plus hub package
Vented Front Hubcaps
Cast Front Brake Drums: 16.5x6" for 22,000 lbs
Cast Rear Tandem Brake Drums: 16.5x7" or 16.5x8.625"
Cast Pusher Brake Drums: 15x4" for 13,500 lbs axle
Iron Front Hubs (hub piloted mounting, 20,000 lbs maximum capacity, 16.5x6" or 7" or air disc brakes, 11.25" bolt circle, 10 bolts)
Aluminum Rear Hubs (hub piloted dual, 11.25" bolt circle, 46,000 lbs)
Aluminum Pusher Hubs (hub piloted for 13,500 lbs axle)
Turn Signal: Non-self-cancelling
Omit Brake Light with Engine Brake
Horton 2-Speed Fan Hub for X15 engines
1330 Square Inch Cooling Module
Fuel Filter: PACCAR standard service interval fuel/water separator
Fuel Heat Run Aid
12V Fuel Heat Start Aid
Pre-Cleaner mounted in the hood plenum
EPA Clean Idle Label - Cummins engines
EPA Emissions Warranty Engine
2024 Series Emissions Engine
PremierSpec
Engine Idle Shutdown Timer Disabled
Effective Vehicle Speed Limit Setting: Not Applicable
Allison Push Button Control: Console mounted
Allison Fuel Sense: Delete

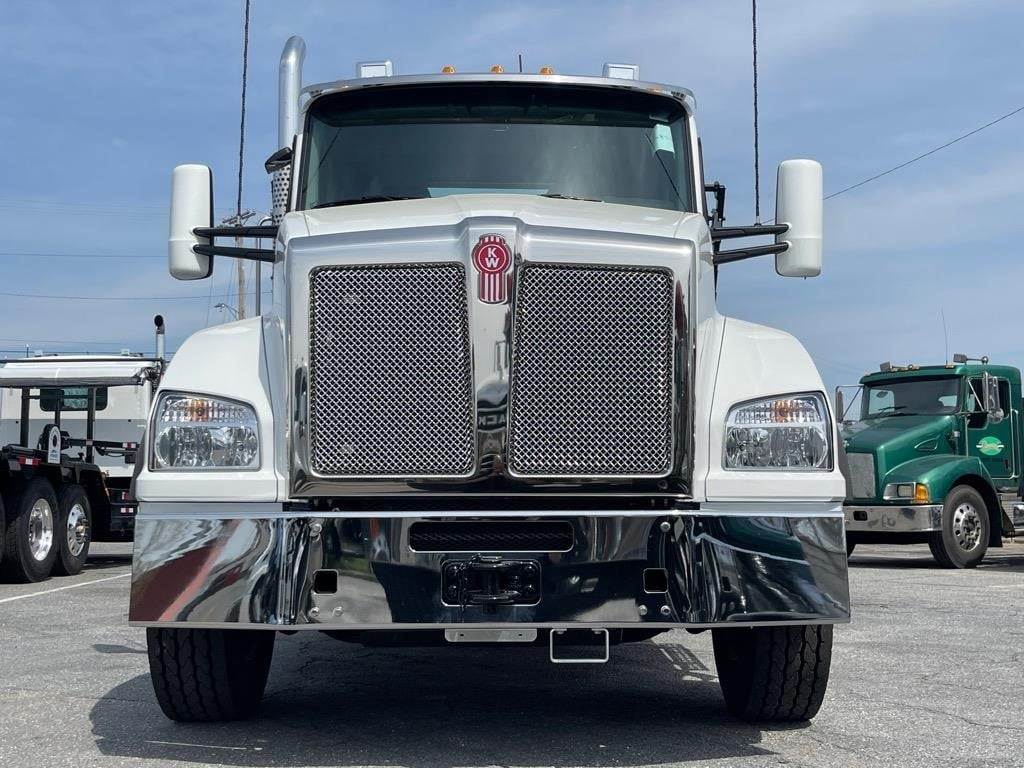

T880 Hood (set-back medium length, 122.6" bumper to back of cab with standard bumper)
T880 Stamped Aluminum Cab (panoramic curved windshield with LED marker lights and signals)
Daylite Doors (Kenworth with standard LH/RH electric door locks and LH/RH electric window controls)
1-Piece Bonded-In Windshield with curved glass
Kenworth Cab/Sleeper Air Suspension
Fine Particulate Filter for HVAC cabin air
Shutoff Valves to Isolate Primary Heater (remote mounted on frame under cab)
Grabhandle: 1 long RH mounted stack on chassis/exhaust
Grabhandle: LH ergonomic exterior side of cab
Global Telematics Unit
Paint: Base Coat/Clear Coat
Rear Mudflap Arms: Betts B25 standard duty straight
Rear Mudflap Shields: White plastic, Kenworth logo, antisail
Square End of Frame without crossmember
Full Steel Insert for 10-5/8" or 10-3/4" steel 337-416"
Frame Rails: 10-3/4" x 3/8" steel 337-416" (section modulus 17.80, RBM 2,132,000 lbs)
Huck Bolts Throughout Frame where possible
Zinc Phosphate Frame Rail Paint Process
Zinc Phosphate Frame Insert Paint Process
EMUX Architecture
