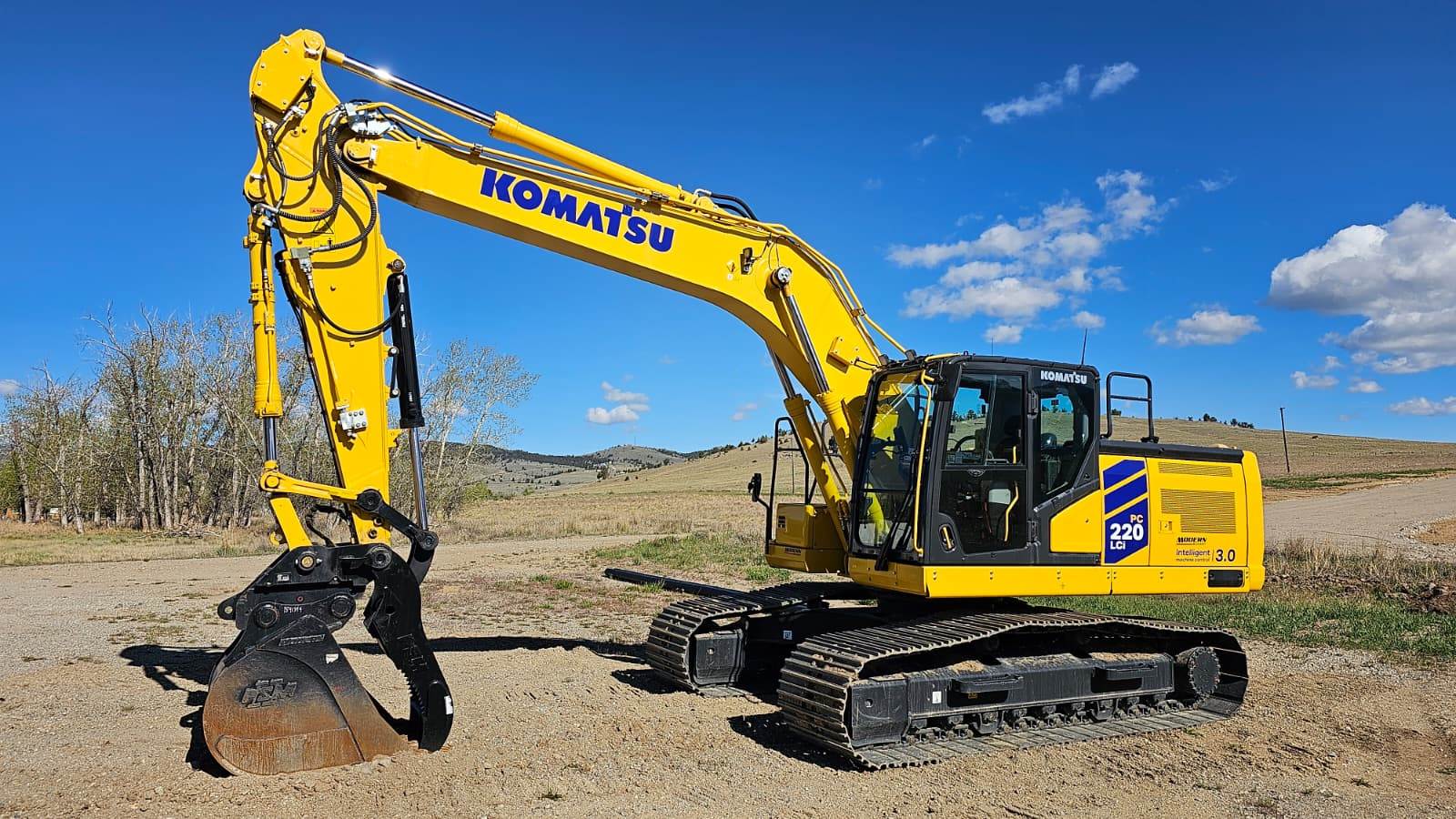

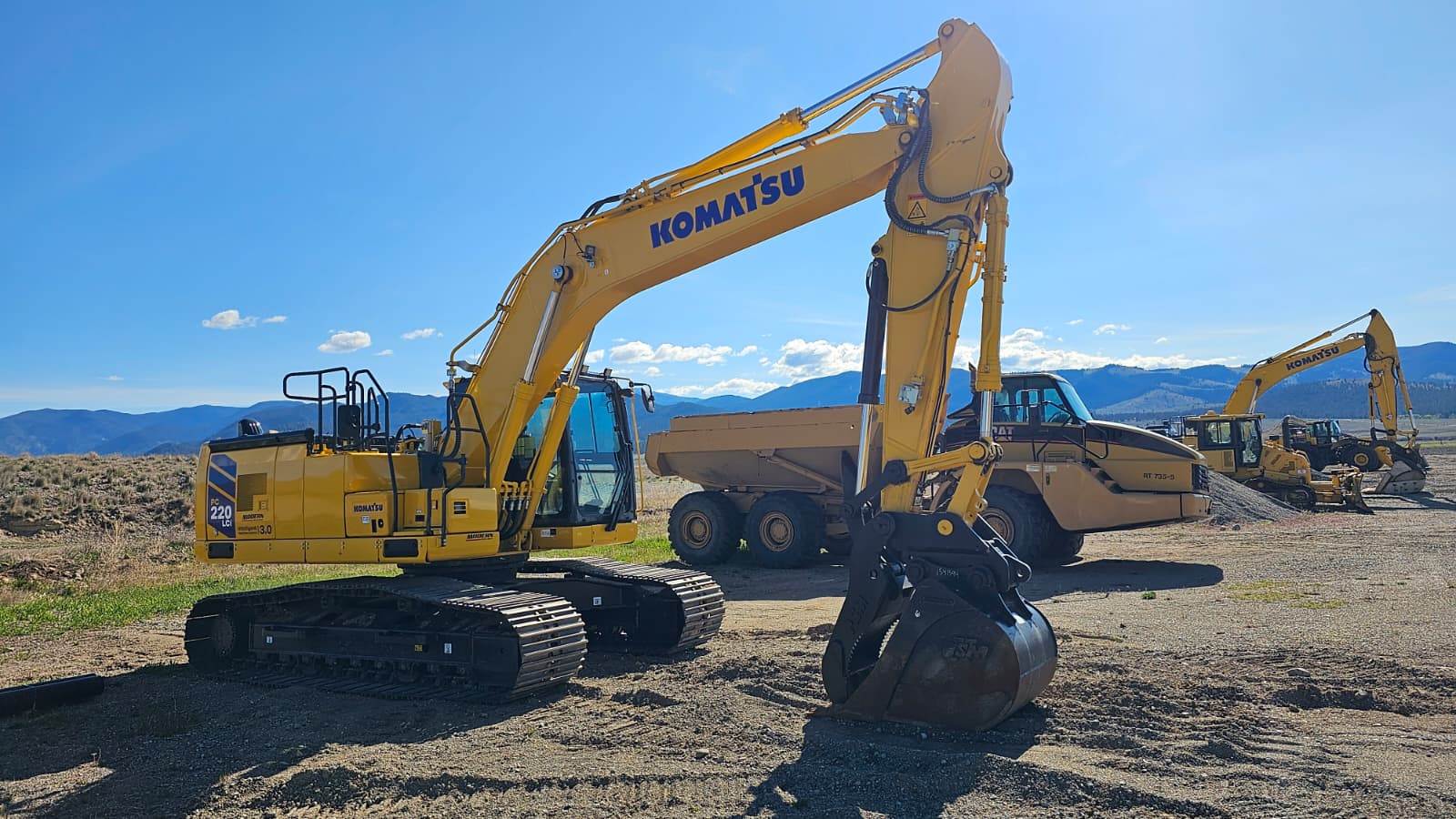

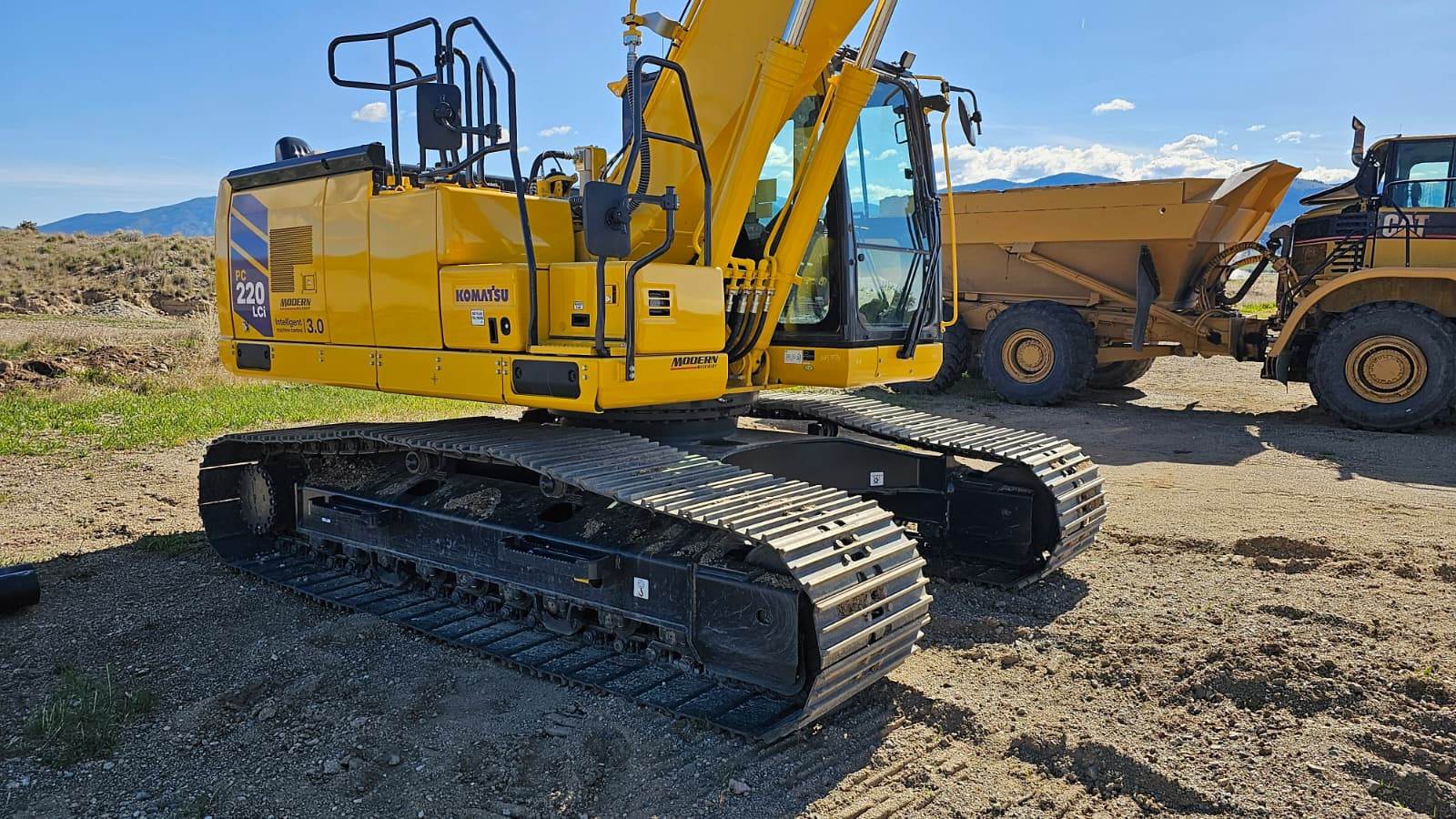

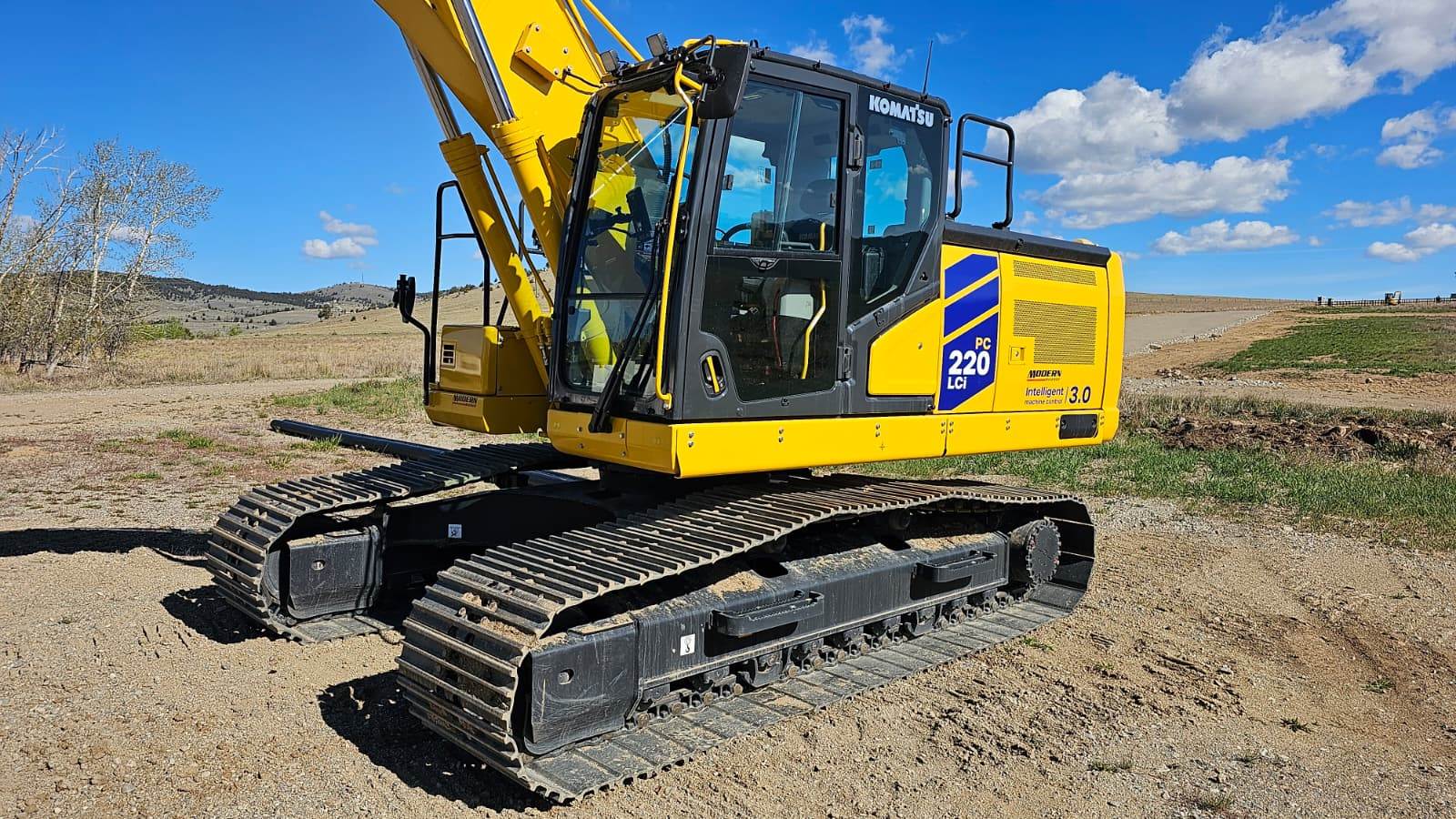

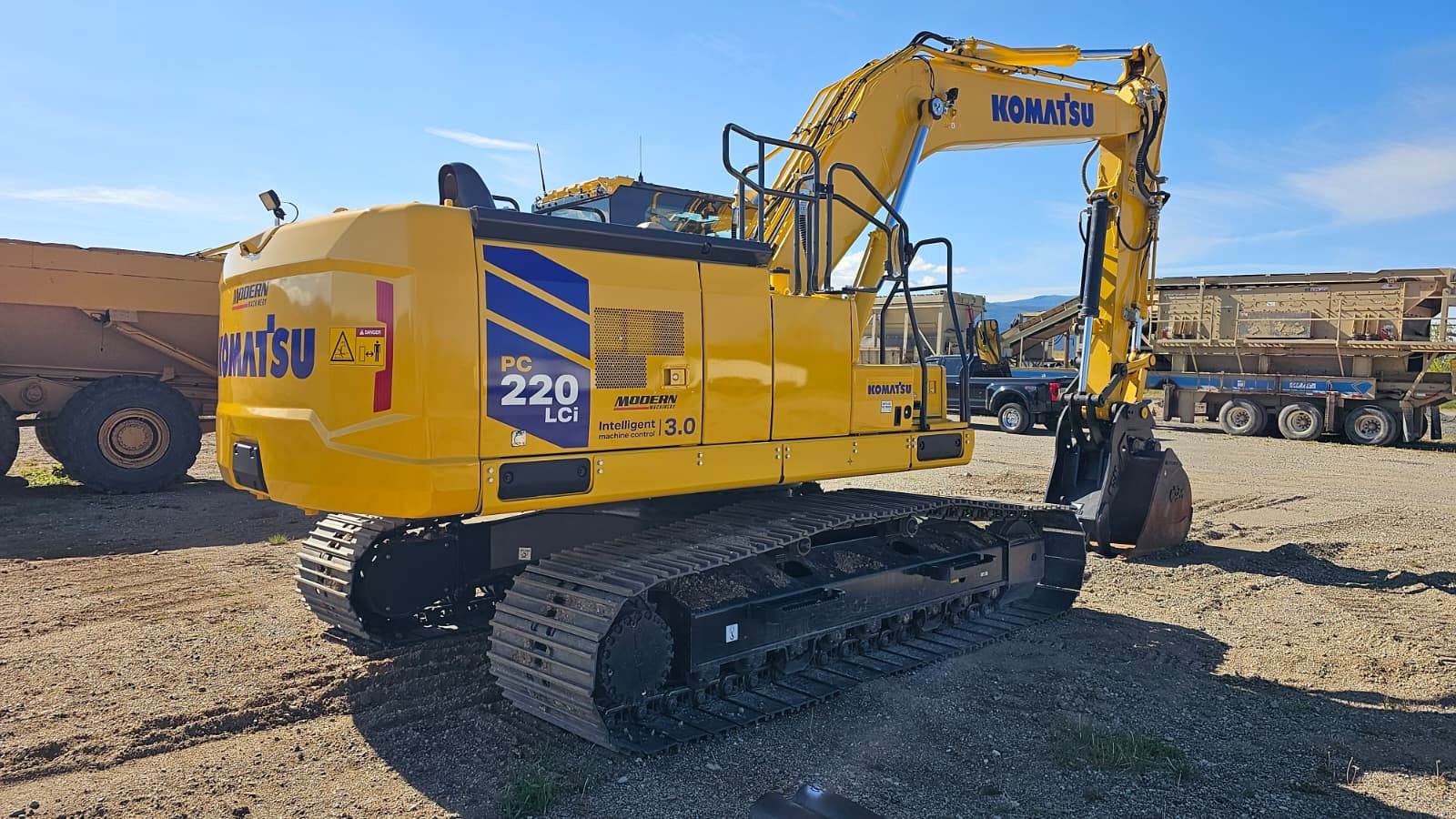

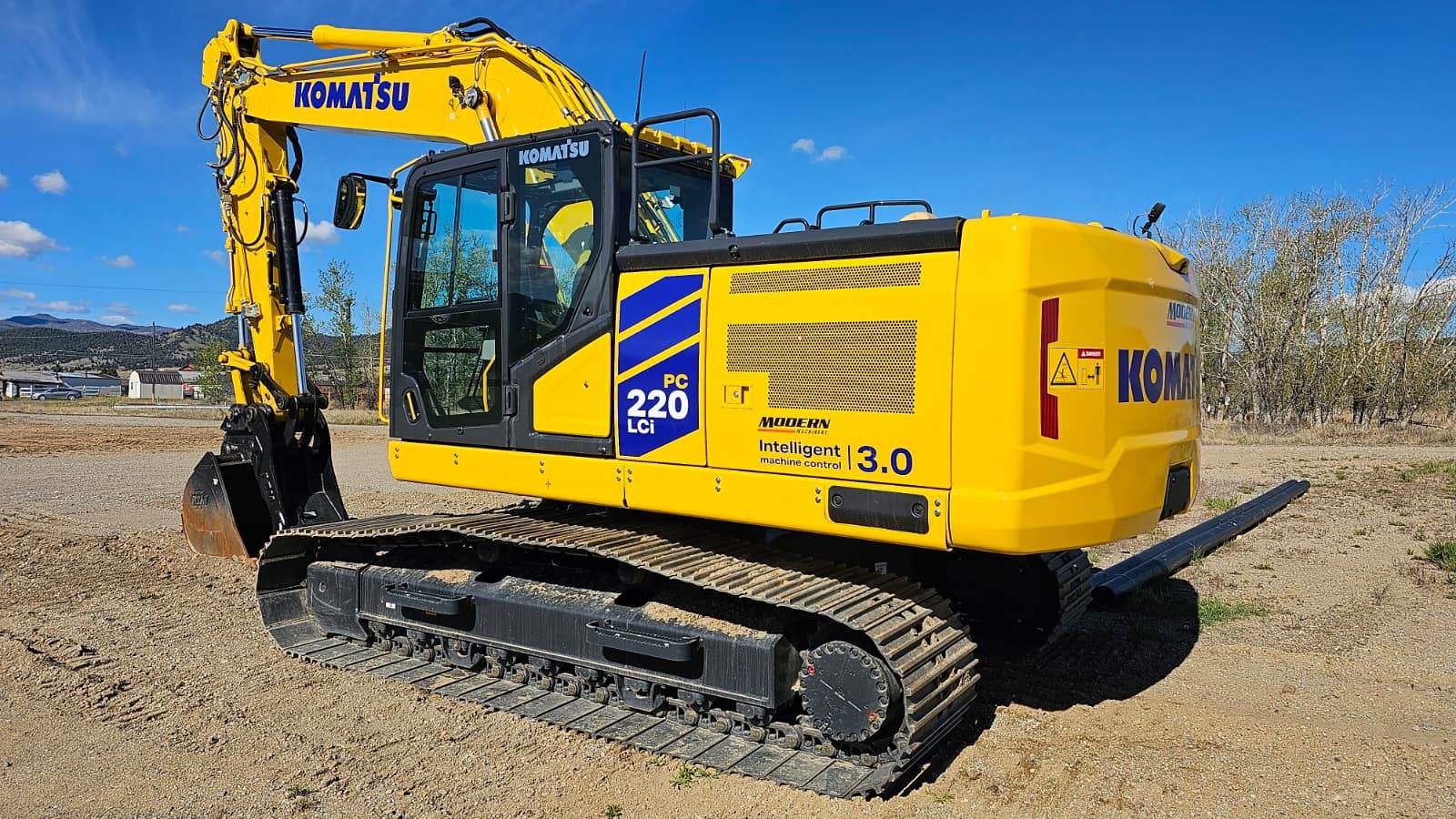

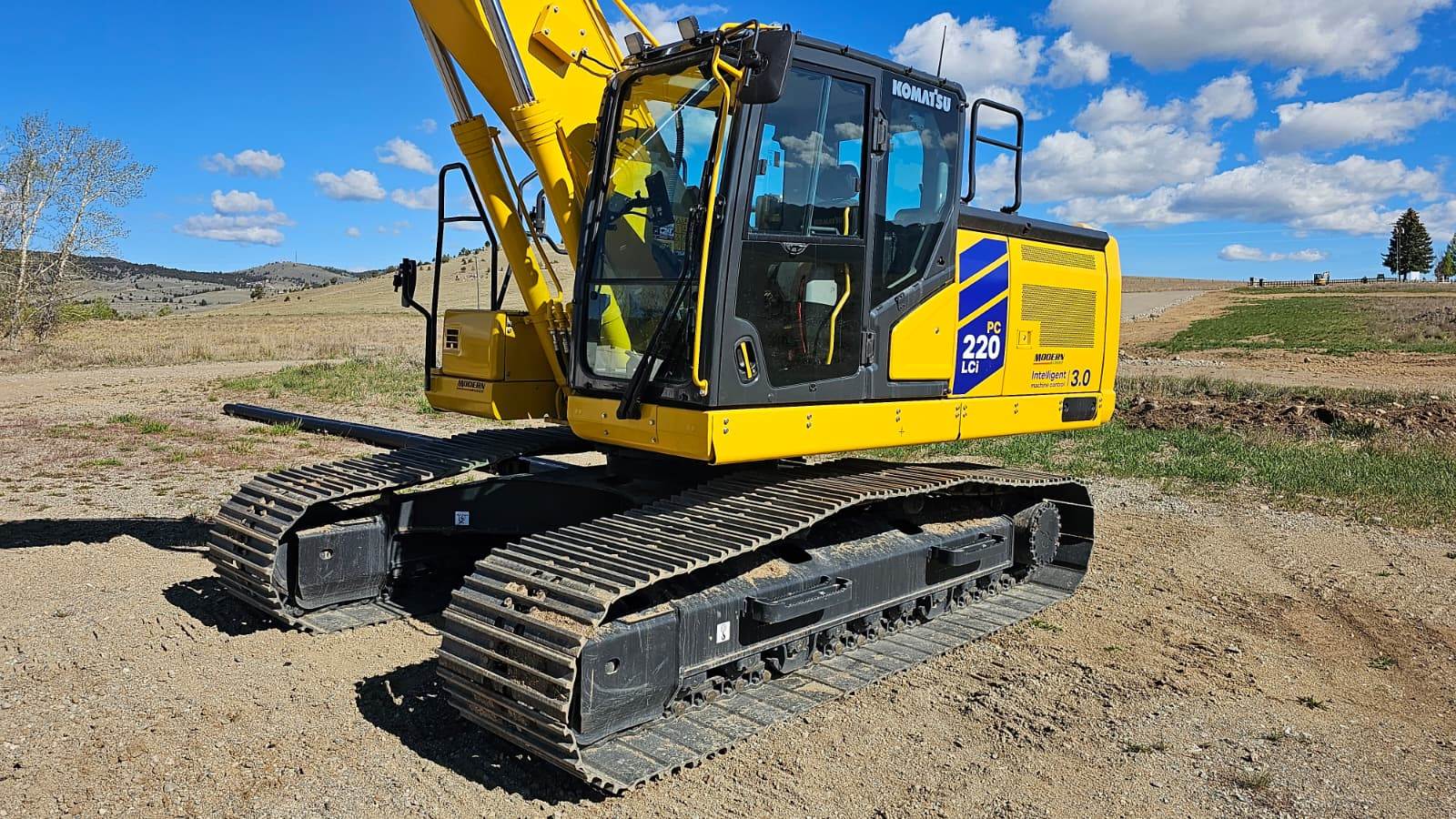

2025 Komatsu PC220LCi-12 hydraulic
excavator. Intelligent-machine-control version of the PC220LC-12. Auto grade
assist, 3D boundary control, auto swing, payload functions, and a 10.1-inch IMC
monitor. 70 hours.

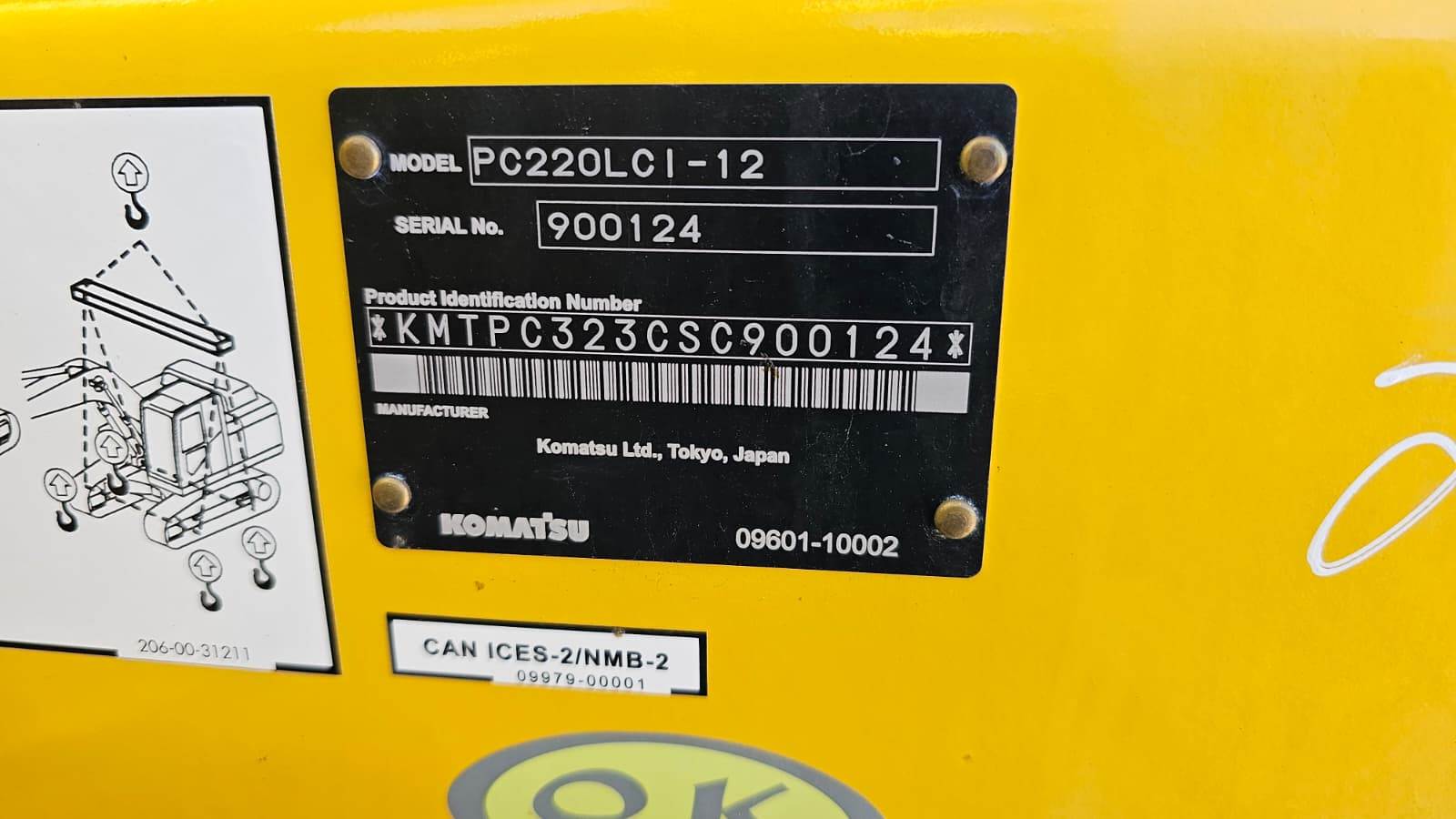

Serial No.: 900124
Product Identification Number / PIN: KMTPC323CSC900124

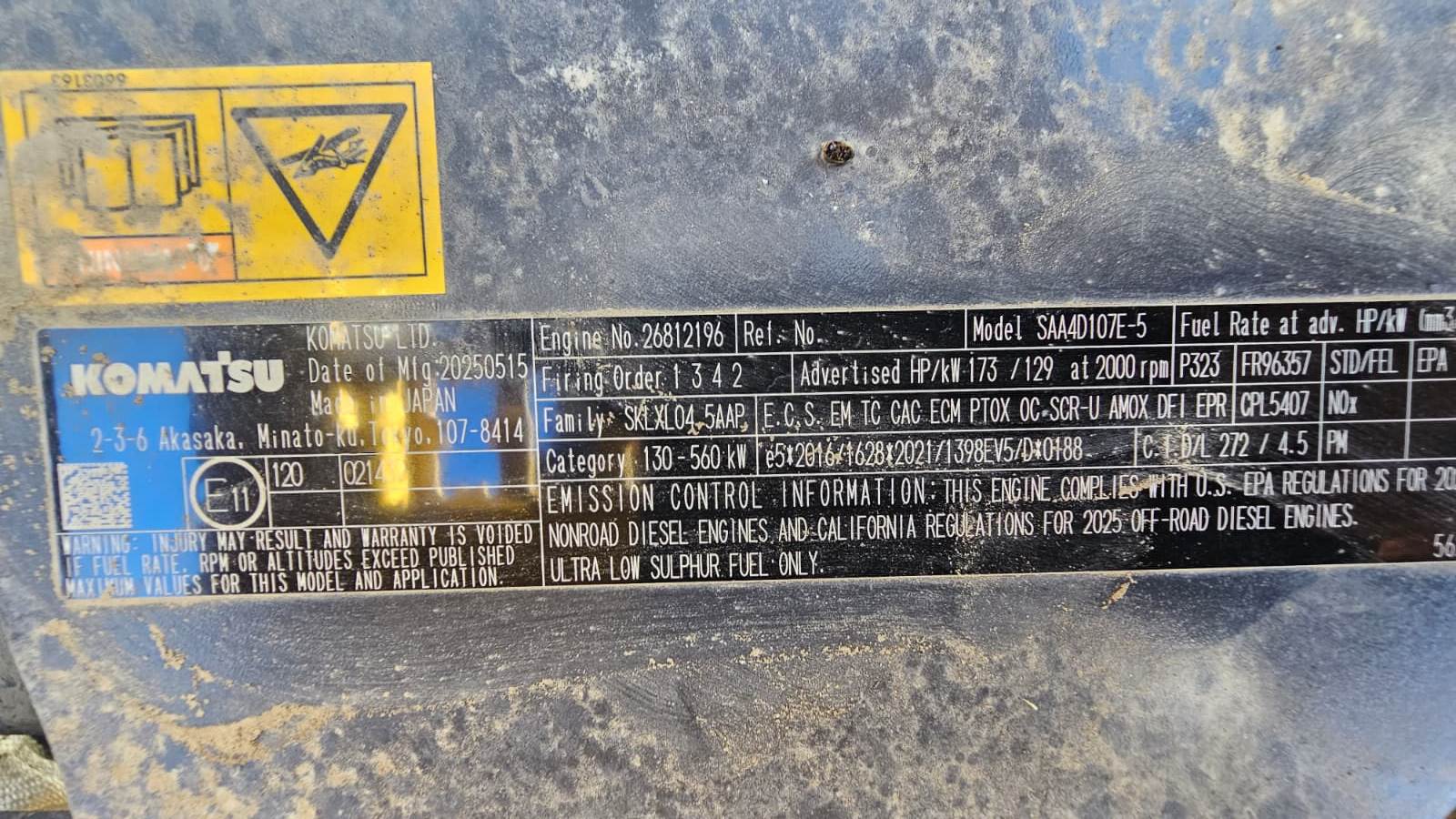

Engine No.: 26812196

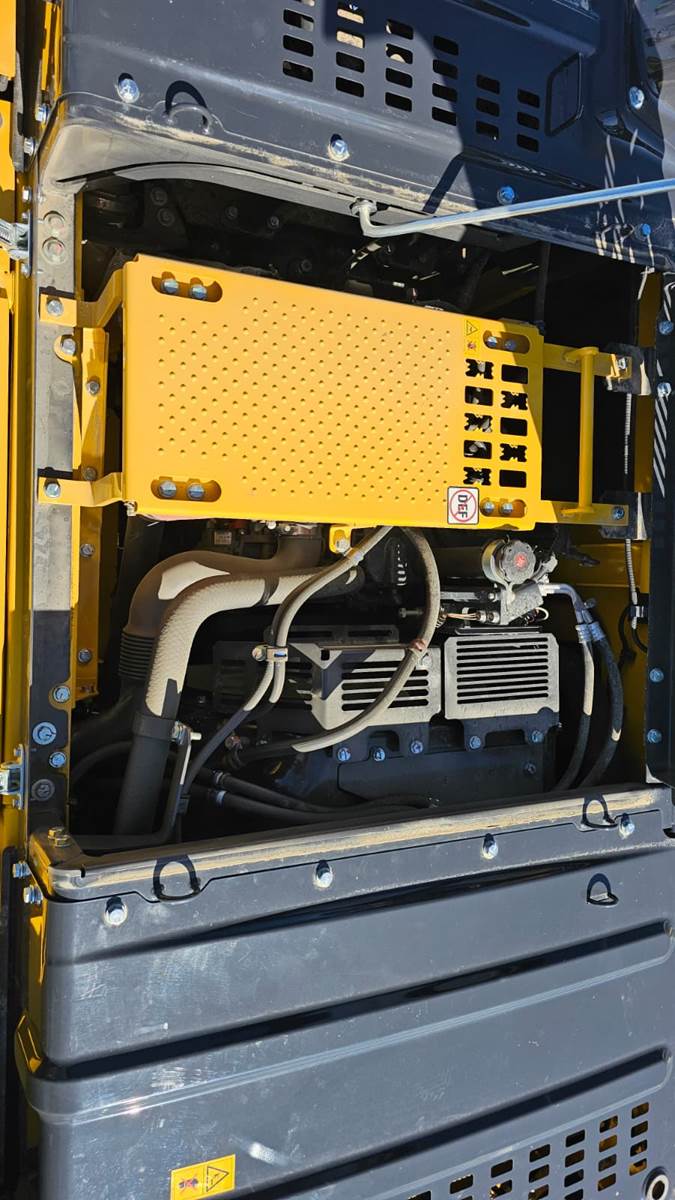

Engine model: Komatsu SAA4D107E-5
Engine manufacture date: 2025-05-15
Engine type: water-cooled,
4-cycle, direct injection
Engine emissions: U.S. EPA / California 2025 off-road diesel engine
compliant Tier 4 Final
Fuel requirement: Ultra-low
sulfur diesel only
Engine power on tag: 173 HP / 129 kW at 2,000 rpm
Engine displacement on tag: 272 cu in / 4.5 L
Displacement: 272.17 cu in
/ 4.46 L
Net horsepower: 172–173 HP / 129 kW depending on rating standard
Rated speed: 2,000 rpm
Emissions: Fuel tank: 92.5 gal / 350 L
DEF tank: 16.6 gal / 62.9 L
Hydraulic tank: 31.4 gal / 119 L
Coolant capacity: 7.6 gal / 28.2 L
Engine oil capacity: 4.8 gal / 18.0 L

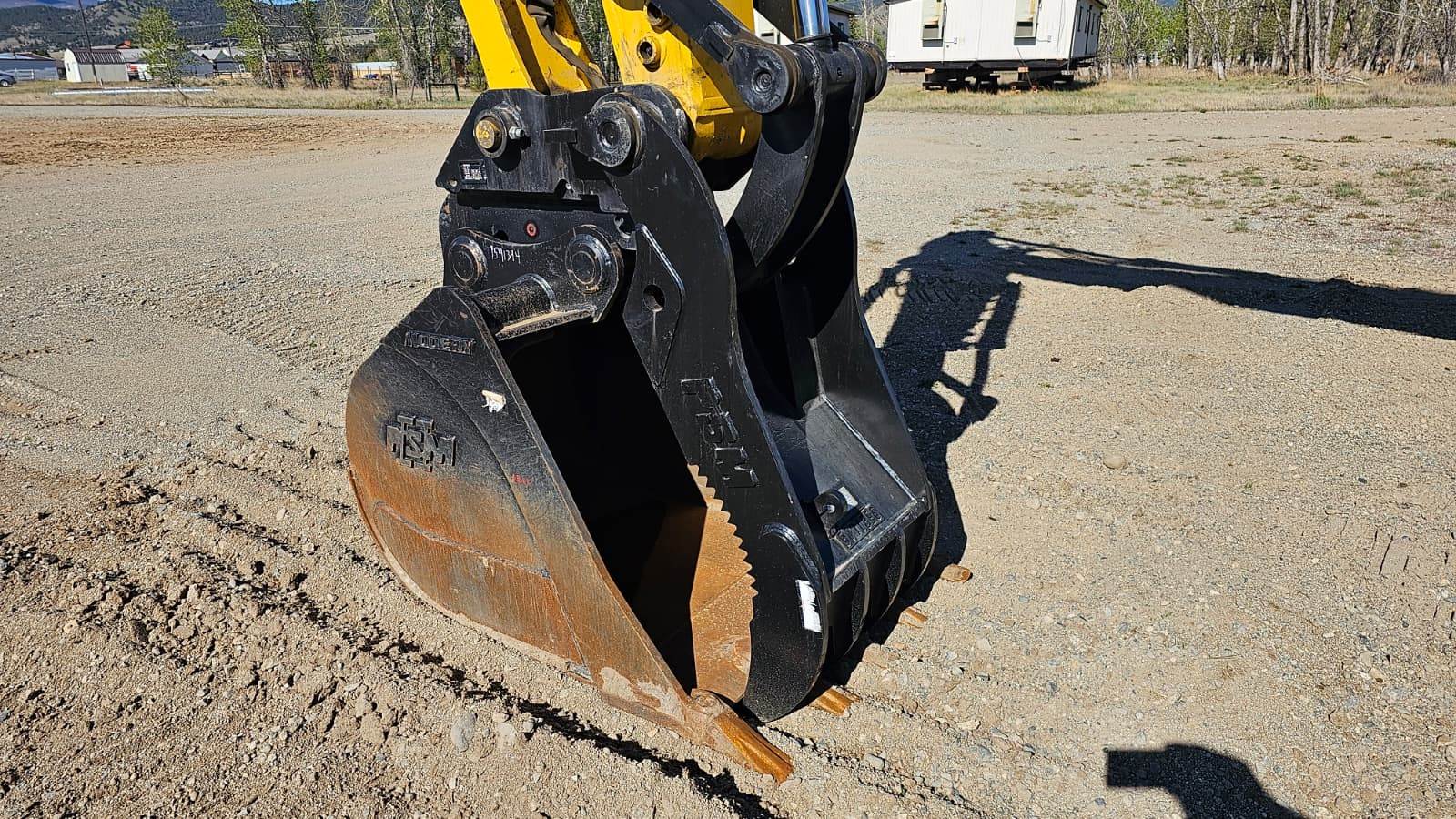

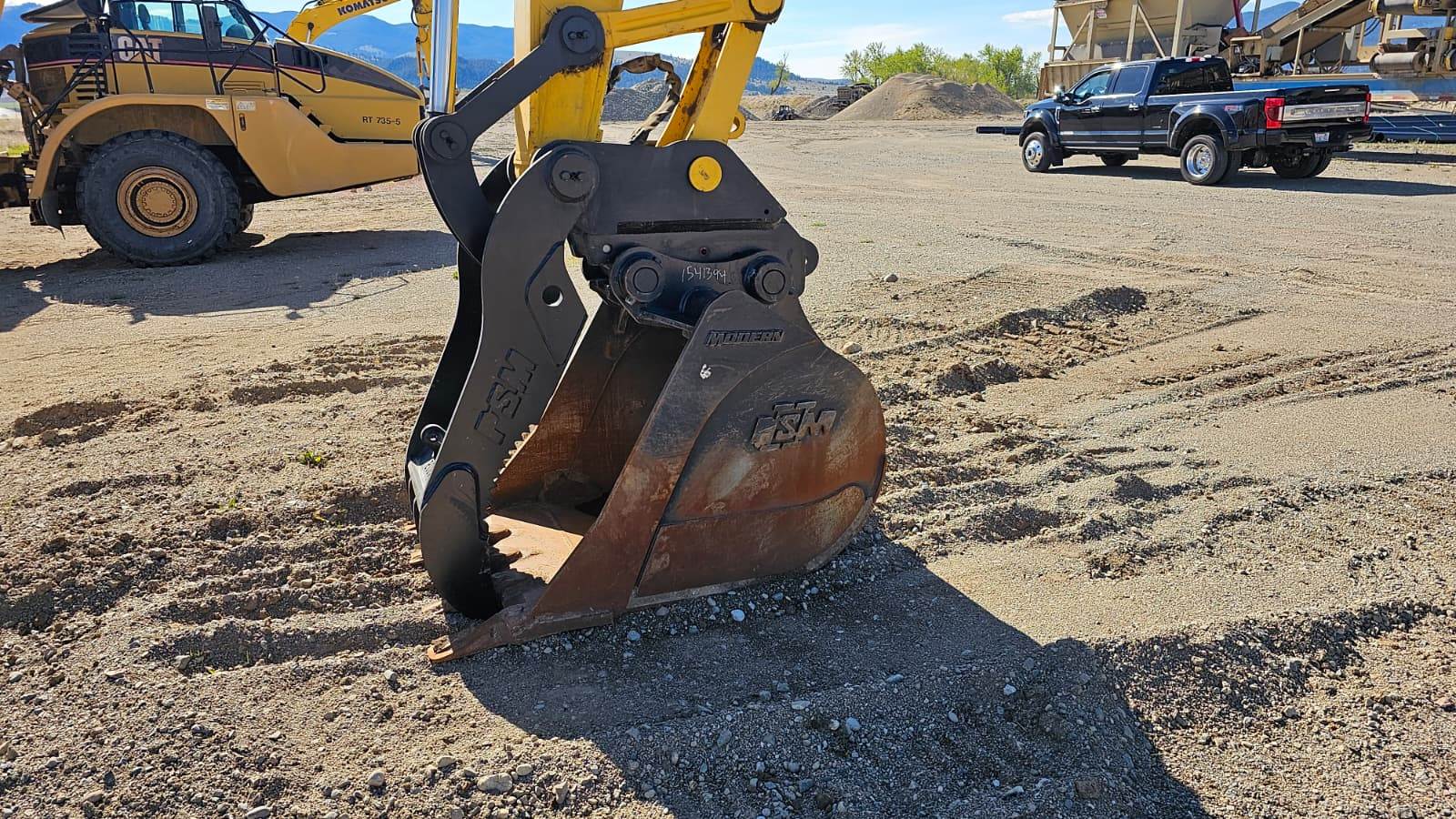

Bucket capacity range: 0.65–1.85 yd³ / 0.50–1.41 m³
Operating weight range: 53,352–54,675 lb / 24,200–24,800 kg
Dimensions:
Overall length: 31 ft 9.5
in / 9,690 mm
Transport length on ground: 16 ft 5 in / 5,000 mm
Overall width: 10 ft 5 in /
3,180 mm
Overall height to top of boom: 9 ft 10 in / 2,995 mm
Overall height to top of cab: 10 ft 0.5 in / 3,060 mm
Overall height to top of handrail: 9 ft 10 in / 3,000 mm
Ground clearance, counterweight: 3 ft 7 in / 1,085 mm
Minimum ground clearance: 1 ft 5 in / 440 mm
Tail swing radius: 9 ft 11 in / 3,020 mm

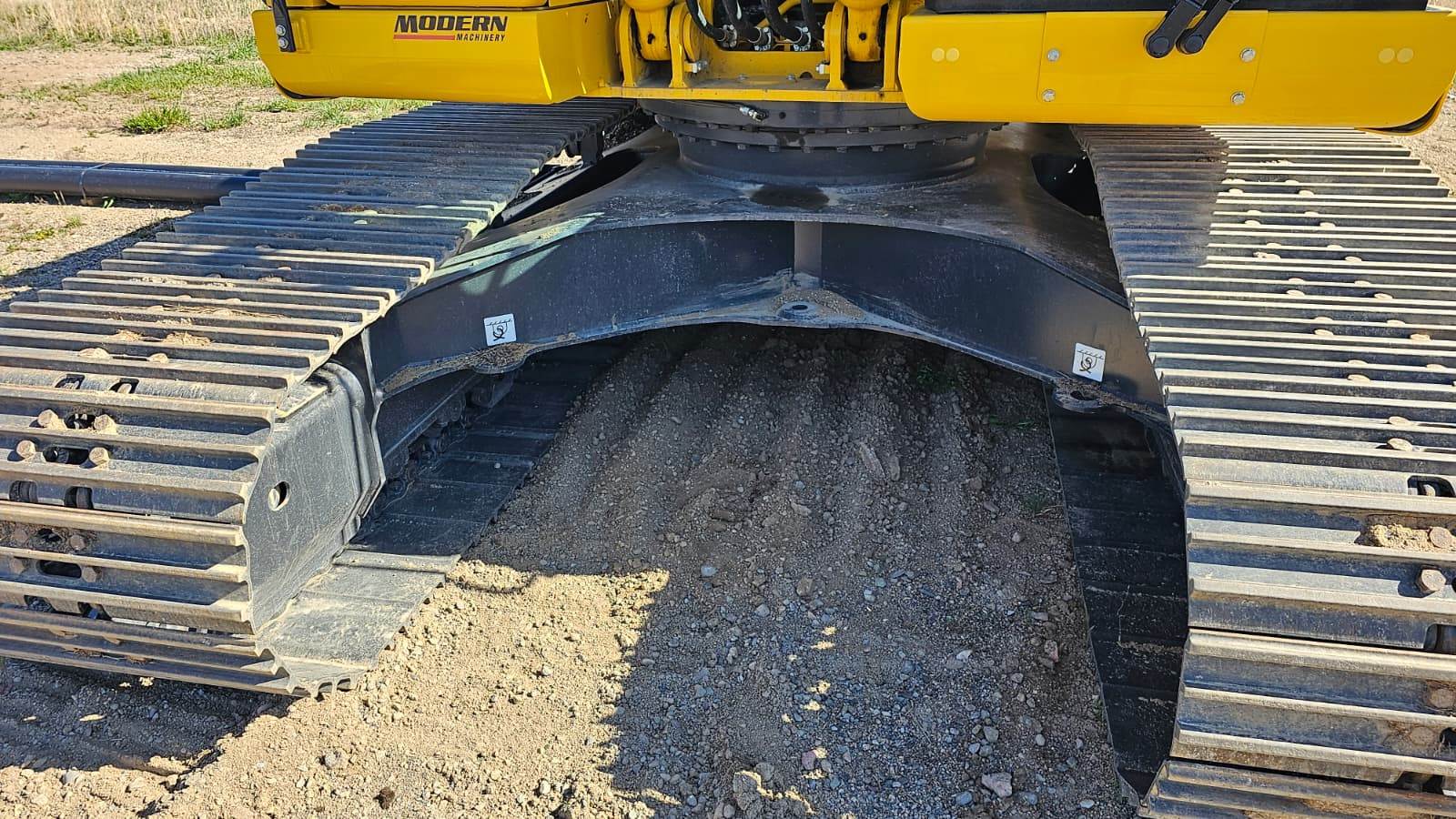

Track length on ground: 12 ft / 3,655 mm
Overall track length: 14 ft 7 in / 4,450 mm
Track gauge: 7 ft 10 in / 2,380 mm
Crawler width: 10 ft 5 in / 3,180 mm
Shoe width: 31.5 in / 800 mm
Upper structure width: 9 ft 3 in / 2,810 mm
Swing center to rear end: 9 ft 9 in / 2,975 mm.
Max digging height: 32 ft 10 in / 10,000 mm
Max dumping height: 23 ft 4 in / 7,110 mm
Max digging depth: 21 ft 9 in / 6,620 mm
Max vertical wall digging depth: 19 ft 7 in / 5,980 mm
Max digging depth for 8 ft level cut: 20 ft 11 in / 6,370 mm
Max digging reach: 32 ft 5 in / 9,875 mm
Max digging reach at ground level: 31 ft 10 in / 9,700 mm
Minimum swing radius: 10 ft 1 in / 3,065 mm.
Machine-control features:
iMC 3.0 intelligent machine
control
Auto grade assist
Auto stop control
Bucket angle hold
Minimum distance control
3D boundary control
Semi-auto dump loading / auto swing
Advanced payload meter
Integrated GNSS antennas

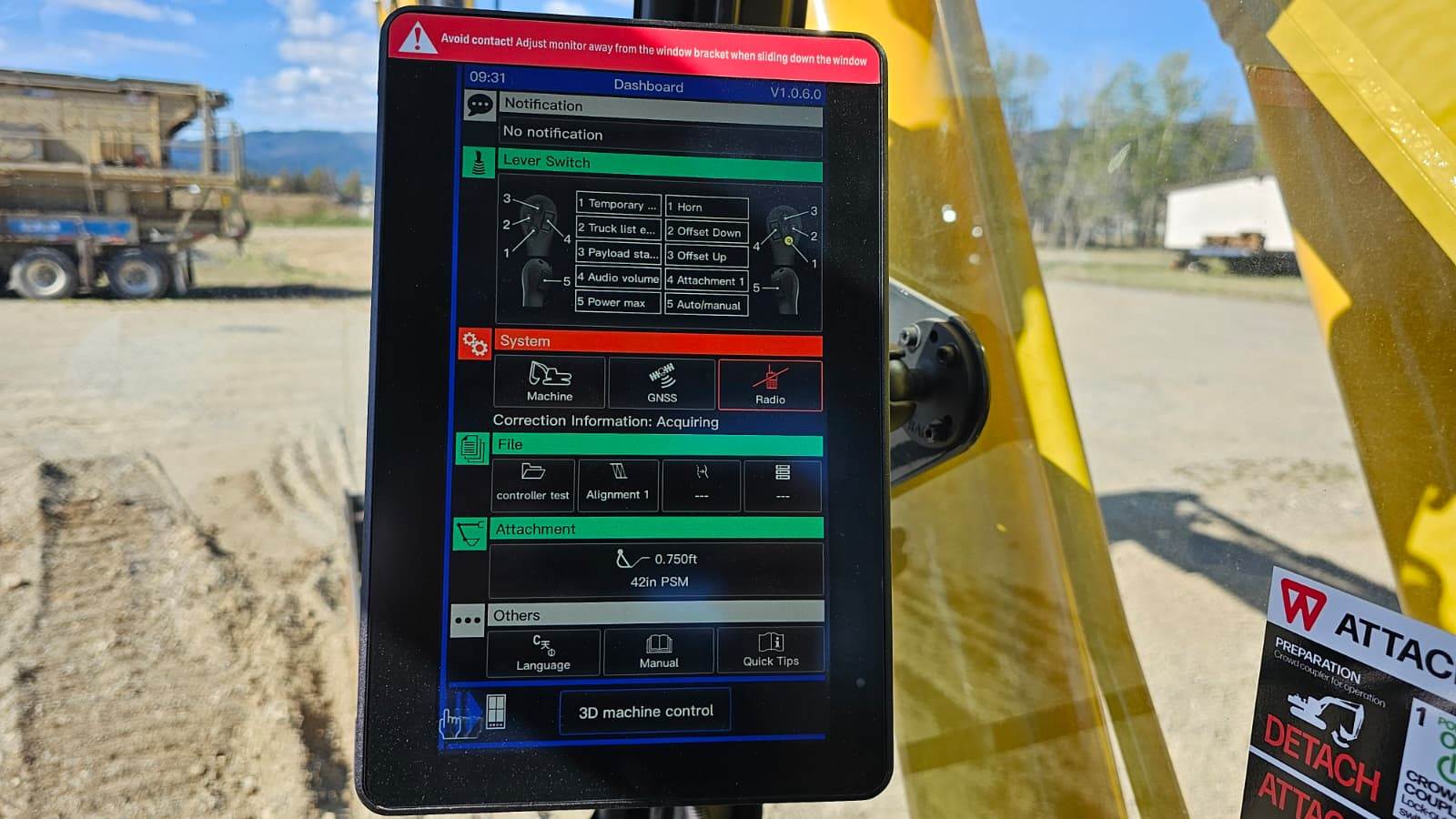

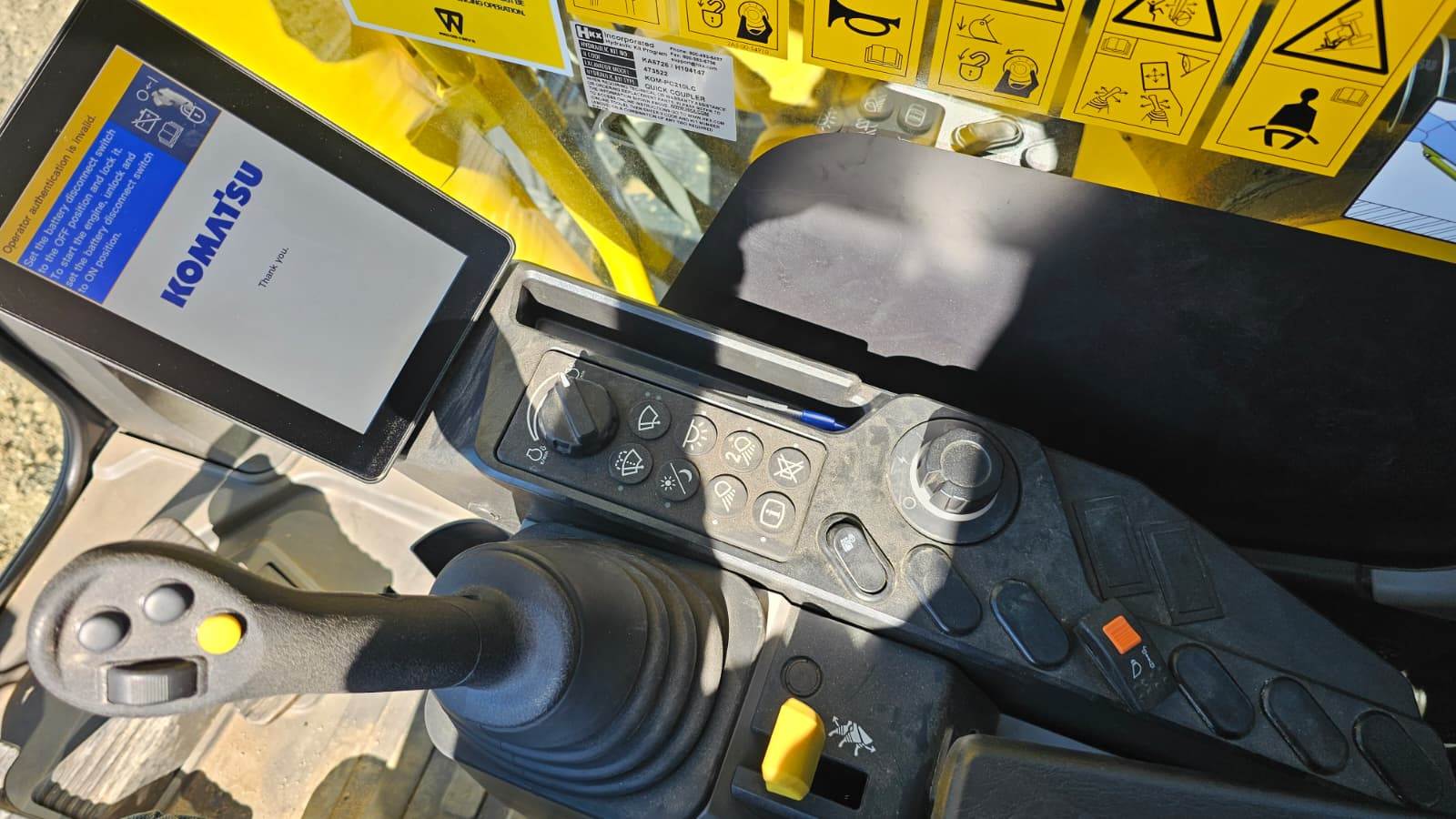

10.1 in IMC monitor

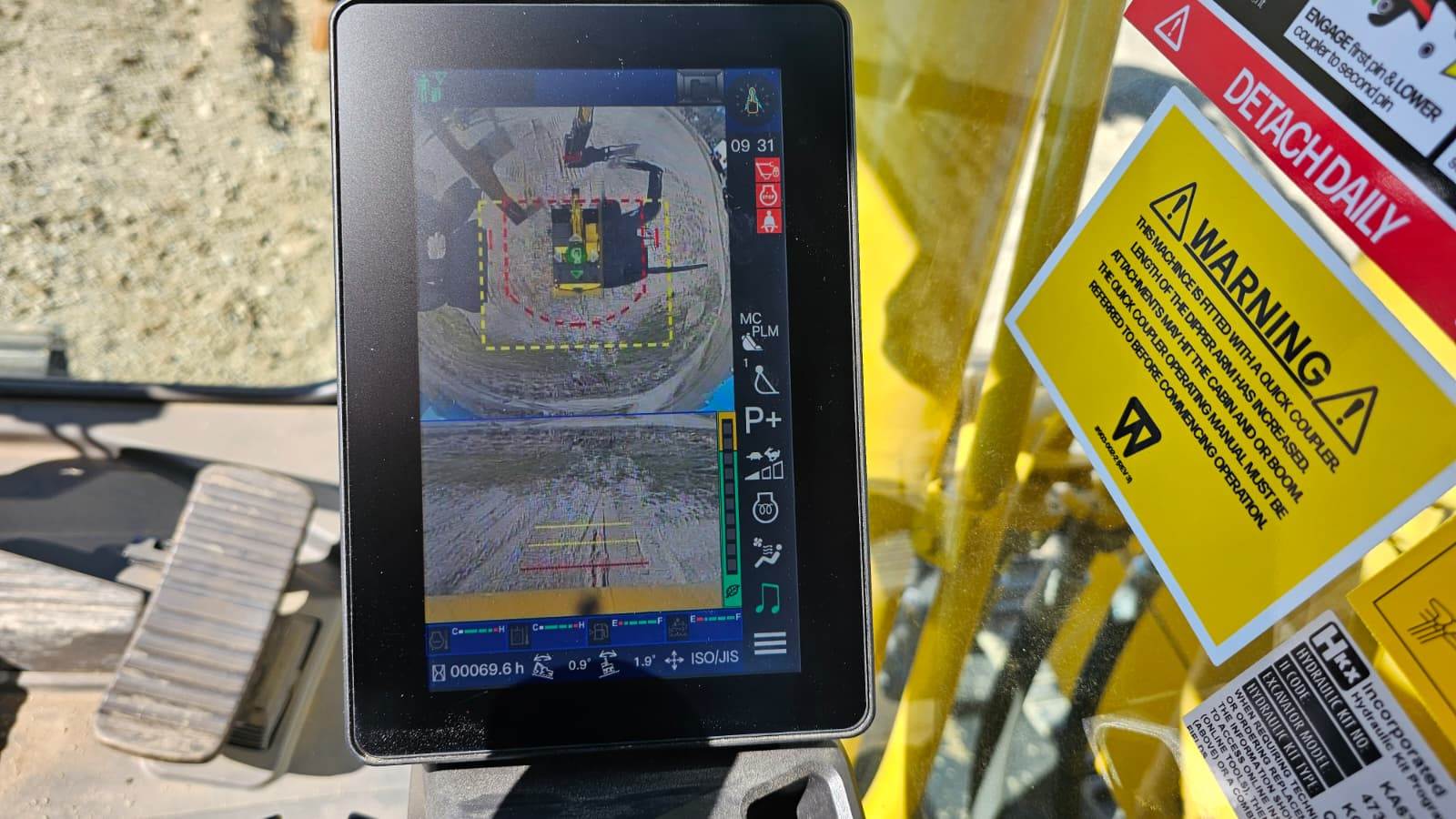

KomVision / 360-degree camera system
