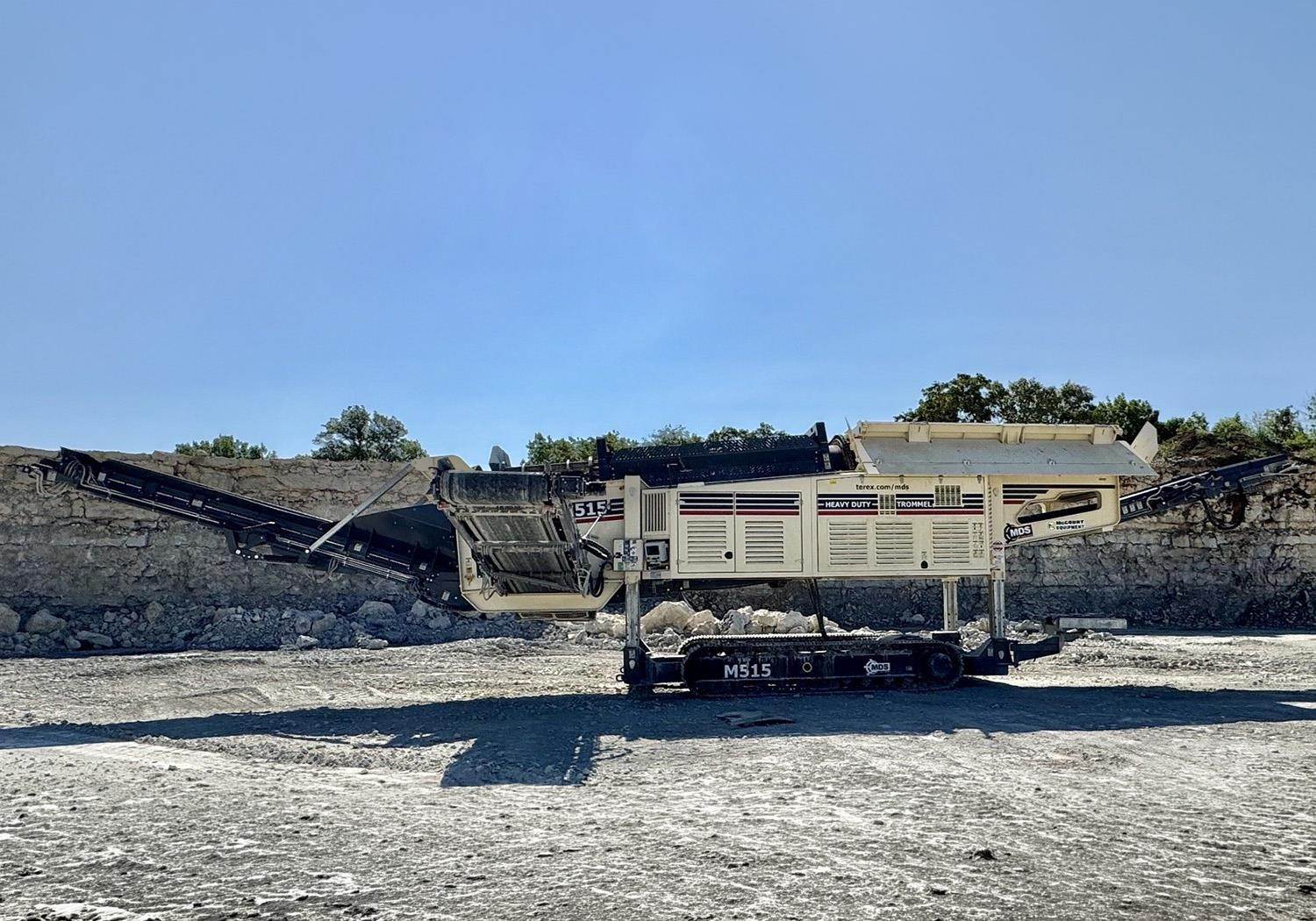

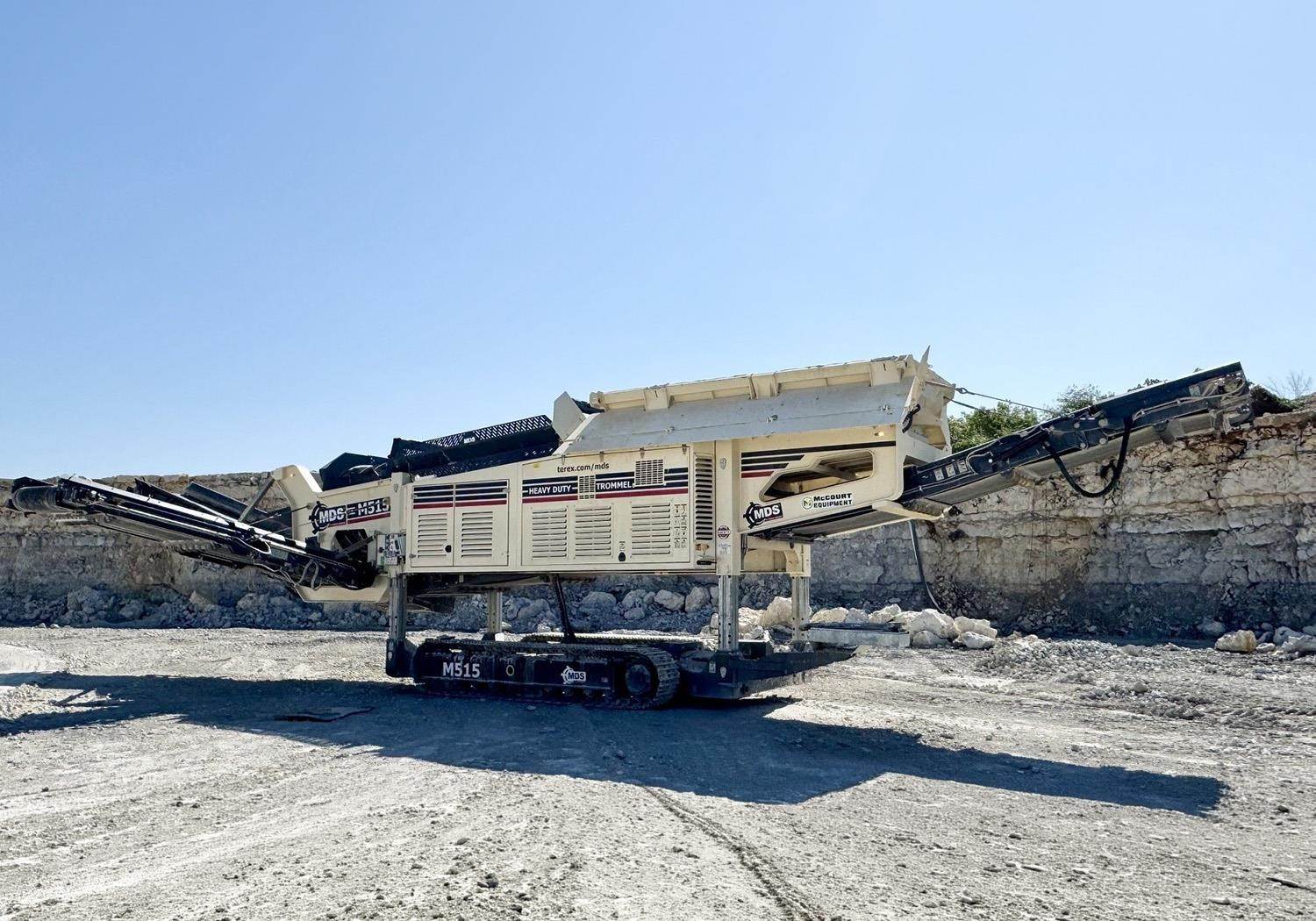

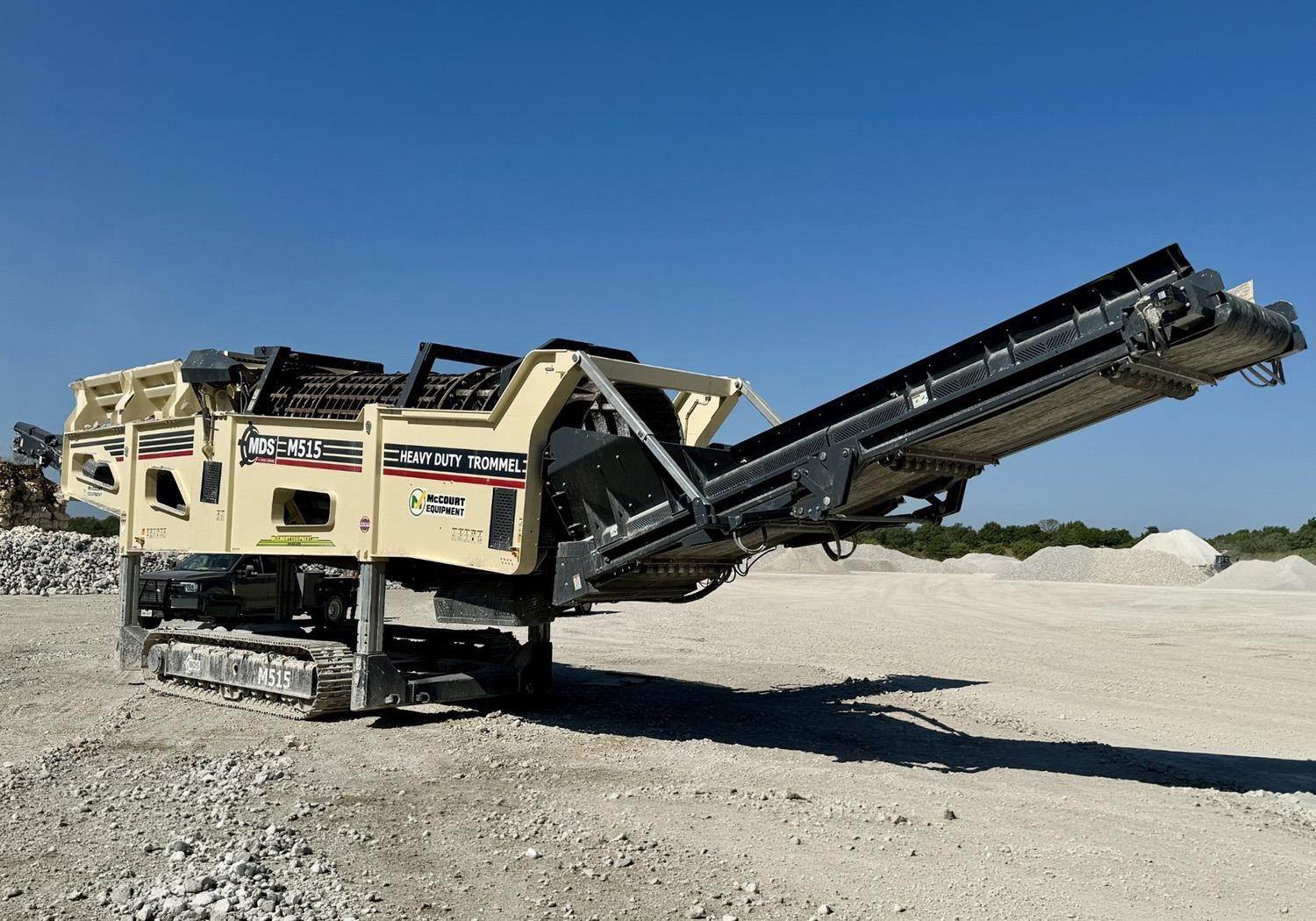

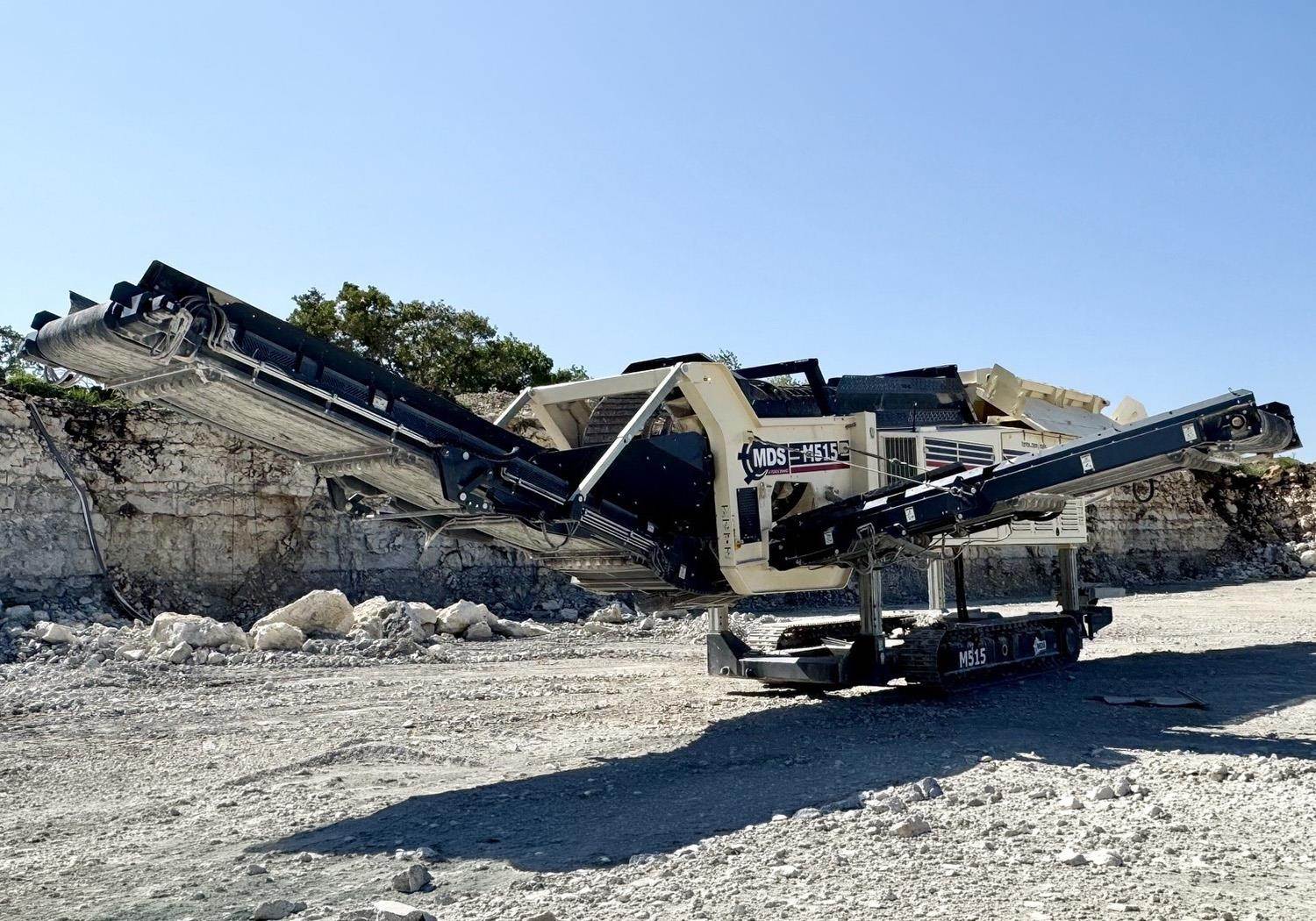

2025 MDS M515 Track Trommel Screen

2025 MDS M515 Heavy Duty Trommel

• Heavy-duty tracked trommel built for large rock, rip-rap, armour rock and quarry overburden applications
• Processes material up to 32" in size
• Up to 550 US tons per hour output potential
• 12.6 yd³ hopper capacity
• 4 m fines section and 1.5 m mid-product drum section
• Hydraulic push feeder
• CAT 3.6 Tier 4 Final / Stage V engine
• Heavy-duty high-torque tracks
• Four hydraulic jacking legs
• Folding stockpiling conveyors
• Fines, mid-product and oversize discharge conveyors
• Multiple drum and screen configurations available
• Designed for easier transport, accessibility and maintenance
