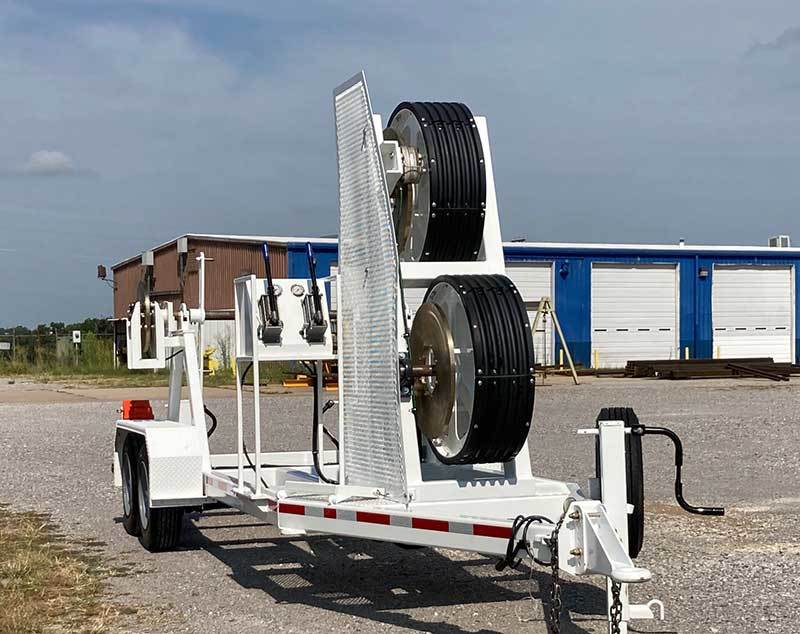

This is an Anaconda MFG 38" Bullwheel trailer. Same specs as a Wagner Smith 38" tensioner. Bought at auction, company went out of business. Comes with expendables, that match Wagner.
OPERATING FEATURES
Quick change type reel and spindle assemblies lift
straight out of the unit without having to shift to
the side. No tools required for reel removal
- The 20 inch steel disc brake on the reel shaft
provides tail tension to the bullwheels.
- A 4-roller tail fairlead with oil infused poly rollers
ensures that the conductor is guided from the reel
stand or carrier into the first groove of the bullwheel.
STANDARD FEATURES
Tension Brakes............. Hydraulic caliper, 28" dia steel disc
- Reel Brakes....................20" diameter steel disc
- Front Hitch.....................Adjustable 3" lunette eye
- Lighting...........................DOT regulation (LED)
- Electrical Plug.............6-way pin
- Front Jack......................Drop-leg
- Rear jacks......................Drop-leg
- Axel(s).............................Tandem 8,000 lb. each
- Tires................................ (5) 215/75R17.5 LRH
- Suspension................. Torsion
- Brakes............................ Electric with breakaway switch
- Wheel Chocks...........2 each with support brackets
- Tie Downs.....................Front and rear frame mounted
BULLWHEEL TENSIONER
- Quantity.......................................2
- Diameter......................................37" (bottom of groove)
- Groove Diameter...................1.50"
- Number of Grooves.............5
- Replaceable Segments.....Yes
- Bullwheel Lining................... Elastomer (bolt-on)
REEL CARRIER
- Quantity................................1
- Max. Reel Diameter........90"
- Max. Reel Width...............56"
- Max Reel Weight............. 10,000 lbs
- Spindle Diameter.............2-3/4"
DIMENSIONS & WEIGHT
- Unit Length......................22'6"
- Unit Width........................8'
- Unit Height...................... 9'4"
- Net weight.........................6,000 lbs.
- GVWR..................................18,200 lbs.
- GAWR..................................16,000 lbs.
UNIT PERFORMANCE
- Maximum Tension Rating.....4,000 lbs.
- Line Speed..................................... 4 mph
