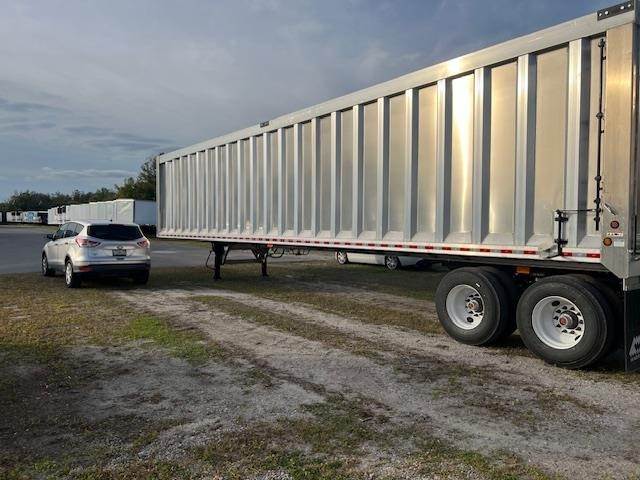

2025 Warren WMFT-AS ALUM BODY STEEL FRAME MOVING FLOOR TRAILER Live Floor Trailer

LENGTH: 48’
WIDTH: 102”
SIDEWALL HEIGHT: 100”
YARDAGE: 116
KING PIN SETTING: 36”
LANDING GEAR: STEEL 2-SPEED (200K RATED W 62.5K LIFT ROADSIDE
SIDEWALL MATERIAL: .190 5454 ALUMINUM
SIDEWALL BRACING: 5”X10” VERTICAL EXTRUDED
SIDEWALL BRACING SPACING: 24”
CROSSMEMBERS: 5-1/4” I-BEAM
CROSSMEMBER SPACING: 12” C/L

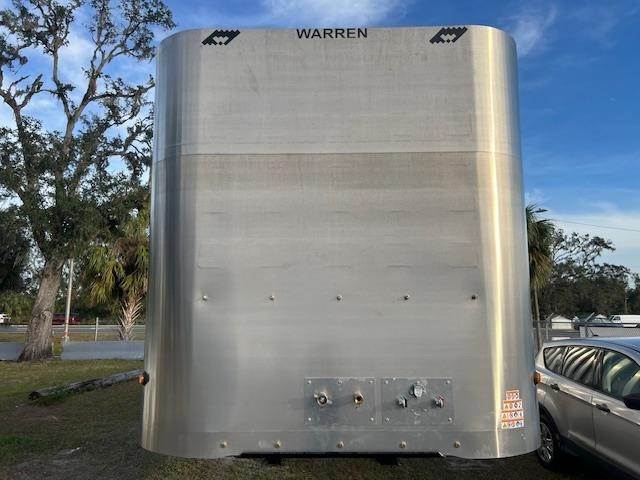

BULKHEAD:
SHAPE: RADIUS
MATERIAL: .190 ALUMINUM

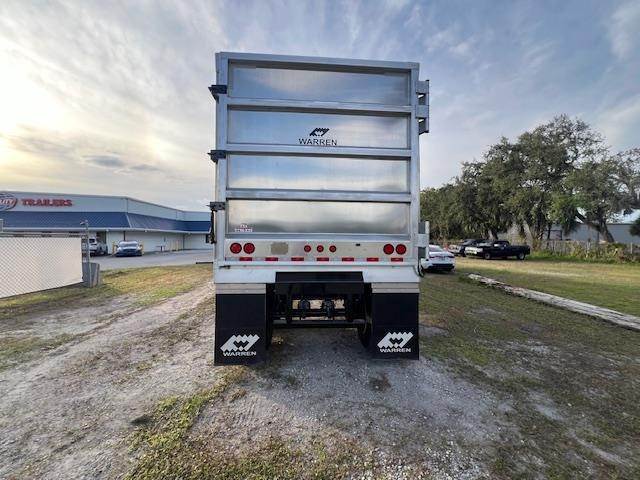

TAILGATE:
HINGE: ONE PIECE BARN DOOR
MATERIAL: .190 ALUMINUM
HINGE LOCATION: CURBSIDE
PANEL QTY.: 4
WATERTIGHT SEAL: 16” SEAL
BARNDOOR: MANUAL TYPE WITH 3 LATCHES
STEEL LOCKROD WITH CAMLOCKS AND
SAFETY CHAIN
TARP AND ROOF: NONE
MOVING FLOOR SYSTEM:
MANUFACTURER: KEITH
DETAILS: 2299 ½” IMPACT TRIPLE RIDGE FLOOR W/3”
CYL – 24 SLATS
HOSES: NO
OPTIONS: FITTINGS SPECS PROVIDED BY DEALER TO BE
STD FITTINGS ARE 1” WING NUT
SUSPENSION DETAIL:
LONGITUDINALS: ALUMINUM Z RAIL 4”X6”X3/8”
REAR TO LANDING GEAR
MANUFACTURER: REYCO 21B 9 LEAF SPRING
AXLE DETAIL: TQ 25K RATED 102” (13,000#)
SPACING: 49”
SUBFRAME: 10” STEEL CHANNEL X 120”
DRUMS: CAST IRON DRUMS 7.5” X 16.5”
ABS: WABCO 2S/1M
TIRES: FACTORY CHOICE 11R22.5 LR “G”
WHEELS: FACTORY CHOICE 22.5” X 8.25” HUB PILOTED STEEL
TIRE CARRIER: NO
HUBODOMETER: NO
MUDFLAPS: FULL FLAPS ACROSS REAR
BUMPER: HD BUMPER W/ 2 TOW
FINISH:
BODY: NATURAL ALUMINUM
RUNNING GEAR: COACH BLACK
