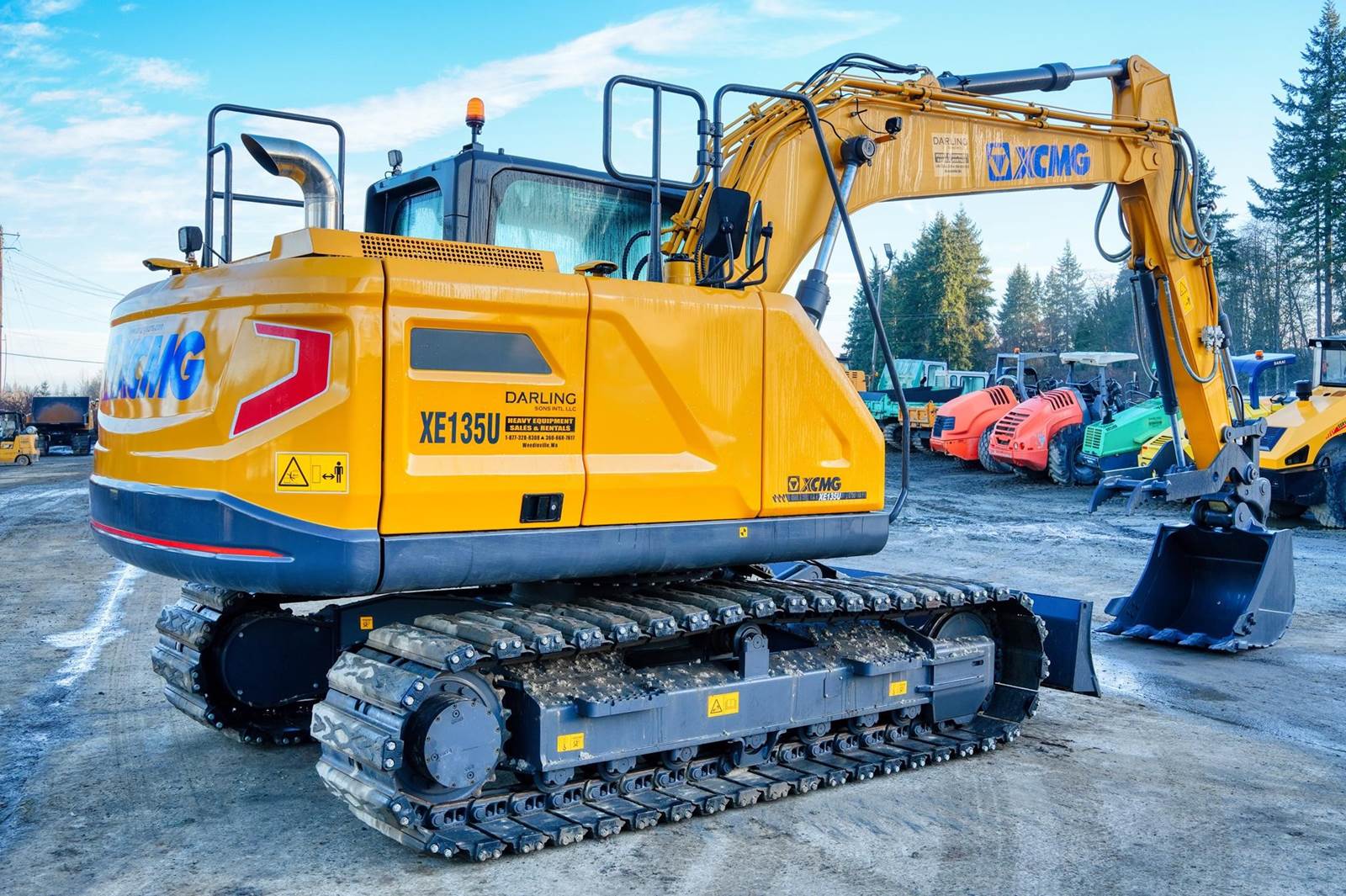

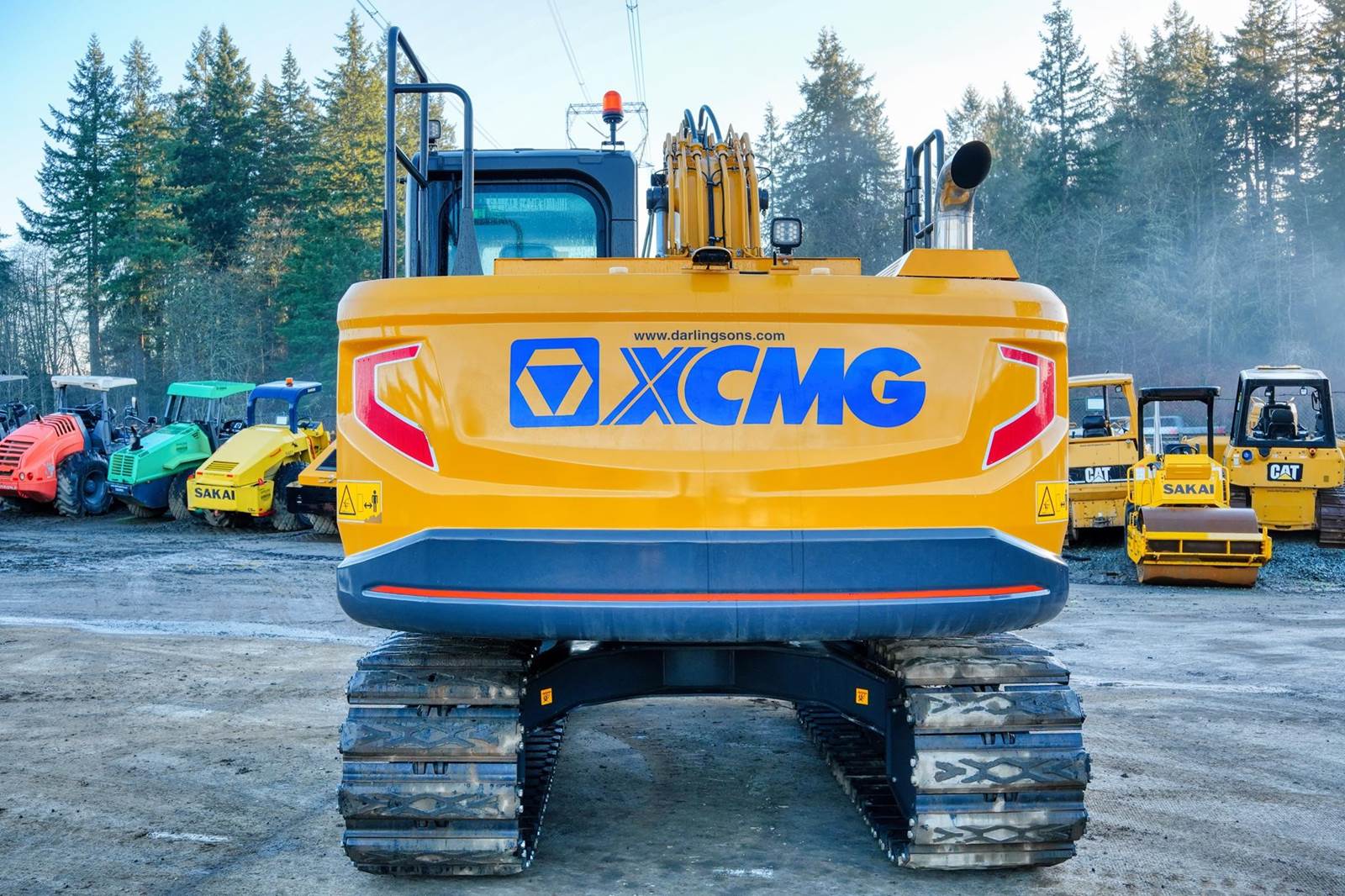

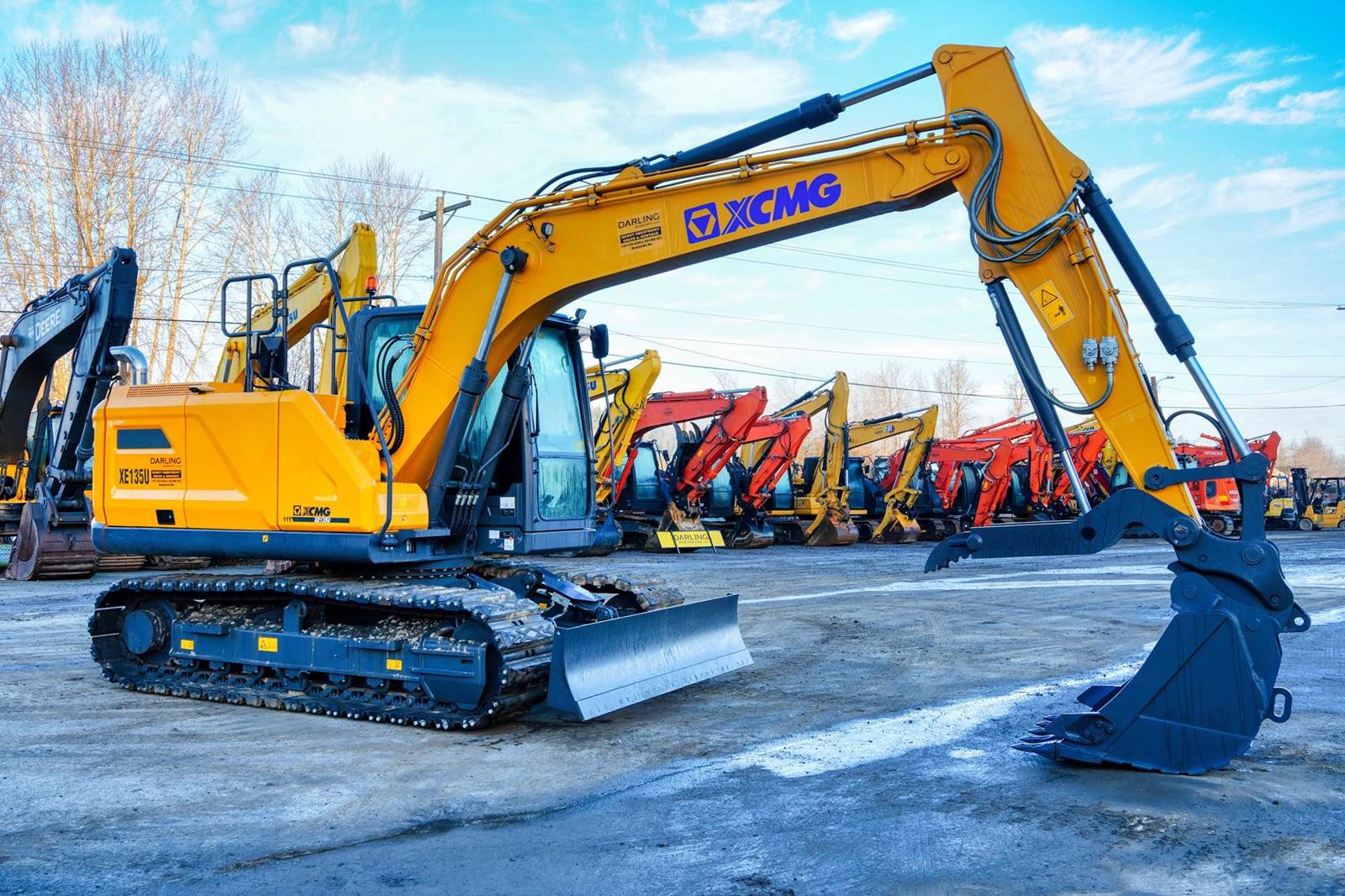

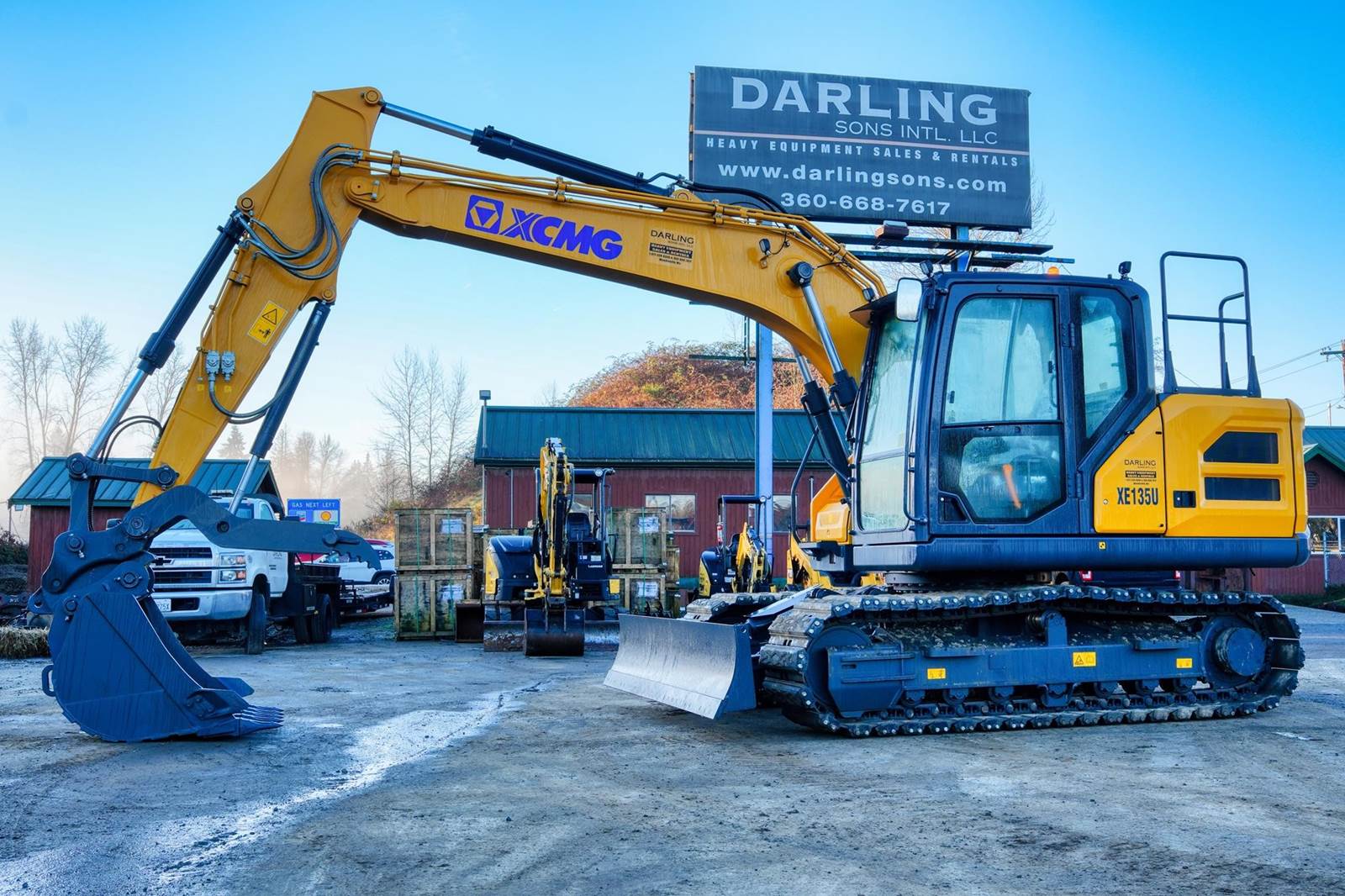

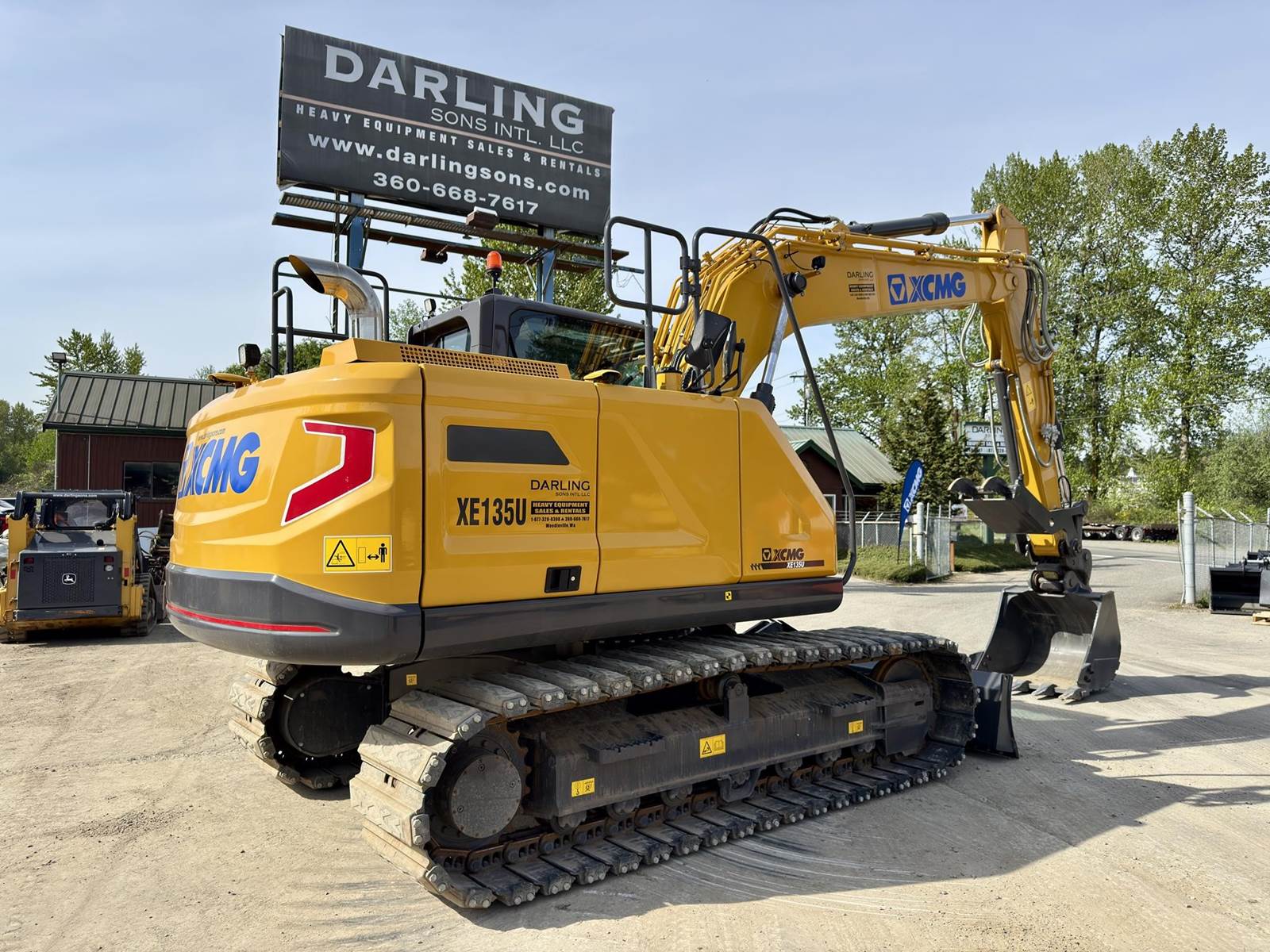

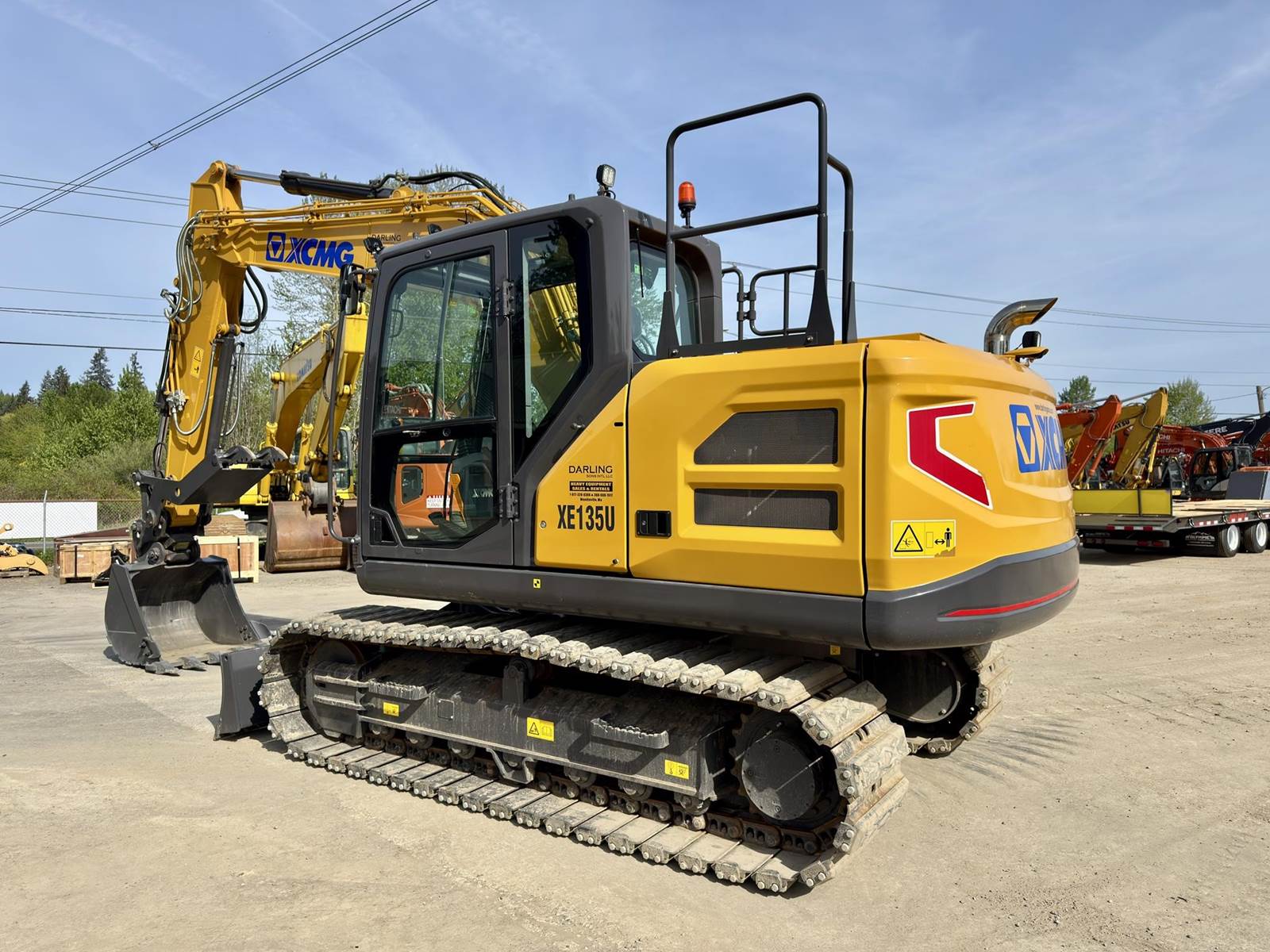

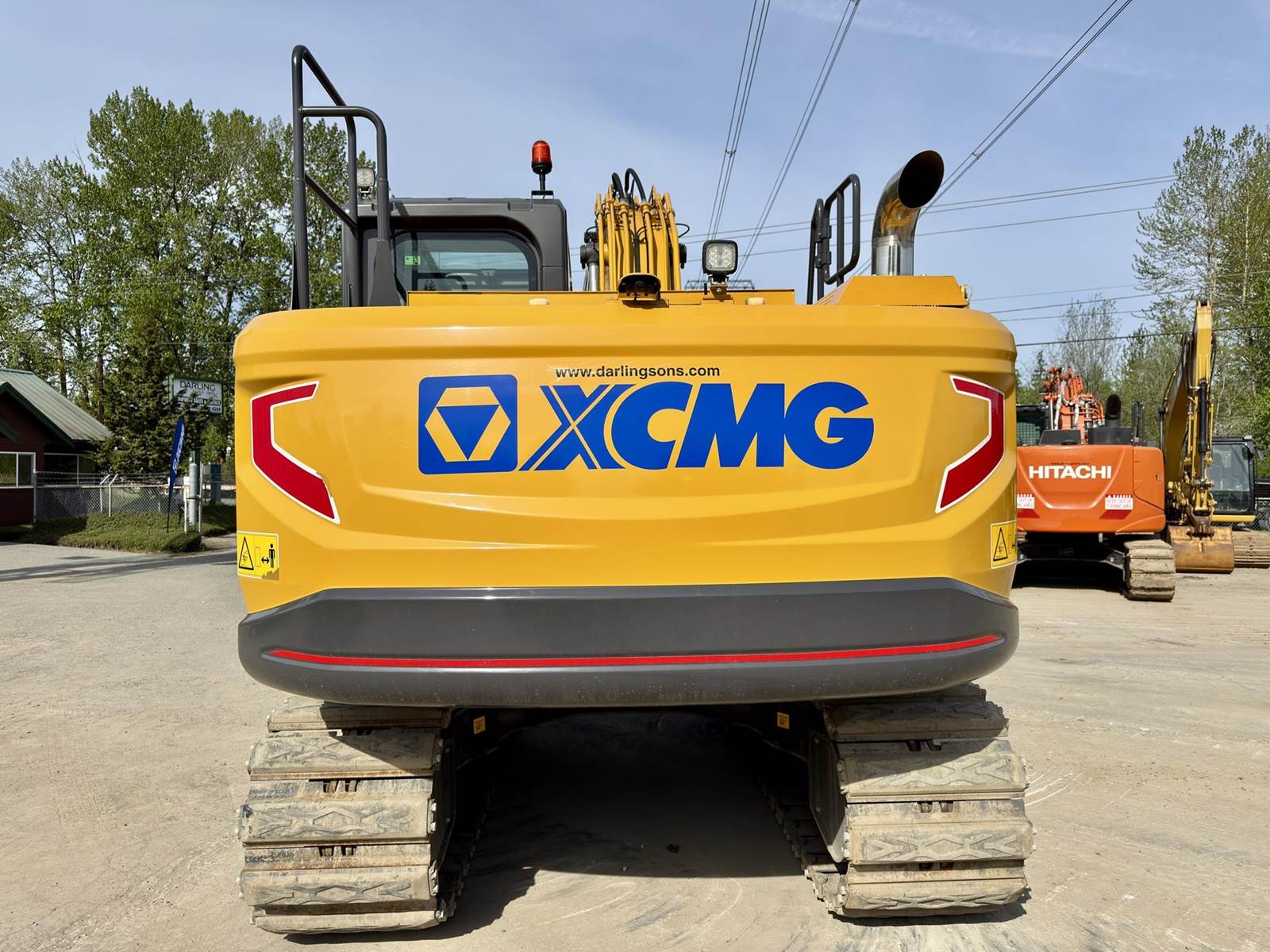

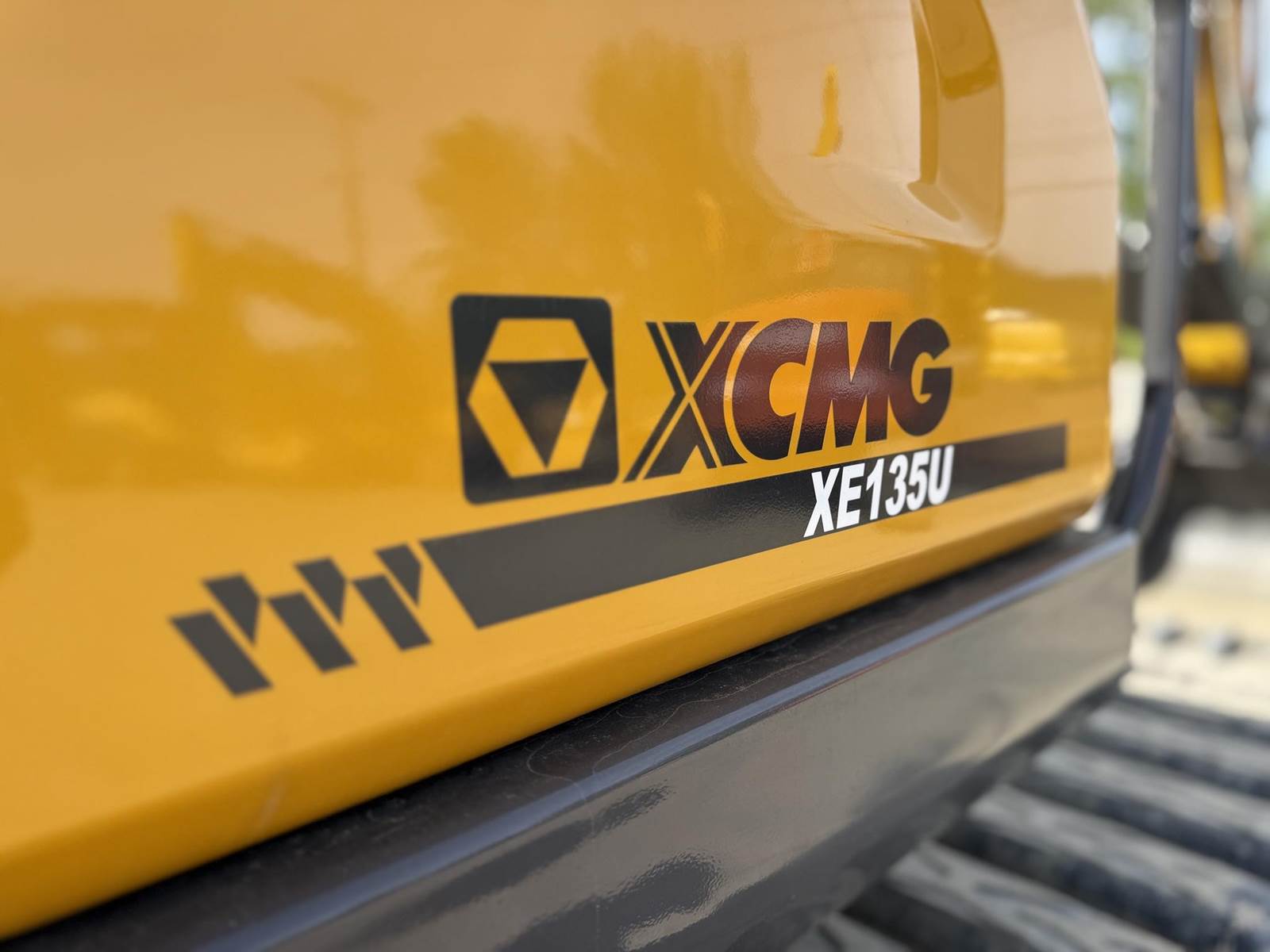

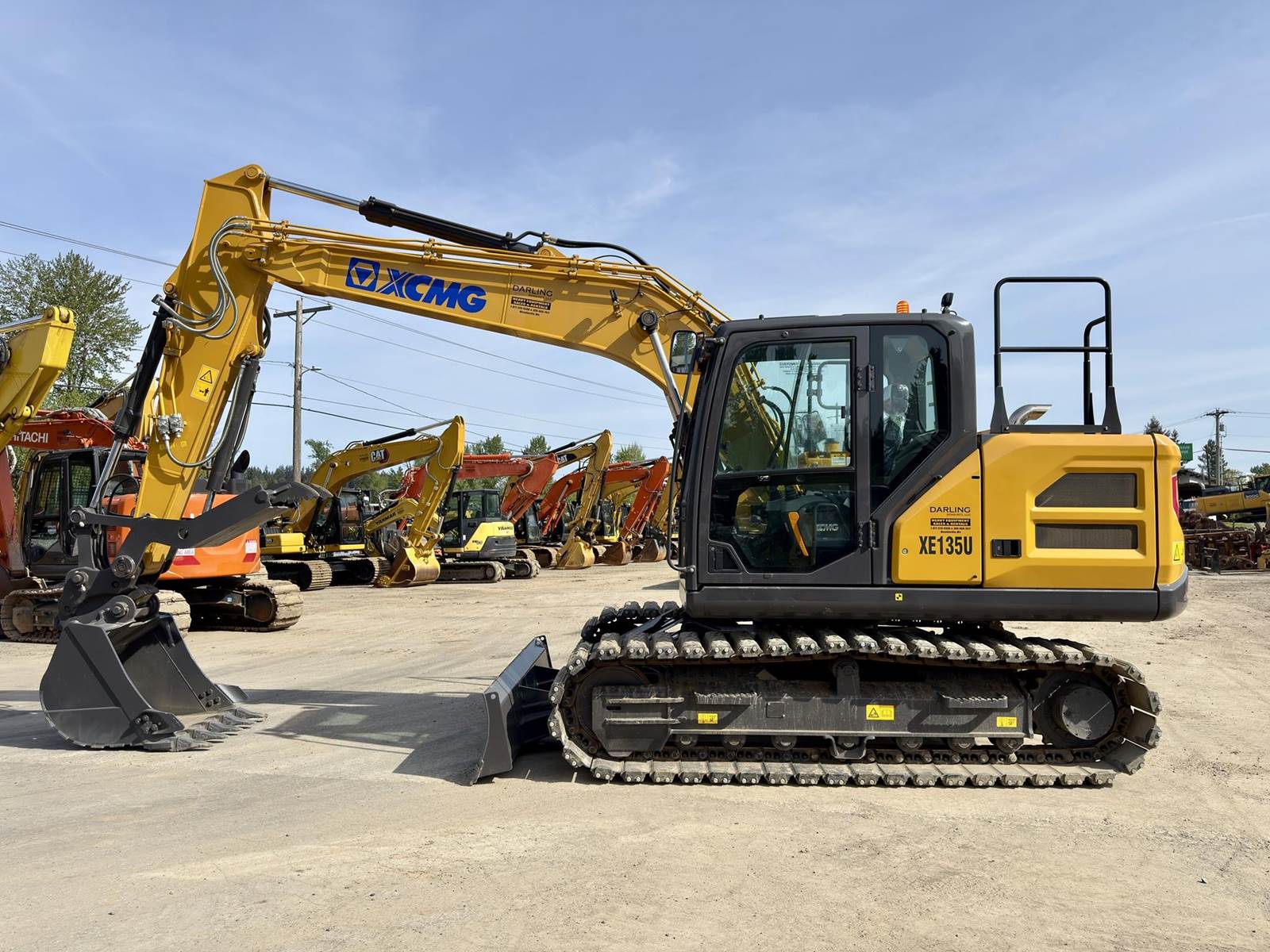

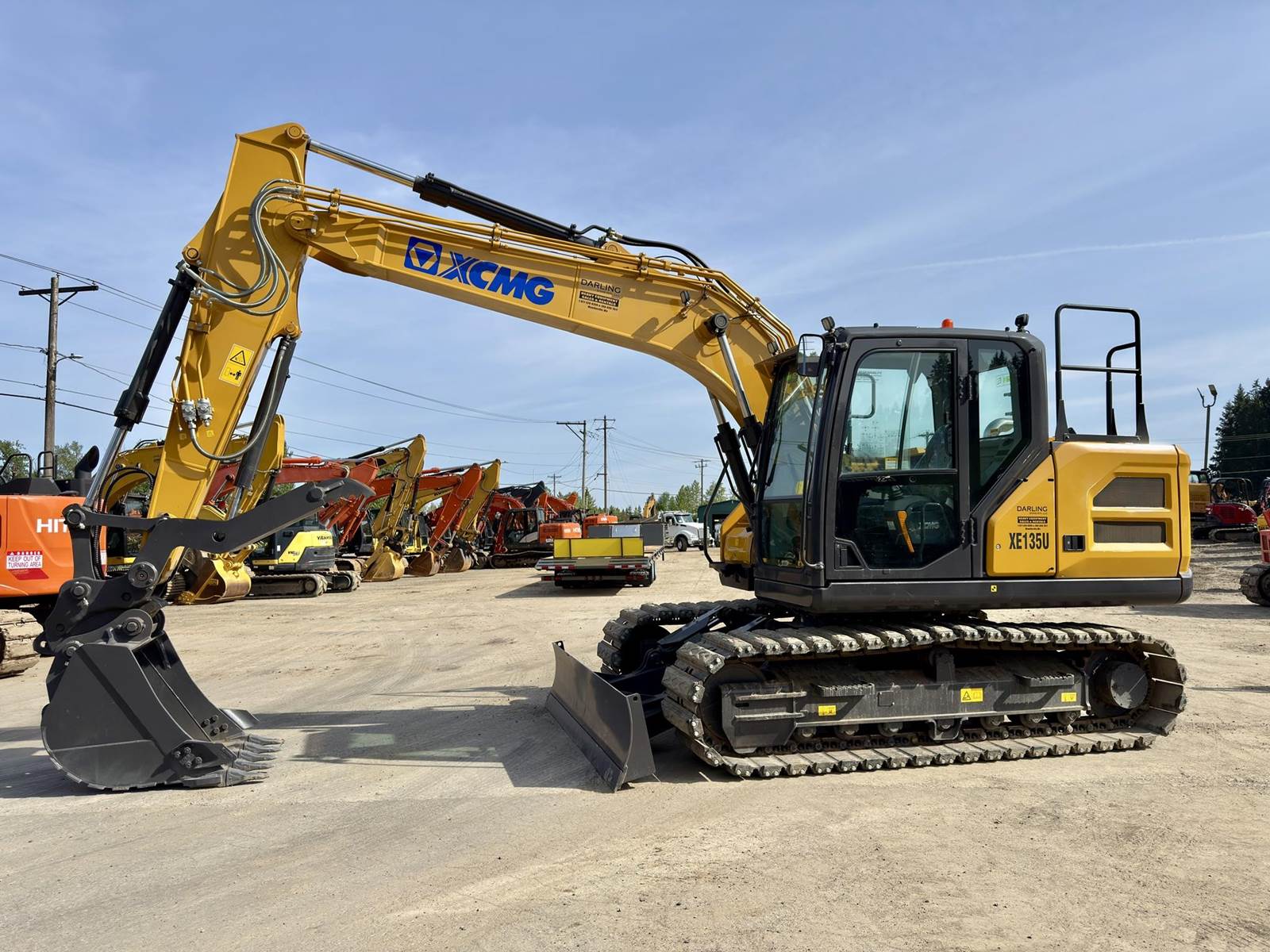

2025 Xcmg XE135U Excavator

NEW, 0% FINANCING

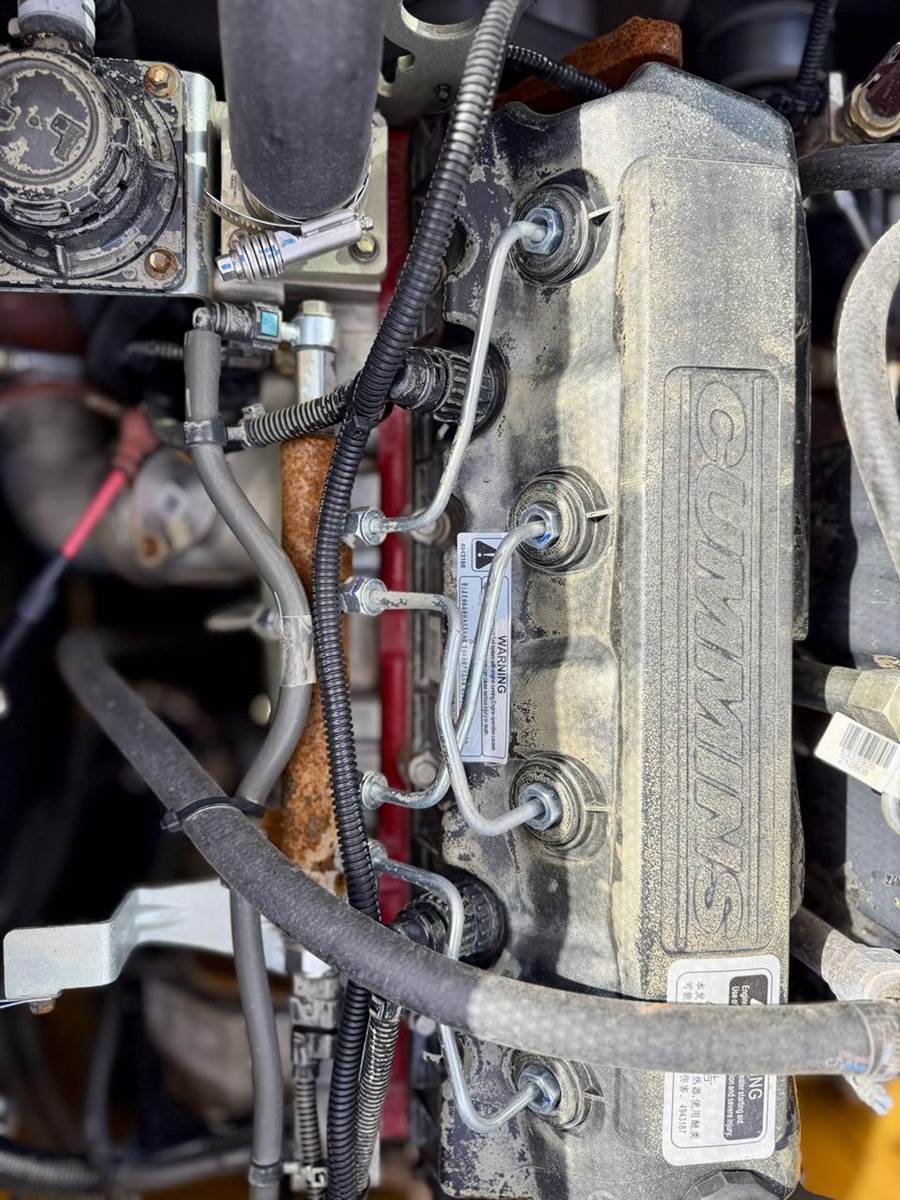

Engine
   •   Manufacturer: Cummins
   •   Model: F3.8
   •   Rated Power: 90 kW (121 hp) @ 2100 rpm
   •   Max Torque: 500 N·m (369 lb-ft) @ 1500 rpm
   •   Displacement: 3.8 L (232 in³)
   •   Idle Speed (Low/High): 950 – 1100 rpm

Operating Weight
   •   15,000 kg (33,069 lb)

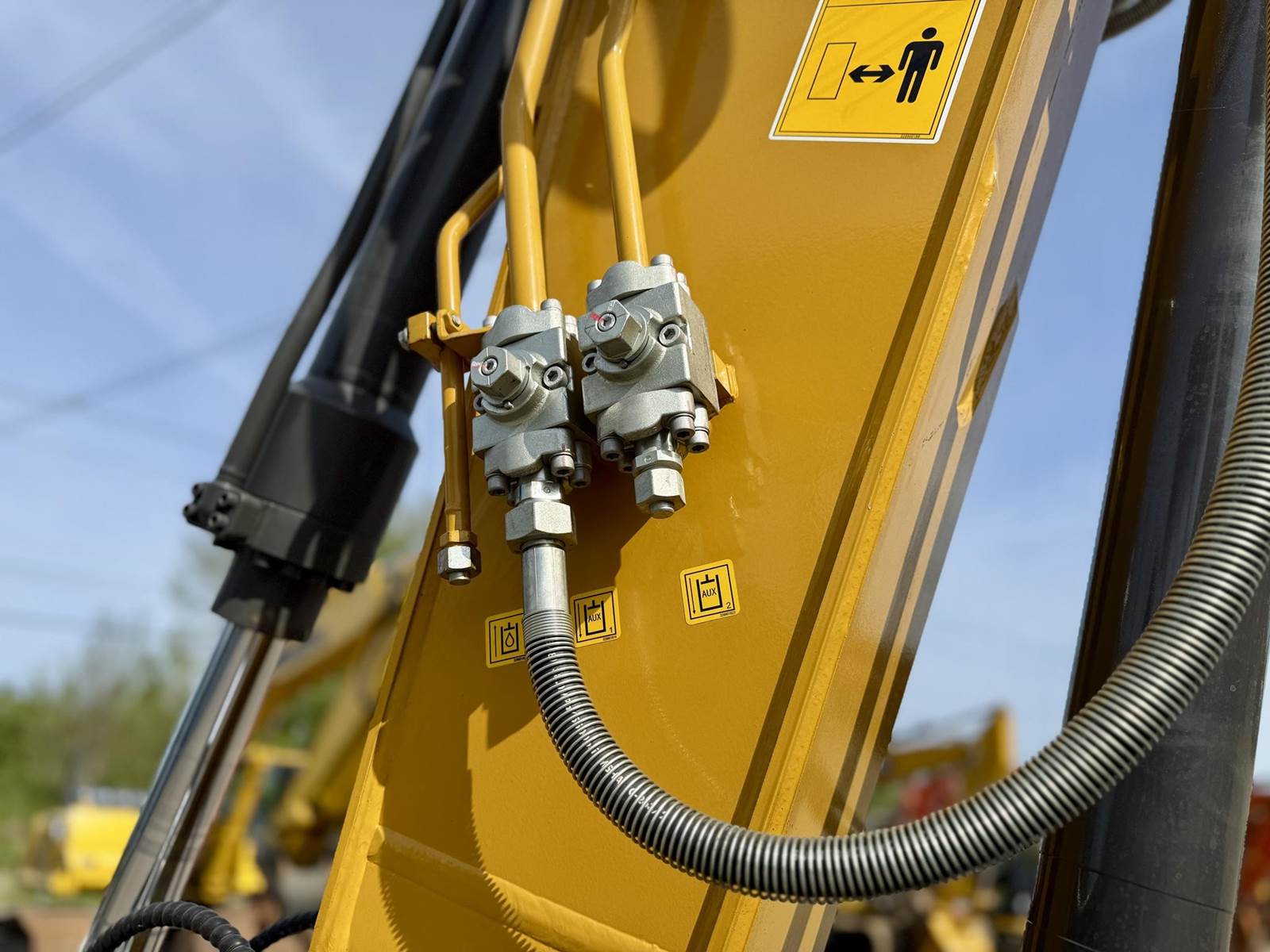

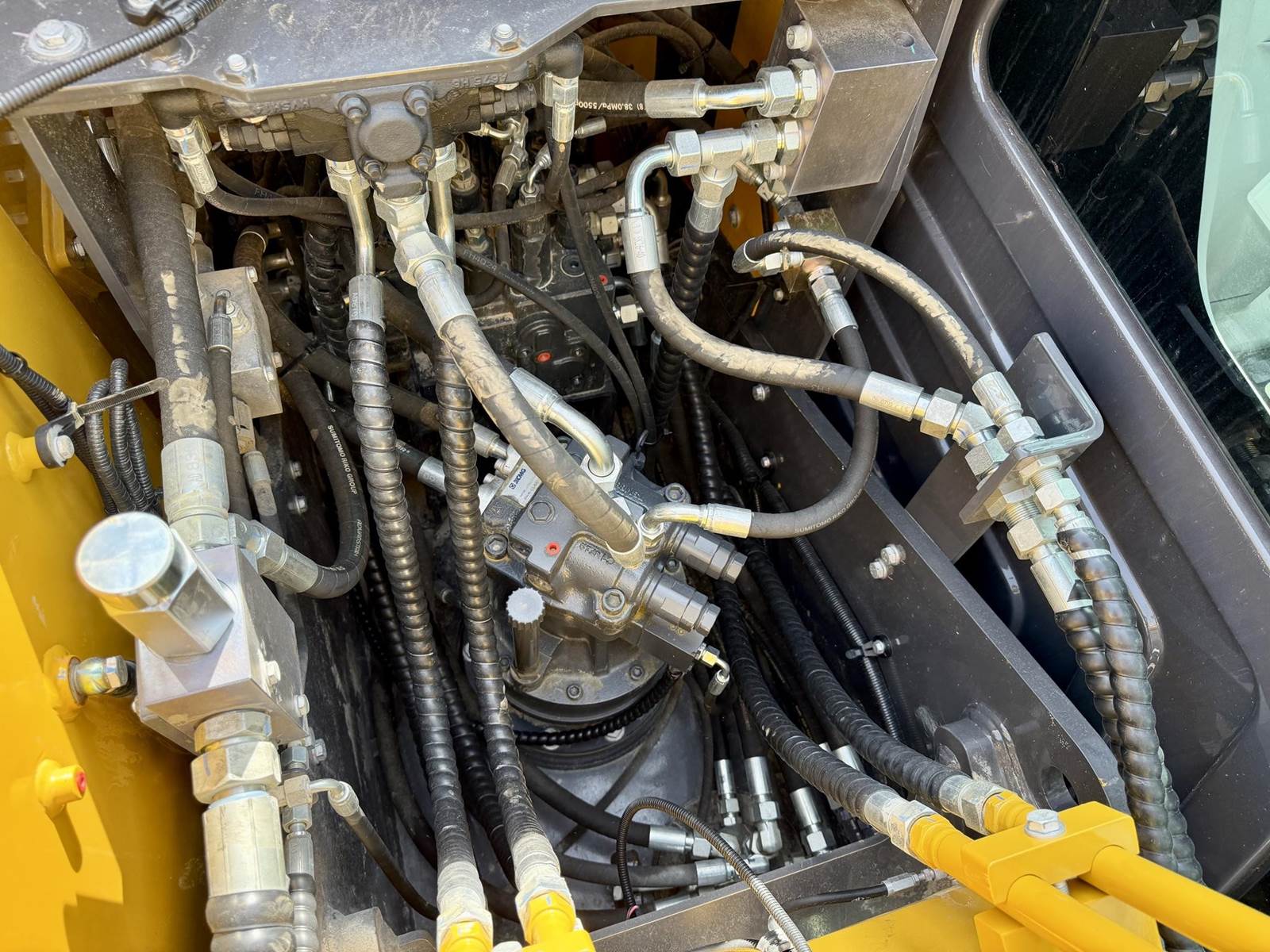

Hydraulic System

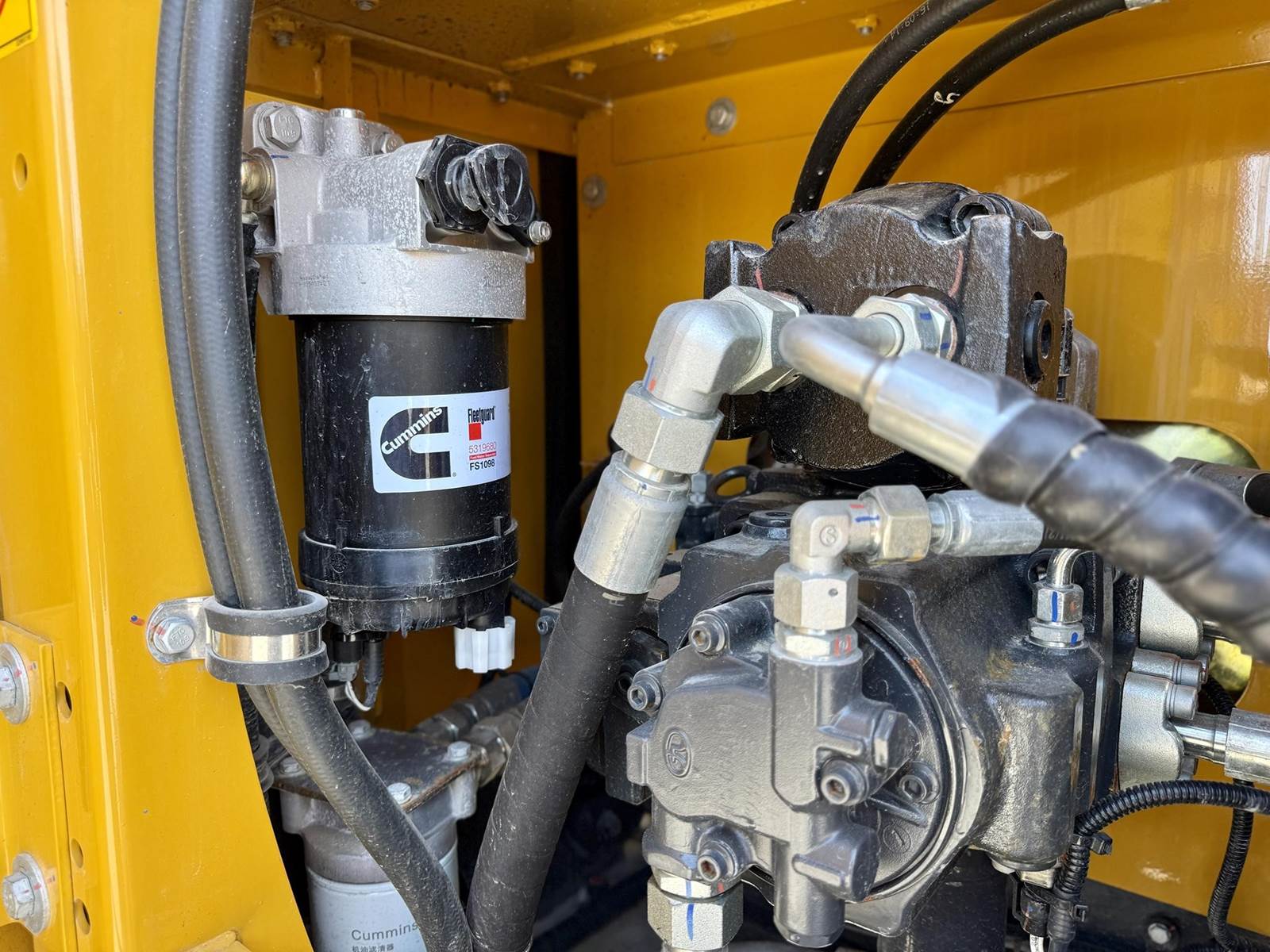

   •   Main Pumps: 2 × variable displacement tandem axial piston pumps
   •   Main Pump Flow: 2 × (120 + 53) L/min (2 × 31.7 + 11.7 gpm)
   •   Pilot Pump: Gear pump
   •   Pilot Flow: 18 L/min (4.8 gpm)

Performance
   •   Travel Speed (Low/High): 2.9 – 4.7 km/h (1.8 – 2.9 mph)
   •   Maximum Traction Force: 121 kN (27,202 lbf)
   •   Maximum Gradeability: 70% (35°)

Digging Forces
   •   Arm Digging Force (Normal / Power Boost): 107 kN / 24,055 lbf
   •   Bucket Digging Force (Normal / Power Boost): 80 kN / 17,985 lbf

Working Range
   •   Maximum Digging Depth: 5,535 mm (18 ft 2 in)
   •   Maximum Vertical Wall Depth: 4,580 mm (15 ft)
   •   Maximum Digging Reach: 8,630 mm (28 ft 4 in)
   •   Maximum Digging Height: 8,295 mm (27 ft 3 in)
   •   Maximum Loading Height: 6,160 mm (20 ft 3 in)
   •   Minimum Swing Radius: 2,095 mm (6 ft 10 in)

Dimensions
   •   Overall Shipping Length: 7,780 mm (25 ft 6 in)
   •   Overall Shipping Width: 2,590 mm (8 ft 6 in)
   •   Shipping Height (Boom): 2,870 mm (9 ft 5 in)
   •   Shipping Height (Cab): 3,035 mm (9 ft 11 in)
   •   Tail Swing Radius: 2,370 mm (7 ft 9 in)
   •   Counterweight Clearance: 931 mm (37 in)
   •   Ground Clearance: 476 mm (19 in)
   •   Track Length: 3,630 mm (11 ft 11 in)
   •   Tumbler Distance: 2,910 mm (9 ft 7 in)
   •   Undercarriage Width: 2,590 mm (8 ft 6 in)
   •   Shoe Width (Standard): 600 mm (24 in)

Capacities
   •   Fuel Tank: 250 L (66 gal)
   •   Hydraulic Oil Tank: 95 L (25.1 gal)
   •   Engine Oil: 11 L (2.9 gal)
   •   DEF Tank: 25 L (6.6 gal)

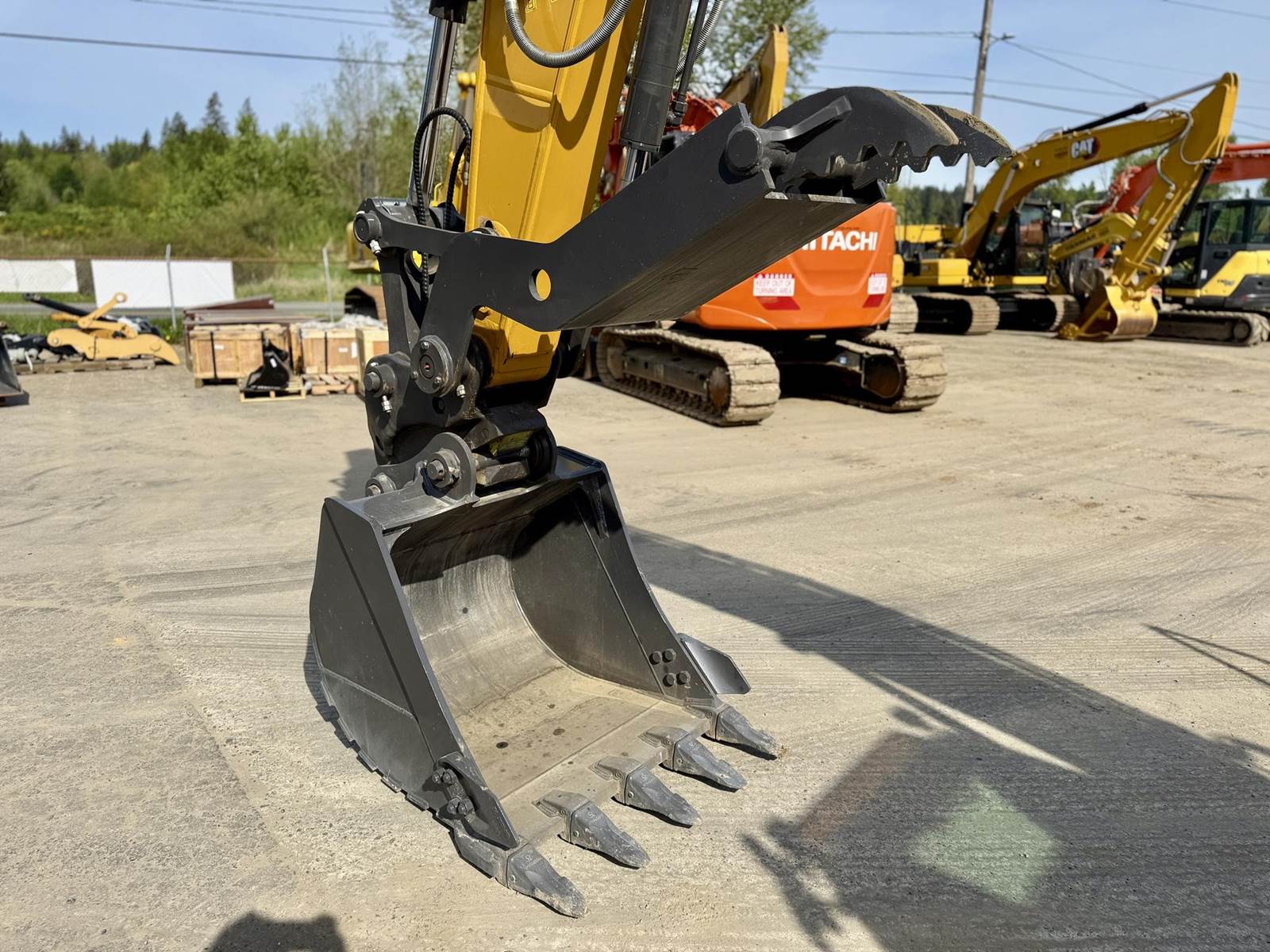

Bucket Capacity
   •   Standard Bucket: 0.32 – 0.60 m³ (0.42 – 0.78 yd³)


Max Power For Max Pumping

The XE135U is a compact powerhouse designed for strength, reliability, and long-term durability. Built with advanced hydraulic systems and smart design enhancements, it offers smooth, fuel-efficient performance while meeting strict environmental standards.

Ideal for a variety of jobsite needs—from utility work to urban construction—the XE135U brings together power and precision in a streamlined package. Easy to maintain and comfortable to operate, it’s the go-to machine when you need dependable performance in tighter spaces.
