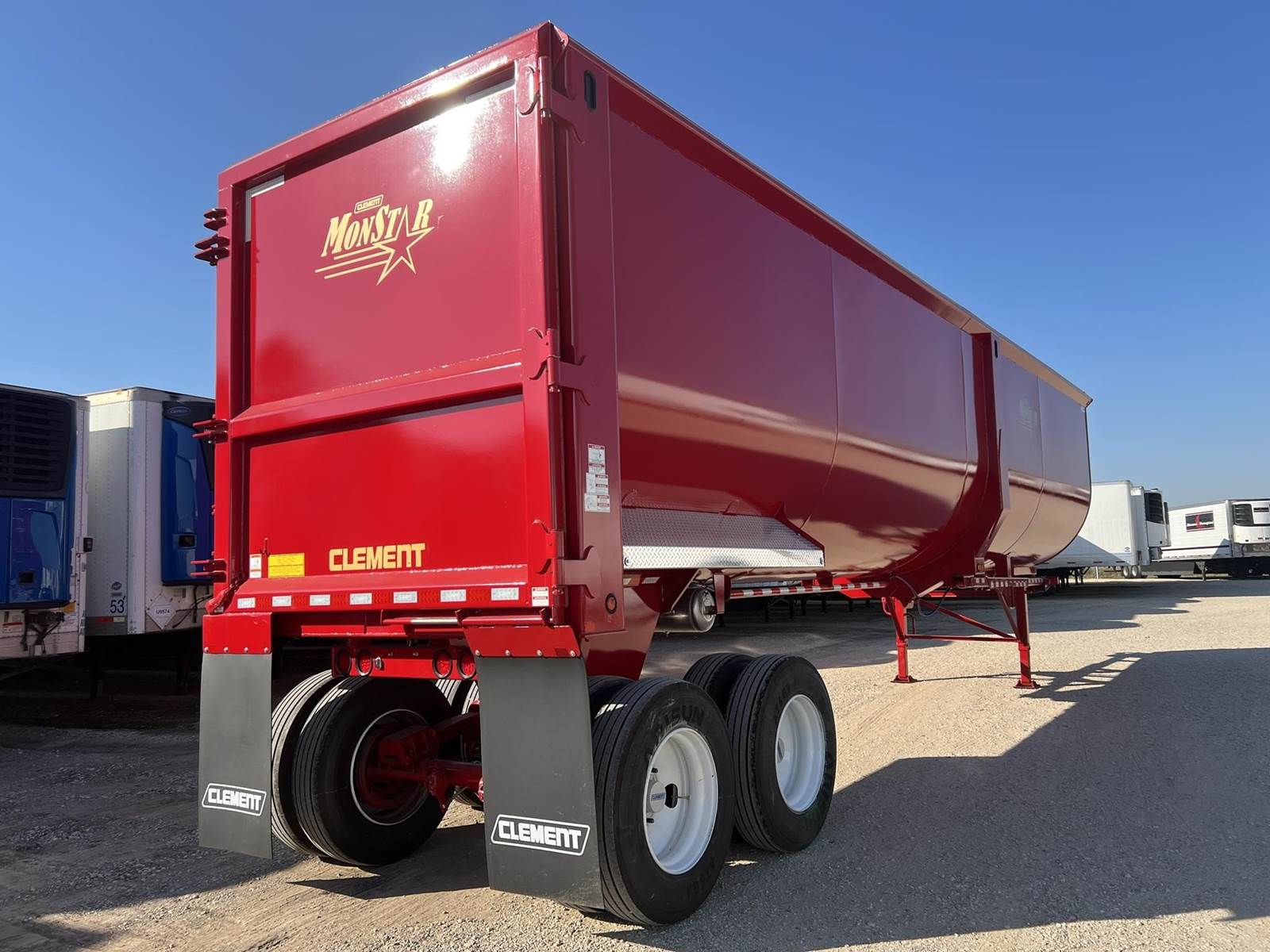

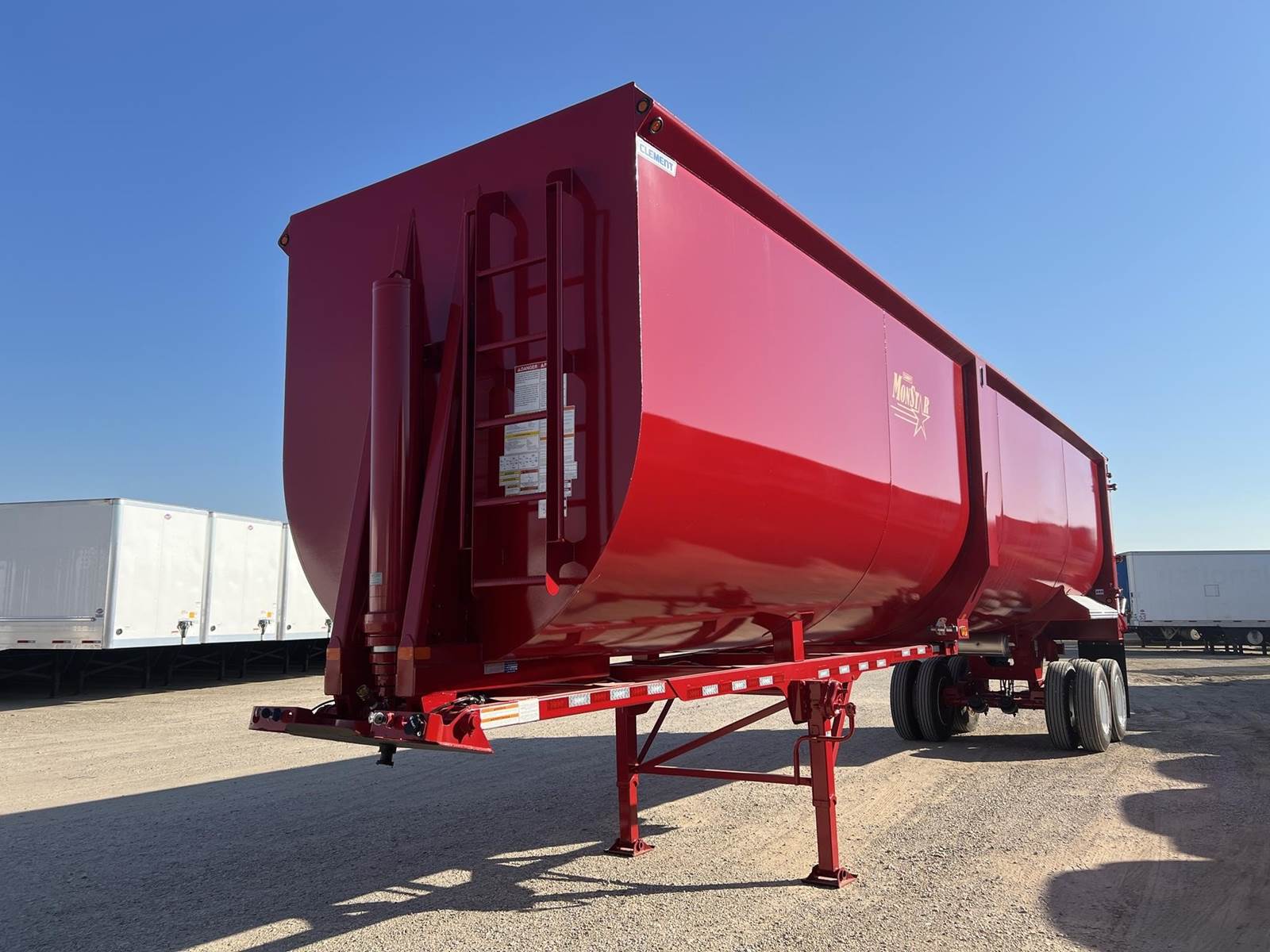

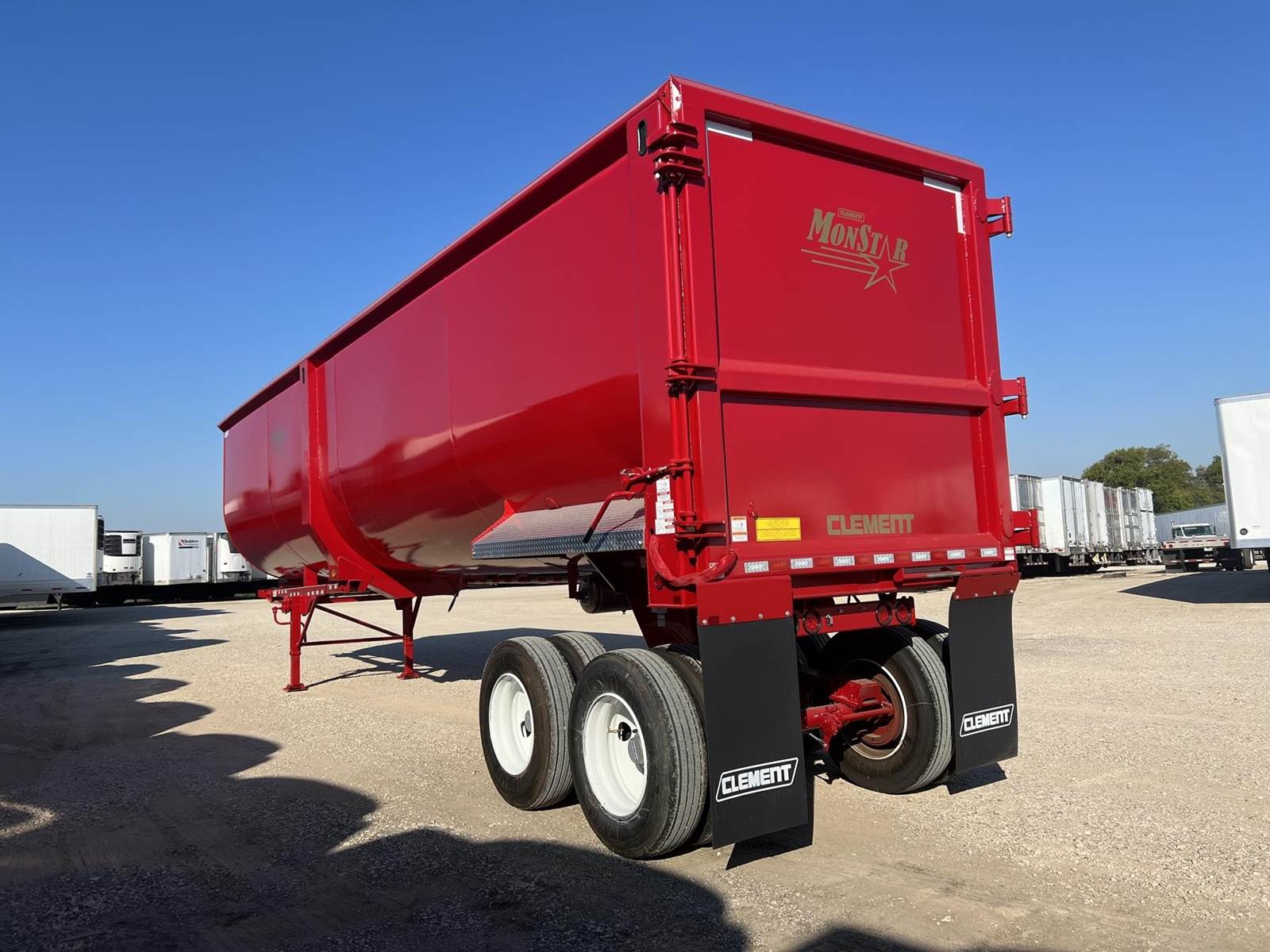

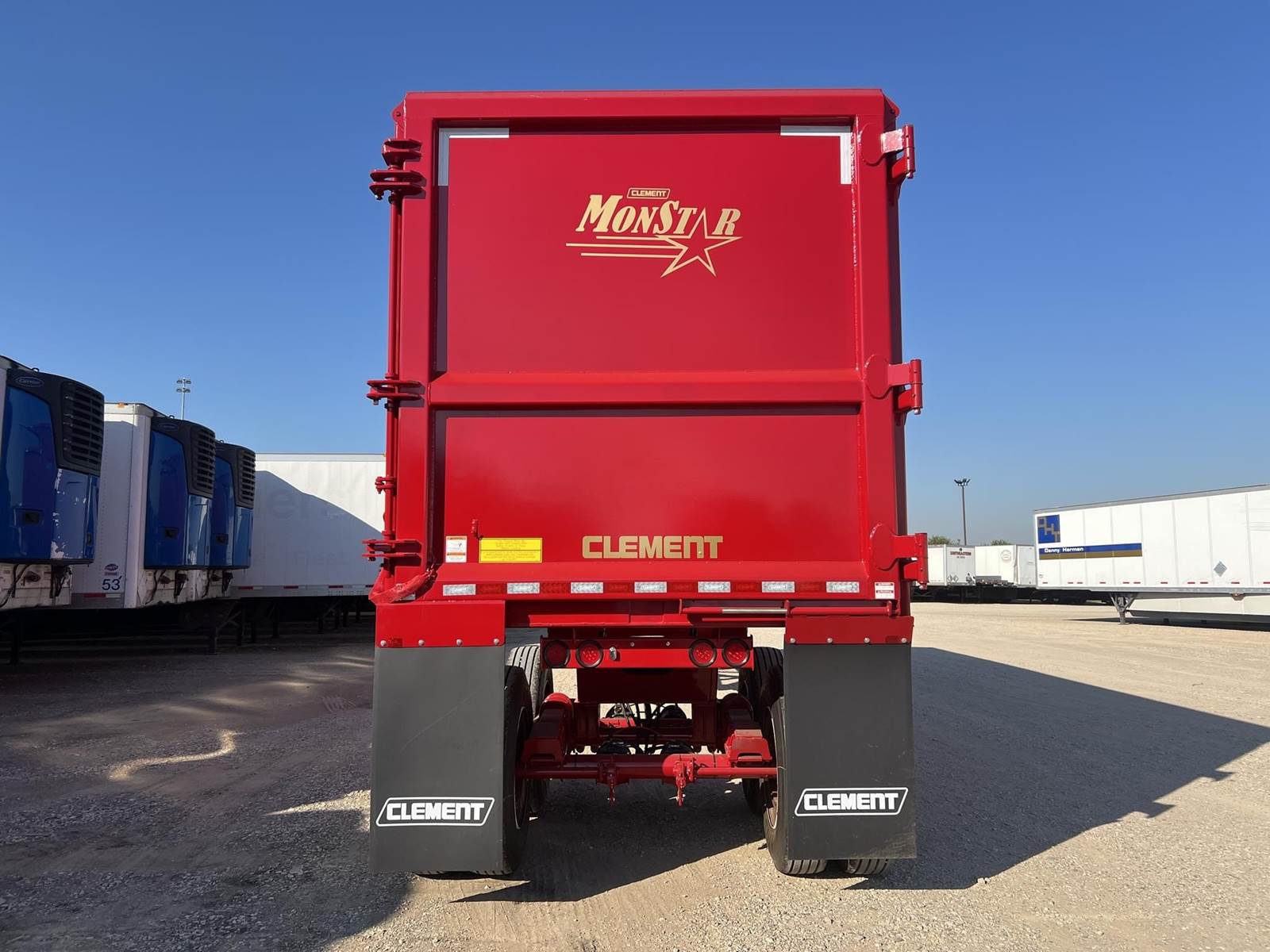

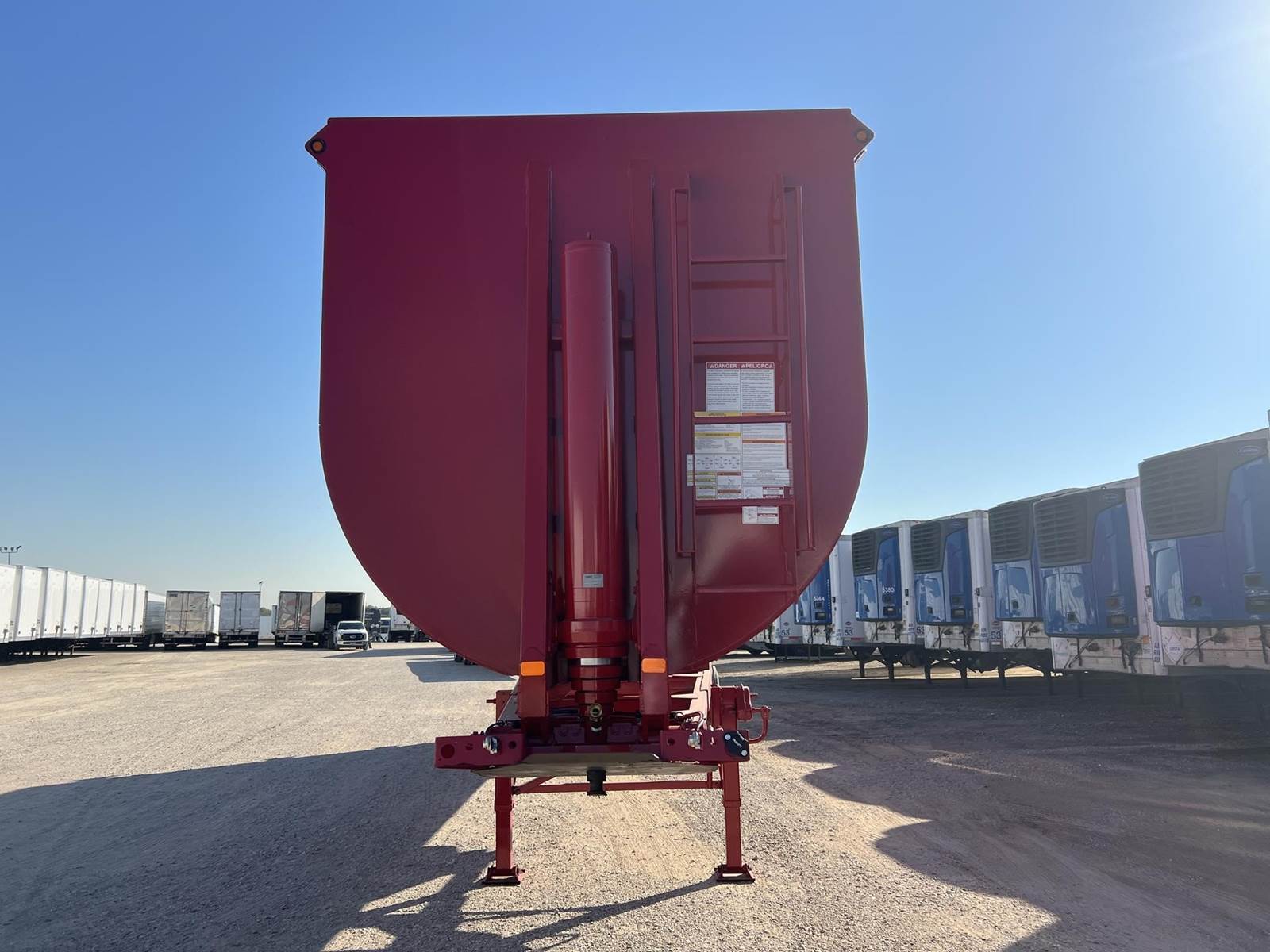

2026 Clement MonStar 40 ft End Dump Trailer - Tandem Axle

Chassis:
Suspension: 50,000 # Single Point – 3 Leaf
Axles: (2) 102”, 5/8" Wall, 5” Round, Common Inner/Outer, 51” Spacing

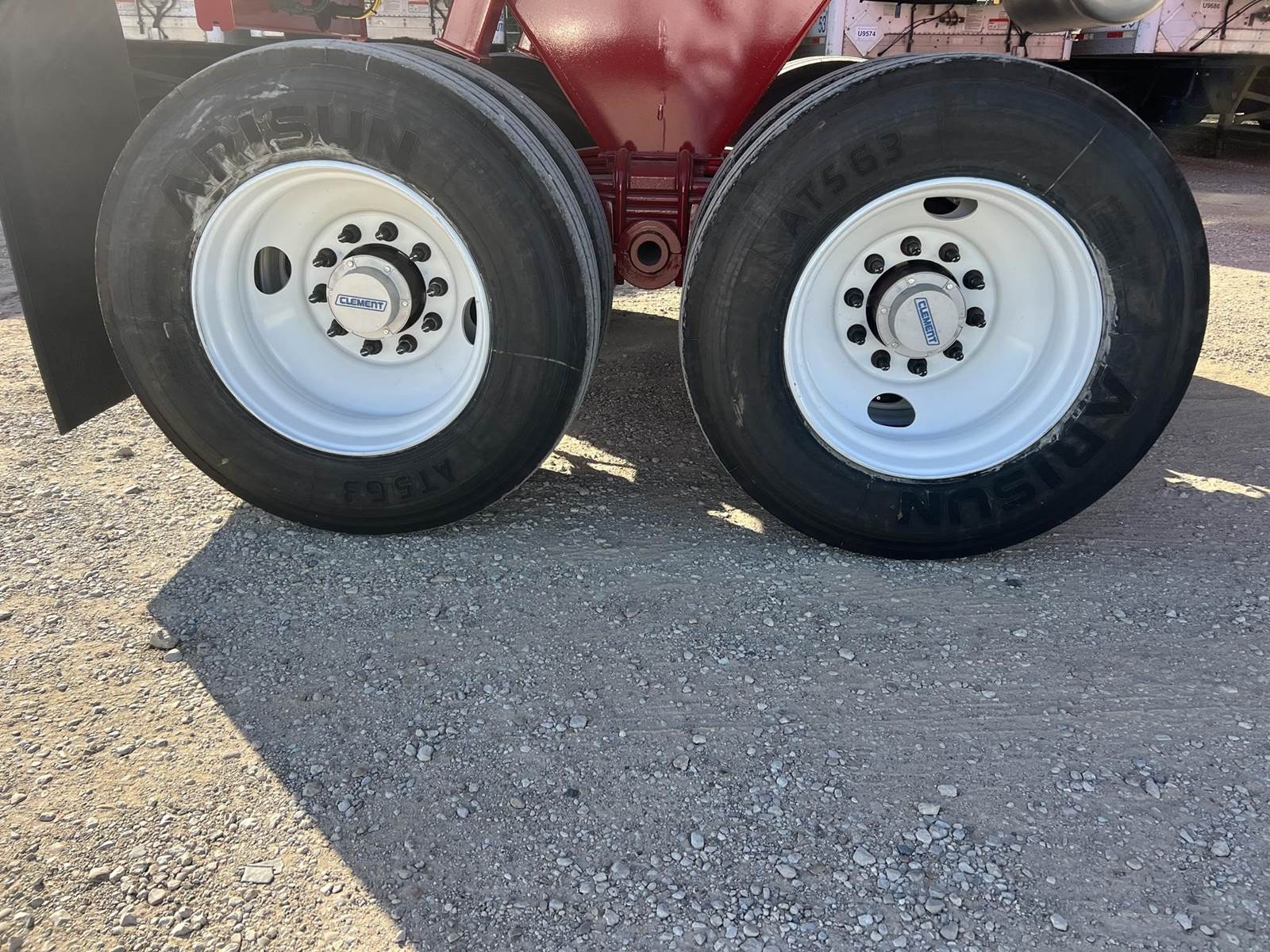

Wheels: 8.25 X 24.5, 10 Hole Hub-piloted Disc
Tires: 11 X 24.5 Radial
Hubs: 10 Hole Pilot Hub
Brakes: Air 16 ½” X 7” Outboard Cast Drum, 2S/1M ABS
Lights: 12-volt Sealed Beam, Rubber Grommet
B/U Alarm: Yes
Wiring: Sealed Harness Modular Plug-In
Draft Arms: 3” x 4” x 1/4” Tubing
Kingpin: ¼” AR450 (Rocking/Breakaway)
Body:
Body Shell: ¼” AR450
Tailgate: 3/16” AR450, Swing-Away Flap
Front: 3/16” AR450, 5-Step Ladder
Paint: Urethane Enamel Over Primed Surface, Black
Longitudinal: None
Top Rail: 6” X 6” X ¼” AR450 Tubing
Rear Corner Post: 3/16” HT50
Hoist Housing: None – Inverted Trunnion Mount Hoist
No tarp included
21,700 LBS
3 Year Warranty
