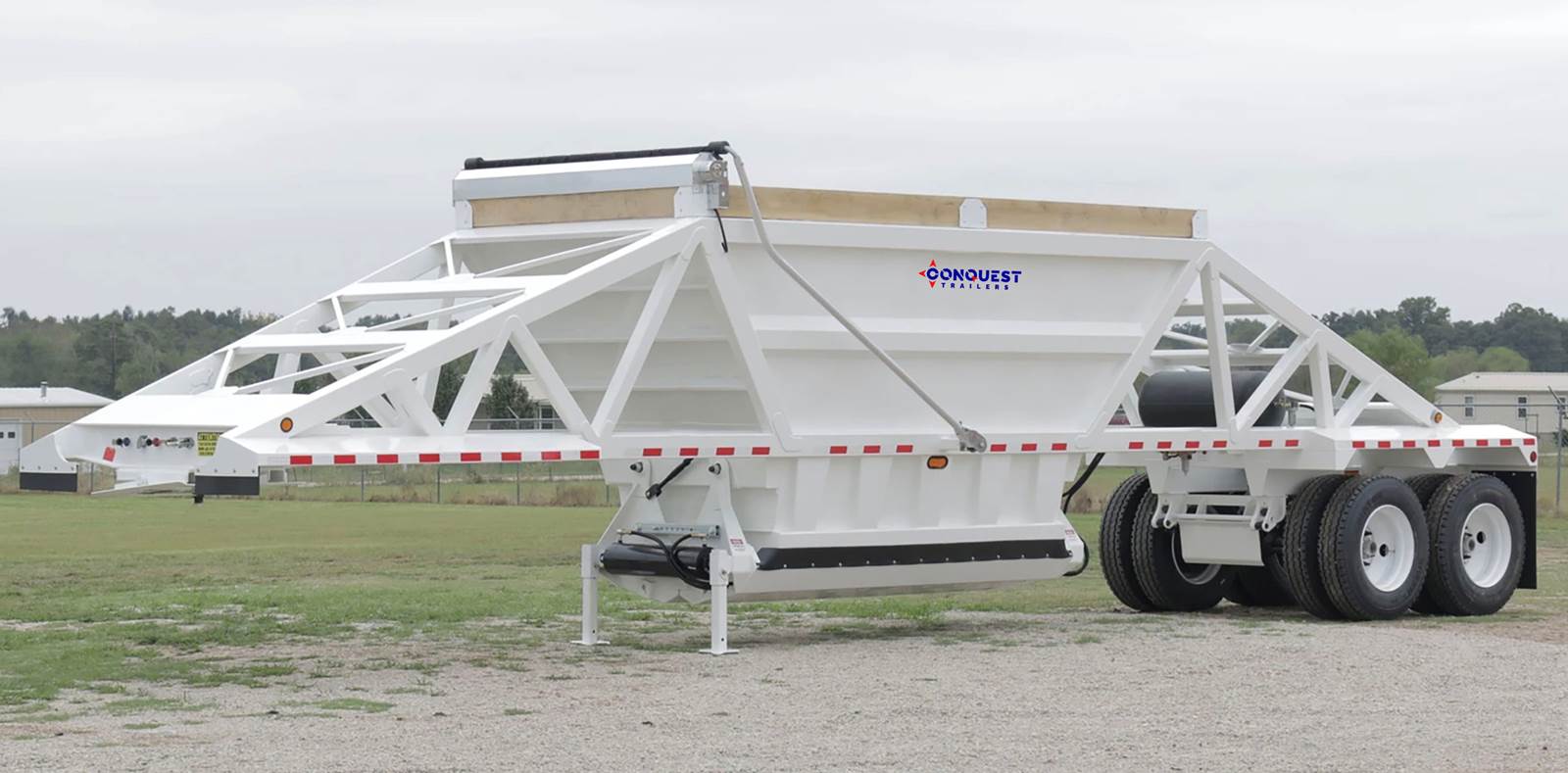

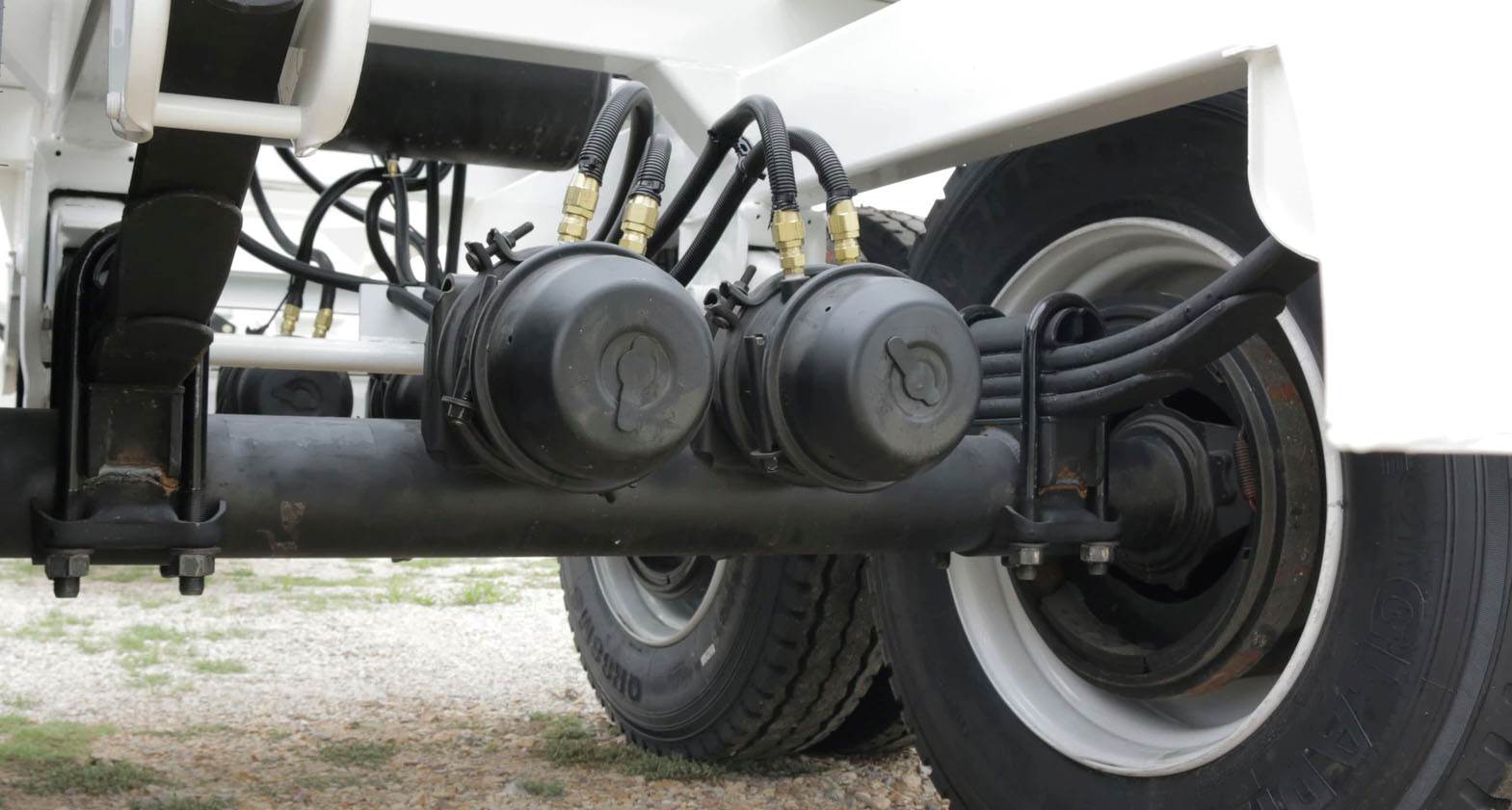

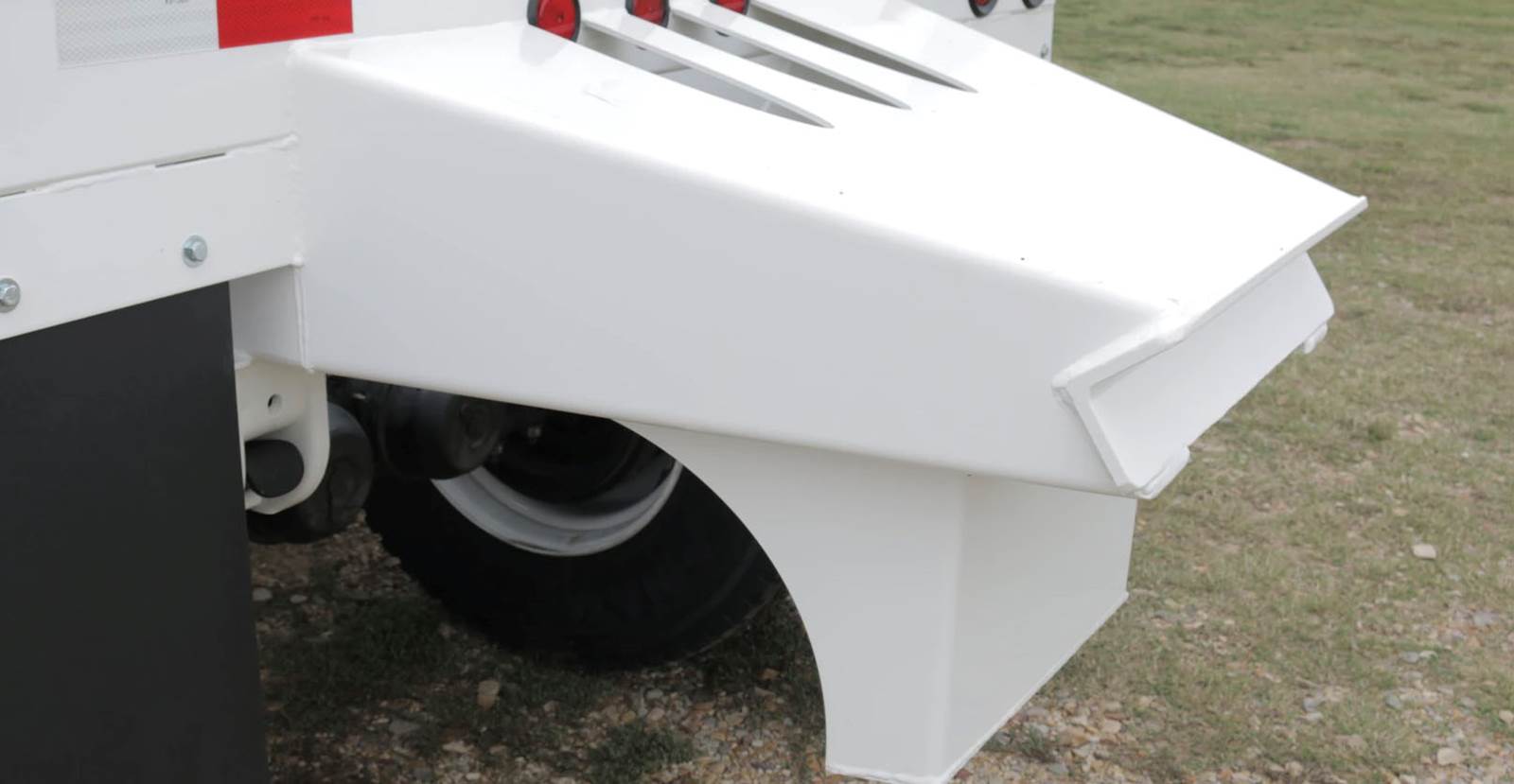

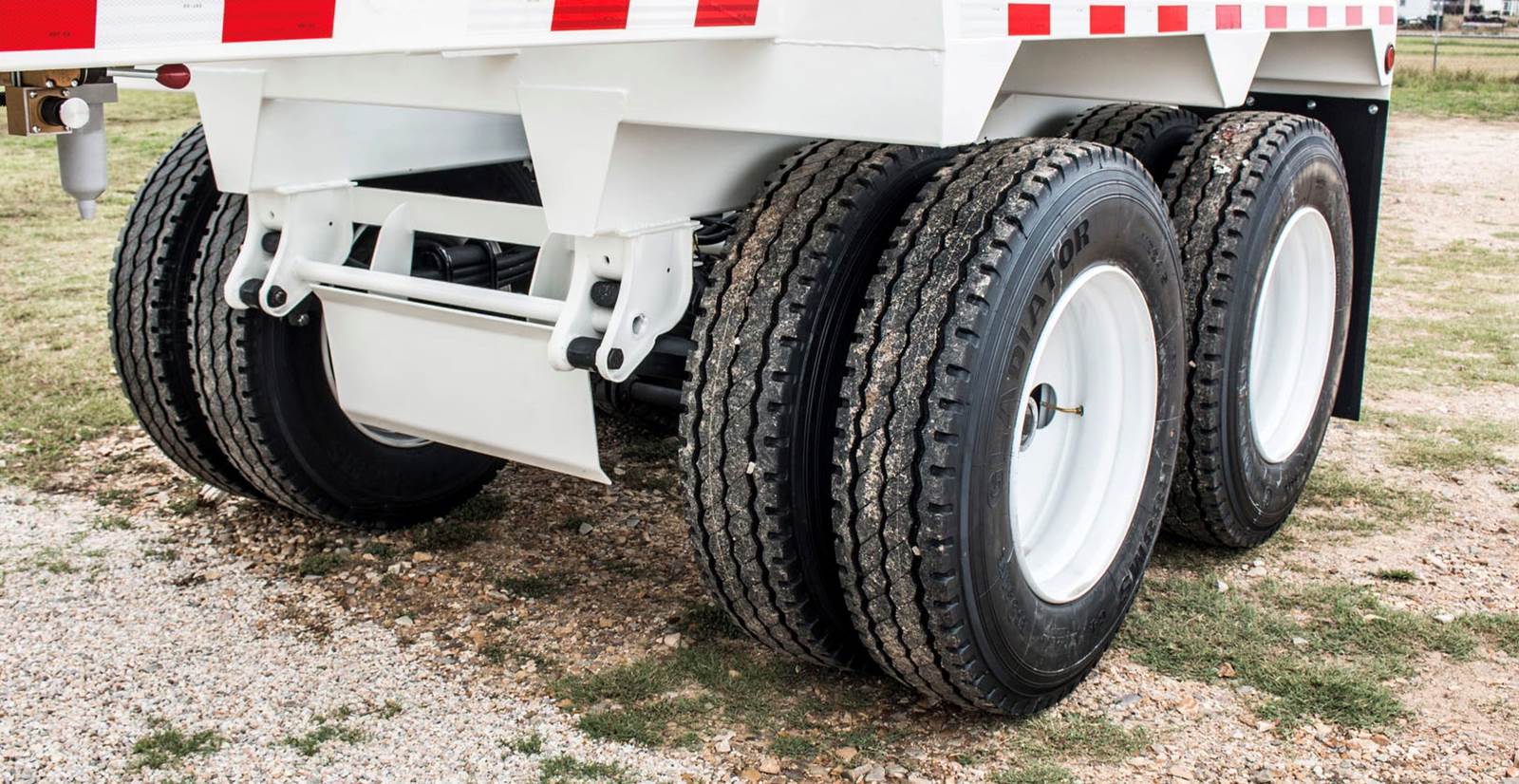

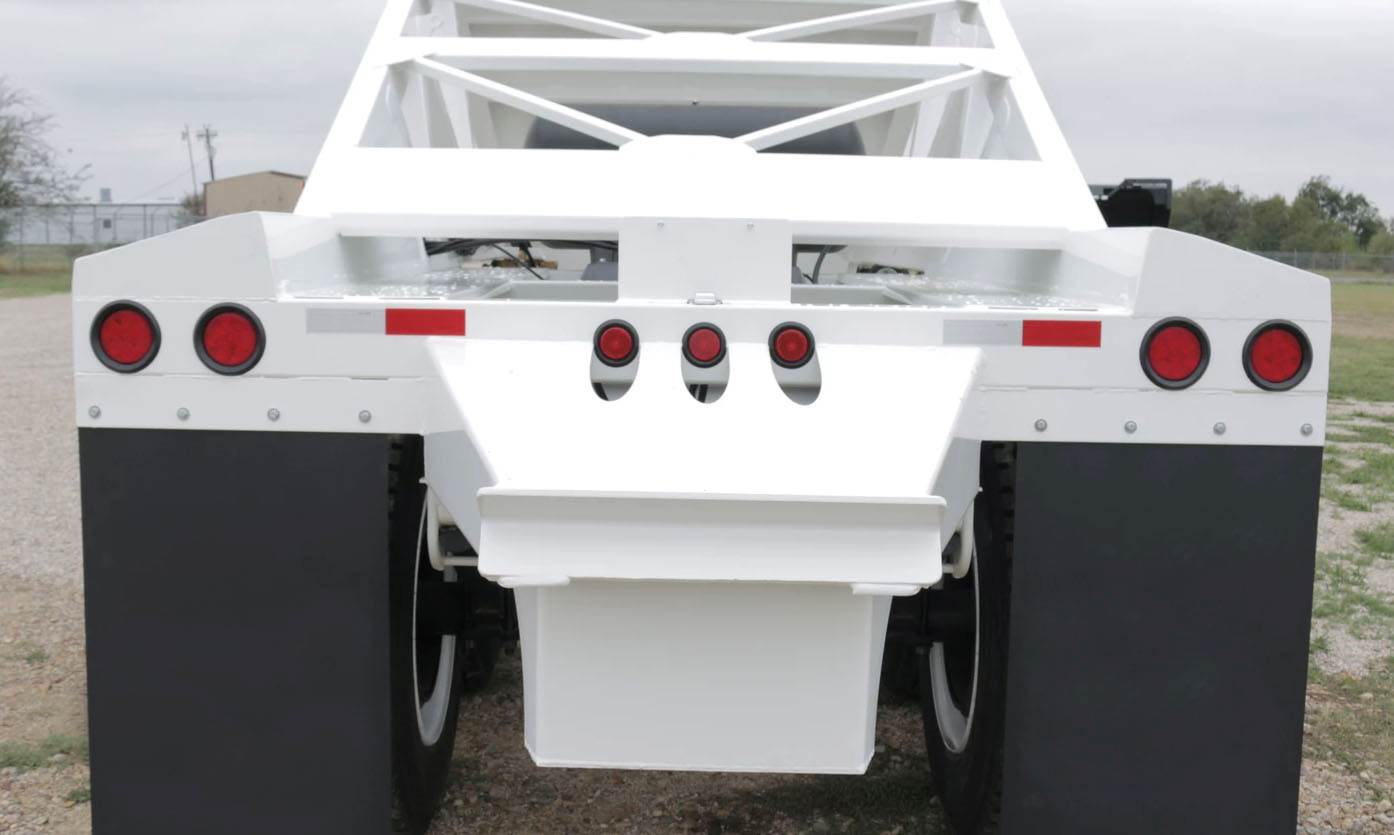

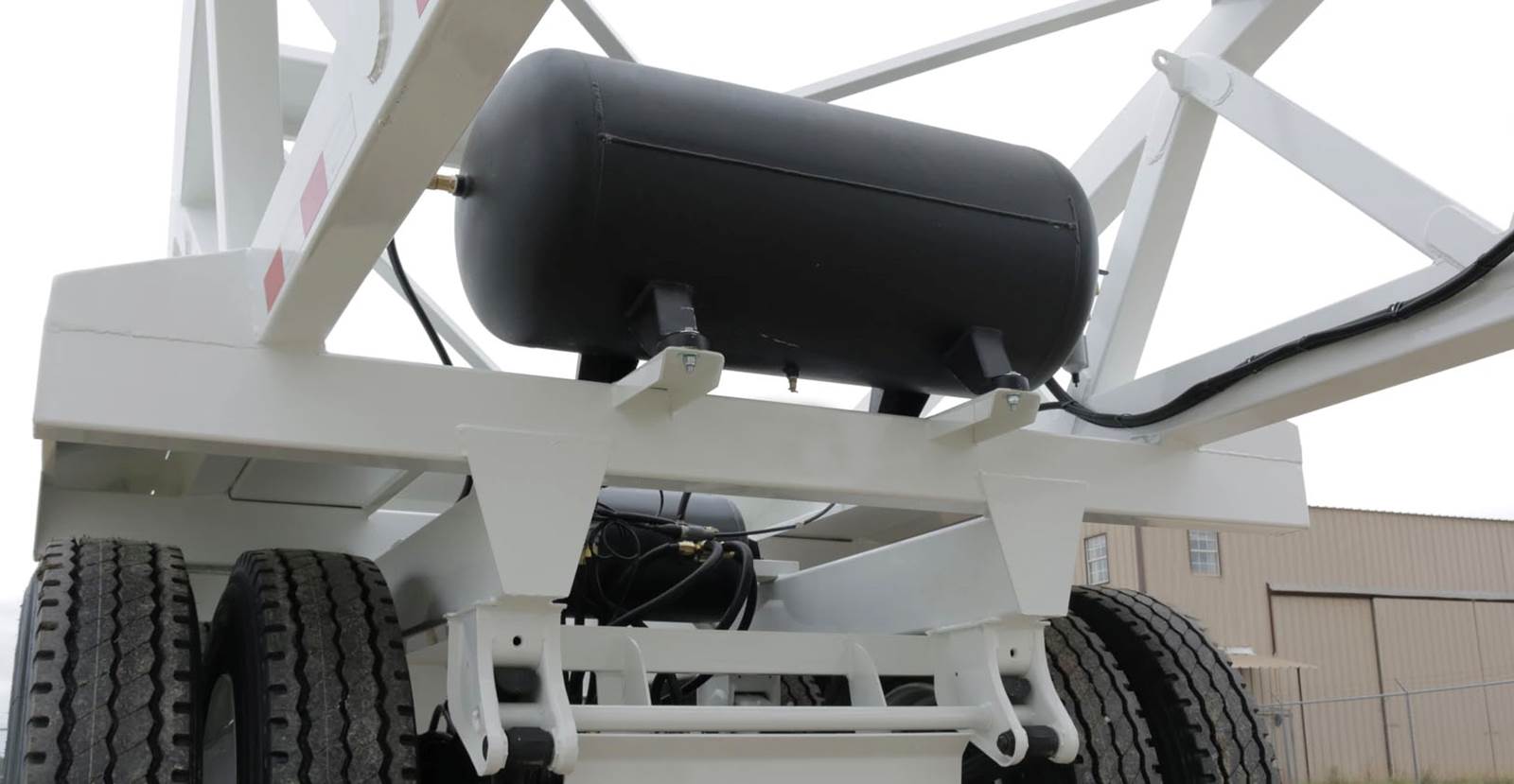

2026 CONQUEST BELLY DUMP TRAILER Length 40’ Width 96” Height 10’3” with Bang Boards Sides 59” Tube 6”x4” Upper Hopper 16’x88” Top Opening, 10g Mild Steel Wall Lower Hopper 54”x108” Hopper Opening, Mild Steel Top Rails 4”x6”x3/16” Tube, ASTM A-36 Bottom Rails 4”x6”x3/16” Tube, 70 KSI Hi Tensile Al-loy Steel Suspension Hutch 9700, 48,000 lbs. Spring Ride Fifth Wheel Oscillating fifth wheel with King Pin Axles 25,000 lbs. Tubular Brakes 16.5”x7” Q Shoes Tires 11Rx24.5 16 ply Radial Gate ASTM A-36 Steel w/Adjustable Slide Locks 8” Bore Air Cylinders w/electric and manual control Air System 60 Gallon air reservoir w/Oiler and Wa- ter filter, Quick Exhaust Fenders, Front and Rear Lights ICC and DOT approved Landing Gear Drop Leg, Sq. Tube mounted onthe front of the doors Paint - Custom Colors Available Rear Bumper Push Block w/DOT approved under Ride Bumper Capacity 22.8 c.y. with 8” Bang Boards Options US Elec. Tarp, Air Ride, Single Point
