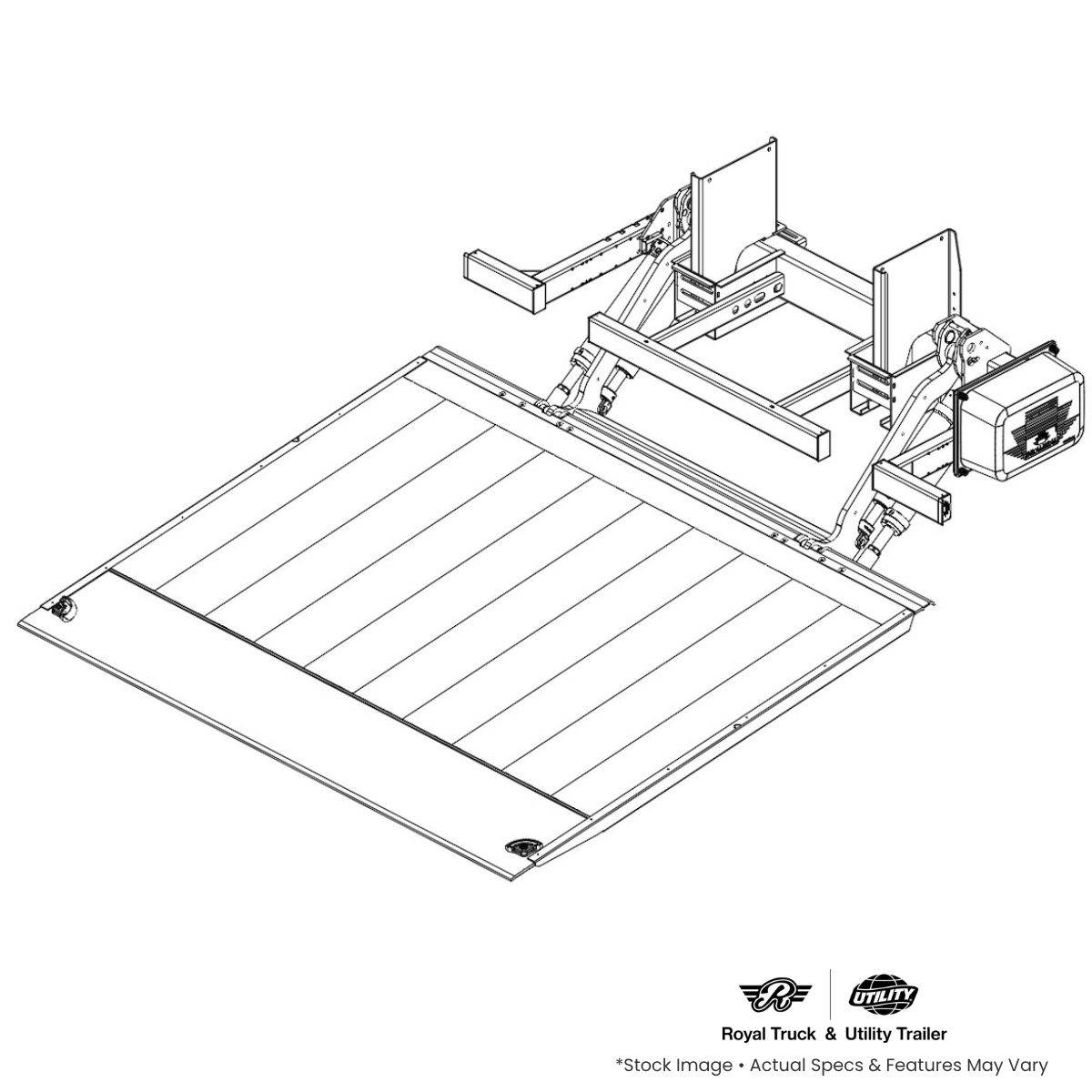

Super Heavy Duty Cantilever Lift With Level Ride Platform
The cantilever lift DH-LMS is a powerful lift for intensive, heavy duty tasks and “hostile environment” applications. It is ideal for the most demanding applications, such as supermarket & food distribution.
The robust frame with reinforced articulation pins and larger cylinders is primarily designed for lift capacities of 5500 to 6600 lbs, but is also available as upgraded 4400 lbs version.

Platform Sizes: (98" platform width for 102" bodies)
- 85" x 94" Aluminum
- 85" x 94" Steel

Features - Can Be Customized Per Customer

• Lifting Capacity: 4,400#, 5,500#, or 6,600#
• Platform Width: 85"
• Platform Depth: 94"
• Bed Height: Minimum 40" to Maximum 56"
• Cylinder With Piston Rods In Hard-Chromed Stainless Steel
• Weight-Saving Full Aluminum Platform
• Level-Ride Style Platform Action With Auto-Tilt Feature at Ground Level
• Low Maintenance Bushings and Grease Zerks in Pivot Points
• Sealed Weather-Proof Pump Unit With Thermal Protection on Electric Motor
• Self-Locking Valves on the Cylinders, With a Manual Override Function
• Full-Length Ground and Power Cables
• Galvanized Finish on Steel Components
• Flashing Platform Lights Available to Maximize Safe Working Conditions and Platform Visibility
• 4-Sided Platform Seal Kit Available For Rear Door Removal

Call for more information and pricing!
