2026 Dorsey COMBO DROP DECK REAR AXLE SLIDE Drop Deck Trailer

CAPACITY - Standard Beam Pkg. - 80,000 GVWR (54,000 in 4' Span)
OVERALL LENGTH - 53'
OVERALL WIDTH - 8'6"
TOP DECK - 10'6" Length / 59" Height
LOWER DECK - 42'6" Length / Front 41", Center 42", Rear 40" Heights
KING PIN SETTING - 24" - Tapered Pickup Plate
UPPER COUPLER PLATE - 1/4" ***Powder Coated Upper Coupler Assembly***
UPPER COUPLER HEIGHT - 48"
FRONT SKIRT - Aluminum Front & Corners
REAR SKIRT - Aluminum
MAIN FRAME - 26" Pre Camb Beams - 130K Tru-Strength Flanges - Limited Lifetime Warranty
SIDE RAILS - 6" Aluminum Extruded W/ Double L Track
TOP DECK FLOOR SILLS - 4" Steel I-Beams - 18" O.C.
LOWER DECK FLOOR SILLS - 4" Steel I-Beams - 12" O.C. HD Pkg.
COIL HAUL PACKAGE - Single Coil Placement - 5 Extra Stud Sills - Ctr Of Trailer
FLOOR DECKING - 1-1/8th HD Aluminum W/ 2 Nailer Boards
WINCHES - 12 Double L
WINCH TRACK - Double L Aluminum - Extruded Siderail C/S & R/S - Both Sides
TIE BAR - C/S & R/S - Full Length Both Sides - 3/8th x 2"
LANDING GEAR - Two Speed - Jost A500
SUSPENSIONS - Air Ride - Hendrickson Intraax - 23K - 2 Axles
SUSPENSION LOCATION - Cal. Legal ( Center of KP to Center of Rear Axle 40')
AXLES - (2) 22.5K Cap. - Type 30 Chambers - Auto Slacks - ABS - 22.5 Tires
AXLE SPACING RAS - 2 Position - 61" & 10'2" Spread

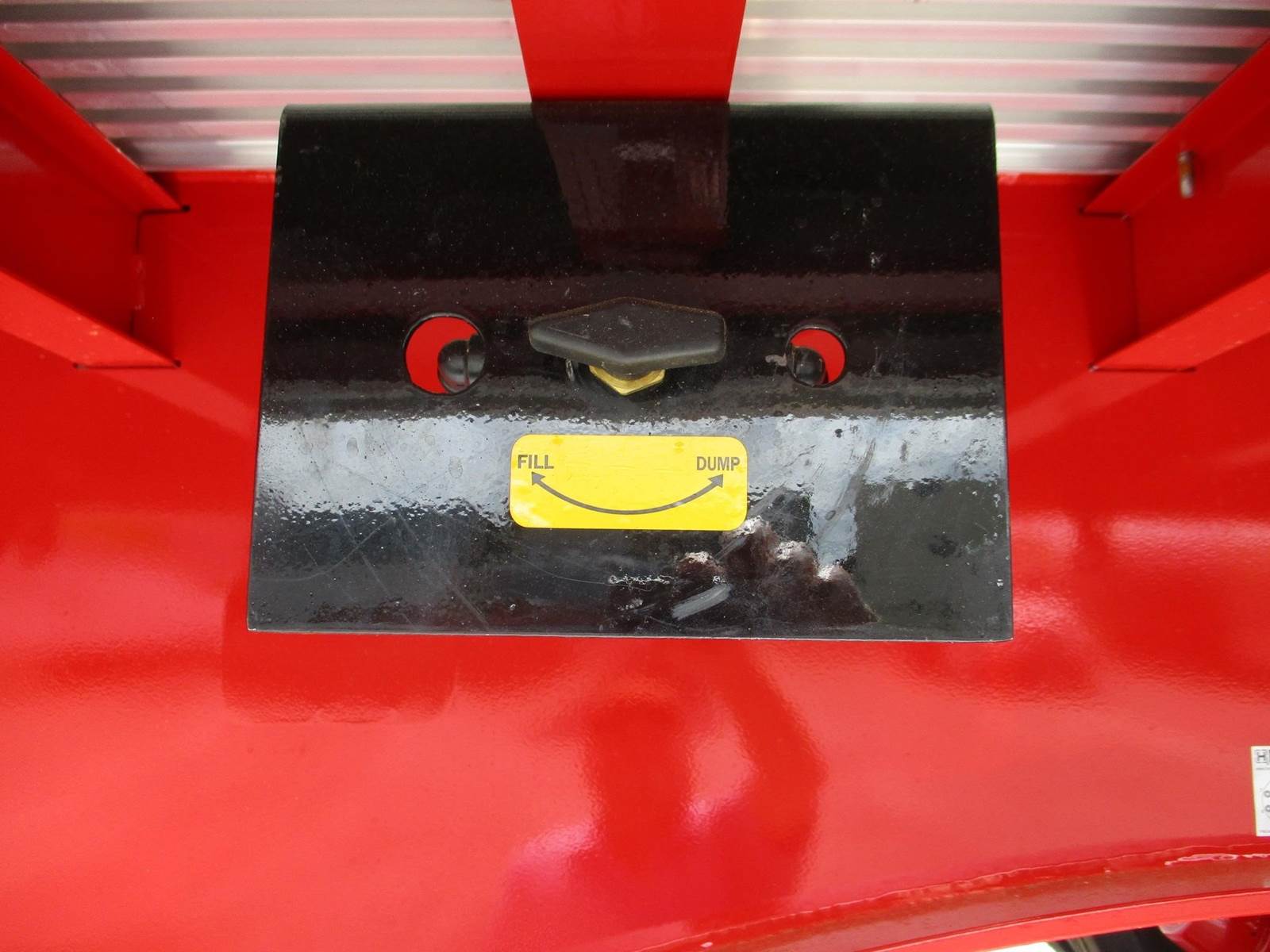

DUMP VALVE - Manual - Position In Front of 1st Axle D/S No Box - Dump All Axles
PARKING BRAKE - All Axles
ABS SYSTEM - Wabco ABS System 2S/1M
WHEELS - Disc - Hub Pilot - 22.5 (2-AX) - Polish Aluminum 4 Outside Wheels / 4 Steel Inside Wheels
TIRES - 255/70 R22.5 Firestone
ANTI-SAIL MUD FLAPS - Behind All Axles
STAKE POCKETS - 24" O.C. Sides & 5 Across Rear
SPOOL - Traingular Shaped
RUB BAND ALUM. - 3/8" x 3" - Aluminum Recessed for DOT Tape
DOCK BUMPERS - Rubber Inboard
CARGO TIE DOWN - 14 Pair of Recessed Chain Ties Evenly Spaced
TIRE CARRIER - Tire Carrier Positioned In Front of Main Beams Between Landing Gear
TOOLBOX MATERIAL - (2) Aluminum - Smooth Box 18"H x 18" D x 60" L - Cam Lock
TOOLBOX LOCATION - Both Sides - Behind Landing Gear
LIGHTS - Grote Ultra Blue Sealed Wiring Harness - 2 Micros Per Side & Mid Turn - 3/3/3 Rear
PAINT - PPG Epoxy Primer and Acrylic Polyurethane
DECAL PACKAGE - Standard Dorsey Logo Kit
ZERO $$$ DOWN $935 mo WAC
