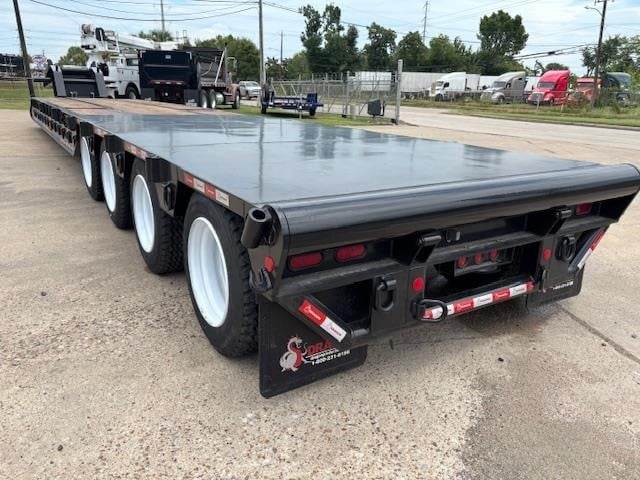

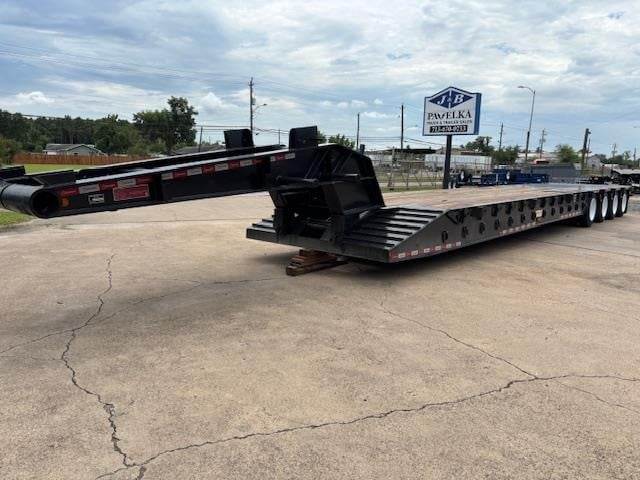

2026 Dragon 59x102 Quad Axle Steel Oil Field Trailer - Air Ride

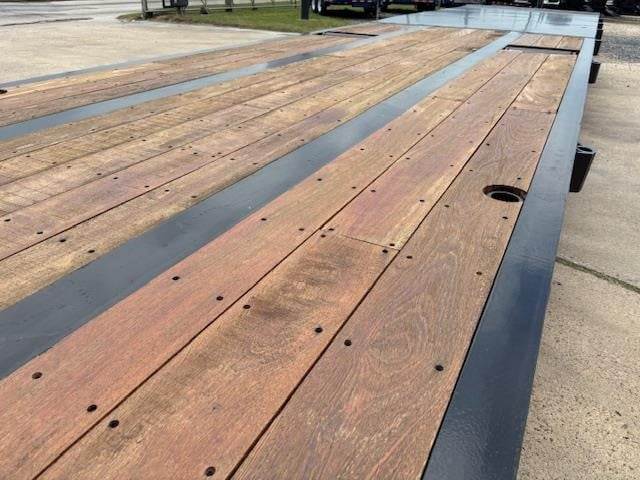

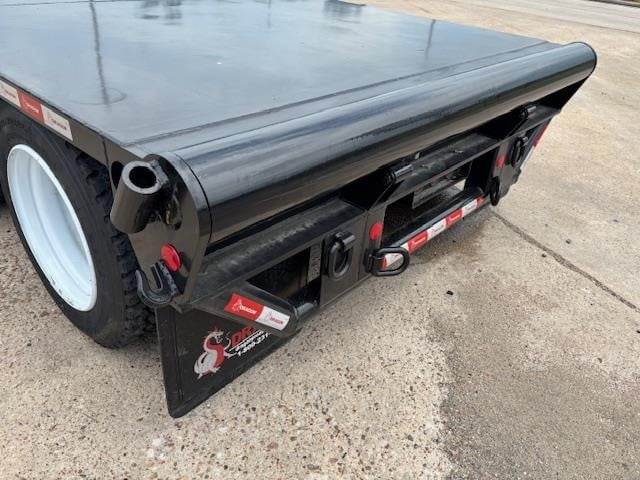

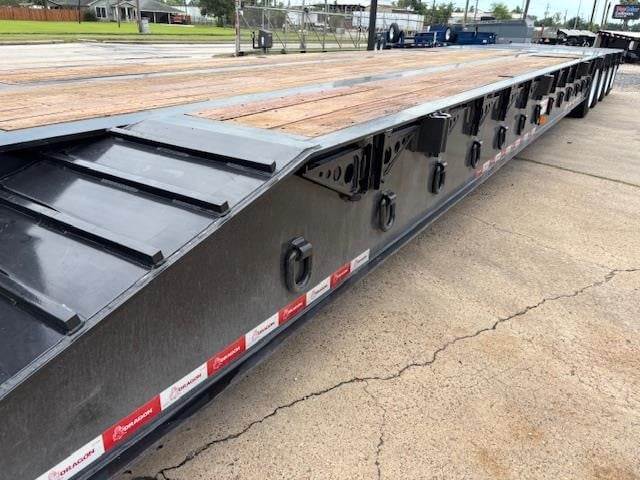

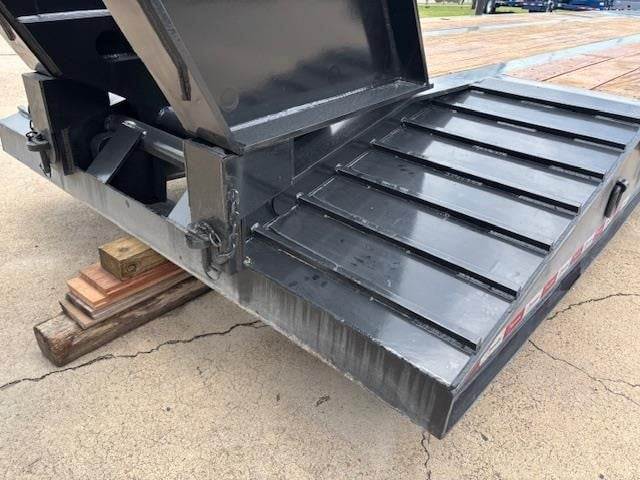

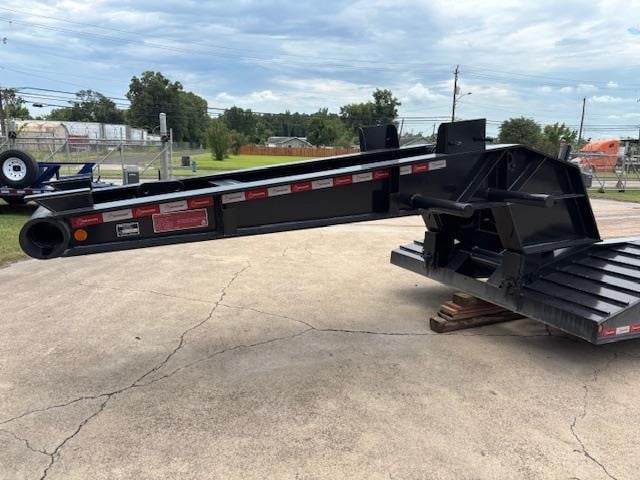

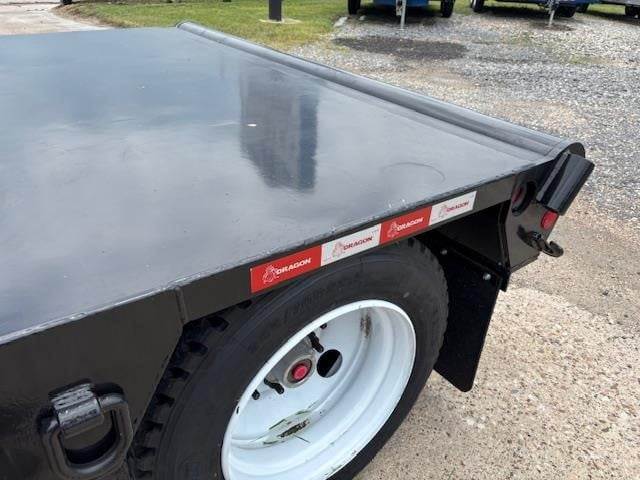

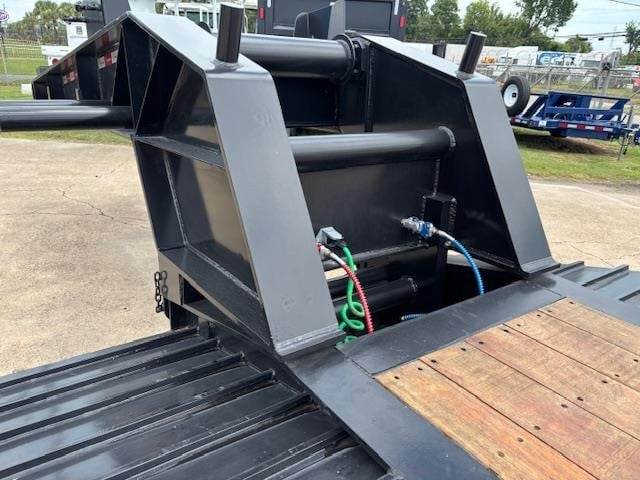

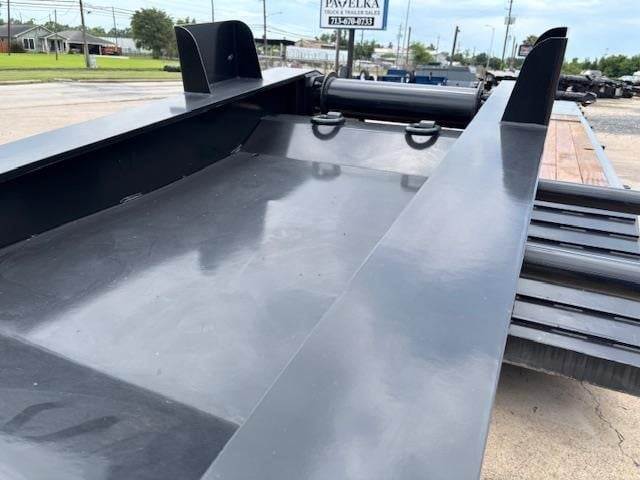

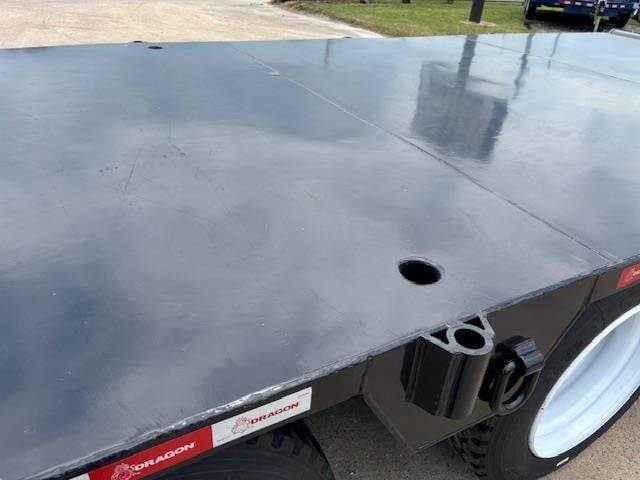

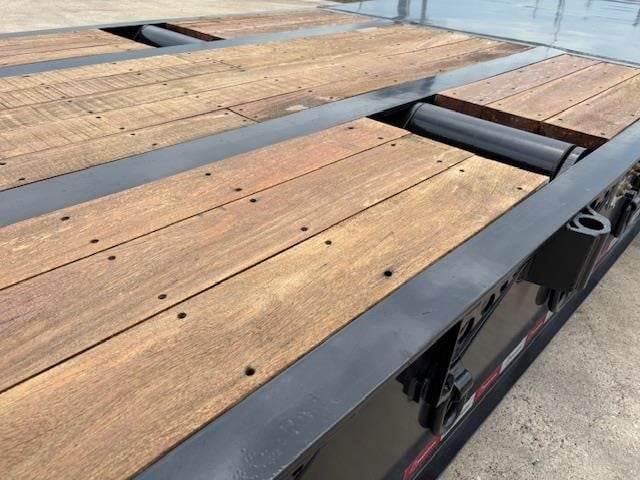

2026 Dragon 60 Ton 4 Axle - Payload: 60 tons (120,000 lb) distributed over 16 ft., Overall length: 59’ – 8” Deck length: 45’ – 0” Deck width: 8’ – 6” (102”) Deck height: 3’ – 5” (41”)King Pin Settings: 16” and 34” Swing Clearance: 8’ – 6” (102”) and 10’ – 0” (120”). Frame: 4 beam design. Fabricated beams from a A514 T-1 high tensile steel flanges and webs. Main beams boxed reinforced at critical deck transition, 2-1 minimum safety factor at maximum payload stresses. Front Deck: 22'-8" L, 2" apitong attached at ends and every other cross member. Rear Deck: 22' -4" L including tail roller, 1/4" steel plate deck, continuous welds on top, intermittent welds on under side. Neck: Mechanical removable with roller at rear, 2 King Pin locations, spare tire carrier each side. Rear Deck Roller: 8" SCH 160 pipe (8 5/8" OD) with double spherical bearings, 2 sets of over load rollers, grease fittings on main roller and overload rollers. Neck Roller: 6" SCH 160 pipe (6-5/8" OD) with double spherical bearings, grease fittings, cable guide flanges. Deck Load Rollers: 6" SCH 160 pipe (6-5/8" OD) Outriggers: 11 each side, forged heavy duty, locking against beam and at 90 degrees to beam Traction Cleats: 3/4" x 1" A514 T-1 steel, continuous welds solid on up hilltop, intermittent welds on downhill side. Suspension: 30,000 lb. (per axle) air ride, air lift on front and rear axles, manual dump all axles, travel limit straps on all axles. Axles: 5 -25,000 lb. round with outboard drums. Tires: 255R/70 x 22.5 Radial Brakes: 16 1/2 x 7, spring parking brakes on 4 axles, auto slack adjusters Bumper: 4" SCH 80 pipe with 4 -D rings
