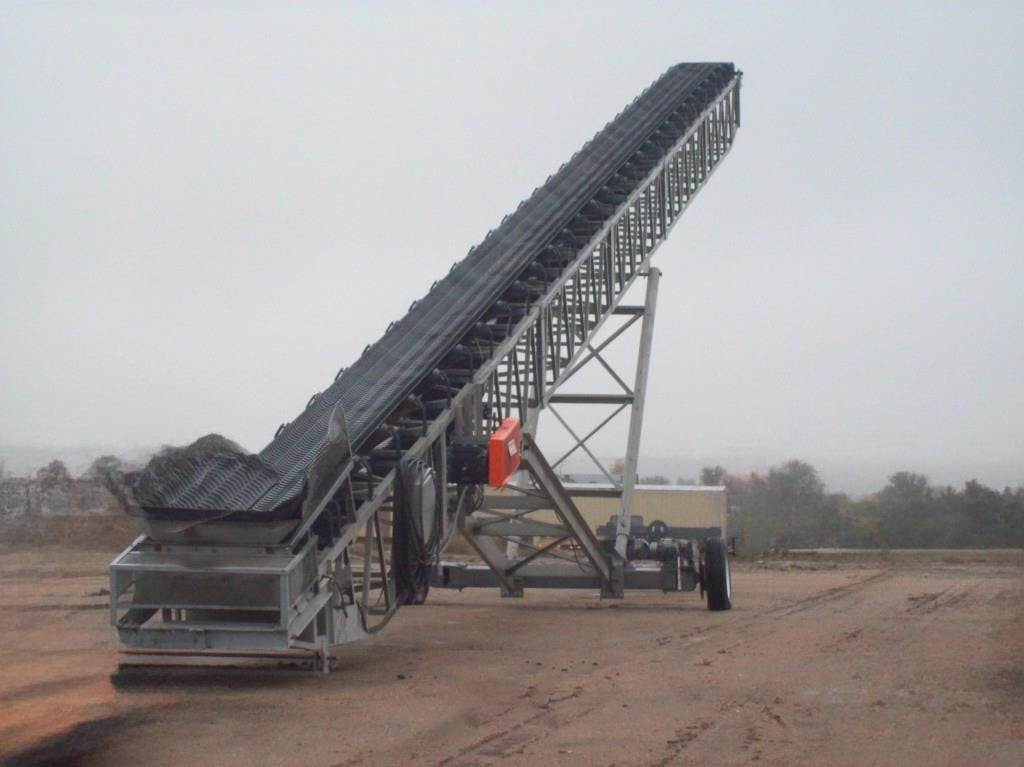

2026 Earthworm Conveyors 42 X 120 Conveyor

EARTHWORM CONVEYORS 42'' X 120' 1500Tons Per Hour Sand/Gravel 100 HP Motor #10-15 Drive. Will ship anywhere in the USA, Finance Avaiable.

48” Deep Truss, 3x4x5/16 Cord Angle, 2x2x1/4 Lattice
 Low profile tail, (Approximately 42”)
 Heavy Duty Undercarriage, 10x10 Tubing Axle, 20” Tires Recapped
 Wrap type mid drive- 20” Snub – 4 15/16” Shaft & Roller Bearing
 Lagged head 24” Dia., 5 7/16” Shaft & Roller Bearing
 20” Winged Tail, 4 15/16” Shaft & Roller Bearings w/Screw Take-ups
 24” Plain Drum Discharge Pulley, 5 7/16 Shaft & Roller Bearings
 World Wide /WW #10-15 Drive, Motor Mount, Belt Guard
 100 hp, TEFC, 1800 RPM, 230/460 volt (5V Sheave Set)
 Pioneer, 5” x 35 deg., CEMA C Top Rollers on 42” Centers
 Pioneer, 5” Returns w/Brackets, 10’ Centers
 Belt, 3 Ply, 440 PIW, 3/16 x 1/16 cover
o Mechanical Hinge Splice
 48” Receiving Hopper w Skirt Rubber
 Pivot Plate, Tow Hook, weight box (weight not included)
 Tail Guard
 Primed & Painted, Tool Steel Gray, Industrial Enamel
PRICE DELIVERED………………………………………………….…….$Call For Price.

OPTIONS:
POWER TRAVEL
BACKSTOP
BELT SCRAPER
12” LOAD ZONE EXTENSIONS
GREASE LINES TO TOP PULLEY BEARINGS
1500 tph @ 100 pcf @ 460 fpm
