2026 Galion-Godwin Truck Body | 433U

2026 Galion-Godwin Truck Body | 433U

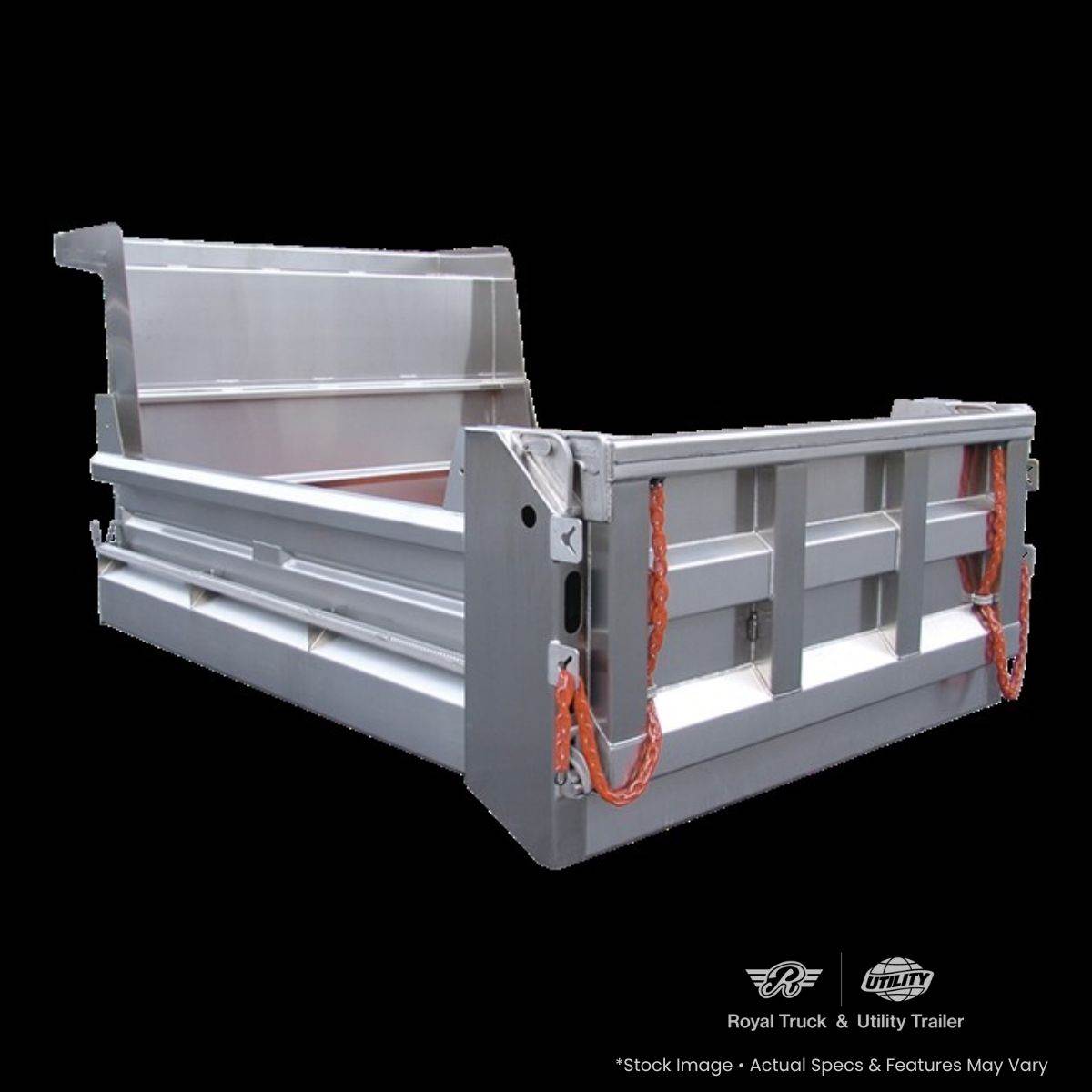

The Galion 433U smooth side body is especially designed for heavy-duty hauling requirements. It is well-suited for construction work, aggregate hauling and bucket loading. All units are built of tough high tensile stainless steel to virtually outlast and outperform all others. Recommended for single axle underbody hoist applications.

• General Dimensions: Available In 9’ And 10’ Lengths, 86” Inside Width, 26” Sides, 32” Or 36” Ends
• Sides: 10 Gauge Stainless Steel With Material Shedding Boxed Top Rails, Sloping Bottom Rails,15" Wide Full Depth Rear Corner Post, 1 Intermediate, Formed In Place Horizontal "V" Brace, 10" Front And Rear Board Extension Pockets And Full Length Tarp Rails. Grip Strut Walkrail On Both Sides
• Floor: 3/16” AR 450 Hardox With 9” Weld In Radius
• Front Bulkhead: 10 Gauge Stainless Steel Construction With Two Bend Top Flange And One Formed In Place Intermediate "V" Brace
• Tailgate: 10 Gauge Stainless Steel, 3 Panel Design With Full Perimeter Box Bracing, Two Intermediate Vertical Braces And One Intermediate Horizontal Brace, Double Acting Design With Long Chains And Two Sets Of Banjo Eyes And Full Width Lower Tailgate Pin
• Tailgate Hardware: Heavy Duty Cast Stainless Steel "Tarp Friendly" Top Hardware And Stainless Lower Hardware With Stainless Manual Release Handle
• Lights: Meets All Requirements Of FMVSS108 With Oval Stop/Tail/Turn Lights Recessed In Rear Post. All Lighting Is Recessed, Shock Mounted, Complete With Factory Wiring Harness
• Understructure: Crossmember-less Design Using 3/16" X 100K Formed 10" Trapezoidal Longbeams. Lubricated Front And Rear Cross Shafts And Full Width Rear Bolster
• Safety Features: All Galion 433U Smooth Side Bodies Are Shipped With A "Body Up" Warning Light And OSHA Required Back Up Alarm

Optional Features Include:

• 304 #4 Stainless Steel Construction
• 304-2B Stainless Steel Construction
• 201-LM2B Stainless Steel Construction
• 201 #4 Stainless Steel Construction
• Stainless Floor
• Coal Door In Gate
• Air Tailgate
• Additional Light Holes
• Mailhot Hoist Option
• Weld On Or Bolt On Spreader Apron
• L.E.D. Lighting Ilo Incandescent
• Designed For Underbody Or Front Mount Hoists
• Other Lengths And Side And End Heights Available
• Other Gauges, Material Types And Understructures Available
• Various Cab Protectors

Call for more information and pricing!
