2026 Galion-Godwin Truck Body | PLD

2026 Galion-Godwin Truck Body | PLD

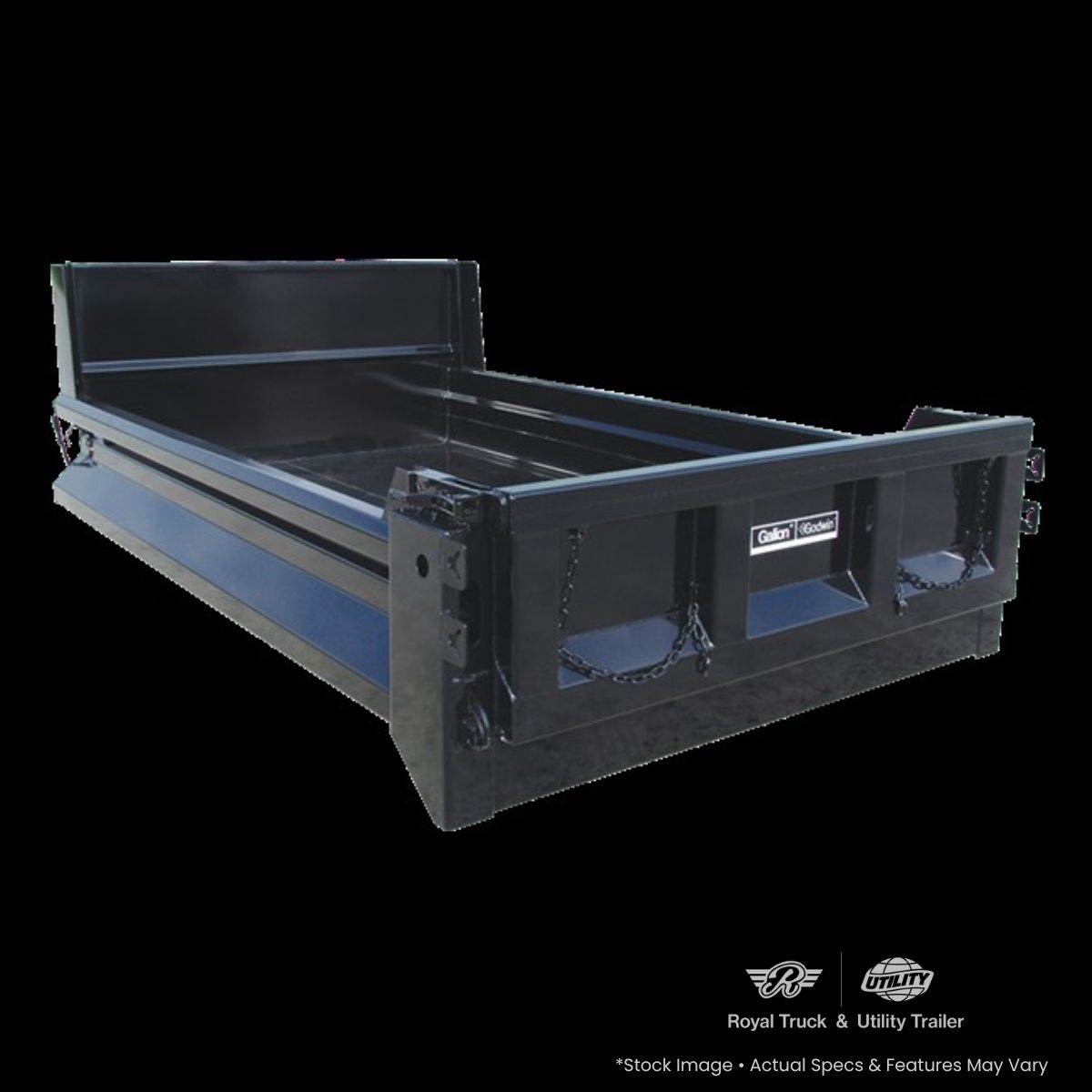

The Galion PLD body is designed for superior service on 12000 - 26000 GVWR cab/chassis'. It features all 10 gauge high tensile steel floors, tailgate, head sheets and single V brace sides. 10" full depth rear corner posts and boxed "material-shedding" top rails are also standard. The PLD is designed to operate with scissor type conversion hoists.

• General Dimensions: Available With Inside Width Of 84" And Lengths Of 12', 14' And 16'. Features 18" Sides, 42" Front And 24" Gate
• Sides: 10 Gauge High Tensile Steel Sides With Horizontal Pressed V Brace, Material Shedding Boxed Top Rails, Full Depth 10" Rear Corner Post And 6" Front And Rear Board Extension Pockets. Drop Sides Do Not Have Pressed V Brace
• Floor: 10 Gauge High Tensile Steel, With 2" Radius Floor To Side Radius
• Front Bulkhead: 10 Gauge High Tensile Steel Construction With Two Bend Top Flange And Horizontal V Brace
• Tailgate: 10 Gauge High Tensile Steel With Full Perimeter Box Bracing, Two Intermediate Vertical Box Braces, Double Acting With Long Chains And Two Sets Of Banjo Eyes
• Tailgate Hardware: Heavy Duty Cast Quick Release Top Hardware And Cast Overshot Lower Hardware With Manual Release Handle
• Lights: Meets All Requirements Of FMVSS108 With Oval Stop/Tail/Turn Lights Recessed In Rear Post. All Lighting Is Recessed, Shock Mounted, Complete With Factory Wiring Harness
• Understructure: Stacked Design Utilizing 7" Structural Longitudinals Gusseted To 3" Structural Channel Crossmembers On 12" Centers, Lubricated Front And Rear Cross Shaft And Full Width Rear Bolster
• Safety Features: All Complete Galion PLD Bodies Are Shipped With A "Body Up" Warning Light And OSHA Required Back Up Alarm
• Paint: Glossy Black Thermoset Powder Coating On Top Of Thermoset Zinc Powder Coat Primer

Optional Features Include:

• Aluminum Construction
• 304 #4 Stainless Steel Construction
• 304-2B Stainless Steel Construction
• 201-LM2B Stainless Steel Construction
• 201 #4 Stainless Steel Construction
• Coal Door In Gate
• Fold Down Sides
• Sleek Cab Protector
• Integral Cab Protector
• Bolt On Spreader Apron

Call for more information and pricing!
