Specifications:
Stock #: HE-00005

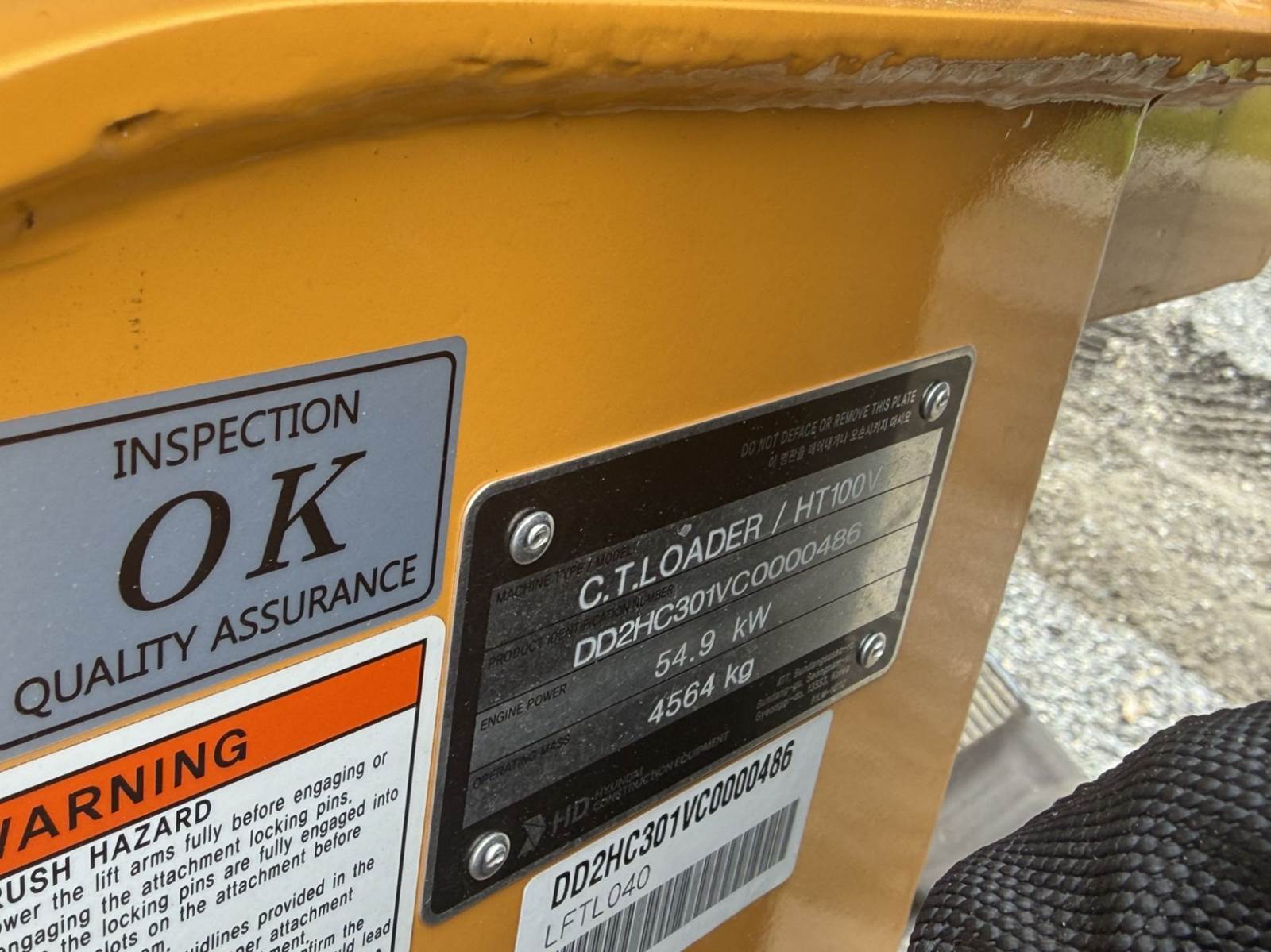

Serial #: DD2HC301VC0000486
Year: 2026
SKU: HE-00005
── Engine ──
Make/Model: Hyundai / 4HTI4
Emissions Certification: EPA Tier 4-Final
SAE J1349 Net 69.7 hp (52 kW) / 2,400 rpm — Displacement: 148.6 cu in (2,435 cc)
Number of Cylinders: 4 cylinders
Bore x Stroke: 3.4” (87 mm) x 4.0” (102.4 mm)
Aspiration: Turbocharged
After treatment: DOC, DPF (No DEF)
── Loader Performance ──
~50% tipping load — Bucket: 6,204 lbf (2,814 kgf)
Breakout Force — Lift Arm: 4,766 lbf (2,162 kgf)
Lift Arm Path: Vertical

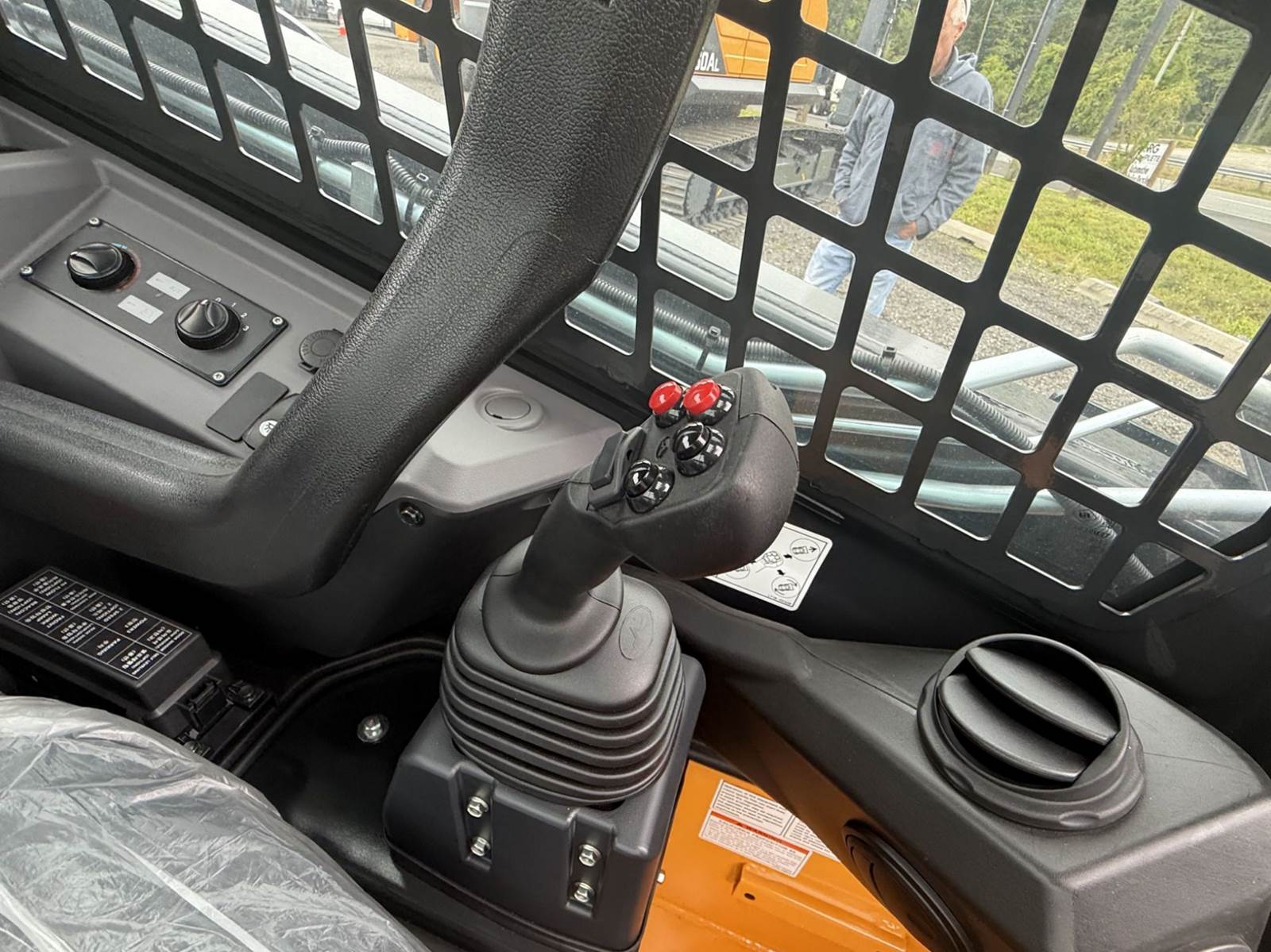

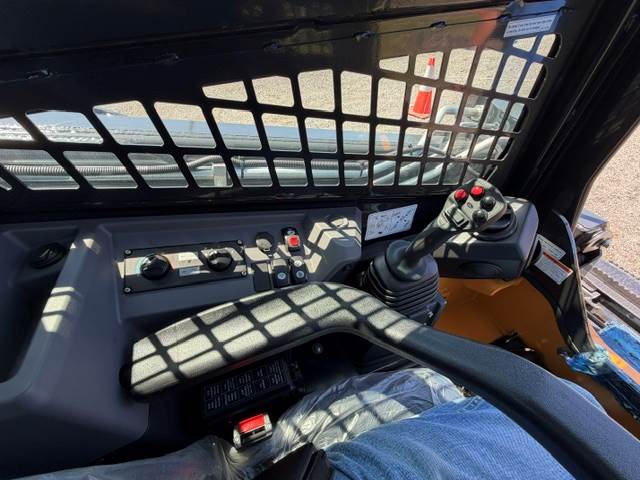

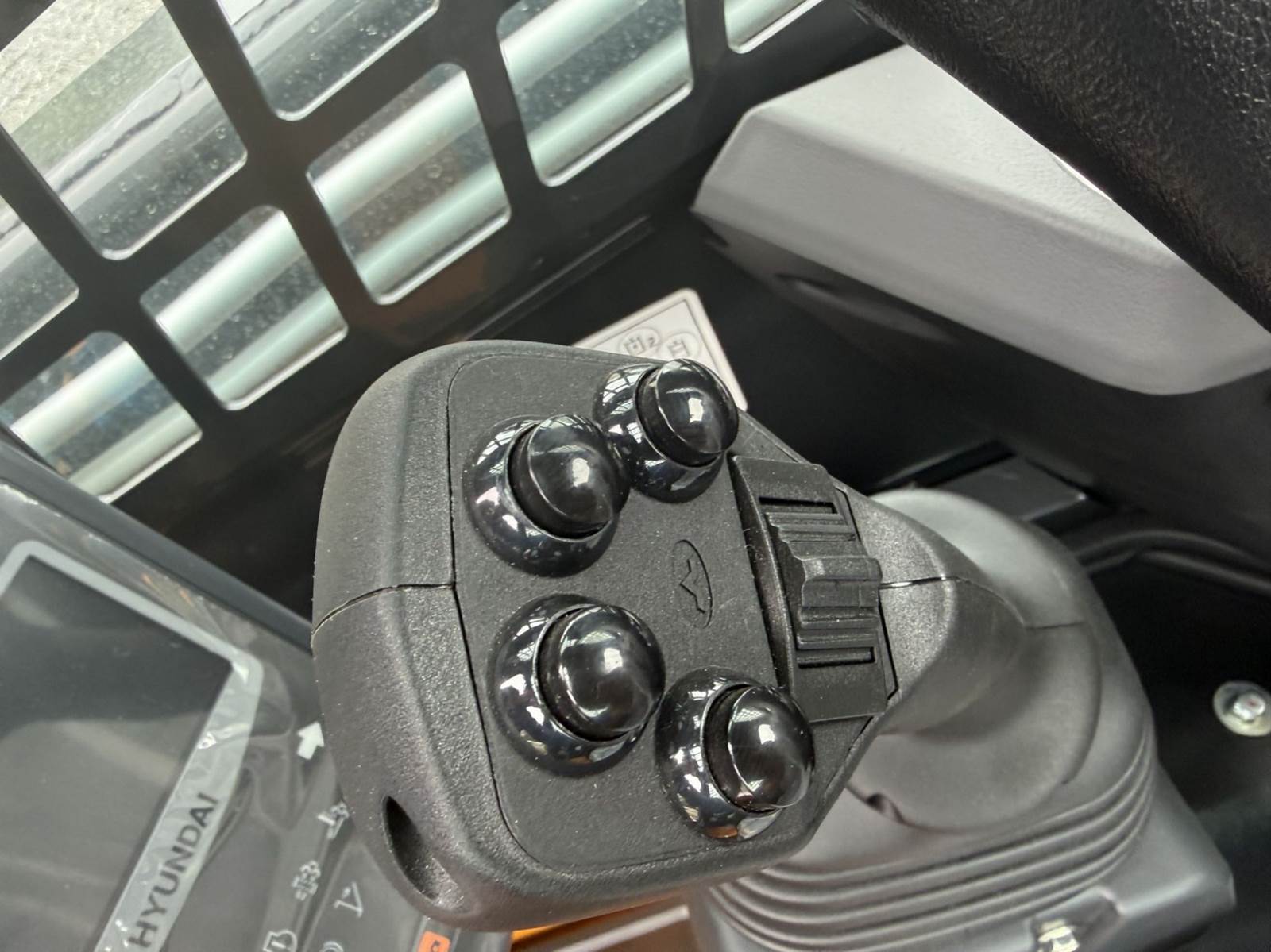

Control: ISO Pilot
── Undercarriage ──
Track Width: 1’ 4” (400 mm)
Ground Pressure: 5.6 psi (38.5 kPa)
Track Rollers (Per Side): 4
Travel Speed (1-Speed): N/A
High 7.1 mph (11.5 km/h) — Traction Force: 6,482 lbf (2,940 kgf)
Ground Clearance: 9" (230 mm)
── Hydraulic System (Standard) ──
Hydraulic Flow: 21.9 gpm (82.9 lpm)
Hydraulic Pressure: 3,335 psi (230 bar)
── Service Refill Capacities ──
Hydraulic System: 10.0 gal (38 liters)
Engine oil: 2.4 gal (9 liters)
Engine coolant (Radiator Included) 2.7 gal (10.4 liters) — Fuel tank: 26.4 gal (100 liters)

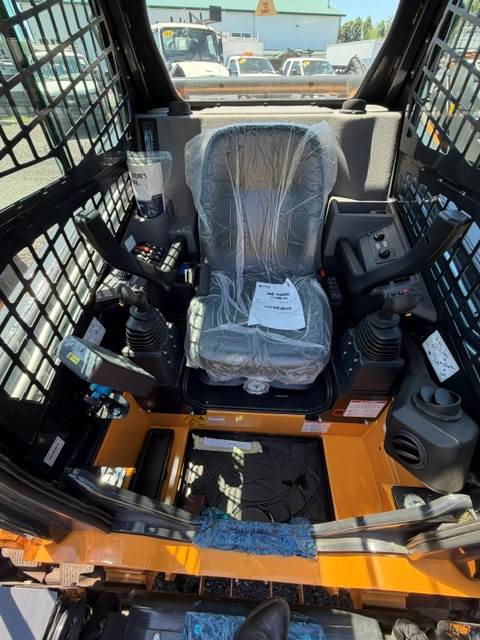

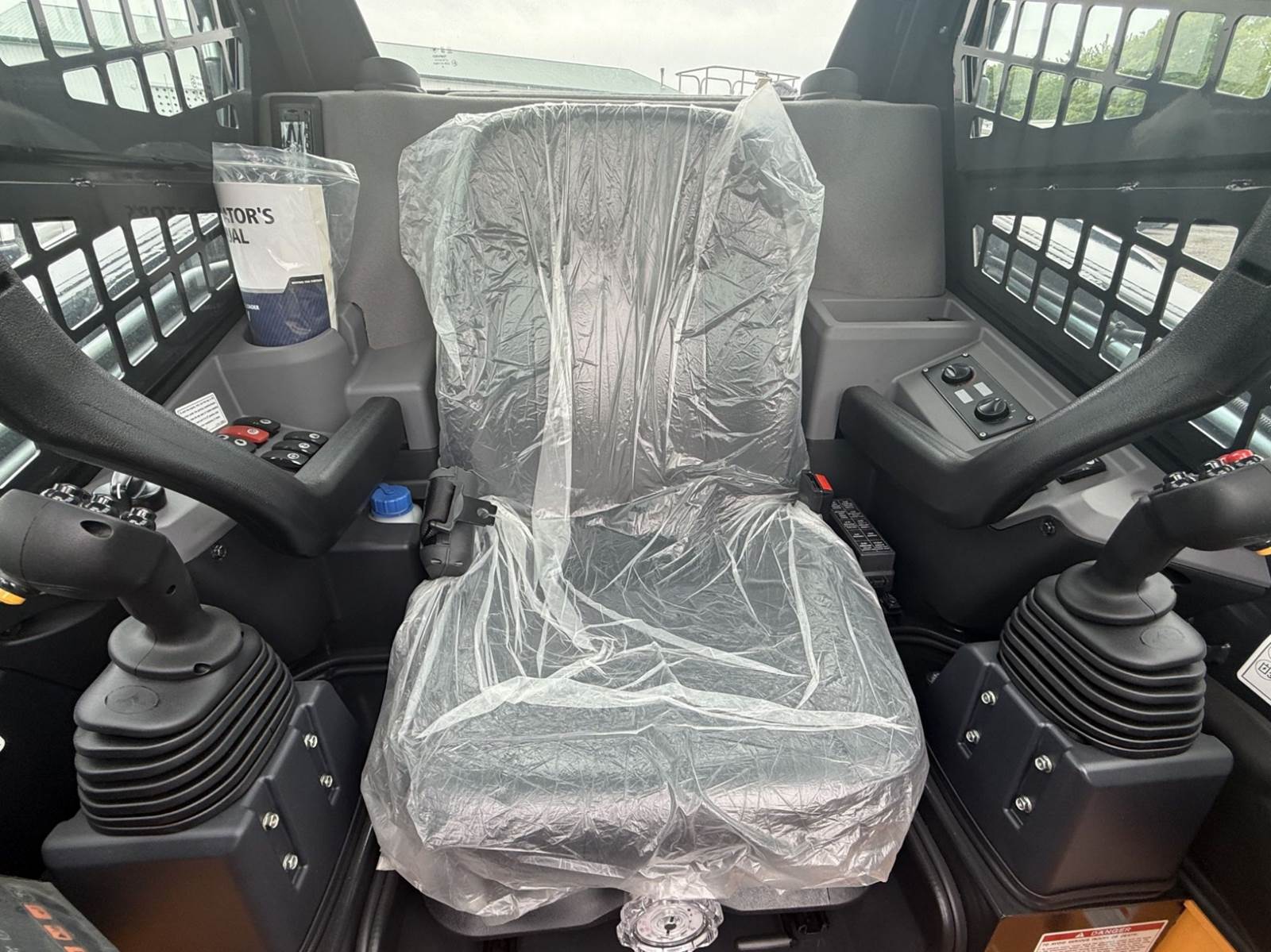

── Operator Station ──
Type: Open and Closed Cab
Sound Inside Closed Cab: 83 dB
ROPS: ISO 3471
FOPS: ISO 3449
── Operating Weight ──
Open Cab: Coming Soon
Closed Cab: 9,755 lbs (4,425 kg)
2” Retractable Seat Belt*: • Polycarbonate Front Door*
Side Mirrors: • Fire Extinguisher

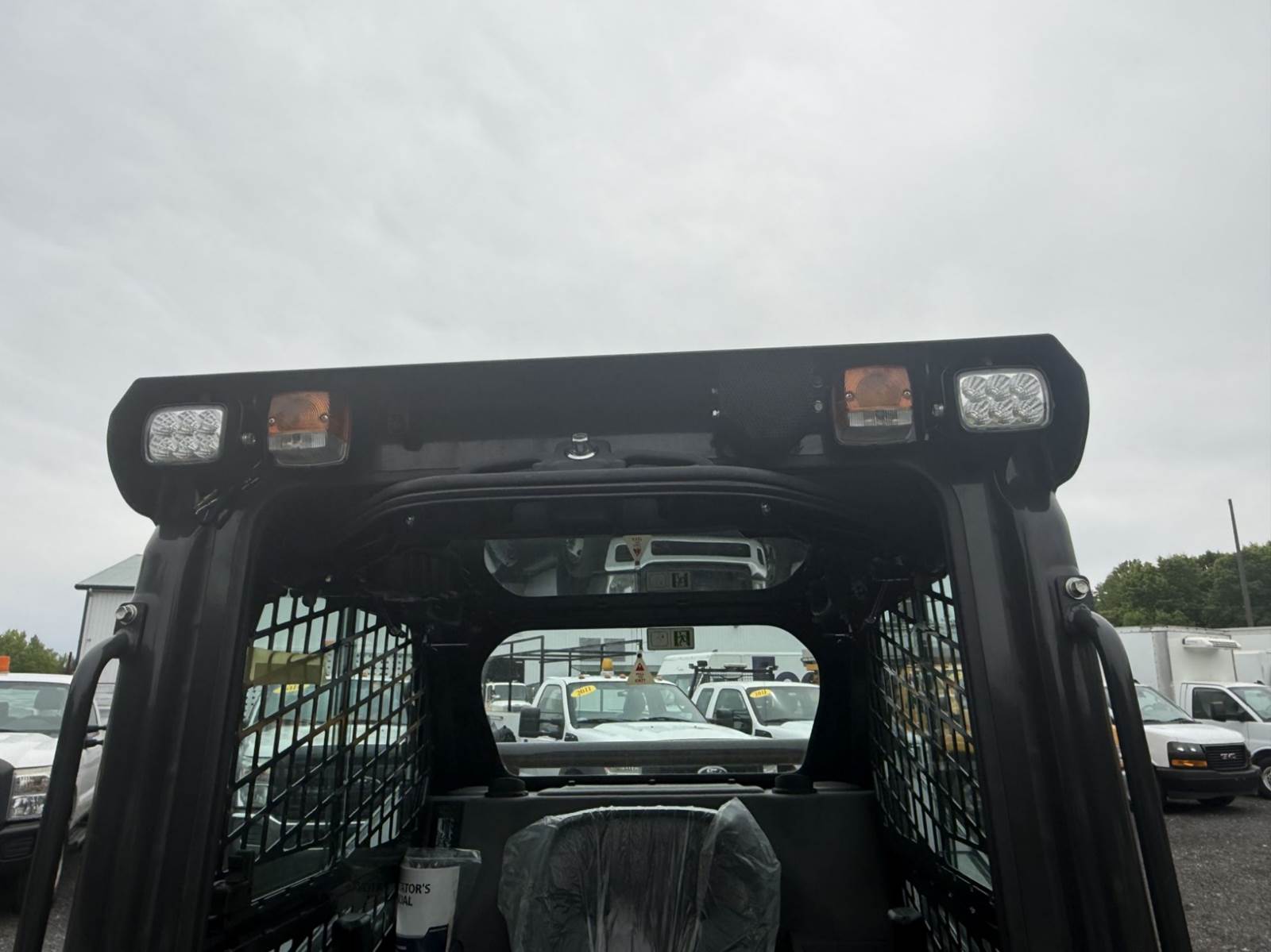

Driving Lamp (Front 2/Rear 2): * Factory Option
── Dimensions ──
Length w/bucket on ground: 3,654 (12’ 0”)
Length w/o bucket: 2,795 (9’ 2”)
Vehicle width over tire: 1,794 (5’ 11”)
Width with bucket: 1,890 (6’ 3”)
Height to top of cab: 2,078 (6’10”)
Track tread: 1,394 (4’ 7”)
Wheelbase: 1,435 (4’ 8”)
Ground clearance: 230 (0’ 9”)
Reach at max. lift and dump: 916 (3’ 0”)
Height at max. lift and dump: 2,468 (8’ 1”)
Hinge pin height at max. lift: 3,211 (10’ 6”)
Max. dump angle: 44.5º
Rollback angle on ground: 29º
Turning radius from center - coupler: 1,672 (5’ 6”)
Turning radius from center - bucket: 2,289 (7’ 6”)
Turning radius from center - machine rear: 1,720 (5’ 8”)
Rear departure angle: 25º
Max. overall height: 4,060 (13’ 4”)
Rack back angle at max height: 87.2º
Bucket pin reach at maximum lift: 442 (1’ 5”)
