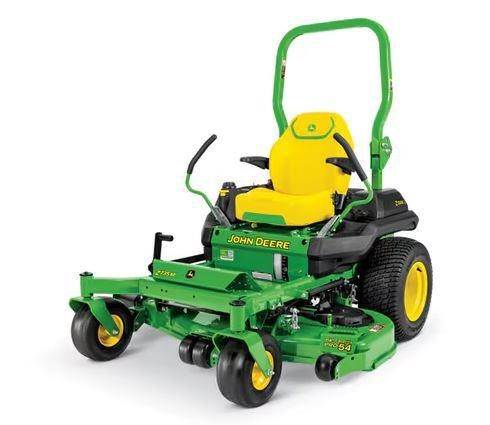

2026 John Deere Z735M Zero Turn Mower

25 HP*
Vertical-Shaft Air Cooled
Engine (49.4 Cu. In.)
810cc, 18.6 kW
Full Pressure Lubrication System
with Replaceable Oil Filter
Dual element air cleaner;
Dry replaceable
Filter element with foam
pre-cleaner element
12 Volt with 15 AMP Regulated
Charge System
Dual Hydrostatic Wheel Drive
HydroGear 3200 Ground Drive
Integrated Parking Brake
Steel Tubular Frame
Operator Presence System
Folding Two Post ROPS (Roll-
Over Protective Structure)
and Seat Belt
60 In. High Capacity Pro
Side Discharge Mower Deck
9-Gauge Stamped Steel Mower Deck
8 In. Aluminum Spindle Housing
One-Touch Dial and Foot Spring
Assisted Height of Cut
Adjustment
Deck Transport Lock System
Full Floating Suspension Deck
1.5 - 5.0 In. Cutting Heights
in 0.25 In. Increments
Dual Premium Direction/Speed
Control Levers
Quick-Service Removable
And adjustable Foot Platform
9.5 MPH Travel Speed
8 U.S. Gallon Fuel Capacity
23x9.5-12 In. Square Shoulder
4PR Turf Drive Tires (48 In.)
23x10.5-12 In. Square Shoulder
4PR Turf Drive Tires (54 In. & 60 In.)
13x6.5-6 Pneumatic Front
Caster Tires
22.5 In. high-back seat with
ComfortGlide Fore/aft suspension
and adjustable seat springs
Right Hand Control Console Cluster
Cup Holder
Fuel sight line
Electric PTO Clutch
Digital Hourmeter
Hitch
Drive Type: 2WD
