Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost – Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro, or Westminster. Contact us for details!
Model Year: 2025

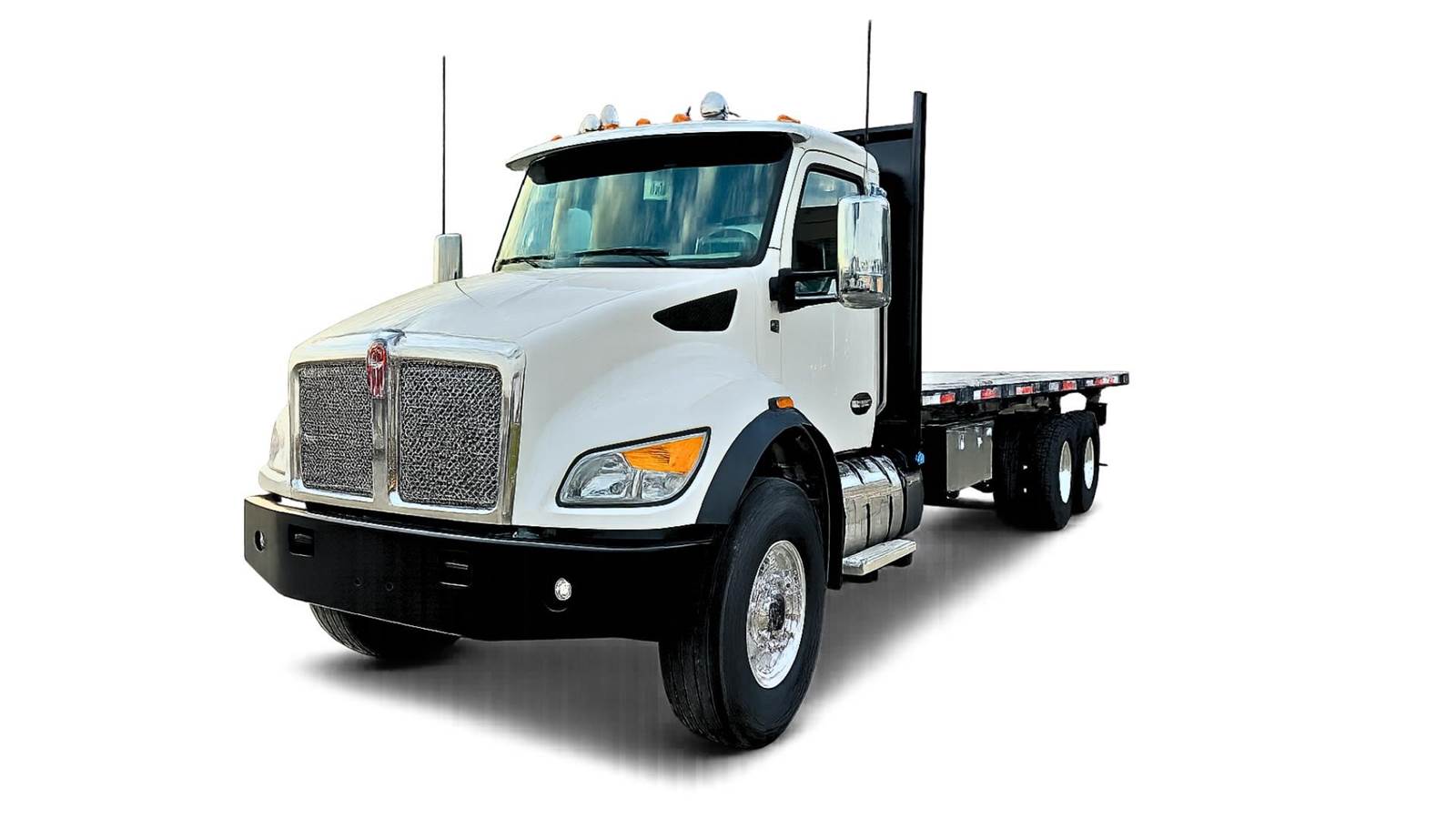

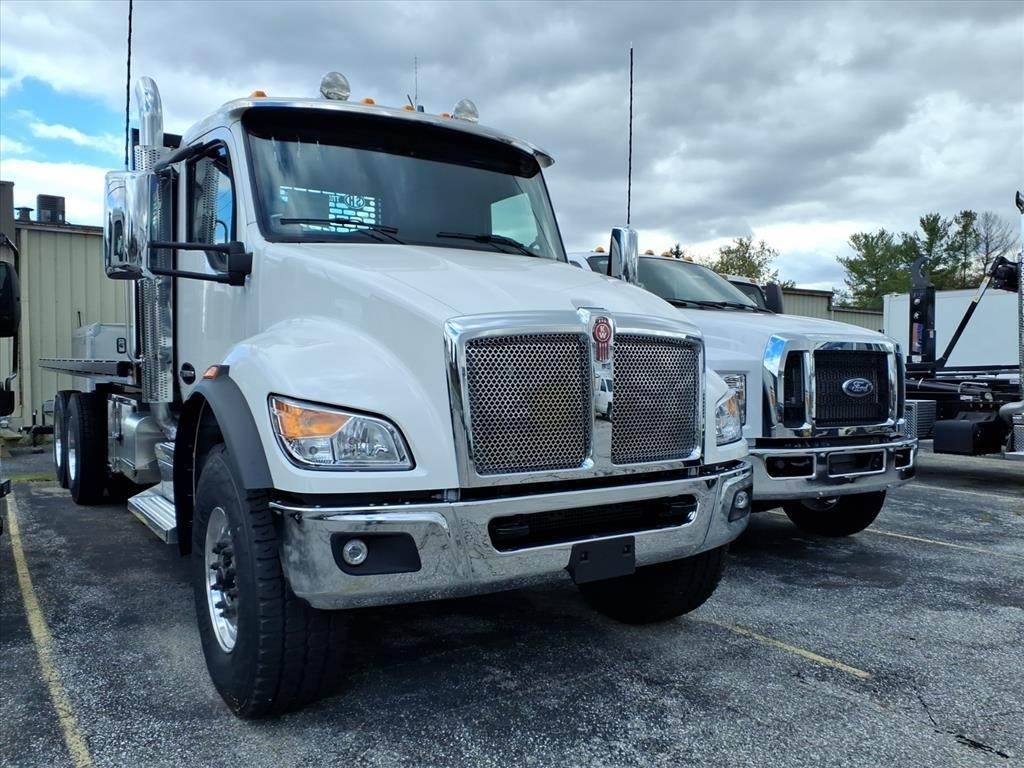

Model: T480
Engine: PACCAR PX-9, 370 HP @ 1600 RPM, 1250 lb-ft Torque @ 1200 RPM, Engine Brake

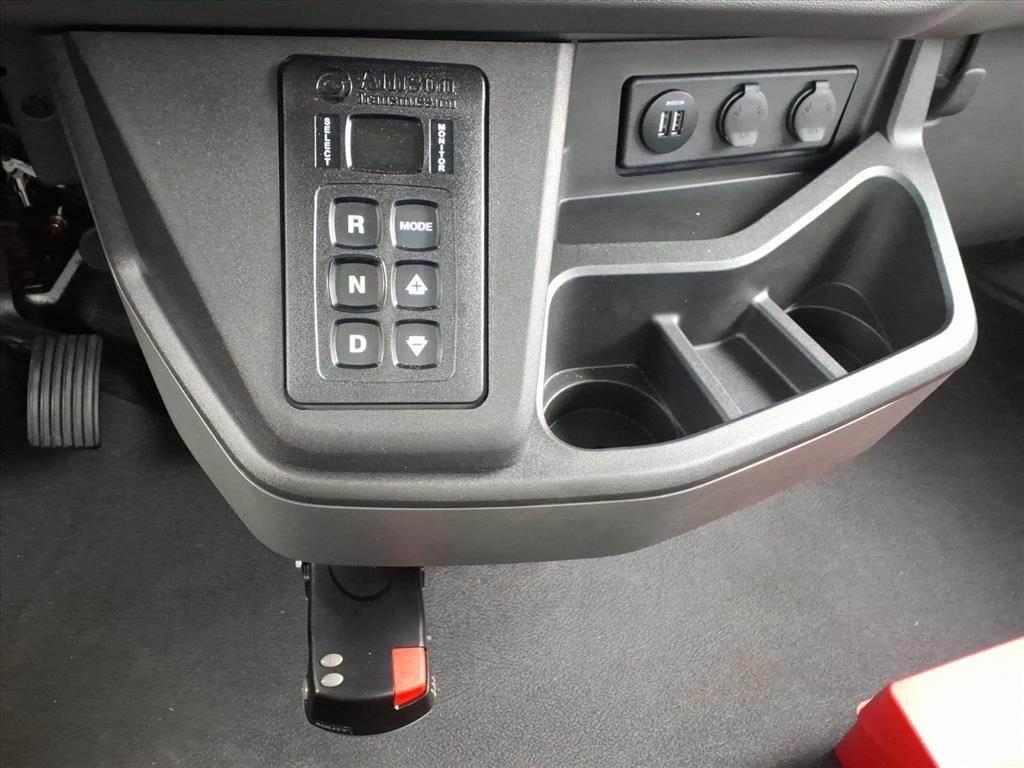

Transmission: Allison 3000RDS, 6-speed Automatic
Front Axle: Dana Spicer D2000, 20,000 lbs
Intermediate Axle: 23,000 lbs
Rear Axle: Meritor RT46-160P, 46,000 lbs
Rear Suspension: Hendrickson HaulMaxx EX (HMX) 460, 46,000 lbs, 54" Air Suspension
Gross Vehicle Weight Rating (GVWR): 66,000 lbs
Wheelbase: 256 inches
Cab-to-Axle: 186.5 inches
Rear Axle Ratio: 5.38
Locking Rear Differential / Crosslock: Meritor CrossLock, 40-58K
Double Frame: Full Steel Inserts

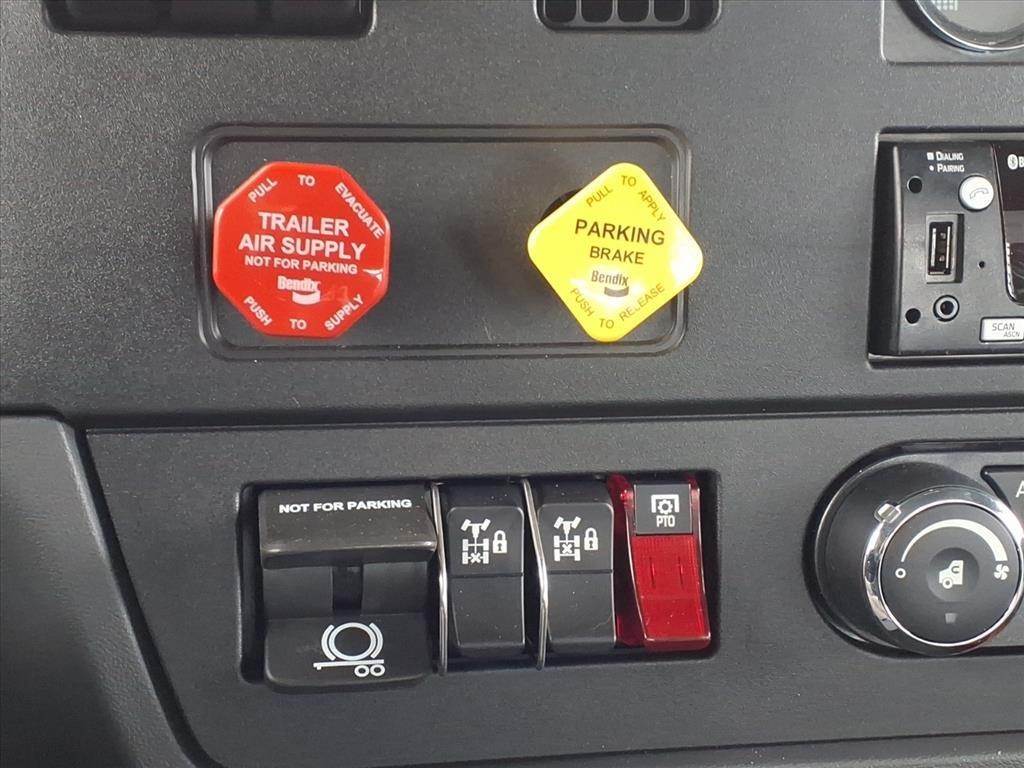

Brakes: Front and Rear Drum Brakes, Bendix ES
Wheels: Front: Accuride 29374 22.5x12.25 Aluminum Hub Pilot Extra Polish, Rear: Accuride 42362 24.5x8.25 Aluminum Hub Pilot Extra Polish
Tires: Front: Goodyear ArmorMax MSA 425/65R22.5 20PR, Rear: Goodyear Endurance LHD 11R24.5 14PR
Fuel Tank: 80-gallon D-shape Aluminum, Polished
DEF Tank: 15-gallon, Polished Cover
Exterior Color: White
Interior: Medium Duty Gray Foam Backing, Cloth Headliner

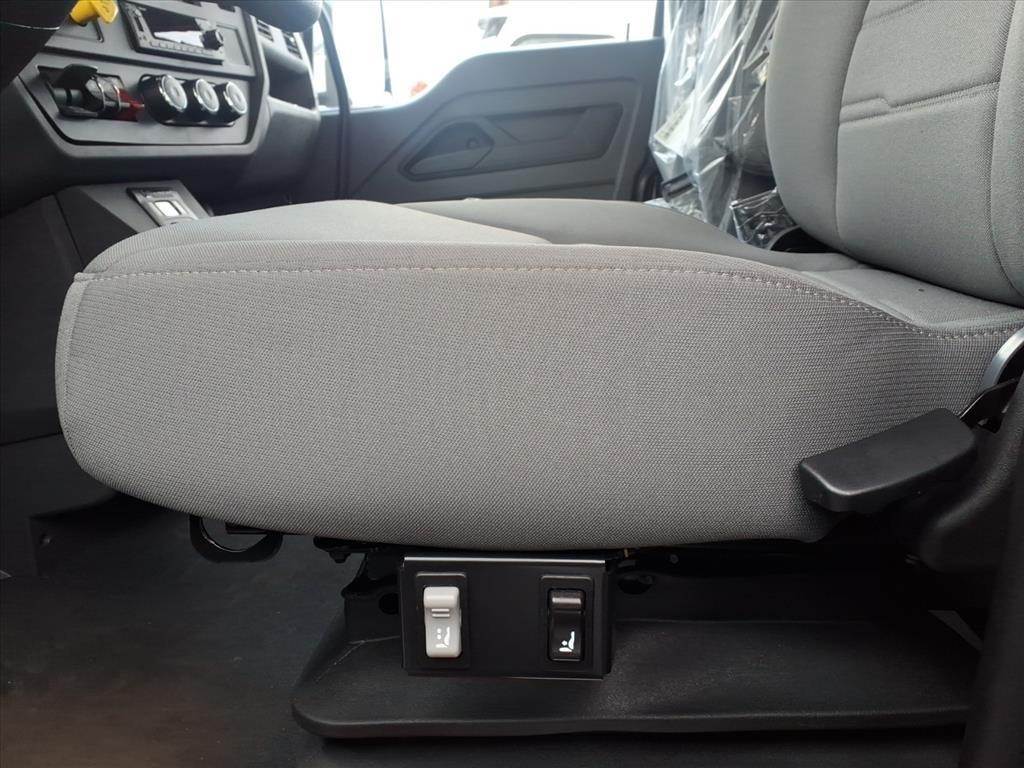

Driver Seat: Kenworth Air Seat High Back Tough Cloth with Dual Armrest
Passenger Seat: Kenworth Toolbox High Back Tough Cloth with Dual Armrests

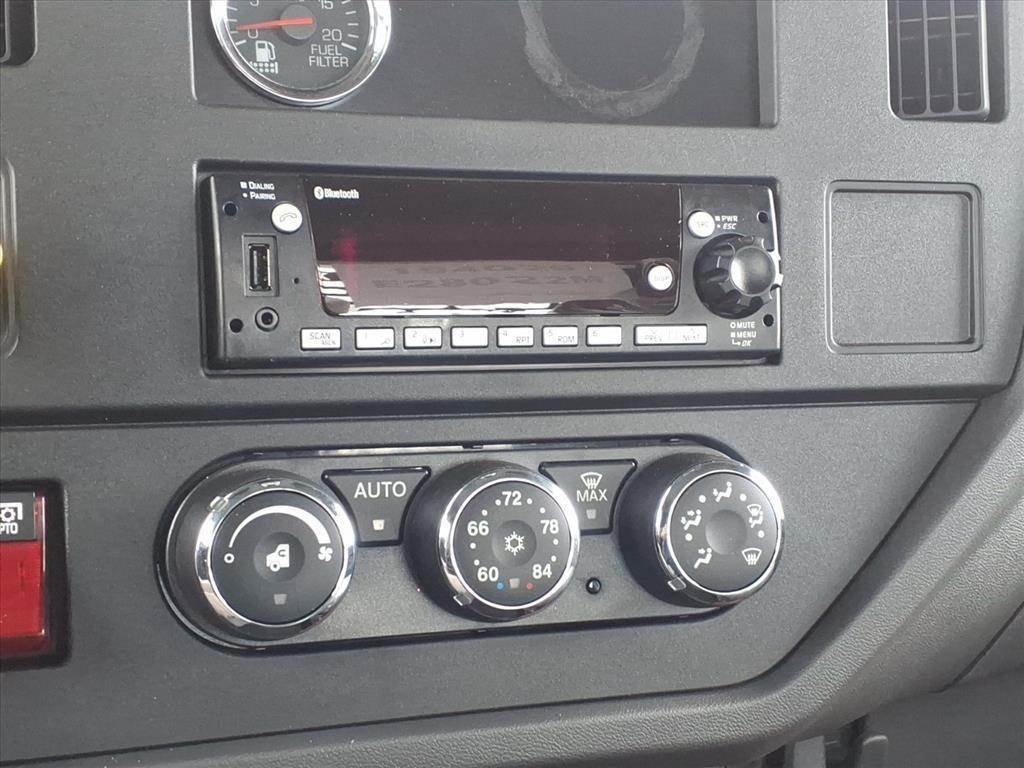

Radio: Kenworth DEA710 AM/FM/WB/USB with Bluetooth
Chrome Package: Chrome Aerodynamic Bumper, Dual Aero Chrome Mirror Shells, Stainless Steel Exterior Sunvisor
Polished Package: Polished Fuel Tank, Polished DEF Tank Cover, Polished Fuel Tank Steps, Polished Straps, Polished DPF/SCR Box End Plates and Cover, Extra Polish Front and Rear Wheels

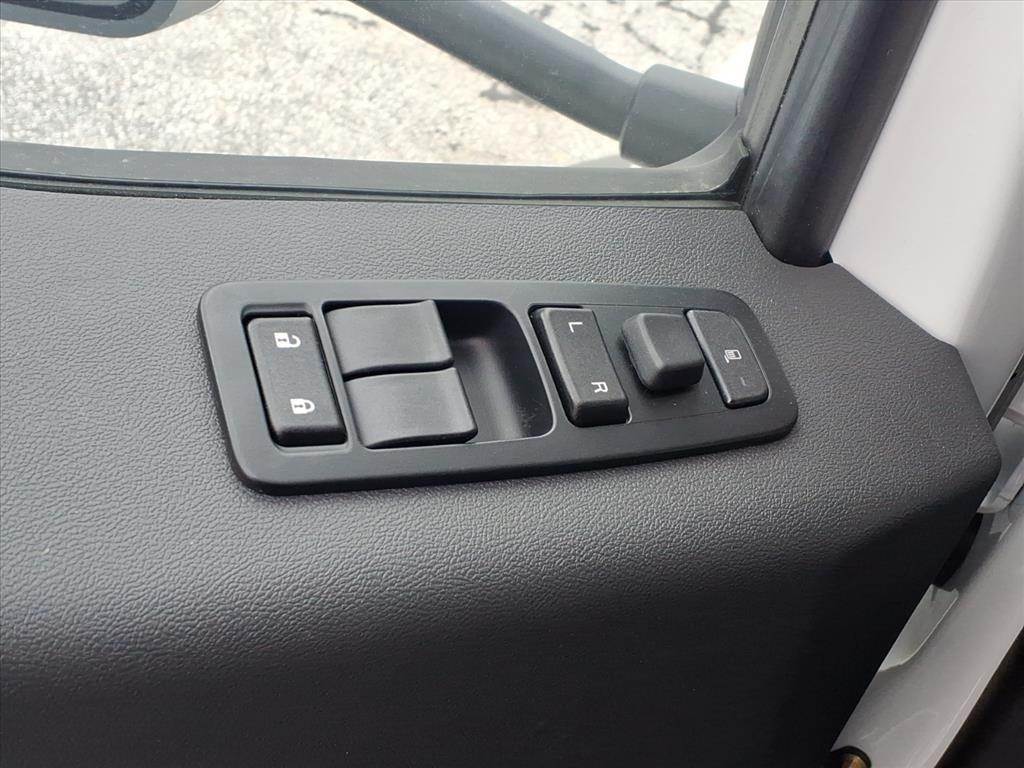

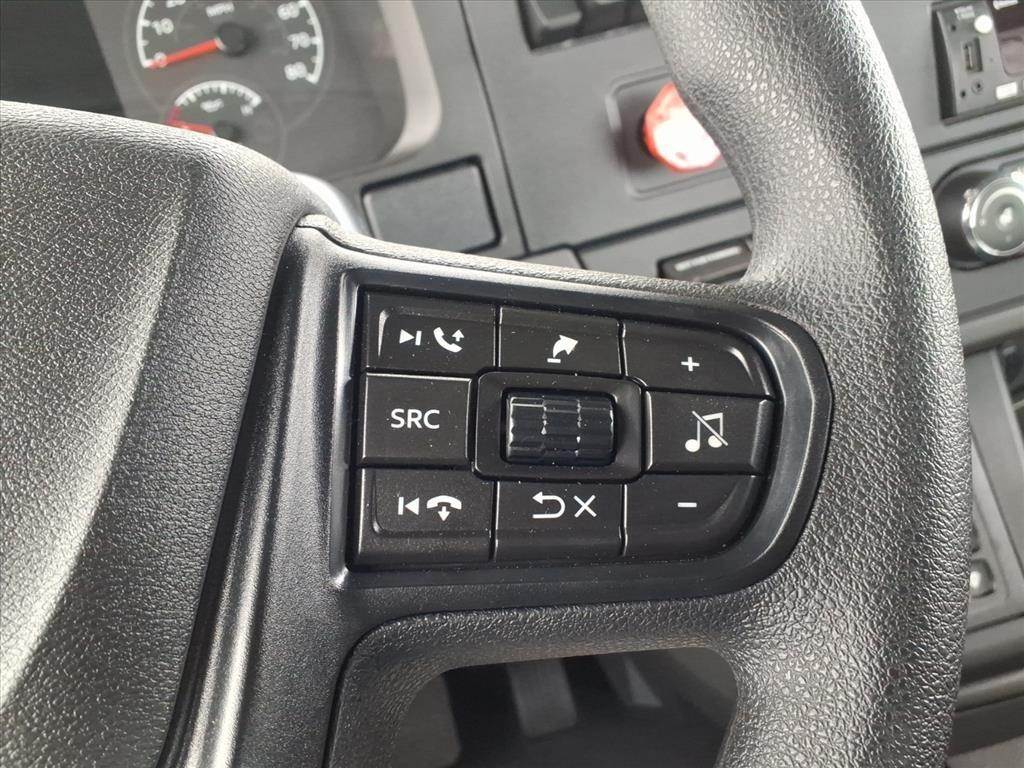

Additional Features: Kenworth TruckTech+ (5-year subscription), 7" Main Instrument Display, Air Conditioning with Auto Temperature Control, Fine Particulate HVAC Filter, Kenworth Smart Wheel with Integrated Radio and Cruise Controls, Adjustable Telescoping Tilt Steering Column, Electric Door Locks, Electric Window Controls, Heated Power Mirrors, Dual Interior Grab Handles, Dual Round Air Horns, CB Radio Install Kit with Dual Antennas, Fire Extinguisher, Warning Triangle Reflector Kit, Engine Block Heater, Battery Disconnect Switch, Jump Start Terminals, Raised Profile Roof with Additional Head Room and Interior Overhead Storage, Kenworth Cab Air Suspension, Bug Screen, Polished Fuel Tank Steps.

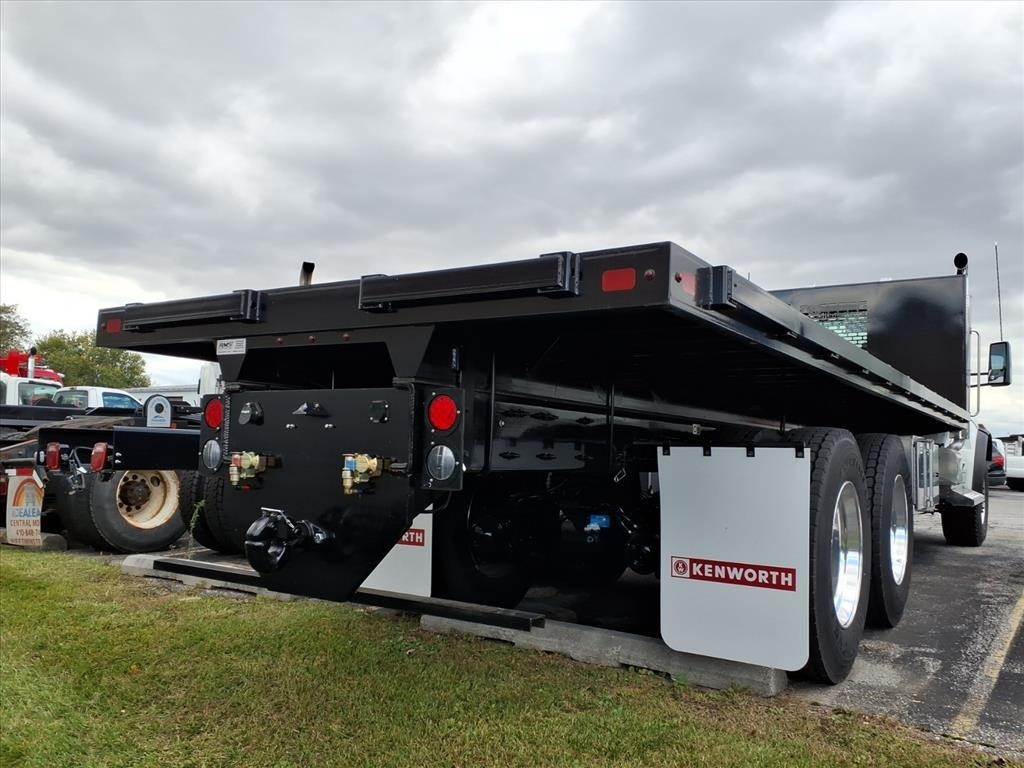

Flatbed Body Type & Dimensions: 24 ft 6 in long × 102 in wide Super Duty steel flatbed platform
Floor Construction: 7 gauge smooth steel floor
Structural Members: 8 in channel longsills; 4 in channel crossmembers on 12 in centers
Bulkhead: 5⁄16 in steel bulkhead with screened window; stake pockets on both sides and rear
Lighting & Alarms: LED marker light kit; gloss-black painted back-up alarm
Hitching Equipment: 1 in pintle hitch plate with ICC bar and safety D-rings; 30-ton swivel pintle hitch (user-specified hitch height)
Electrical Connectors: 7-pin round trailer plug; 7-pin RV trailer plug via junction box; electric brake controller installed in cab
Air Connections: Glad hands (requires air supply to rear)

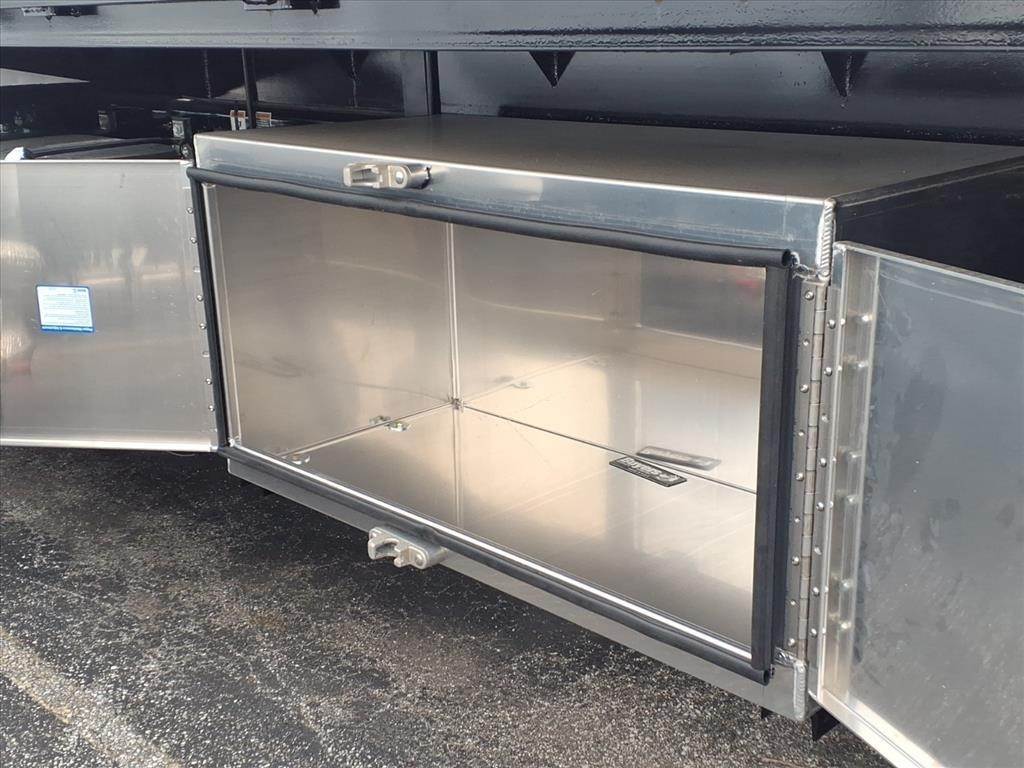

Toolboxes: Two 24 in × 24 in × 48 in smooth aluminum toolboxes, double barn-door style with cam-lock latches, frame-mounted—one per side
