Product Description
Transfer this unit to your nearest South Florida location at no additional cost! Fort Lauderdale, Fort Pierce, Riviera Beach, or Naples. Contact us for details!

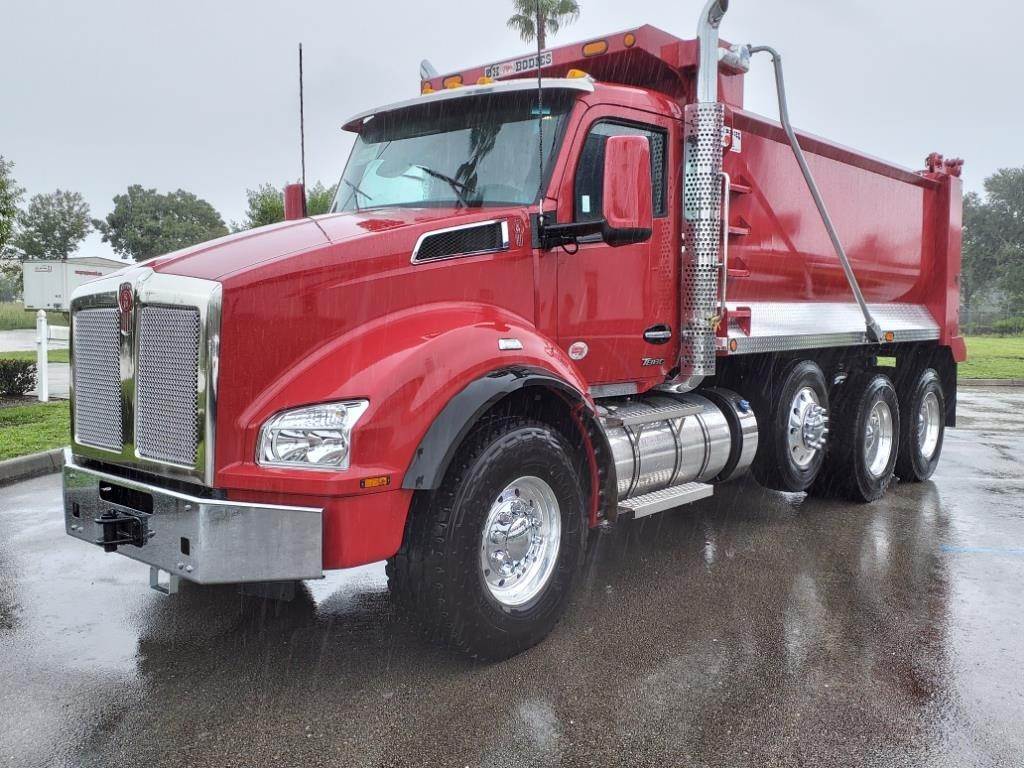

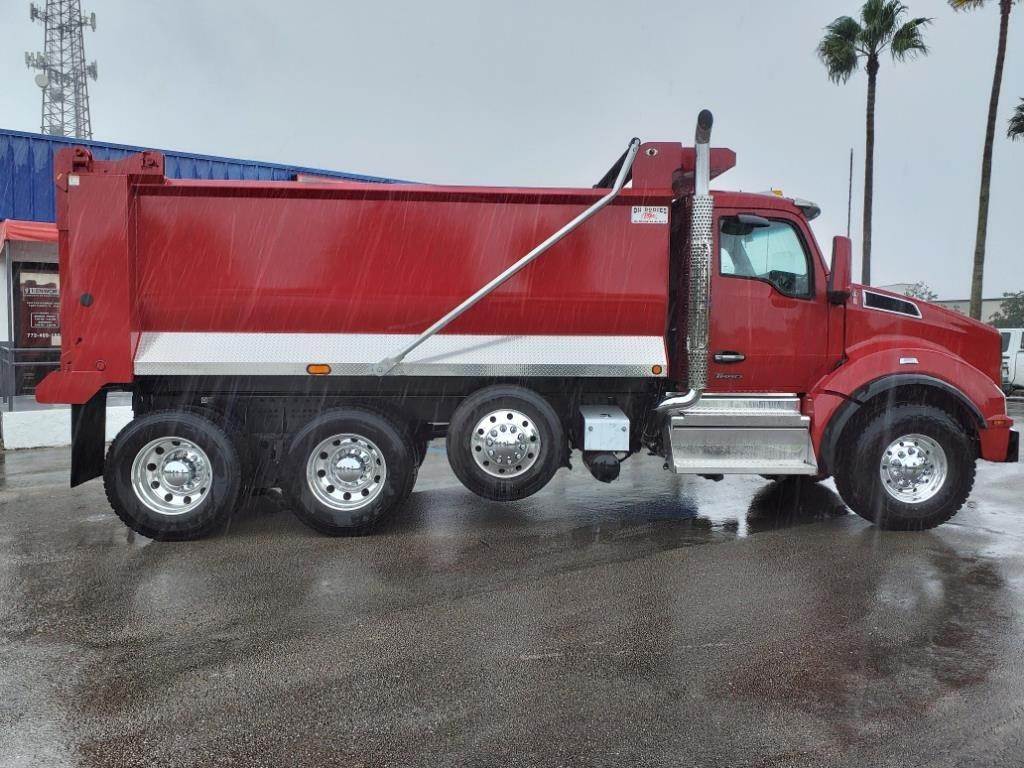

- Model Year: 2025

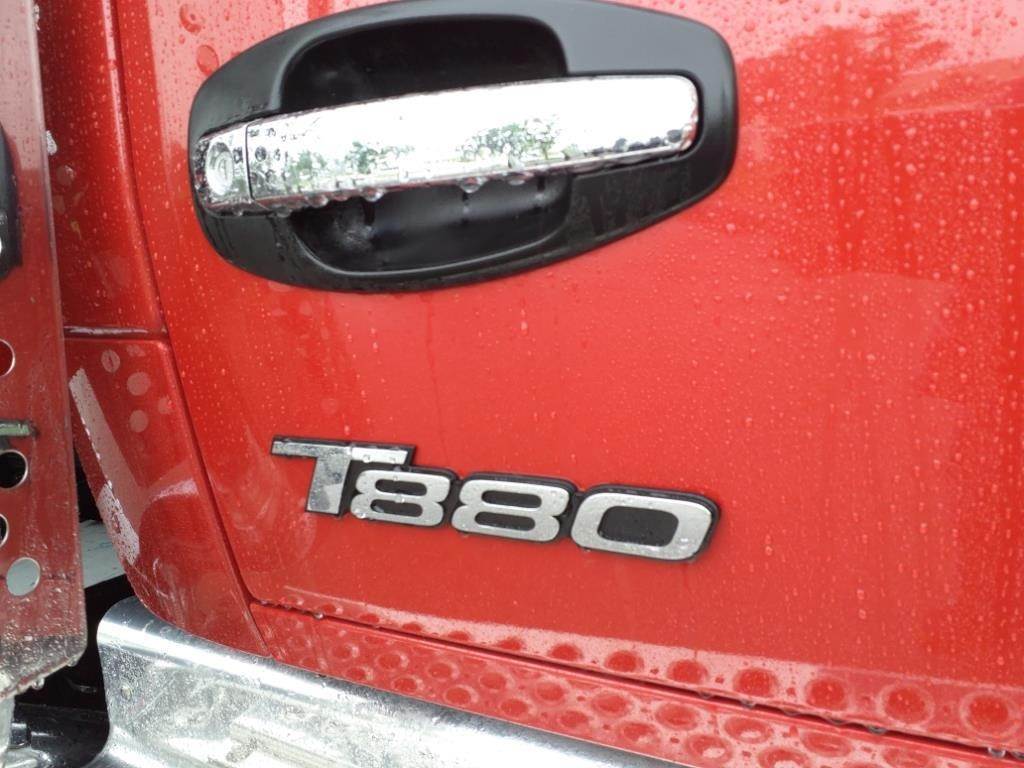

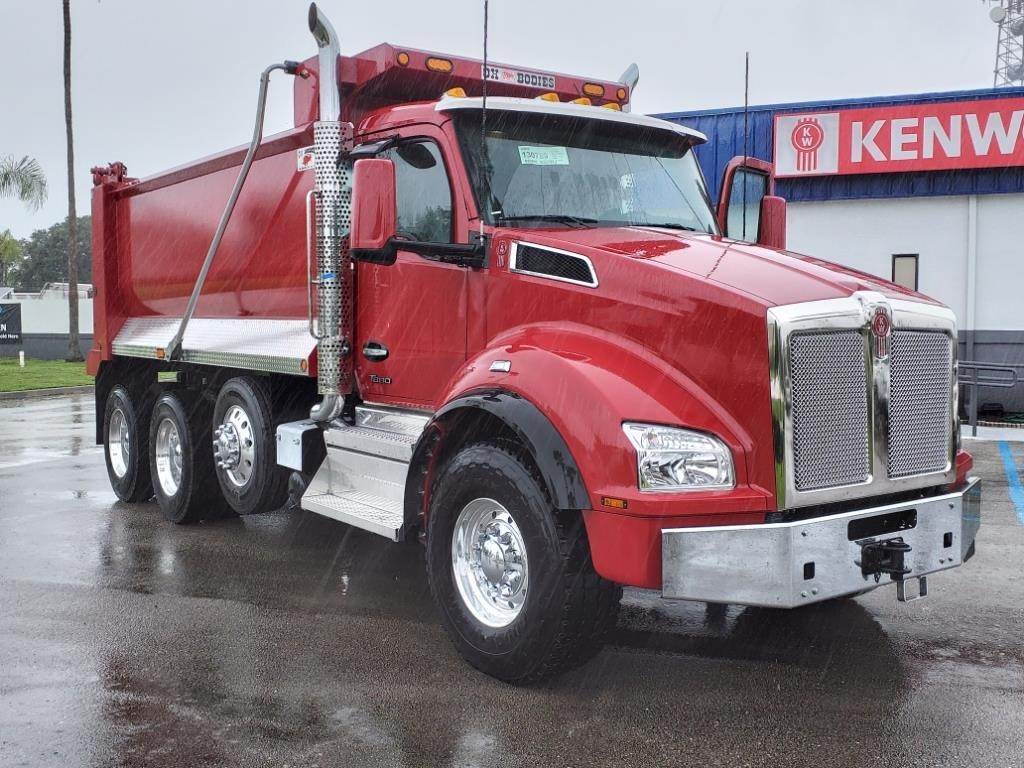

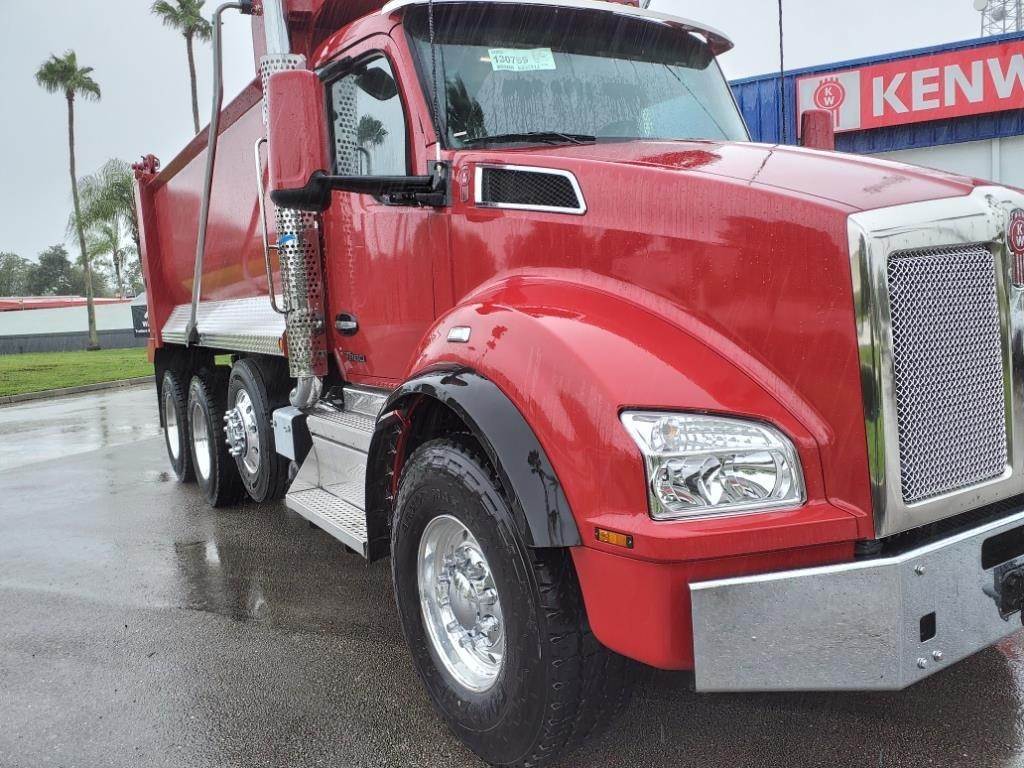

- Model: T880
- Exterior Color: Radiant Red (L5797EY)

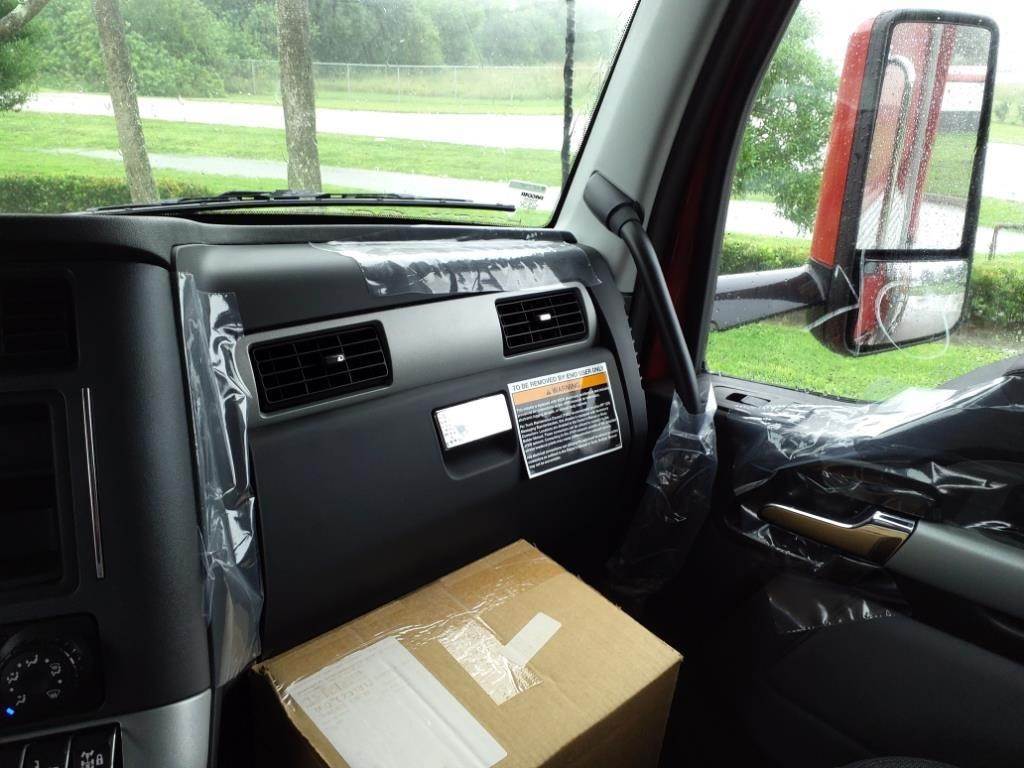

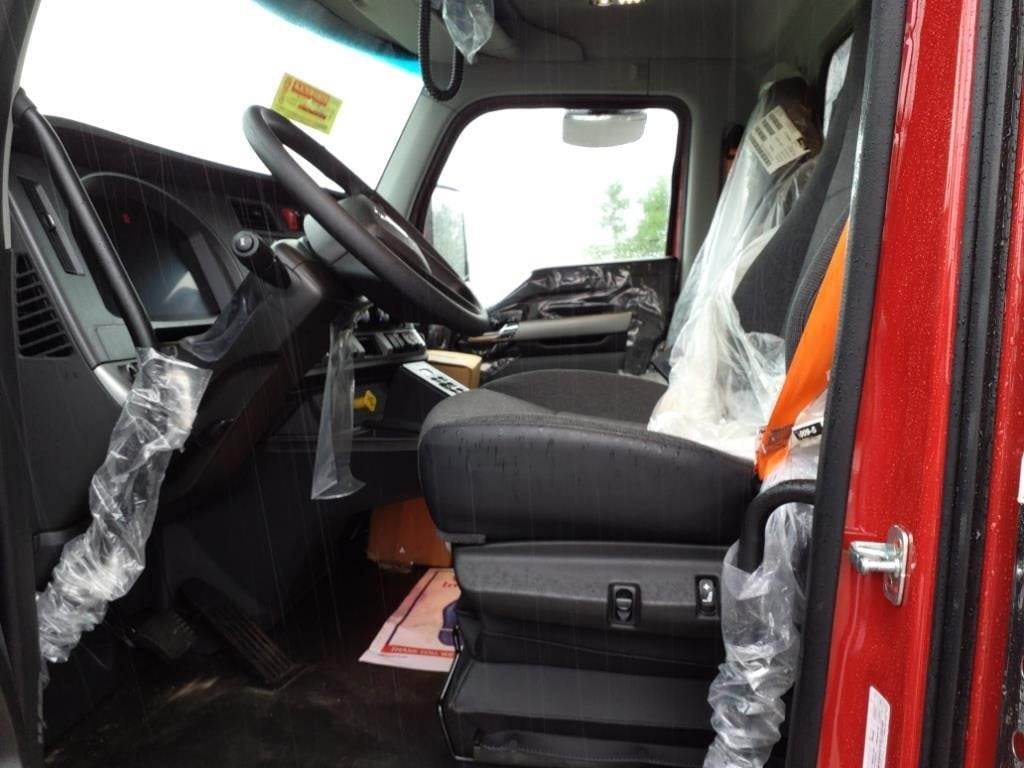

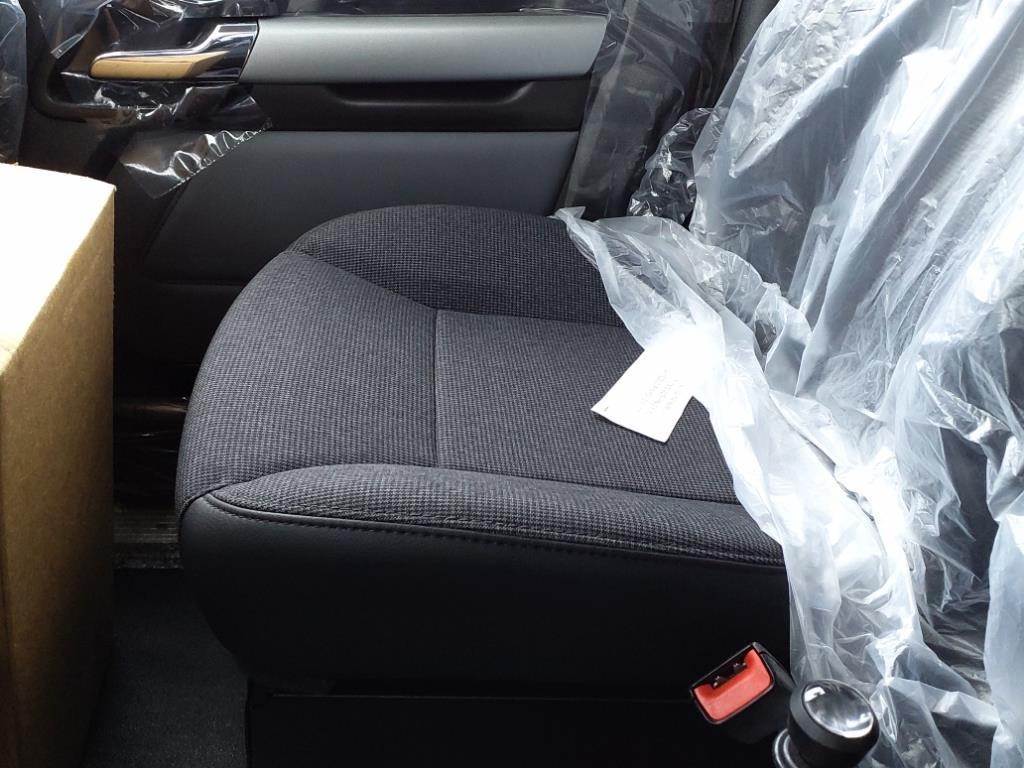

- Interior Trim Level: Vantage Daycab
- Interior Color: Slate Gray

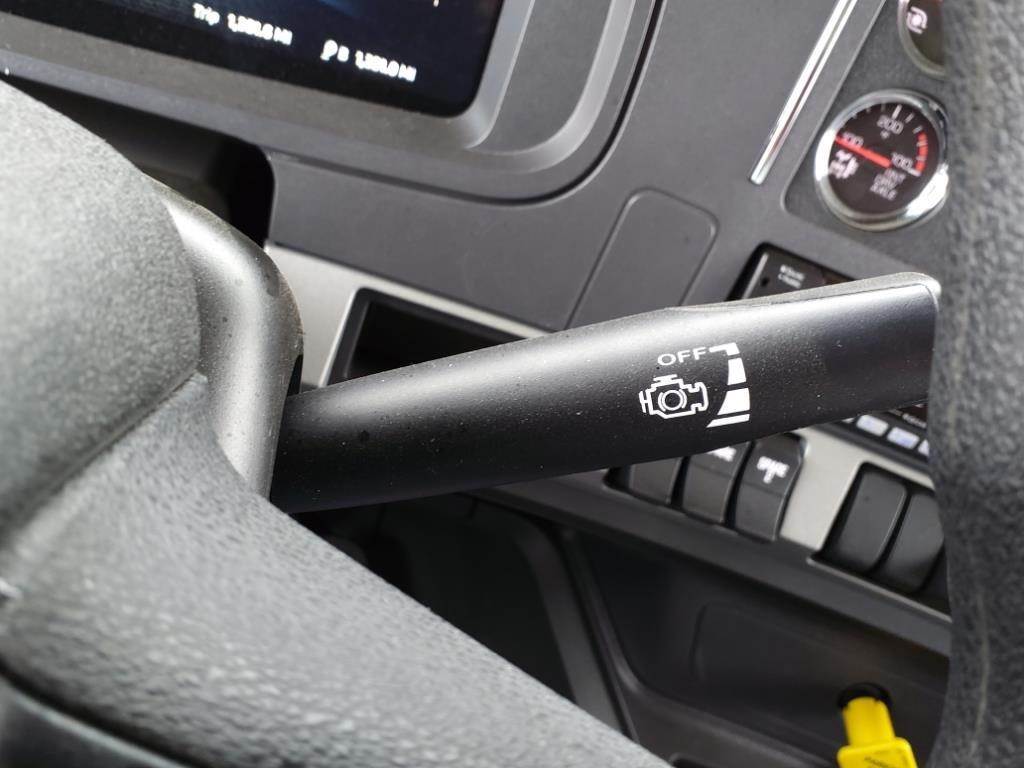

- Engine: Cummins X15 470V, 470 HP @ 1900 RPM, 1750 lb-ft Torque @ 900 RPM, Engine Brake

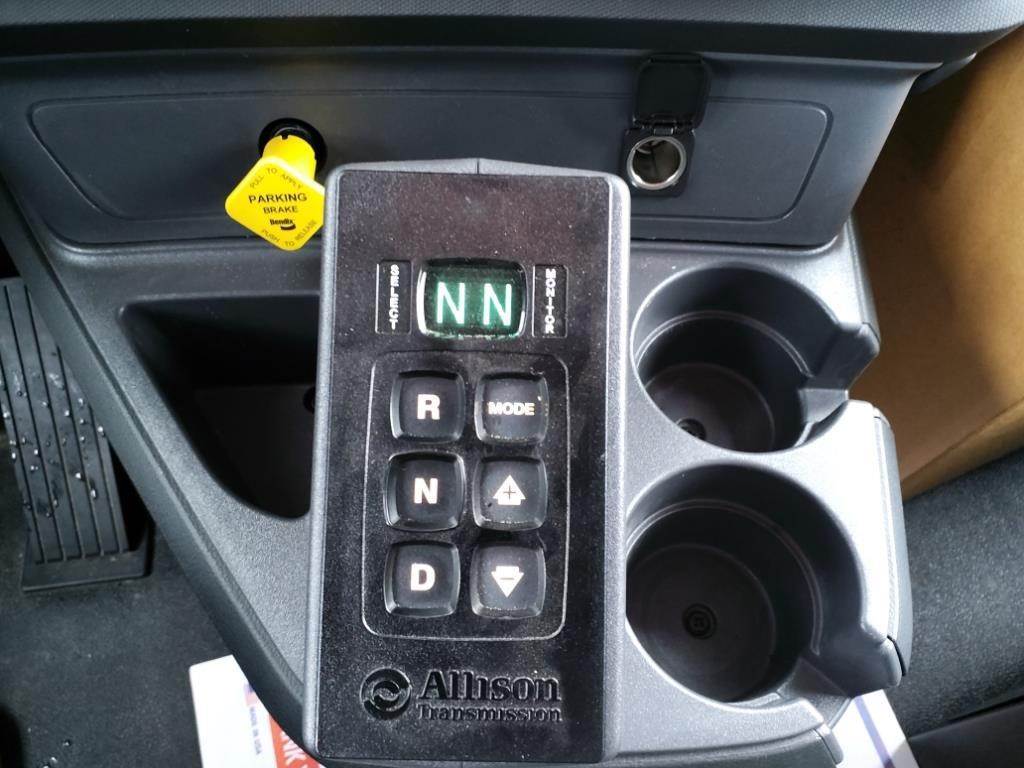

- Transmission: Allison 4500RDS, 6-speed automatic
- Front Axle: PACCAR FX-20, 20,000 lbs
- Rear Axle: Meritor RT46-160, 46,000 lbs

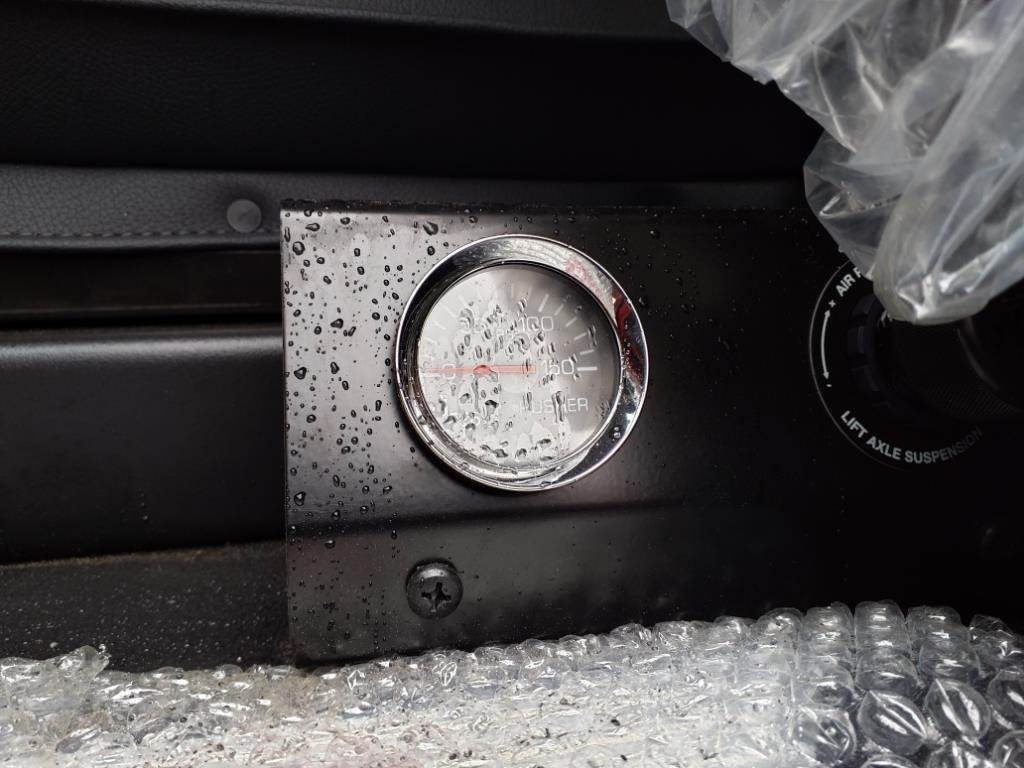

- Pusher Axle: Watson & Chalin SL13, 13,500 lbs, steerable
- Front Suspension: Taperleaf, 20,000 lbs with shocks
- Rear Suspension: Hendrickson Haulmaax EX (HMX) 460, 46,000 lbs, 54 inch
- GVWR: 79,200 lbs
- Wheelbase: 216 inches
- Cab-to-Axle: 142 inches
- Rear Axle Ratio: 4.30
- Brakes: Front drum brakes, Bendix HP-ES 16.5 x 6 inch, Rear drum brakes, Bendix ES S-Cam 16.5 x 7 inch

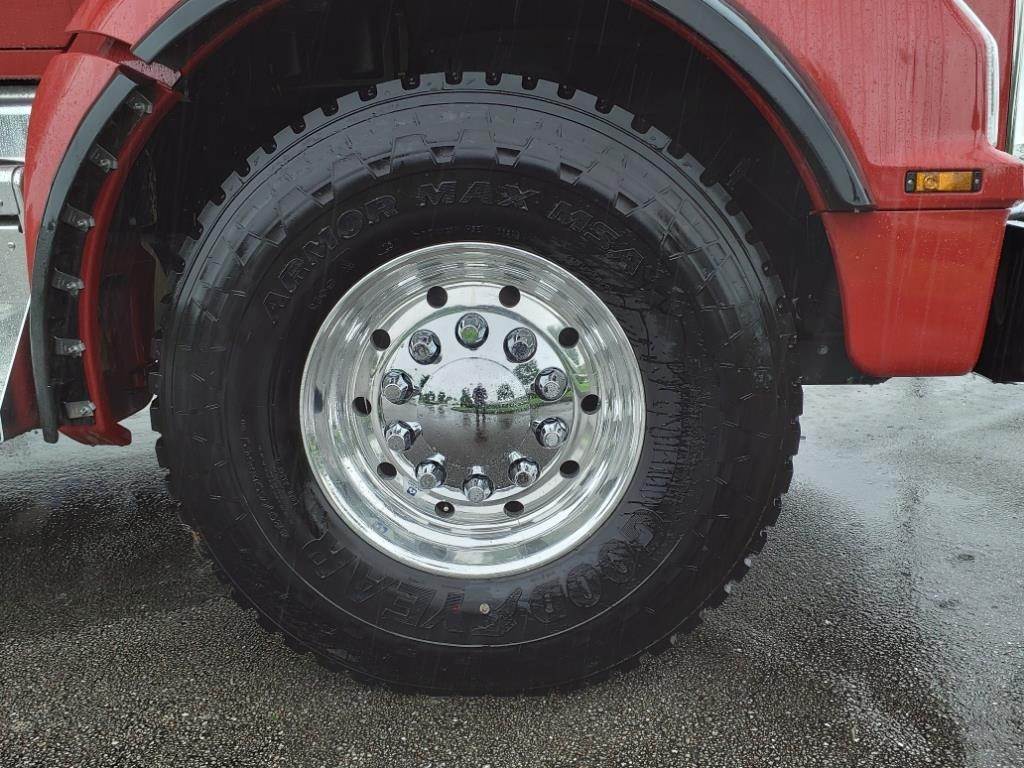

- Front Wheels: Alcoa 82362, 22.5 x 12.25 inch, aluminum, hub piloted, Level 1 high polish
- Rear Wheels: Alcoa 98U63, 24.5 x 8.25 inch, aluminum, Ultra One high polish

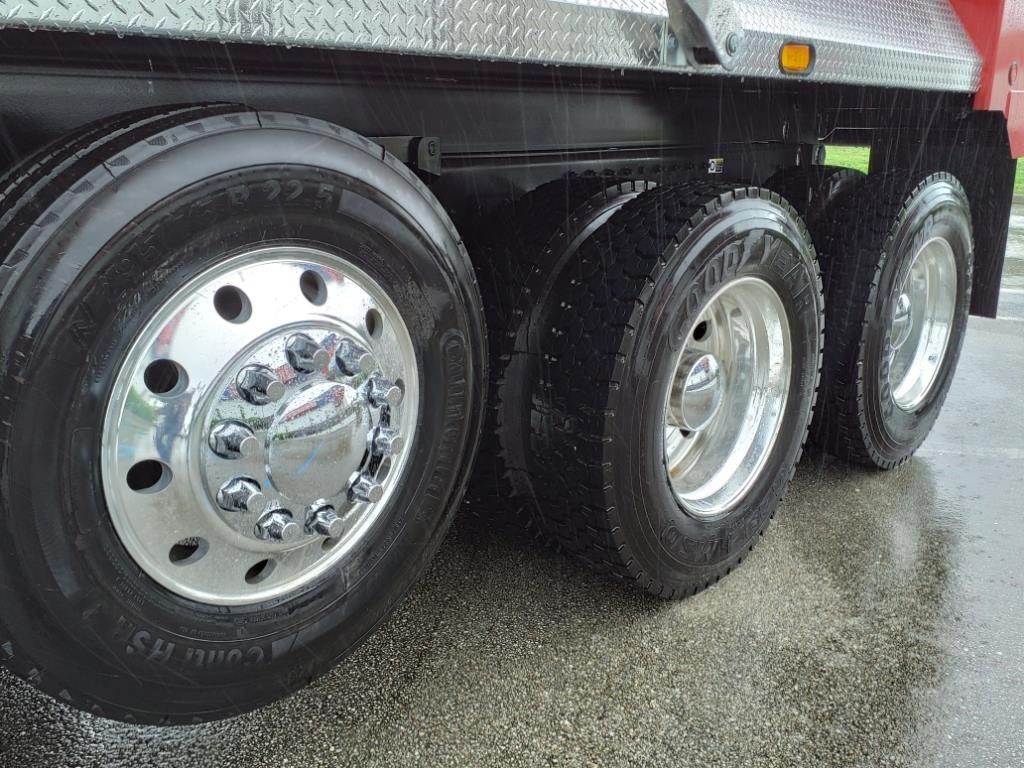

- Pusher Wheels: Alcoa 88565, 22.5 x 8.25 inch, aluminum, hub piloted, severe service, Level 1 high polish
- Front Tires: Goodyear Armormax MSA, 425/65R22.5, 20-ply
- Rear Tires: Bridgestone M726ELA, 11R24.5, 16-ply
- Pusher Tires: Continental HSR3, 295/75R22.5, 16-ply
- Fuel Tank: 110 US gallons, 24.5 inch, aluminum
- DEF Tank: 14 gallons, small round
- Tilt/Telescoping Steering Wheel

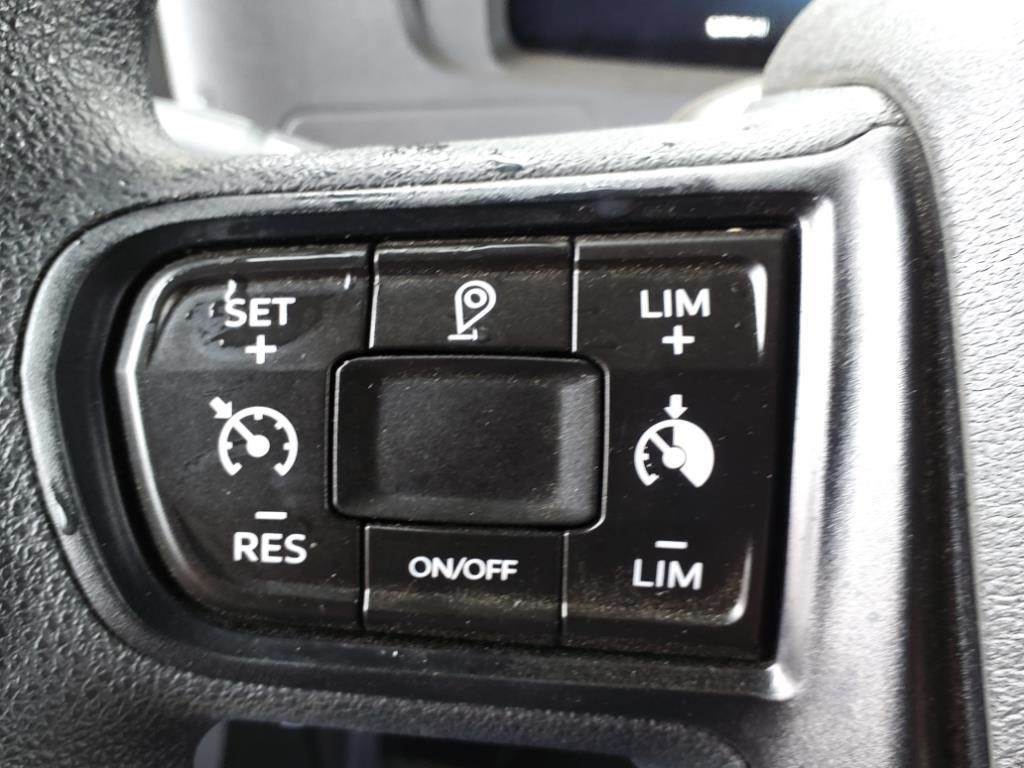

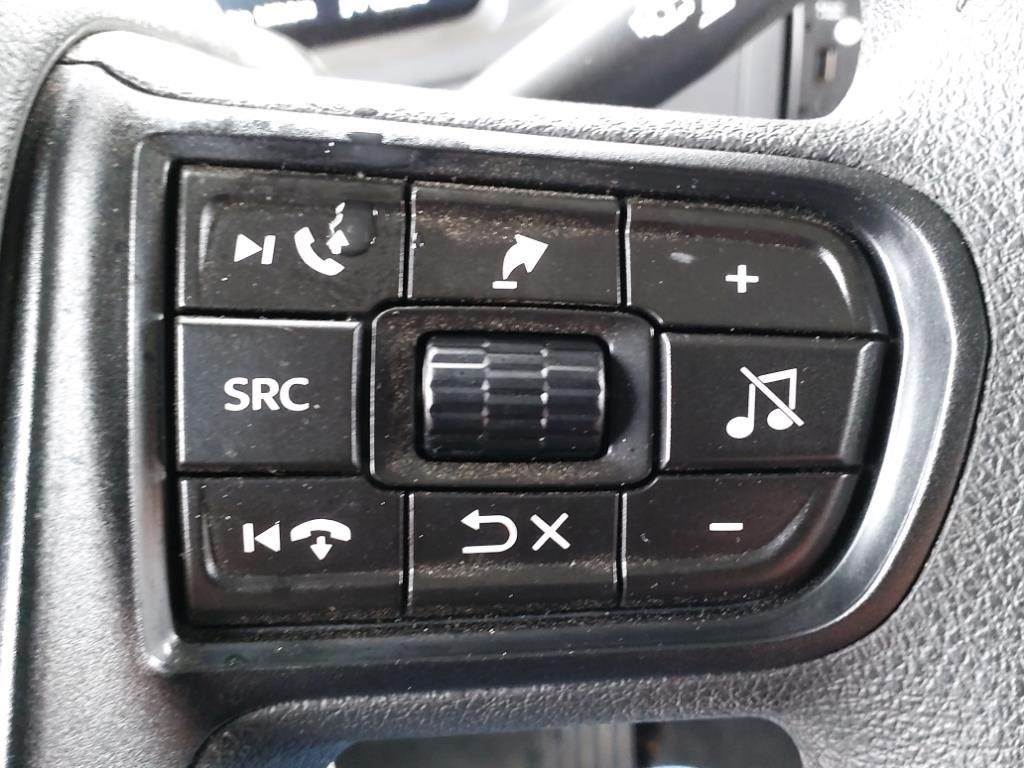

- Kenworth Smart Wheel
- Power Door Locks

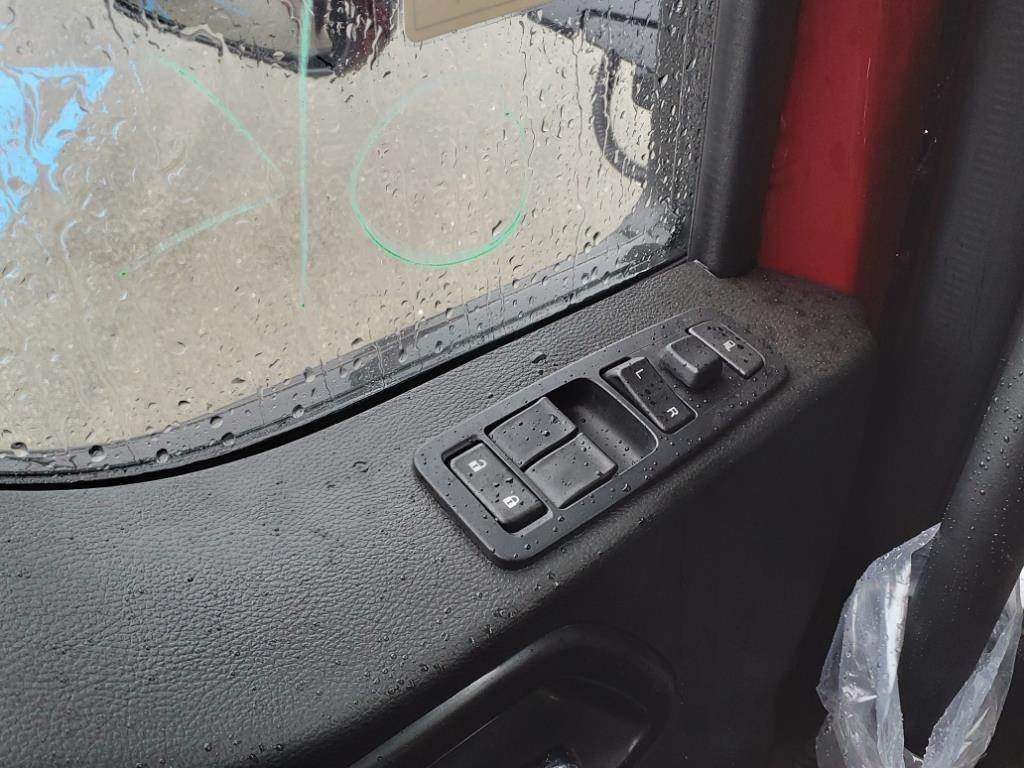

- Power Windows
- Remote Keyless Entry
- Heated Power Mirrors

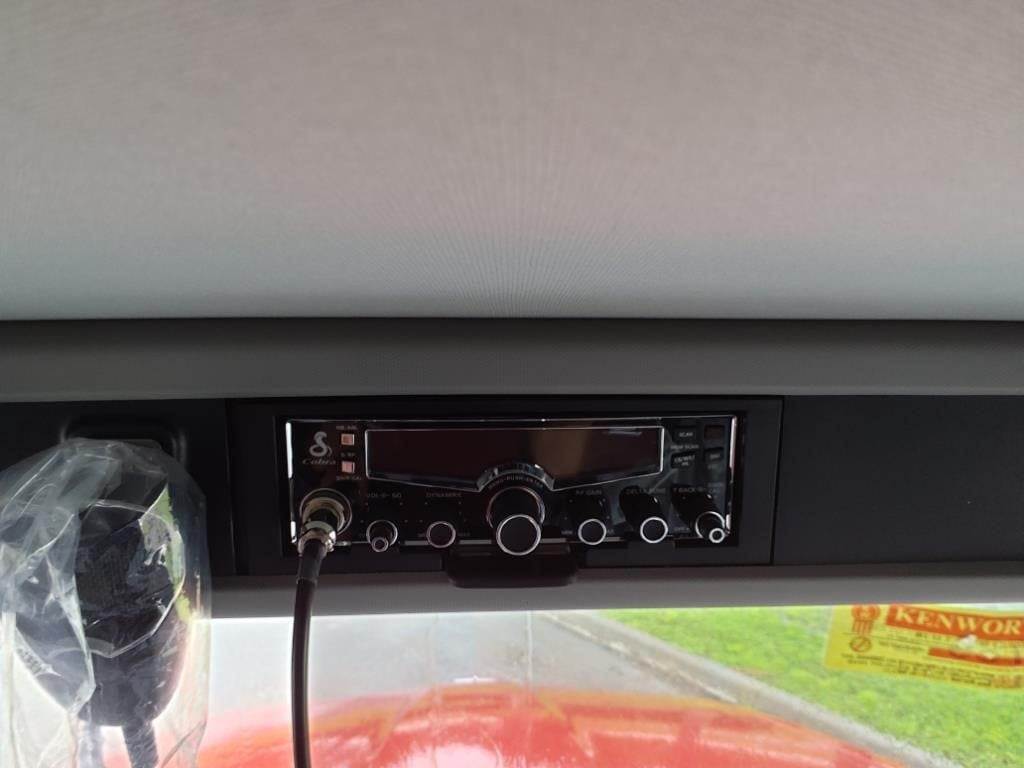

- CB Radio Mount

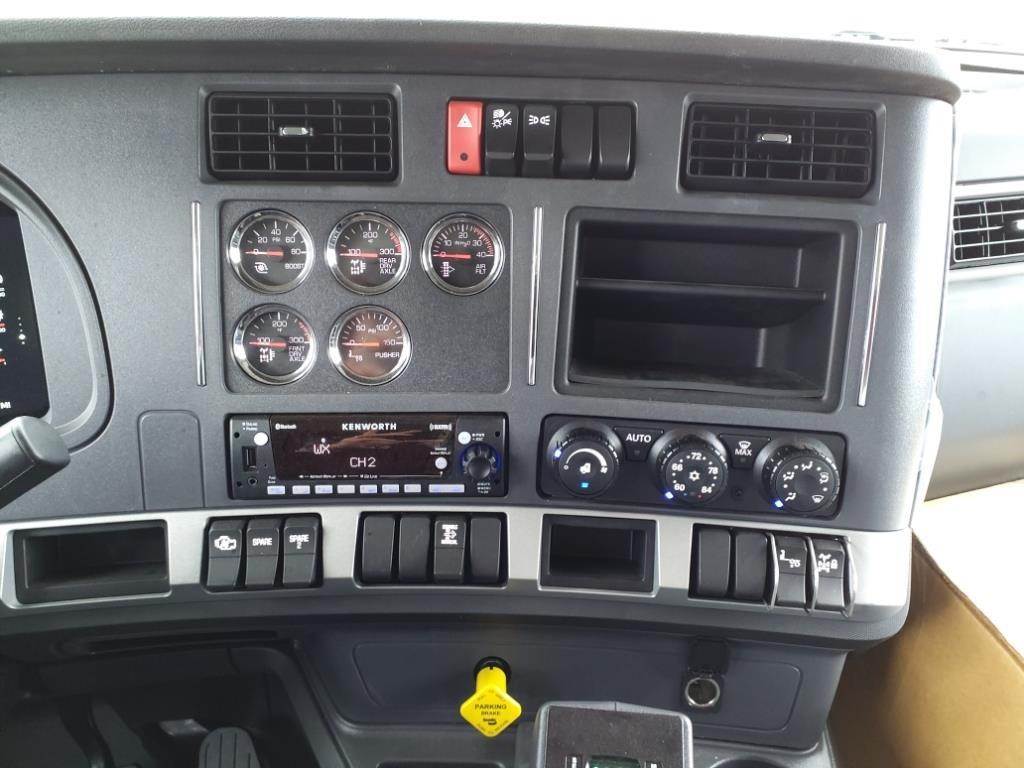

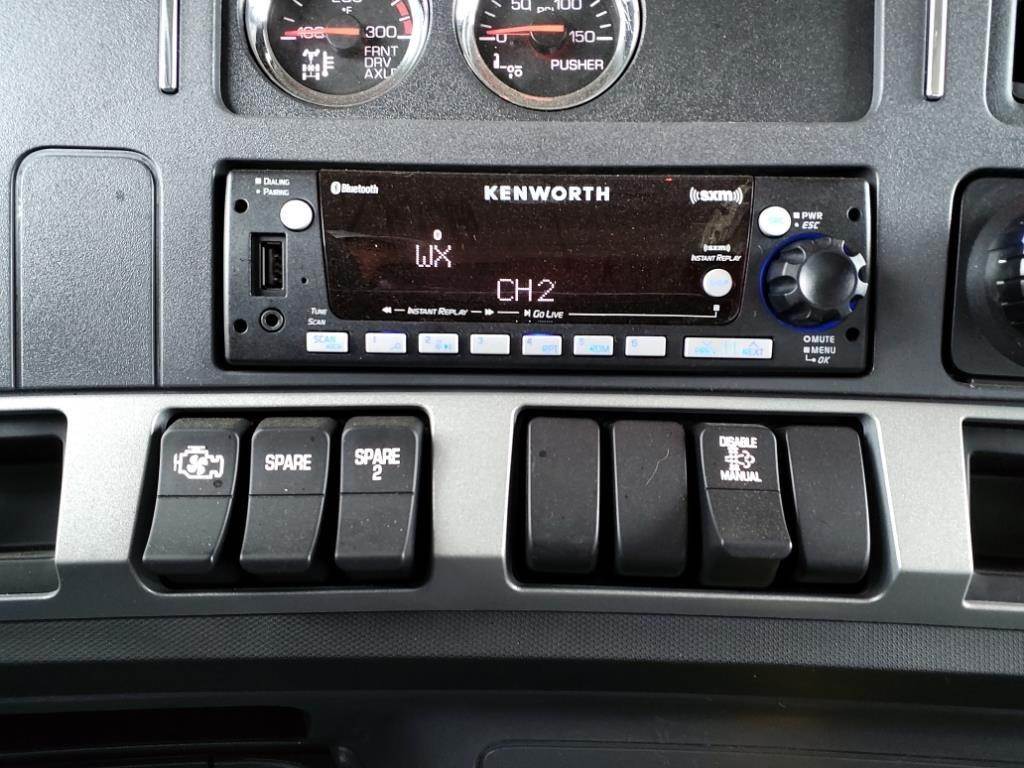

- Kenworth Radio DEA730, AM/FM/WB/USB, Bluetooth, SiriusXM Satellite
- Kenworth TruckTech+ Remote Diagnostics, 5-year subscription

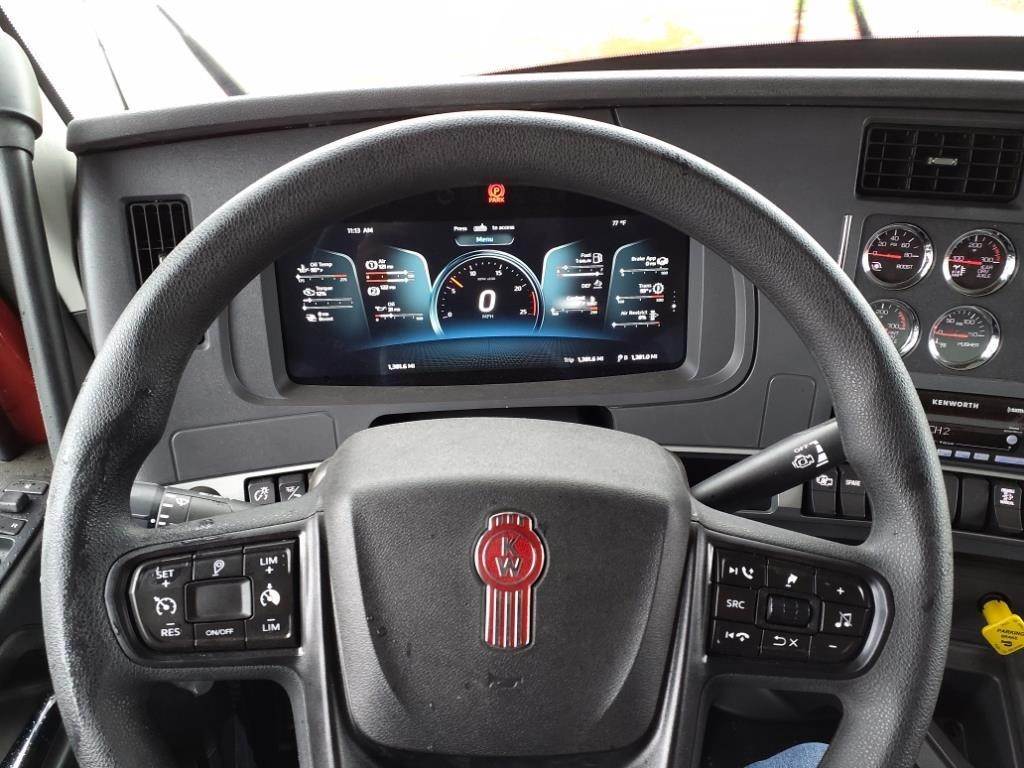

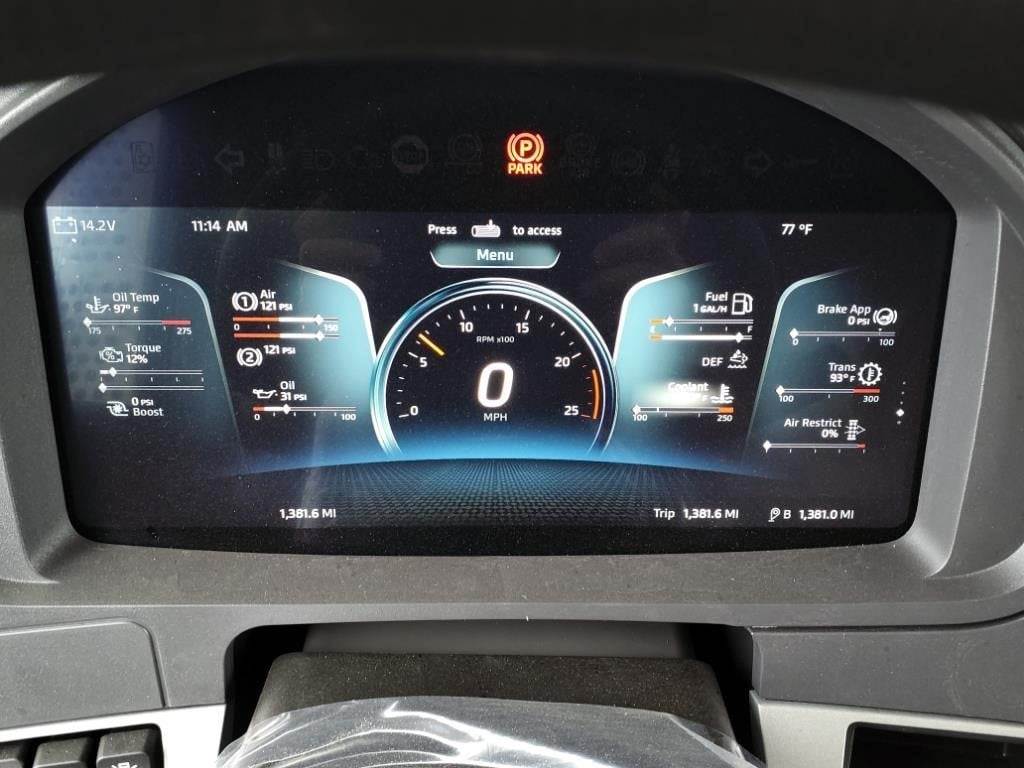

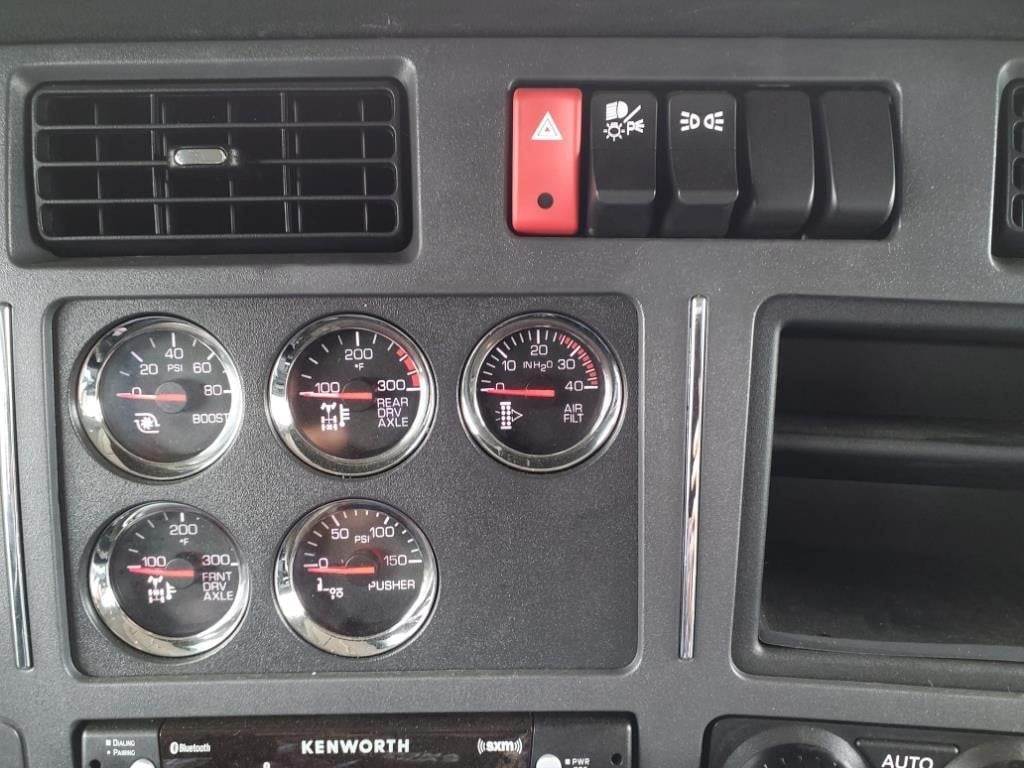

- 15 inch Digital Display Main Instrument Package

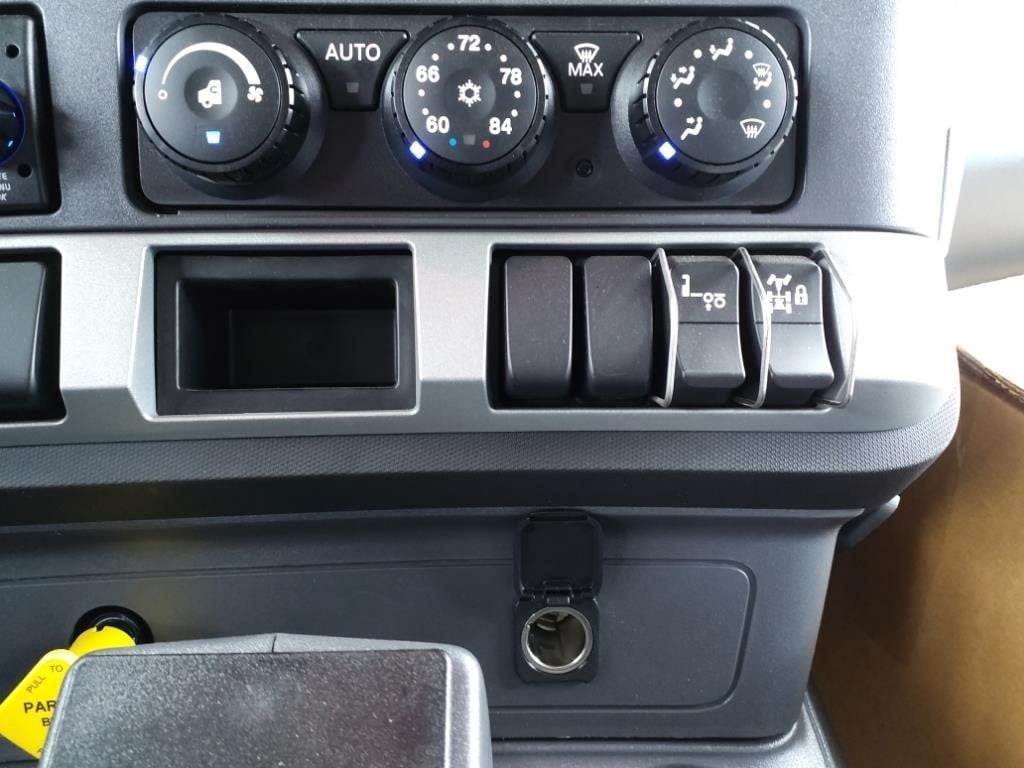

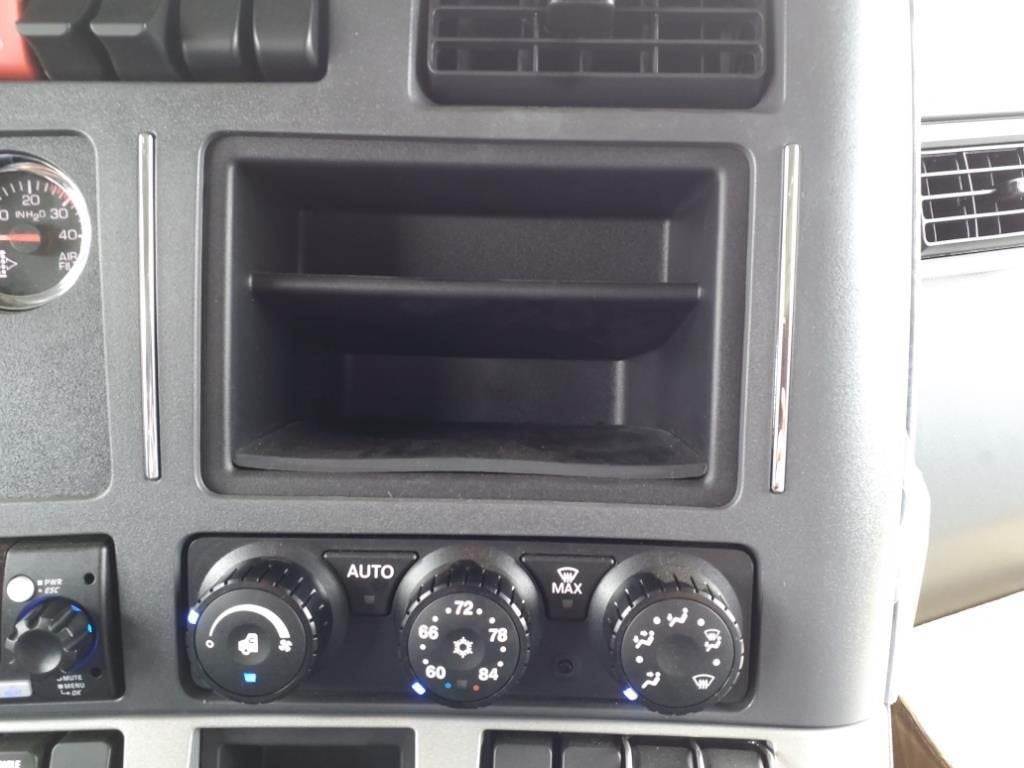

- Air Conditioning with Auto Temperature Control
- Locking Rear Differential, Crosslock
- Full Steel Inserts, Double Frame

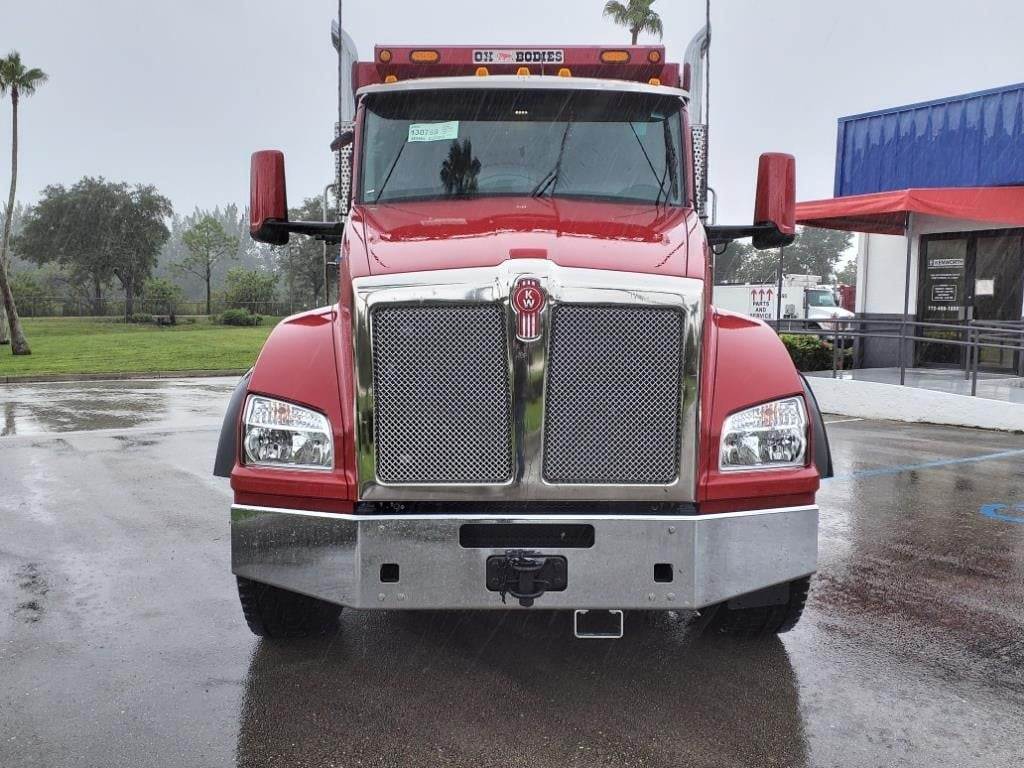

- Chrome Bumper
- Polished Aluminum Fuel Tank
- Polished DEF Tank Cover
- Polished Fuel Tank Straps
- Polished DPF/SCR Cover with Step
- Polished Engine Air Intake
- Dual Lower Chrome Exhaust Elbows
- Stainless Steel Exterior Sunvisor

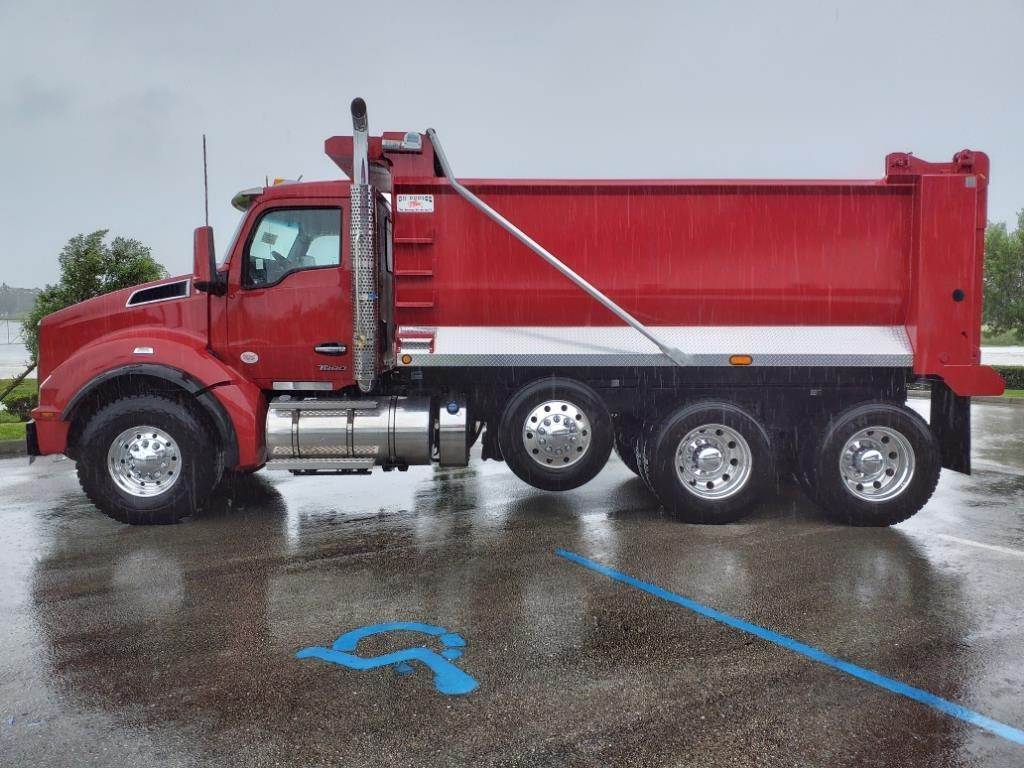

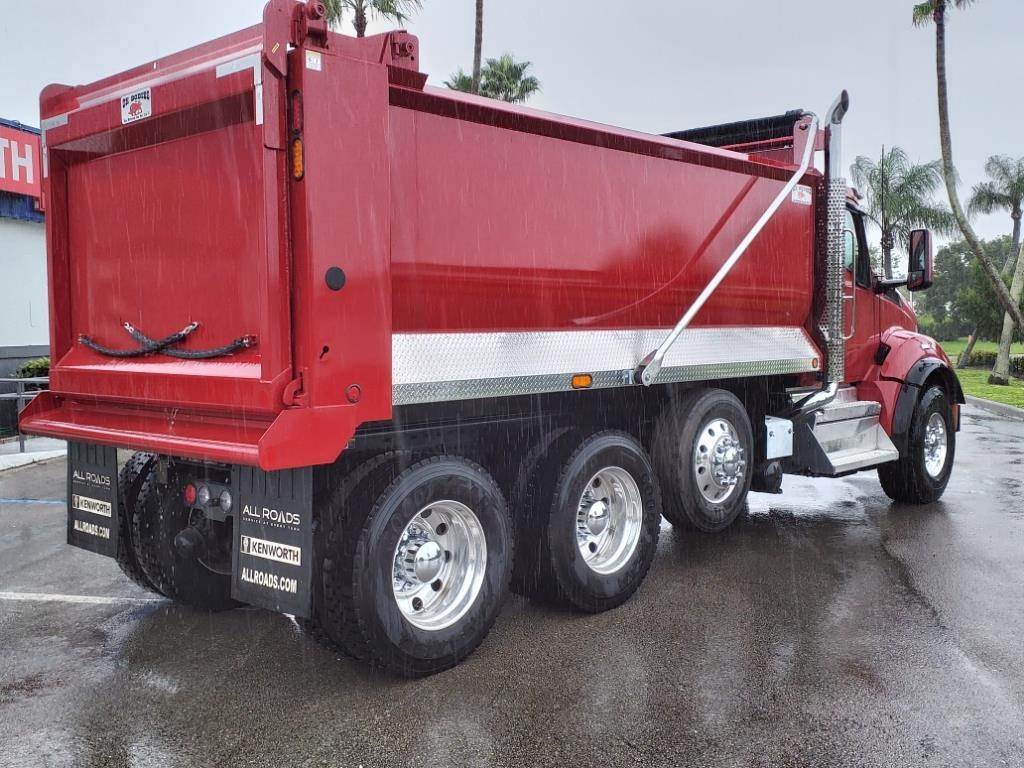

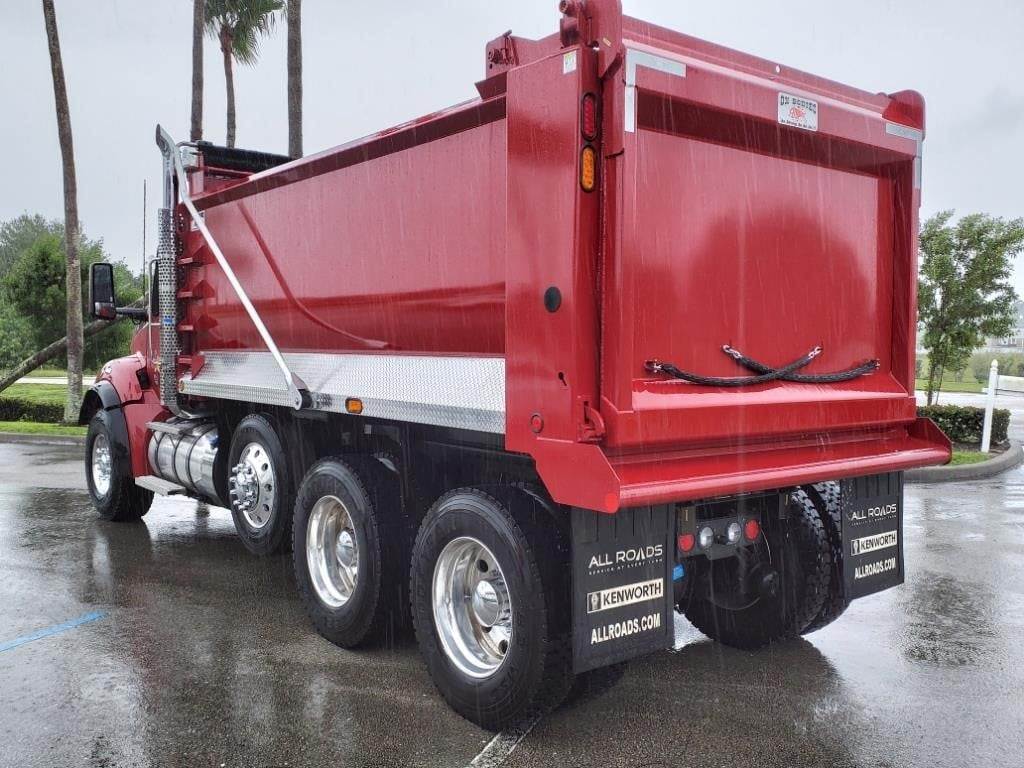

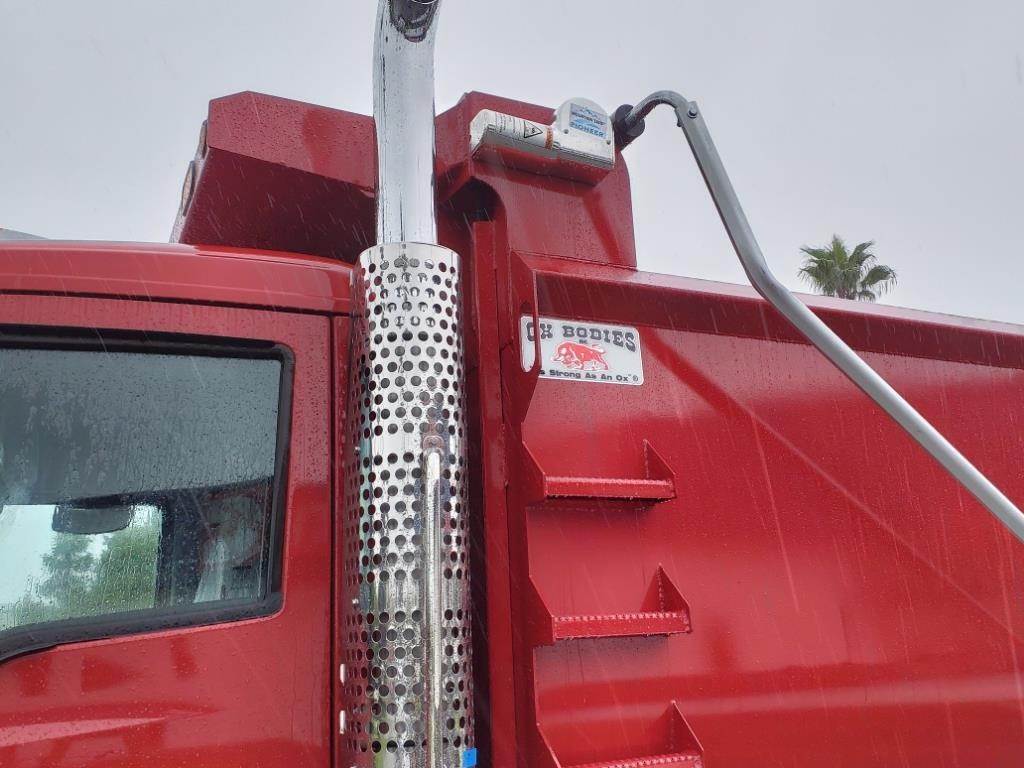

16' Stampede dump truck body specifications
Model: Stampede Body ID 87
- Length: 16 feet
- Hoist Model: 74133
- Frame: Standard 2x8 RT with straight front and rear styling
- Construction Materials:
- Side Walls: 1/4" AR450 plate
- Front Wall: 1/4" AR450 plate
- Floor: 1/4" AR450 plate
- Tailgate: 3/16" AR450 sheet
- Skirt: 7GA A36 sheet
- Side Top Rail: 4x4x.250 Diamond
- Height Dimensions:
- Front Height: 62"
- Side Height (Front): 62"
- Side Height (Rear): 62"
- Rear Height: 68"
- Cab shield Configuration:
- Style: Narrow and centered
- Projection: 24"
- Width: 72"
- Features: Oval light cutouts

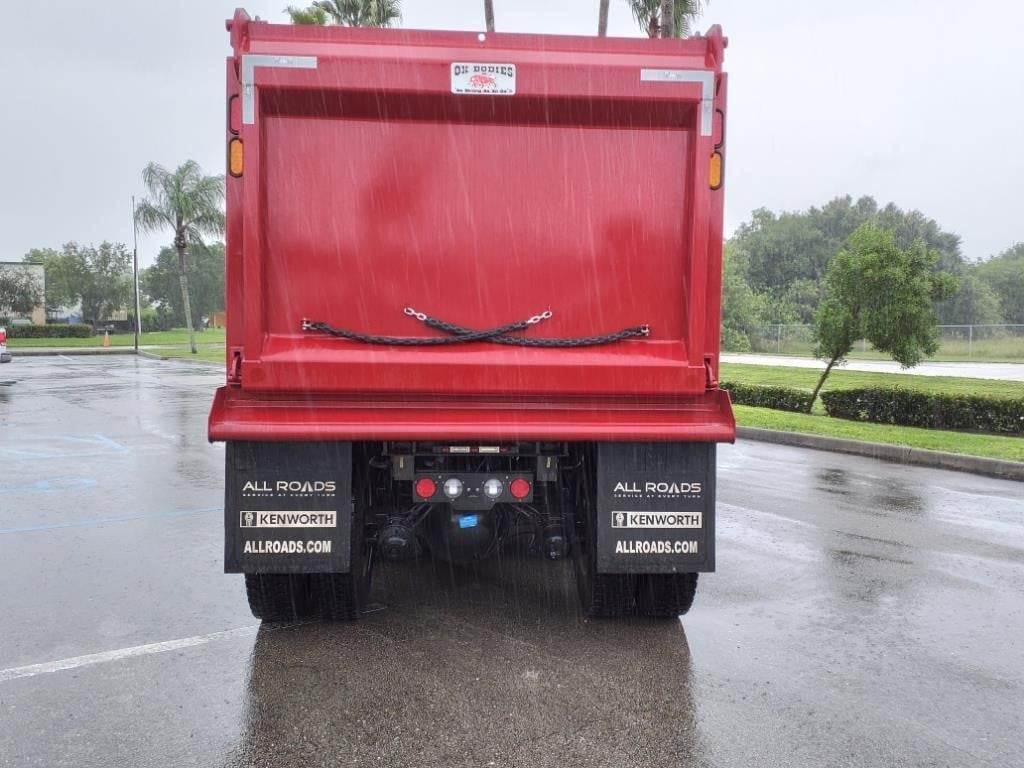

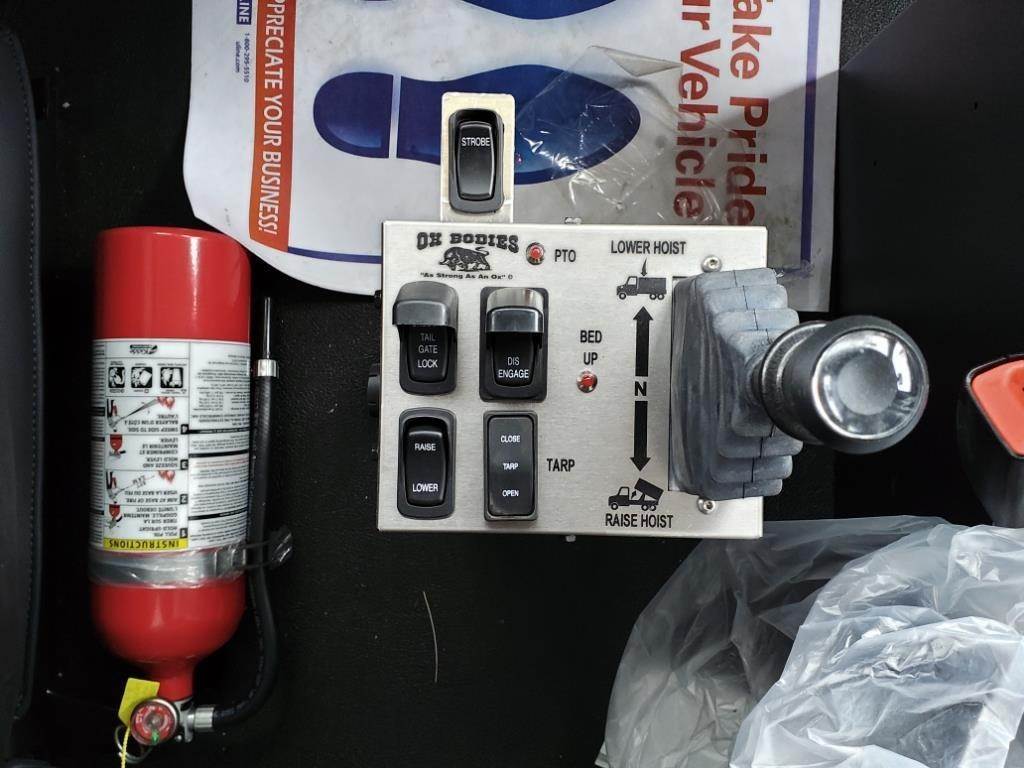

- Tailgate Features:
- Type: Air high lift
- Bracing Style: Outer frame only with formed panel
- Operation: Air-operated closing system
- Additional Features:
- Tarp System: Electric Mountain tarp for 10-16ft bodies
- Dump Apron: Heavy duty, 10" size
- Lighting: Lower front with mid-turn lights, 2 metro lights
- Body Prop: Single prop system
- Gravel Guards: Steel construction
- Reversing Alarm: Included
- Mudflaps: 30-inch standard
- Hydraulics: Standard 74133 cylinder with nestled pyramid flat bottom reservoir
- Lighting Package: Multiple light kits for cab shield, sides, and rear
- Rear Hinge: Removable pin design (no hitch plate)
- Exhaust: 5-inch turnout
- The body includes aluminum skirt coverings suitable for bodies up to 16ft and features standard Stampede branding and logos.
- This represents a heavy-duty configuration designed for demanding dump truck applications with premium material choices like AR450 steel for high-wear areas.
