Product Description
Transfer this unit to your nearest South Florida location at no additional cost! Fort Lauderdale, Fort Pierce, Riviera Beach, or Naples. Contact us for details!

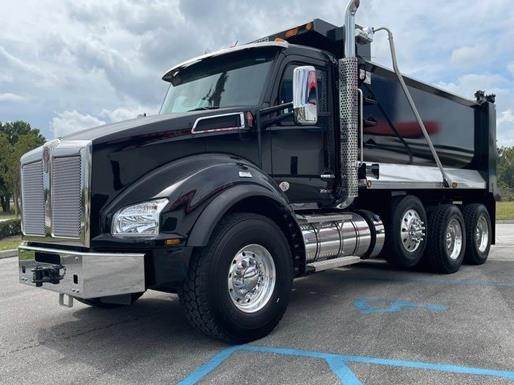

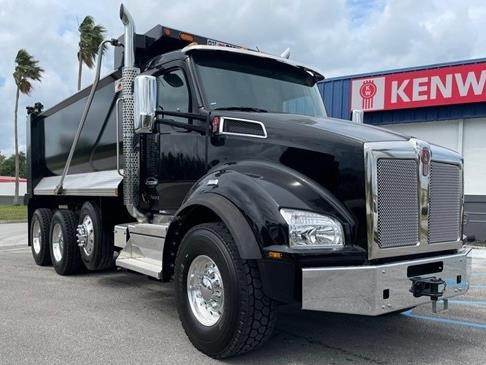

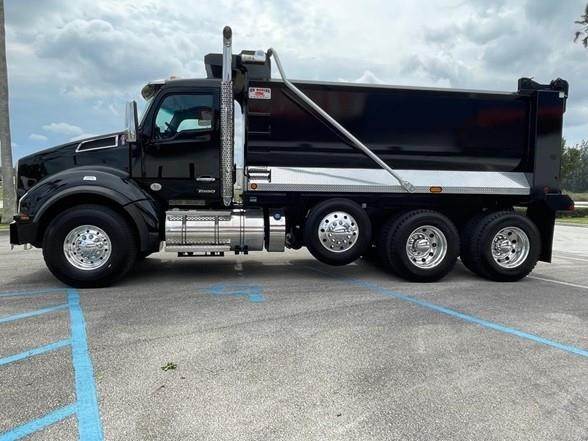

Model Year: 2025

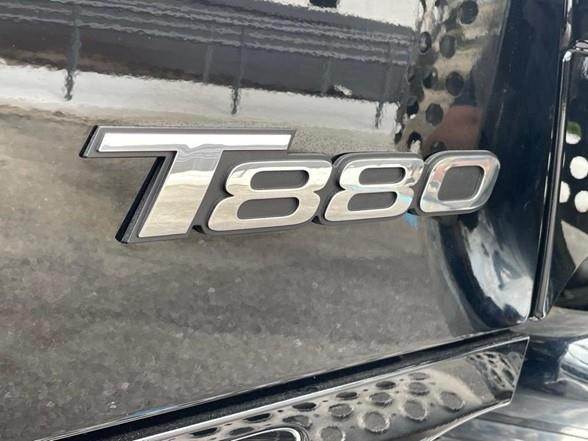

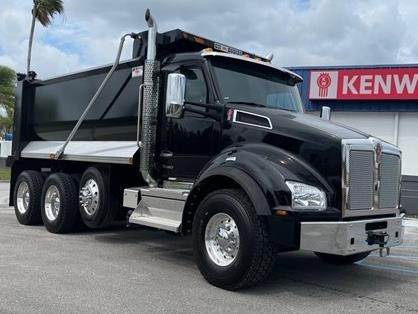

Model: T880
Engine: Cummins X15 Productivity Series, 500 HP @ 1900 RPM, 1850 lb-ft Torque @ 900 RPM, Engine Brake

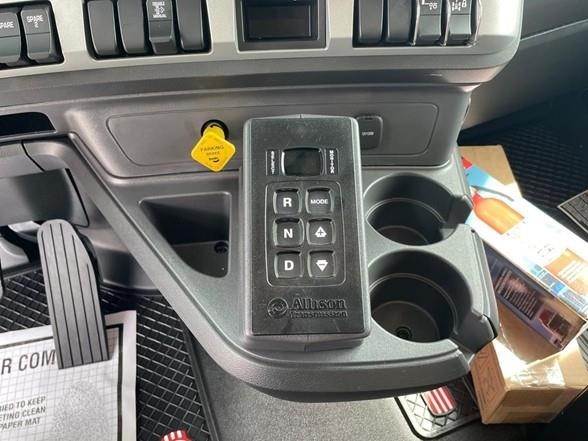

Transmission: Allison 4500RDS, 6-speed automatic with PTO
Front Axle: Meritor MFS20, 20,000 lbs.
Rear Axle: Meritor RT46-160, 46,000 lbs. dual

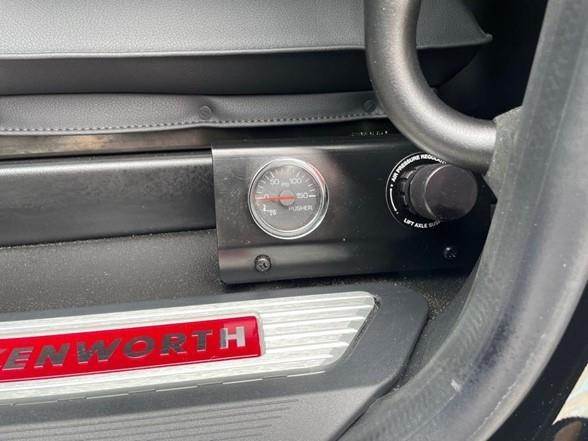

Pusher Axle: Watson & Chalin SL13, 13,500 lbs.
Front Suspension: Taperleaf 20K with shocks
Rear Suspension: Henderson HaulMaxx EX (HMX) 460, 46K dual, 54" air suspension
Gross Vehicle Weight Rating (GVWR): 79,200 lbs.
Wheelbase: 215 inches
Cab-to-Axle: 141 inches
Rear Axle Ratio: 4.56
Locking Rear Differential / Crosslock: Meritor 40-52K Crosslock
Brakes: Front and rear drum brakes, Bendix

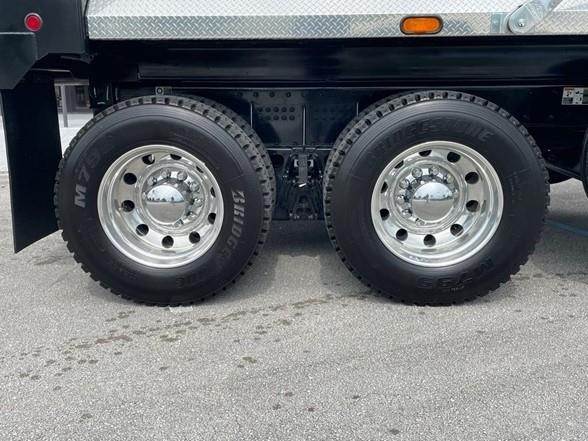

Wheels: Front: Alcoa 89U63 22.5X9 Ultra One High Polish, Rear: Alcoa 98U63 24.5X8.25 Ultra One High Polish, Pusher: Alcoa ULA18 22.5X8.25 High Polish
Tires: Front: Goodyear Endurance WHA 315/80R22.5 20PR, Rear: Goodyear Endurance LHD 11R24.5 16PR, Pusher: Goodyear Endurance LHS 11R22.5 16PR
Fuel Tank: 90 US gallon aluminum
DEF Tank: 14 gallon small round
Exterior Color: Century Black

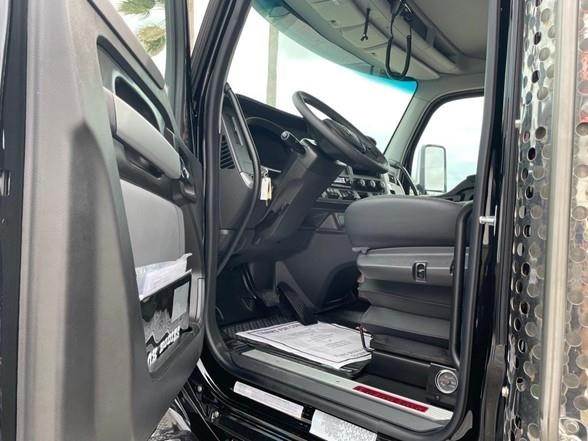

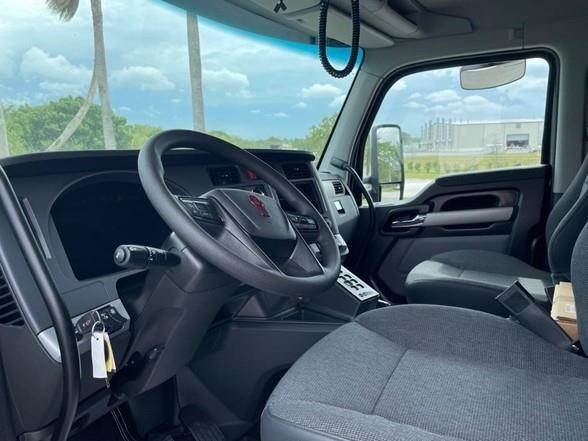

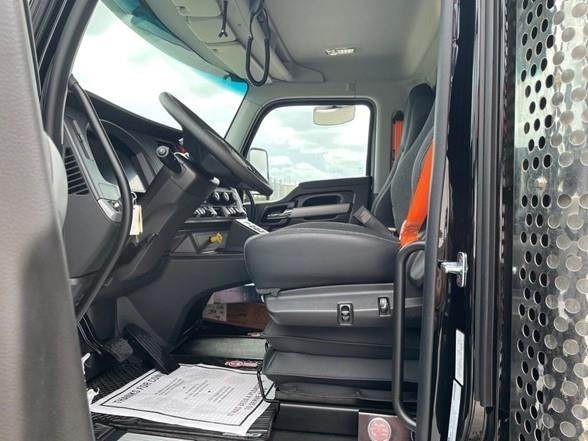

Interior: Vantage Daycab, Slate Gray
Driver Seat: Kenworth GT701 High Back Vinyl with air-ride suspension

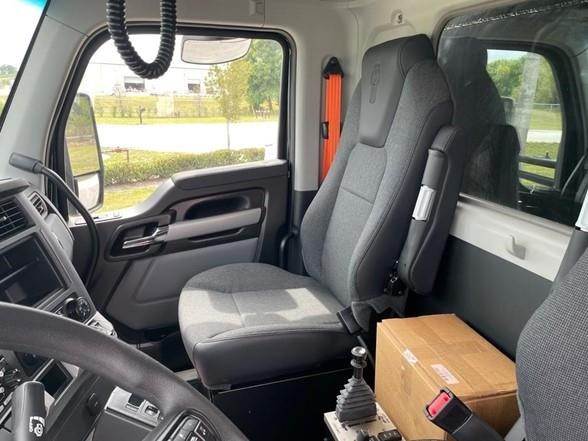

Passenger Seat: Kenworth GT100 High Back Toolbox Seat, Vinyl

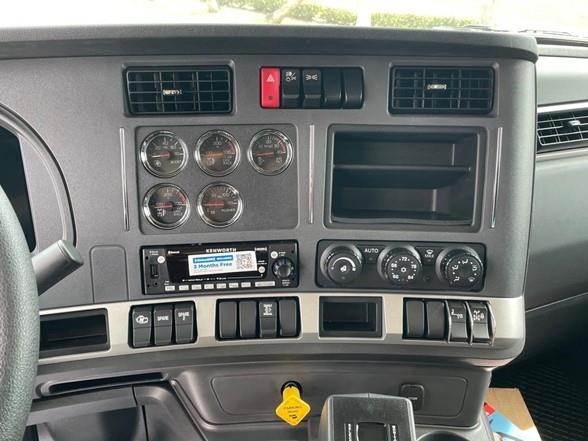

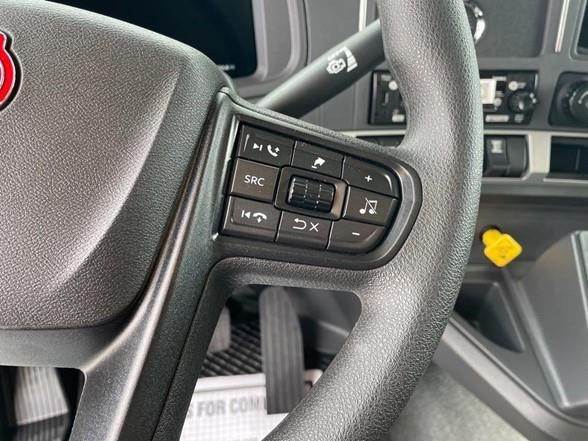

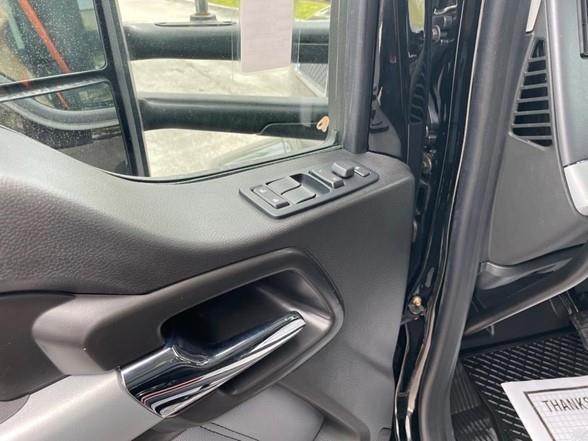

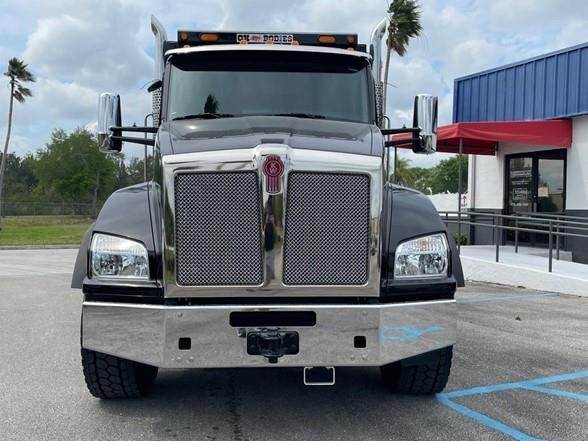

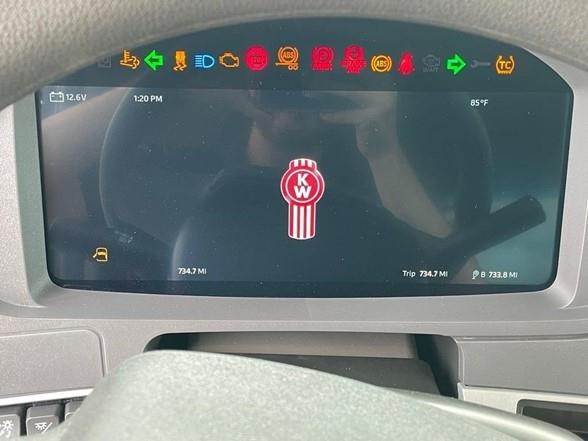

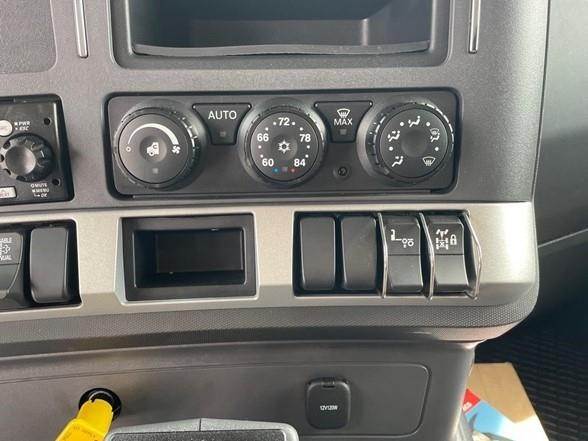

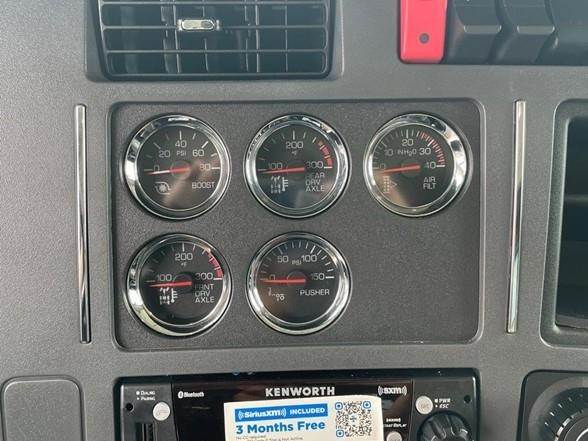

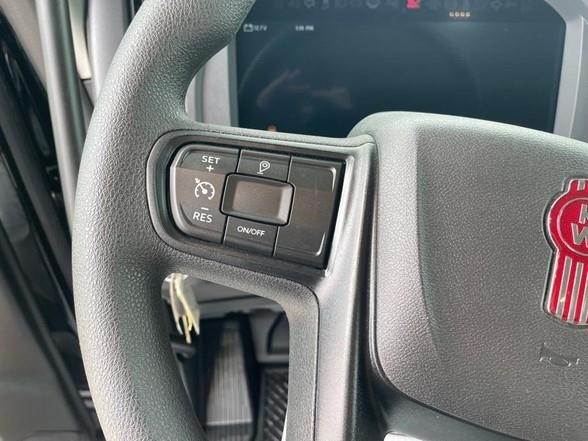

Kenworth Smart Wheel, power door locks, power windows, tilt/telescoping steering wheel, heated power mirrors, air conditioning with auto temperature control, AM/FM/WB/USB radio with Bluetooth, CB installation kit, air horn, exterior stainless steel sunvisor, polished aluminum bumper, dual LED floodlights, TruckTech+ remote diagnostics, 15" digital display main instrument package.

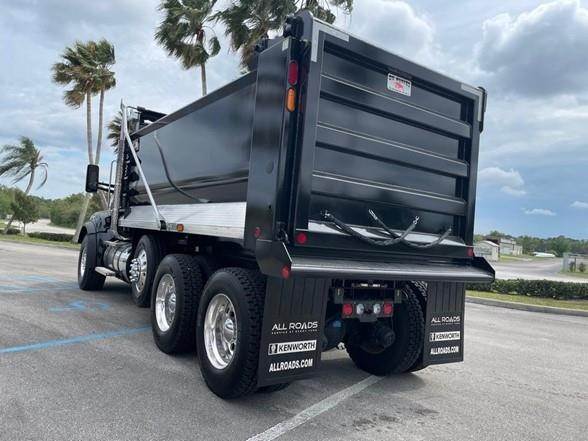

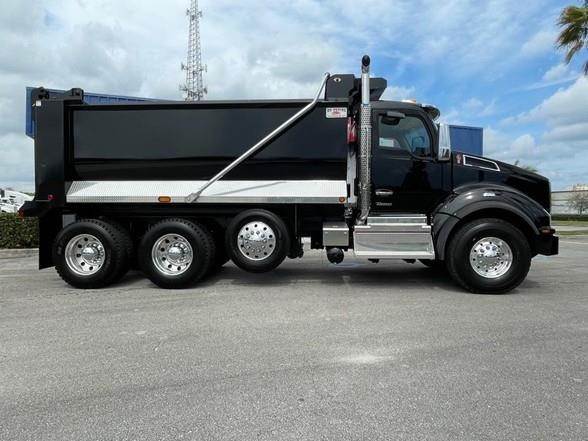

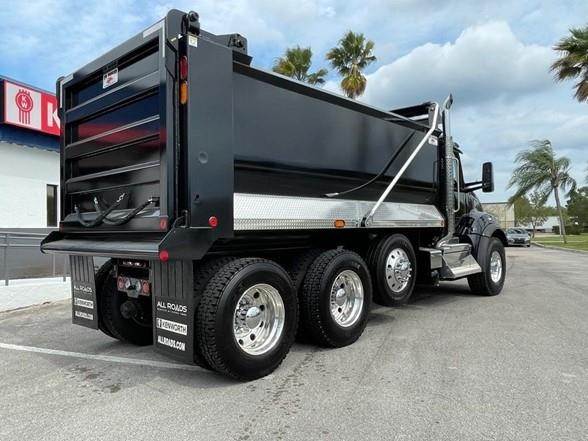

16' Stampede dump truck body specifications
Body Specifications:
Model: Stampede Body ID 87
Length: 16 feet
Hoist Model: 74133
Frame: Standard 2x8 RT with straight front and rear styling
Construction Materials:
Side Walls: 1/4" AR450 plate
Front Wall: 1/4" AR450 plate
Floor: 1/4" AR450 plate
Tailgate: 3/16" AR450 sheet
Skirt: 7GA A36 sheet
Side Top Rail: 4x4x.250 Diamond
Height Dimensions:
Front Height: 62"
Side Height (Front): 62"
Side Height (Rear): 62"
Rear Height: 68"
Cab shield Configuration:
Style: Narrow and centered
Projection: 24"
Width: 72"
Features: Oval light cutouts
Tailgate Features:
Type: Air high lift
Bracing Style: Outer frame only with formed panel
Operation: Air-operated closing system
Additional Features:
Tarp System: Electric Mountain tarp for 10-16ft bodies
Dump Apron: Heavy duty, 10" size
Lighting: Lower front with mid-turn lights, 2 metro lights
Body Prop: Single prop system
Gravel Guards: Steel construction
Reversing Alarm: Included
Mudflaps: 30-inch standard

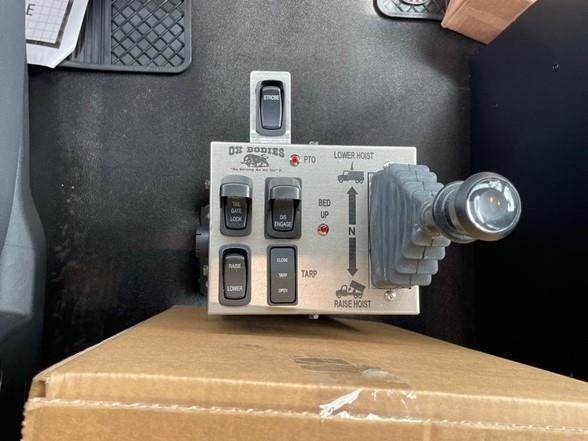

Hydraulics: Standard 74133 cylinder with nestled pyramid flat bottom reservoir
Lighting Package: Multiple light kits for cab shield, sides, and rear
Rear Hinge: Removable pin design (no hitch plate)
Exhaust: 5-inch turnout
The body includes aluminum skirt coverings suitable for bodies up to 16ft and features standard Stampede branding and logos.
This represents a heavy-duty configuration designed for demanding dump truck applications with premium material choices like AR450 steel for high-wear areas.
