Product Description
For a limited time, qualifying HD and MD trucks equipped with a PACCAR MX engine may be eligible for financing as low as 6.99% APR through PACCAR Financial. Offer expires May 31, 2026, and is available to well-qualified buyers only, subject to credit approval, with rates and terms subject to change.

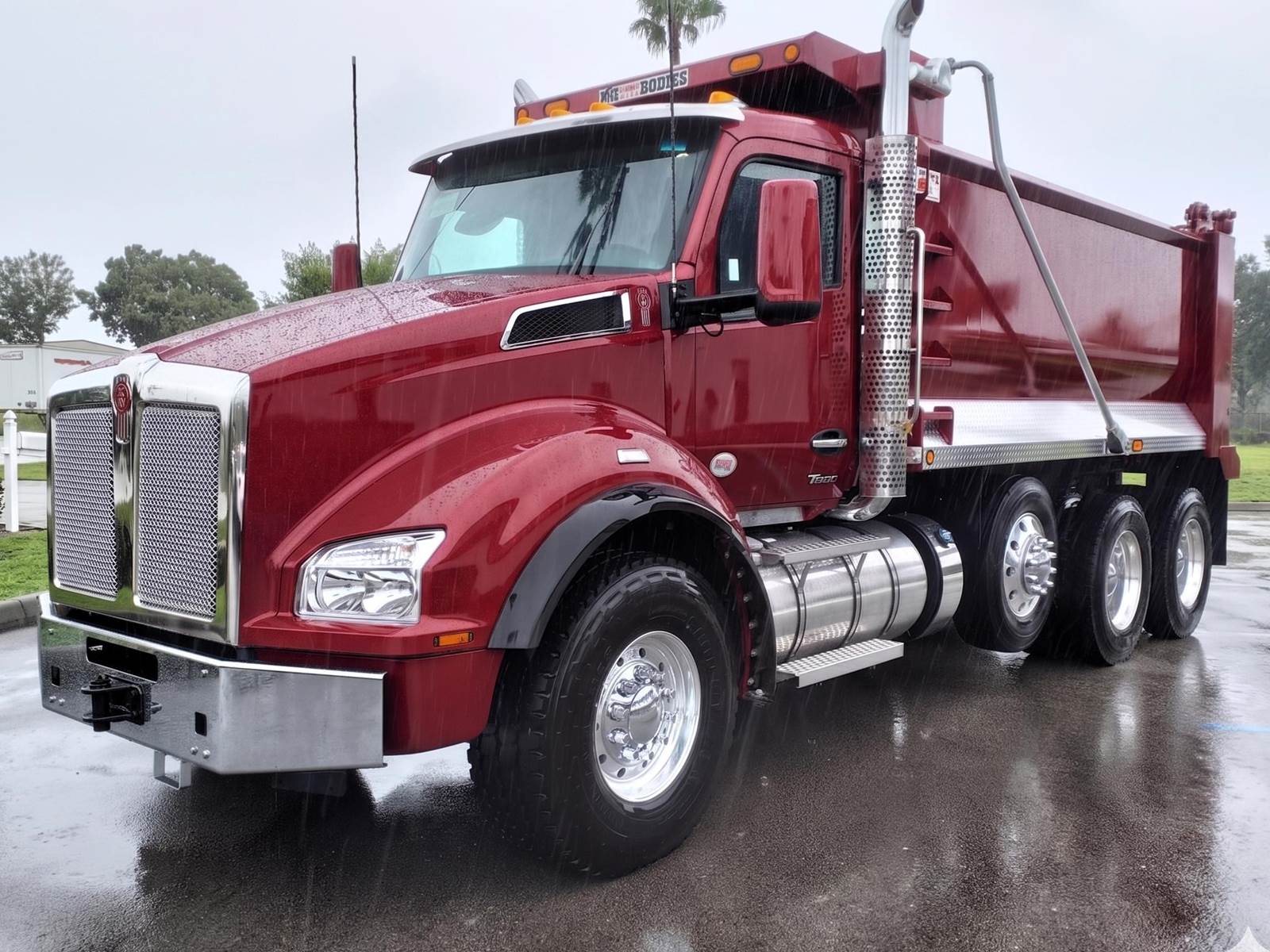

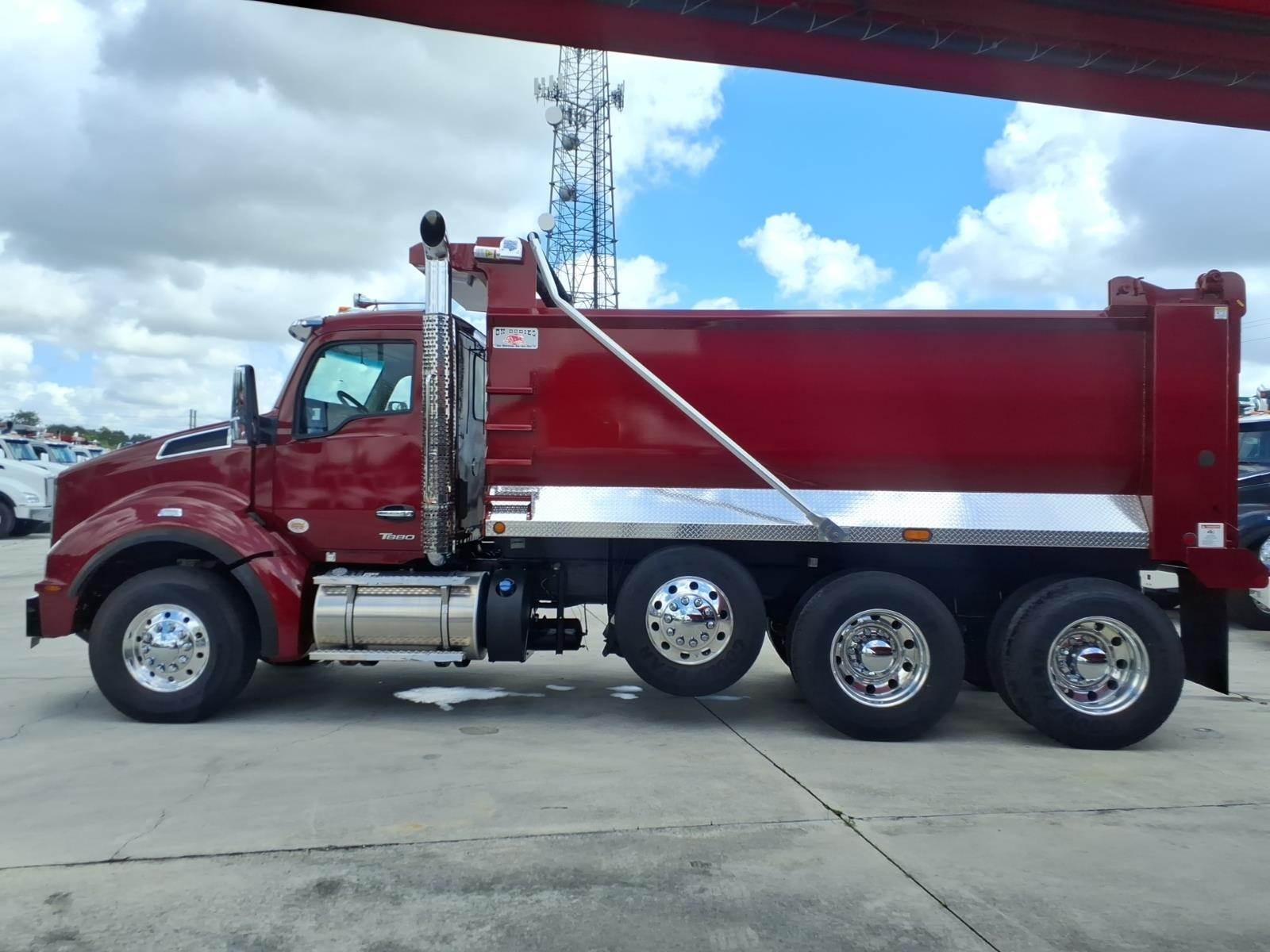

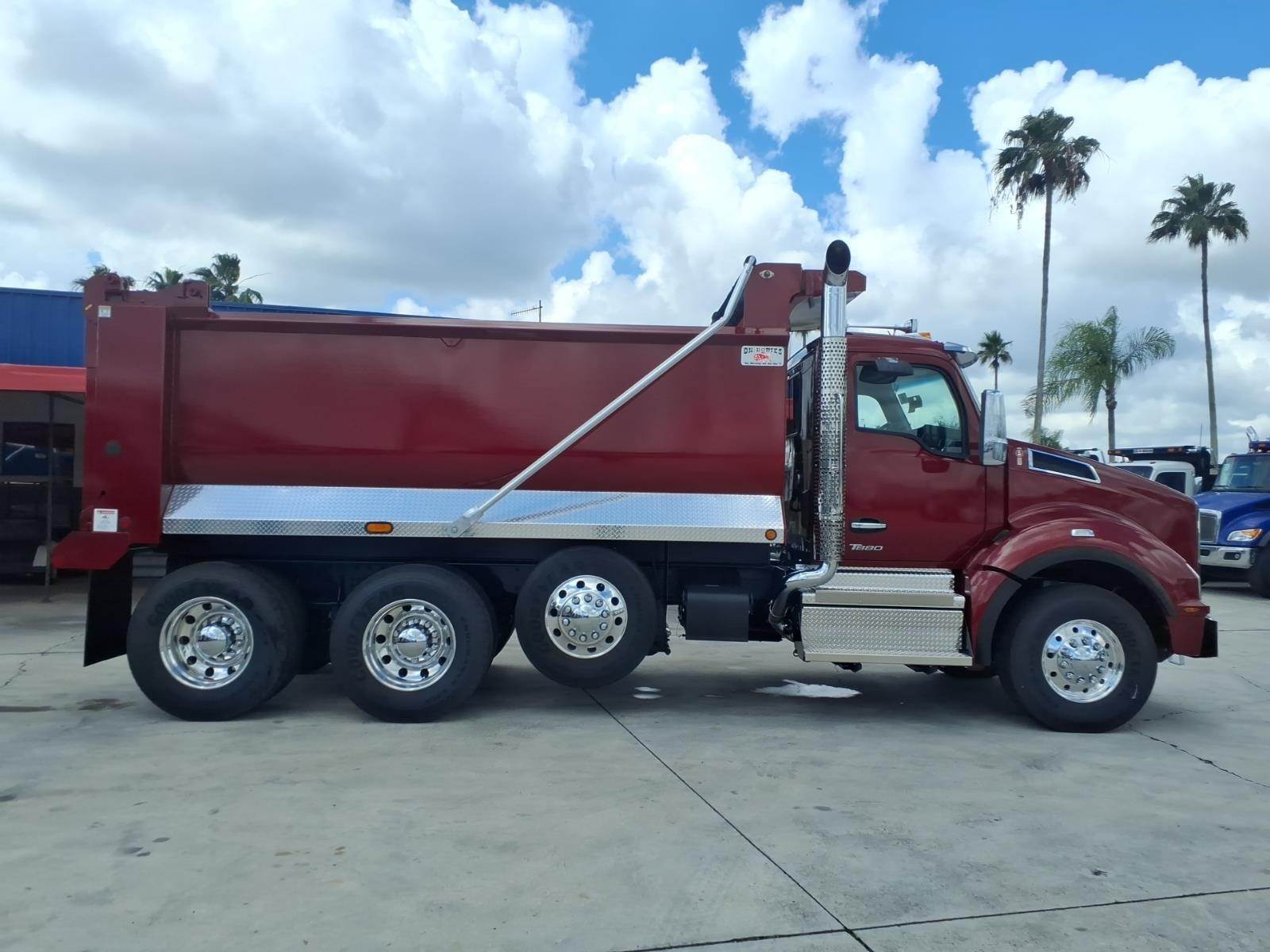

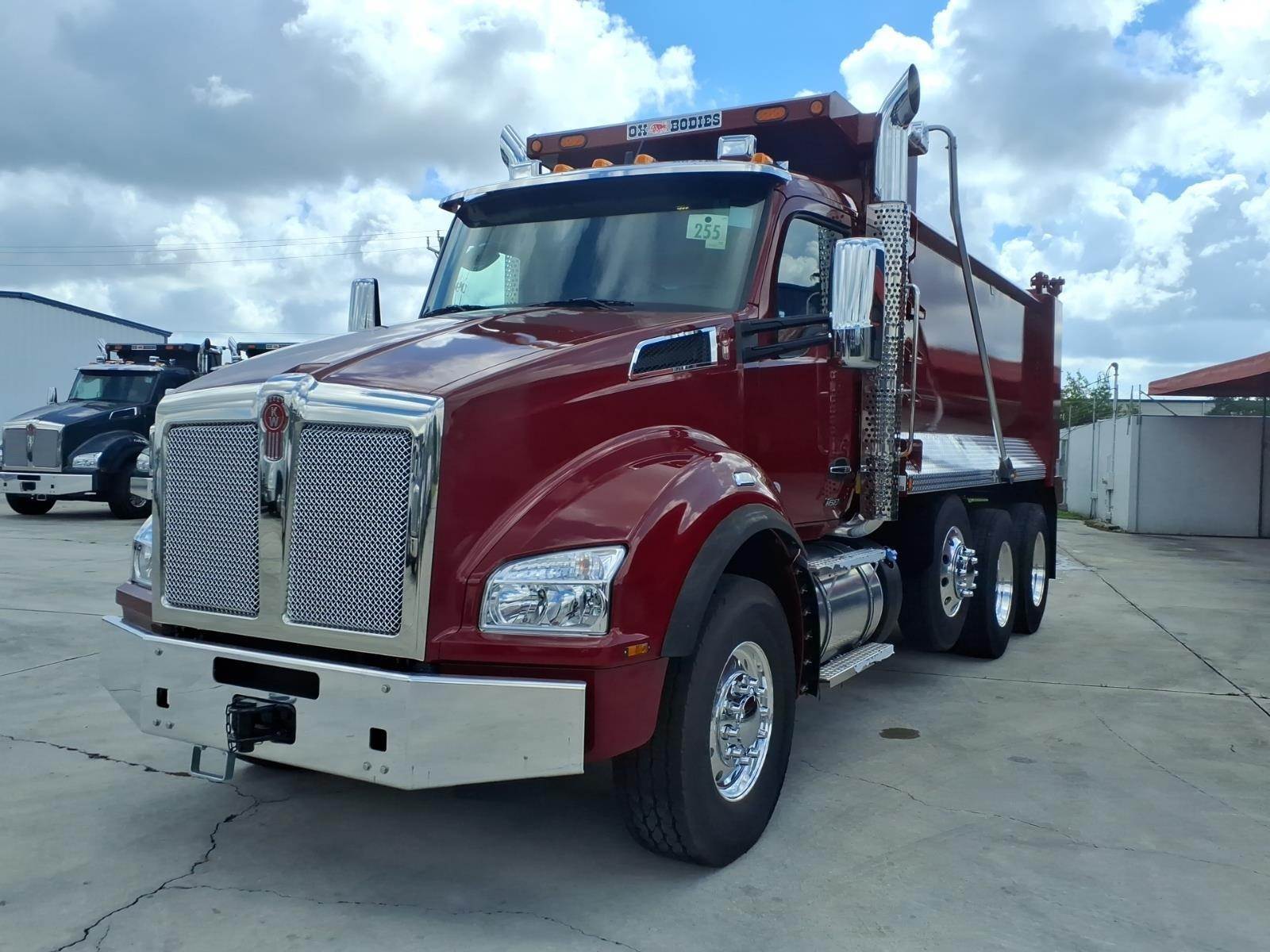

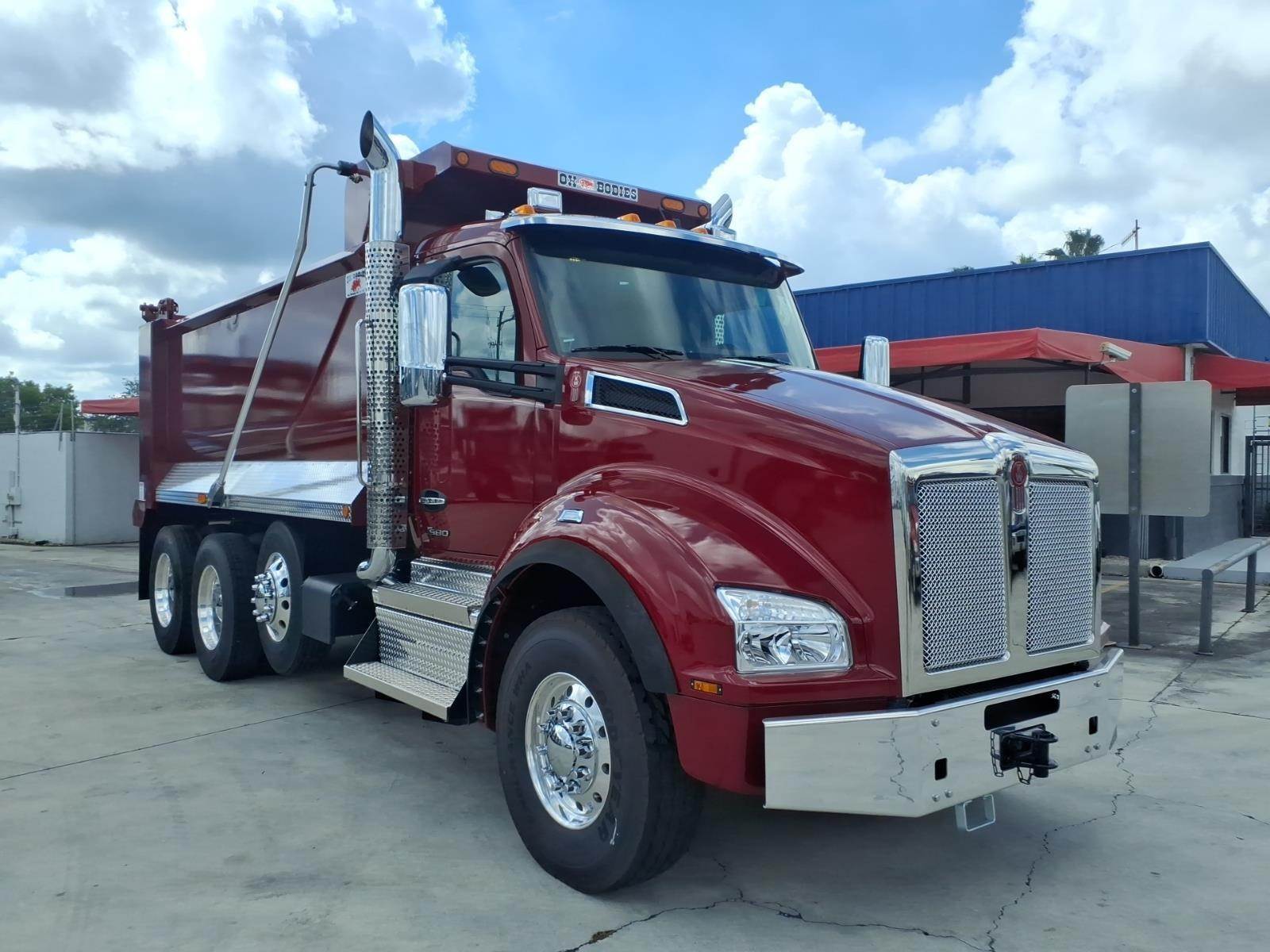

2026 Kenworth T880 Conventional Day Cab
Exterior Color: Radiant Red (L5797EY)
Interior Package: Vantage Daycab
Interior Color: Slate Gray with Black Seats
Engine: PACCAR MX-13, 510 HP @ 1600 RPM, 1850 lb-ft Torque @ 1000 RPM, Engine Brake
Transmission: Allison 4500RDS Gen 6 Automatic, 6-Speed, PTO Provision
Front Axle: Meritor MFS20, 20,000 lb. Capacity, 3.5" Drop Standard Track
Rear Axles: Meritor RT46-160 Tandem, 46,000 lb. Capacity, Dual Reduction
Pusher Axle: Watson & Chalin SL13 Steerable Pusher, 13,500 lb. Capacity
Suspension: Hendrickson Haulmaax EX (HMX) 460, 46,000 lb. Capacity, 54" Axle Spacing, With Shocks
GVWR: 79,200 lbs.
Wheelbase: 215 inches
Cab-to-Axle: 141 inches
Rear Axle Ratio: 4.30
Double Frame: Full Steel Insert for Heavy-Duty Vocational Application
Brakes: Bendix Drum Brakes Front and Rear with Automatic Slack Adjusters, Bendix ABS 4S/4M

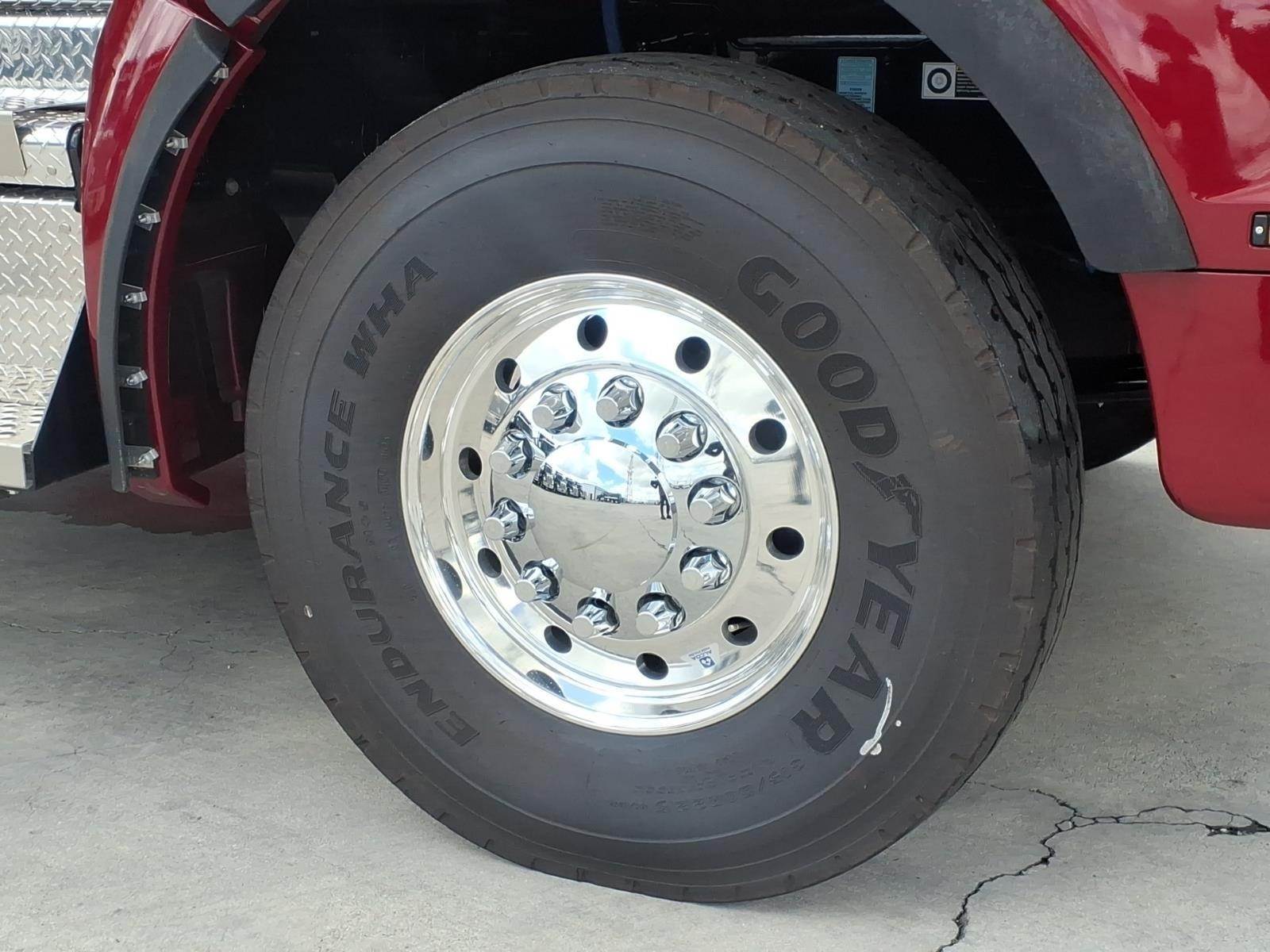

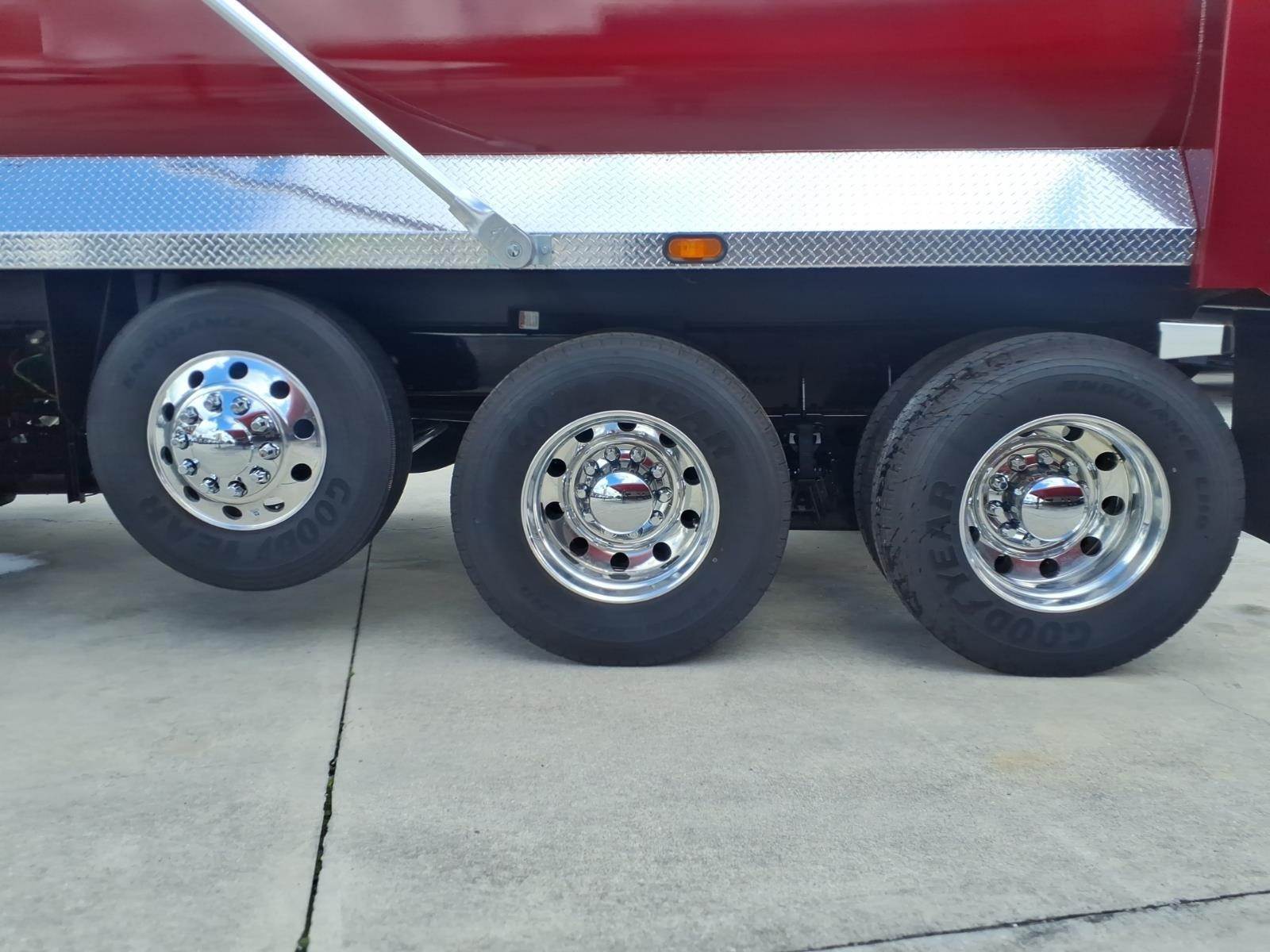

Front Wheels: Alcoa 89U63 22.5x9 Aluminum Ultra One High Polish

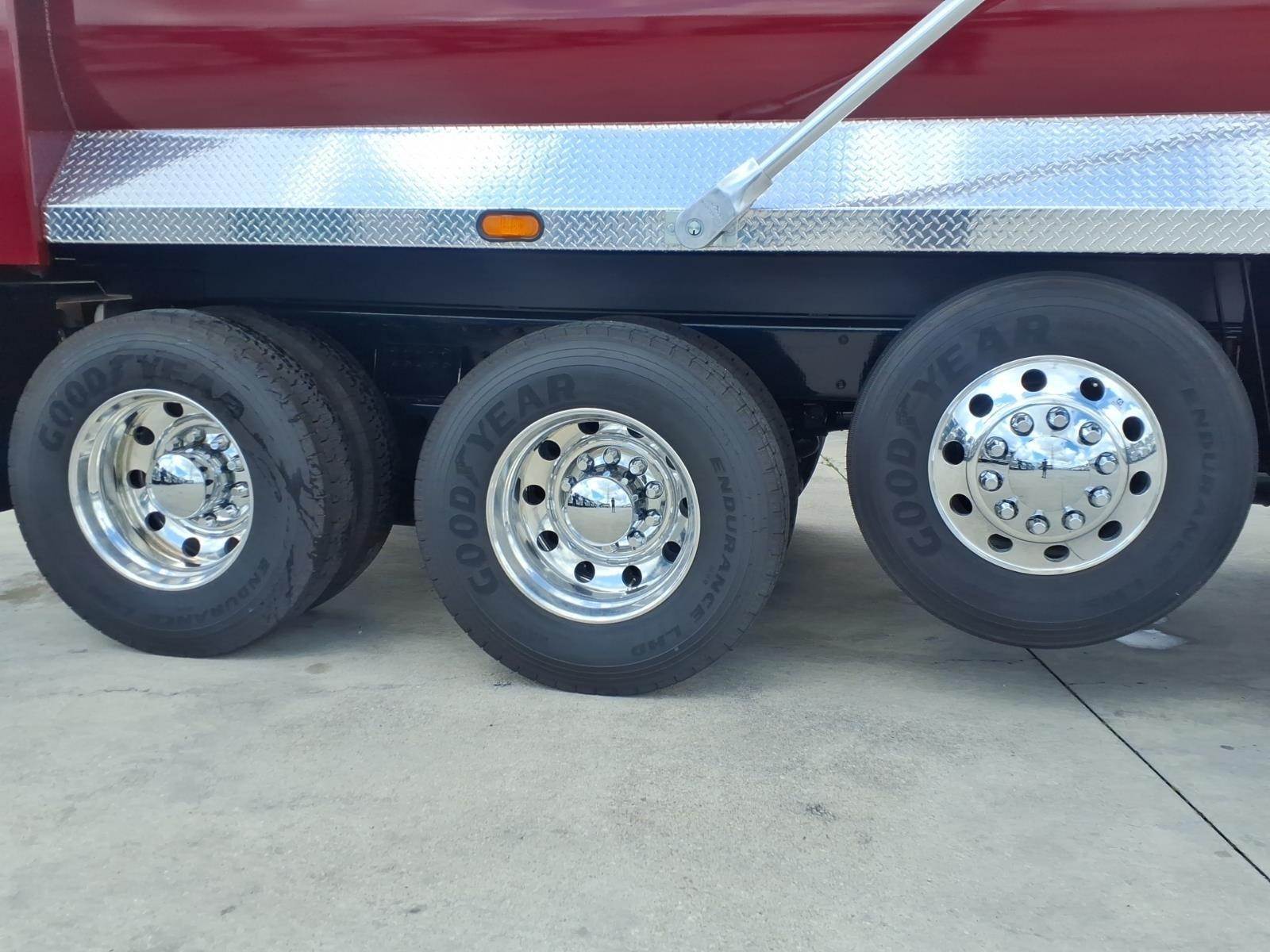

Rear Wheels: Alcoa 98U63 24.5x8.25 Aluminum Ultra One High Polish
Pusher Wheels: Alcoa ULA18 22.5x8.25 Aluminum High Polish
Front Tires: Goodyear Endurance WHA 315/80R22.5 20PR
Rear Tires: Goodyear Endurance LHD 11R24.5 16PR
Pusher Tires: Goodyear Endurance LHS 11R22.5 16PR

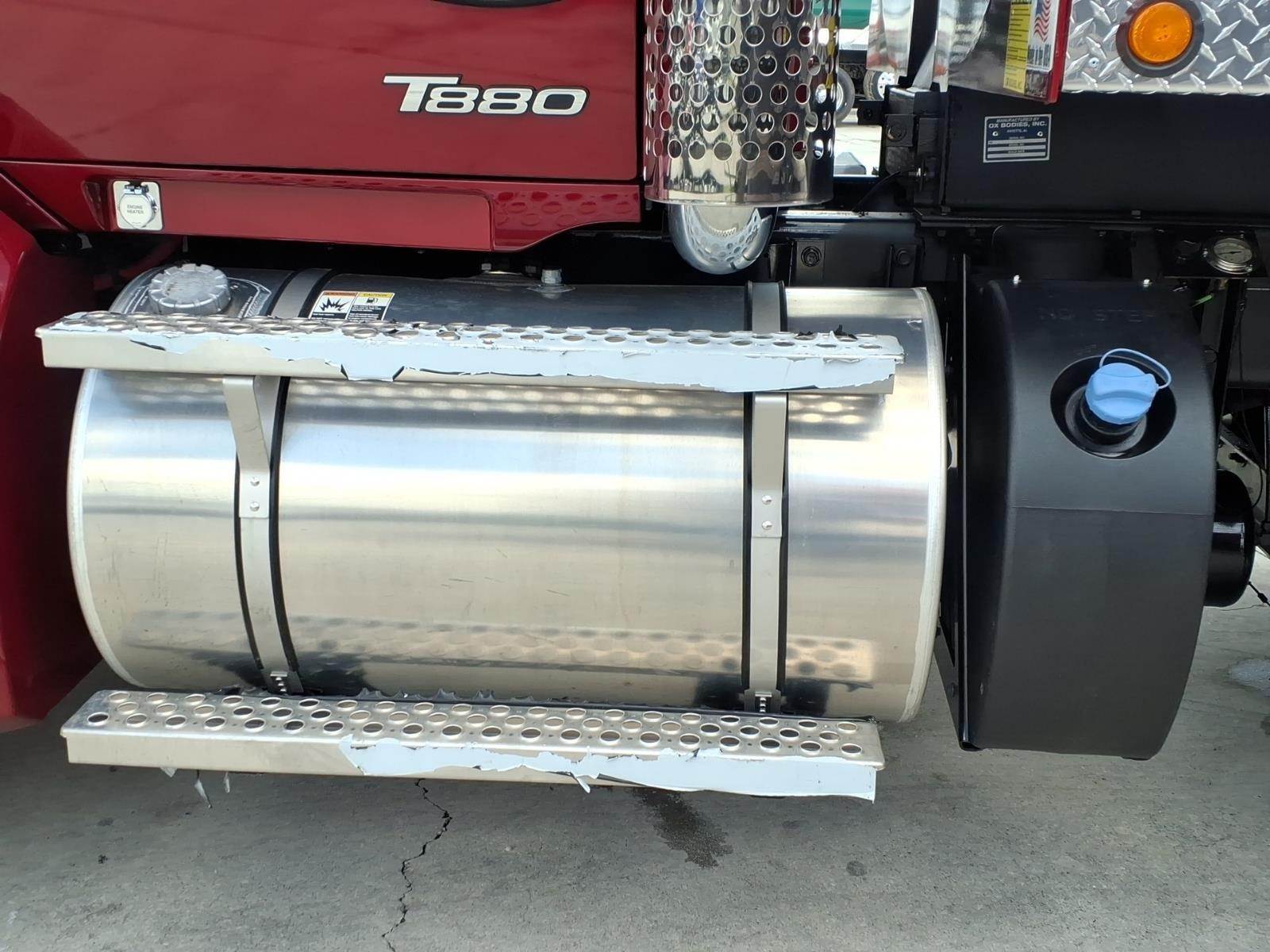

Fuel Tank: Single 90 Gallon Aluminum Under Cab Mounted Tank
DEF Tank: 14 Gallon Round Tank, Left-Hand Mounted
Cab Configuration: Non-Sleeper Day Cab with Panoramic Curved Windshield and LED Marker Lights
Hood: T880 Set-Back Axle Medium Length Hood, 122.6" BBC

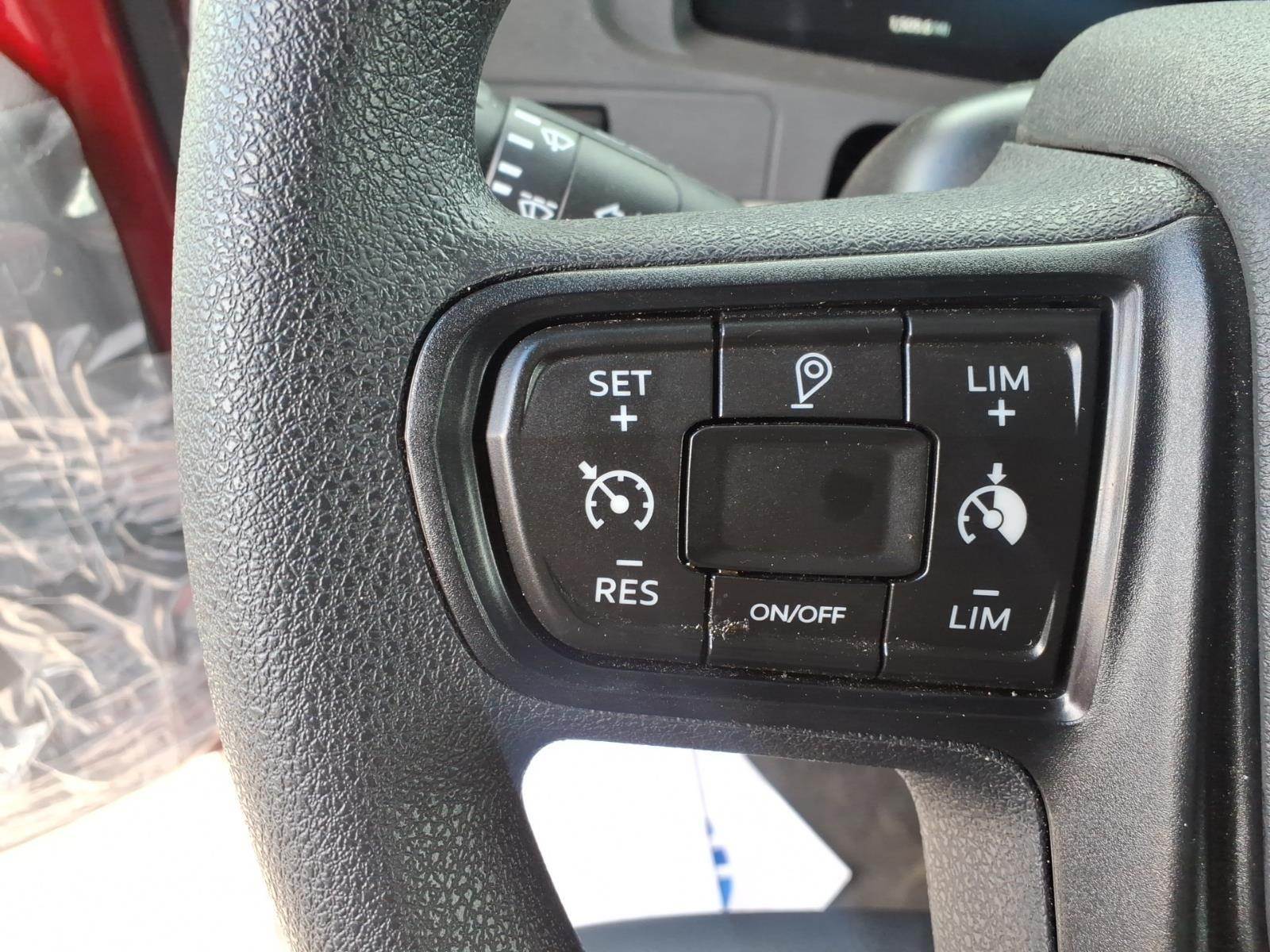

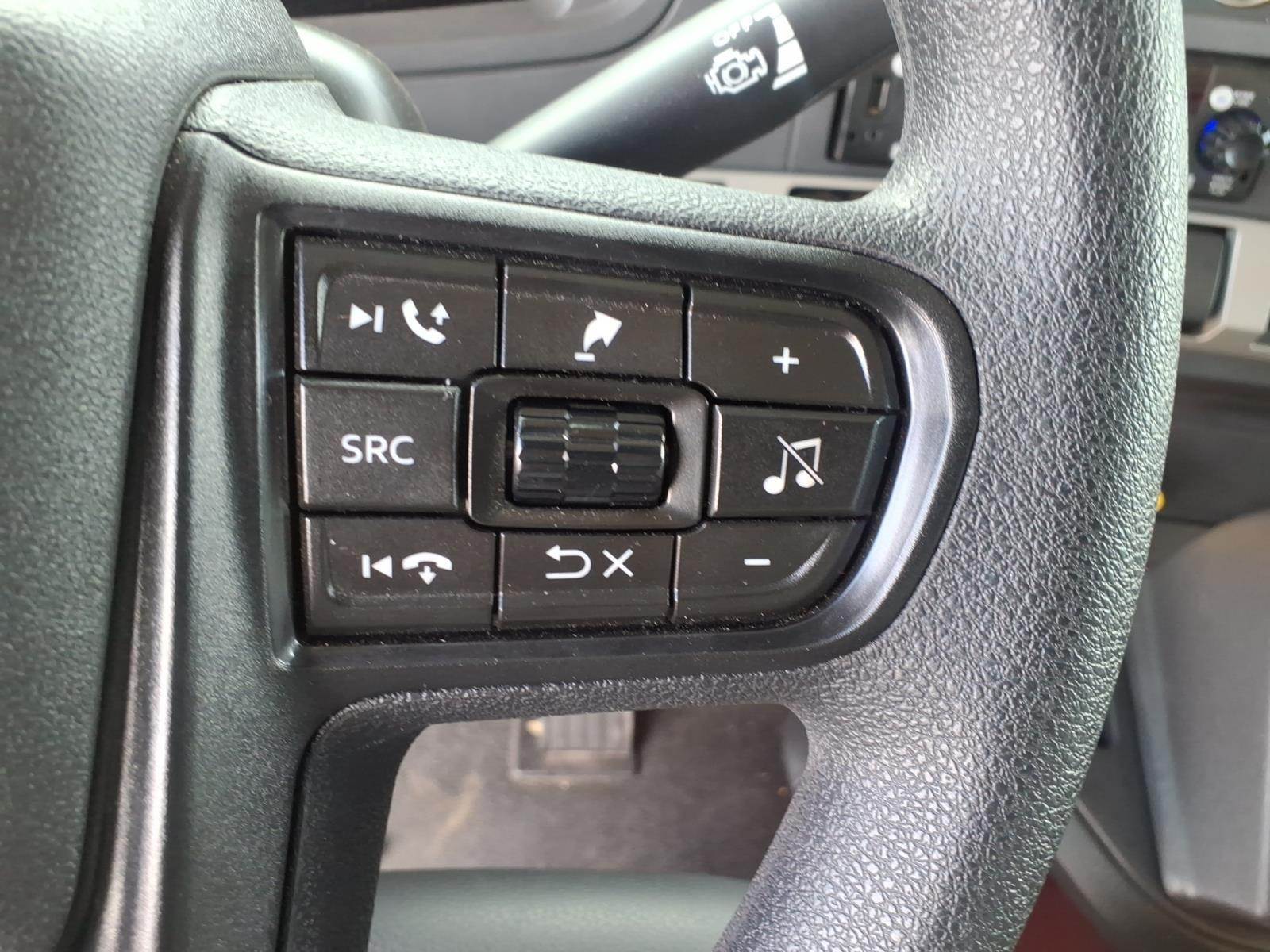

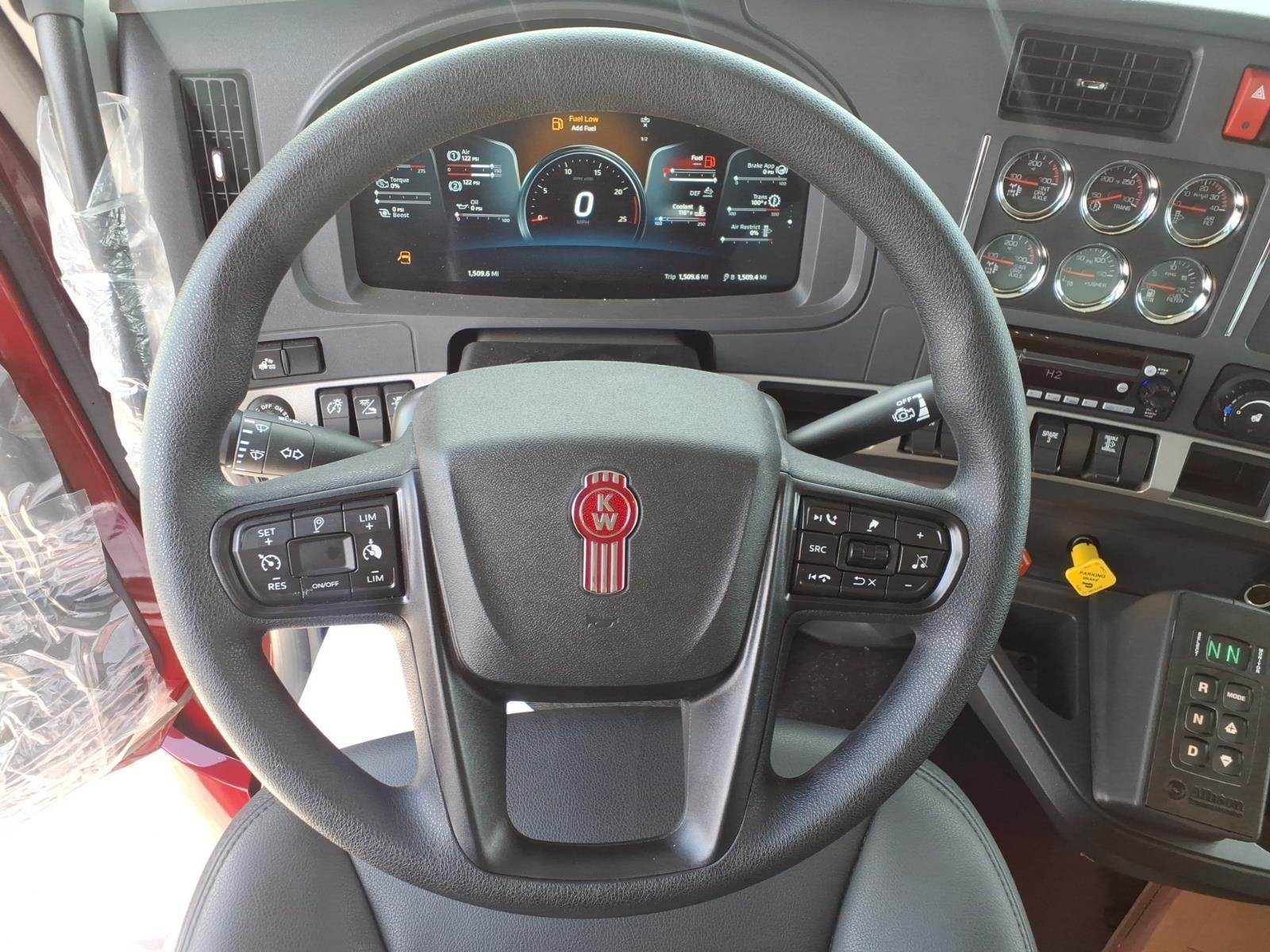

SmartWheel Steering Wheel with Integrated Radio and Cruise Controls
Tilt and Telescoping Steering Column

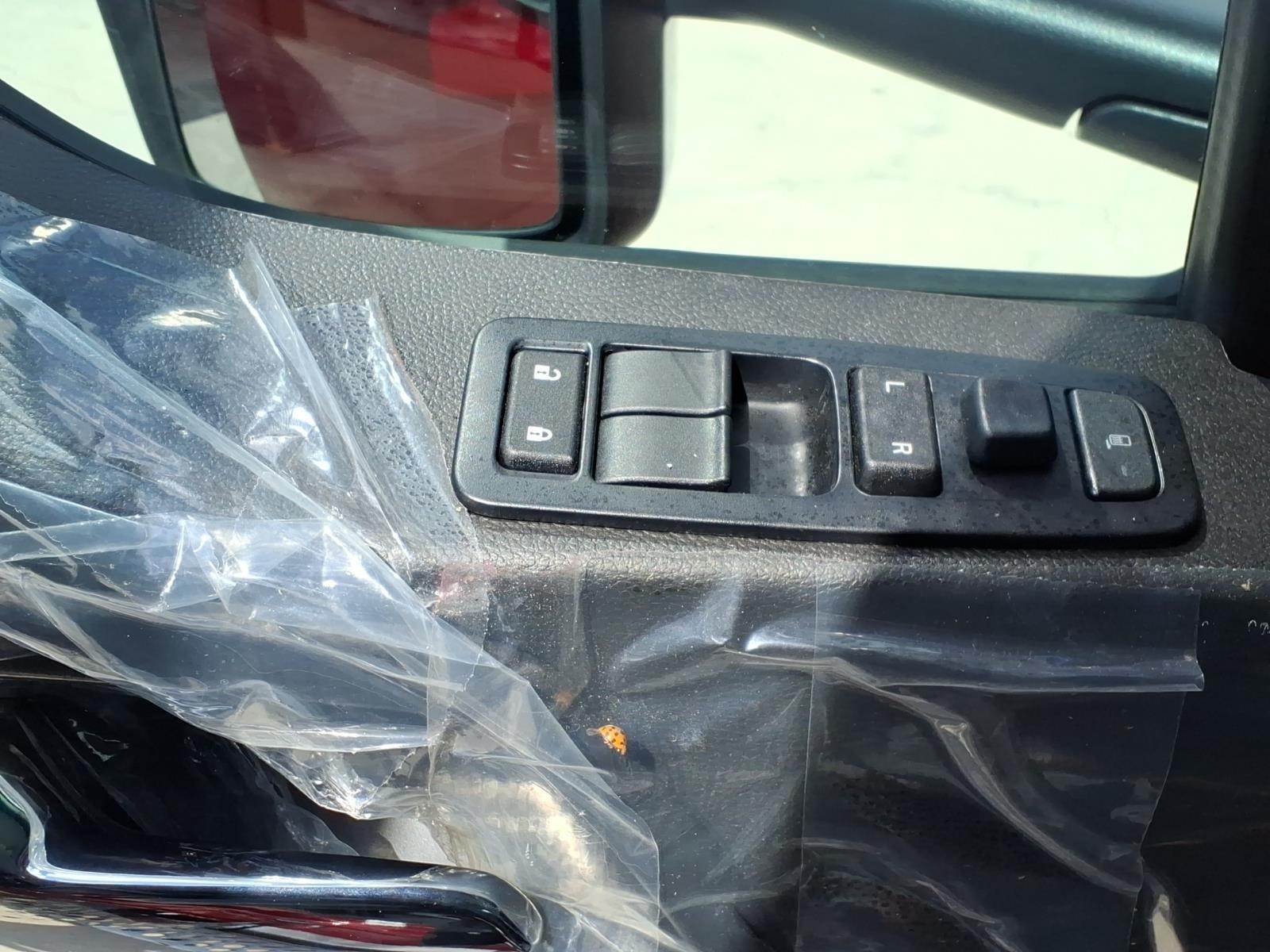

Power Windows and Power Door Locks
Kenworth DEA710 AM/FM/WB/USB Bluetooth Radio
CB Radio Installation Kit with Quick Release and Antenna Mounts

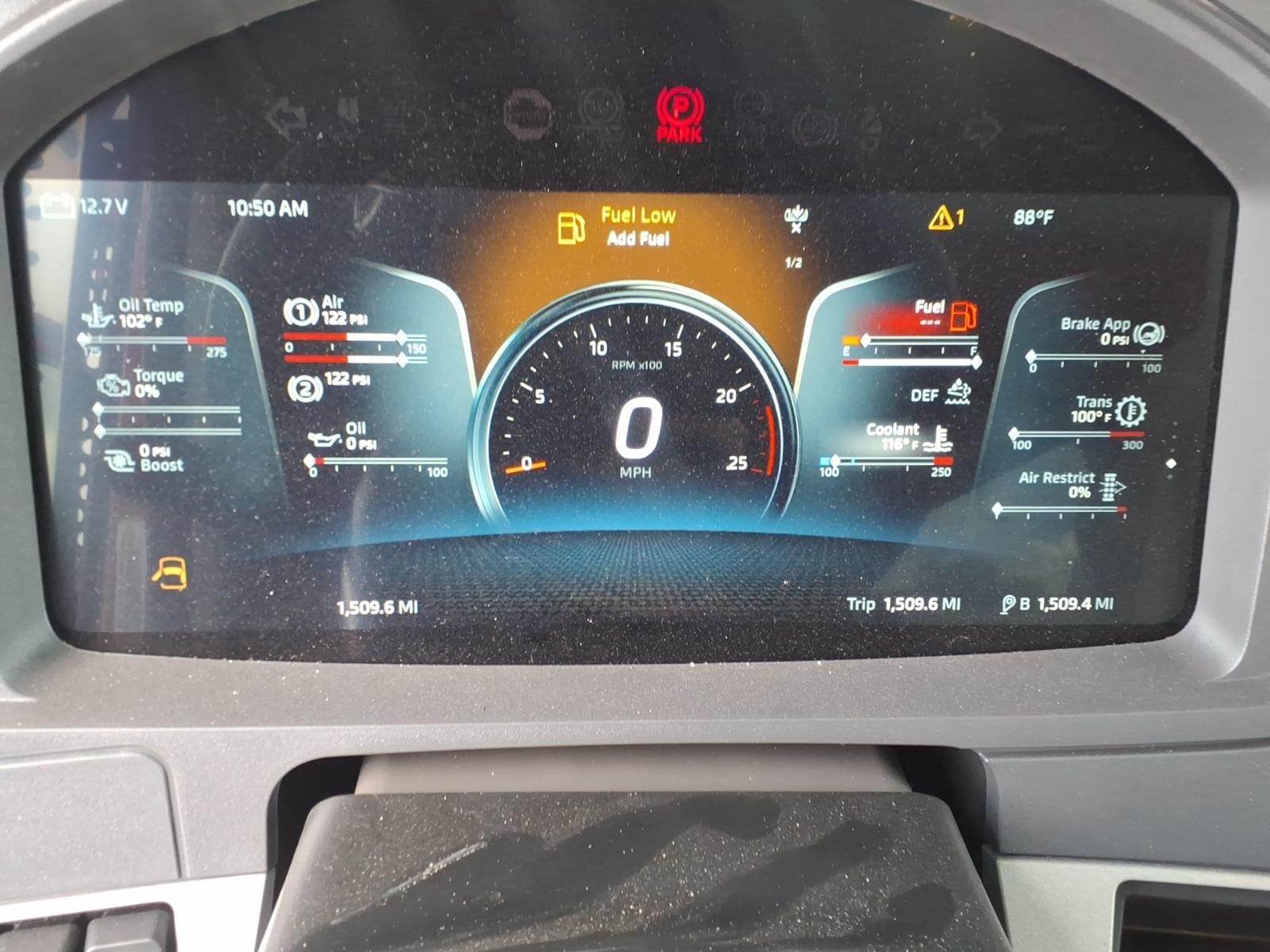

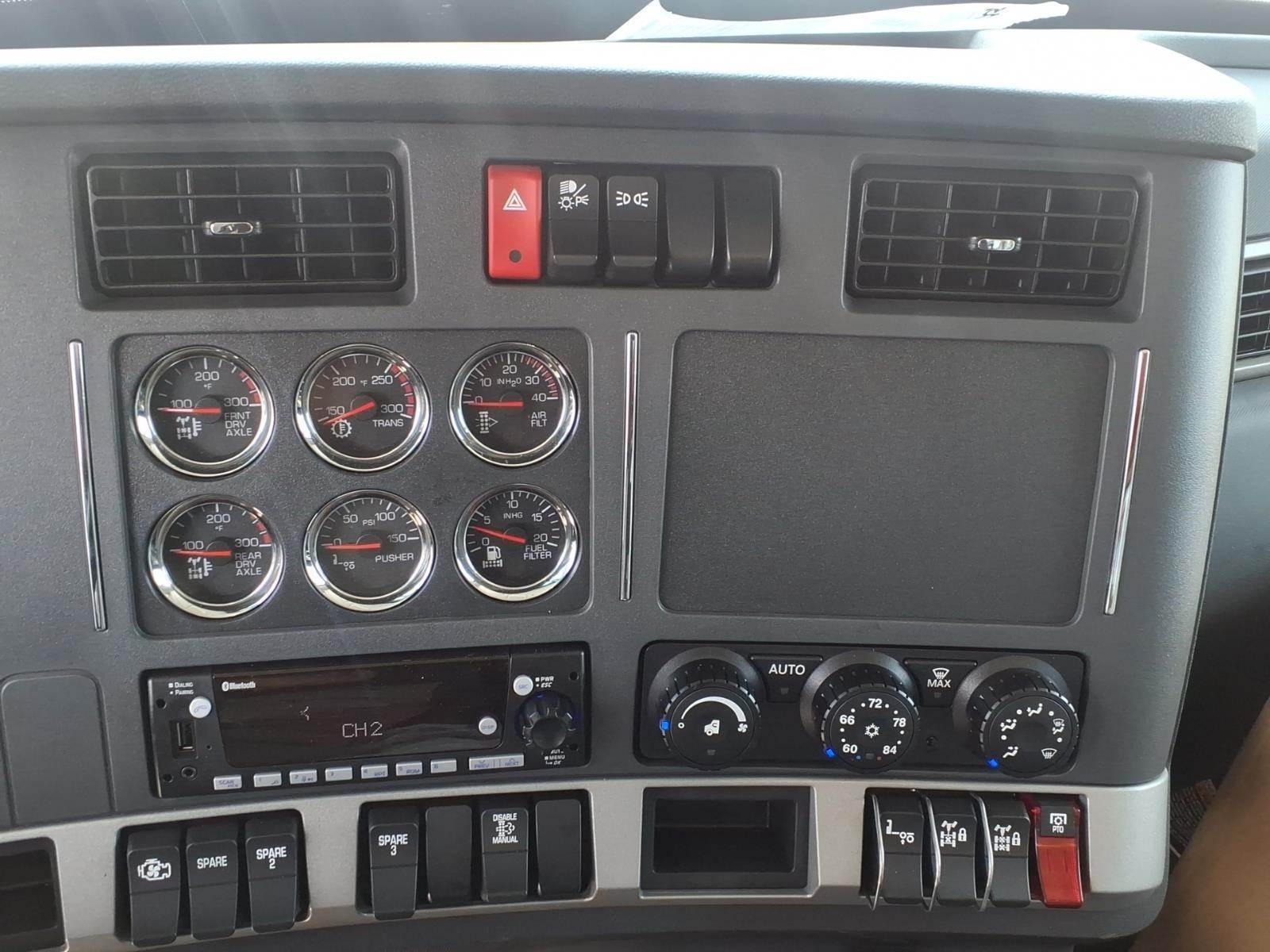

15" Digital Display Instrument Package
HVAC System with Automatic Temperature Control and Fine Particulate Cabin Air Filter

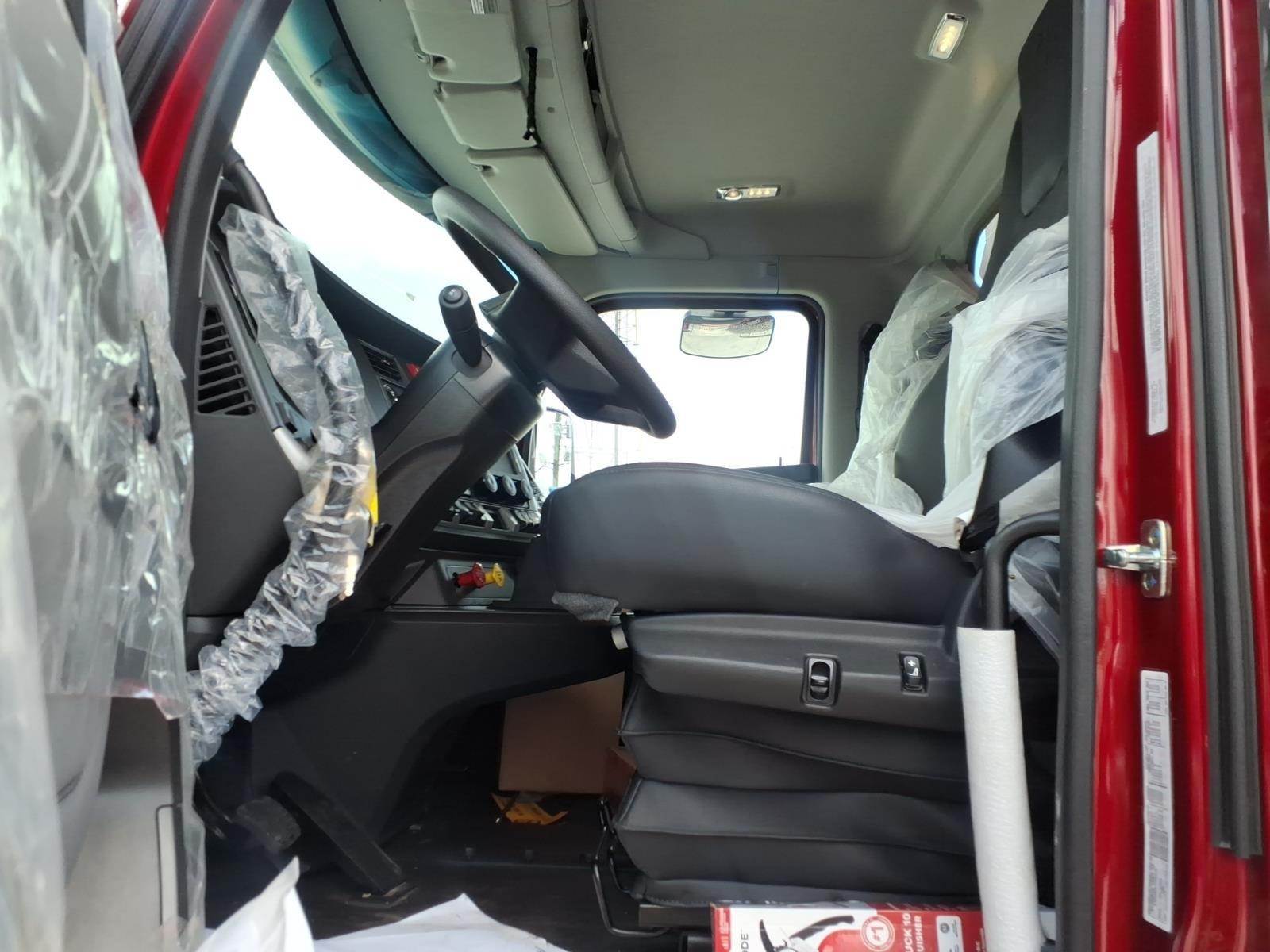

Driver Seat: Kenworth GT701 High Back Vinyl Air Ride Seat
Passenger Seat: Kenworth GT100 High Back Toolbox Seat, Duracloth/Vinyl
Dual Chrome Heated Aero Mirrors with Motorized Adjustment
Dual Rectangular Roof Mounted Air Horns with Covers
Exterior Stainless Steel Sunvisor

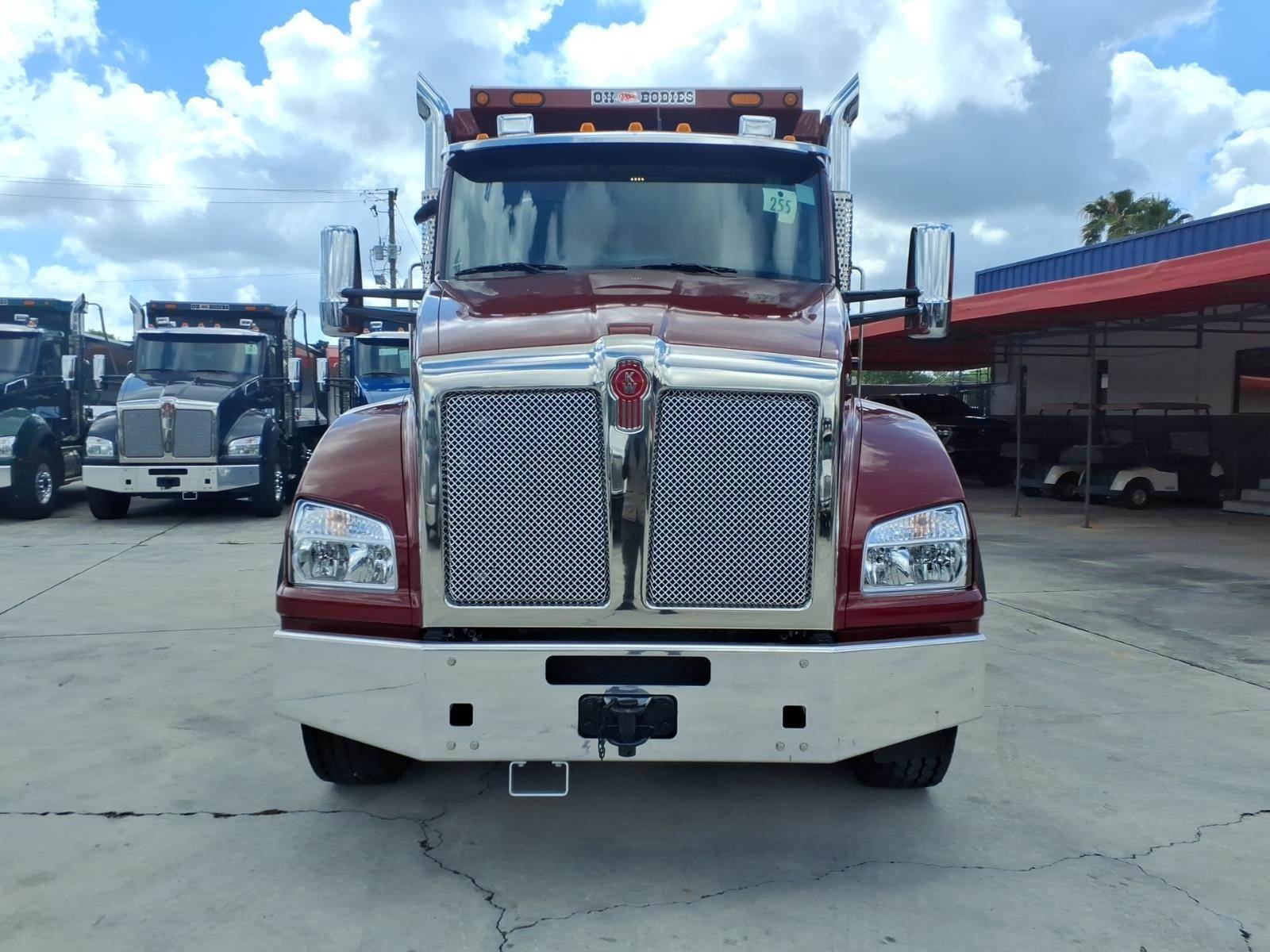

Polished Aluminum Tapered Front Bumper
Bright Engine Air Intake
Dual Chrome Exhaust Elbows with Dual 7" Curved Exhaust Stacks

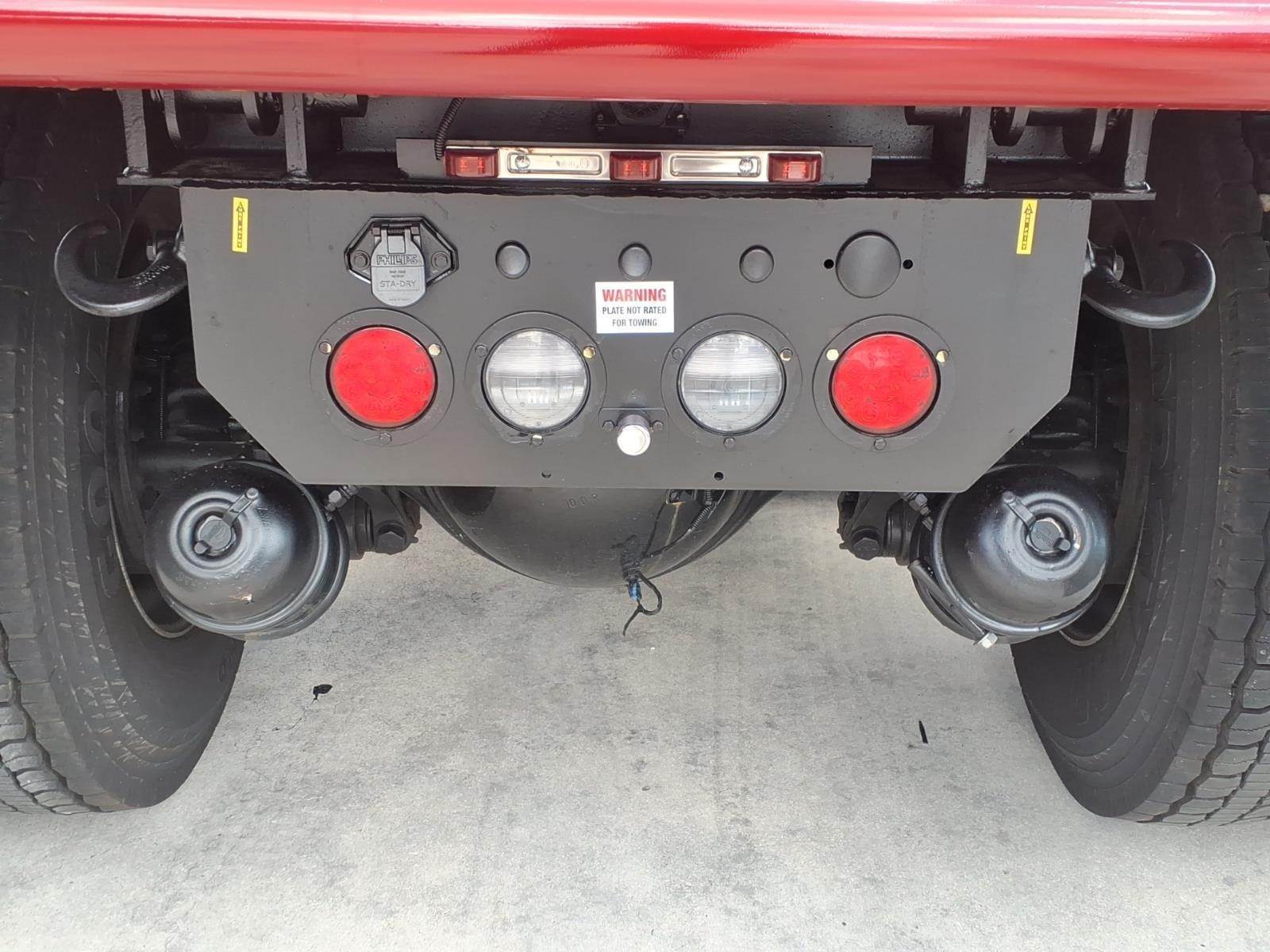

LED Lighting Package Including Flush-Mounted LED Turn Signals and LED Stop/Tail/Backup Lights
Dual LED Flood Lights Mounted Low Behind Cab
Front Tow Hook, Cast Center Mounted
Crosslock / Locking Rear Differential with Cab Controls

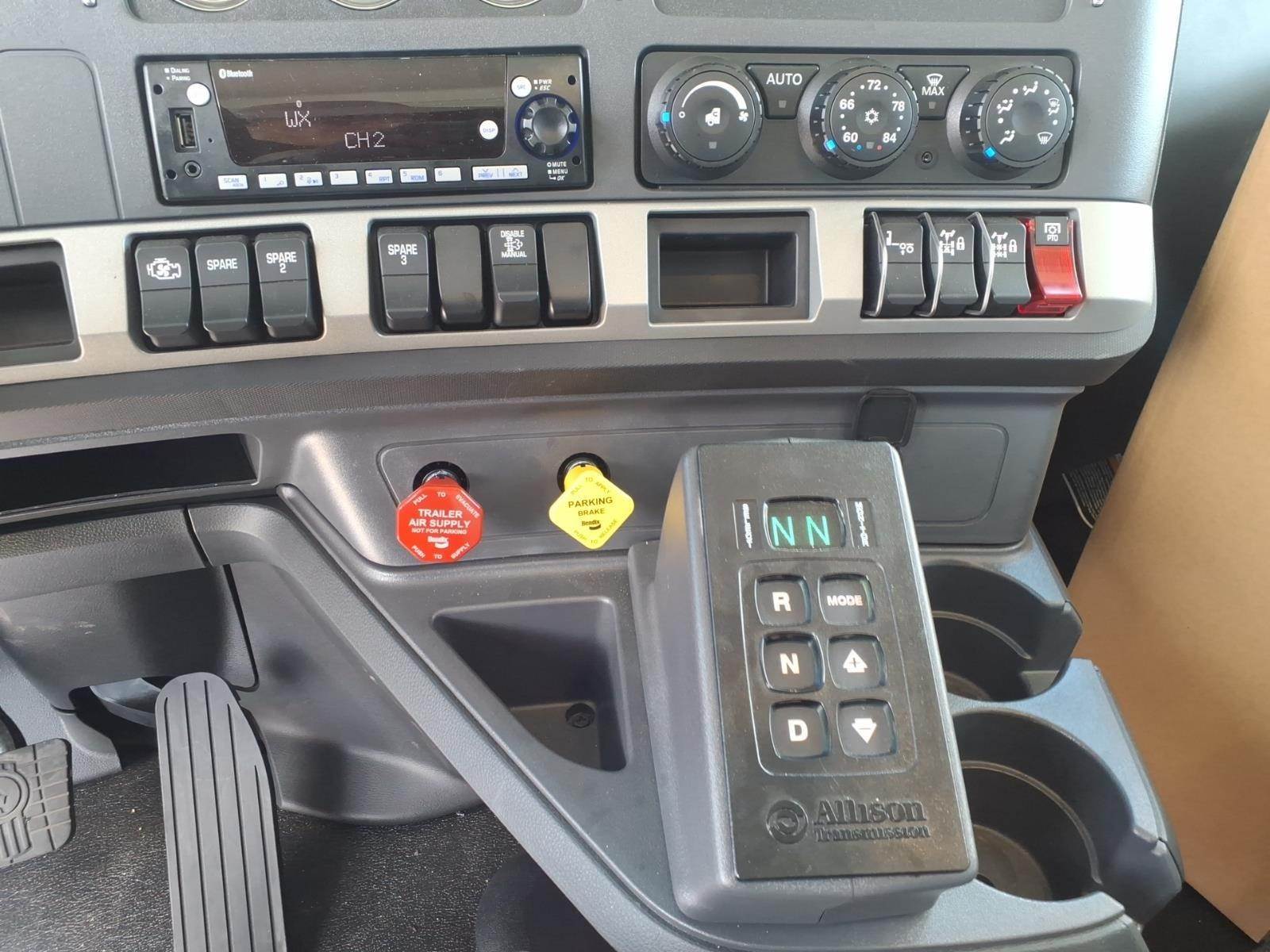

Allison Push Button Transmission Controls Console Mounted
Remote PTO/Throttle Provision with 12-Pin J1939 Connection
End Dump Vocational Specification for Gravel, Crushed Rock, and Sand Applications
Designed for Heavy Construction Service with 80,000 lb. GCW Rating

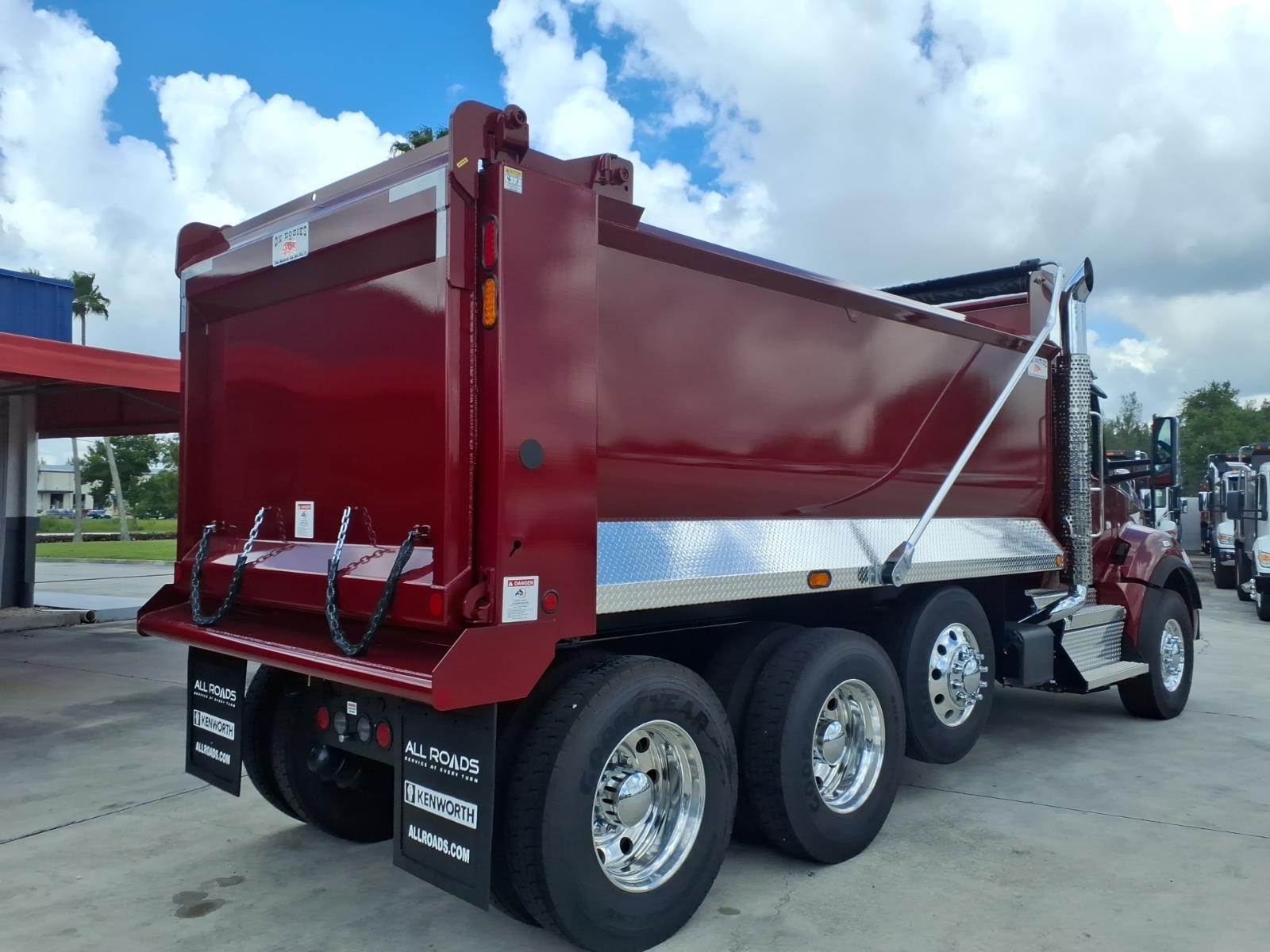

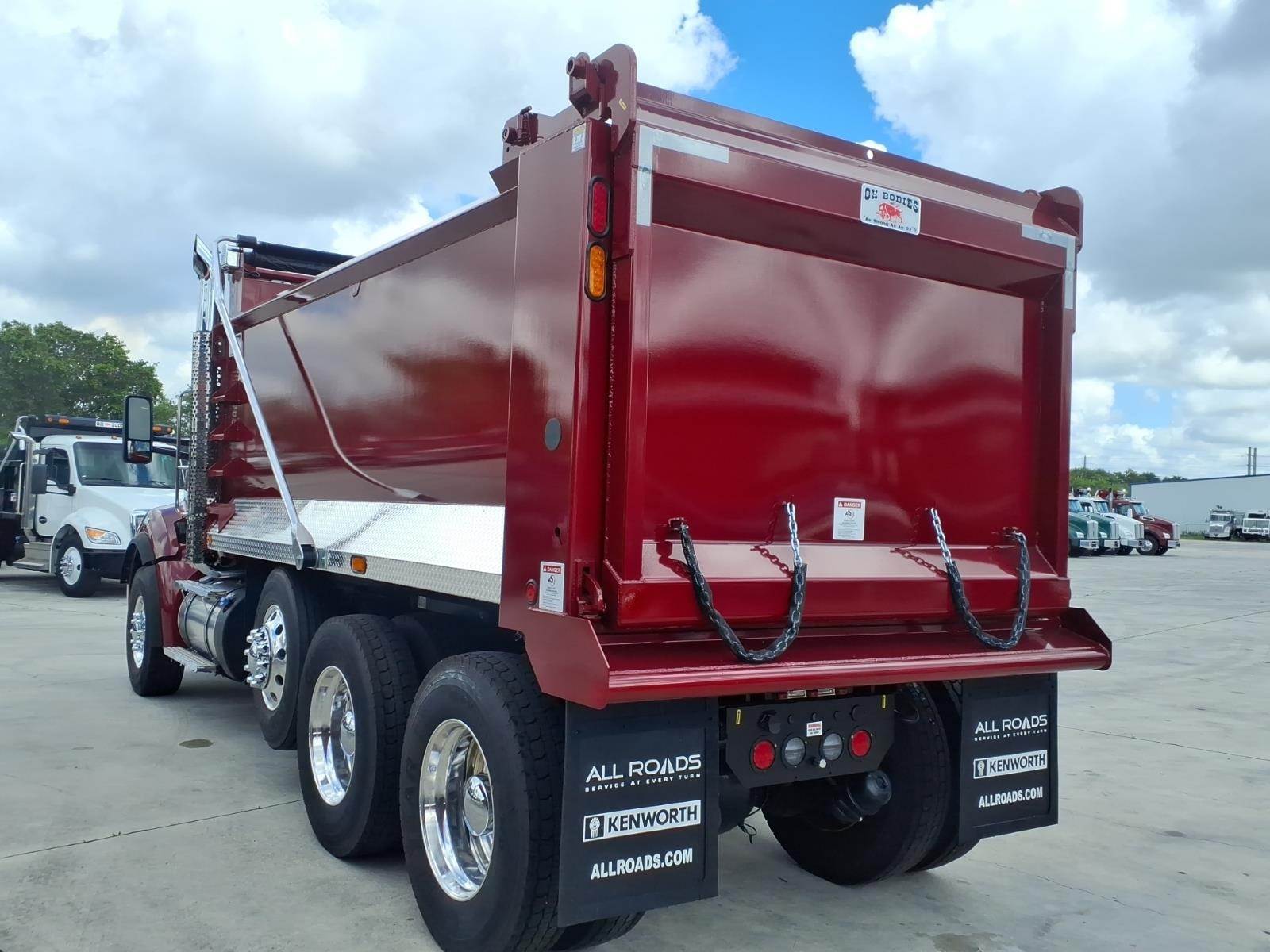

16' Stampede dump truck body specifications
Body Specifications:
Model: Stampede Body ID 87
Length: 16 feet
Hoist Model: 74133
Frame: Standard 2x8 RT with straight front and rear styling
Construction Materials:
Side Walls: 1/4" AR450 plate
Front Wall: 1/4" AR450 plate
Floor: 1/4" AR450 plate
Tailgate: 3/16" AR450 sheet
Skirt: 7GA A36 sheet
Side Top Rail: 4x4x.250 Diamond
Height Dimensions:
Front Height: 62"
Side Height (Front): 62"
Side Height (Rear): 62"
Rear Height: 68"
Cab shield Configuration:
Style: Narrow and centered
Projection: 24"
Width: 72"
Features: Oval light cutouts

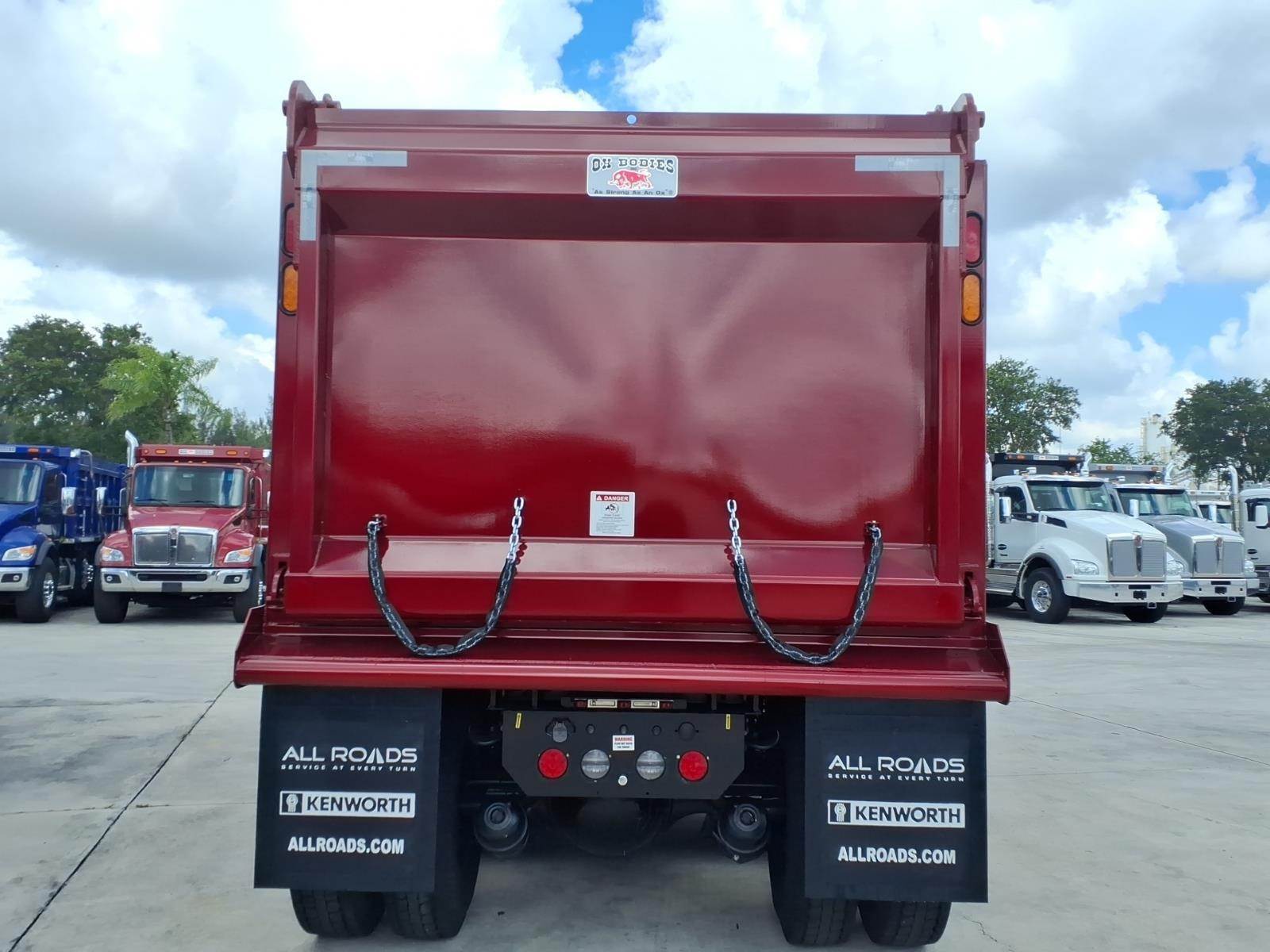

Tailgate Features:
Type: Air high lift
Bracing Style: Outer frame only with formed panel
Operation: Air-operated closing system
Additional Features:
Tarp System: Electric Mountain tarp for 10-16ft bodies
Dump Apron: Heavy duty, 10" size
Lighting: Lower front with mid-turn lights, 2 metro lights
Body Prop: Single prop system
Gravel Guards: Steel construction
Reversing Alarm: Included
Mudflaps: 30-inch standard
Hydraulics: Standard 74133 cylinder with nestled pyramid flat bottom reservoir
Lighting Package: Multiple light kits for cab shield, sides, and rear
Rear Hinge: Removable pin design (no hitch plate)
Exhaust: 5-inch turnout
The body includes aluminum skirt coverings suitable for bodies up to 16ft and features standard Stampede branding and logos.
This represents a heavy-duty configuration designed for demanding dump truck applications with premium material choices like AR450 steel for high-wear areas.
