Product Description
Transfer this unit to your nearest South Florida location at no additional cost! Fort Lauderdale, Fort Pierce, Riviera Beach, or Naples. Contact us for details!
Model Year: 2026
Model: Kenworth T880 Series Conventional Day Cab
Exterior Color: White (L0006EY)
Interior Trim Level: Vantage Daycab
Interior Color: Slate Gray with Black Seats
Engine: PACCAR MX-13, 510 HP @ 1,600 RPM, 1,850 lb-ft Torque @ 1,000 RPM, Engine Brake
Transmission: Allison 4500RDS Generation 6 Automatic, 6-Speed, PTO Provision, Without Retarder
Front Axle: Meritor MFS20, 20,000 lb Rating, 3.5" Drop Standard Track
Rear Axles: Meritor RT46-160 Tandem, 46,000 lb Rating, Dual Drive, Single Reduction
Pusher Axle: Watson & Chalin SL13 Steerable Pusher, 13,500 lb Rating, Located 49" Ahead of Forward Rear Axle

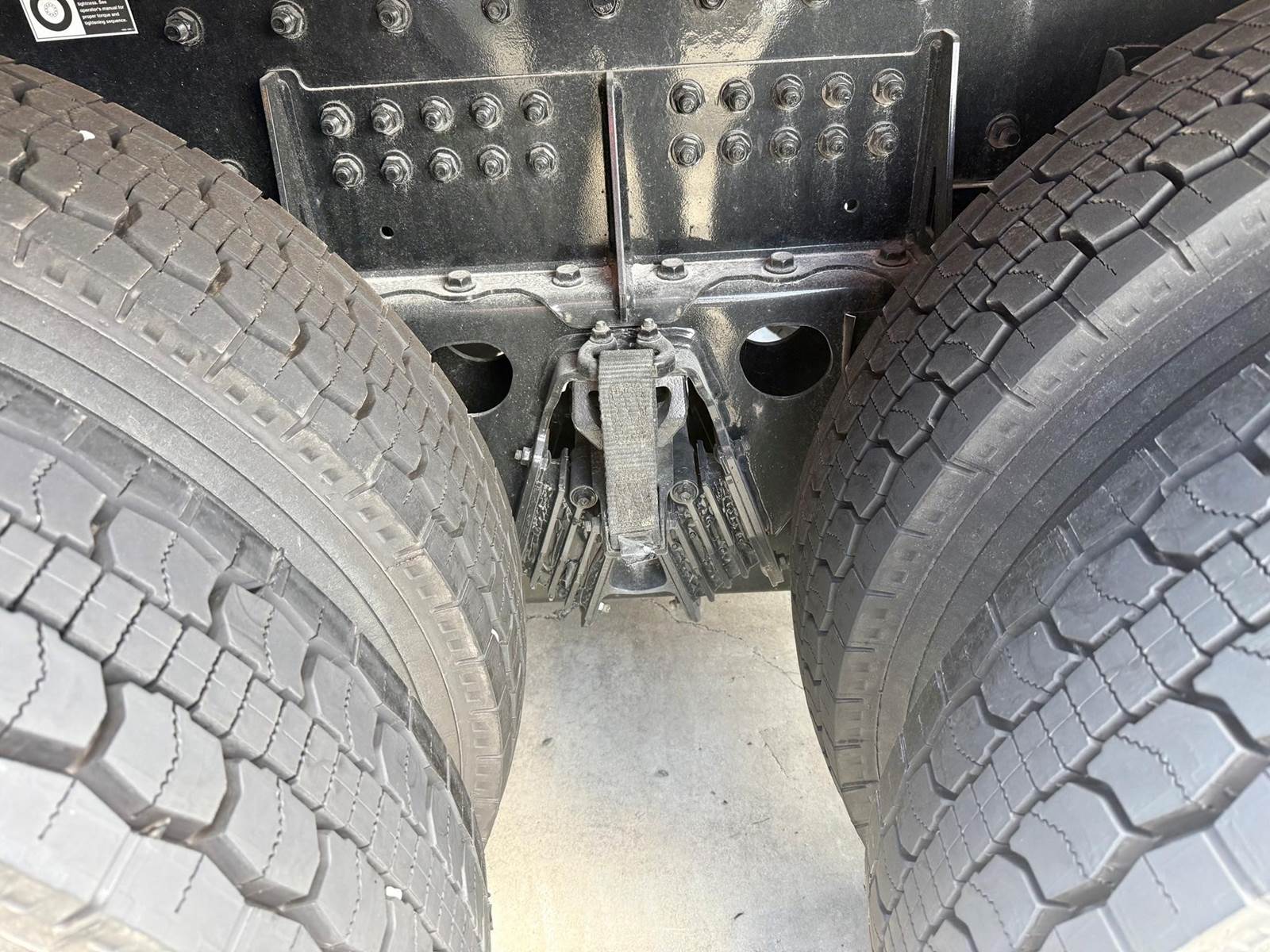

Suspension: Hendrickson Haulmaax EX HMX460, 46,000 lb Capacity, 54" Axle Spread, Heavy-Duty Torque Rods, Shock Absorbers
GVWR: 79,200 lbs.
GCWR: 80,000 lbs.
Wheelbase: 215"
Cab-to-Axle: 141"
Rear Axle Ratio: 4.30
Frame: Double Frame with Full Steel Insert, 10-3/4" x 3/8" Steel Rails
Differentials: Locking Rear Differential / Crosslock, Meritor Forward and Rear Rear Axles
Brakes: Bendix Drum Brakes Front and Rear with Automatic Slack Adjusters, Bendix ABS 4S/4M System
Front Wheels: Alcoa Ultra One High Polish Aluminum 22.5 x 9
Rear Wheels: Alcoa Ultra One High Polish Aluminum 24.5 x 8.25
Pusher Wheels: Alcoa High Polish Aluminum 22.5 x 8.25
Front Tires: Goodyear Endurance WHA 315/80R22.5 20PR
Rear Tires: Goodyear Endurance LHD 11R24.5 16PR
Pusher Tires: Goodyear Endurance LHS 11R22.5 16PR
Fuel Tank: Single 90-Gallon Aluminum Tank, Left Side Under Cab
DEF Tank: 14-Gallon Round Tank with Polished Cover
Application: Construction / End Dump hauling gravel, crushed rock, and sand

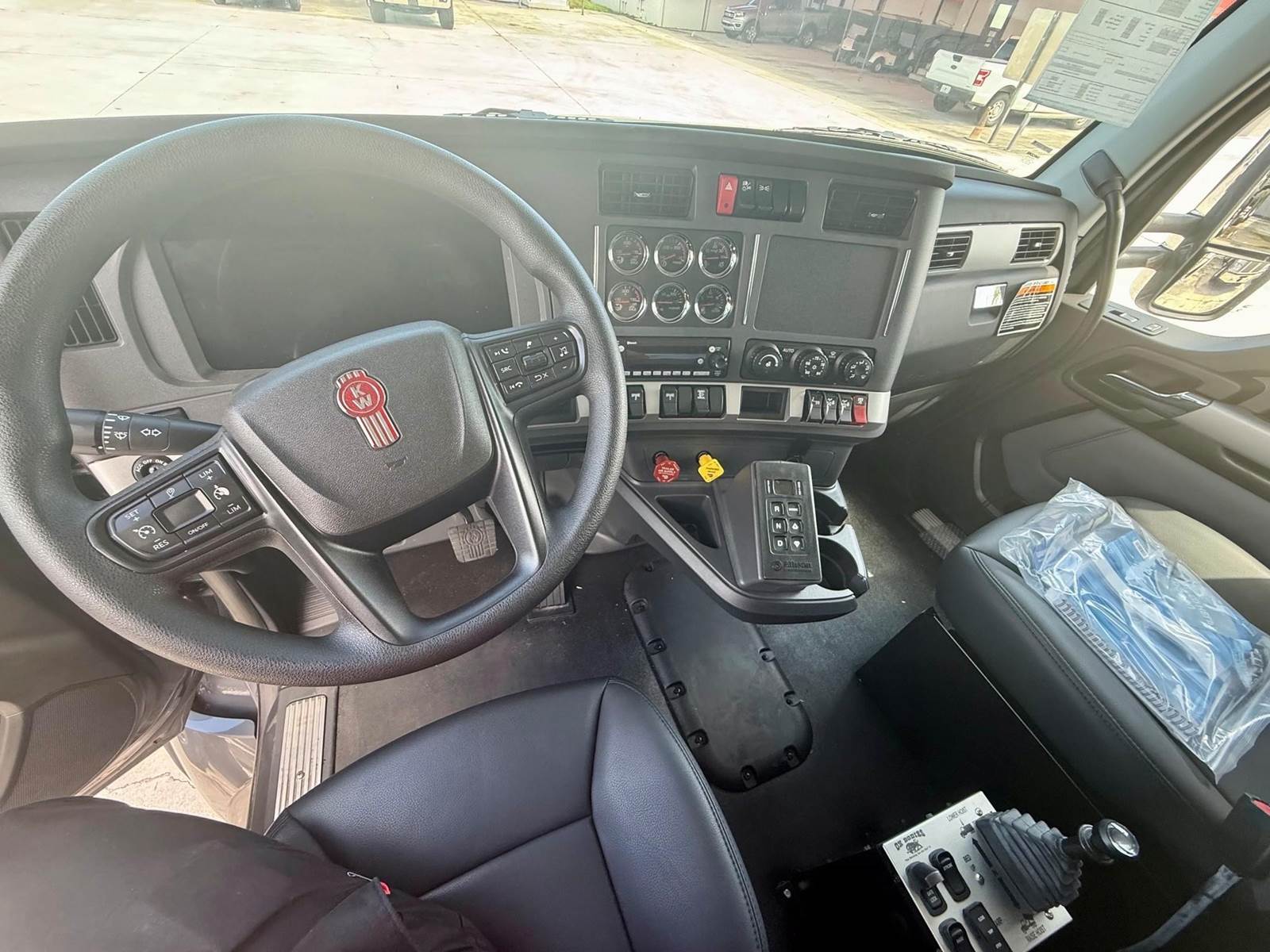

Cab Features: Power Windows, Power Door Locks, Adjustable Tilt/Telescoping Steering Column, Kenworth SmartWheel with Integrated Cruise and Radio Controls, Automatic Climate Control, Fine Particulate HVAC Filtration, Self-Canceling Turn Signals, 15" Digital Display Instrument Cluster, Five Sets of Keys

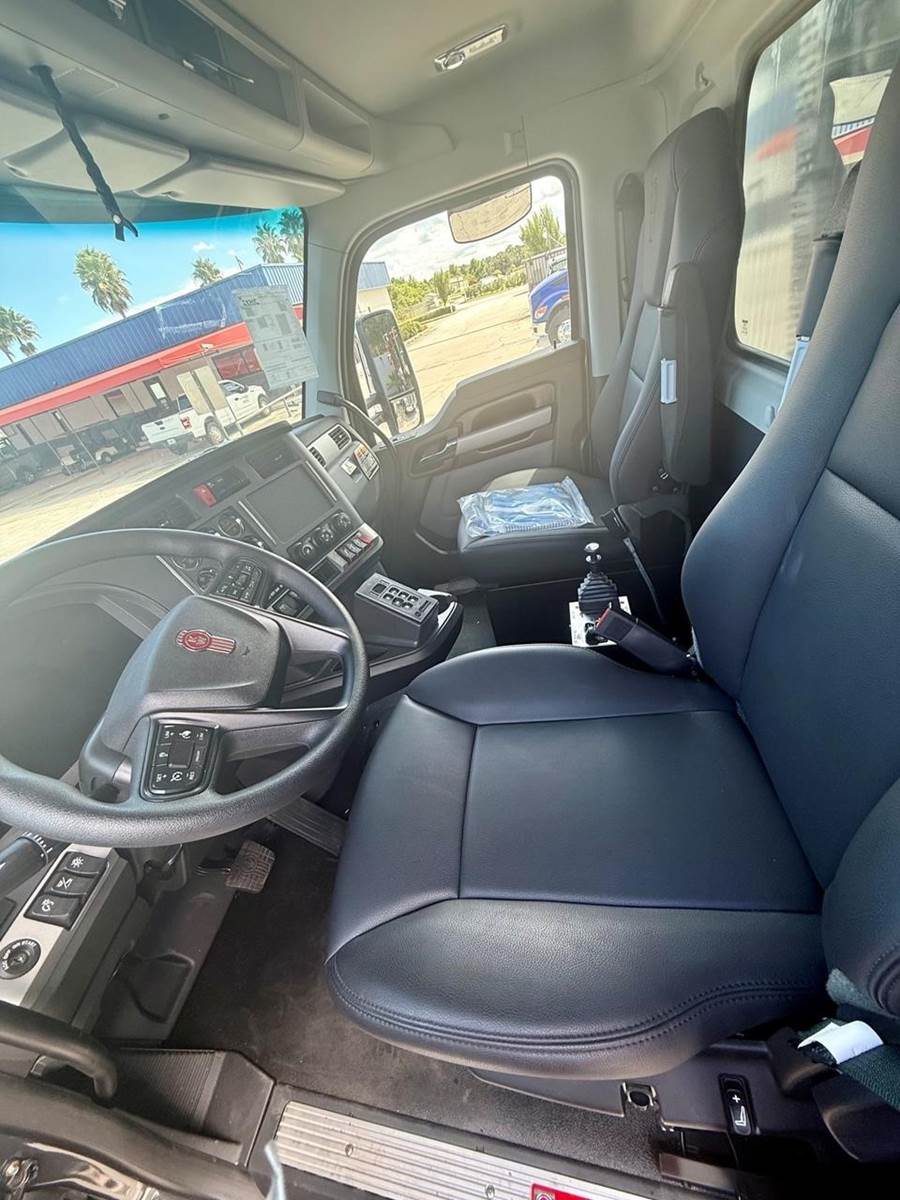

Seating: Kenworth GT701 High-Back Vinyl Air-Ride Driver Seat and GT100 High-Back Toolbox Passenger Seat
Audio & Communications: Kenworth DEA710 AM/FM/WB/USB Radio with Bluetooth, Base Audio System, CB Radio Installation Kit with Quick-Release Mount and Antenna Provision, Global Telematics Unit

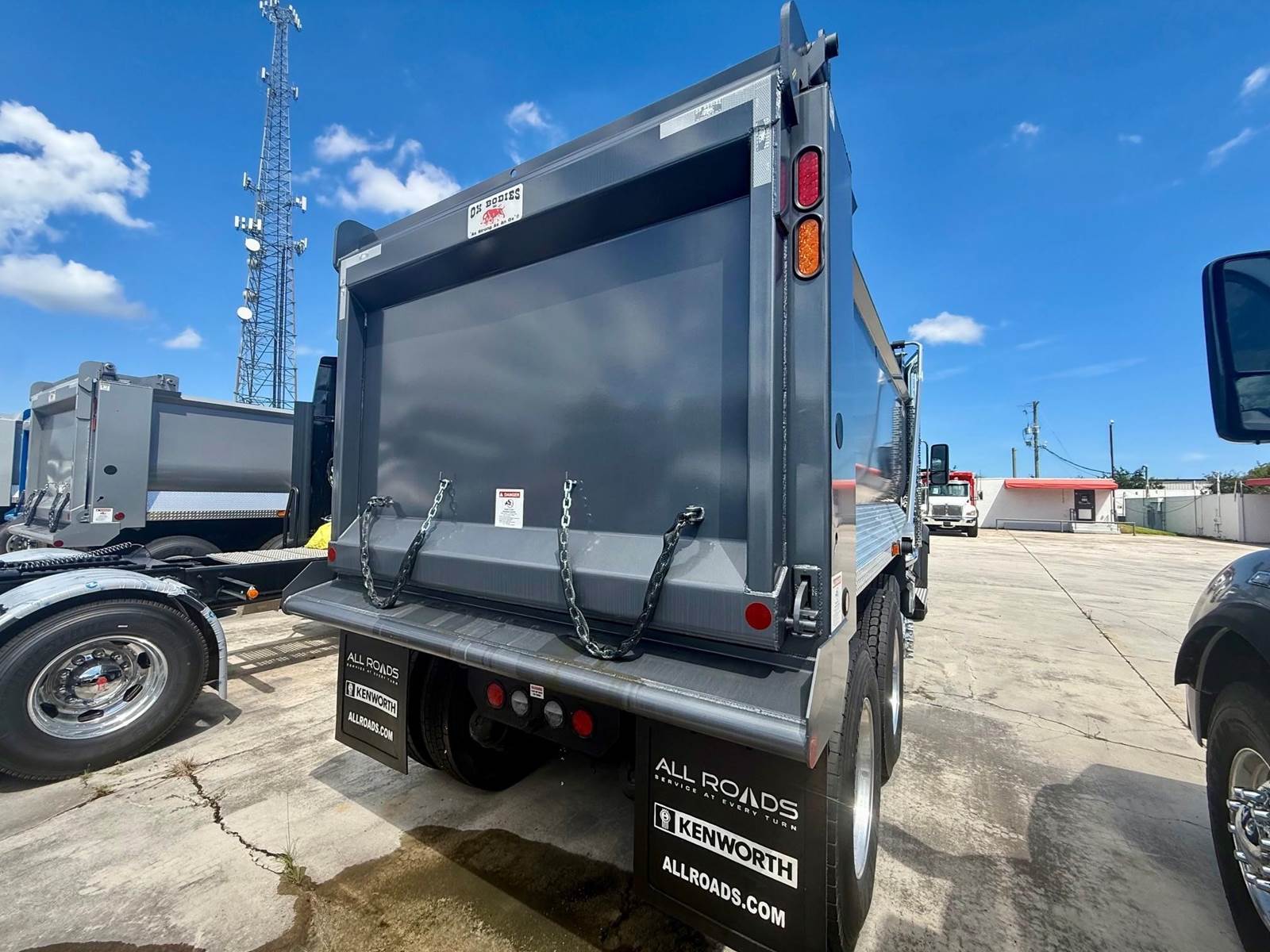

16' Stampede dump truck body specifications
Body Specifications:
Model: Stampede Body ID 87
Length: 16 feet
Hoist Model: 74133
Frame: Standard 2x8 RT with straight front and rear styling
Construction Materials:
Side Walls: 1/4" AR450 plate
Front Wall: 1/4" AR450 plate
Floor: 1/4" AR450 plate
Tailgate: 3/16" AR450 sheet
Skirt: 7GA A36 sheet
Side Top Rail: 4x4x.250 Diamond
Height Dimensions:
Front Height: 62"
Side Height (Front): 62"
Side Height (Rear): 62"
Rear Height: 68"
Cab shield Configuration:
Style: Narrow and centered
Projection: 24"
Width: 72"
Features: Oval light cutouts

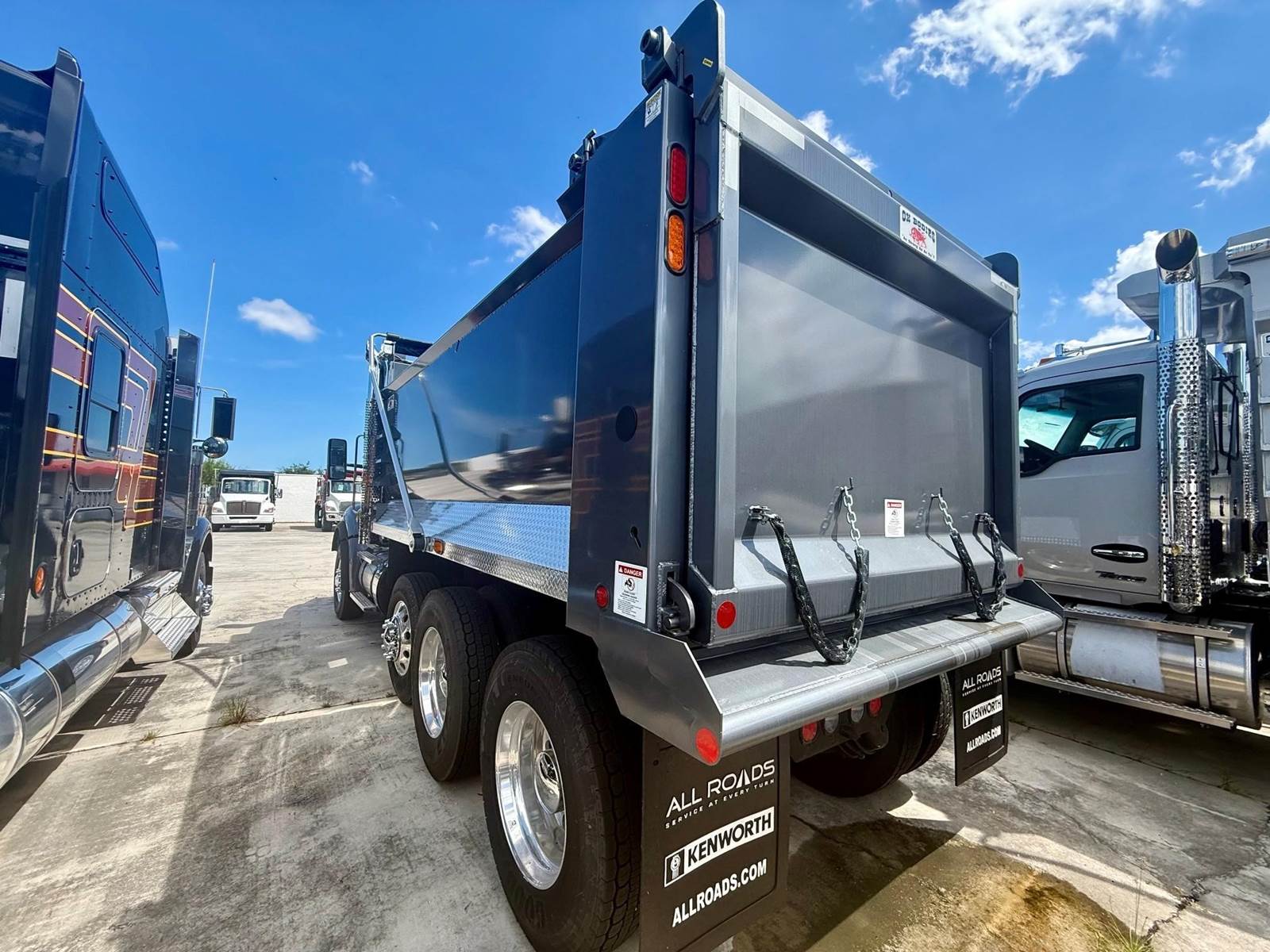

Tailgate Features:
Type: Air high lift
Bracing Style: Outer frame only with formed panel
Operation: Air-operated closing system
Additional Features:
Tarp System: Electric Mountain tarp for 10-16ft bodies
Dump Apron: Heavy duty, 10" size
Lighting: Lower front with mid-turn lights, 2 metro lights
Body Prop: Single prop system
Gravel Guards: Steel construction
Reversing Alarm: Included
Mudflaps: 30-inch standard
Hydraulics: Standard 74133 cylinder with nestled pyramid flat bottom reservoir
Lighting Package: Multiple light kits for cab shield, sides, and rear
Rear Hinge: Removable pin design (no hitch plate)
Exhaust: 5-inch turnout
The body includes aluminum skirt coverings suitable for bodies up to 16ft and features standard Stampede branding and logos.
This represents a heavy-duty configuration designed for demanding dump truck applications with premium material choices like AR450 steel for high-wear areas.
Exterior Chrome & Polished Features: Bright Engine Air Intake, Polished Aluminum Tapered Bumper, High-Polish Aluminum Wheels, Chrome Dual Aero Heated Mirrors, Stainless Steel Exterior Sunvisor, Dual Rectangular Roof-Mounted Air Horns with Covers, Dual Lower Chrome Exhaust Elbows, Dual Curved Chrome Exhaust Tips, Polished Battery Box Cover, Polished Fuel Tank Straps, Polished DEF Tank Cover
Additional Equipment: Front Tow Hook, Bug Screen, Engine Block Heater, Remote PTO/Throttle Provision, Allison PTO Controls, Air Filter Restriction Gauge, Fuel Filter Restriction Gauge, Transmission Oil Temperature Gauge, Dual Drive Axle Oil Temperature Gauges, LED Lighting Package, Dual LED Flood Lights, End-of-Frame Junction Box, Battery Disconnect Switch, Low Voltage Disconnect, WABCO 25.9 CFM Air Compressor, Bendix Heated Air Dryer with Extended Purge
This T880 is a heavy-spec vocational dump chassis designed for demanding construction applications. The combination of the PACCAR MX-13 rated at 510 horsepower, Allison 4500RDS automatic transmission, Meritor 46,000 lb tandem drive axles, Hendrickson Haulmaax EX suspension, and steerable 13,500 lb pusher axle provides exceptional payload capacity, maneuverability, and durability for aggregate, excavation, and site work operations.
