Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost – Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro, or Westminster. Contact us for details!

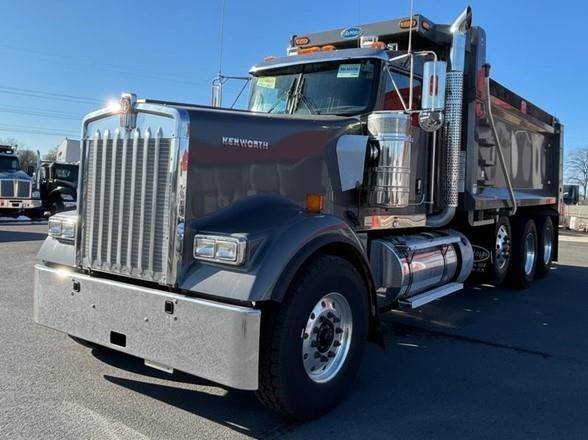

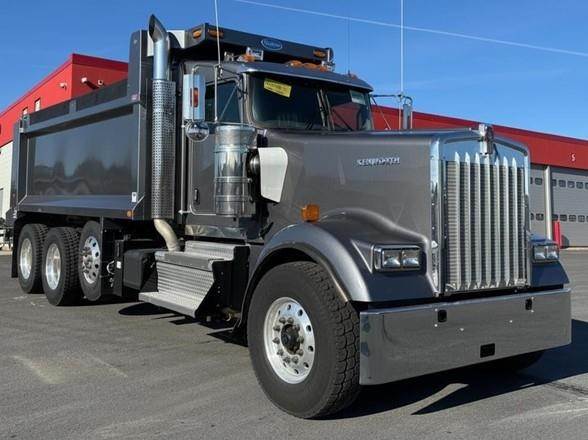

2026 Kenworth W900
Exterior Color: Sparkle Gray
Interior Trim Level: Diamond Cab
Interior Color: Jet Black with Dark Slate Gray trim
Engine: Cummins X15, 565 HP @ 1900 RPM, 2050 lb-ft Torque @ 1000 RPM, Engine Brake

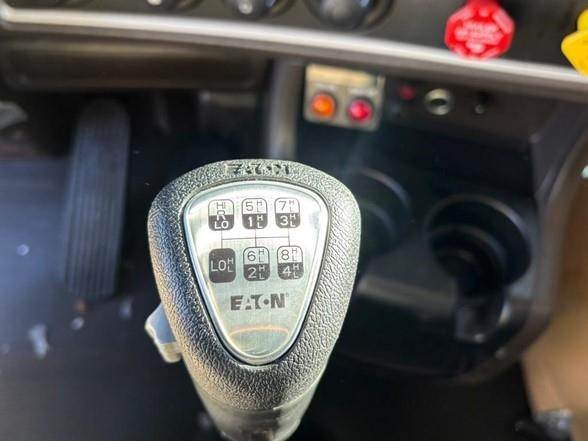

Transmission: Eaton RTLO20918B, 18-Speed Manual
Front Axle: Dana Spicer D2000, 20,000 lbs.
Rear Axles: Dana Spicer D46-172HP Tandem, 46,000 lbs.
Pusher Axle: Watson & Chalin SL13, 13,500 lbs., Steerable
Suspension: Hendrickson PRIMAAX EX 462, 46,000 lbs.
GVWR: 75,200 lbs.
Wheelbase: 248 inches
Cab-to-Axle: 142 inches
Rear Axle Ratio: 3.91
Brakes: Front: Drum (Bendix 16.5x6), Rear: Drum (Bendix 16.5x7), Pusher: Drum (Bendix 15x4)
Wheels:
Front: Alcoa 89U63 22.5x9 Aluminum Ultra One High Polish
Rear: Alcoa 98U63 24.5x8.25 Aluminum Ultra One High Polish
Pusher: Alcoa ULA18 22.5x8.25 Aluminum, High Polish
Tires:
Front: Michelin XZU S2 315/80R22.5 20PR
Rear: Michelin XDS2 11R24.5 16PR
Pusher: Goodyear Endurance LHS 11R22.5 16PR
Fuel Tanks: One 110-gallon aluminum tank, LH mounted
Options & Features:

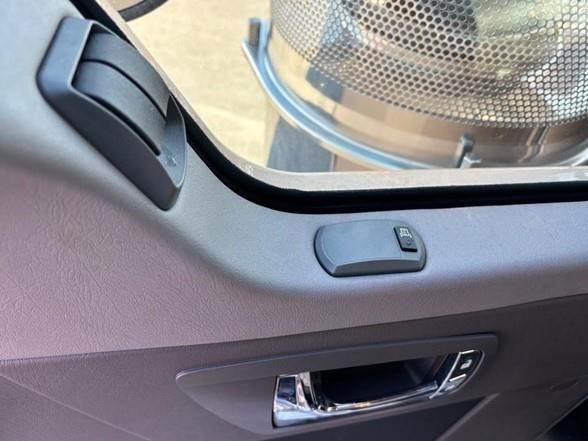

Power windows
Power door locks

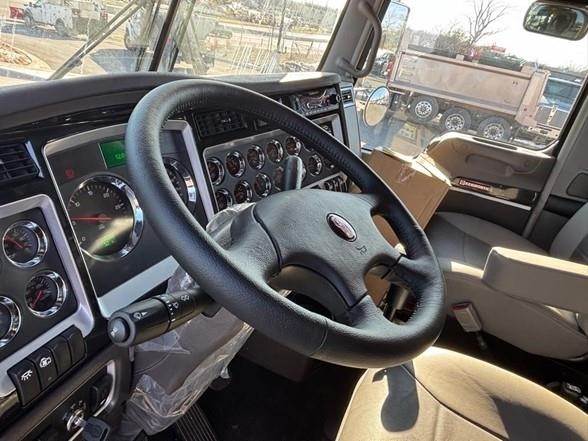

Tilt/telescoping steering wheel
Kenworth TruckTech+
CB radio and CB radio mount
Kenworth Smart Wheel

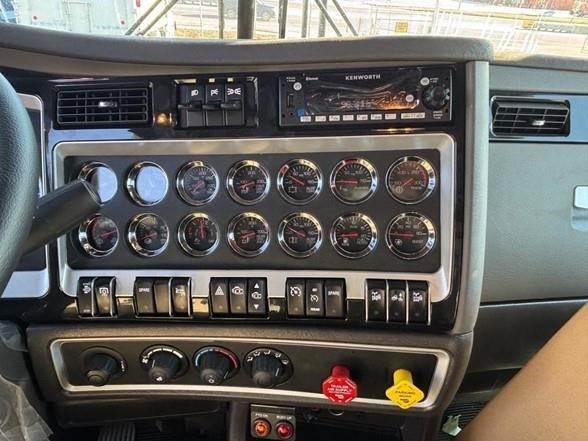

Kenworth Driver Information Center (Highline display)

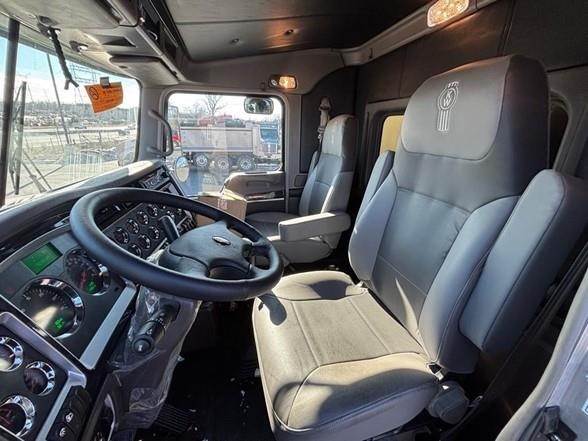

Diamond cab interior trim

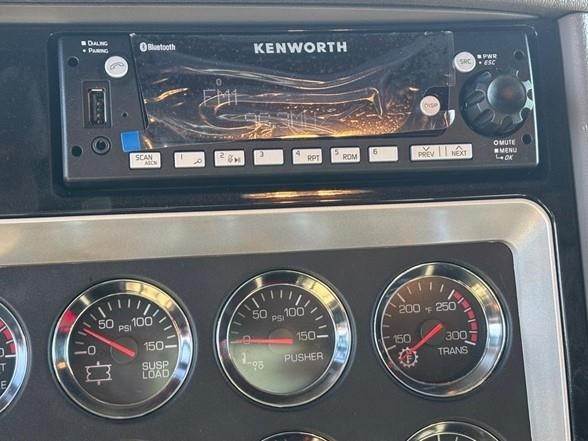

Premium Kenworth radio with AM/FM/WB/USB, Bluetooth, Sirius-XM
Dual 7"x16" heated, motorized mirrors
Stainless steel exterior visor
Dual stainless steel air horns
Mirror polish on outer surfaces of front and rear wheels
Chrome shift lever
Chrome Texas square bumper (30” set forward)
Dual stainless steel cowl-mounted air cleaner fairings
Removable front tow hooks
Grab handles (LH/RH exterior and above dash interior)
Stainless steel permit panels
Stainless steel grille trim with additional hood ribs
Dual leveling valves for tandem suspension
Heavy-duty track rods
Full steel frame insert / Double Frame
Battery box with polished smooth aluminum cover
Polished DEF tank cover
Polished tank straps
Anti-roll channel
Anti-siphon device
Cab suspension: Link Cabmate
Dual rear axle dust shields
Under-hood jump start terminals
Engine block heater (110-120V / 1500W)
Dual air tank drains and Bendix air dryer with extended purge

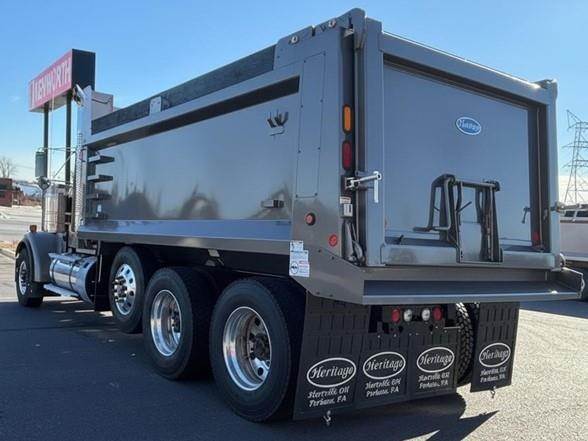

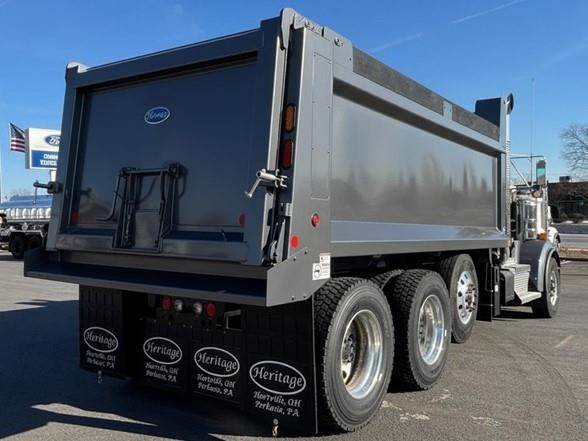

Model: Heritage Steel Smooth Side Dump Body
Length: 17 feet
Width: 99 inches (standard width)
Side Height: 54 inches
Side Material: 5/32" Hardox AR-450 steel
Floor Material: 3/16" Hardox AR-450 steel
Formed longsills: 3/16" steel
Front bulkhead: 5/32" Hardox AR-450 steel
Cab shield: 30" wide (narrowed on both sides), 10-gauge steel, 6" face
Tailgate: 60" height, 3/16" Hardox AR-450 steel, 6" slope
Single panel tailgate with horizontal bracing
Air-operated hi-lift tailgate with cylinders in rear posts
Center-mounted coal door
Salt locks installed on each side
Trunnion mount telescopic hoist

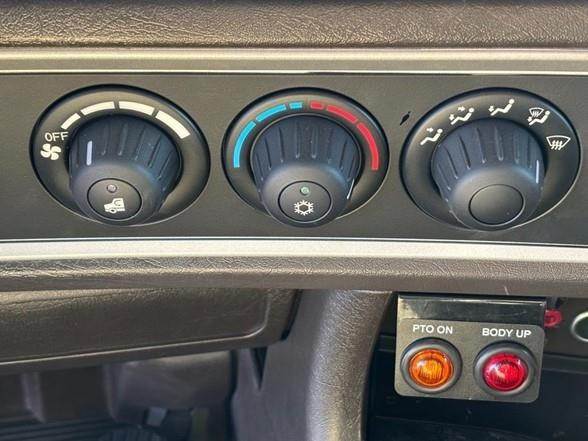

Hotshift PTO for Allison automatic transmission
Direct mount pump with shifter valve
LED light package
Two front strobes in cab shield
One strobe in each rear post
Front ladder on driver's side with one step below bottom rail
8" bolt-on rear apron
Full-width rear mud flaps
Heritage front mud flaps (30" length with anti-sail brackets)
Shovel holder mounted on rear driver's side
Steel hydraulic tank mounted on frame side
Body to be sandblasted, primed, and painted one standard color
