Product Description
Transfer this unit to your nearest South Florida location at no additional cost! Fort Lauderdale, Fort Pierce, Riviera Beach, or Naples. Contact us for details!

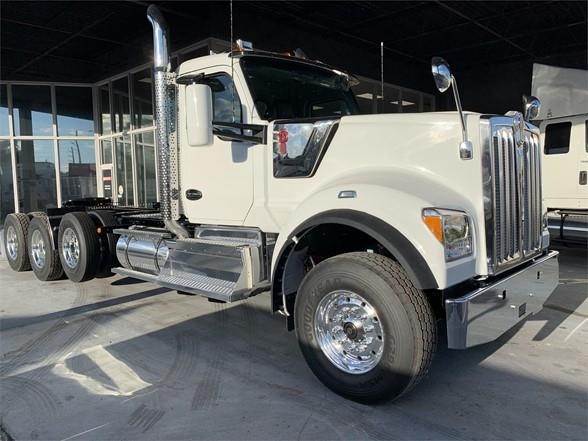

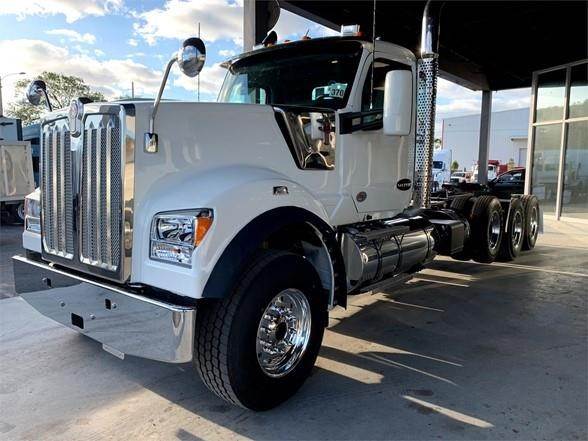

Model Year: 2026

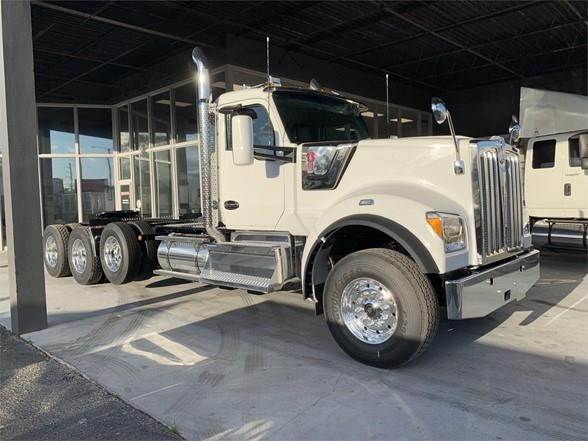

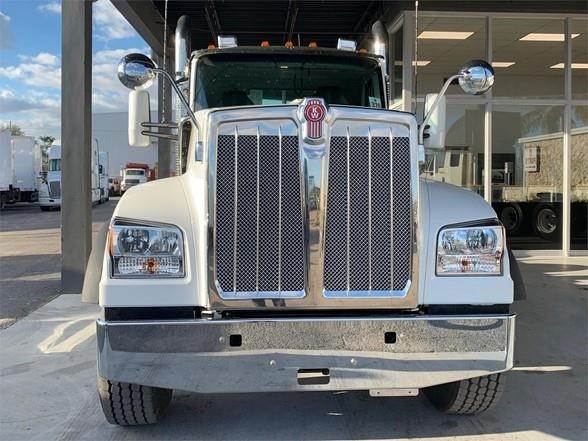

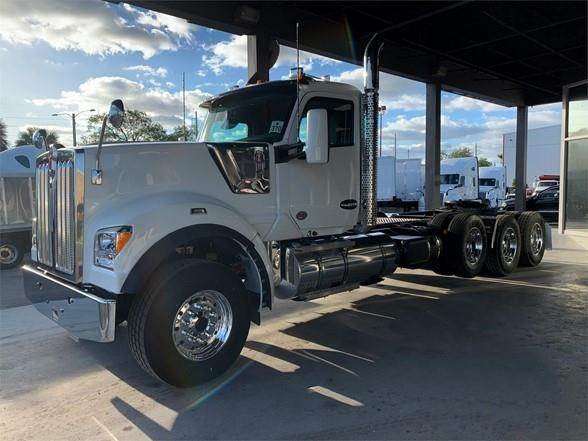

Model: W990

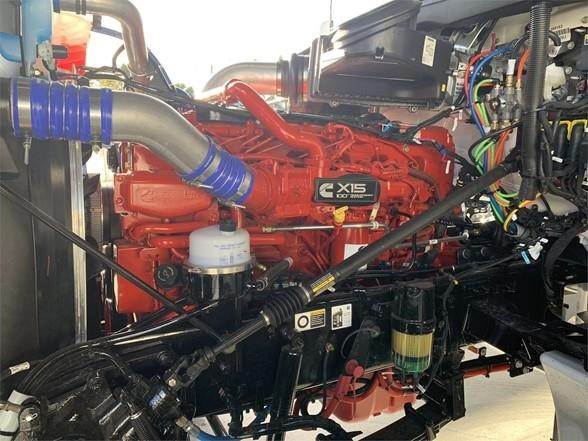

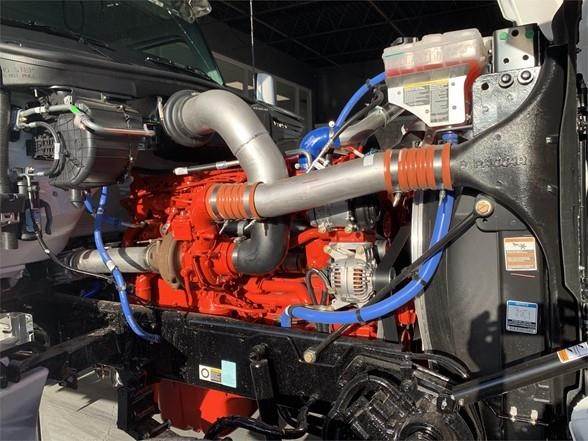

Engine: Cummins X15 565V Productivity Series, 565 HP @ 2000 RPM, 1850 lb-ft Torque @ 1150 RPM, Engine Brake
Transmission: Eaton Endurant XD Pro EXDP18F118D 18-speed automated with dual PTO
Clutch: 430MM self-adjusting high capacity organic
Front Axle: Dana Spicer D2000, 20,000 lbs.

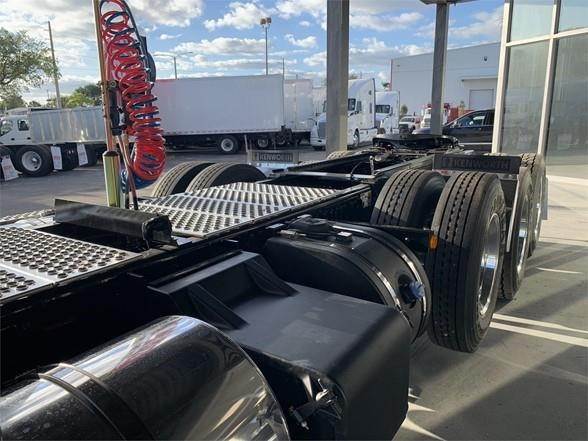

Rear Axle: Meritor RT46-164EH, 46,000 lbs. tandem

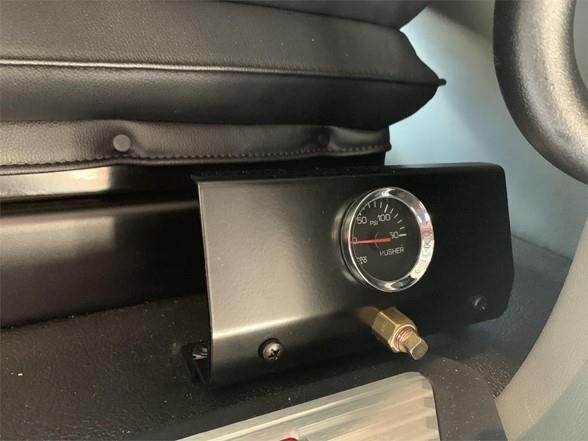

Pusher Axle: Watson & Chalin AL2200, 23,000 lbs. non-steerable

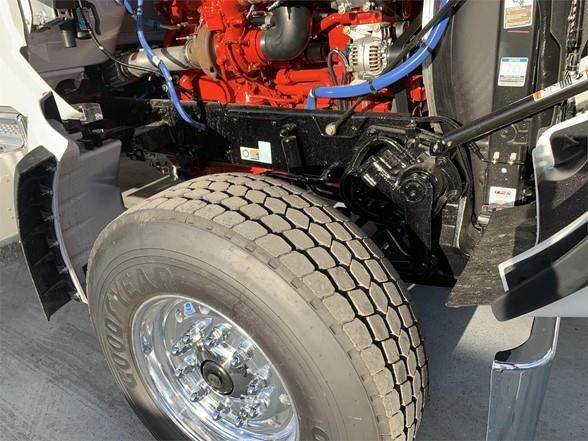

Front Suspension: Taperleaf spring with shocks, 20,000 lbs.
Rear Suspension: Kenworth AG460 tandem air suspension with heavy duty air springs, 46,000 lbs. with 54" axle spacing
Gross Vehicle Weight Rating (GVWR): 85,000 lbs.

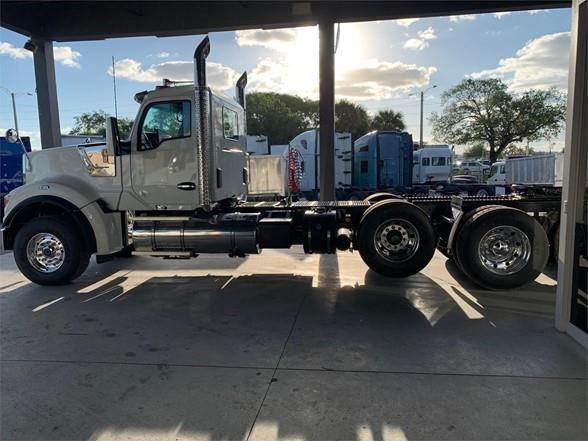

Wheelbase: 278 inches
Cab-to-Axle: 178 inches
Rear Axle Ratio: 4.30
Crosslock Differential: Meritor 40-52K with cab control
Full Steel Inserts / Double Frame
Brakes: Front: Bendix RSD air disc brakes. Rear: Bendix RSD drum brakes, reduced stopping distance

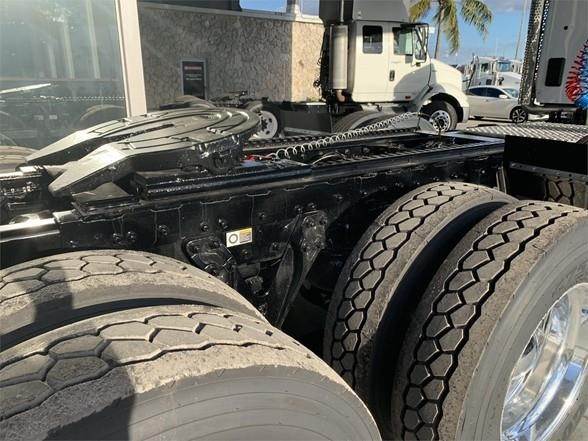

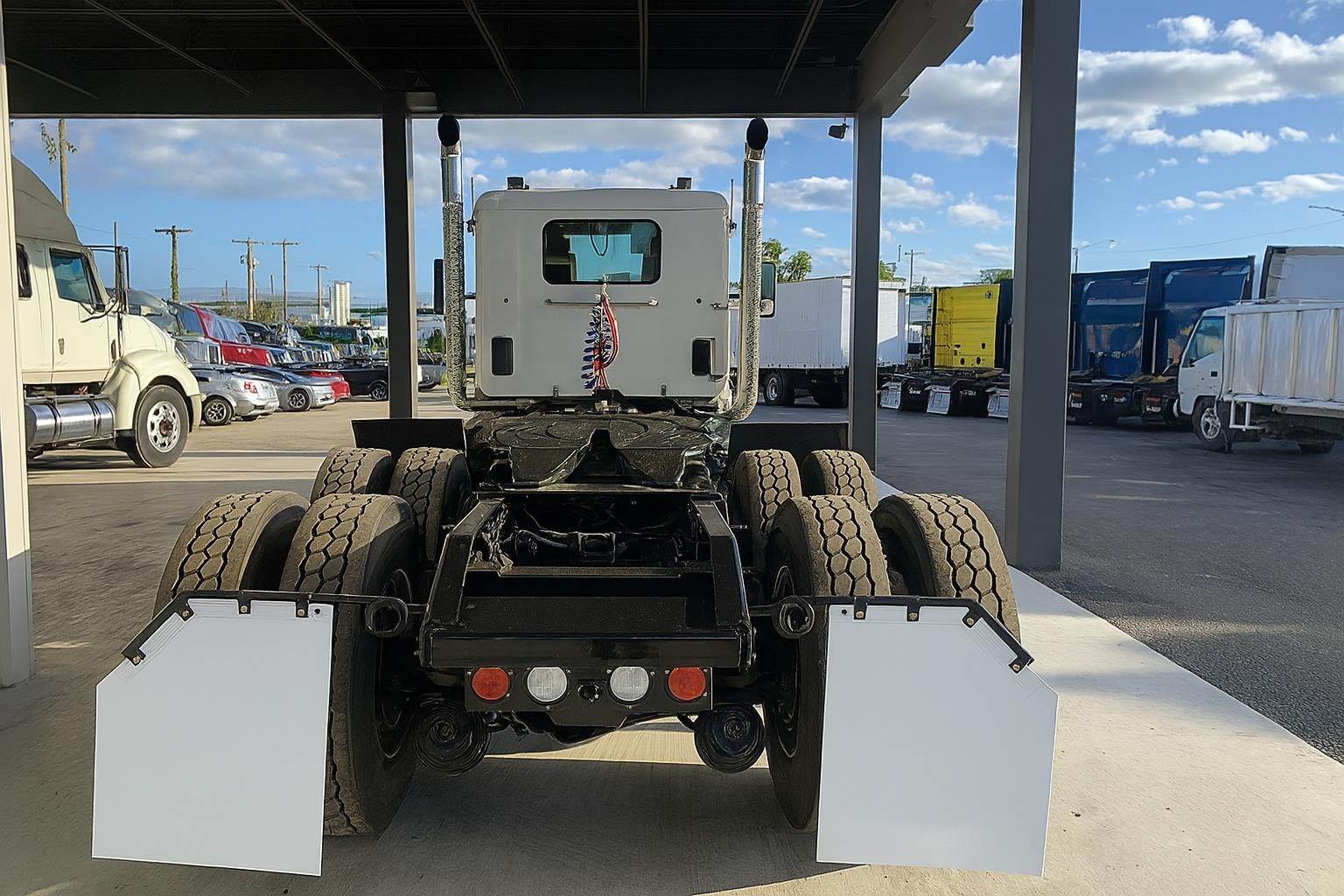

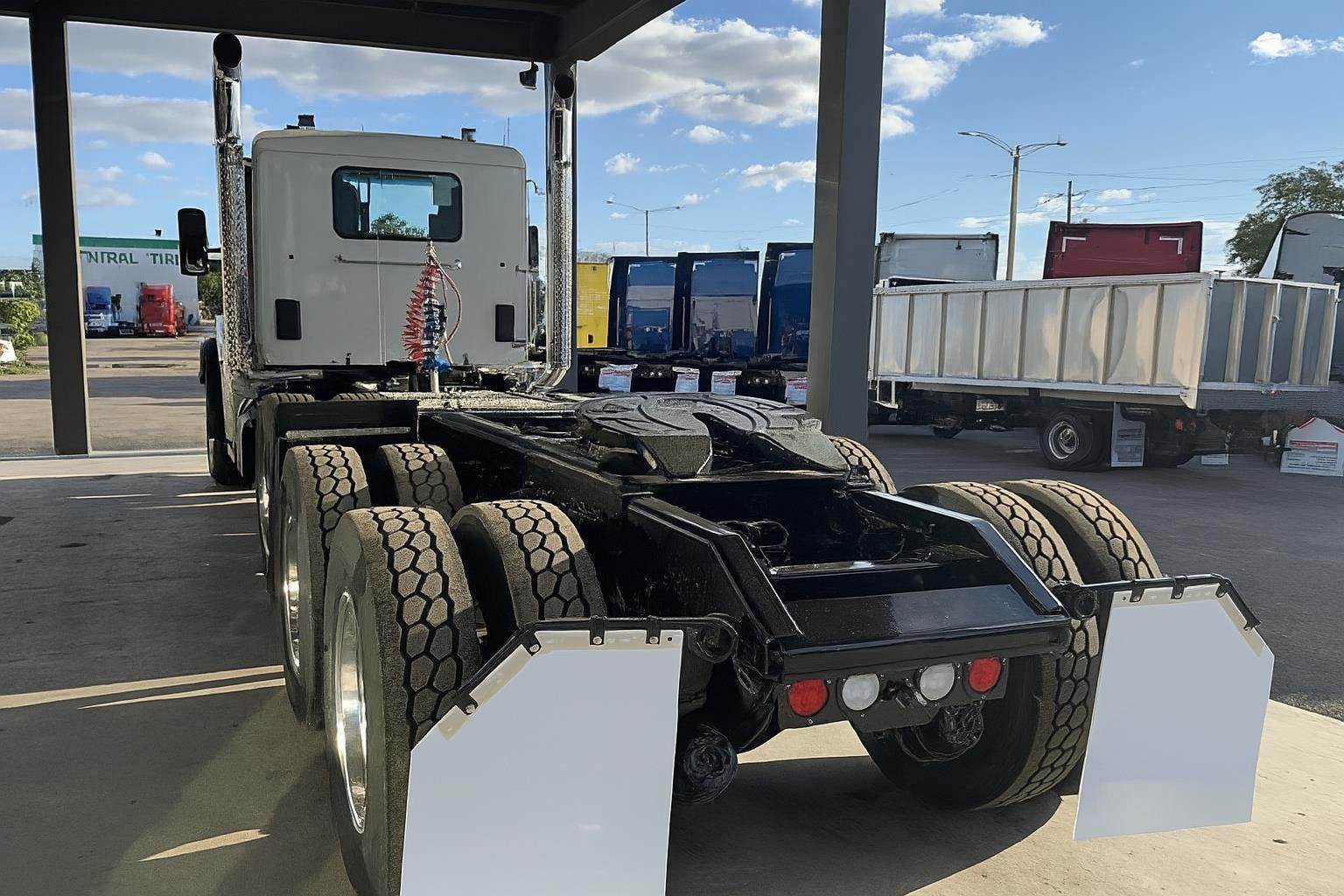

5th Wheel: Holland FW70 air slide, 70,000 lbs. capacity, 48" slide, no tilt
Wheels: Front: Alcoa 22.5x12.25 aluminum hub pilot, high polish. Rear: Alcoa ULA18 22.5x8.25 aluminum hub pilot, high polish. Pusher: Alcoa ULA18 22.5x8.25 aluminum hub pilot, high polish

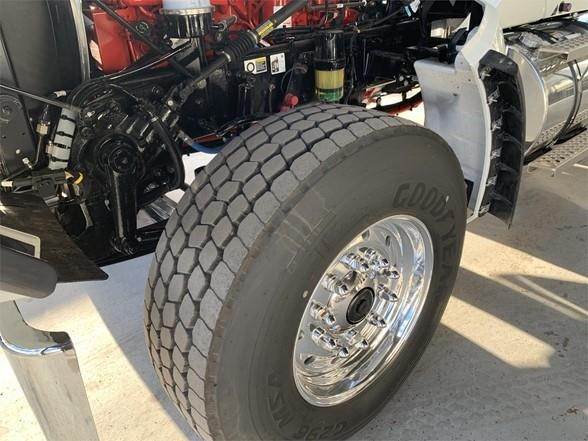

Tires: Front: Continental HAC3 425/65R22.5 20PR. Rear: Continental HDR2+ 11R22.5 14PR. Pusher: Goodyear Endurance RSA 295/75R22.5 14PR

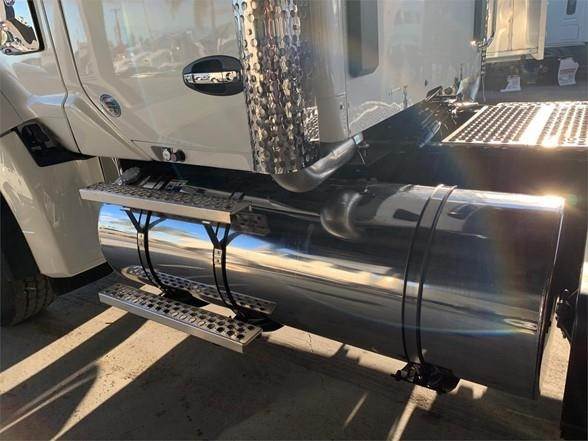

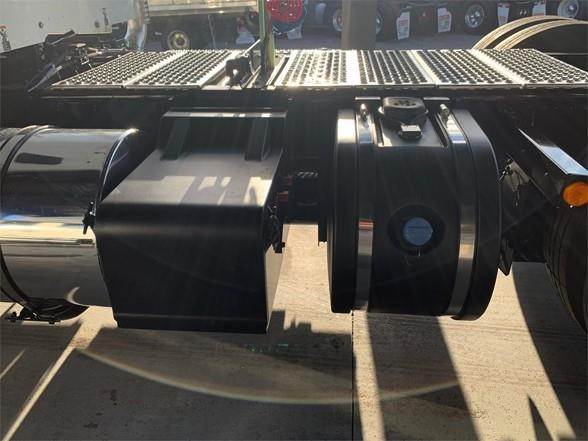

Fuel Tanks: Dual 90-gallon aluminum, 24.5" diameter
DEF Tank: 23.8-gallon medium round
Exterior Color: White

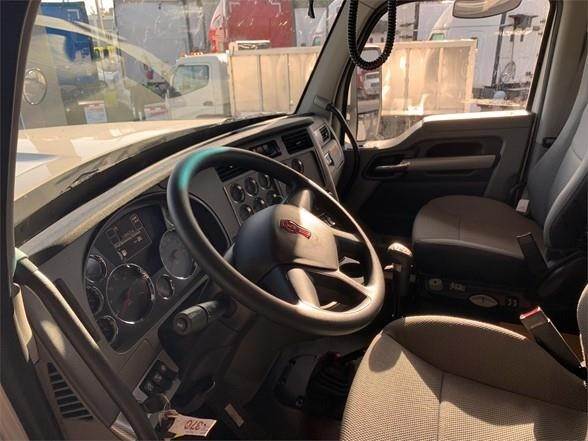

Interior: Vantage daycab, Slate Gray
Radio: Kenworth DEA710 AM/FM/WB/USB with Bluetooth

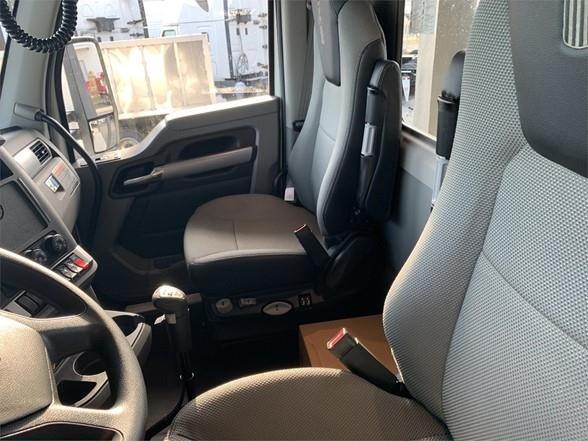

Seats: Driver: Kenworth GT701 high back DuraCloth air-ride suspension. Passenger: Kenworth GT701 high back DuraCloth air-ride suspension

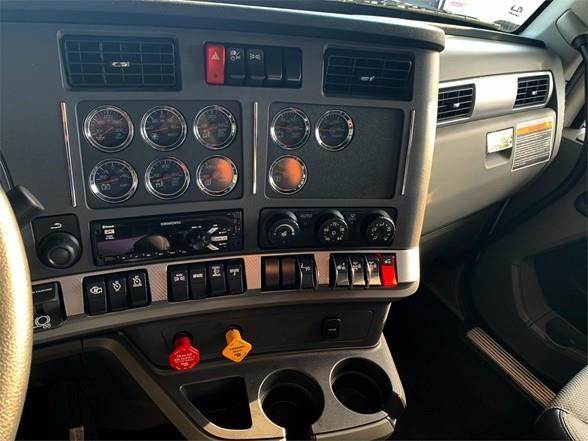

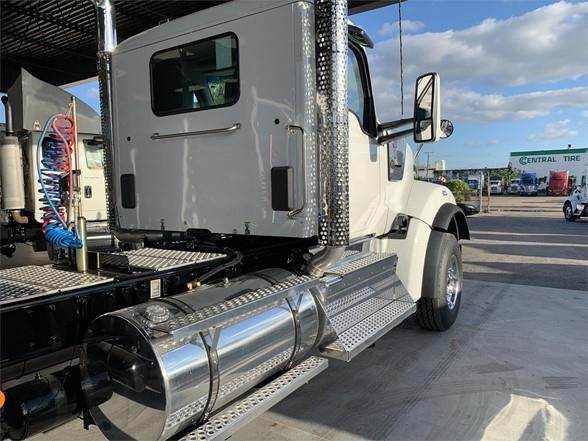

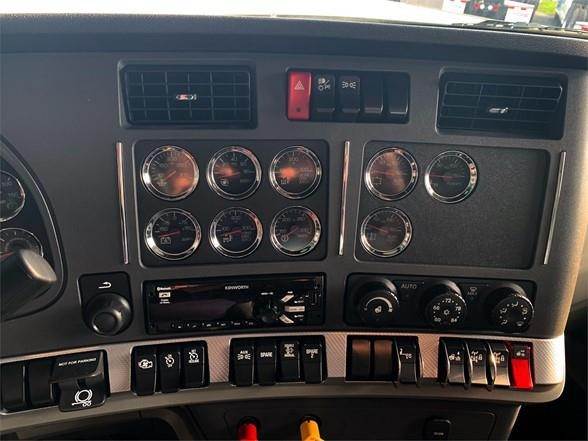

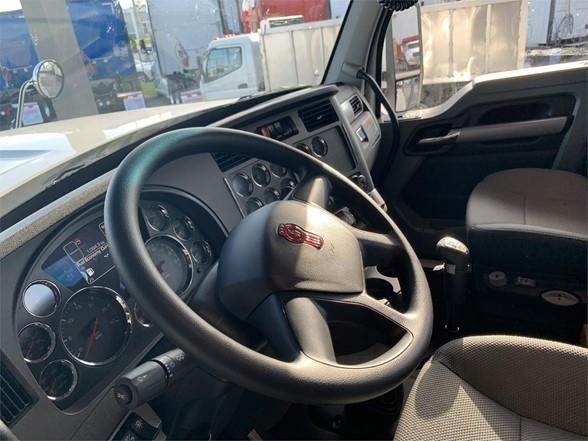

Additional Features: Power windows, power door locks, tilt/telescoping steering wheel, 18" SmartWheel with integrated radio and cruise controls, column-mounted transmission control with retarder control, 15" digital display main instrument package, TruckTech+ remote diagnostics (5-year subscription), CB radio installation kit with dual antenna, chrome tapered steel channel bumper, cast center-mounted front tow hook, polished aluminum battery box with integral step cover, deckplate full coverage, stainless steel exterior sunvisor, dual rectangular 23" air horns, heated power mirrors, chrome hood-mounted mirrors, dual flush flood lights, fog lights, backup alarm, air horn covers, ember filter for cabin air, chrome dual lower exhaust elbows, dual 5" curved tailpipes, immersion engine block heater, Kenworth fuel cooler, engine air intake pre-cleaner, stainless steel engine air intake, fire extinguisher, warning triangle reflector kit, auto suspension dump with PTO engagement interlock, rock free mode dash switch, self-cancelling turn signals, additional rear cab windows, Kenworth wordmark on hood side, yellow interior grab handles
