Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost – Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro, or Westminster. Contact us for details!

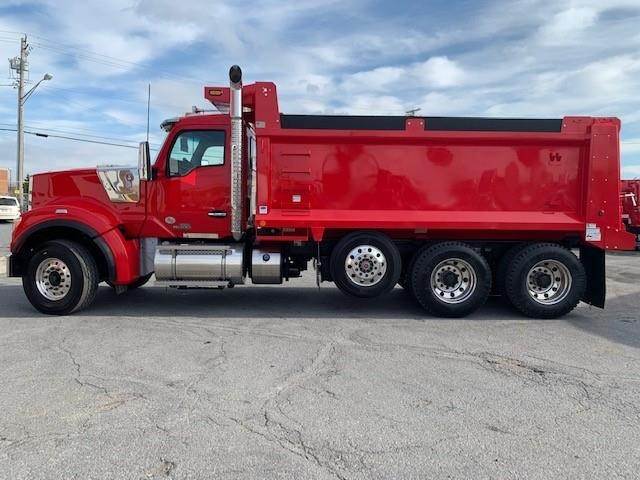

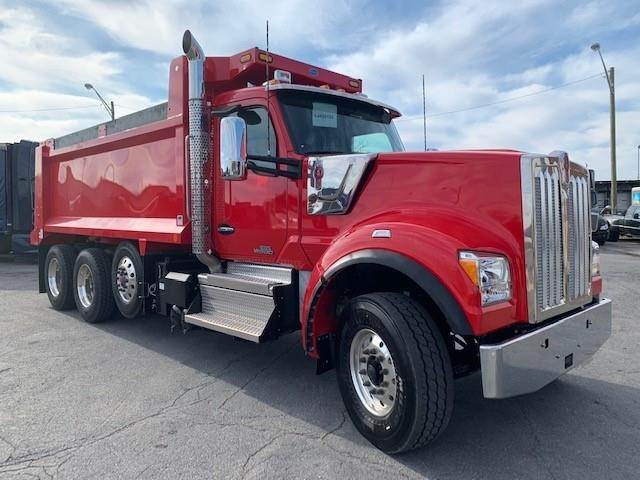

Model Year: 2025
Model: W990
Exterior Color: Viper Red (L3781EY)
Interior Trim Level: Diamond VIT Daycab
Interior Color: Slate Gray
Engine: Cummins X15 Performance Series, 525 HP @ 1900 RPM, 1850 lb-ft torque @ 1000 RPM, Engine Brake
Transmission: Allison 4500RDS 6-speed automatic with PTO, without retarder
Front Axle: Dana Spicer D2000, 20,000 lbs
Rear Axle: Dana Spicer D46-172HP, 46,000 lbs dual
Pusher Axle: Watson & Chalin SL2065 steerable pusher, 13,500 lbs
Suspension: Front - Taperleaf 20K with shocks, Rear - Hendrickson Primaax EX 462, 46K dual 54" air suspension
GVWR: 79,200 lbs
Wheelbase: 245 inches
Cab-to-Axle: 145 inches
Rear Axle Ratio: 4.30
Brakes: Front and rear drum brakes, Bendix with ABS
Wheels: Front - Alcoa 89U63 22.5X9 Ultra One High Polish, Rear - Alcoa 98U63 24.5X8.25 Ultra One High Polish, Pusher - Alcoa ULA18 22.5X8.25 High Polish
Tires: Front - Goodyear G289 WHA 315/80R22.5 20PR, Rear - Goodyear Endurance LHD 11R24.5 14PR, Pusher - Goodyear Endurance LHS 11R22.5 16PR
Fuel Tanks: 100 US gallon aluminum, polished
Power windows, power door locks
Tilt/telescoping steering wheel
Kenworth Smart Wheel
CB radio installation kit
Exterior Chrome/Polished Items: Chrome steel channel bumper, dual lower chrome exhaust elbows, polished aluminum fuel tank, polished tank straps, mirror polish on outboard wheel surfaces, stainless steel exterior sunvisor, chrome mirror shells
Additional Features: DEF tank 23.8 gallon, air horn quad rectangular, heated mirrors, fire extinguisher, warning triangle reflector kit, immersion engine block heater, battery disconnect switch, removable front tow hooks, full steel frame inserts, pusher axle gauge and switch, dual leveling valves for air suspension, wheel differential lock, polished aluminum battery box, air conditioning with auto temperature control, Kenworth radio AM/FM/Weather Band/USB/Bluetooth, mid-level audio system

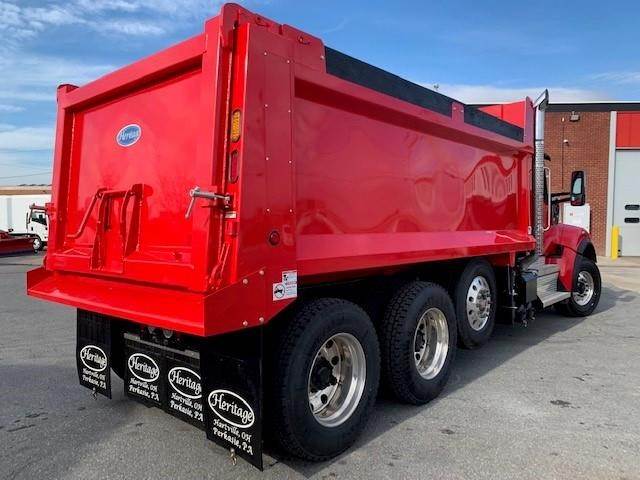

Model: Heritage Steel Smooth Side Dump Body
Length: 17 feet
Width: 99 inches (standard width)
Side Height: 54 inches
Side Material: 5/32" Hardox AR-450 steel
Floor Material: 3/16" Hardox AR-450 steel
Formed longsills: 3/16" steel
Front bulkhead: 5/32" Hardox AR-450 steel
Cab shield: 30" wide (narrowed on both sides), 10-gauge steel, 6" face
Tailgate: 60" height, 3/16" Hardox AR-450 steel, 6" slope
Single panel tailgate with horizontal bracing

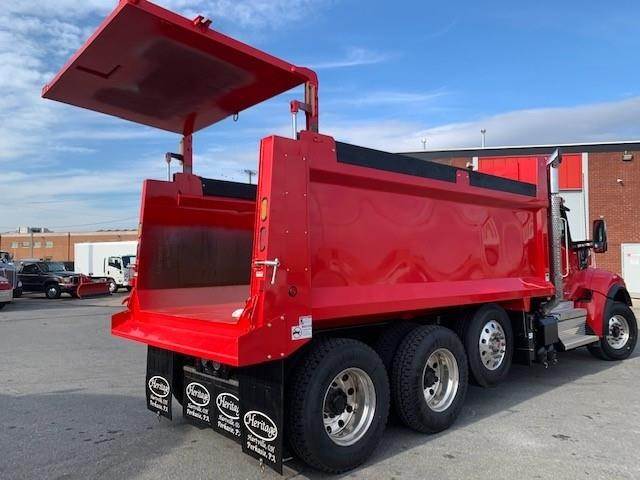

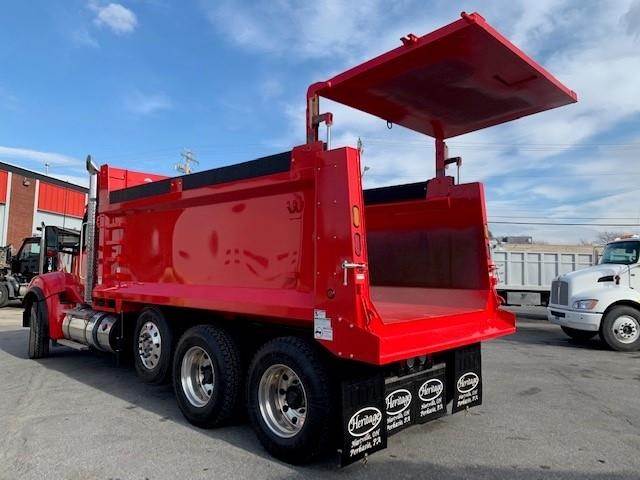

Air-operated hi-lift tailgate with cylinders in rear posts
Center-mounted coal door
Salt locks installed on each side
Trunnion mount telescopic hoist
Hotshift PTO for Allison automatic transmission
Direct mount pump with shifter valve
LED light package
Two front strobes in cab shield
One strobe in each rear post
Front ladder on driver's side with one step below bottom rail
8" bolt-on rear apron
Full-width rear mud flaps
Heritage front mud flaps (30" length with anti-sail brackets)
Shovel holder mounted on rear driver's side
Steel hydraulic tank mounted on frame side
Body to be sandblasted, primed, and painted one standard color
