Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost! Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro or Westminster. Contact us for details!

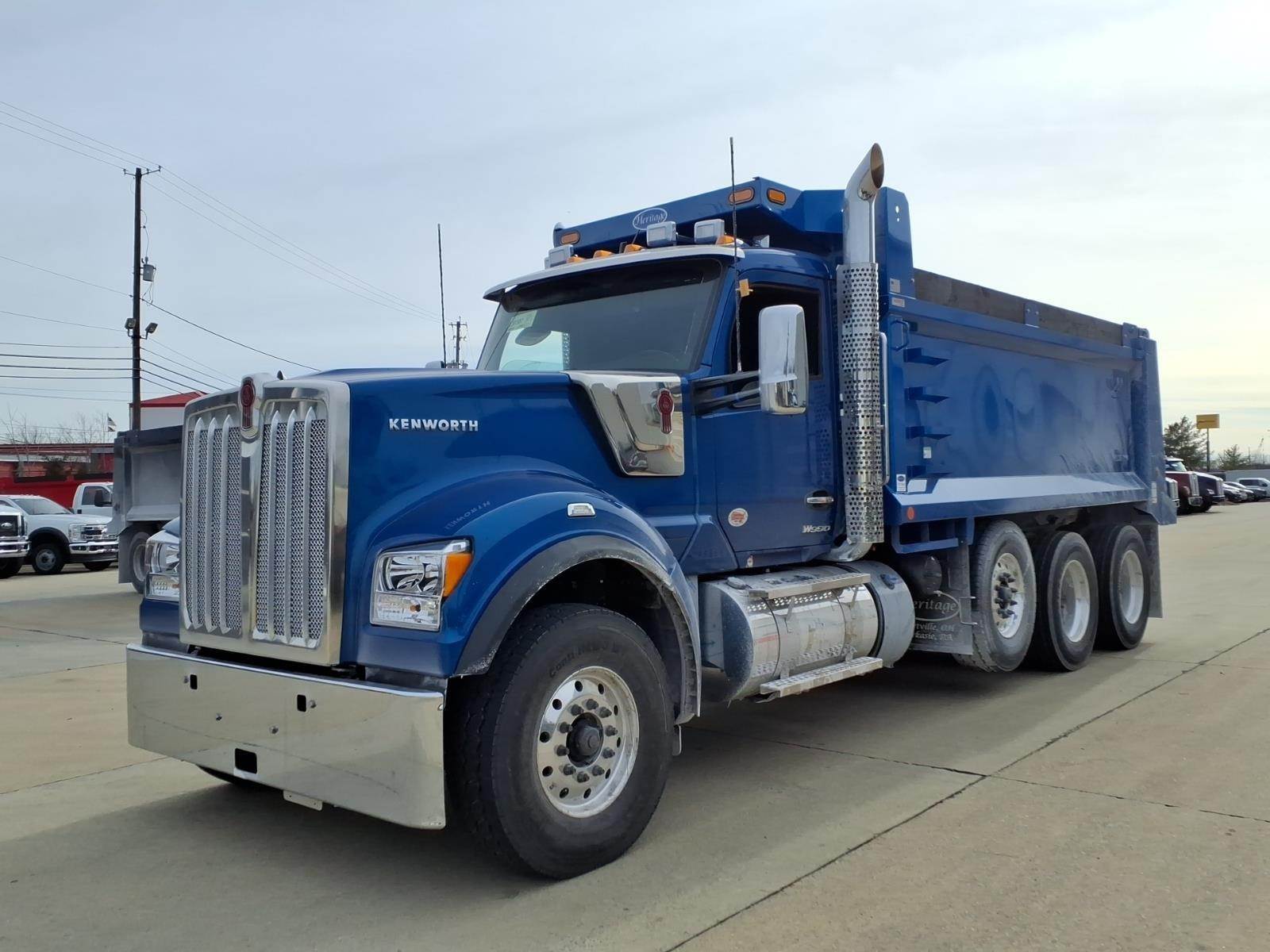

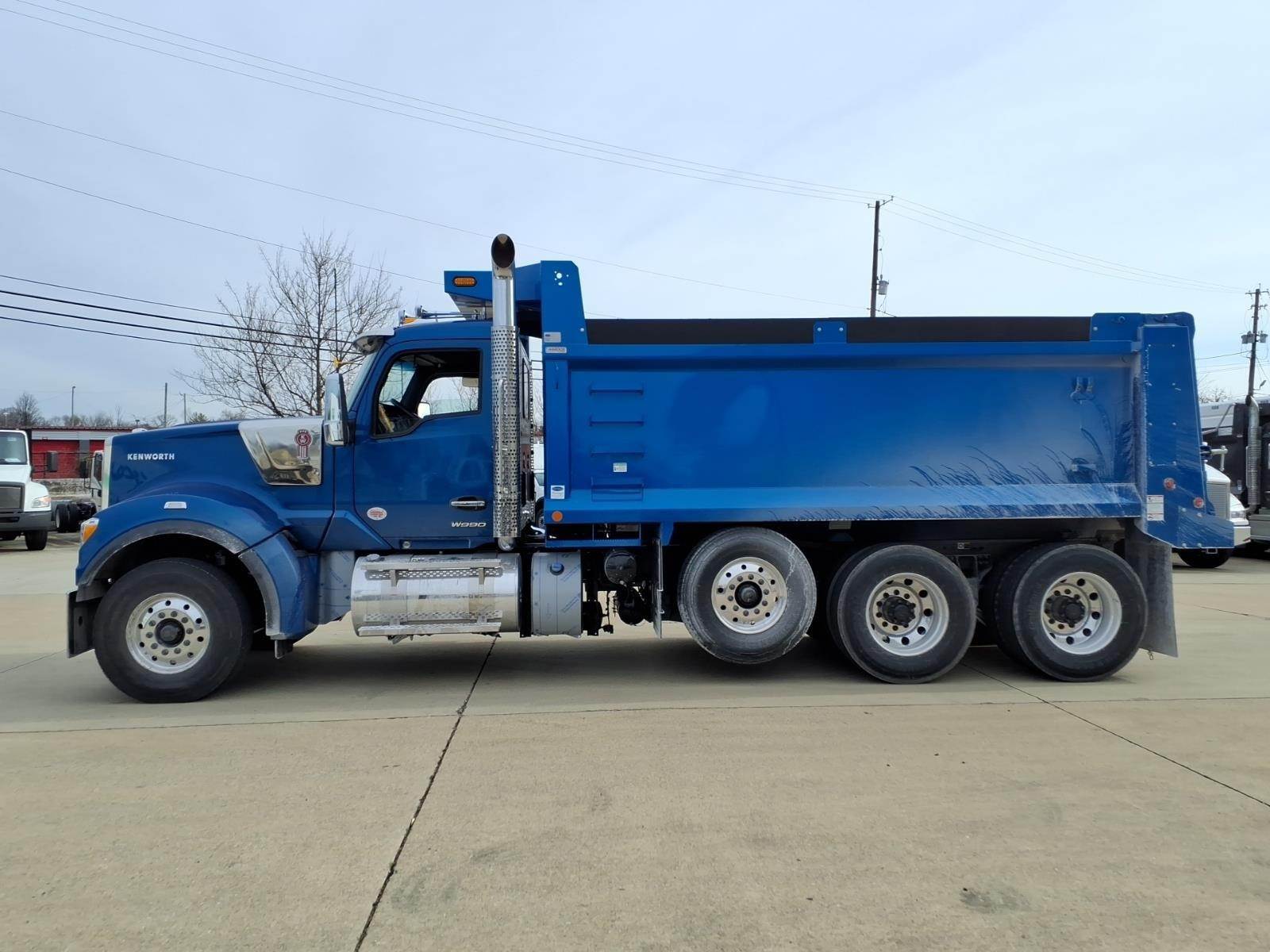

2026 Kenworth W990
Exterior Color: Deep Cerulean (1017204EY)
Interior: W990 Limited Edition Interior (Daycab)
Interior Color: Midnight Black
Engine: Cummins X15 Performance Series, 565 horsepower @ 1900 RPM, 2050 lb-ft torque @ 1000 RPM, Engine Brake
Transmission: Eaton Endurant XD Pro EXDP20F118D, 18-speed Automated
Front Axle: Meritor MFS-20, 20,000 lbs., Wide Track
Rear Axle: Meritor RT46-160P, 46,000 lbs.
Steerable Pusher Axle: Watson & Chalin SL2065, 20,000 lbs.
Front Suspension: Taperleaf 20,000 lbs. with Shocks
Rear Suspension: Hendrickson Primaax EX 462, 46,000 lbs., 54" Air Suspension
Rear Axle Ratio: 3.91
Crosslock: Meritor 40,000-52,000 lbs. with Cab Control
GVWR: 86,000 lbs.
Wheelbase: 245 inches
Cab-to-Axle: 145 inches
Brakes: Front Bendix Air Disc Brakes, Rear Bendix S-Cam Drum Brakes
ABS: Bendix 4S/4M with Air Trac Control
Wheels: Front - Alcoa 89U63 22.5 x 9 Ultra One High Polish, Rear - Alcoa 98U63 24.5 x 8.25 Ultra One High Polish, Steerable Pusher - Alcoa 89U63 22.5 x 9 Ultra One High Polish
Tires: Front - Continental HAU 3 315/80R22.5 20PR, Rear - Continental HSR3 11R24.5 16PR (8 tires), Steerable Pusher - Continental HAU 3 315/80R22.5 20PR (2 tires)
Fuel Tank: 100 US gallon, 24.5" Aluminum, Polished
DEF Tank: 23.8 gallon Medium Round, Polished Cover
Full Steel Frame Inserts
Double Frame
Frame Rails: 10-3/4" x 3/8" Steel
Hood: W990 Set-Forward Long Length, Stainless Steel Engine Air Intake
Bumper: Texas Square Chrome, 31.5" Setting
Removable Front Tow Hooks (2)
15" Digital Display Main Instrument Package
Air Conditioning with Auto Temperature Control

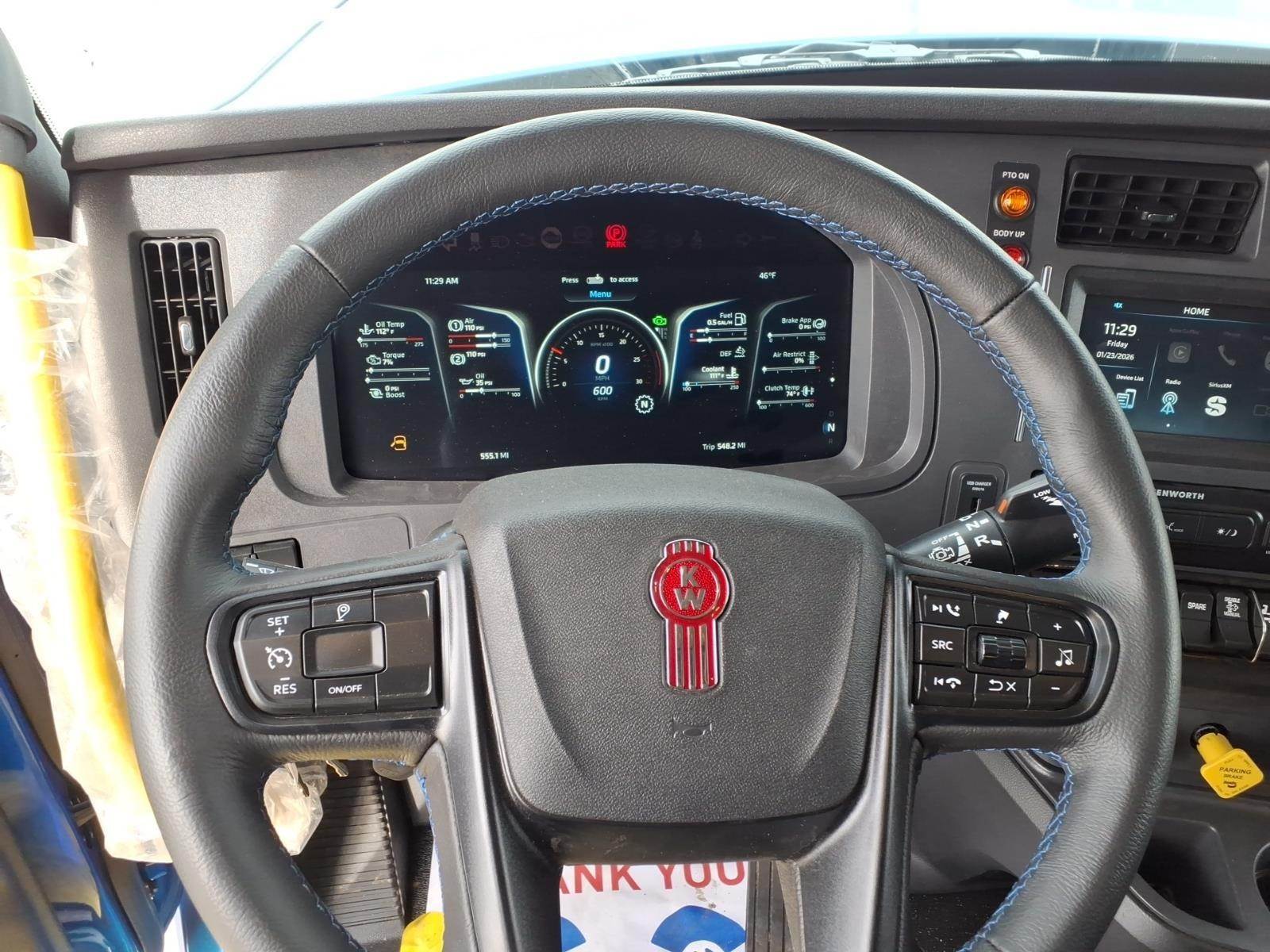

Steering Wheel: 18" Leather Smartwheel with Integrated Radio and Cruise Controls
Adjustable Telescoping Tilt Steering Column
Kenworth Radio and Navigation Compatible with Apple CarPlay
CB Installation Kit Center Mounted with Quick Mount Release, Dual Antenna

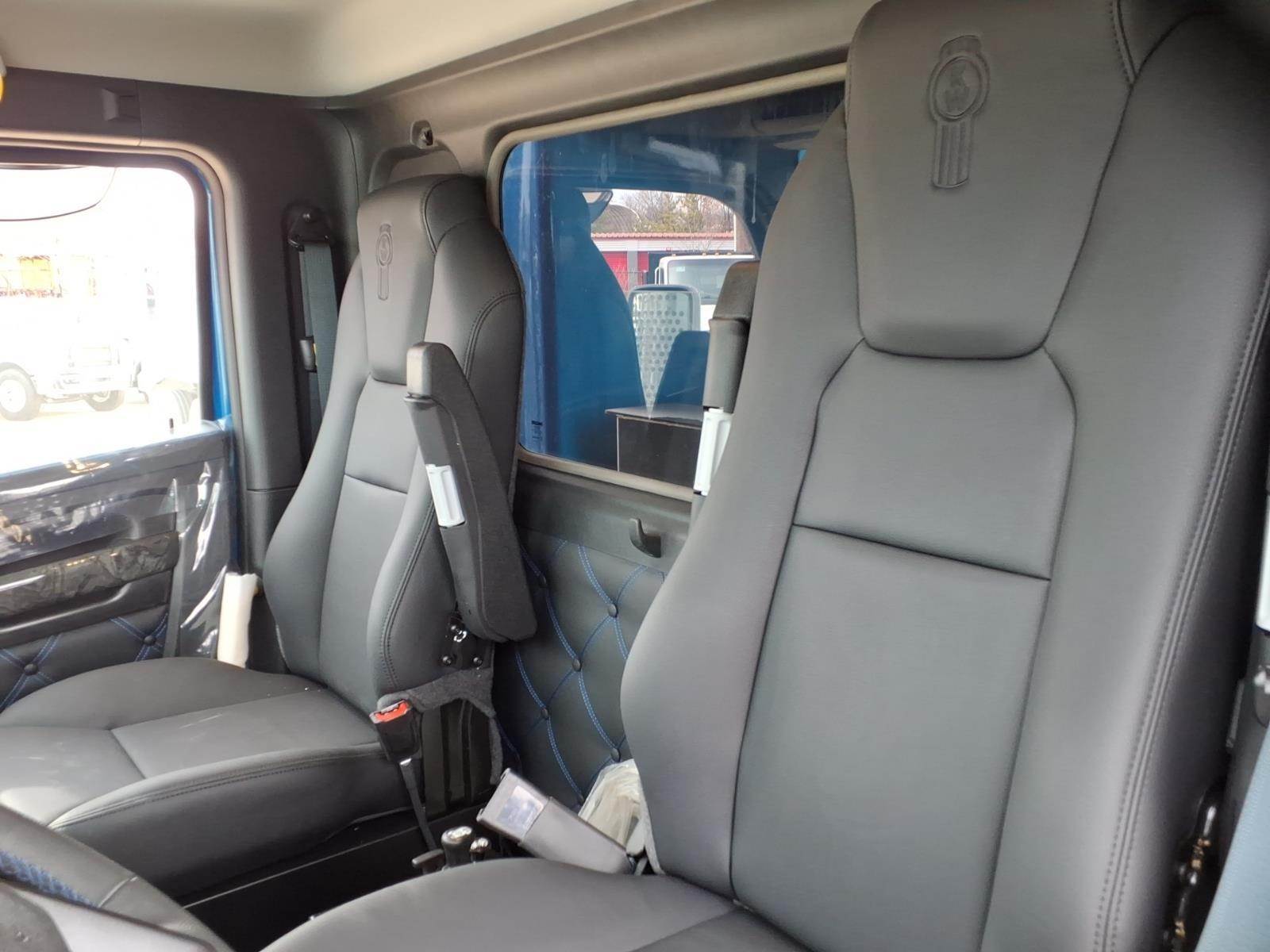

Seats: Driver - Kenworth GT701 High Back Vinyl Air-Ride Suspension, Passenger - Kenworth GT100 High Back Toolbox Seat Vinyl
Seat Color: Black
Power Door Locks (LH/RH)
Power Windows (LH/RH)
Remote Keyless Entry
Mirrors: Dual Kenworth Aero Motorized Heated 7" x 13" Chrome Shell with Black Arms, 6" x 7" Convex Mirror
Fixed Rear Cab Window 19" x 36" Dark Tint
Air Horn: Quad Rectangular 23"/26" with Air Horn Covers
Exterior Stainless Steel Sunvisor
Headlamps: SAE Dual Halogen Complex Reflector
LED Marker Lights, Turn Signals, Stop/Tail/Turn Lights
Dual LED Floodlights
Kenworth Wordmark Mounted on Side of Hood
Kenworth TruckTech+ Remote Diagnostics (5-Year Subscription)
Alternator: PACCAR HDS 160 Amp Brushed
Batteries: 3 PACCAR GP31 (2100-2190 CCA)
Battery Disconnect Switch (2)
Engine Block Heater: 110-120V/1500W
Air Compressor: Cummins 37.4 CFM
Air Dryer: Bendix AD-HF Heated Puraguard with Extended Purge
Auto Suspension Dump with PTO Engagement Interlock

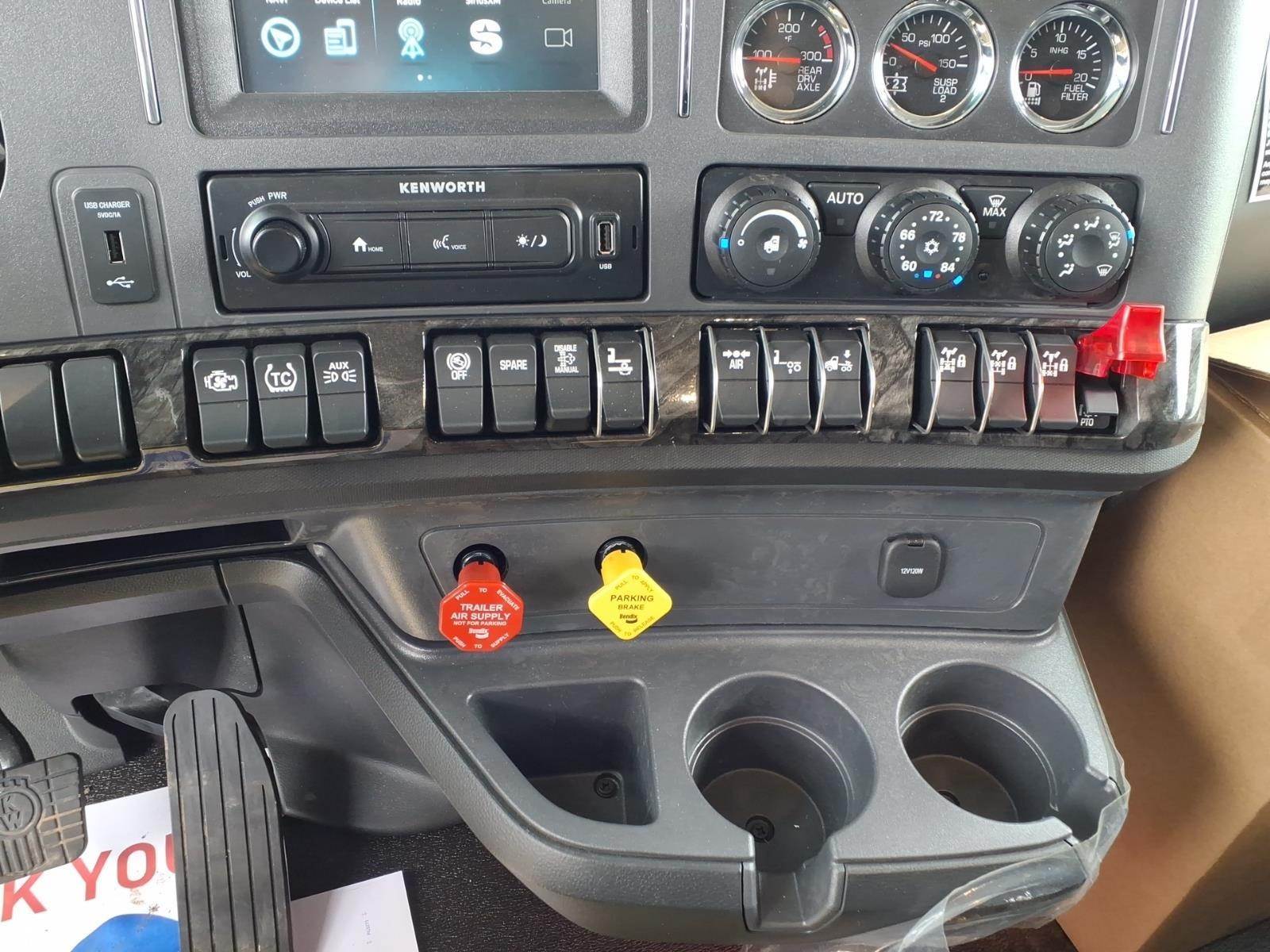

Dash Switch: 1st Double-Acting Eaton or PACCAR Mounted PTO
One (1) Spare Accessory Electric-Over-Air Switch with Latching Air Solenoid
Dash Switch: Rock Free Mode
Two (2) Spare Switches Wired to Power

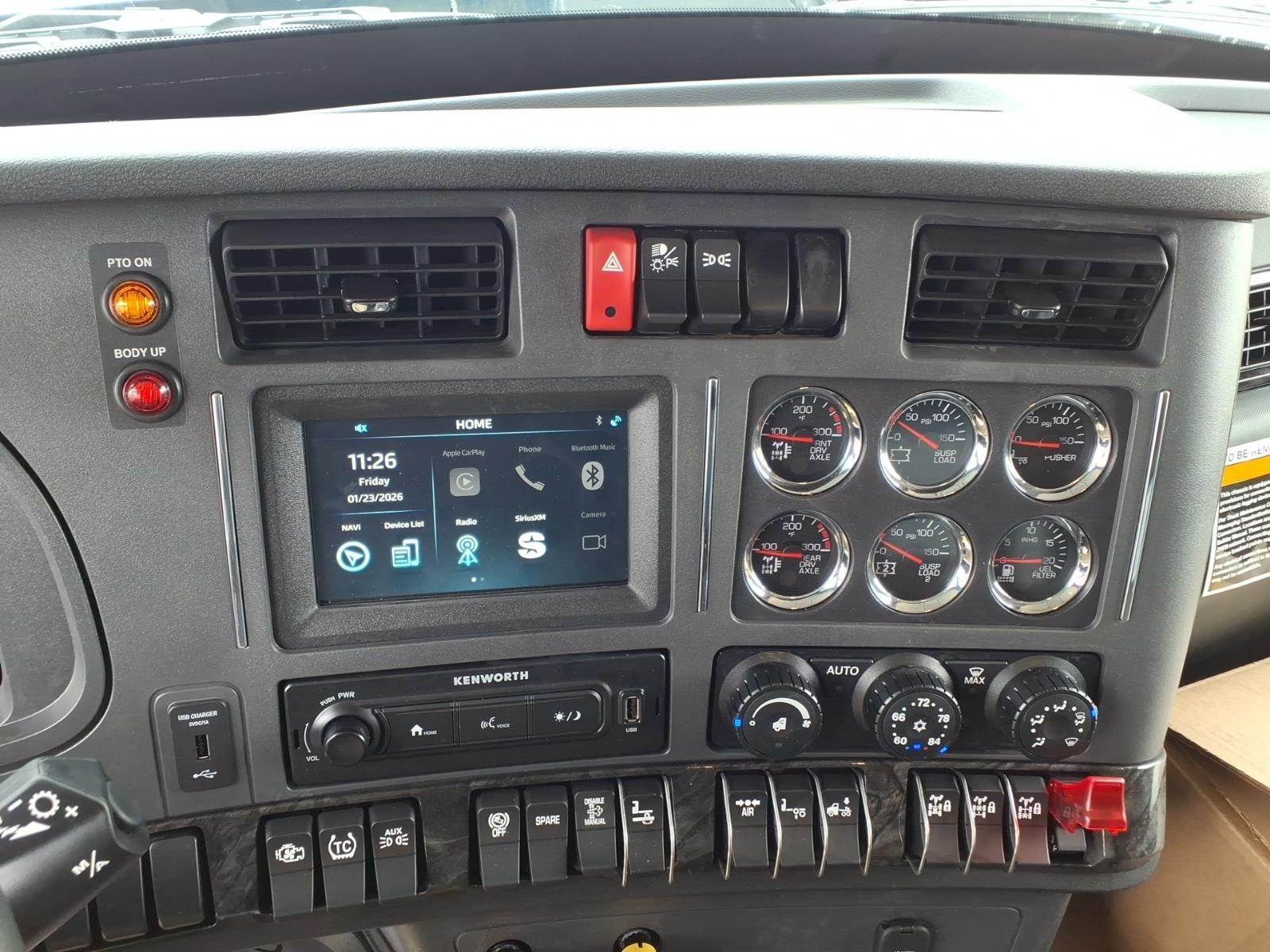

Gauges: 2 Air Suspension Pressure, Fuel Filter Restriction, Axle Oil Temperature Dual Drive Axle (2 gauges)
Virtual Gauges: Oil Temperature, Air Filter Restriction, Manifold Pressure Boost, Engine Percent Torque, Automated Transmission Clutch Temperature

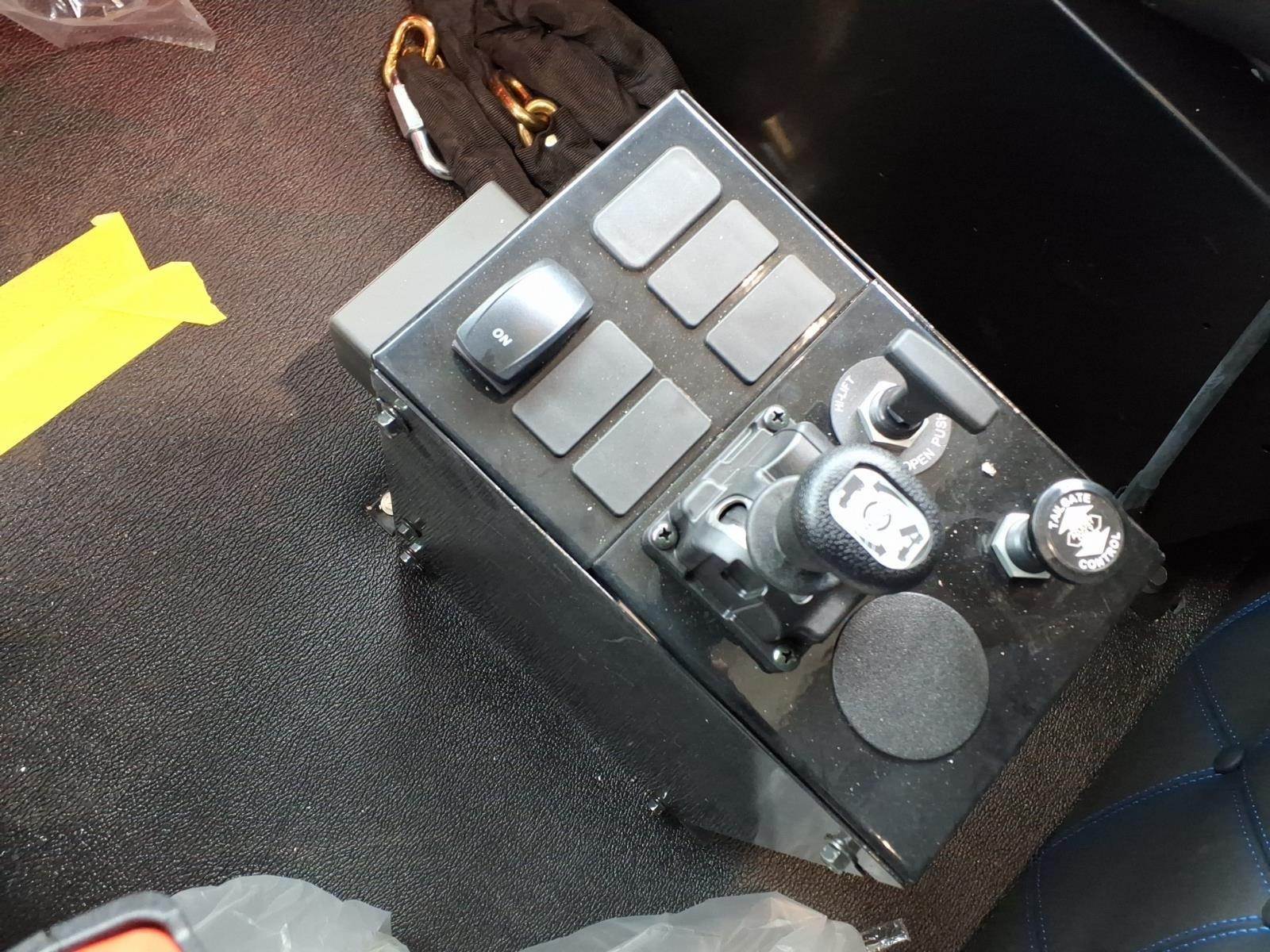

Remote PTO/Throttle 12-Pin 500K BOC/BOS J1939 Remote Control Provision
Dual Level Leveling Valves for Tandem Air Suspension
Heavy Duty Track Rods for Hendrickson Primaax EX Tandem

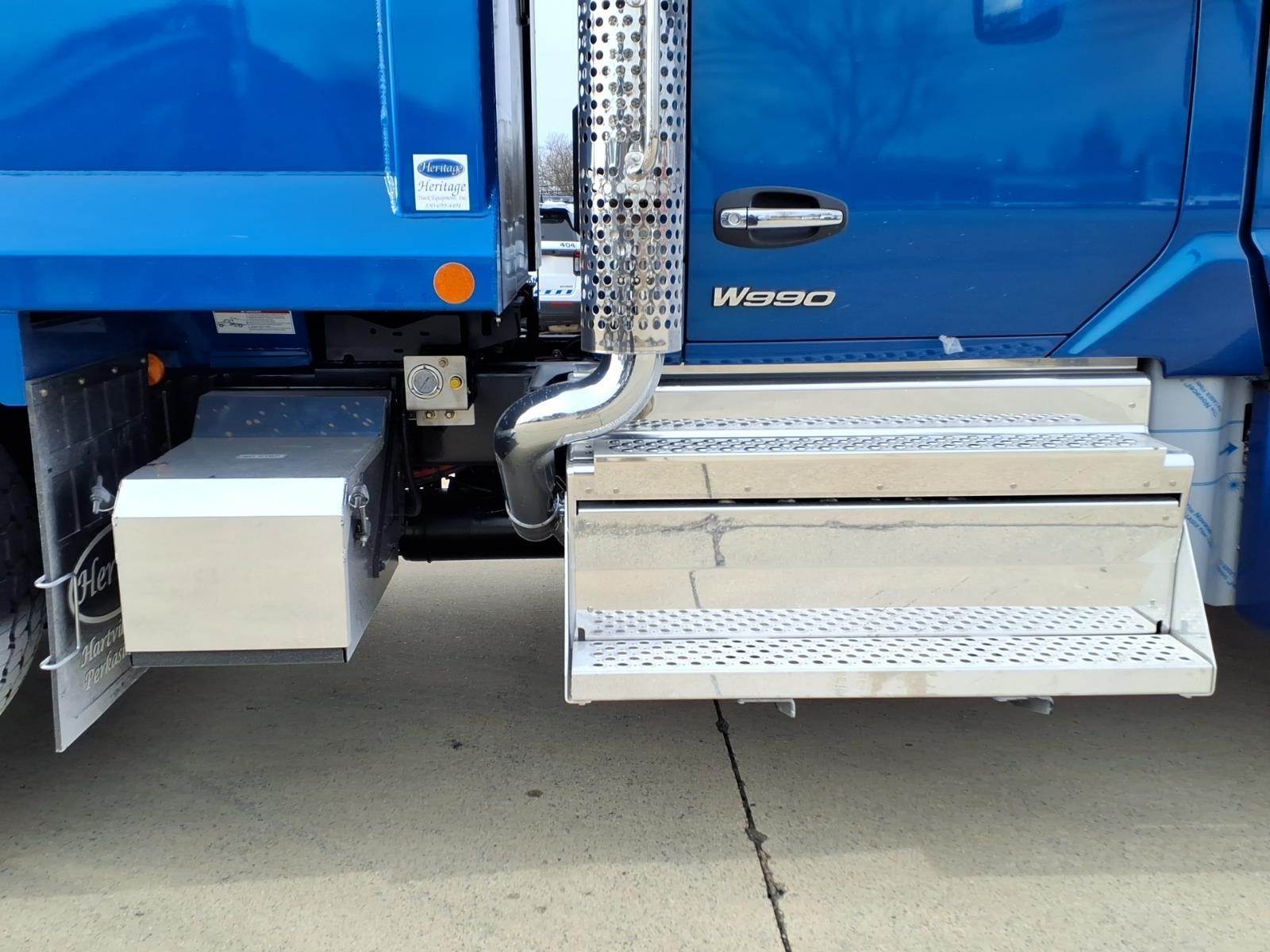

Polished Battery Box Cover and Polished Ends with Cab Access Step
Polished Aluminum Fuel Tank
Polished DEF Tank Cover
Polished Heavy Duty Fuel Tank Straps
Dura-Bright Mirror Polish Outboard Surface Front Wheels (Qty 2)
Dura-Bright Mirror Polish Outboard Surface Rear Outer Wheels (Qty 4)
Dual Lower Chrome Exhaust Elbows
5 Sets of Keys
Warning Triangle Reflector Kit
Fire Extinguisher: 5 lb. Dry Chemical Type Class ABC
Zinc Phosphate Frame Rail Paint Process
Zinc Phosphate Frame Insert Paint Process

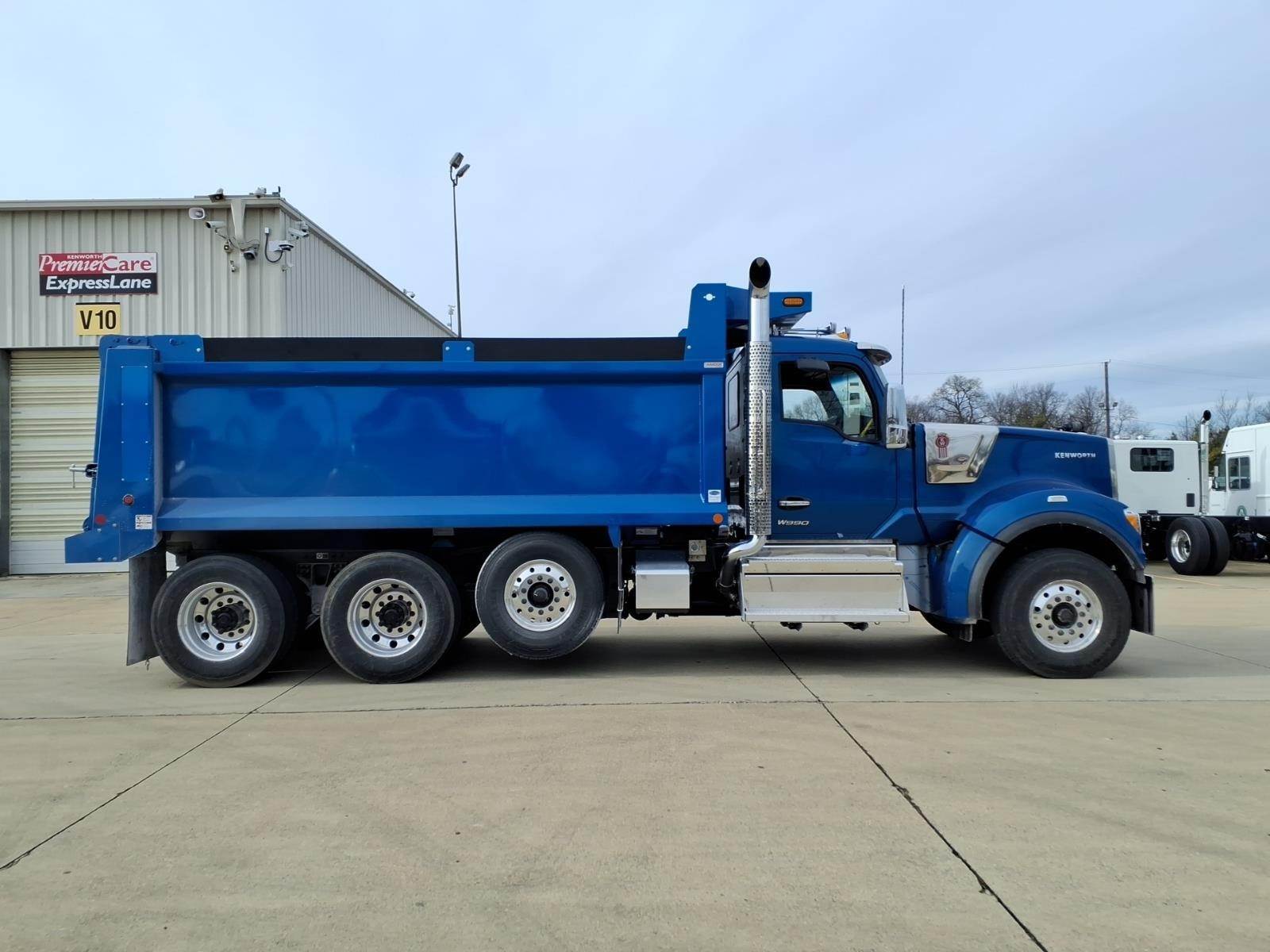

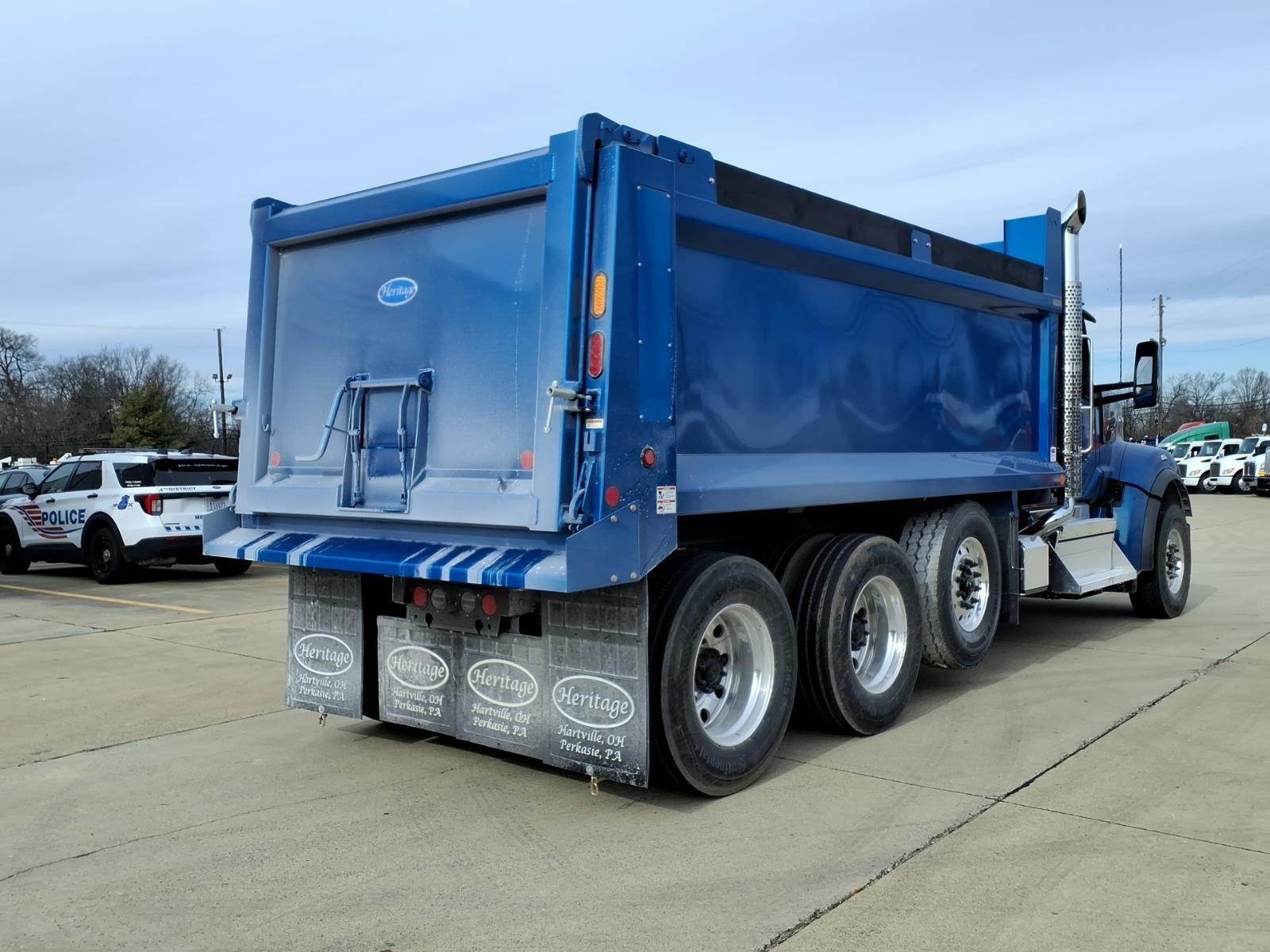

Model: Heritage Steel Smooth Side Dump Body
Length: 17 feet
Width: 99 inches (standard width)
Side Height: 54 inches
Side Material: 5/32" Hardox AR-450 steel
Floor Material: 3/16" Hardox AR-450 steel
Formed longsills: 3/16" steel
Front bulkhead: 5/32" Hardox AR-450 steel
Cab shield: 30" wide (narrowed on both sides), 10-gauge steel, 6" face

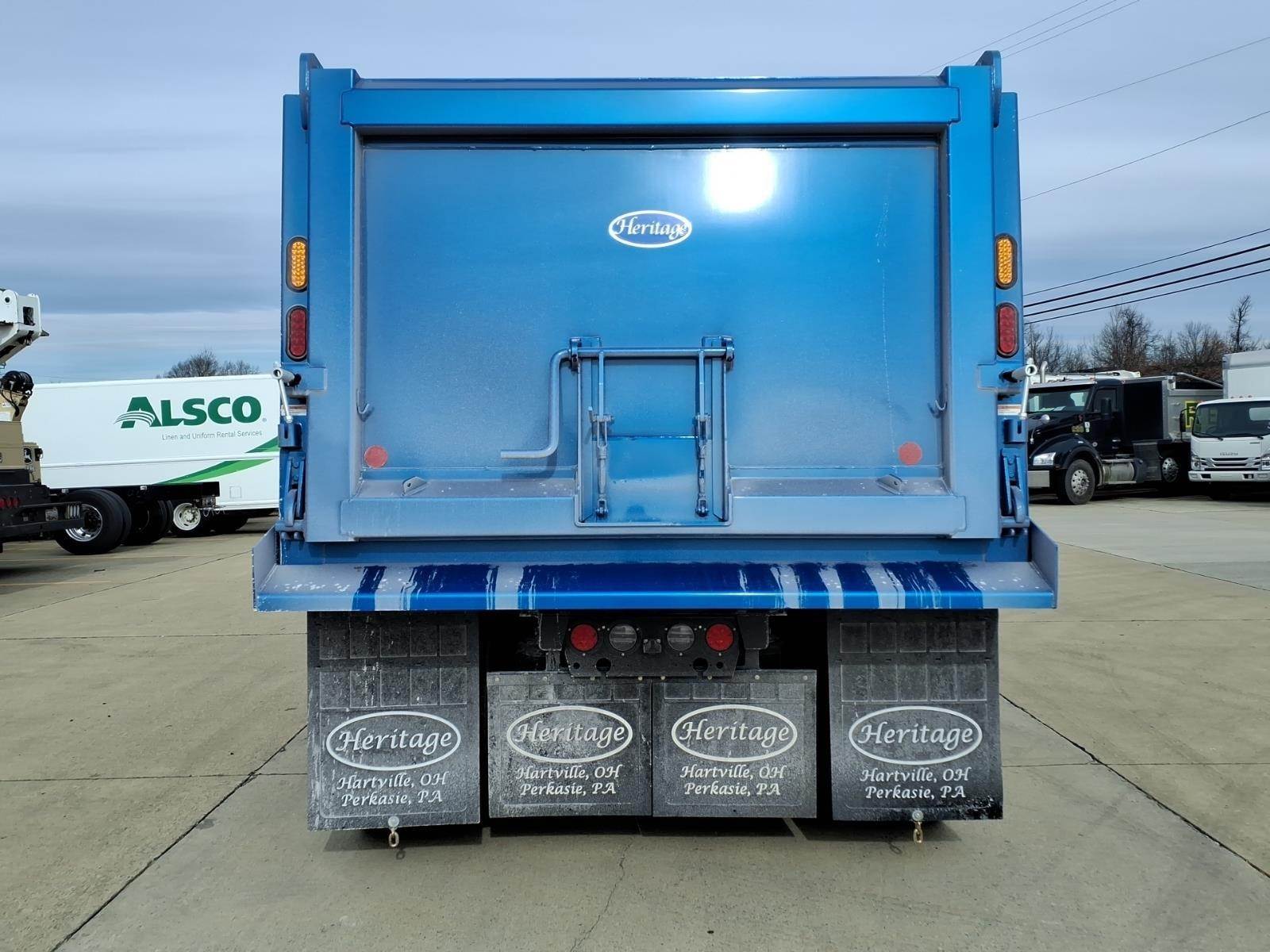

Tailgate: 60" height, 3/16" Hardox AR-450 steel, 6" slope
Single panel tailgate with horizontal bracing
Air-operated hi-lift tailgate with cylinders in rear posts
Center-mounted coal door
Salt locks installed on each side
Trunnion mount telescopic hoist
Hotshift PTO for Allison automatic transmission
Direct mount pump with shifter valve
LED light package
Two front strobes in cab shield
One strobe in each rear post
Front ladder on driver's side with one step below bottom rail
8" bolt-on rear apron
Full-width rear mud flaps
Heritage front mud flaps (30" length with anti-sail brackets)
Shovel holder mounted on rear driver's side
Steel hydraulic tank mounted on frame side
Body to be sandblasted, primed, and painted one standard color
