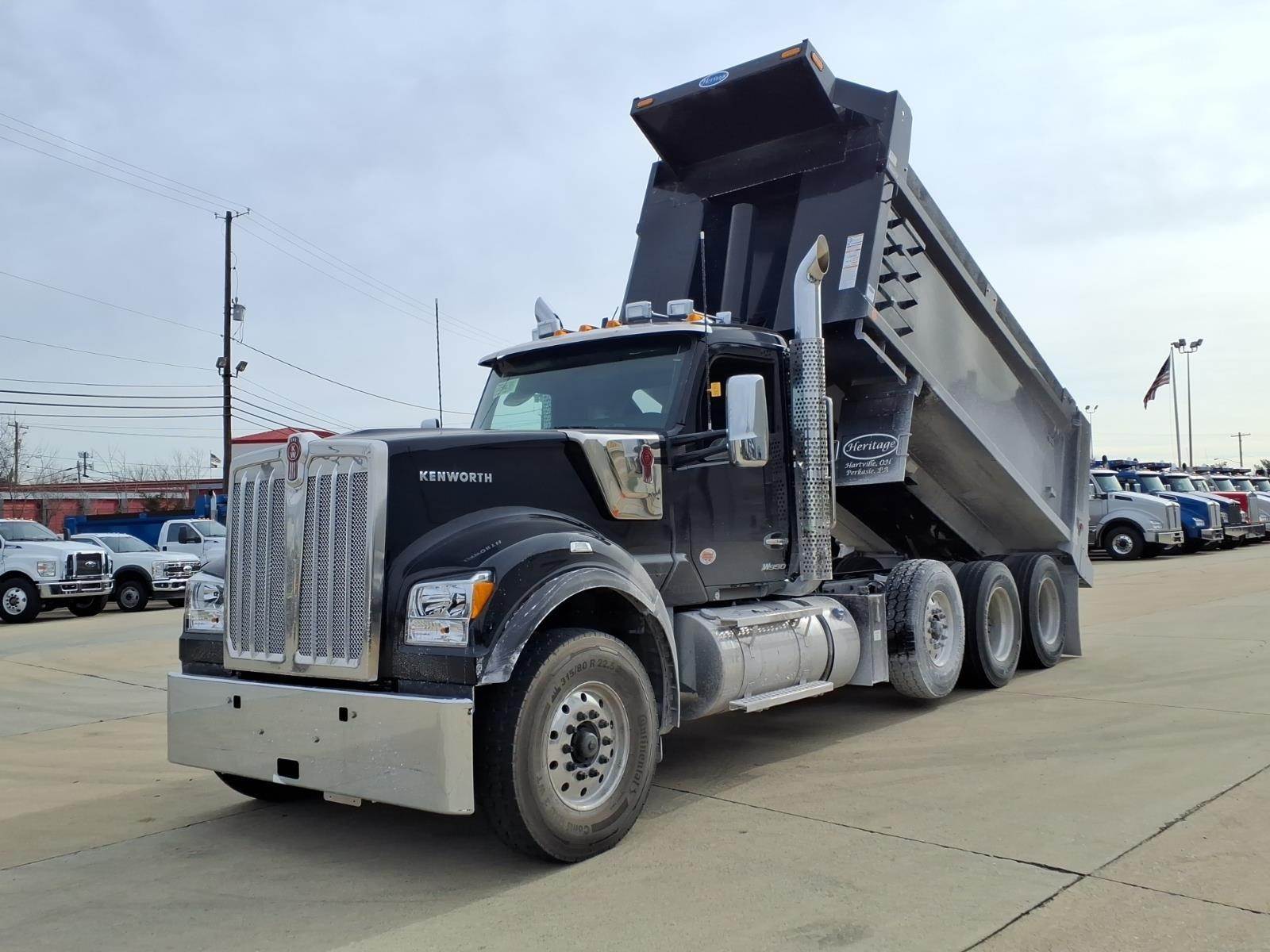

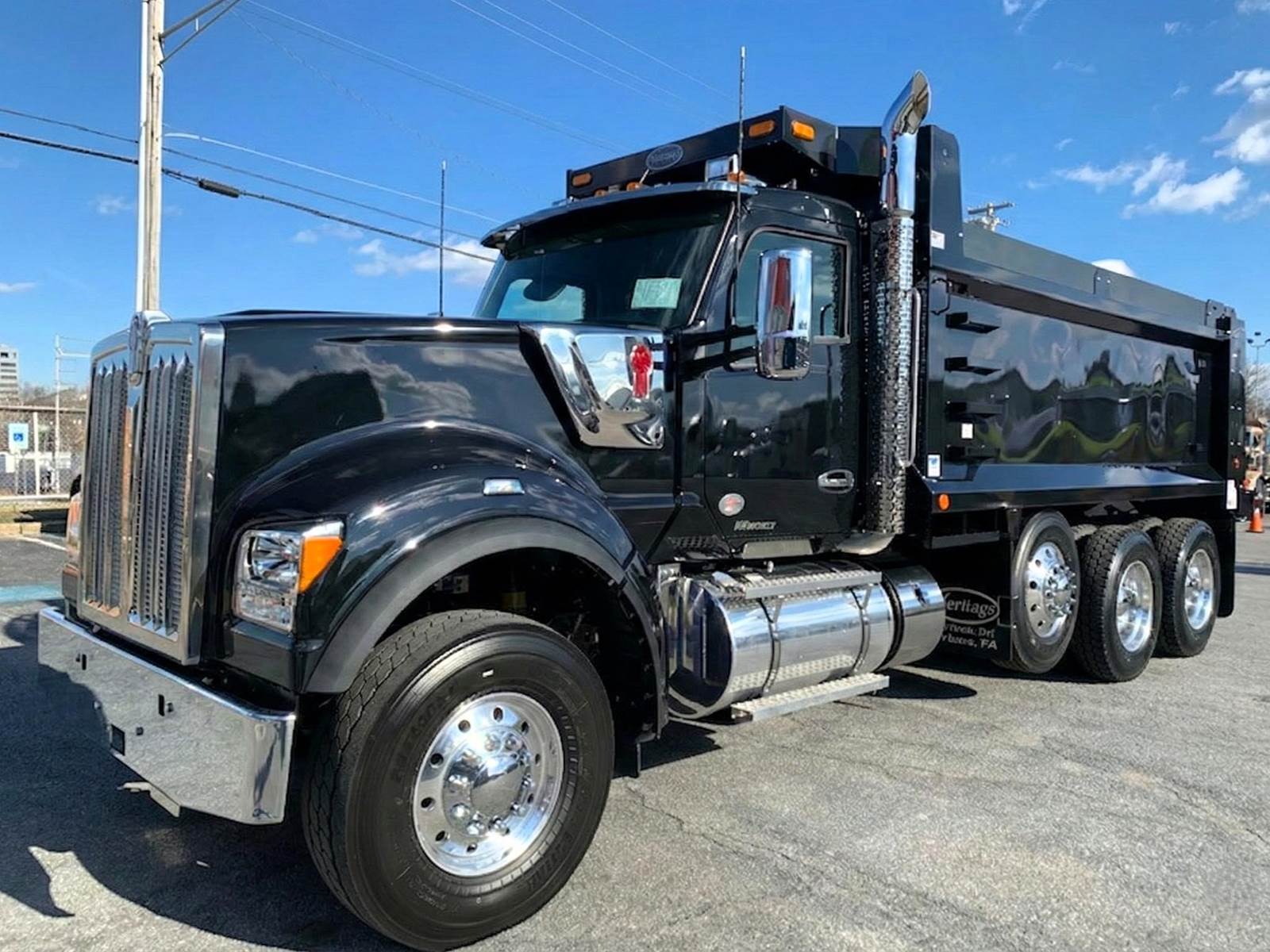

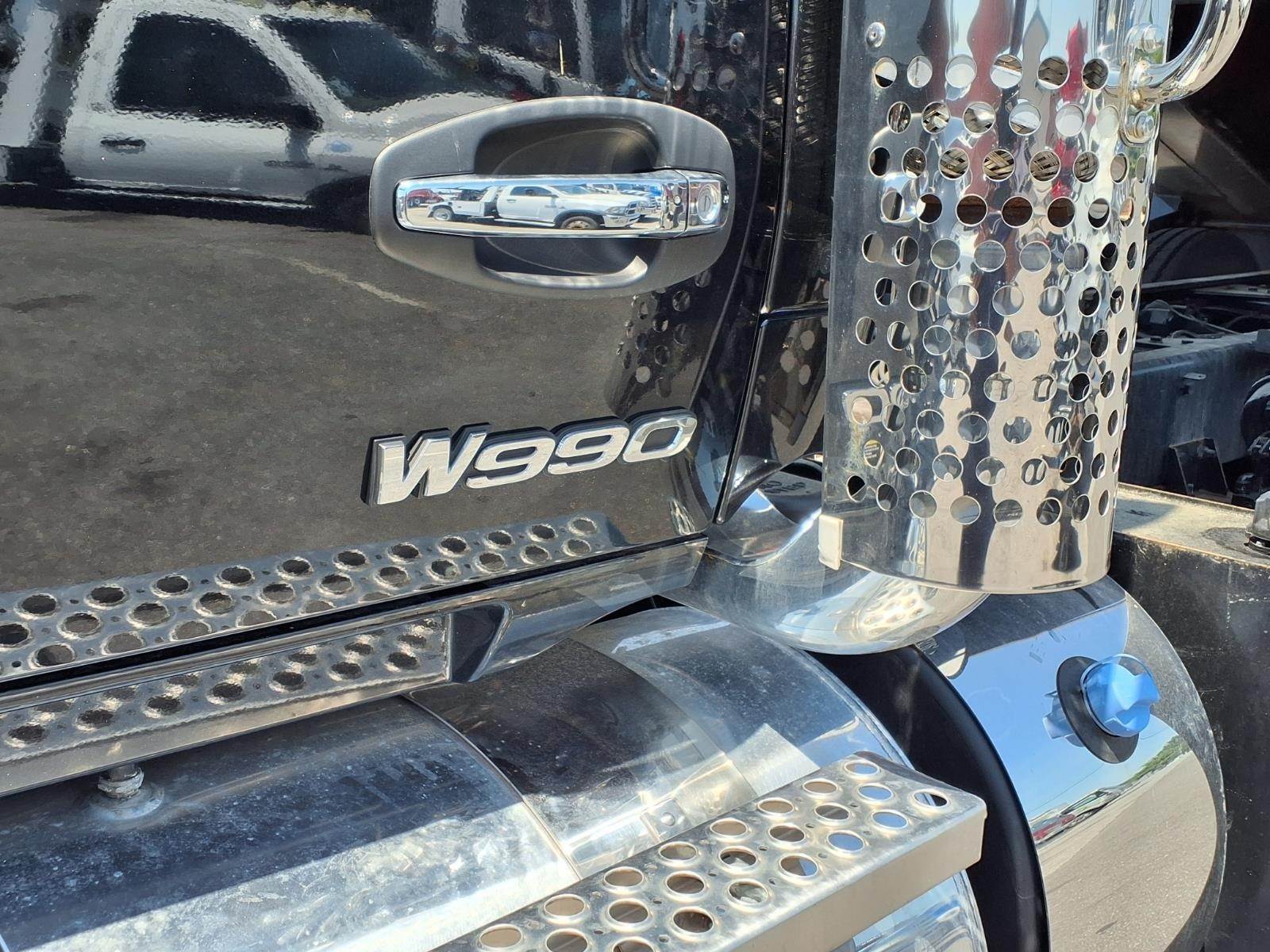

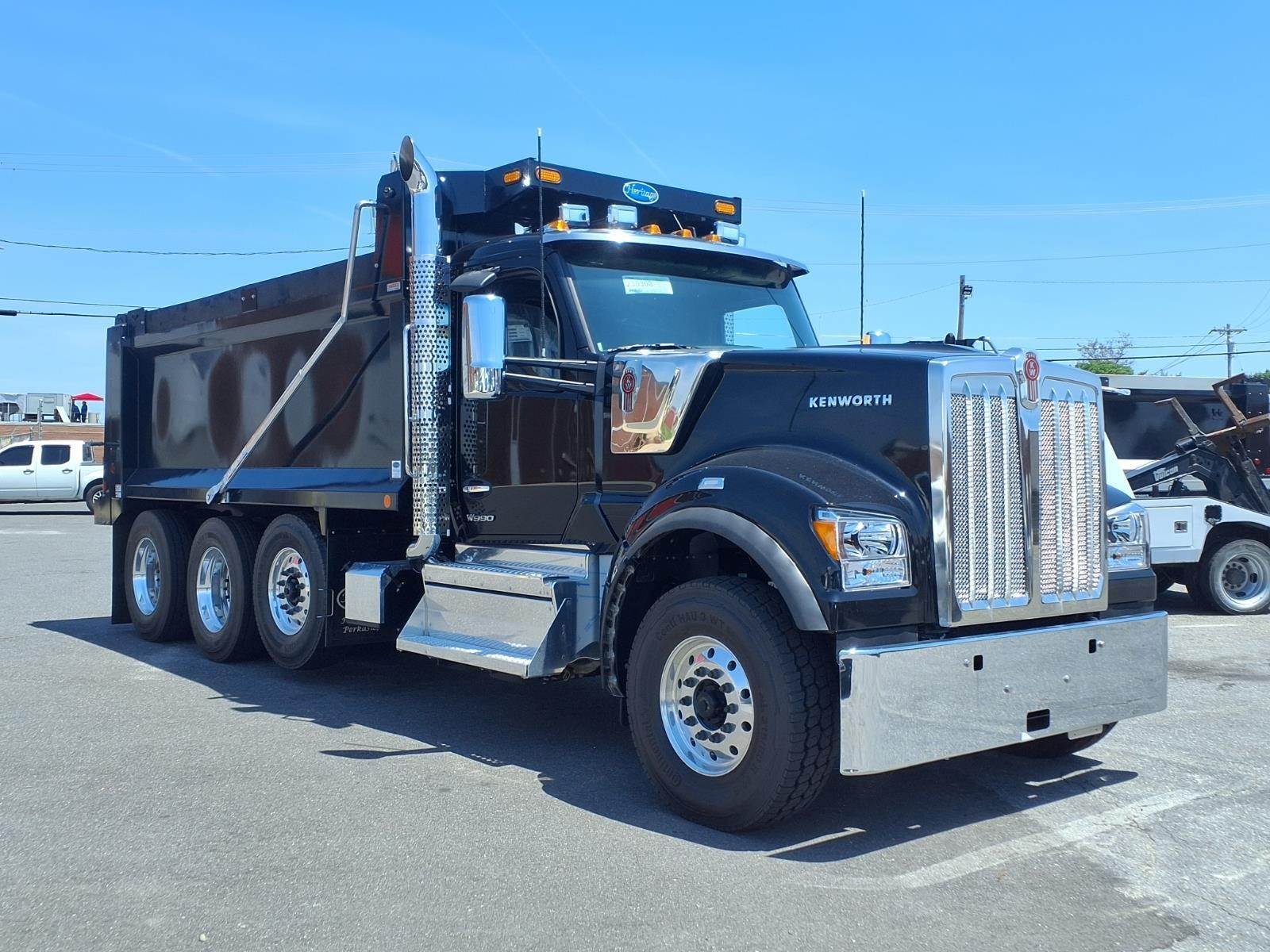

2026 Kenworth W990
Exterior Color: Blackout II (AA 942902EY)
Interior Package: W990 Limited Edition (Daycab)
Interior Color: Midnight Black
Engine: Cummins X15 Performance Series, 565 horsepower @ 1900 RPM, 1850 lb-ft torque @ 1000 RPM, engine brake

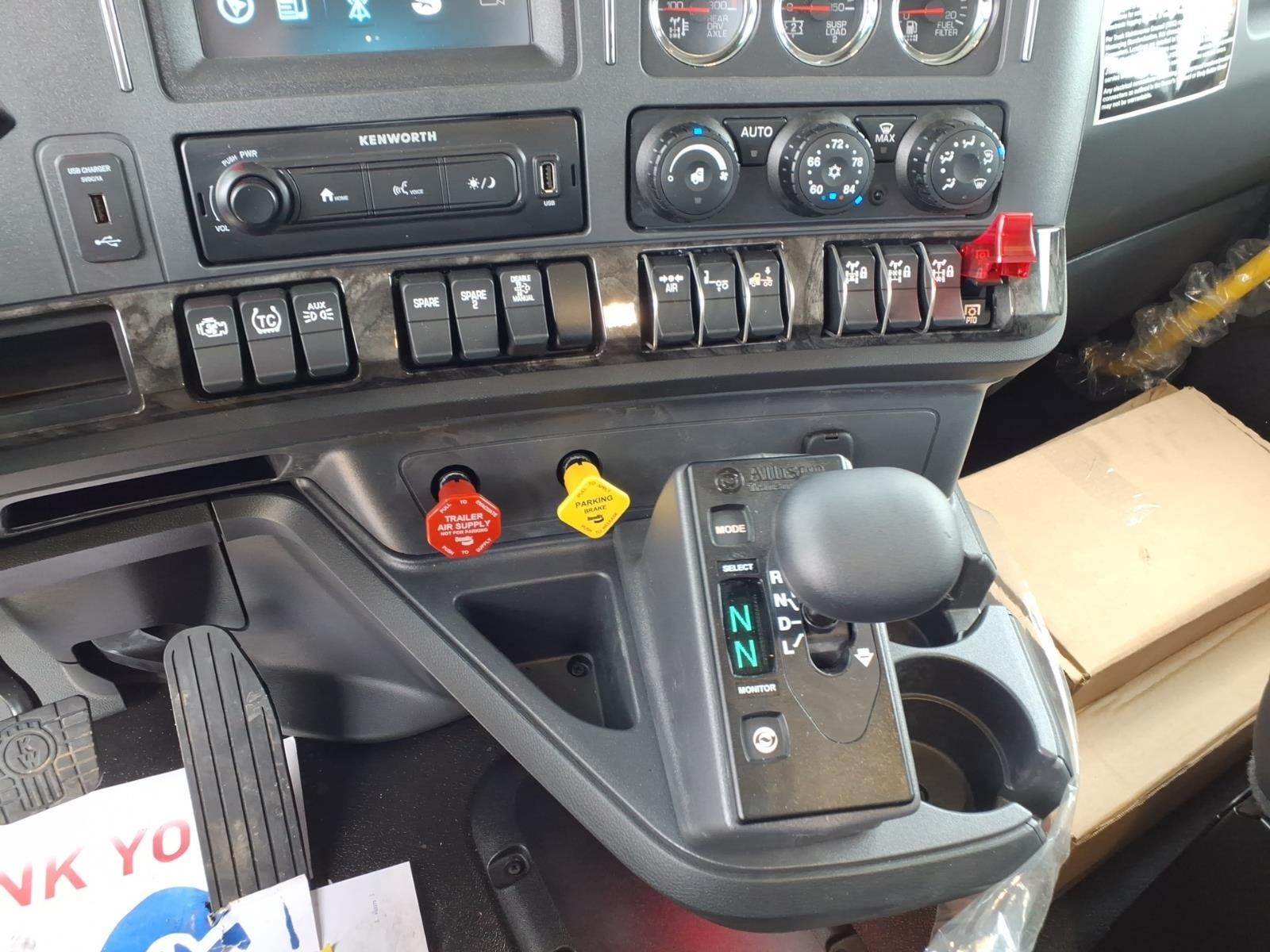

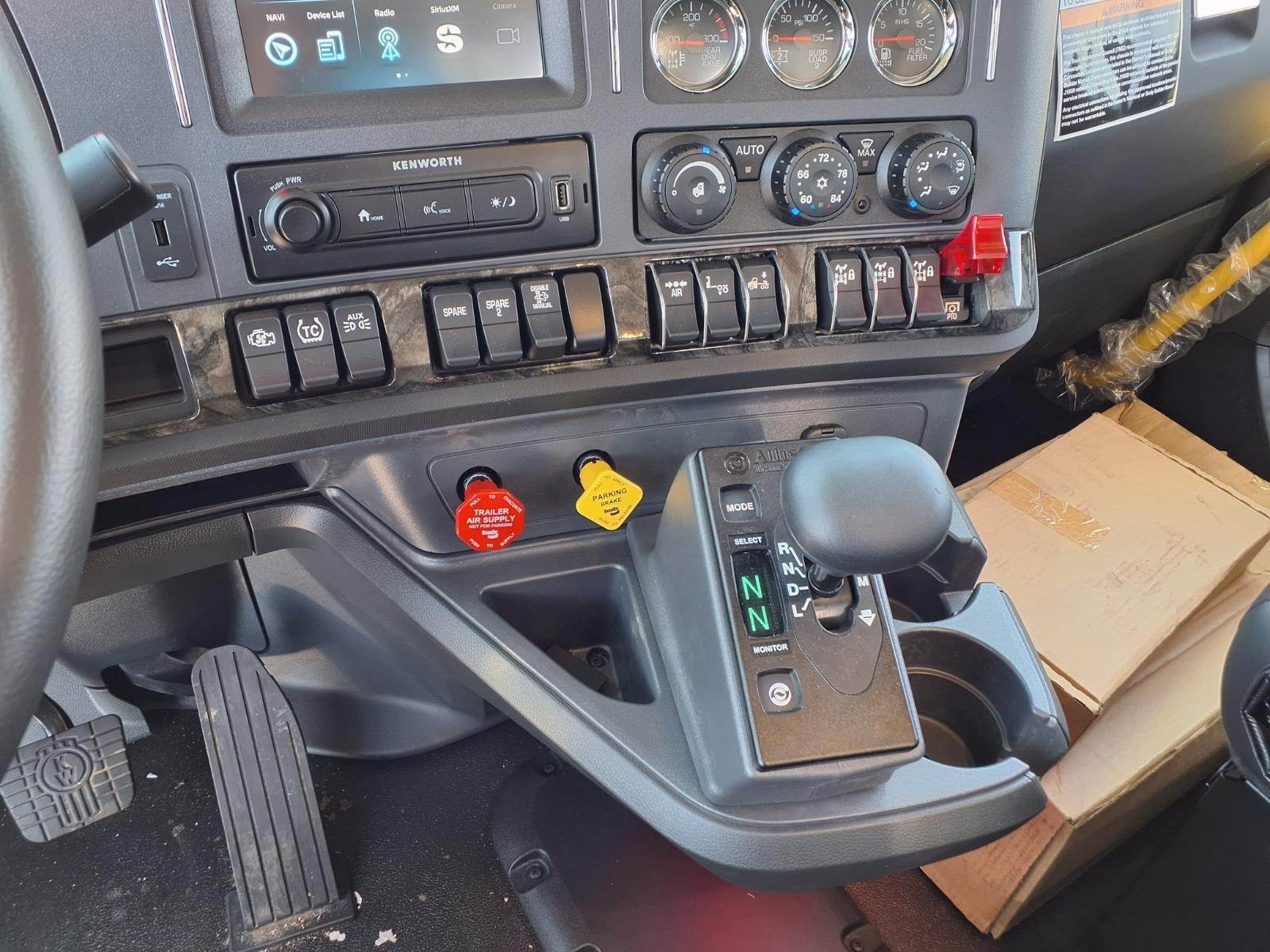

Transmission: Allison 4500RDS, 6-speed automatic with PTO, without retarder
Front Axle: Meritor MFS20, 20,000 lbs., wide track
Rear Axle: Meritor RT46-160P, 46,000 lbs. dual with pump
Steerable Pusher Axle: Watson & Chalin SL2065, 20,000 lbs.
Front Suspension: Taperleaf 20,000 lbs. with shocks
Rear Suspension: Hendrickson Primaax EX 462, 46,000 lbs. dual, 54" air suspension
Gross Vehicle Weight Rating (GVWR): 86,000 lbs.
Wheelbase: 244 inches
Cab-to-Axle: 144 inches
Rear Axle Ratio: 4.30
Brakes: Front Bendix air disc brakes, Rear Bendix ES S-cam drum brakes 16.5" x 7"
Front Wheels: Alcoa 89U63 22.5 x 9 Ultra One High Polish aluminum, Dura-Bright mirror polish

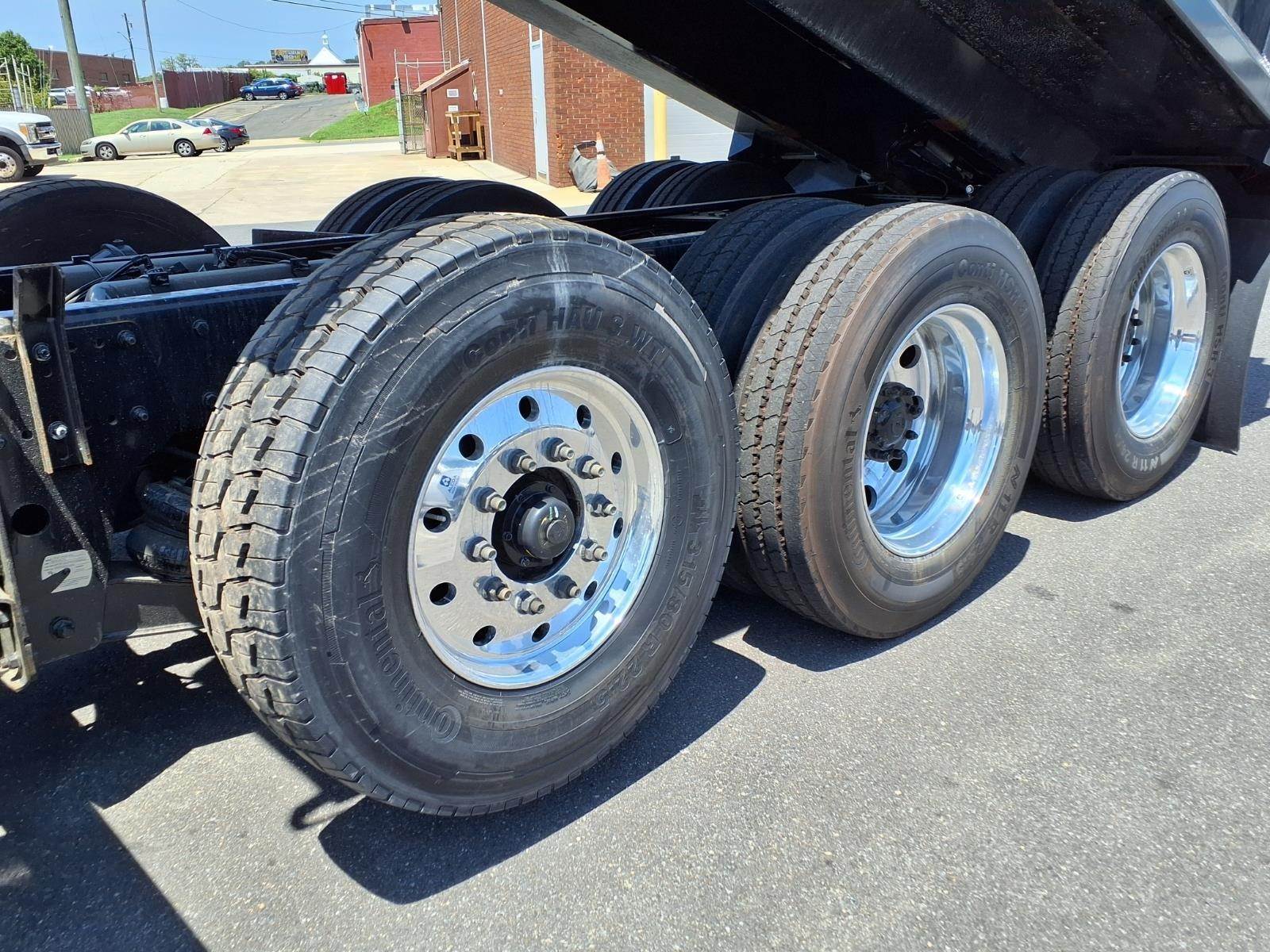

Rear Wheels: Alcoa 98U63 24.5 x 8.25 Ultra One High Polish aluminum, Dura-Bright mirror polish
Steerable Pusher Wheels: Alcoa 89U63 22.5 x 9 Ultra One High Polish aluminum
Front Tires: Continental HAU 3 WT 315/80R22.5 20PR
Rear Tires: Continental HSR3 11R24.5 16PR
Steerable Pusher Tires: Continental HAU 3 315/80R22.5 20PR
Fuel Tank: 100 US gallon, 24.5" aluminum, polished
DEF Tank: 23.8 gallon medium round, polished cover
Double Frame with full steel inserts
Crosslock differential: Meritor 40-52K forward rear/rear rear with cab control

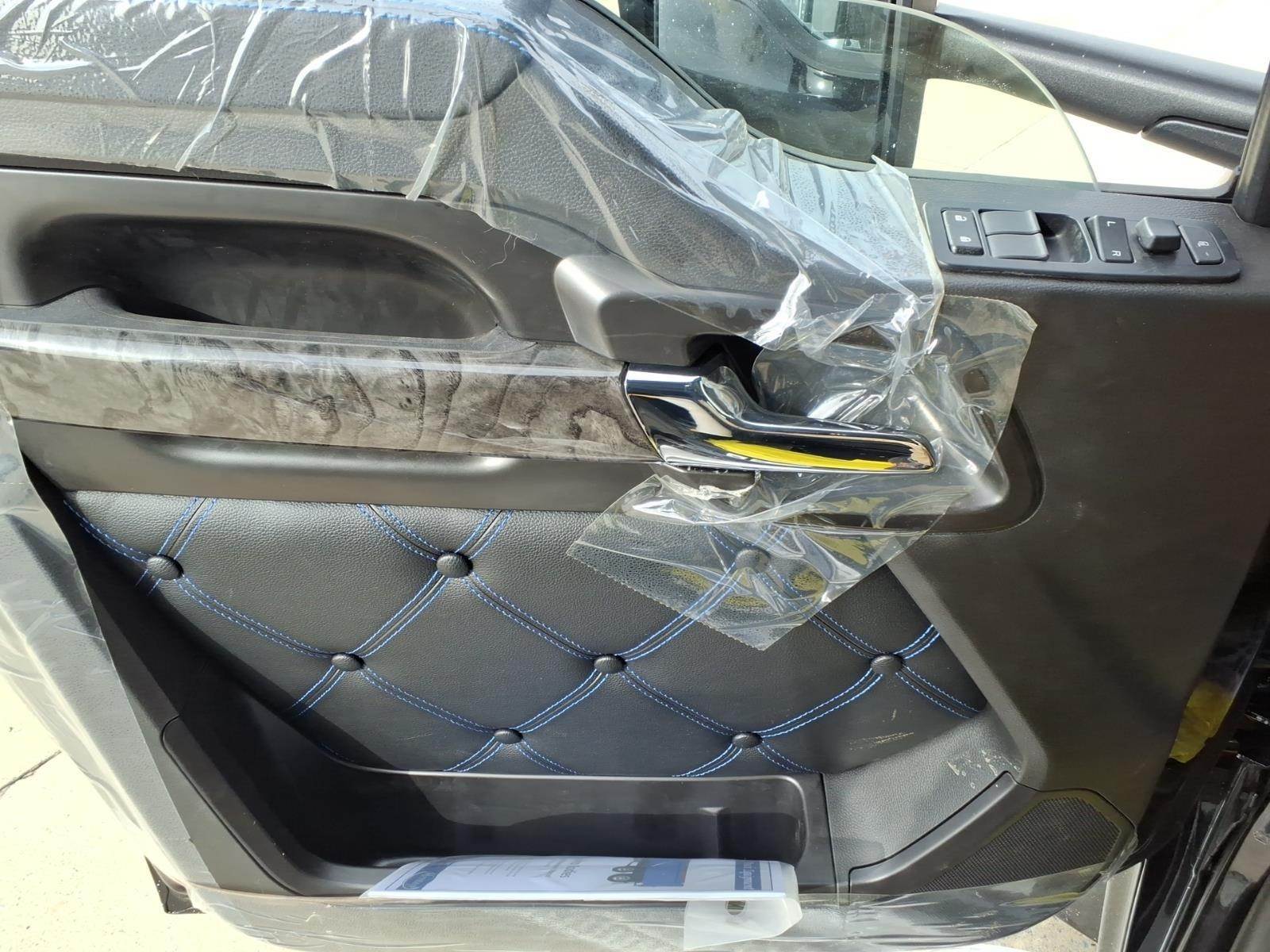

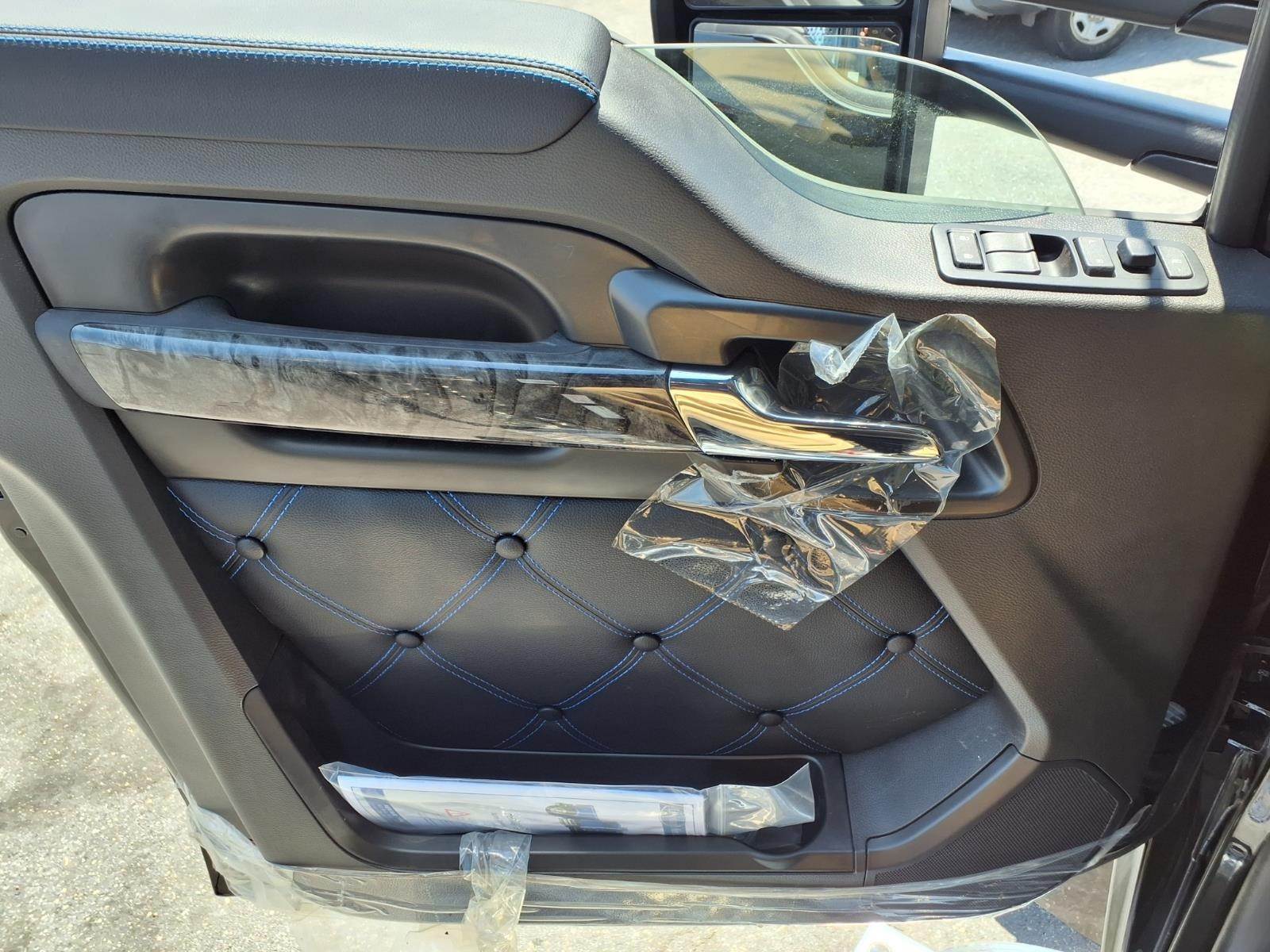

Power windows and power door locks
Tilt and telescoping steering column

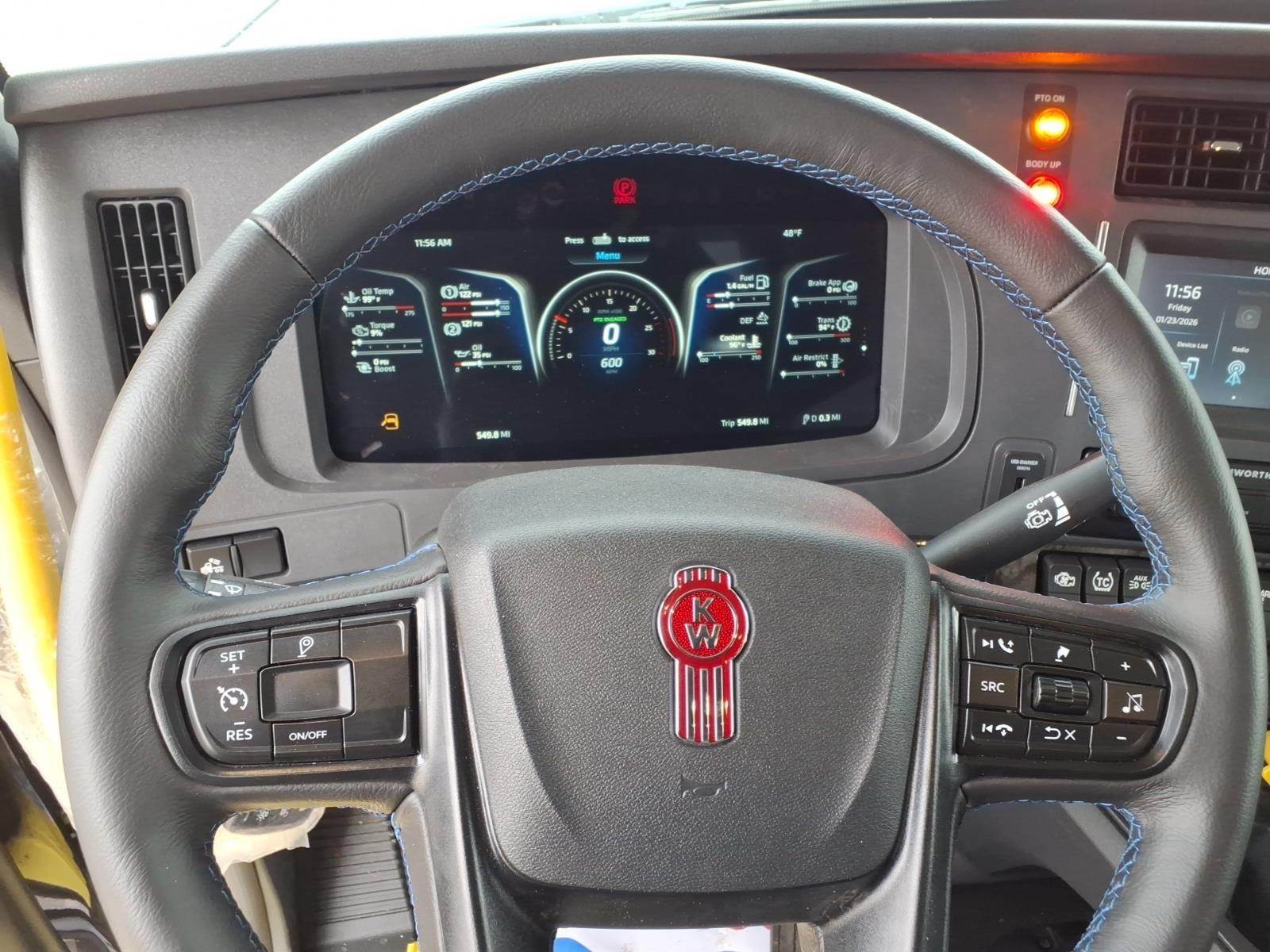

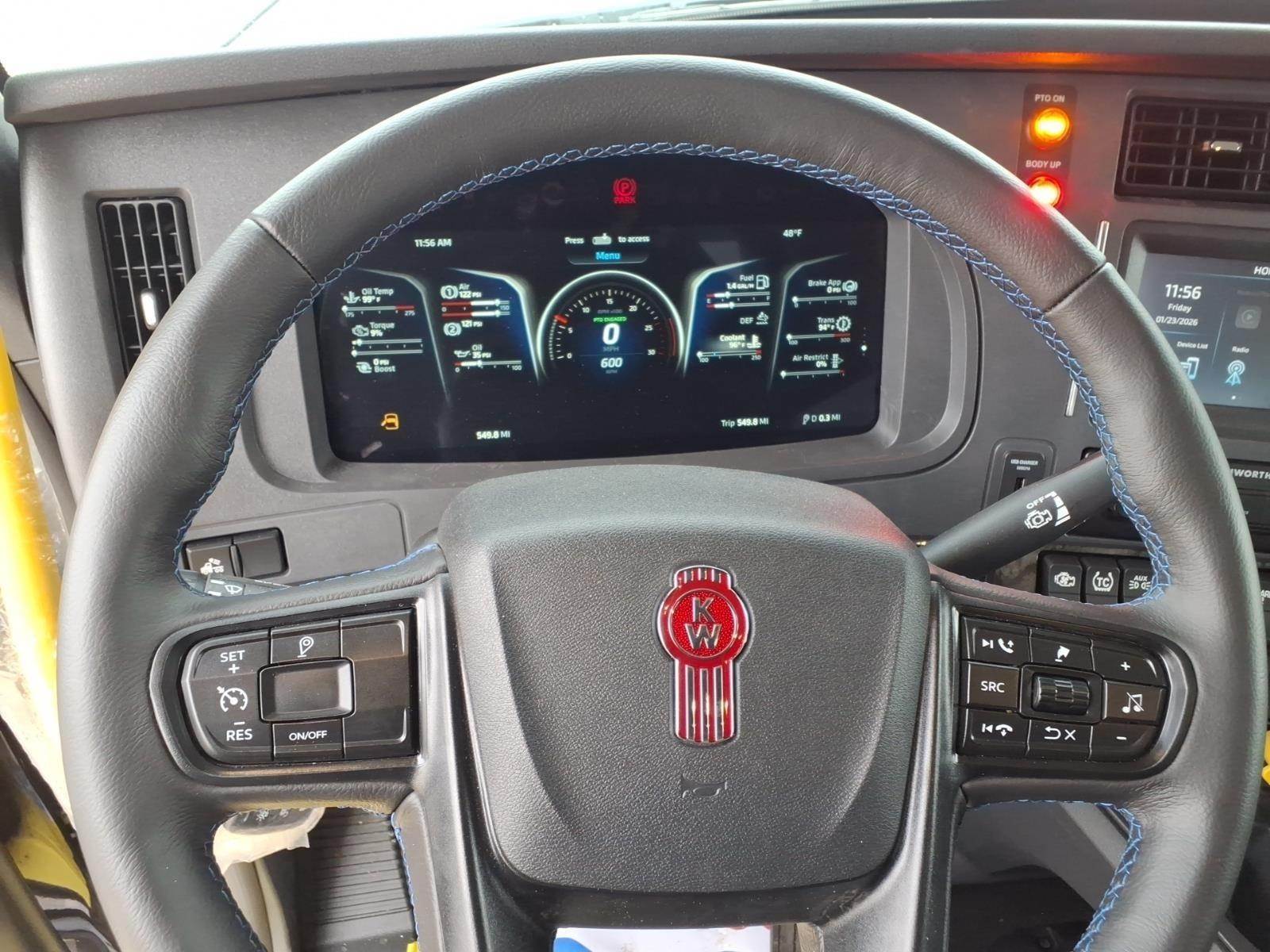

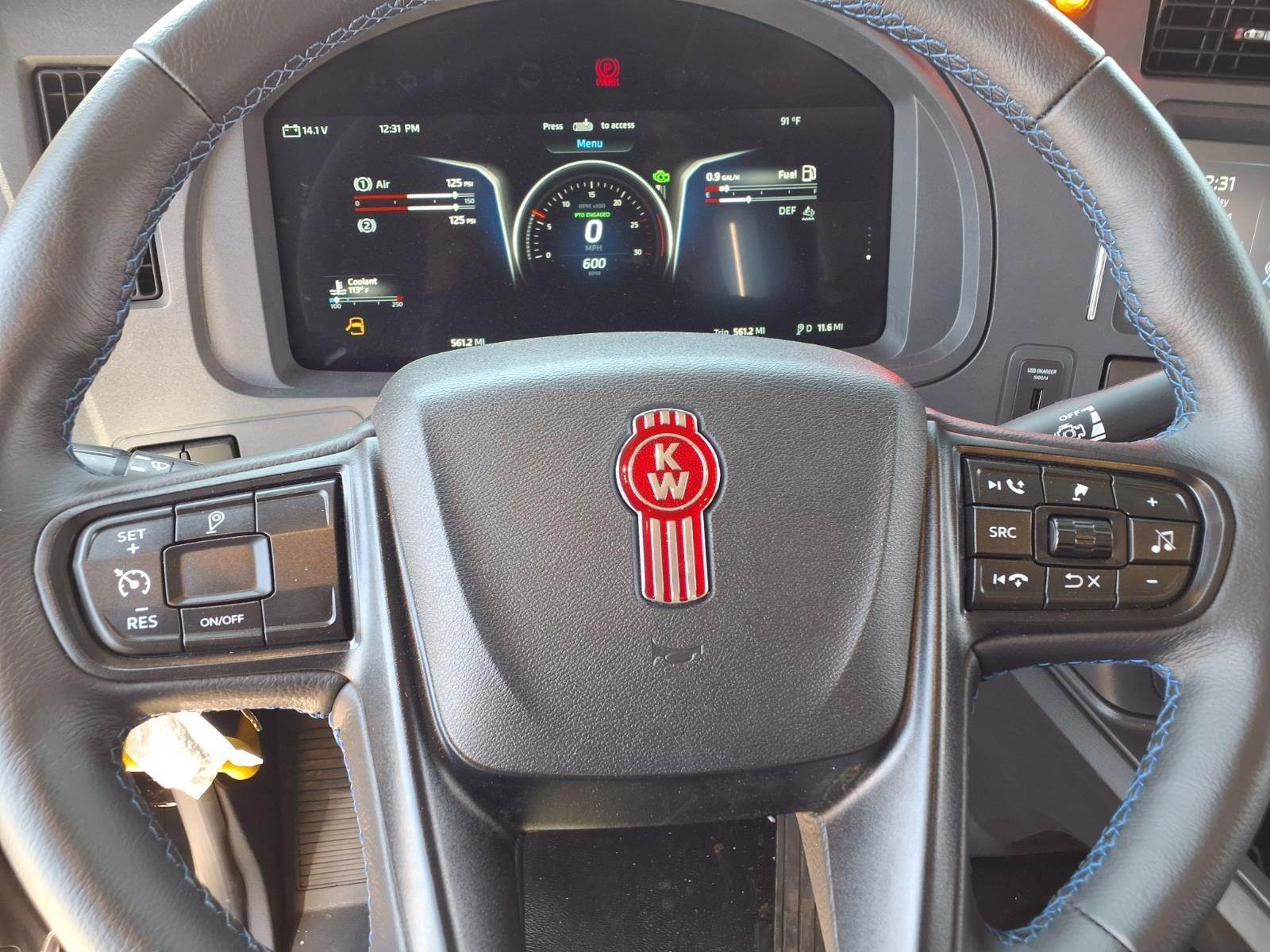

18" leather Smart Wheel with integrated radio and cruise controls
Remote keyless entry
Kenworth TruckTech+ remote diagnostics, 5-year subscription

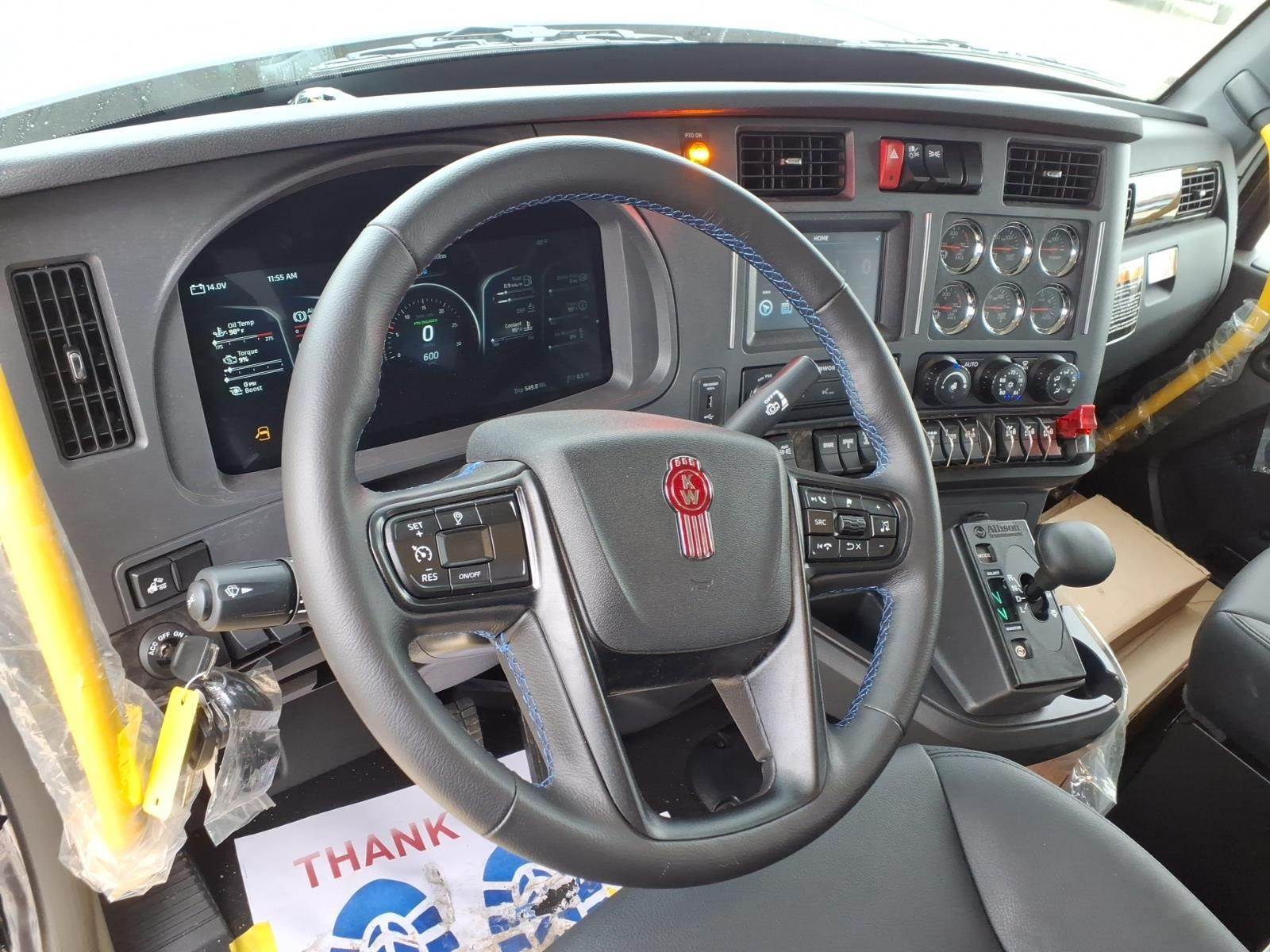

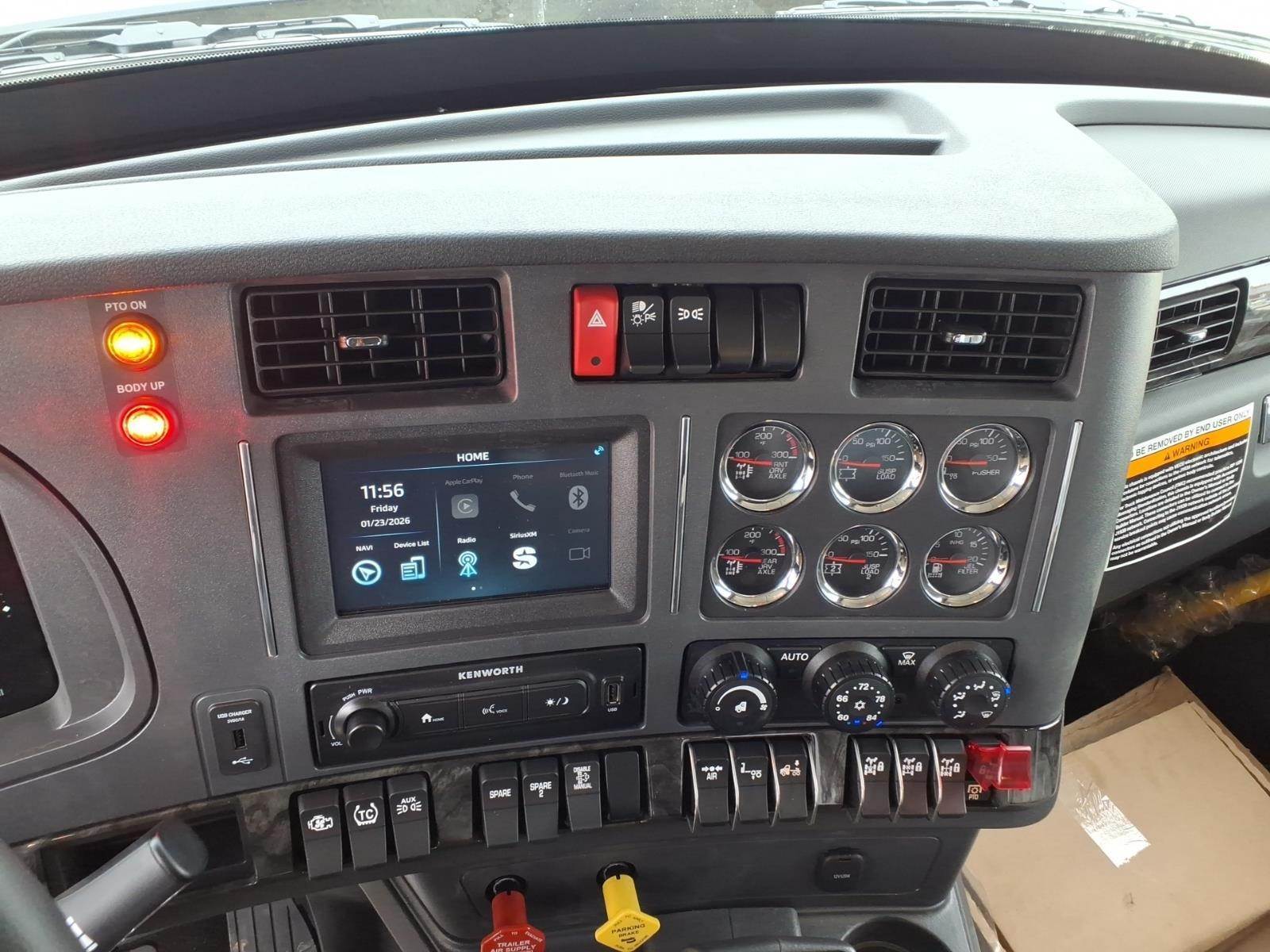

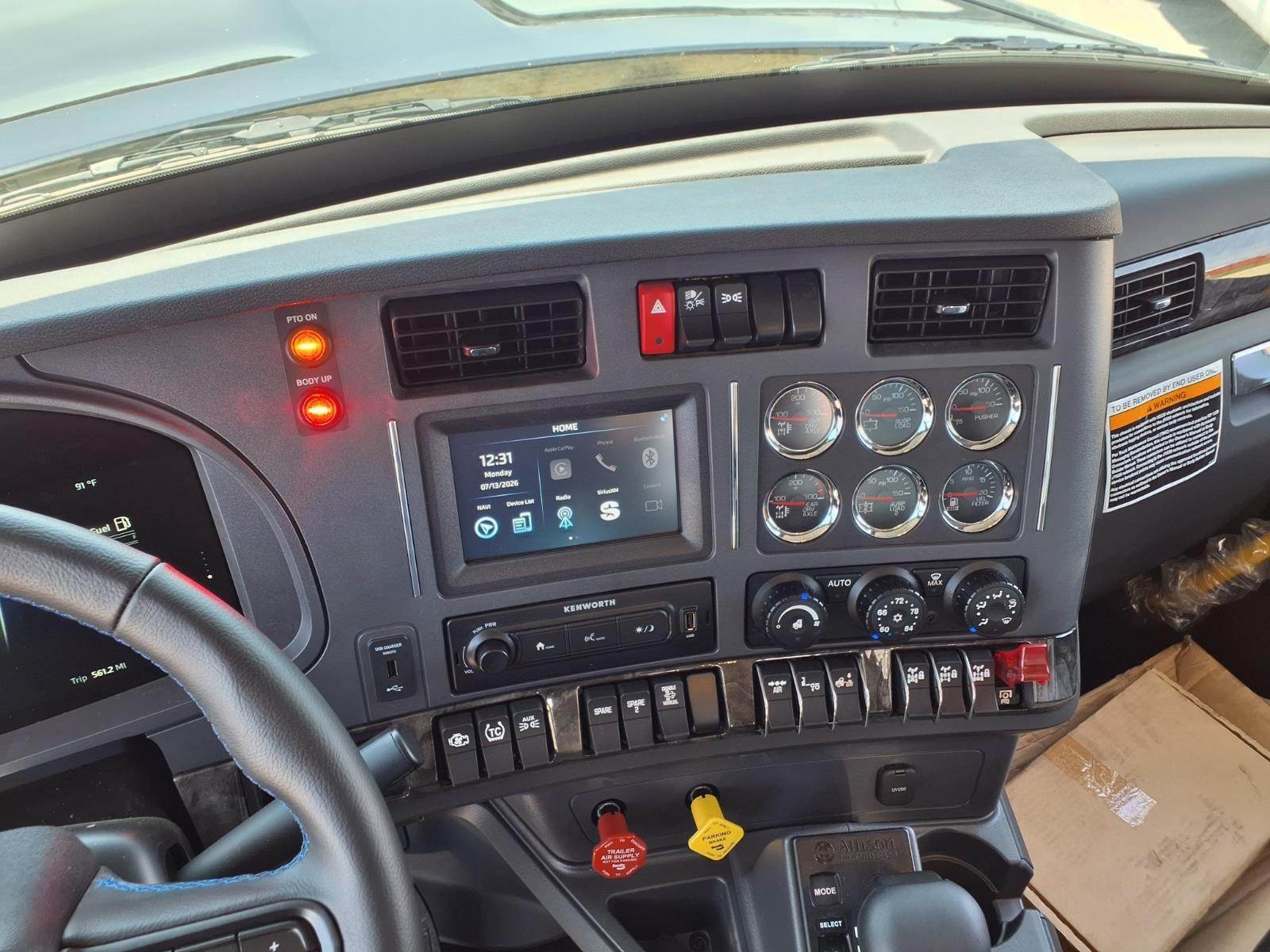

15" digital display main instrument package
Air conditioning with defrost and auto temperature control
Kenworth radio and navigation compatible with Apple CarPlay
Mid-level audio system with high performance door and B-pillar speakers
CB radio installation kit, center mounted header with quick mount release, dual antenna
Air horn: quad rectangular 23"/26" with air horn covers
Dual Kenworth Aero heated mirrors, 7" x 13", chrome shell with black arms, 6" x 7" convex mirror
Self-cancelling turn signals
Exterior stainless steel sunvisor

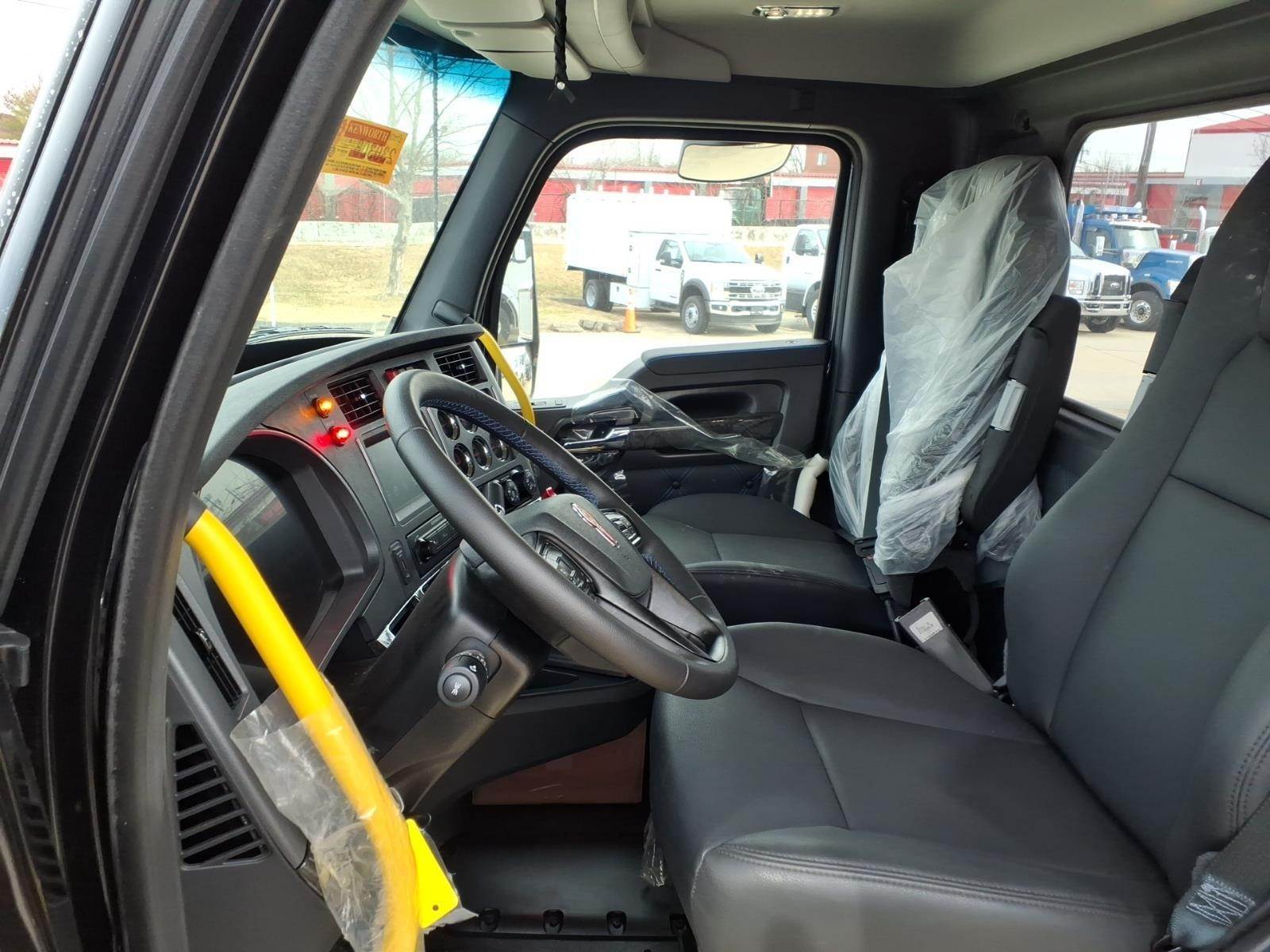

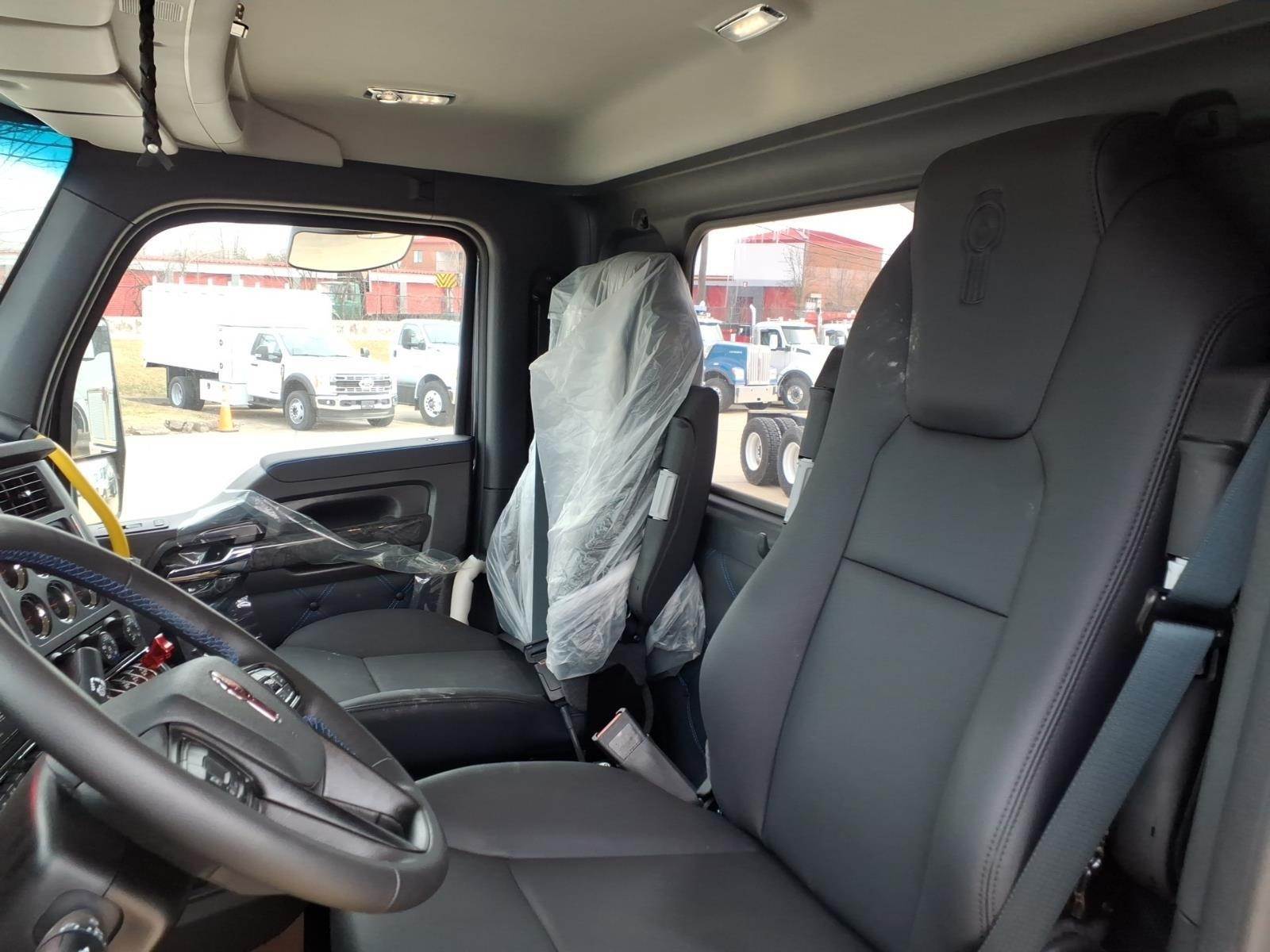

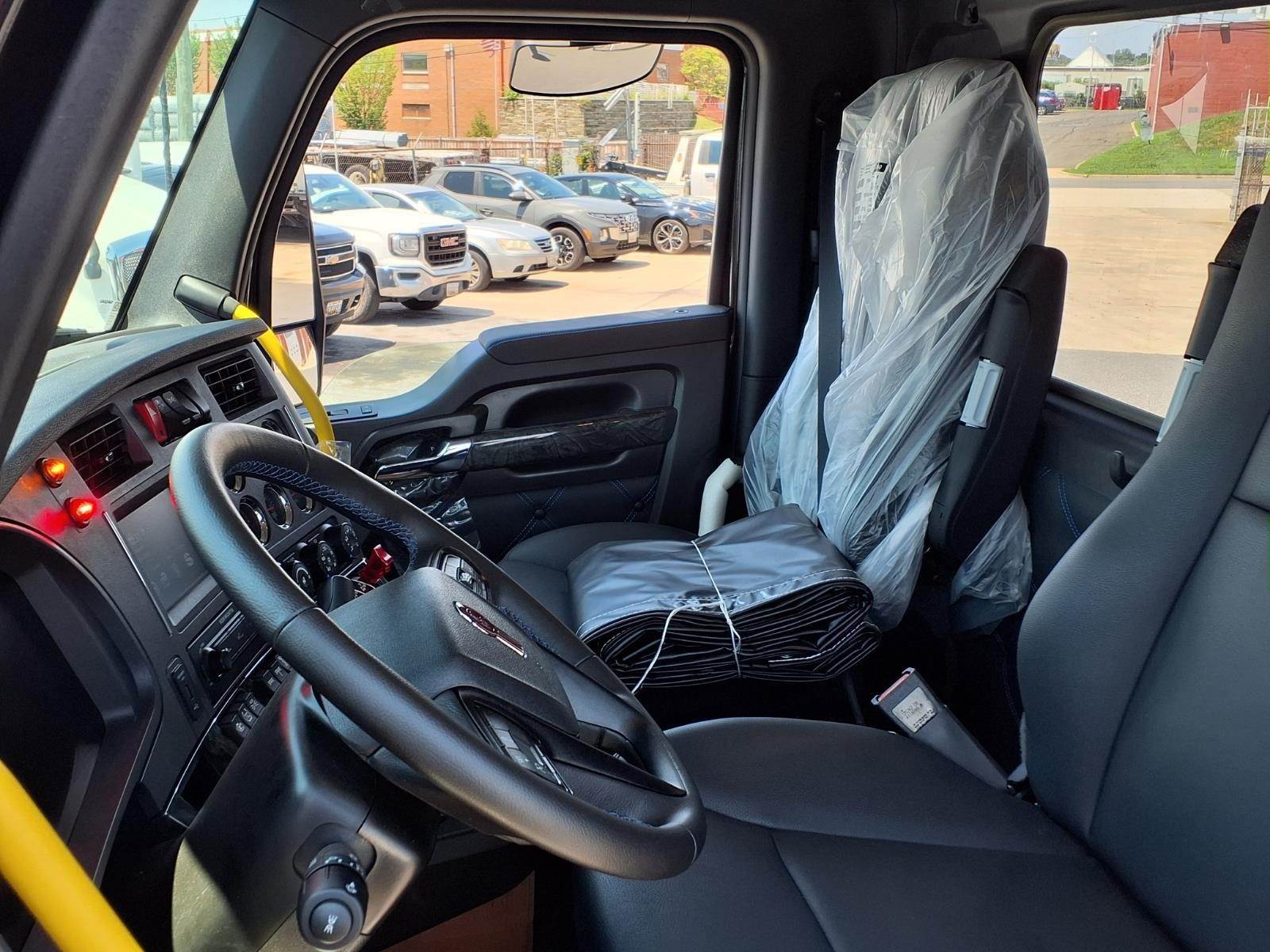

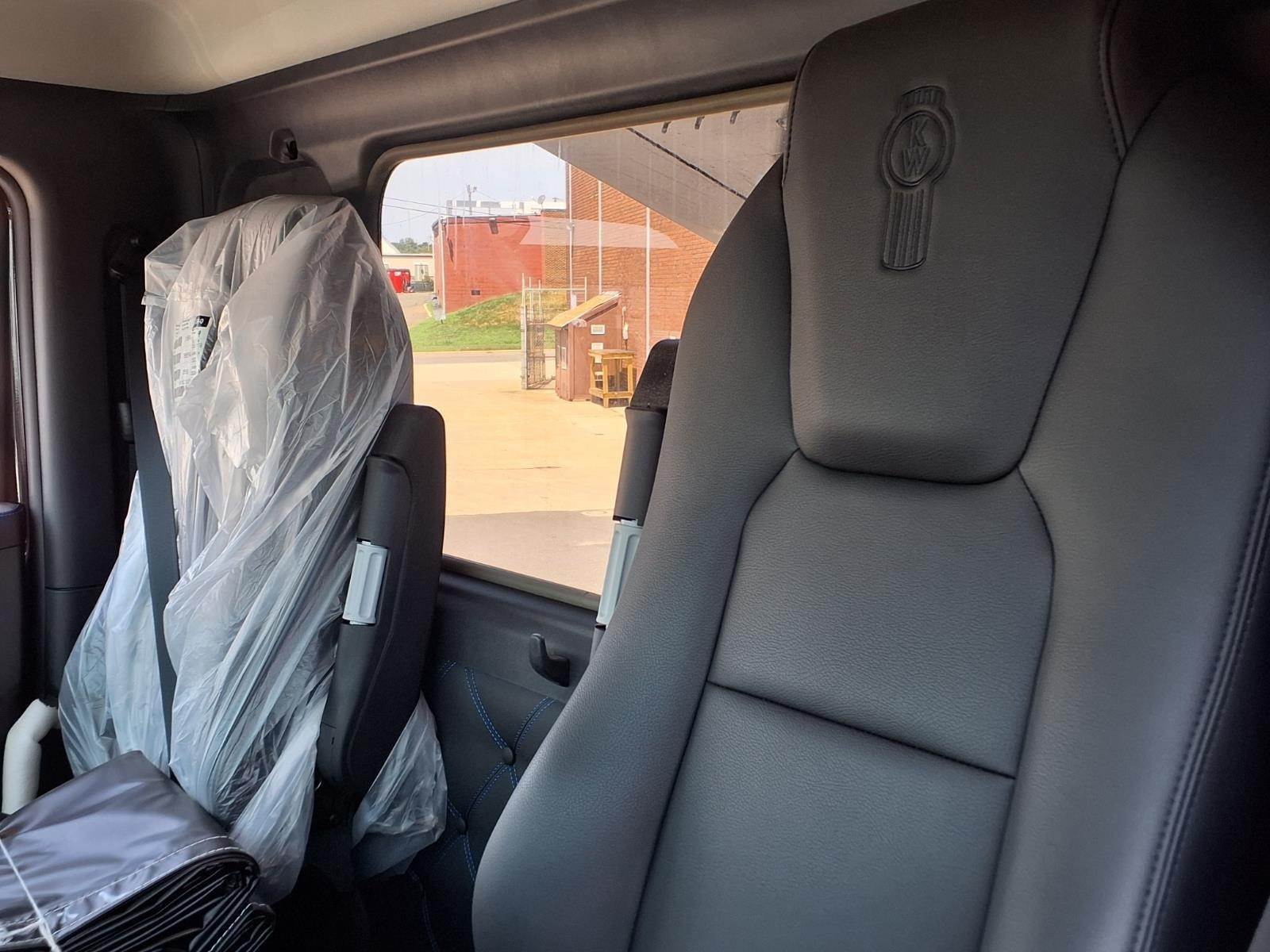

Driver seat: Kenworth GT701 high back vinyl air-ride suspension, black
Passenger seat: Kenworth GT100 high back toolbox seat, vinyl, black
USB charging port on dash panel
Dual interior A-pillar mounted dash wrap and B-pillar mounted grab handles, yellow
Long grab handles, one left-hand and one right-hand mounted for SOC exhaust
Dual LED flush floodlights
Fixed rear cab window 19" x 36", dark tint
Texas Square chrome bumper
Removable front tow hooks, quantity 2

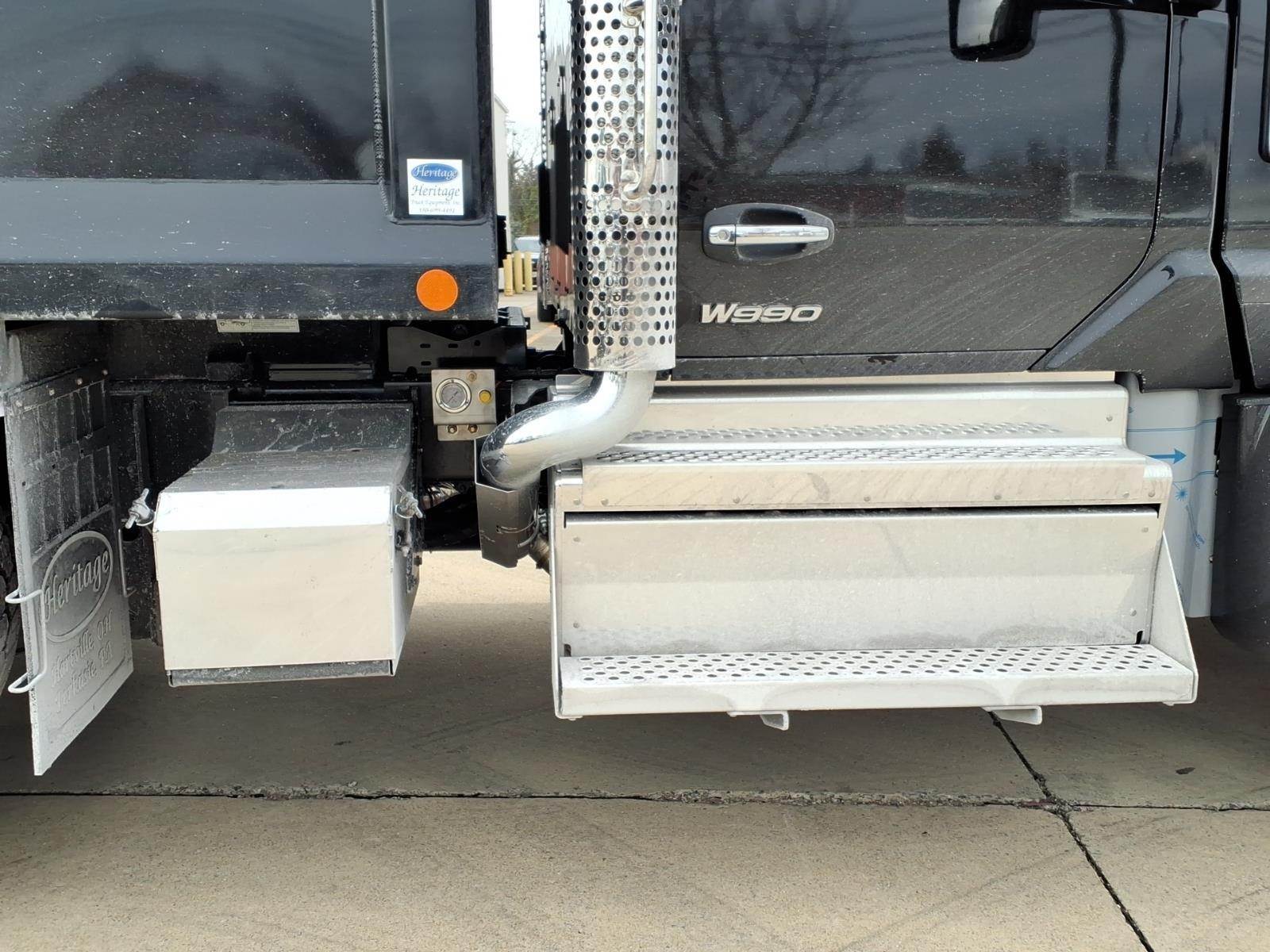

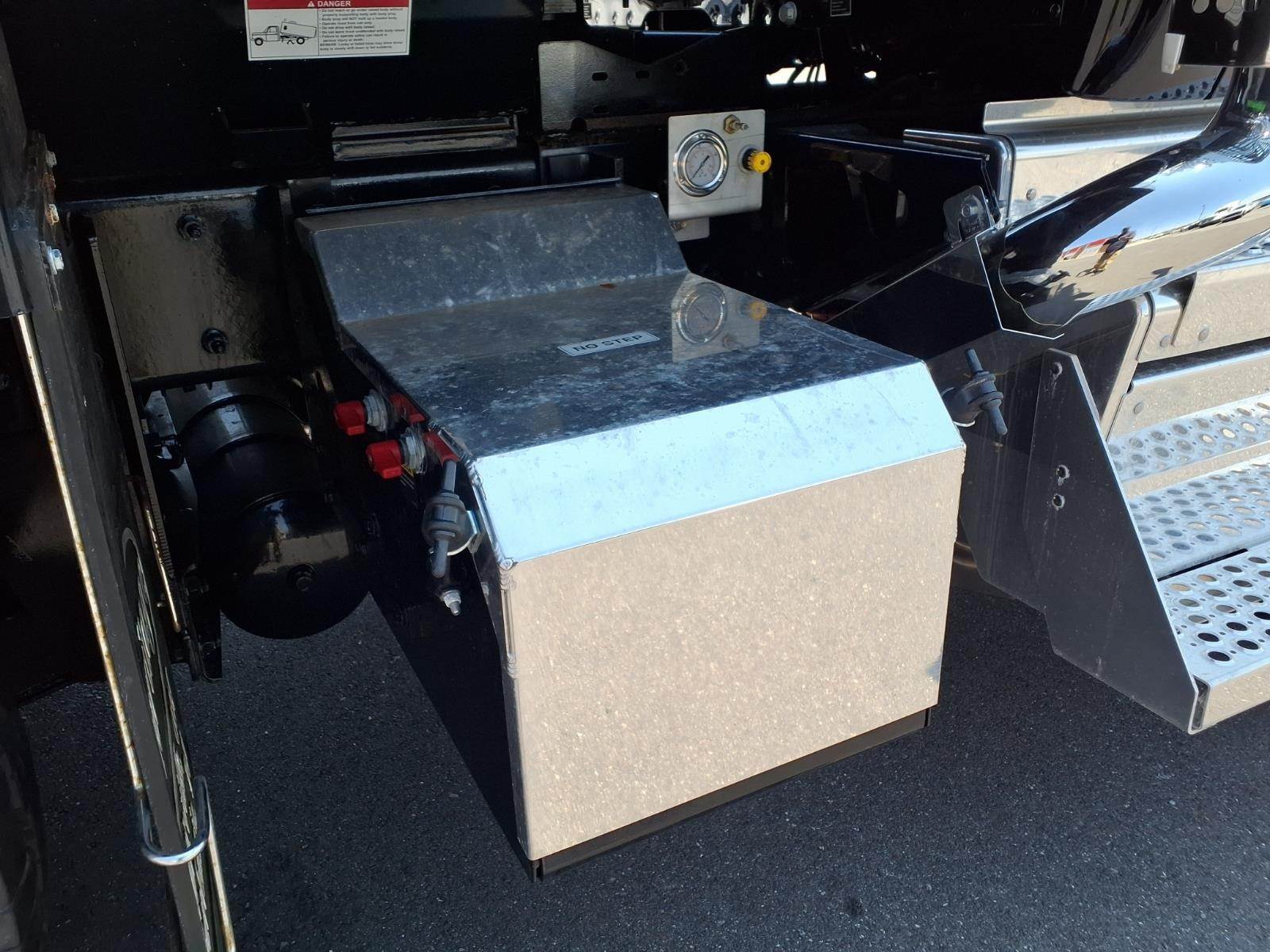

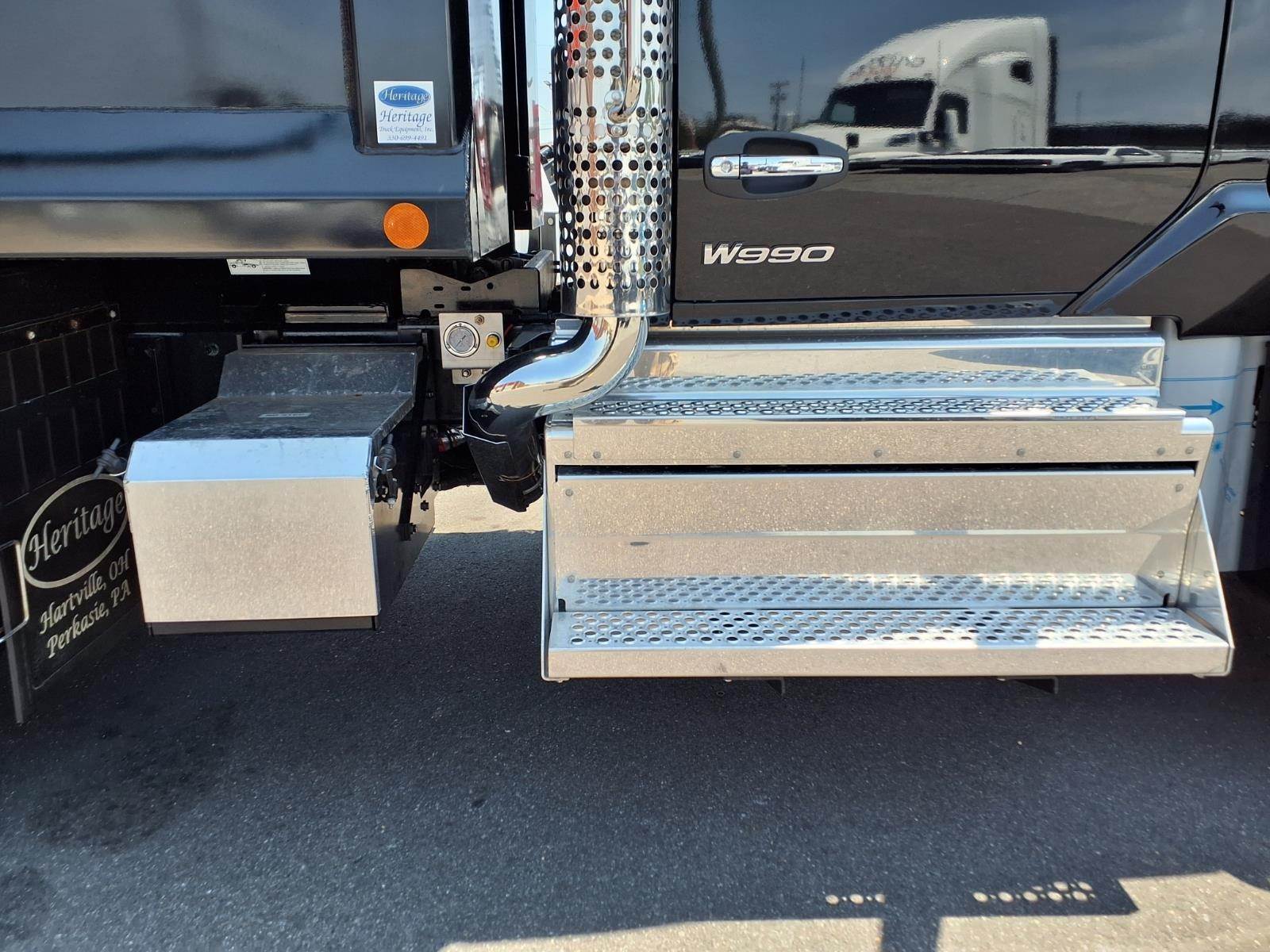

Polished aluminum battery box cover and polished ends with cab access step
Heavy-duty 7" steel fuel tank supports/straps, polished
110-120V/1500W immersion engine block heater
5 sets of keys
Fire extinguisher: 5 lb. dry chemical type, Class ABC
Warning triangle reflector kit: 3 triangles in plastic case
Zinc phosphate frame rail and frame insert paint process

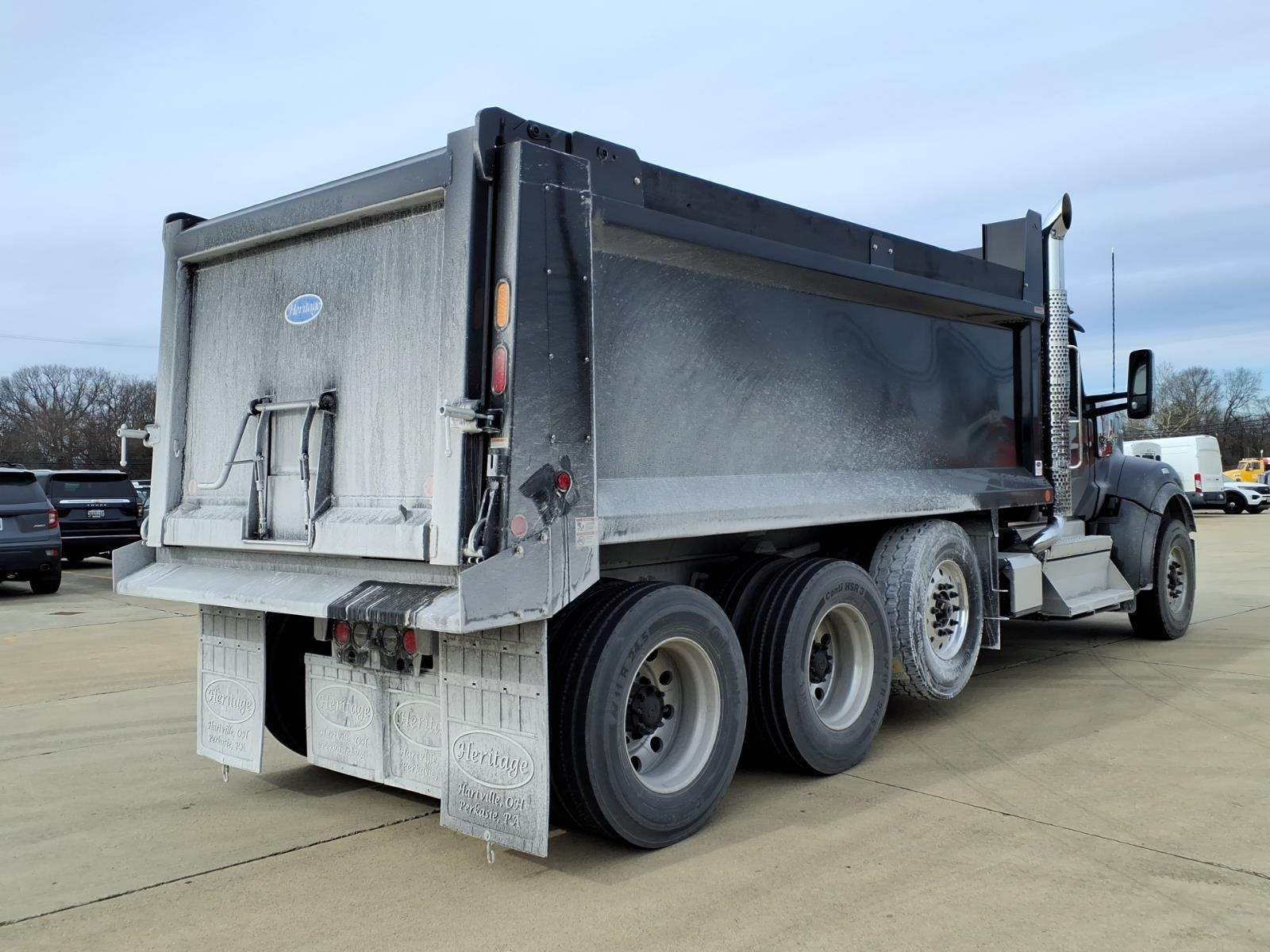

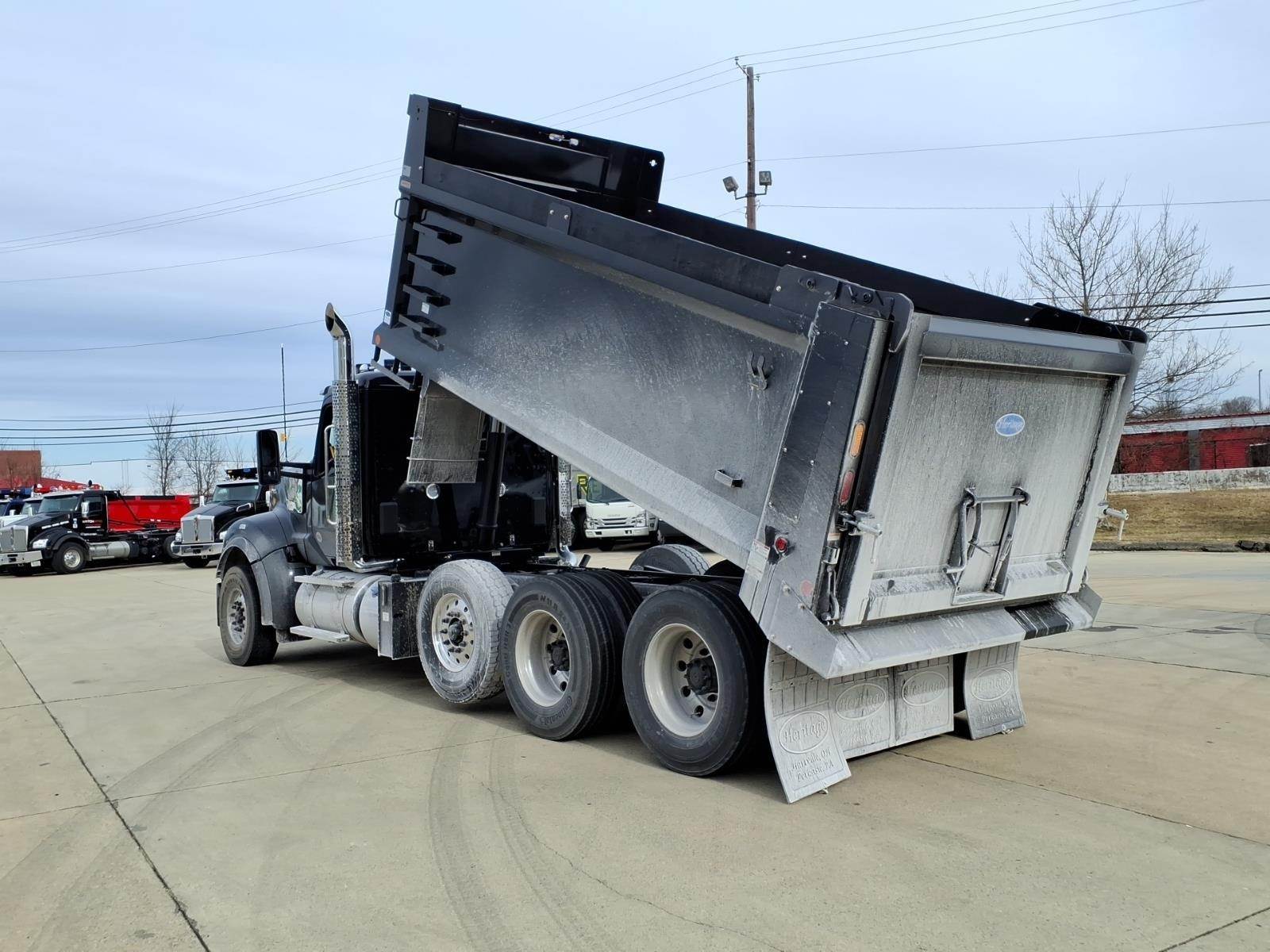

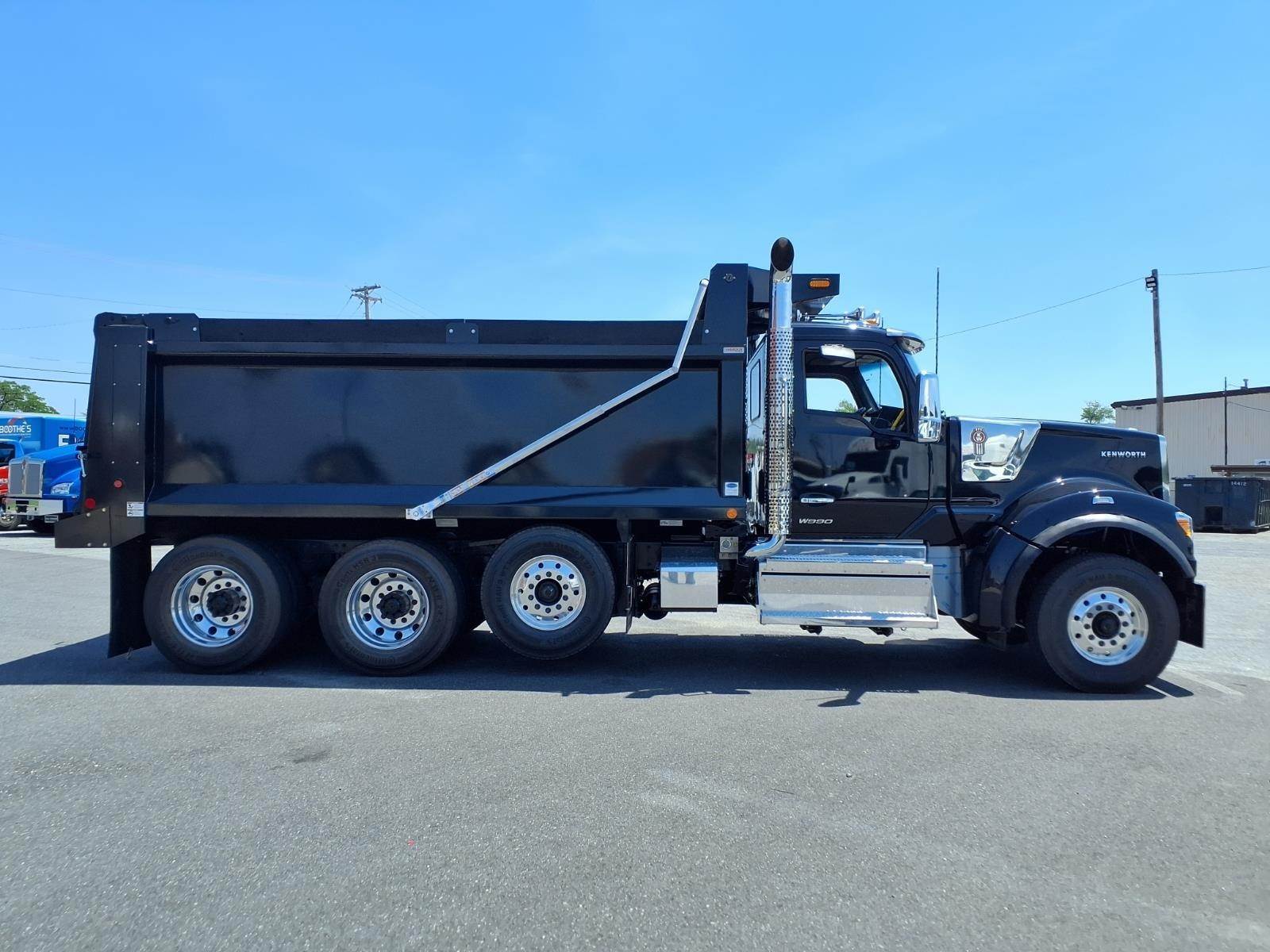

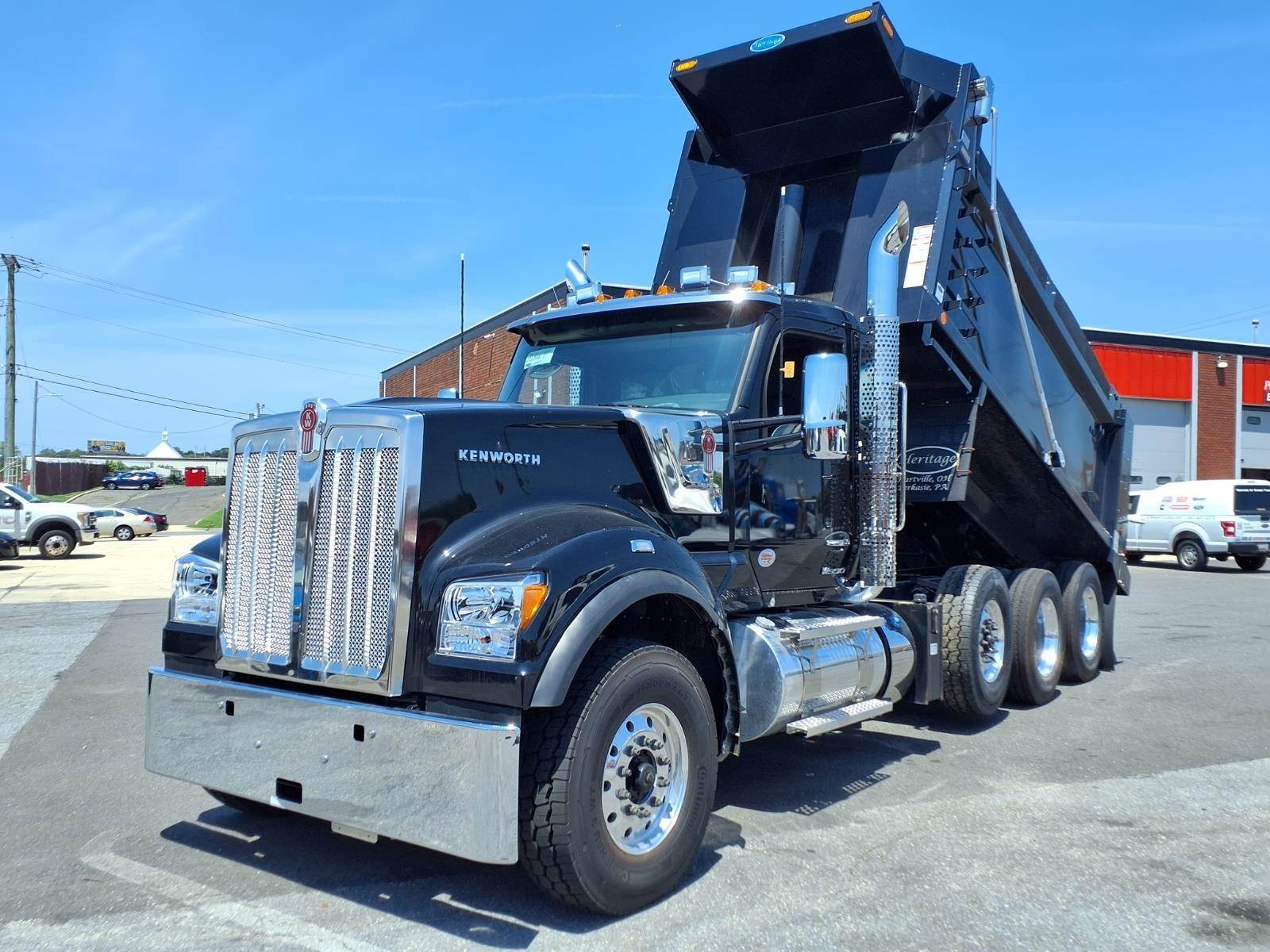

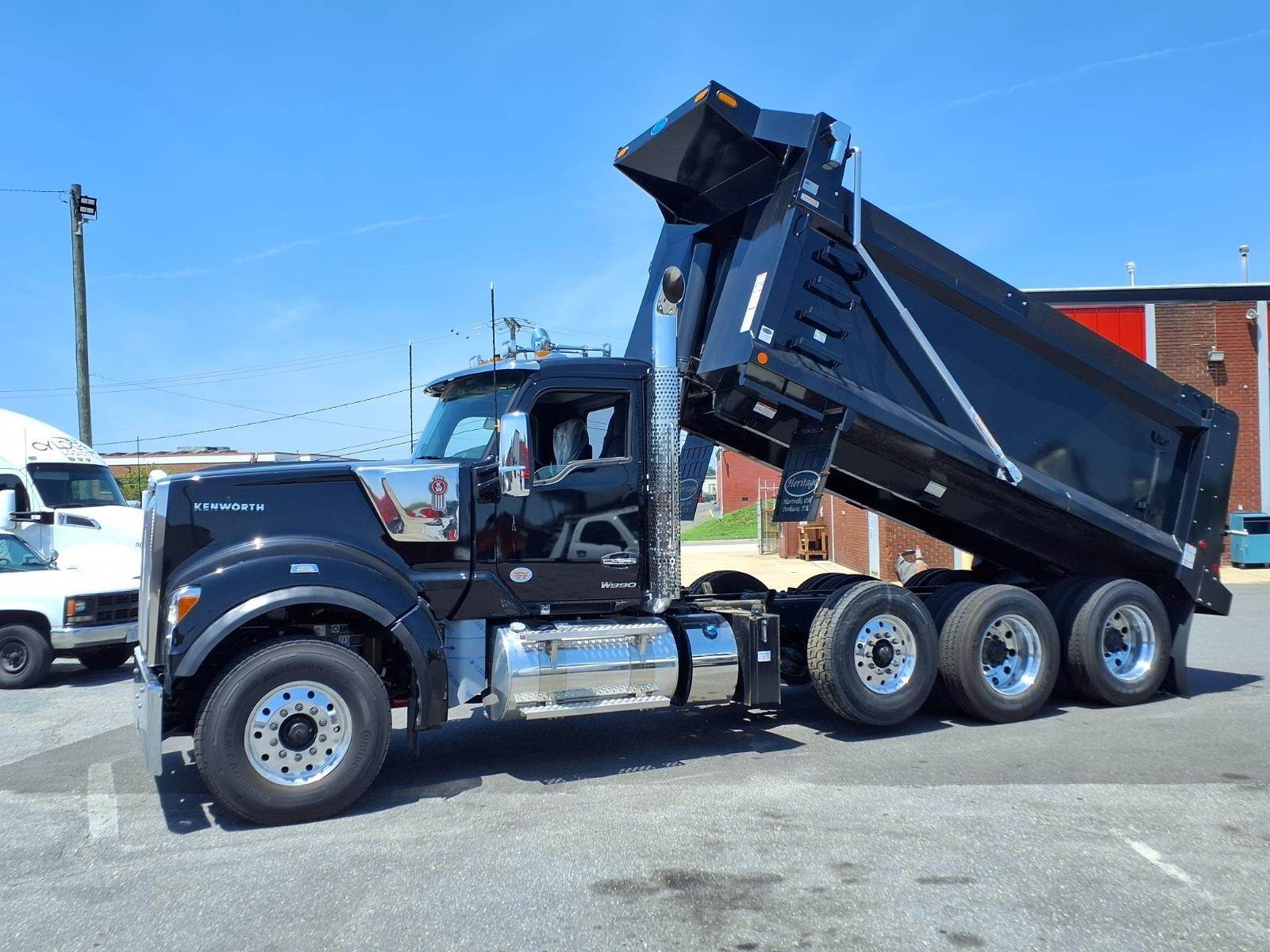

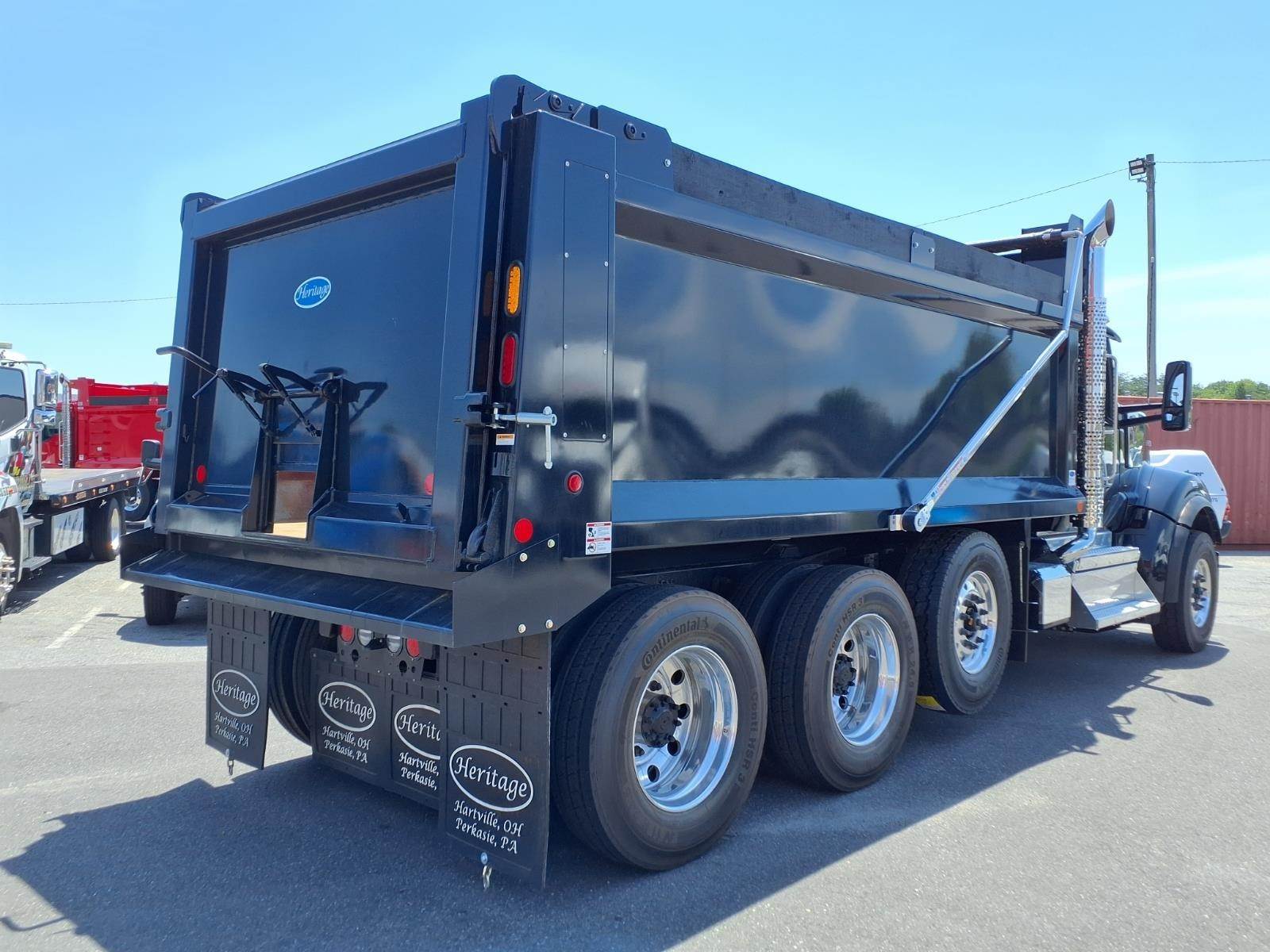

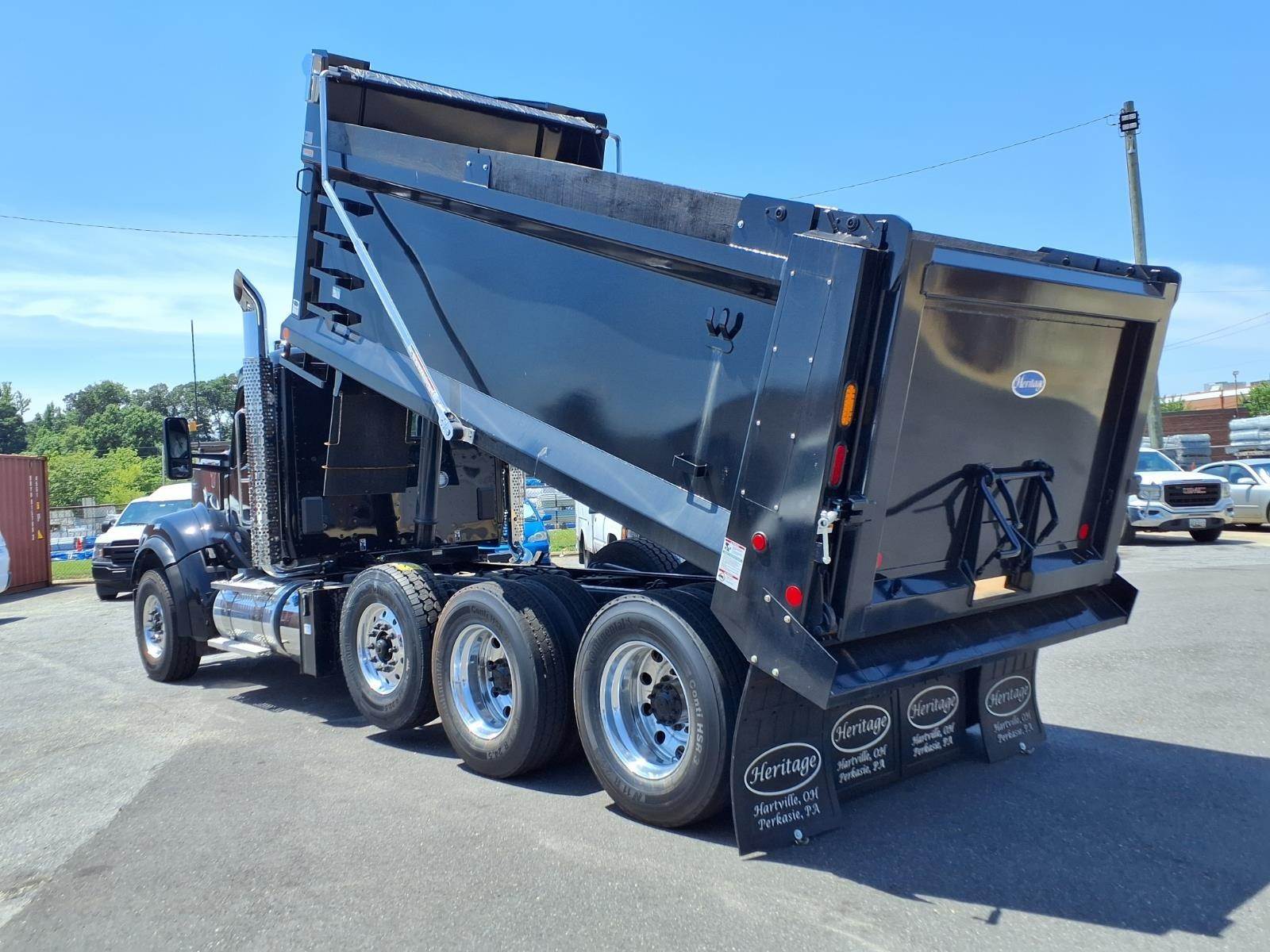

Model: Heritage Steel Smooth Side Dump Body
Length: 17 feet
Width: 99 inches (standard width)
Side Height: 54 inches

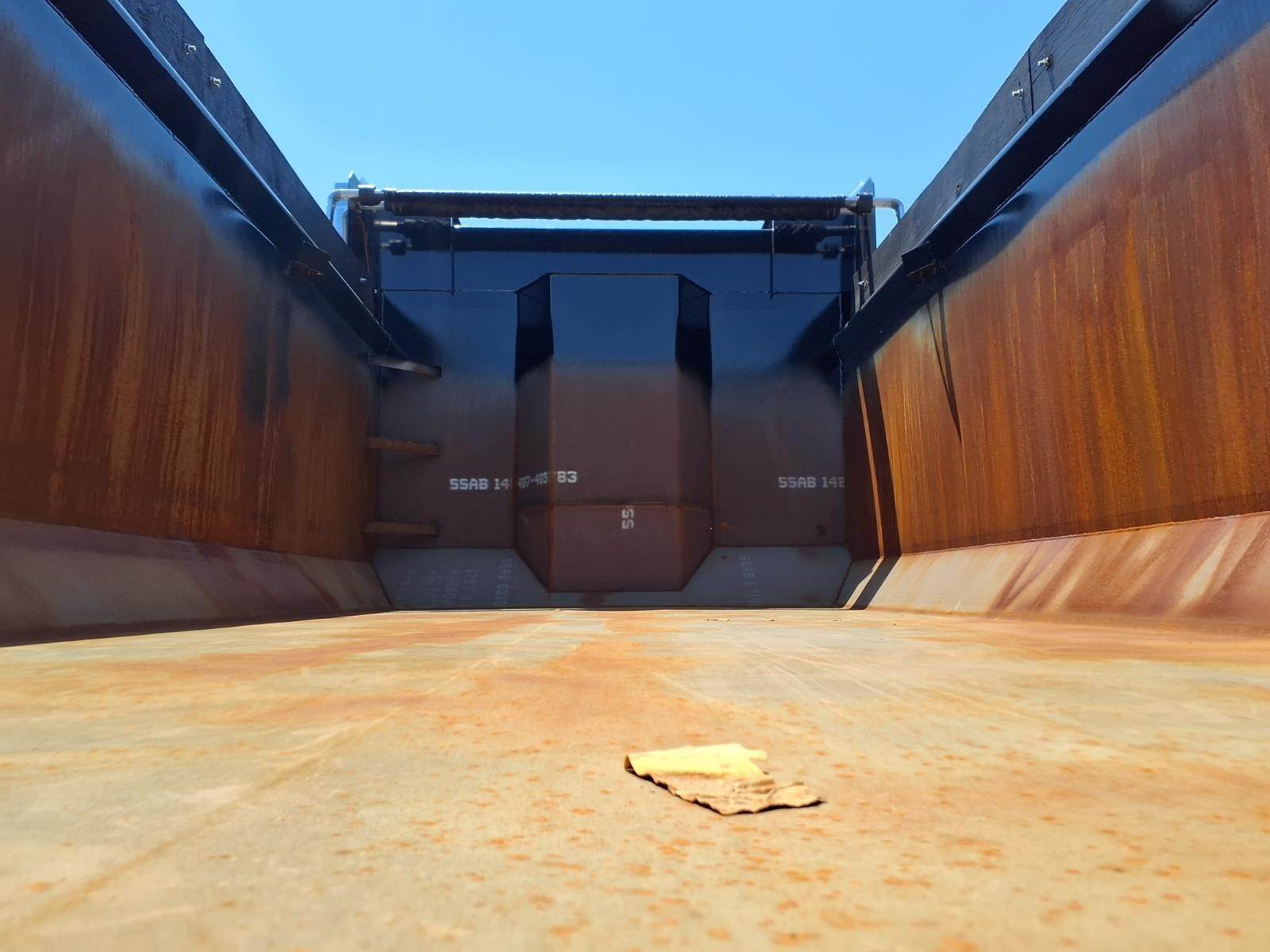

Side Material: 5/32" Hardox AR-450 steel
Floor Material: 3/16" Hardox AR-450 steel
Formed longsills: 3/16" steel
Front bulkhead: 5/32" Hardox AR-450 steel
Cab shield: 30" wide (narrowed on both sides), 10-gauge steel, 6" face

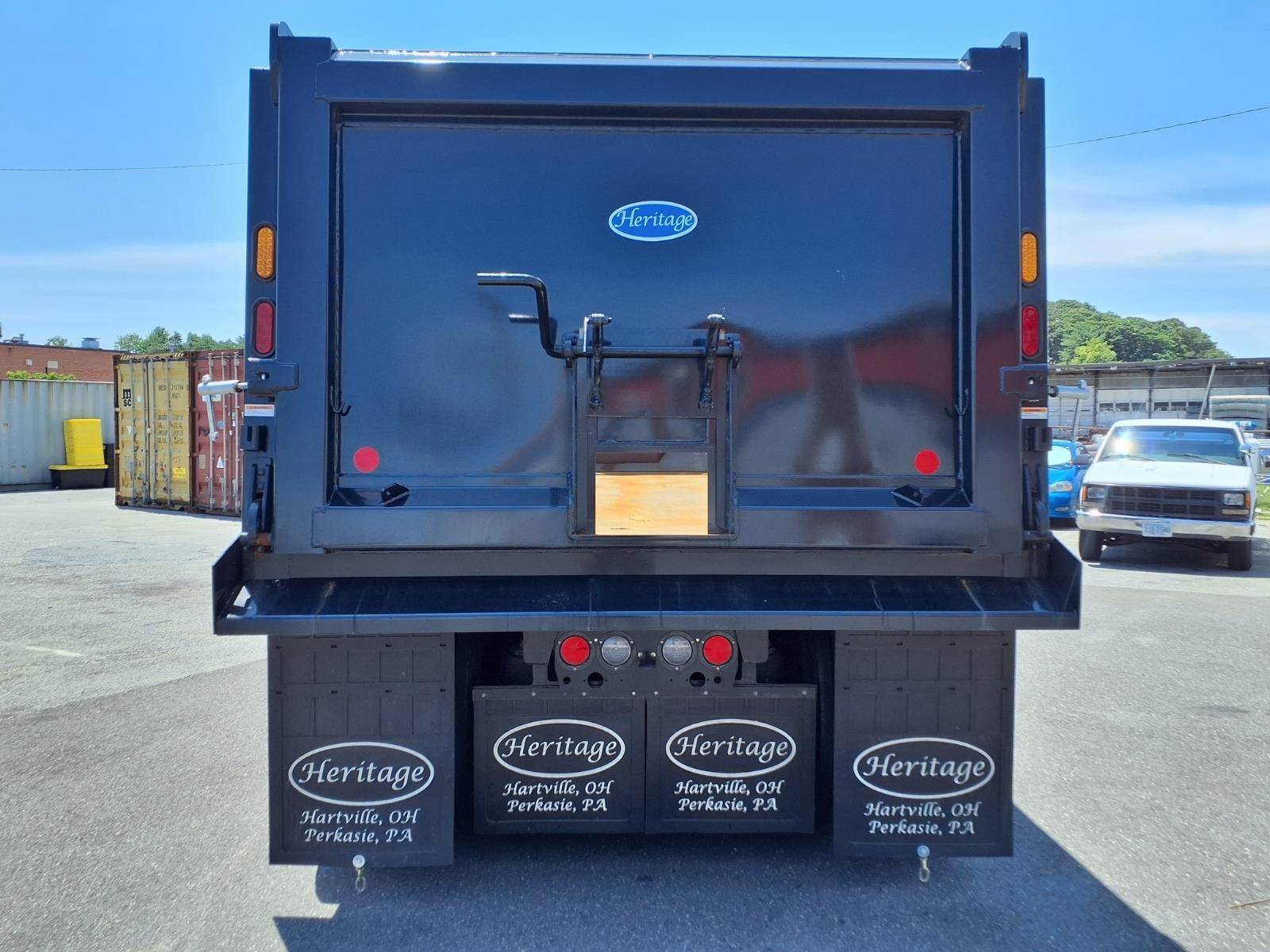

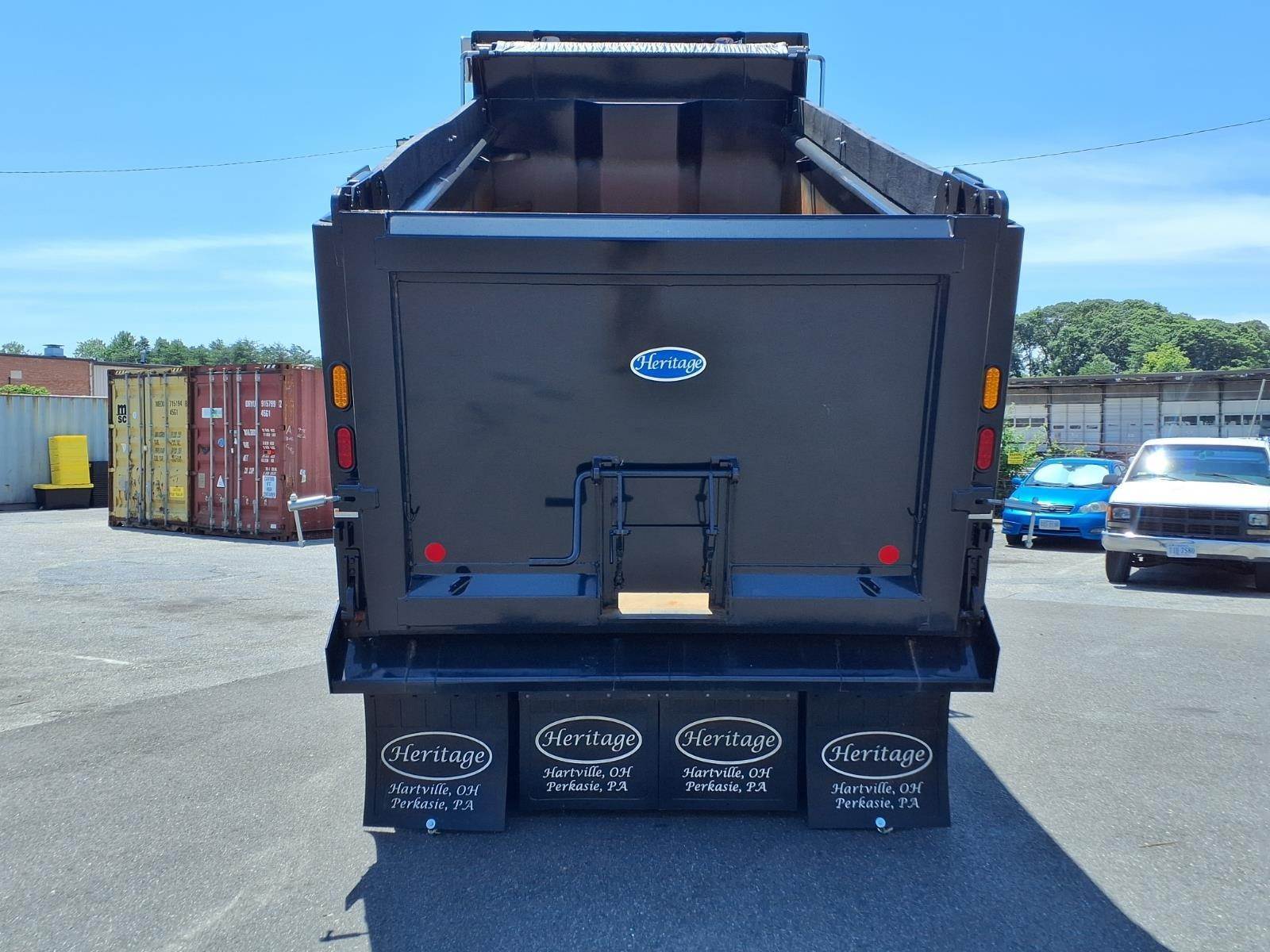

Tailgate: 60" height, 3/16" Hardox AR-450 steel, 6" slope
Single panel tailgate with horizontal bracing
Air-operated hi-lift tailgate with cylinders in rear posts
Center-mounted coal door
Salt locks installed on each side

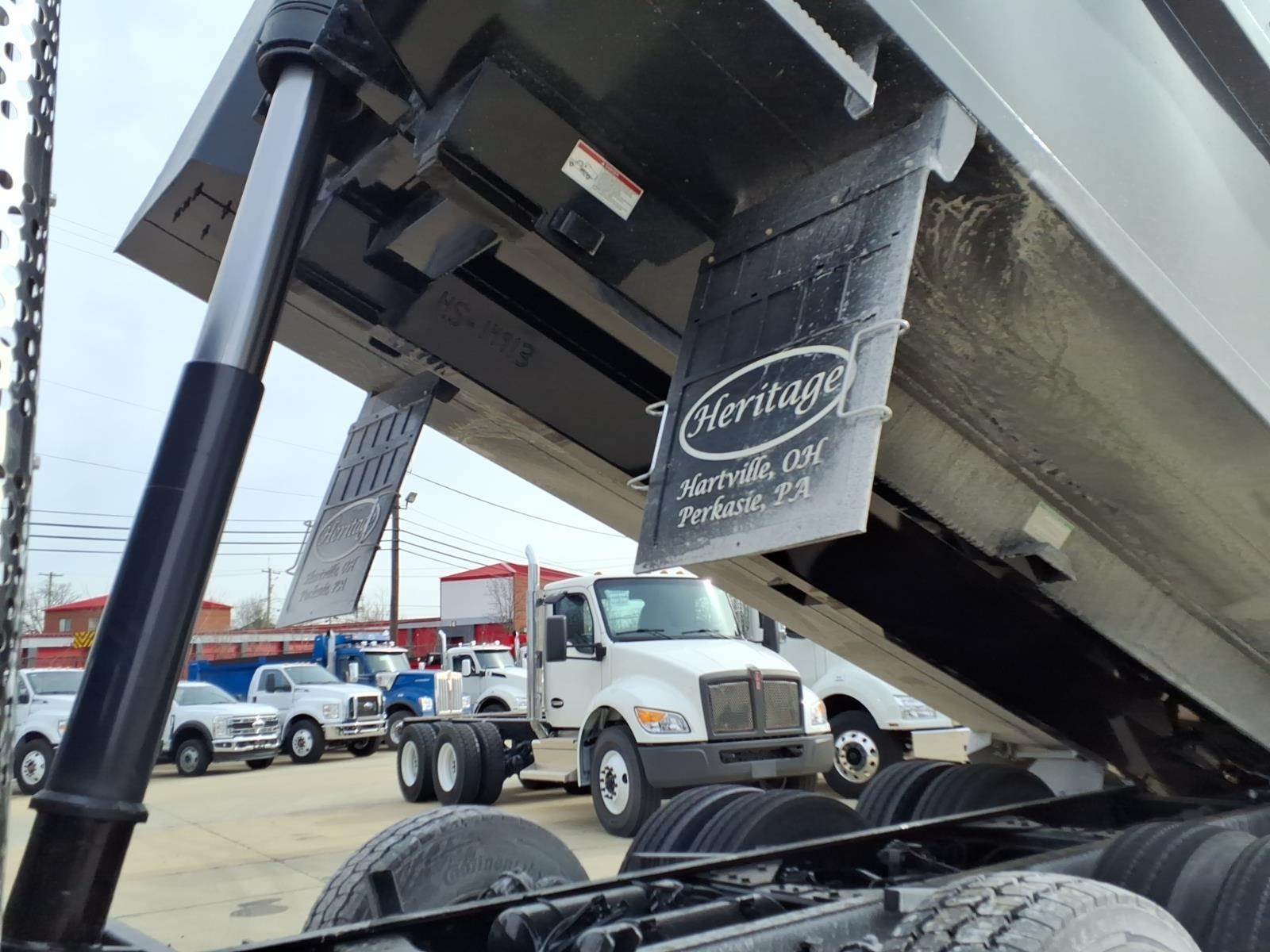

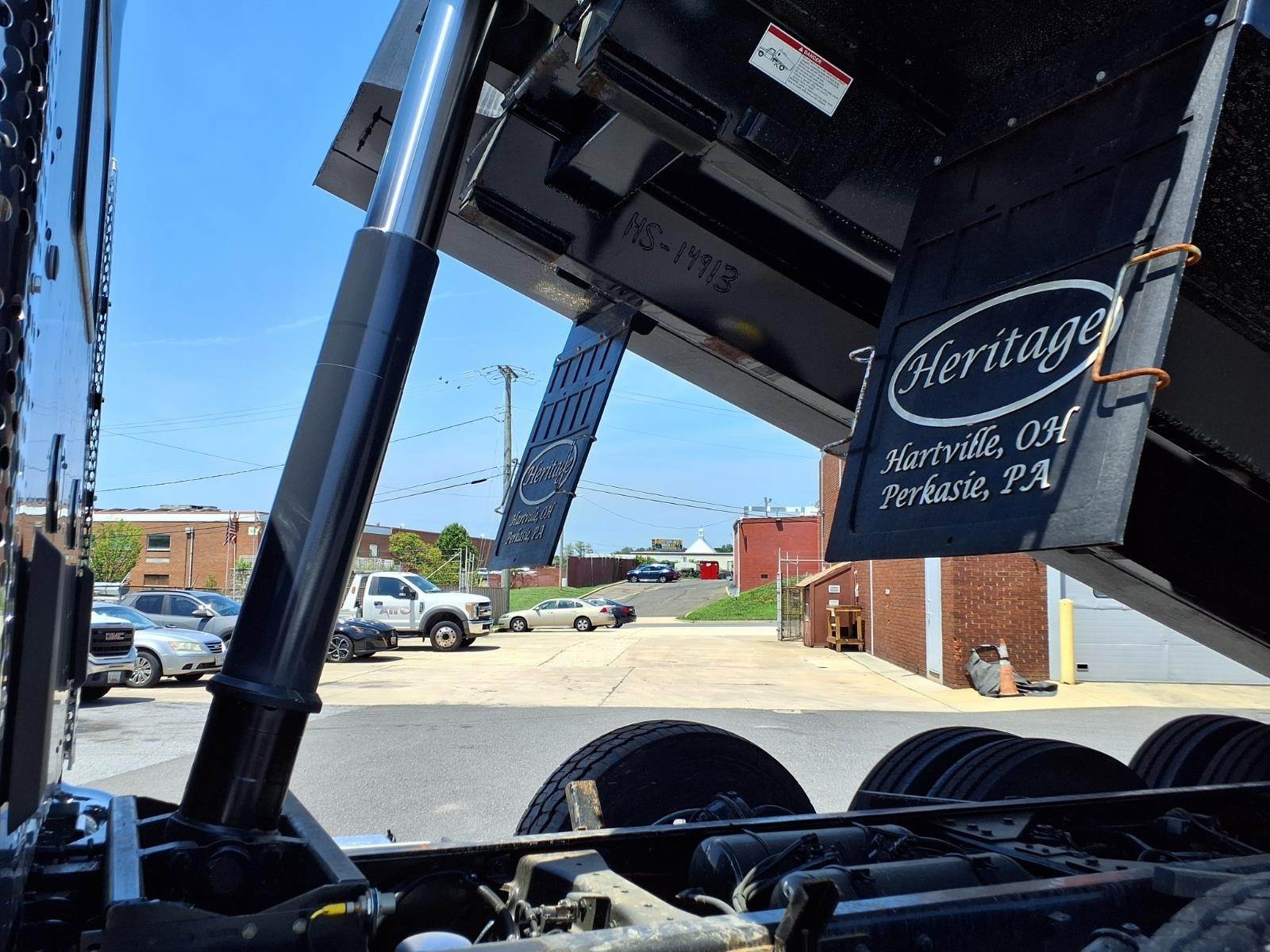

Trunnion mount telescopic hoist
Hotshift PTO for Allison automatic transmission
Direct mount pump with shifter valve
LED light package
Two front strobes in cab shield
One strobe in each rear post
Front ladder on driver's side with one step below bottom rail
8" bolt-on rear apron
Full-width rear mud flaps
Heritage front mud flaps (30" length with anti-sail brackets)
Shovel holder mounted on rear driver's side
Steel hydraulic tank mounted on frame side
Body to be sandblasted, primed, and painted one standard color
