2026 Landoll 930E Drop Deck Trailer, New, Arizona, Air Ride

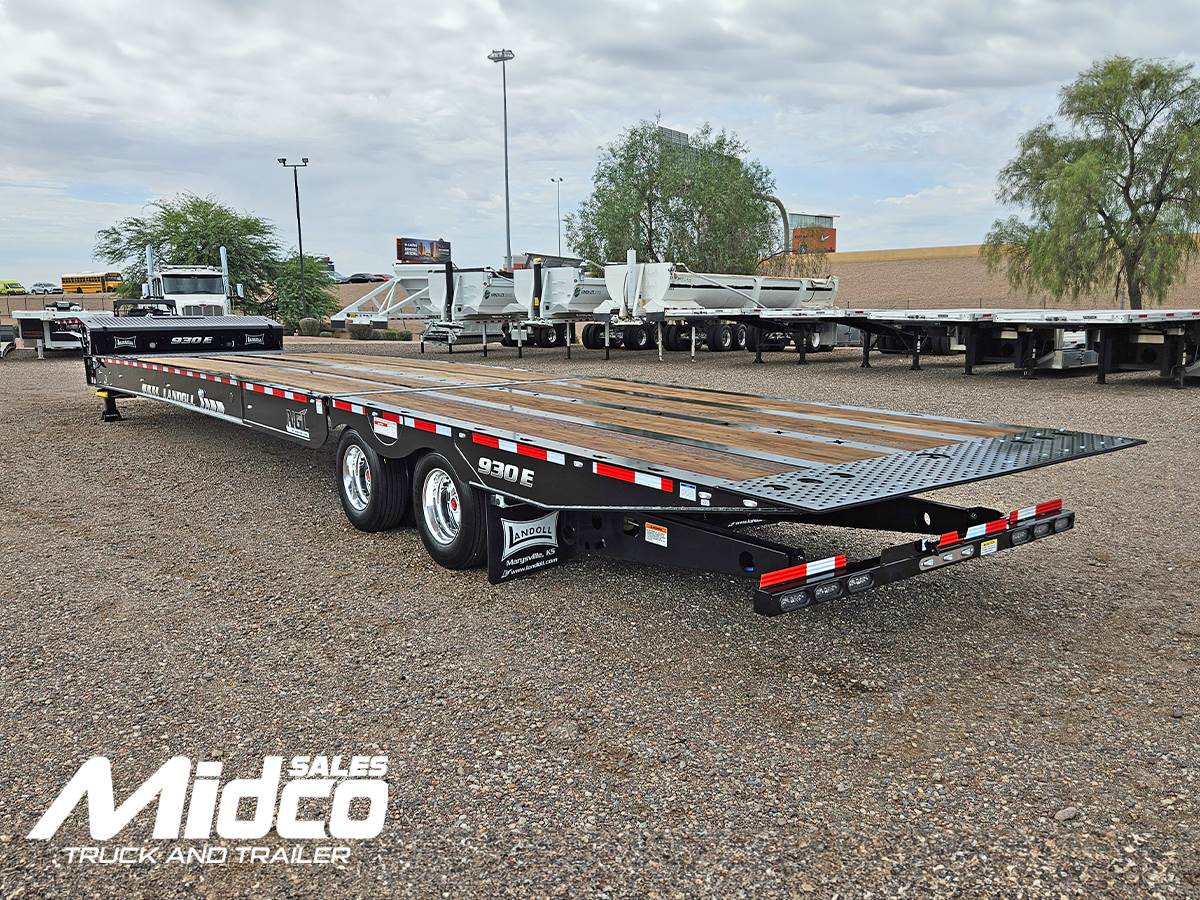

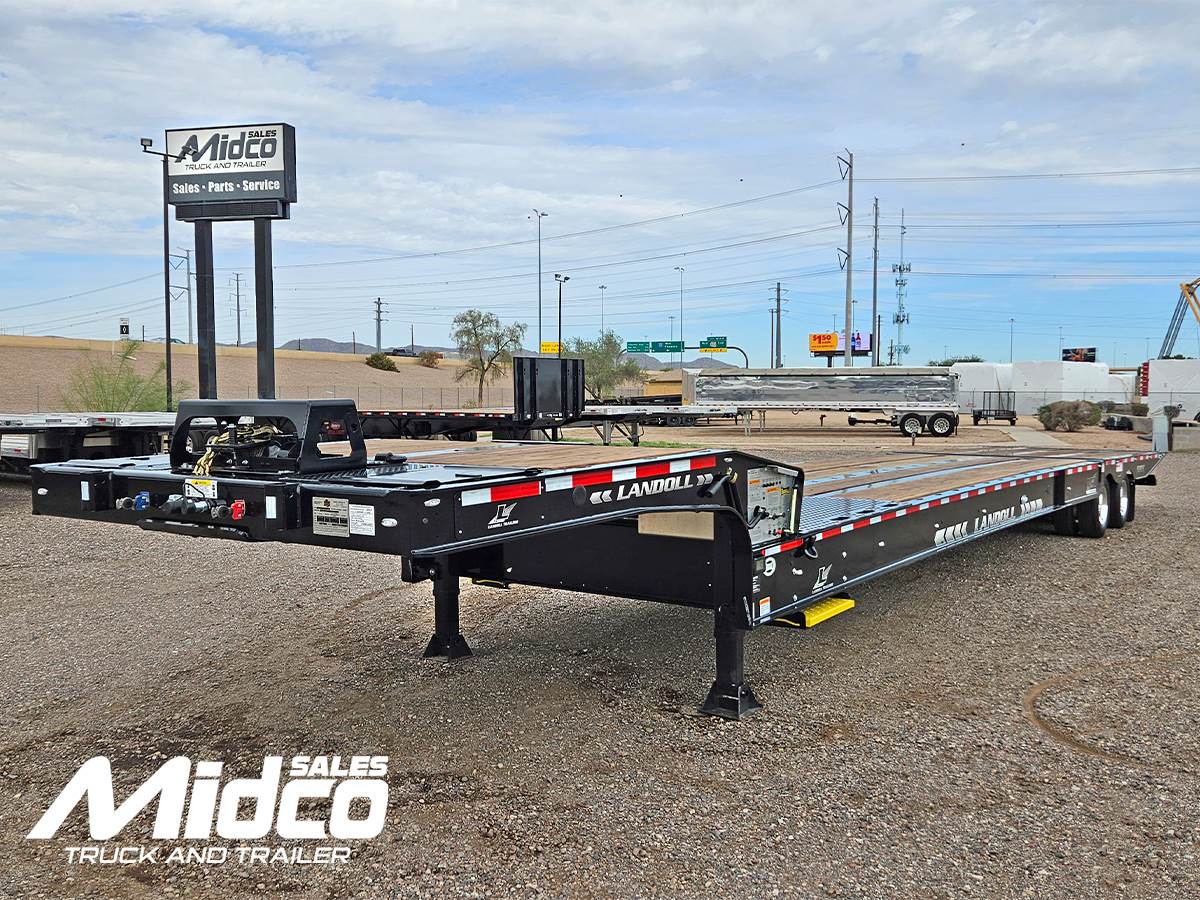

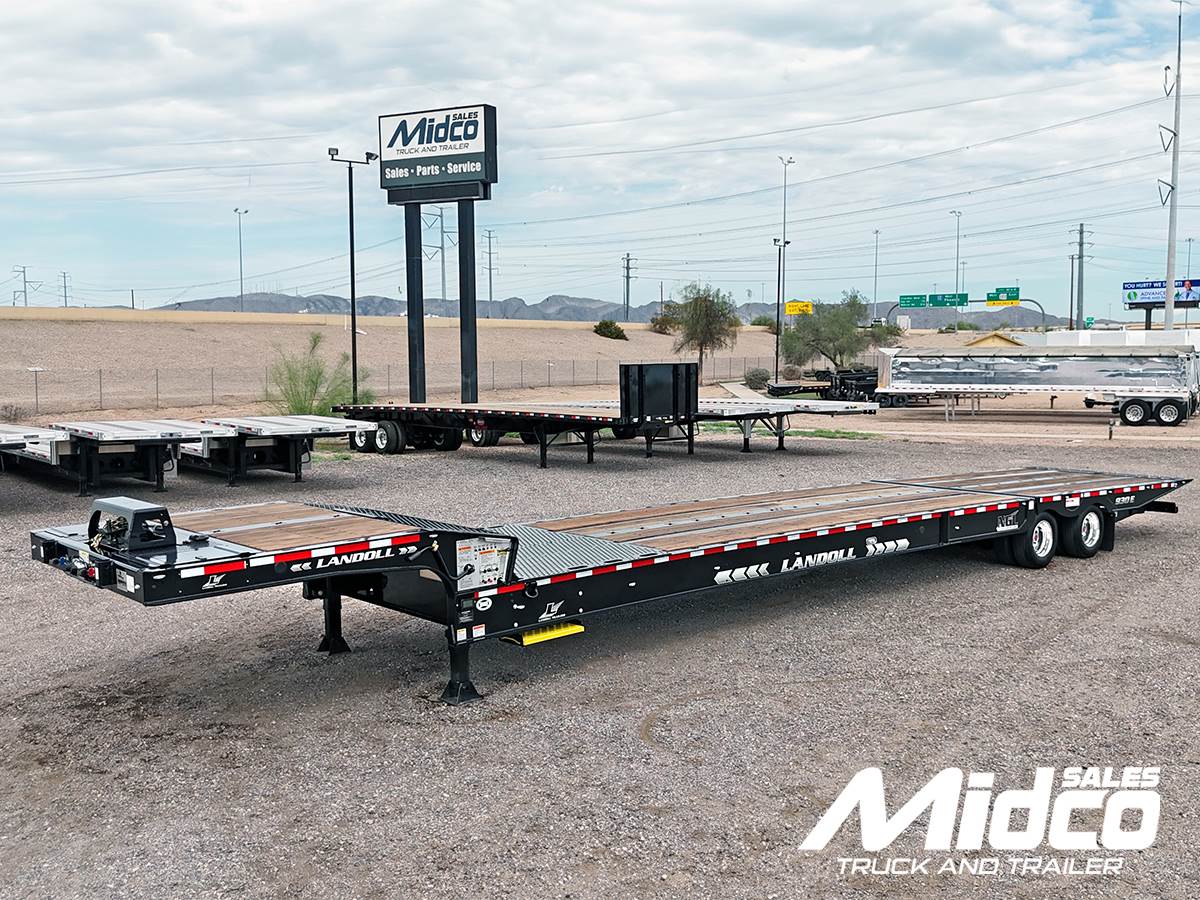

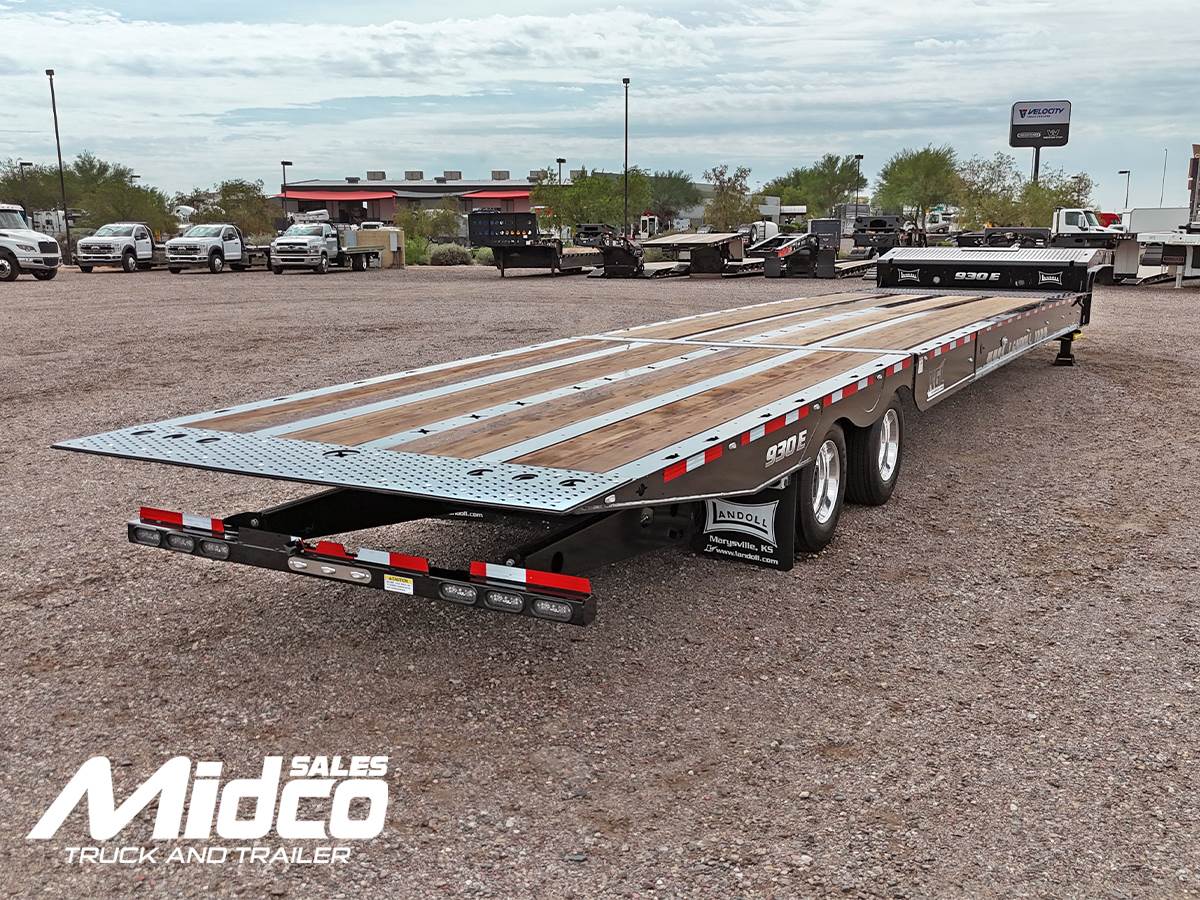

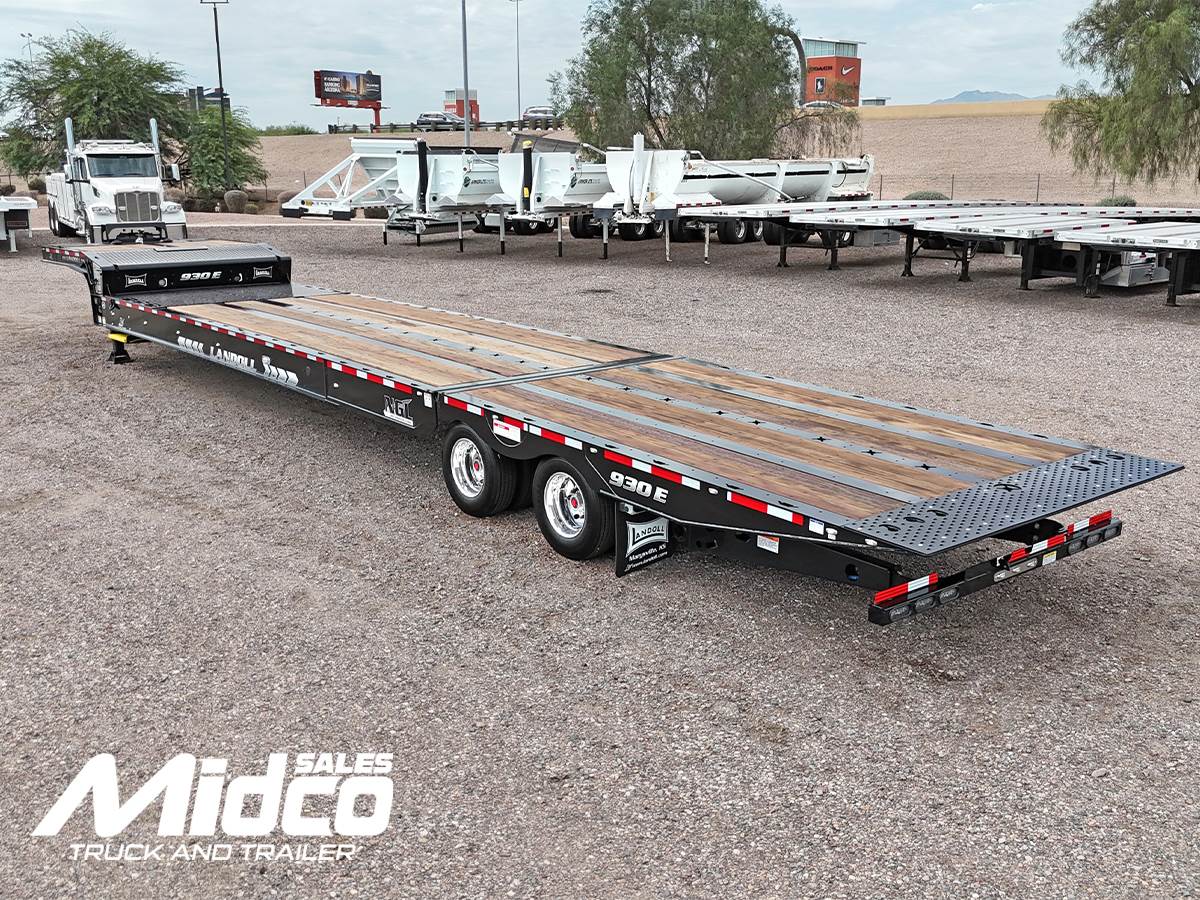

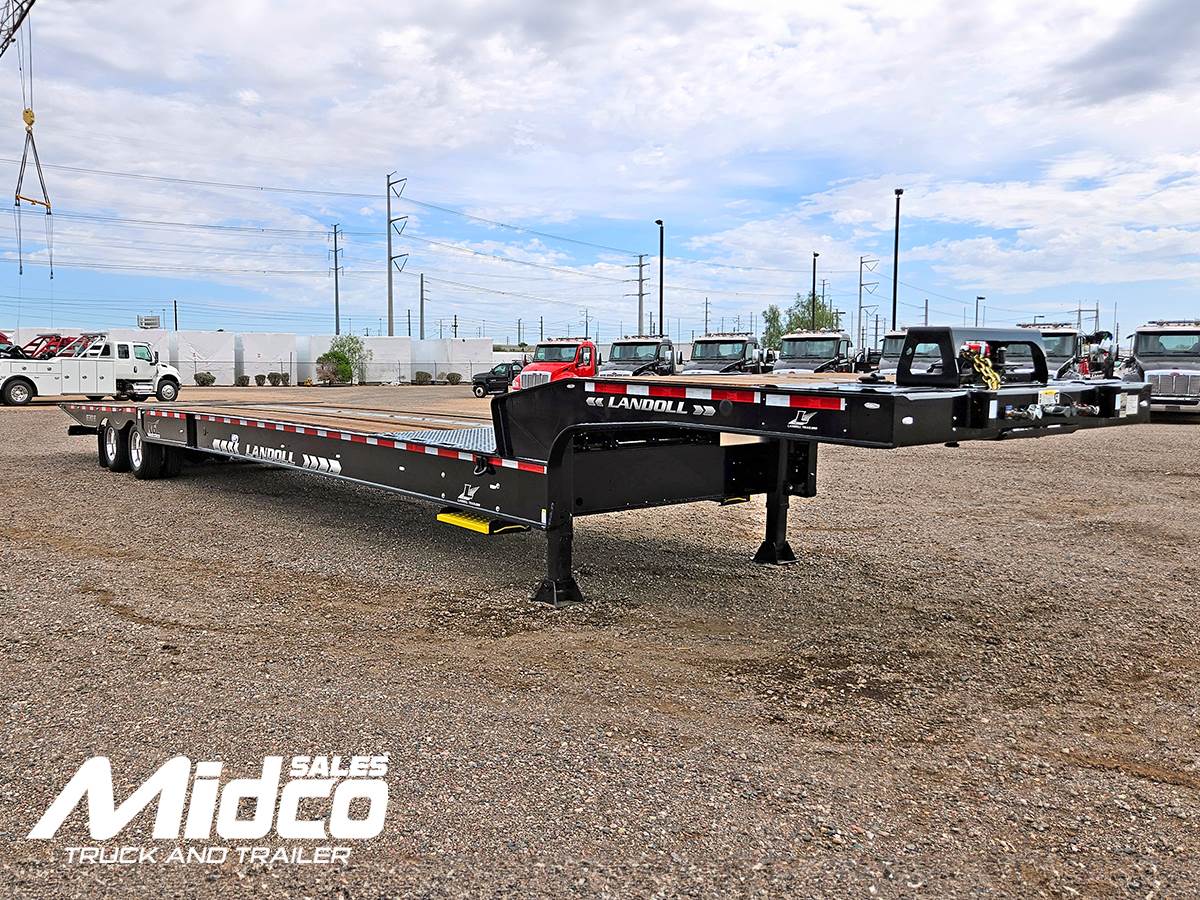

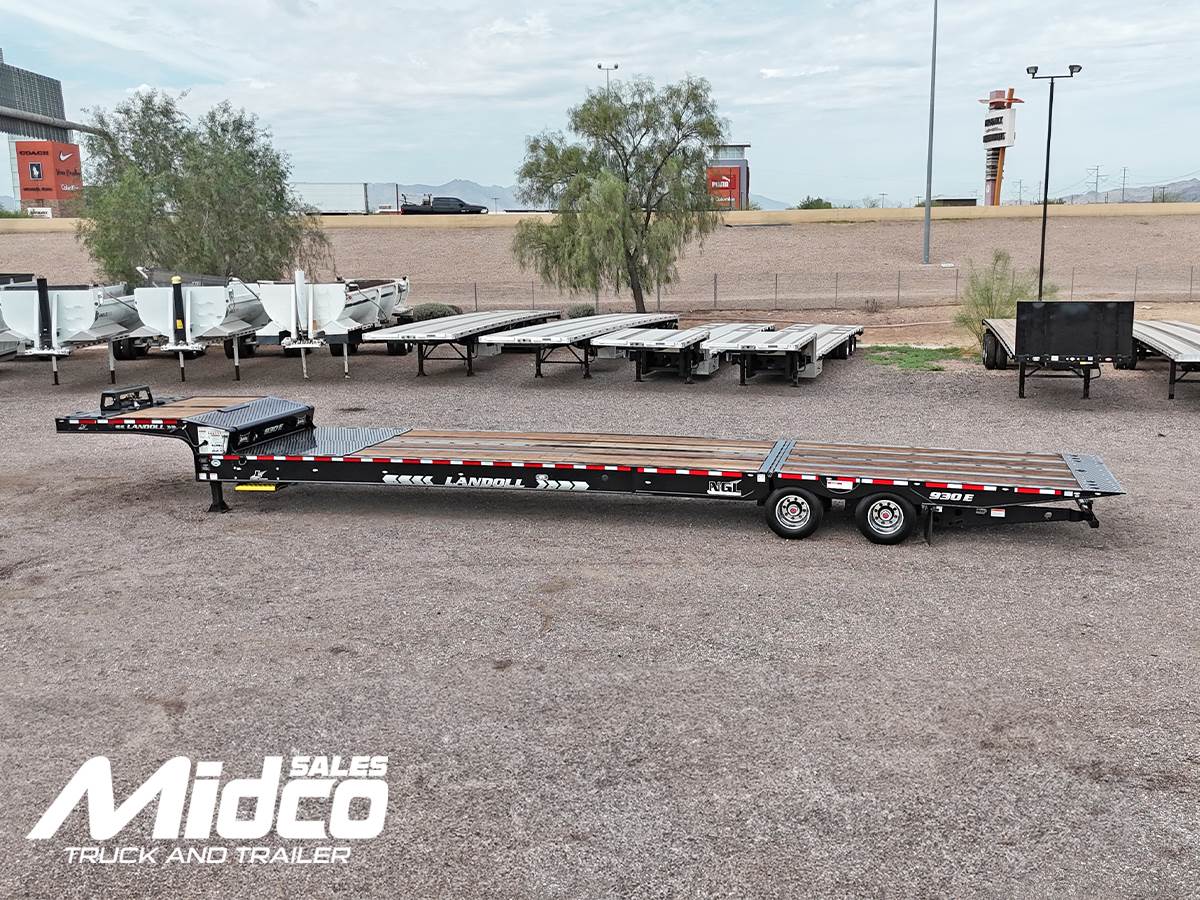

The 2026 Landoll 930E-51-15 traveling tail trailer is engineered for heavy-duty hauling with a 35-ton capacity and a fully hydraulic tail. Measuring 51 feet long and 102 inches wide, this trailer combines strength, versatility, and efficiency. The 41'3" main deck pairs with a 15' hydraulic tail that can lift 24,000 lbs, delivering an 11-degree load angle that simplifies loading low-clearance equipment.

With its upper deck ramp, operators can use the trailer’s entire length for loads, improving utilization and flexibility. The 12k Braden winch, wireless remote, and centralized grease system enhance convenience, while the Neway air ride suspension provides a smoother ride. Additional features include LED lighting, polished aluminum wheels, Apitong decking, traction plate, and multiple tie-down points.

This Landoll 930 traveling tail trailer is built to handle tough jobs, whether transporting construction machinery, paving equipment, or oversized loads. It offers proven durability and the innovative design that has made Landoll a leader in the traveling tail trailer market.

Midco Sales is the Landoll trailer dealer in Arizona.

TRAILER MODEL
Landoll 930E-51-15

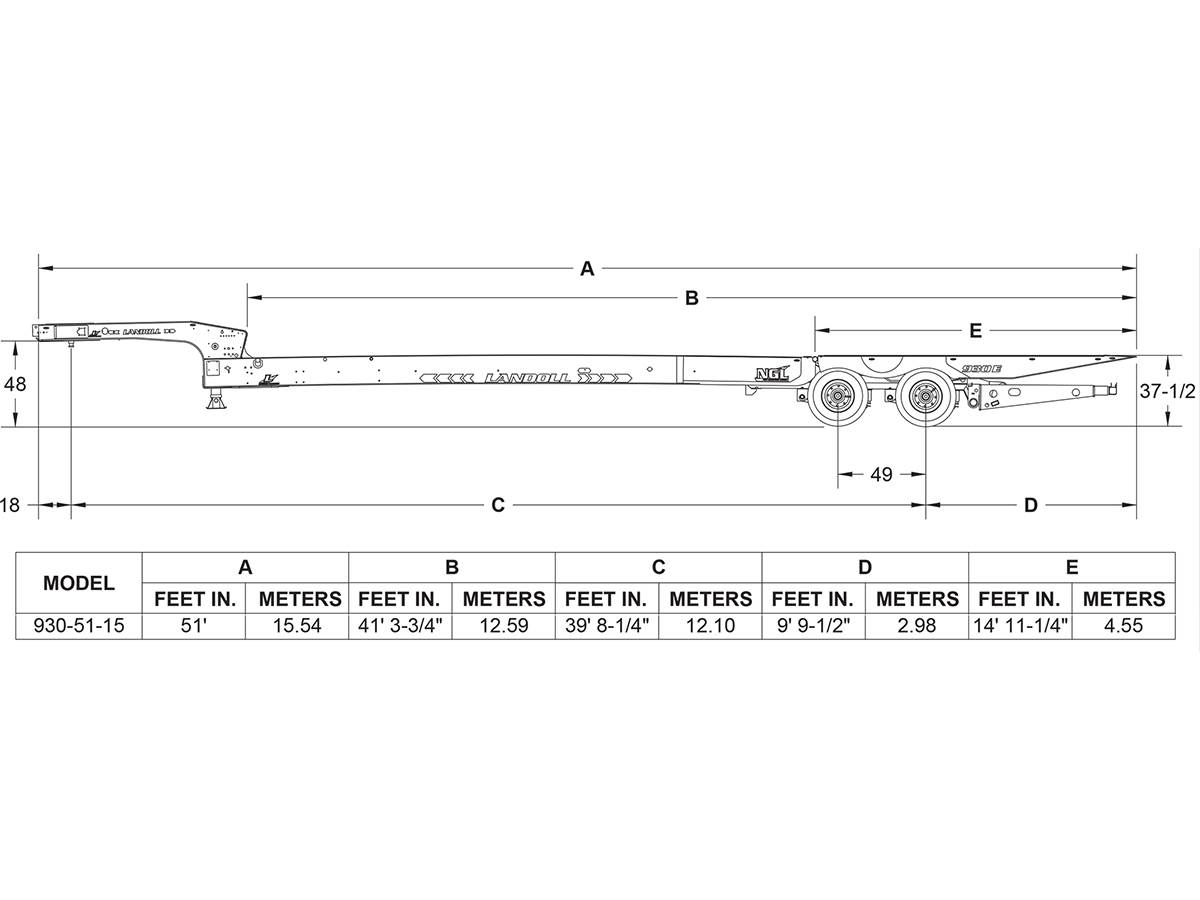

TRAILER DIMENSIONS
Length:  51'
Width:  102"
Capacity:  35 ton/70,000 lbs (50,000 lbs deck rating in 10')
Weight:  19,250 lbs (approx)

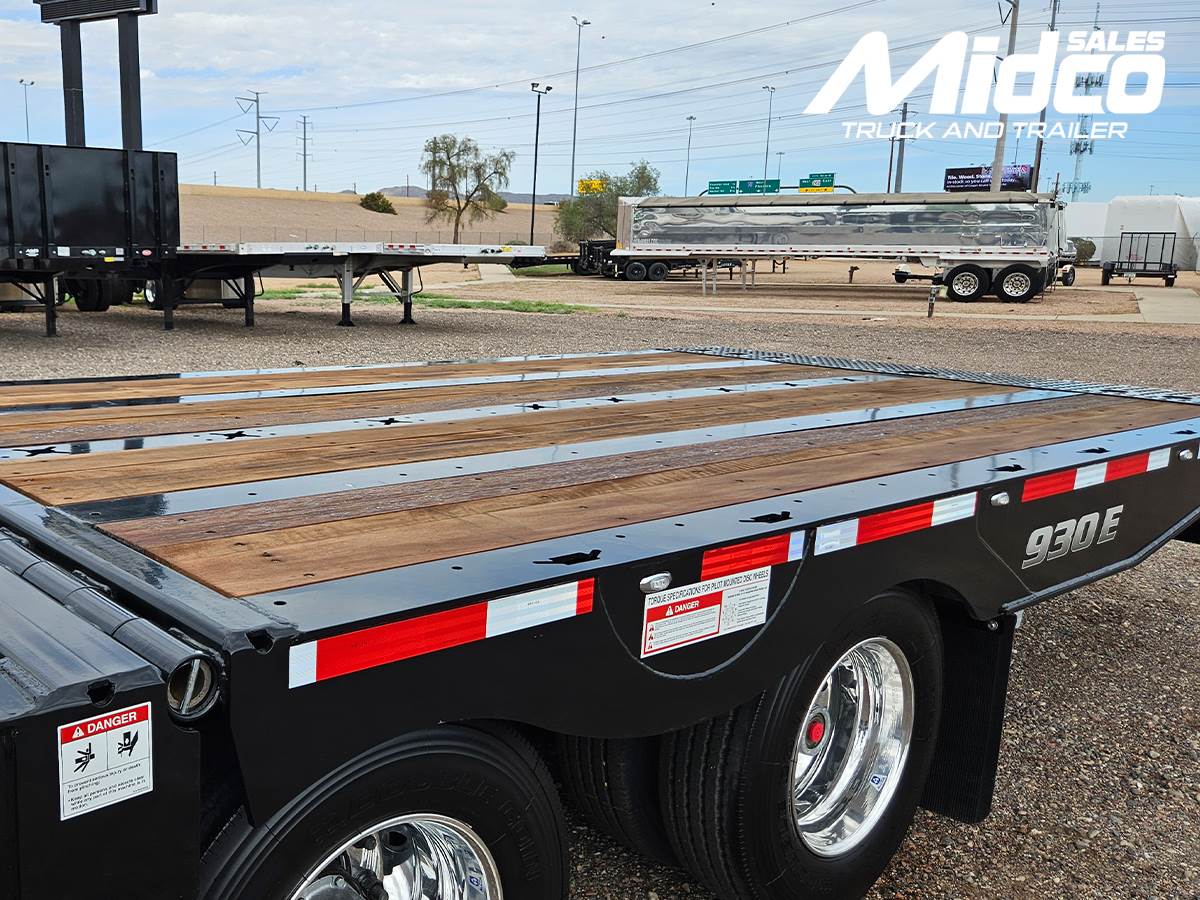

MAIN DECK & TAIL
Main deck & tail length:  41'3"
Hydraulic Tail length:  15'
50,000 lbs deck rating
24,000 lbs Hydraulic tail lift capacity
Apiong deck on tail

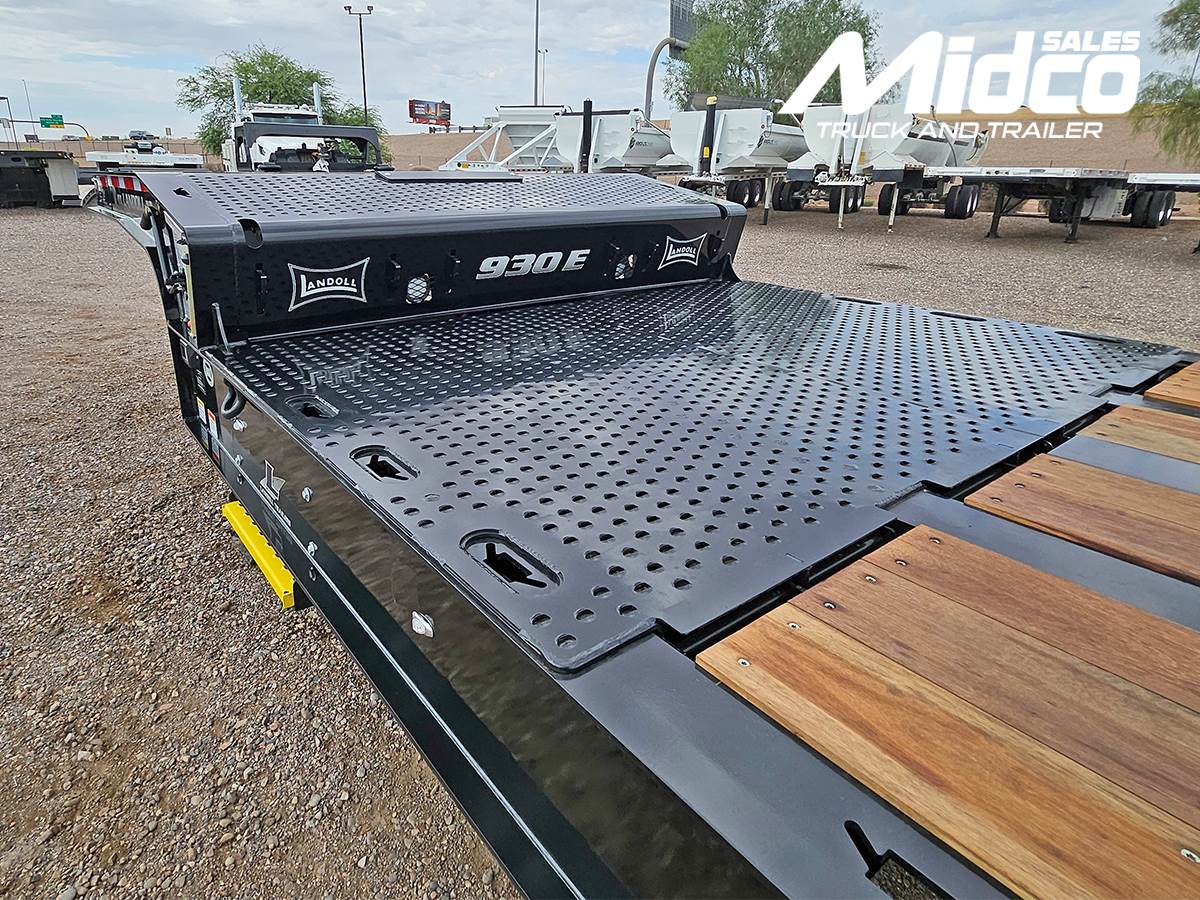

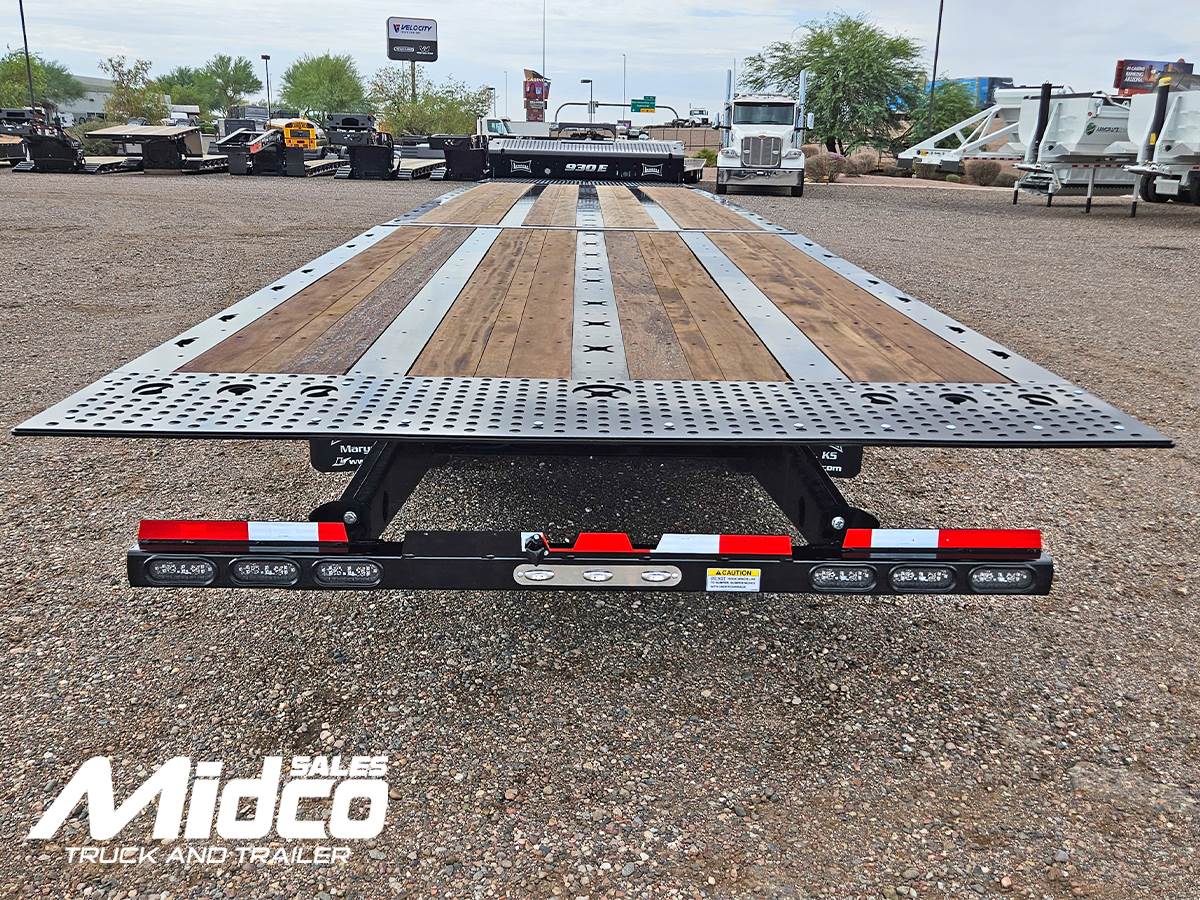

Traction plate on approach
Ground clearance:  20"
Loaded deck height:  38"
11 degree load angle w/ 15' hydraulic tail
Tie downs:  Double keyhole chain slots, square stake pockets on 16" centers

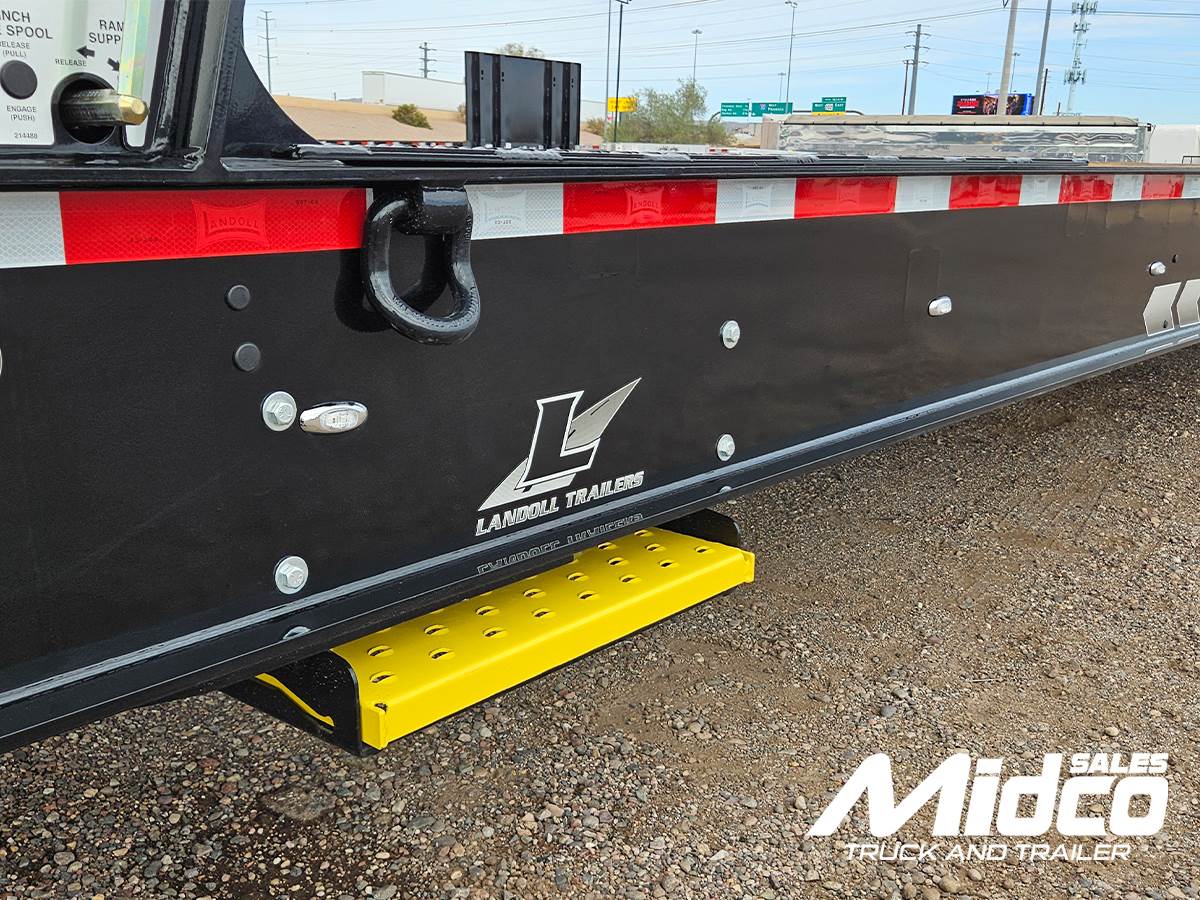

Pull-out side steps on each side
Centralized Grease System

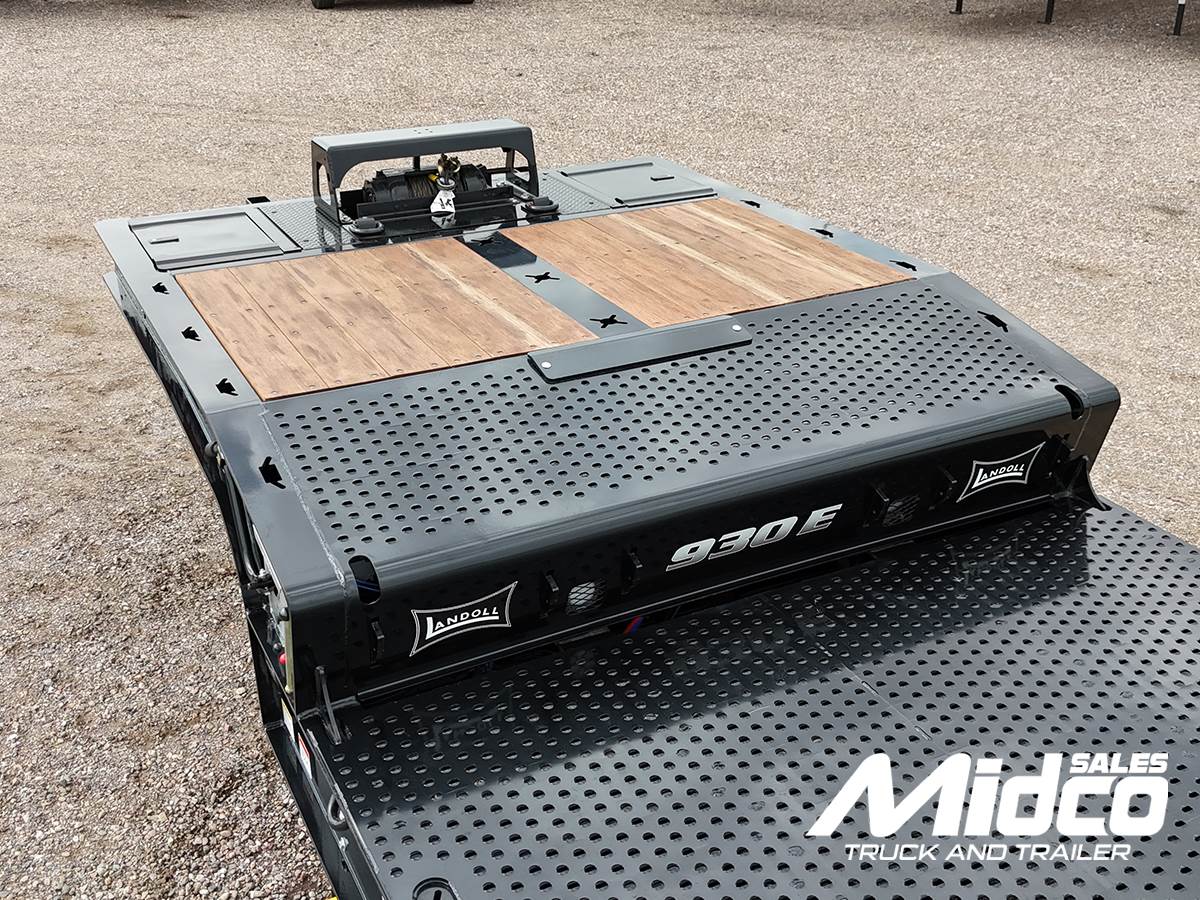

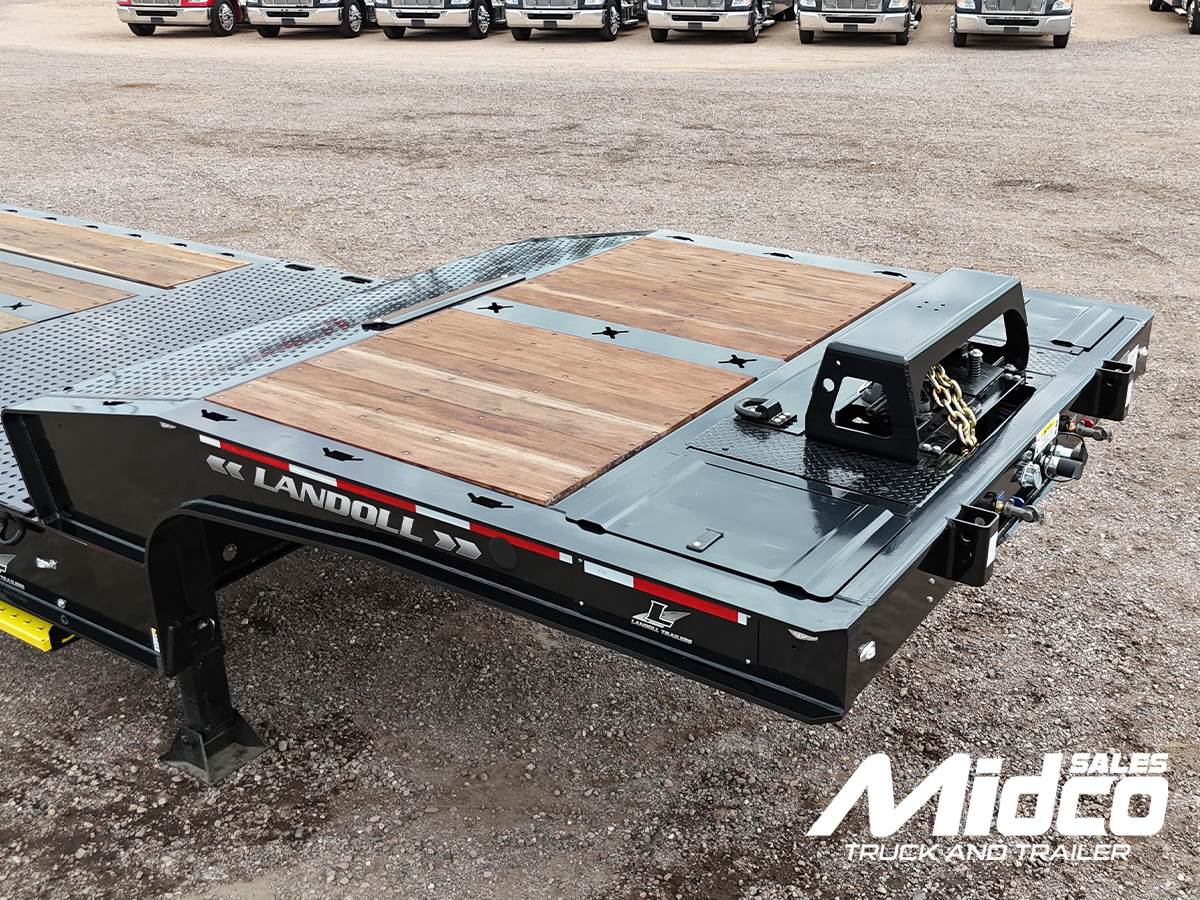

UPPER DECK
Slope ramp:  6' air operated ramp w/ wear plate
2 top-opening toolboxes
Keyhole tie downs

WINCH

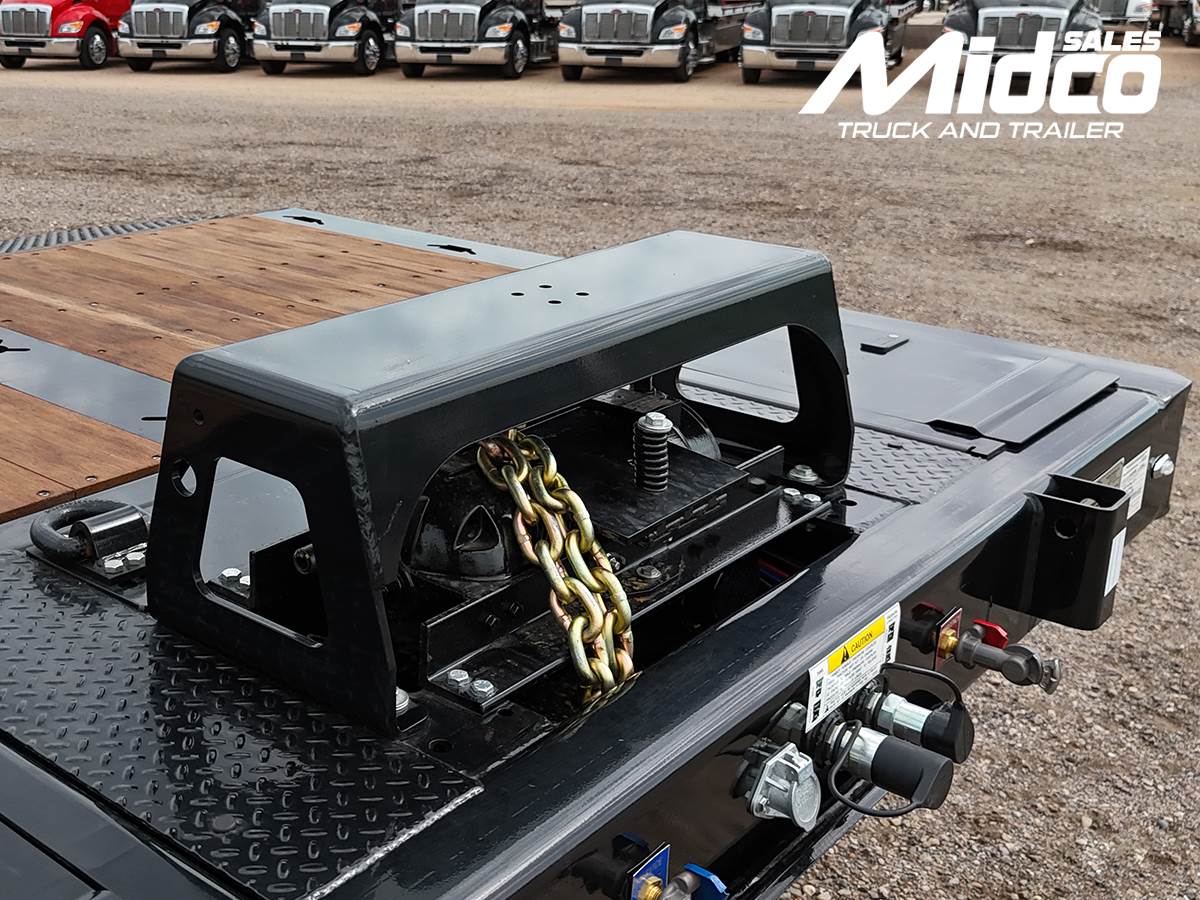

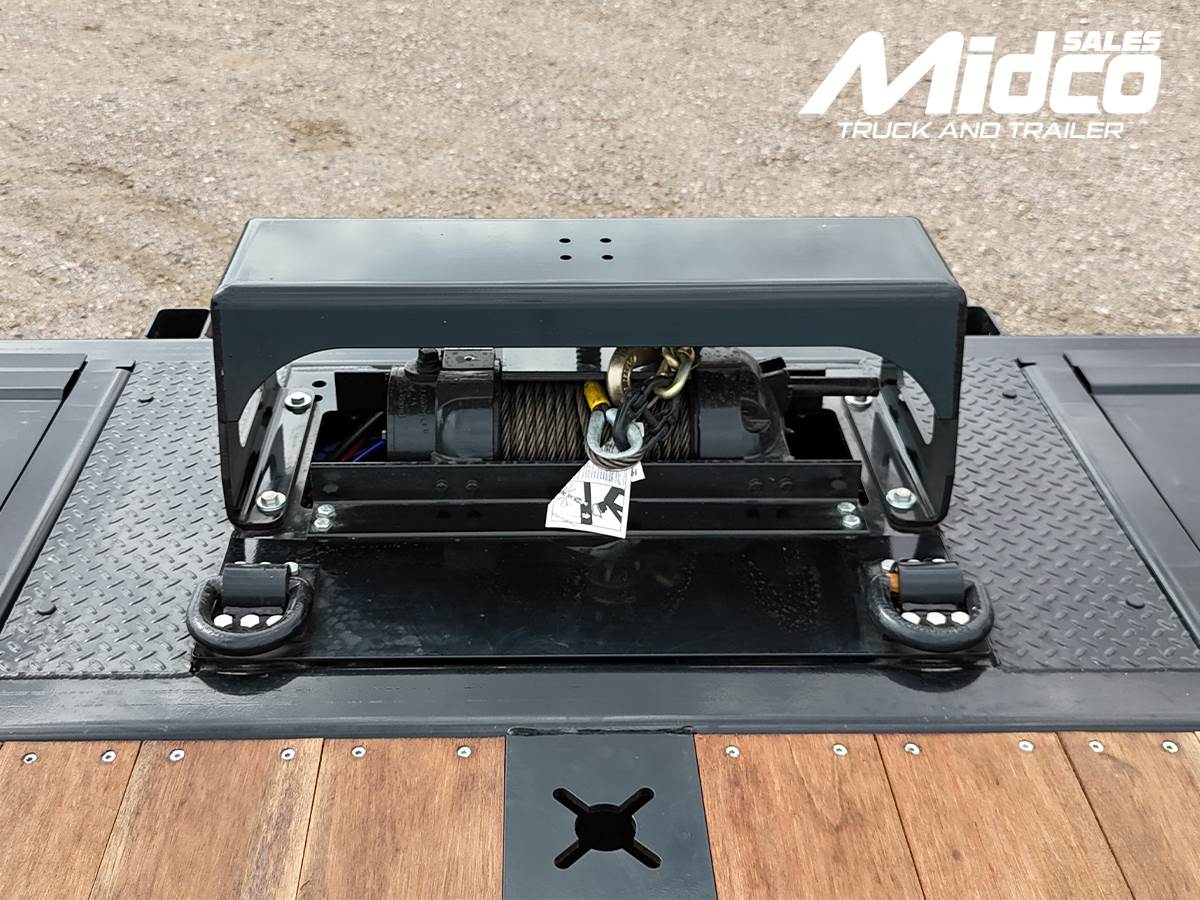

12k Braden worm gear winch w/ winch guard
Bolt-on D-rings behind winch

CONTROLS
Control panel (LED lighted)
Wireless remote control (operates tilt, travel, winch)

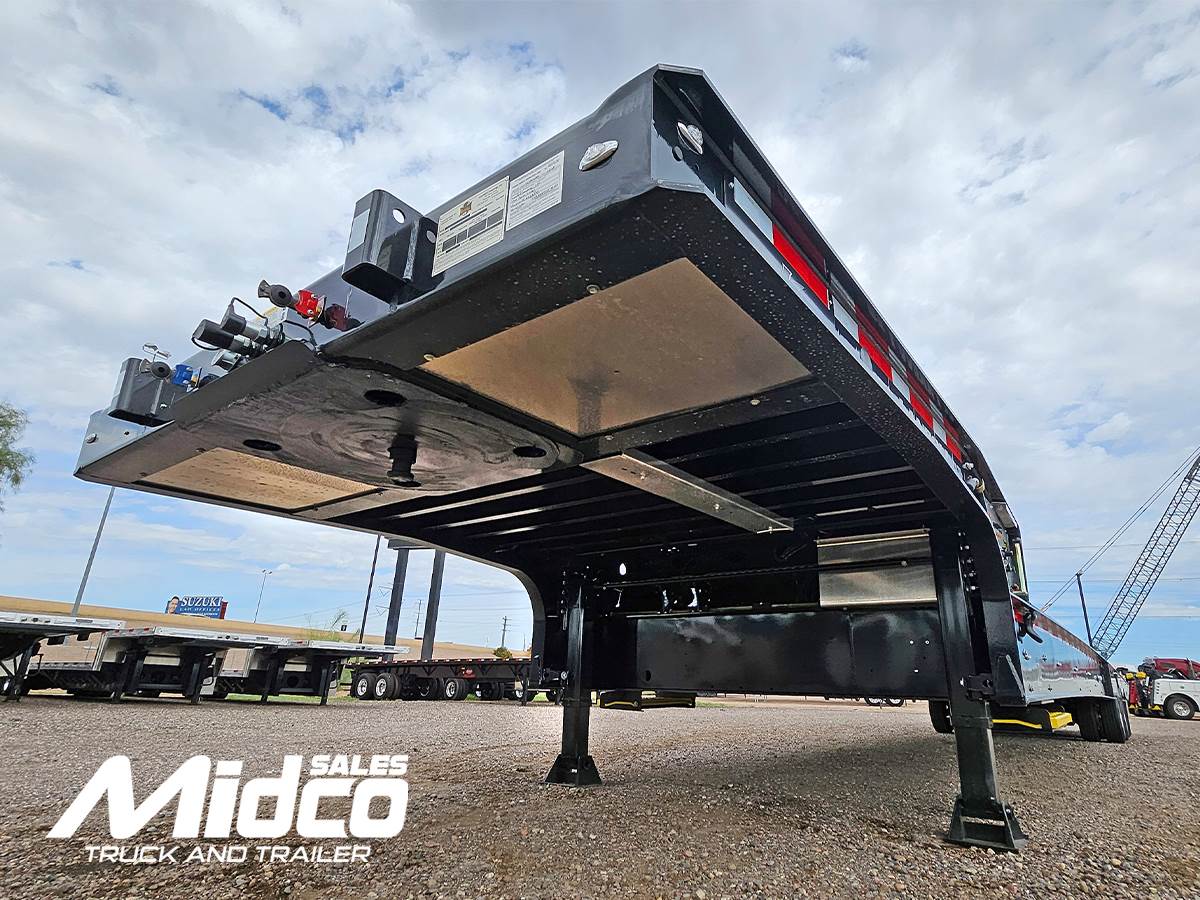

COUPLER
18" kingpin setting
84" swing clearance

HYDRAULICS
Extra quick couplers 1 male/1 female

SUSPENSION & AXLES

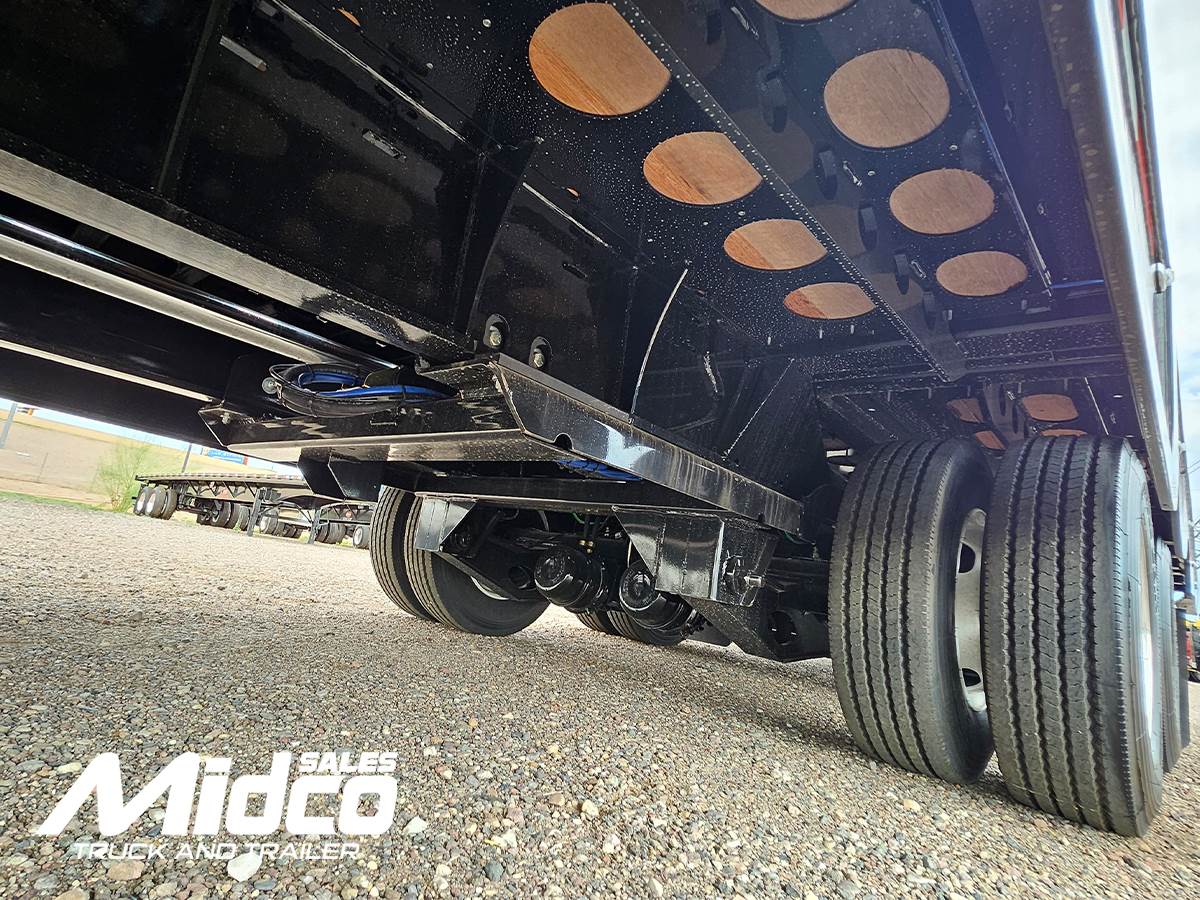

Neway RLU228 air ride suspension (22,500 lbs)
Tandem axles

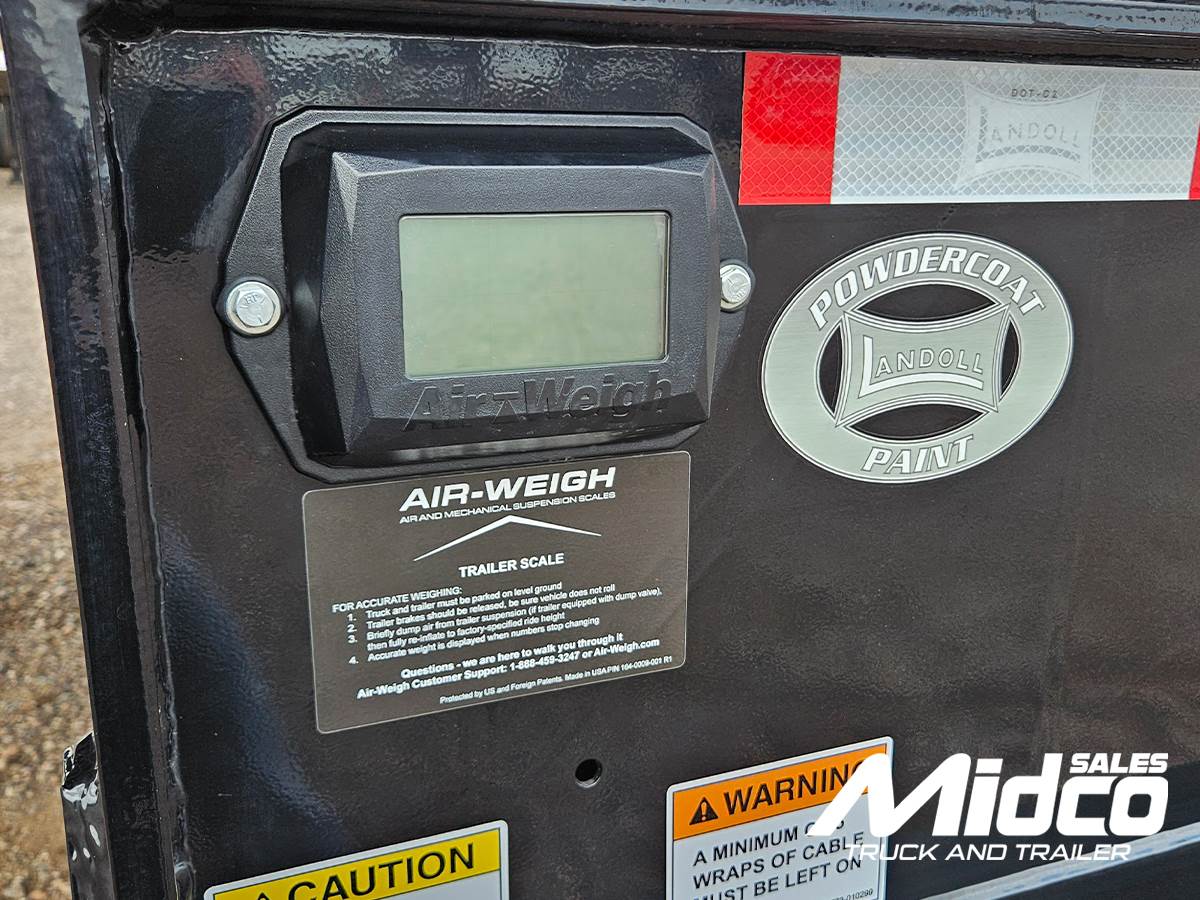

Air Weigh Quickload Plus scale

WHEELS & TIRES

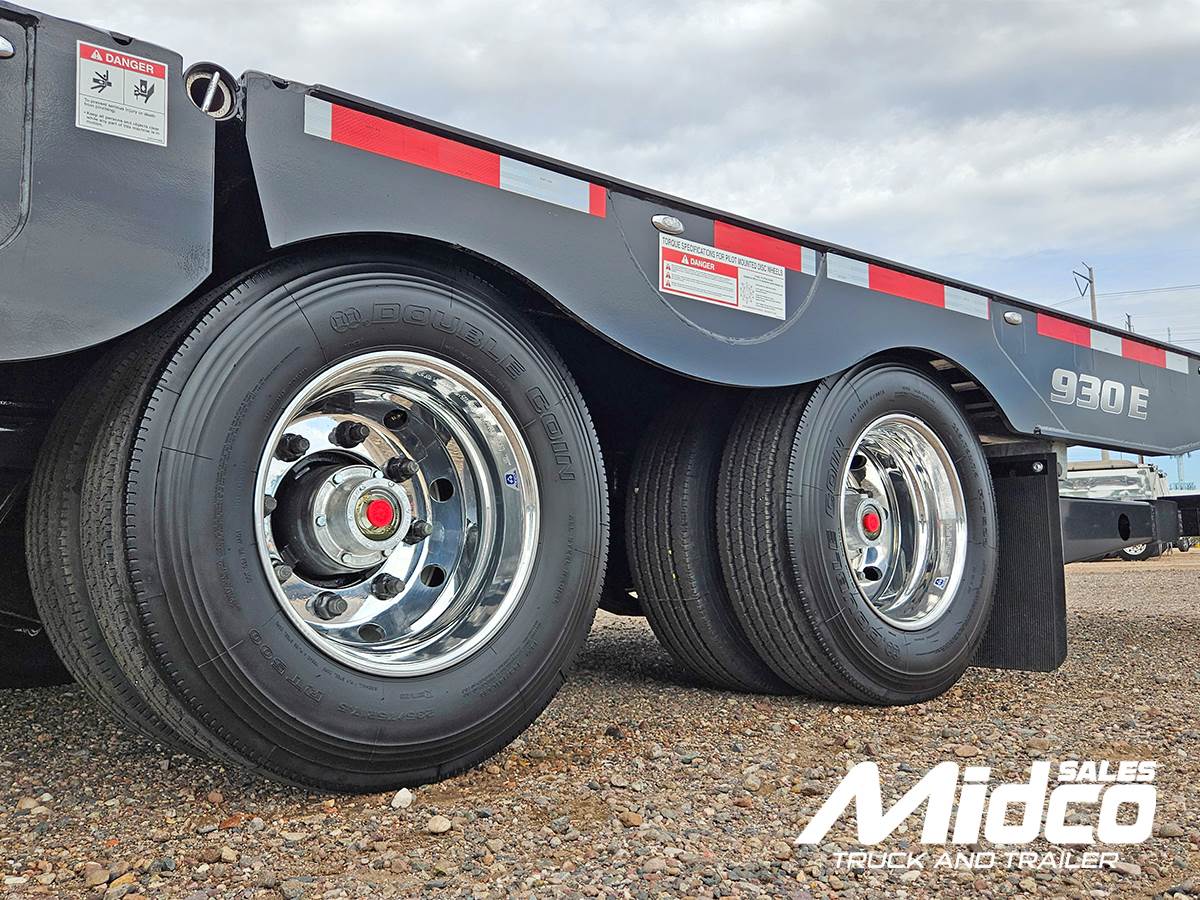

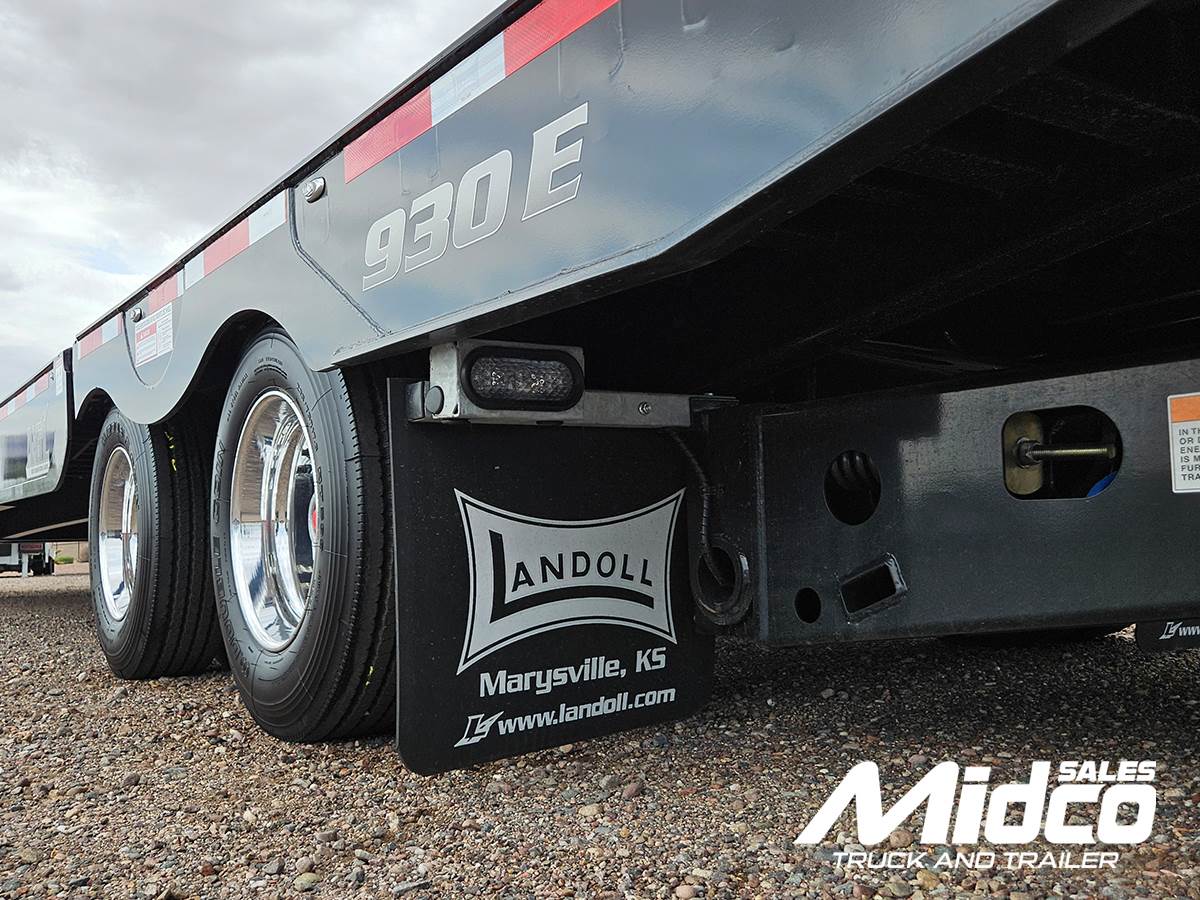

235/75R17.5 Double Coin tires
17.5 polished aluminum outer wheels, steel hub inner wheels

PARKING STANDS
Jost 2-speed landing gear

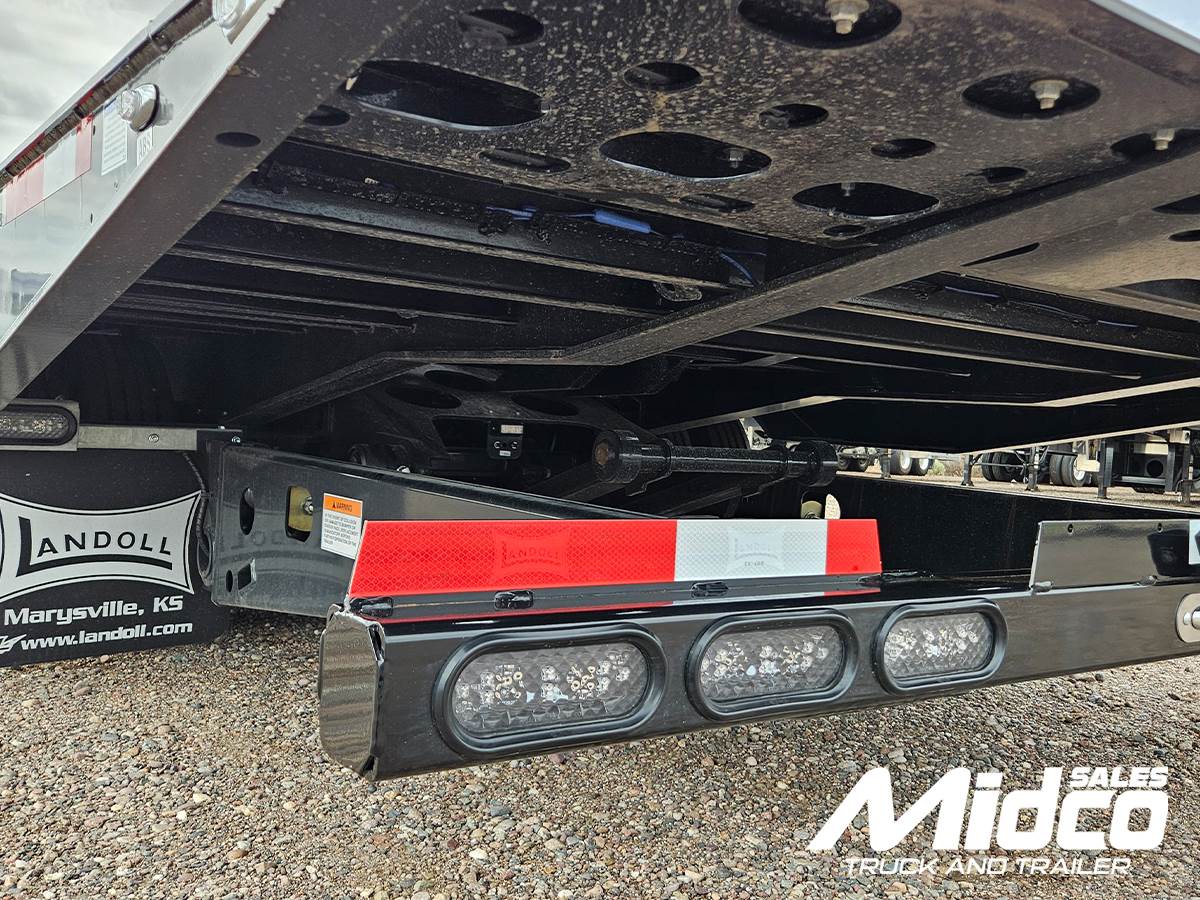

LIGHTING & ELECTRICAL
Grote MicroNova LED clear lense-enhanced stop, tail & turn lights
Rear amber strobe lights
Deck/slope mounted work lights
7-way receptacle
