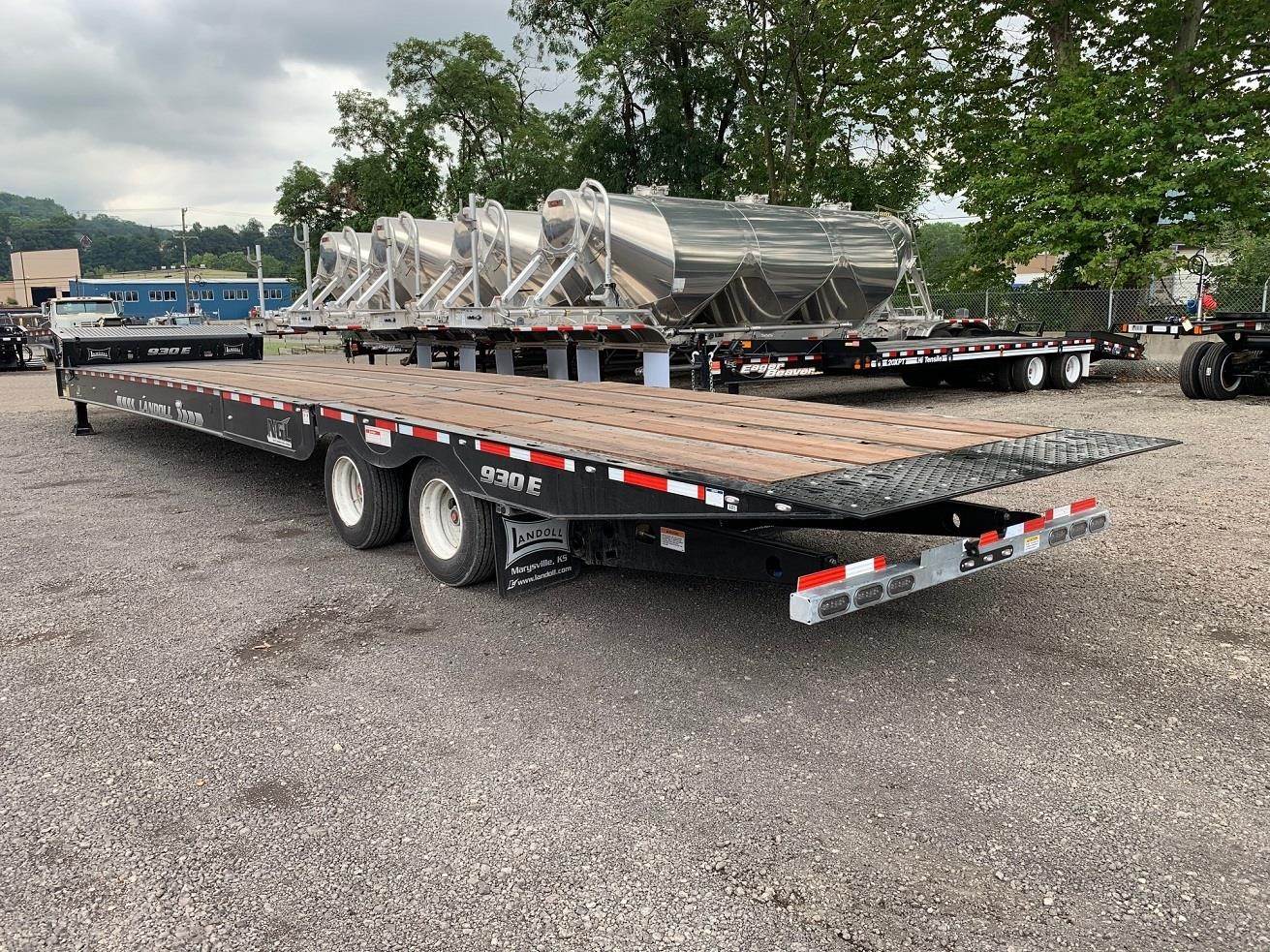

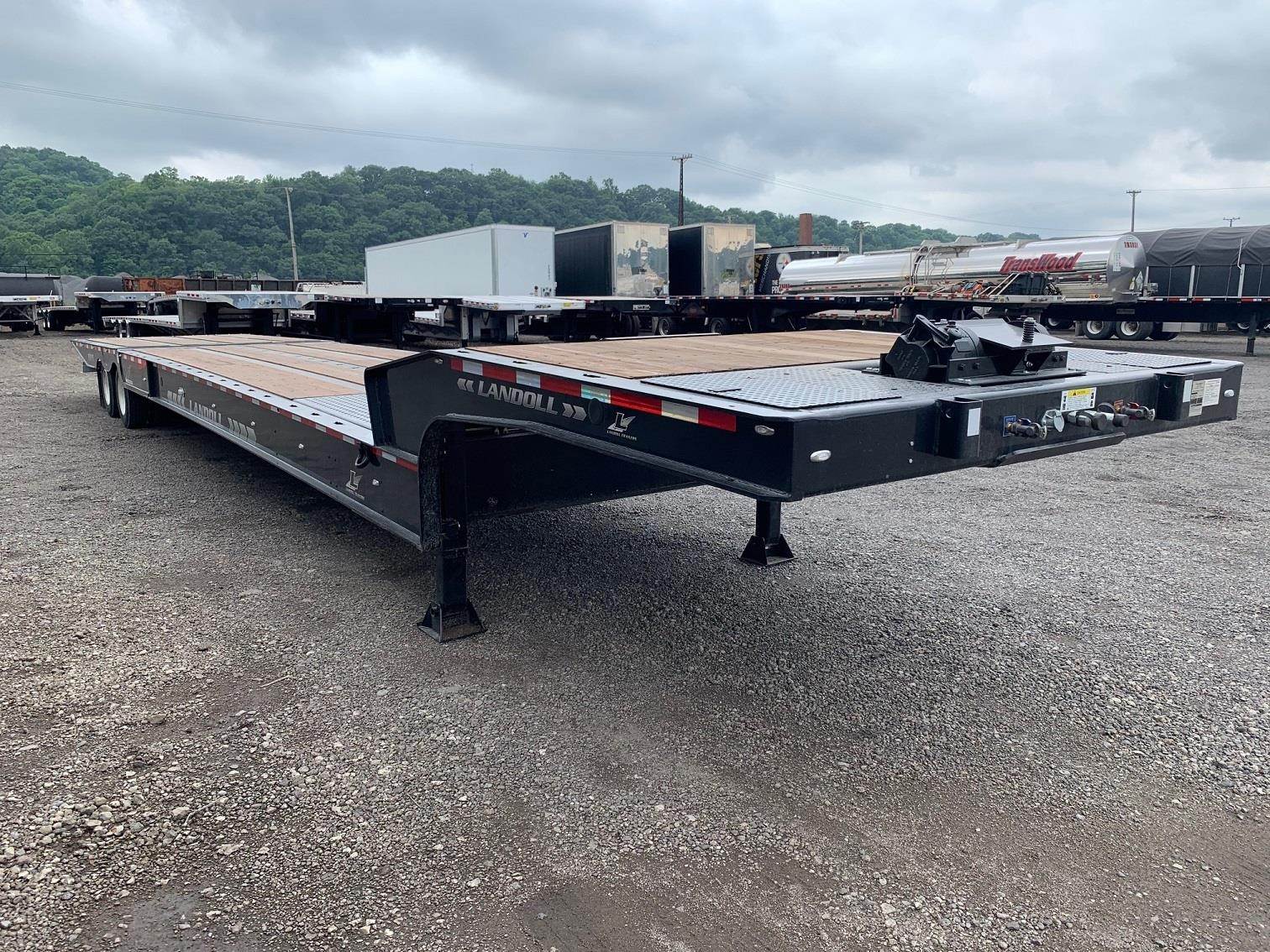

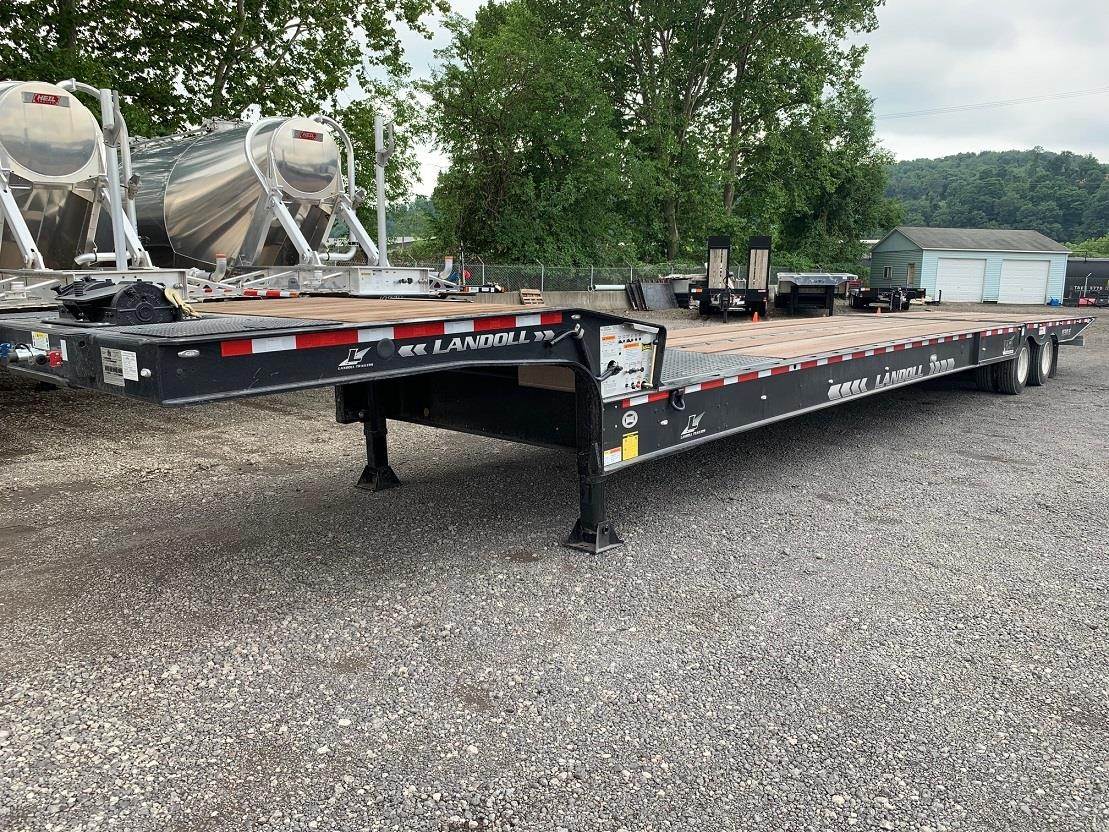

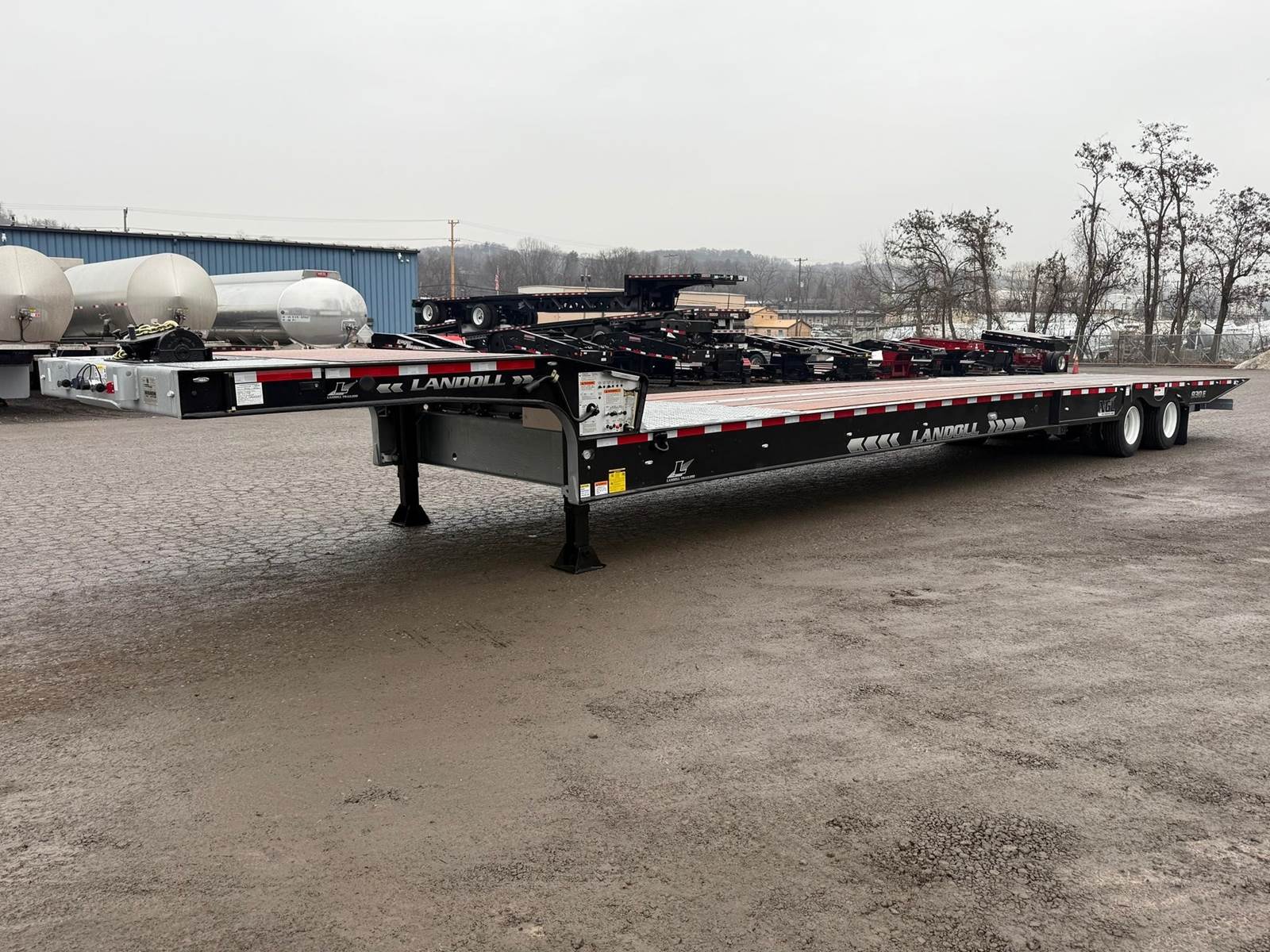

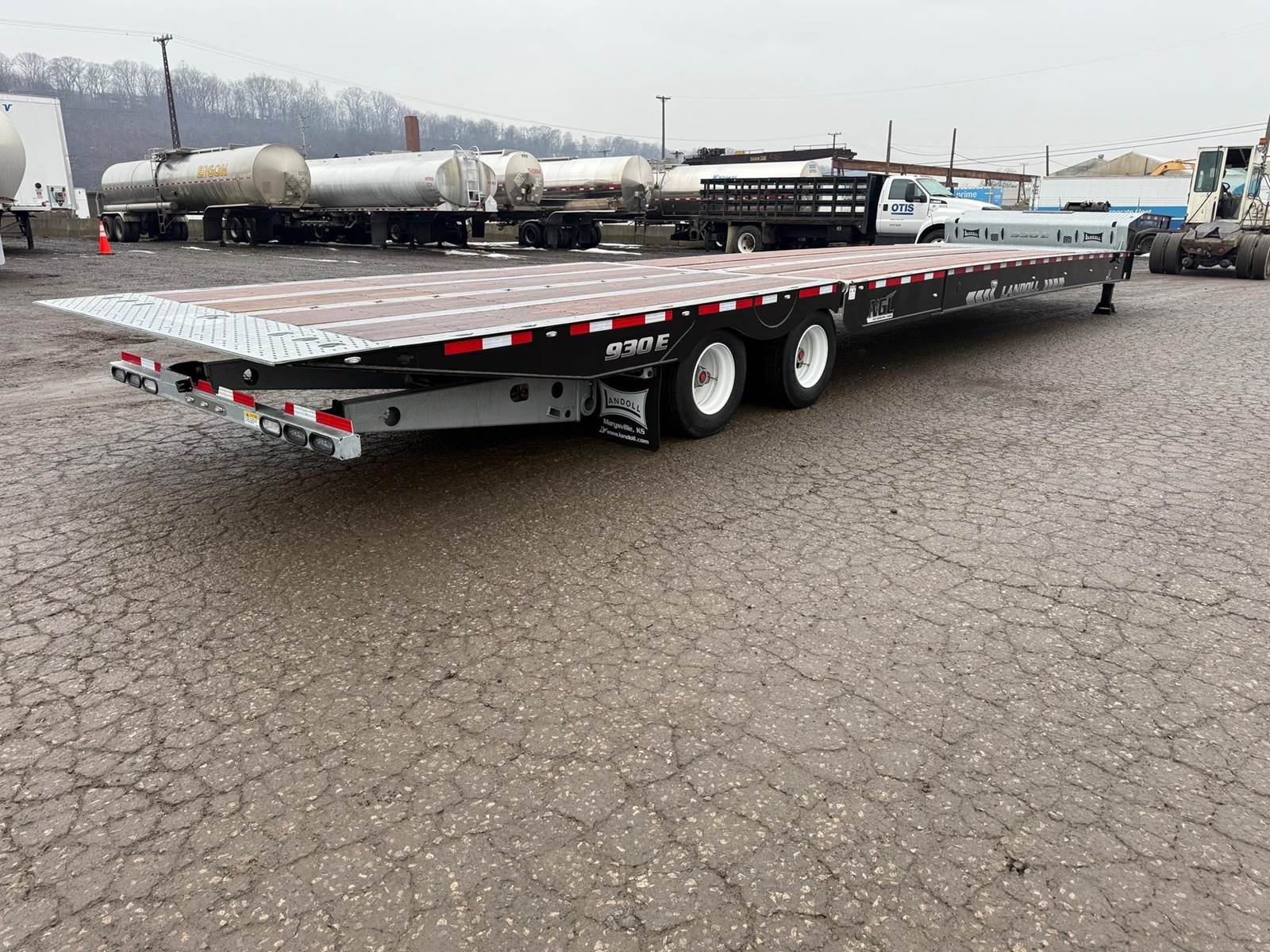

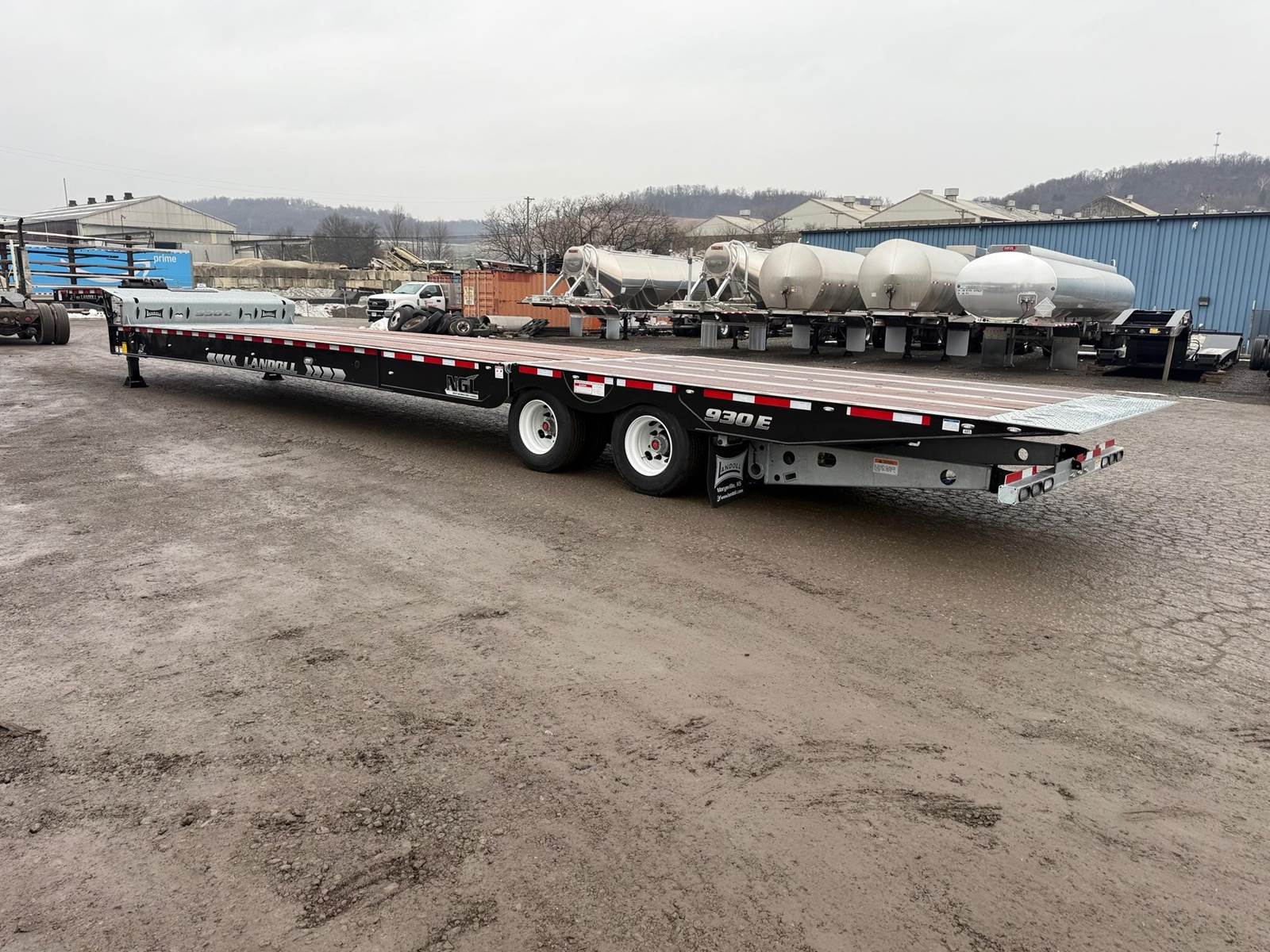

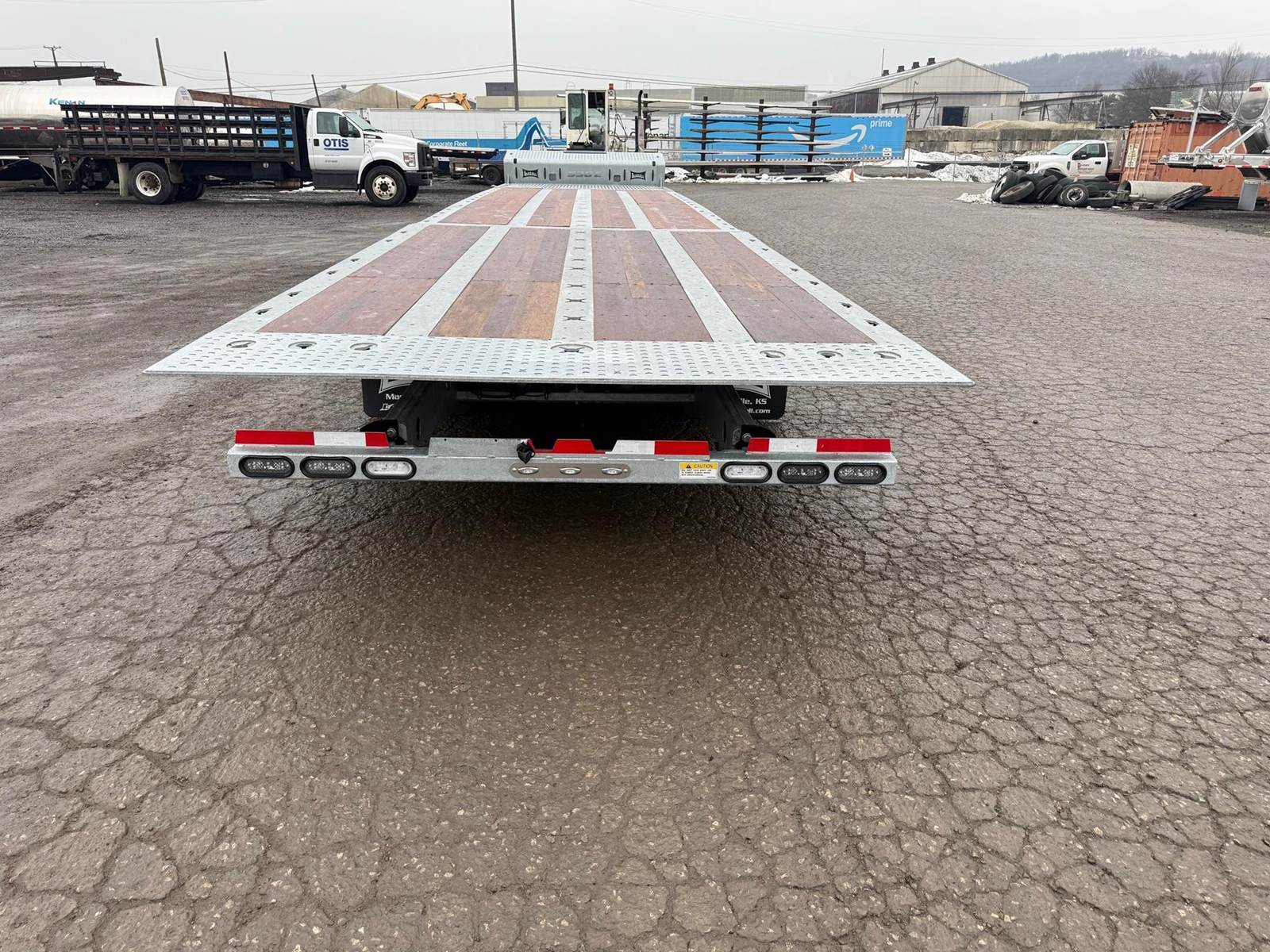

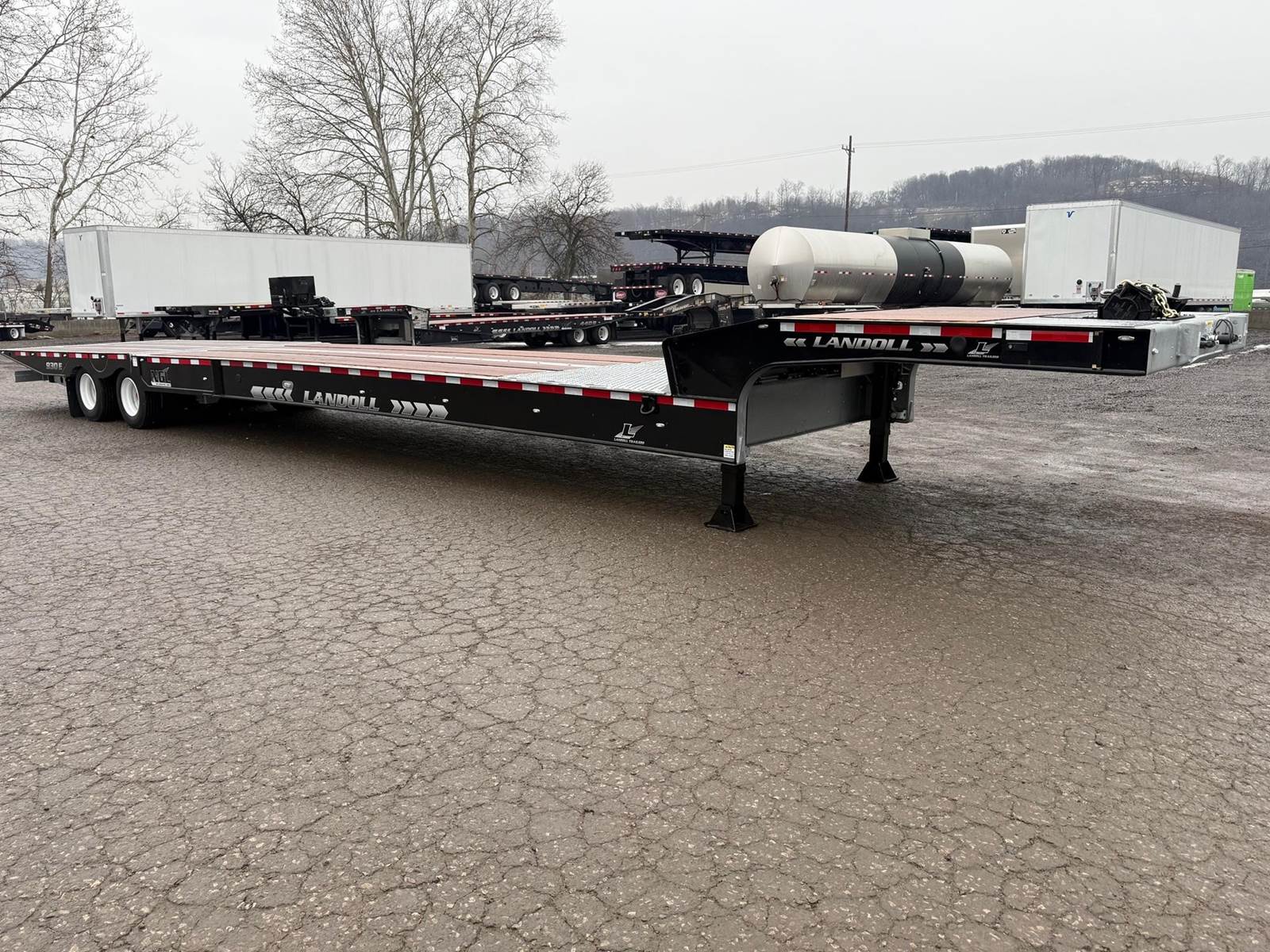

2026 Landoll 930E Traveling Axle Trailer

Length 51'
Width 102"
Top Deck Length 9'9"
Main Deck Length 41'3"
Main Deck Height 38"
Weight 19,250 +/- 3%
Flat Body
Front Gooseneck Ramp 6', Air Operated, 11.5 Degree Load Angle, Galv.
Floor 1 3/8" Apitong
Chain Slots Double Key Hole on 16" & Center Keyholes

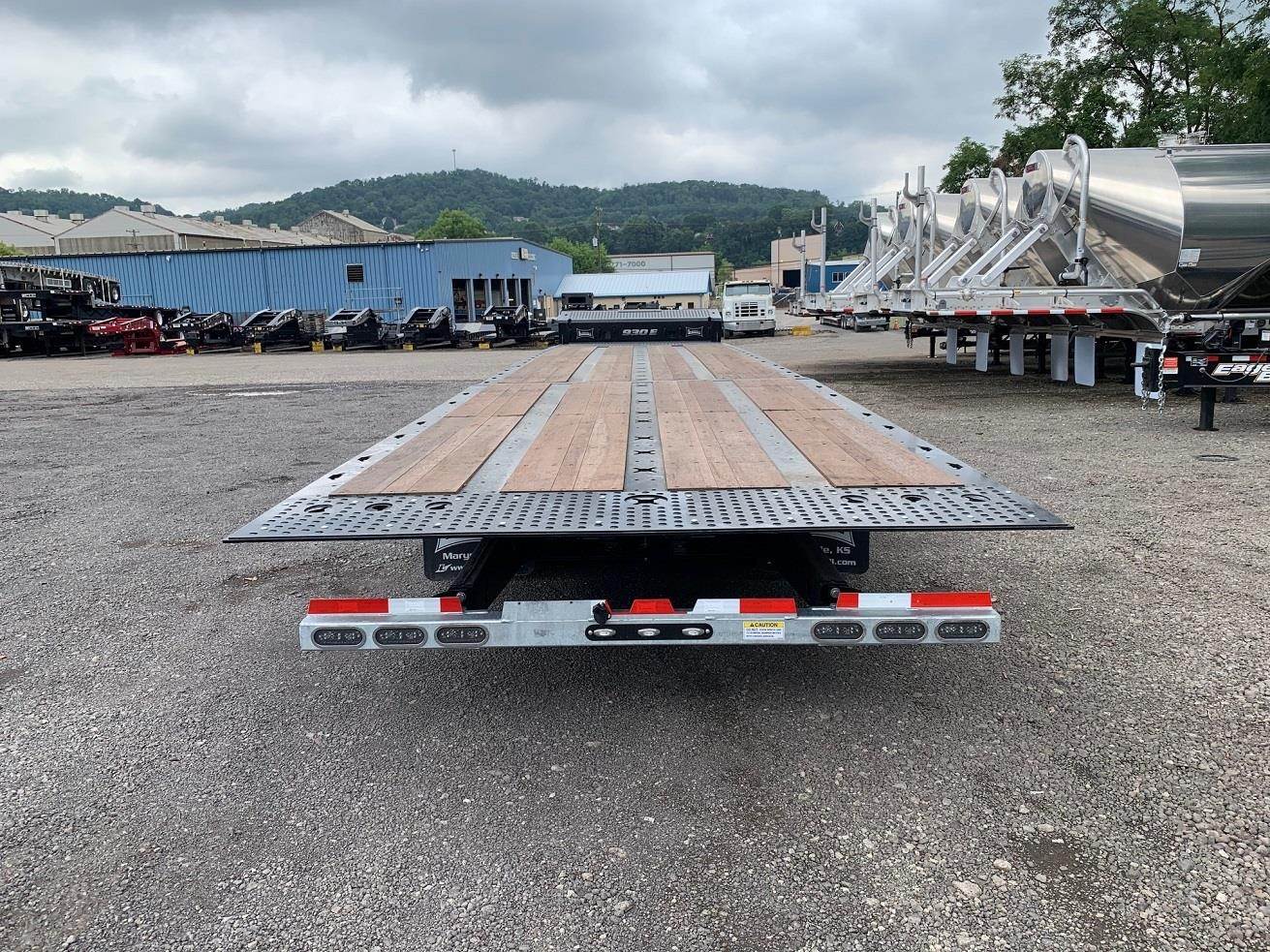

Hydraulic Tail 15' Hydraulic Tail, 11 Degree Load Angle
Main Tail Length 15'
Tail Capacity 24,000 Lbs. Lift Capacity
Side Rail Steel
Toolbox Two Upper Deck, Lockable Door, Side Opening
Side Rail Lights Twelve (12) per Side
Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Strobe Light Package in Bumper
Hydraulics
Hydraulic Hook Up Quick Couplers 2500 PSI / 20 GPM
Hydraulic Valve Body Rexroth 20GPM at Controls, 50 GPM Max
Hydraulic Winch Braden Winch, 20,000 lbs.
Cable 85' of 1/2" Cable
Wireless Remote Six Function with Prince Valve Body
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Neway RLU228, 22,500 lb. Capacity
Tire Brand Double Coin LRJ
Tire Size 235/75R17.5
Wheels Steel
Centralized Grease Yes
UnderFrame
King Pin Setting 18"
Cross Member Center 4" I-Beam on 8" Centers
Landing Gear Jost, Two-Speed
Paint Entire Trailer Galvanized, Sides Painted Black
Weight Ratings 35 Ton
Deck Rating - 50,000 Lbs. in 10'
84" Swing Clearance
Lower Deck Center Keyhole Tie Downs Flush with Wood
Apitong Wood Deck on Tail - 1"

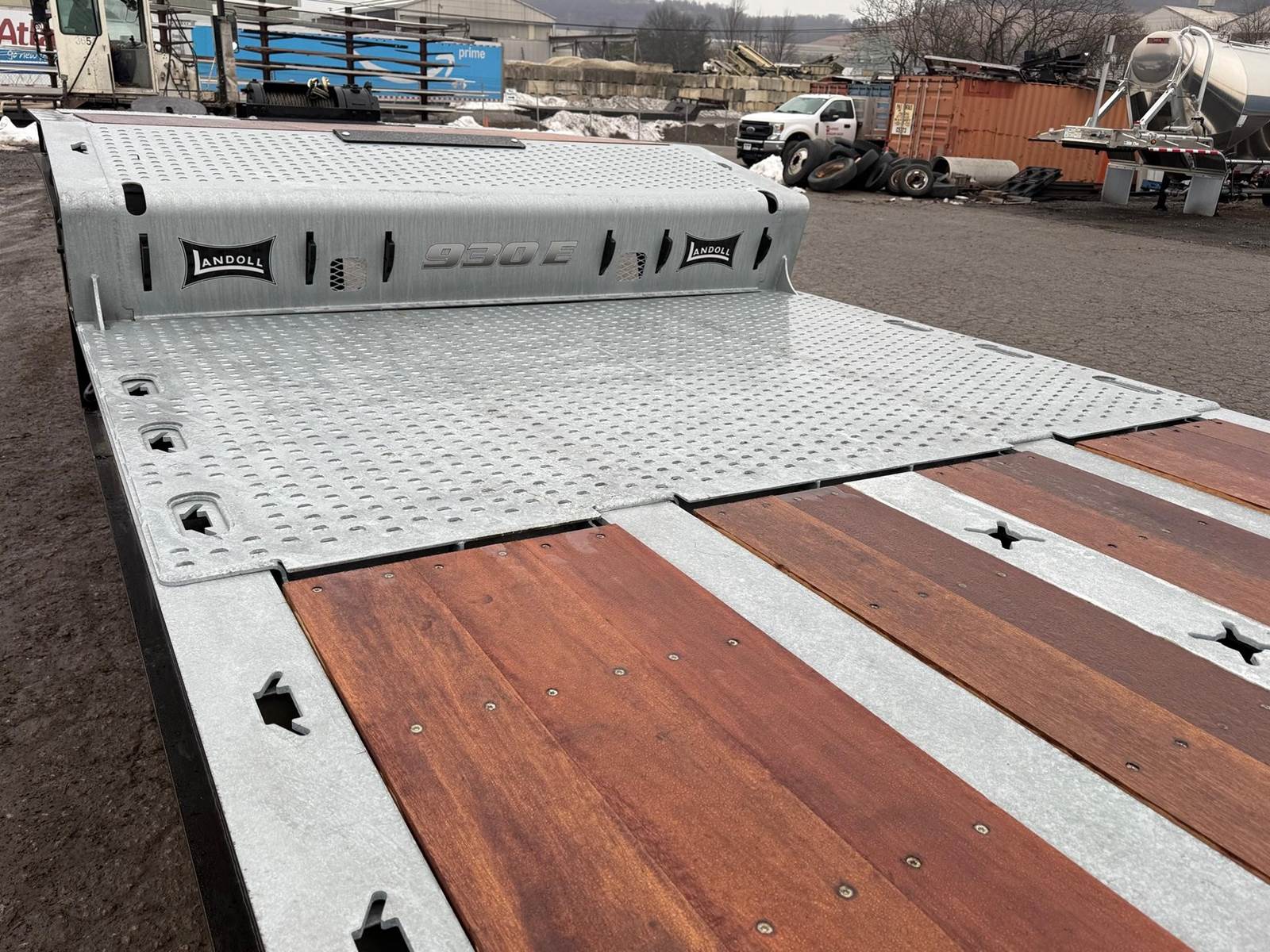

Landoll Traction Plate over Approach (Bolt-On) - Galvanized
Scale System - Liquid Filled Air Pressure Gauge
SALE PRICE INCLUDES FET
