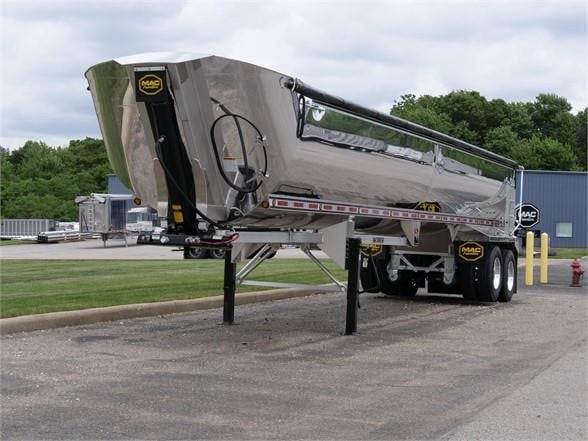

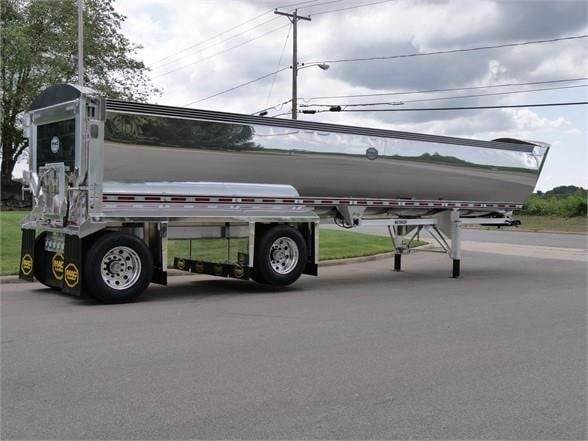

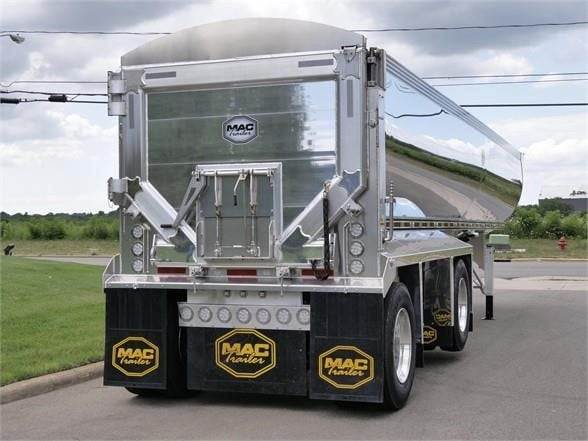

2026 MAC ALUMINUM HALF ROUND End Dump Trailer

2026 MAC Trailer MFG Aluminum 36' Half Round

**FET not Included**

Body

Load profile: Material, 80K GVWR

Length: 36 ft | Width: 96 in. | Wall Height: 60 in.

Neck Style: 9.125 I.O. in. height

Floor/Sides: 1/4 in. floor, 3/16 in. sides

Rear End Style: Squared-off

Top Rail Option: Solid

Rear Pocket Slope: 0

Hoist: 8-5-285 – Custom

Rear Hinge Pin: Standard

Rubber Seal: Yes

Floor Liner: None

Vibration: None

Body Hold Down: None

Accessories: No bulkhead ladder, no shovel hanger, no front fenders, weld-on fenders over suspension, no side steps, no inside steps

Lights

Type: Grote L.E.D. w/ grommet

Light Panel: 3 large – 3 small – 3 large (full panel)

Apron: 1/4 in. x 6 in. light apron

Standard marker lights: (3) each side

Mid-turns: (1) pair LED, boxed-in

Backup lights: None

Auxiliary cable & wiring: None

Gate

Sheet Thickness: 3/16 in. sheet & post

Operation: Ball valve

Hinge Type: Overslung only

Bracing: 3-panel

Winder/Safety Latch: 1 per side

Coal Door, Chute, Spreader Chains, Tarp Hooks: None

Axles & Suspension

Model: Closed tandem

Number of Primary Axles: 2

Suspension: Hendrickson Intraax AAT-30K w/ HXL-5

Axle spacing: 52 in.

Brakes: 7 in. XL w/ 30-30 chambers

Hubs & Drums: Cast w/ steel hub HP 10 stud TP, LS, 7 in.

Tires: General RA 11R 22.5, 16 ply

Wheels: Steel HP 22.5x8.25, white powder coated

Tire Inflation System: None

Lift Axles / Steerable Lift Axles: None

Chassis

Frame Rails: 17 in. aluminum beams

Rubber Cushion Ride: Yes

5th Wheel Plate: 3/8 in. | Height: 49 in.

King Pin: .375 King Pin only

Rear Overhang: 6 in.

Tractor Drive Model: Tandem drive

Galvanized Suspension Hangers: Yes

Hoist & Mount Style: 3 in. x 6 in. x 3/8 in.

Suspension Control: Ball valve

ABS: (1) 2S1M Meritor/WABCO

Slacks: Automatic

Axle Lubrication: HXL synthetic semi-fluid grease

Dust Covers: Yes

Landing Gear: Jost AX-150 (55,000 lb.), 10-year aluminum, driver’s side

Shims: Mylar

Air Tanks: Aluminum

Hydraulic Hose: 1 in. x 108 in. w/ wing fitting

Flaps: Front & rear of tires

No tow hooks, bumper, registration holder, hubodometer, or tire carriers

Tarp

Manufacturer / Config / Control: None

Color, Bow Holders, Bracket, Motor: None

Paint & Finish

Hangers: Galvanized

Suspension Color: Black soft coat

Dollies: Black (931716)

Hoist: Black (931716)

5th Wheel Plate: Black (931716)

Pin Striping: Black (931716)

MAC Machine Finish Logos: Black (931716)

Accessories

Load Level Indicator: None

Optional Signs: None
______________________________________________________________

Call and custom build to your very own specifications.

Proud to be Florida's #1 choice for custom built, high quality, half round dump trailers.

Delivery charges may apply.
