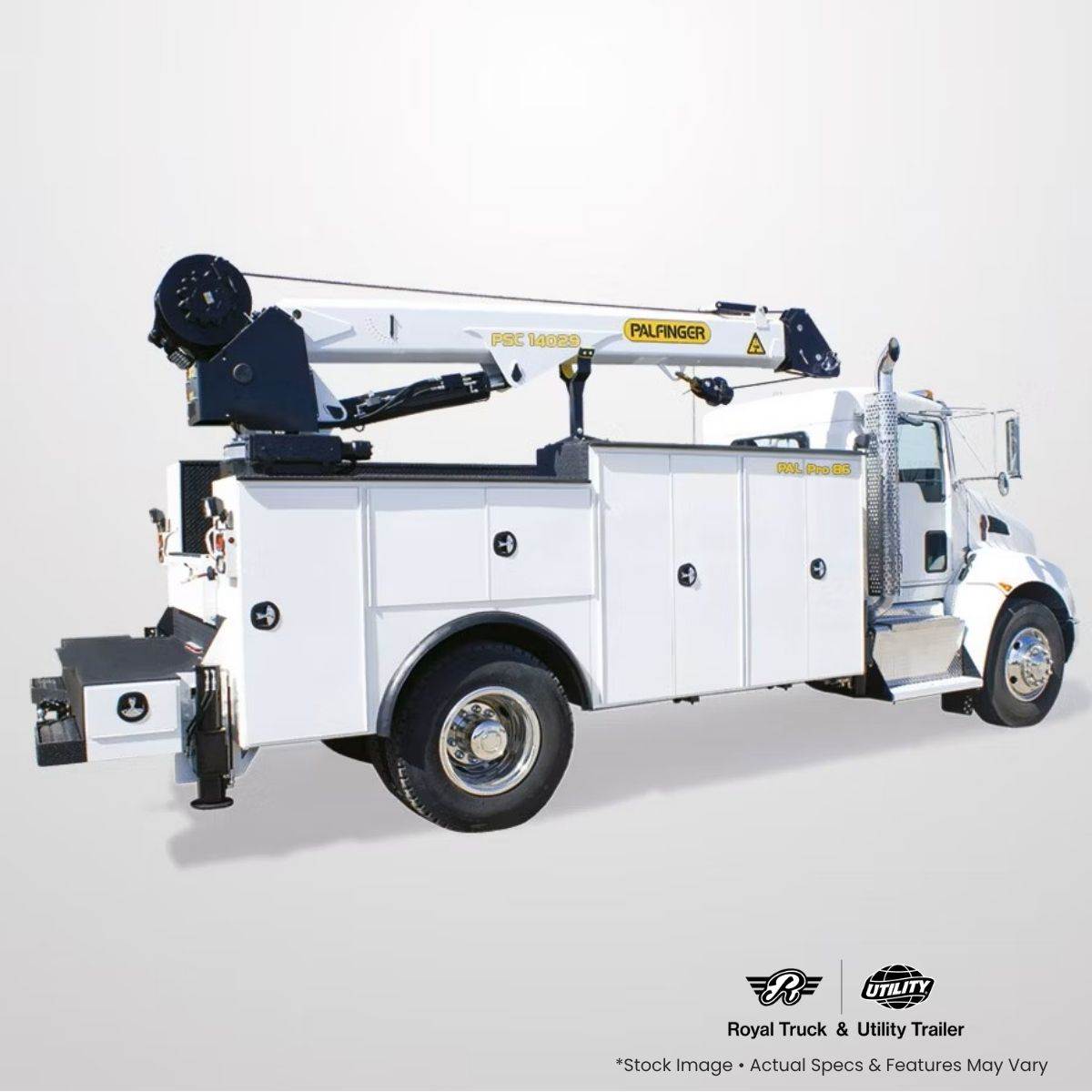

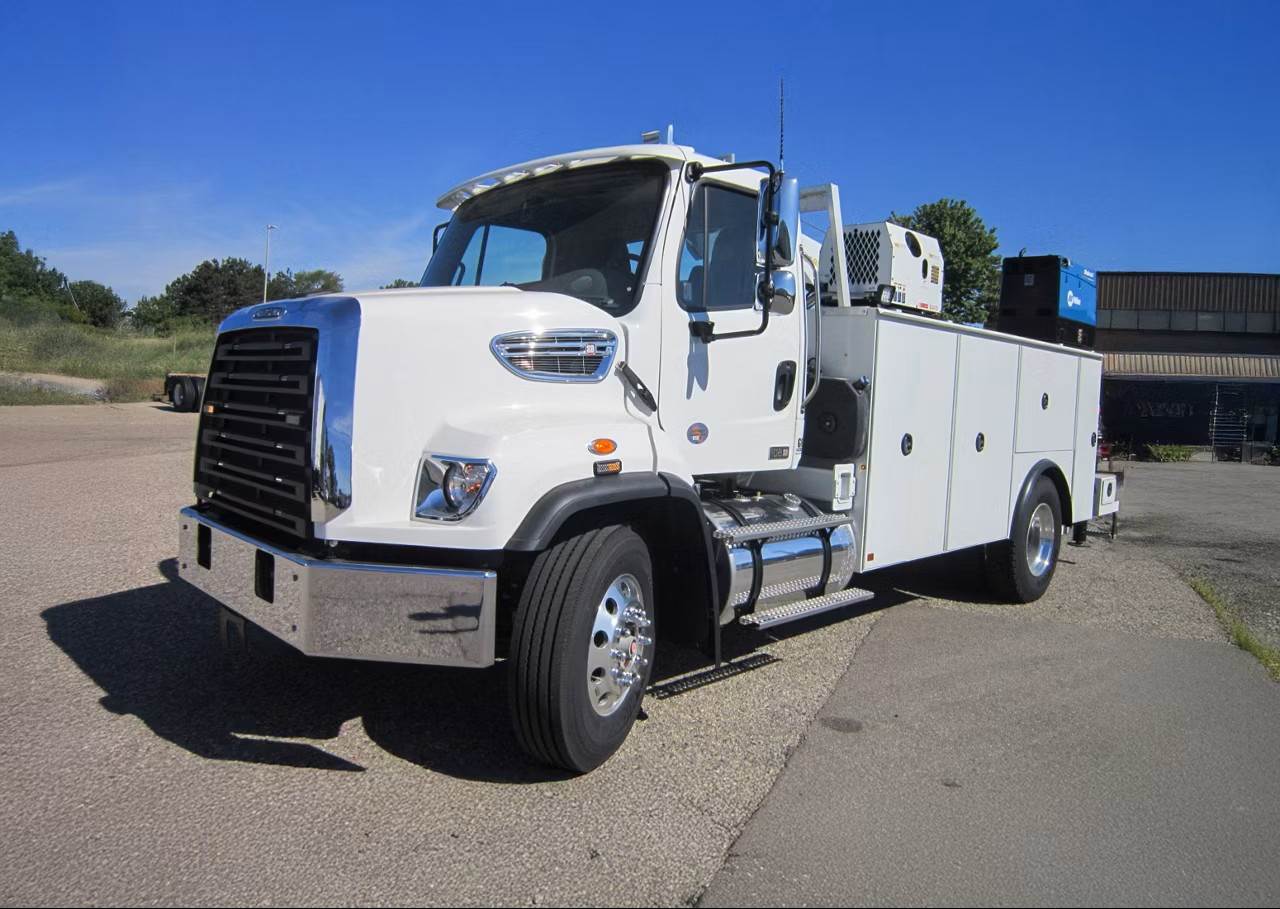

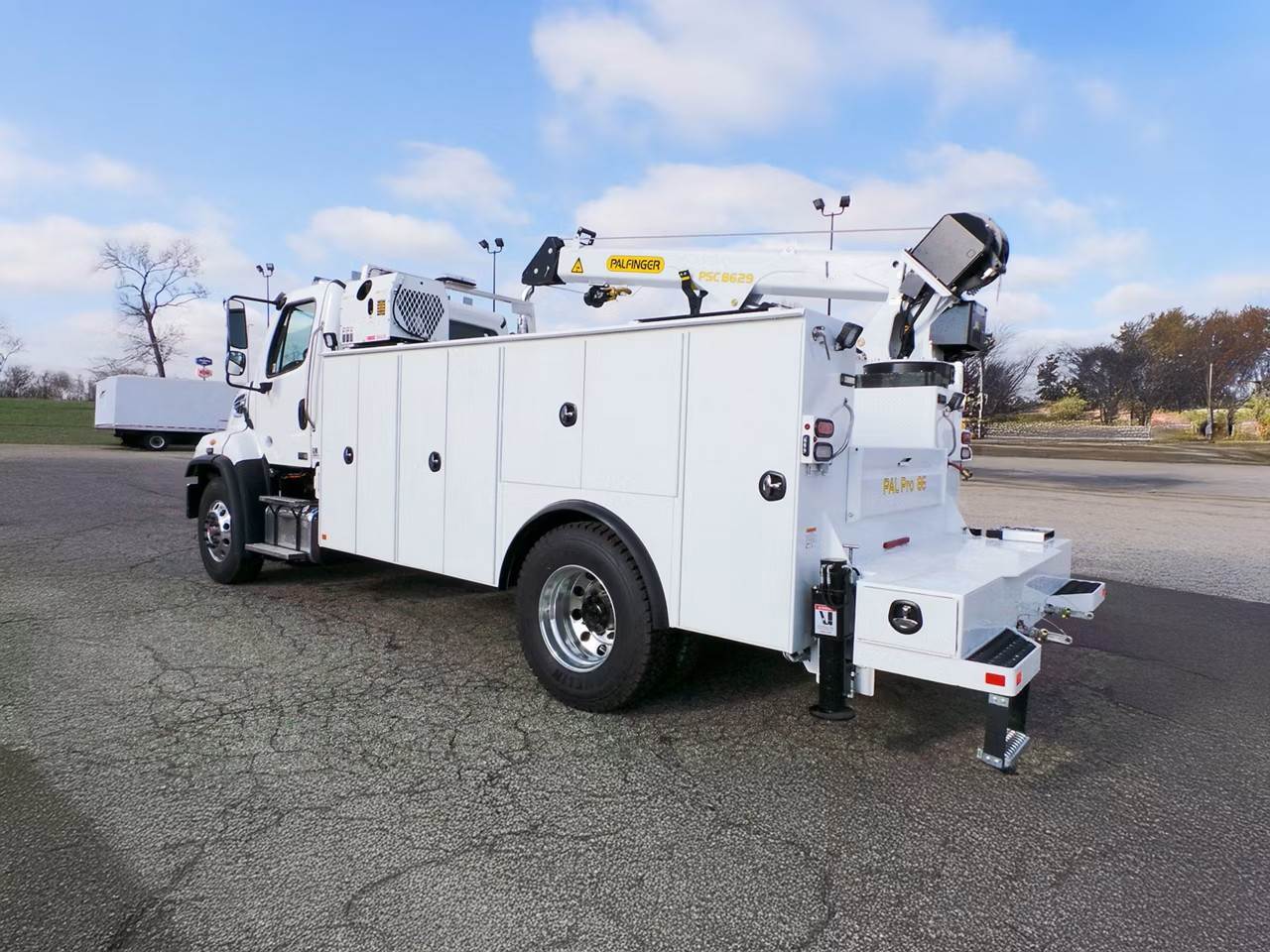

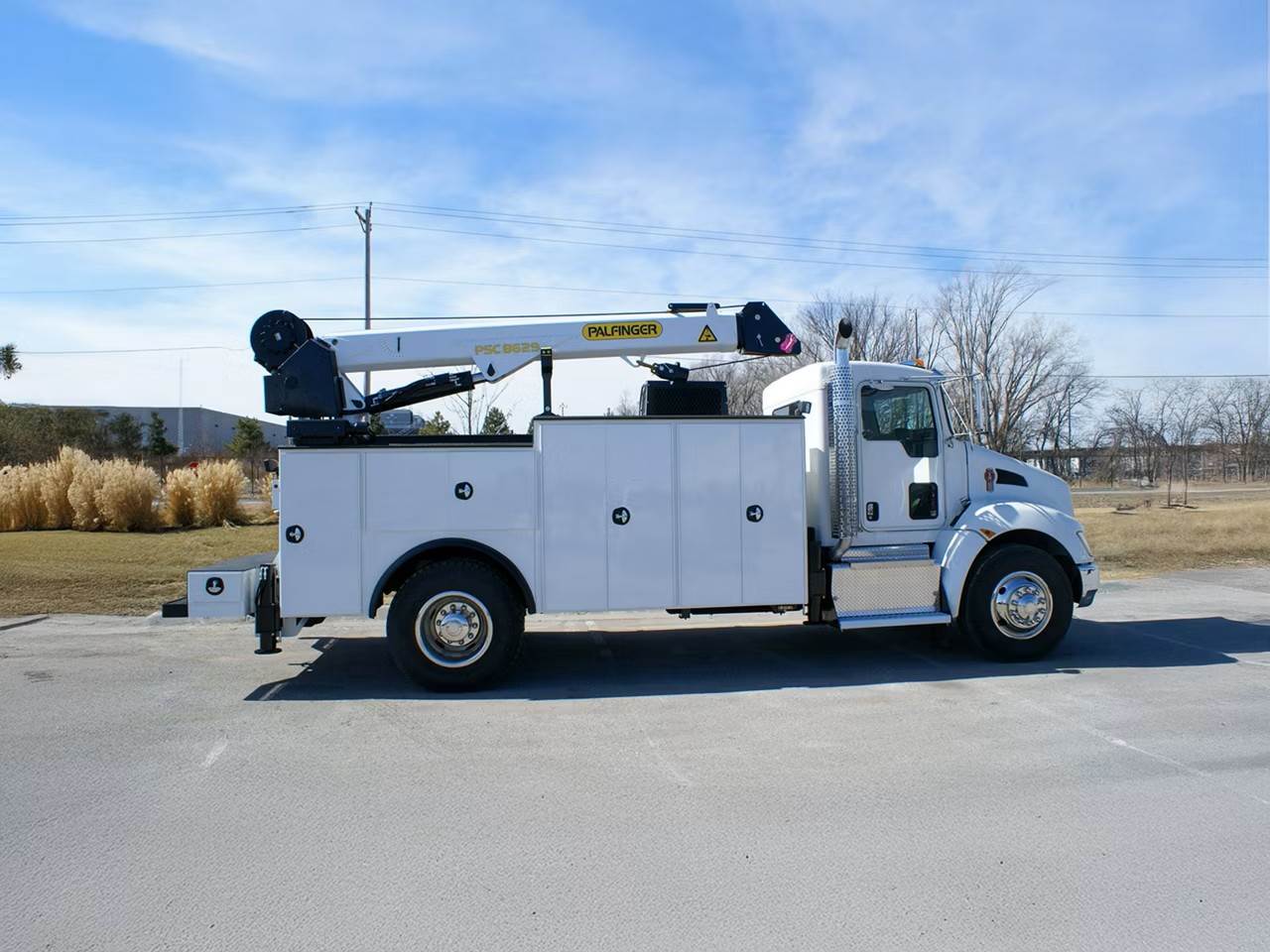

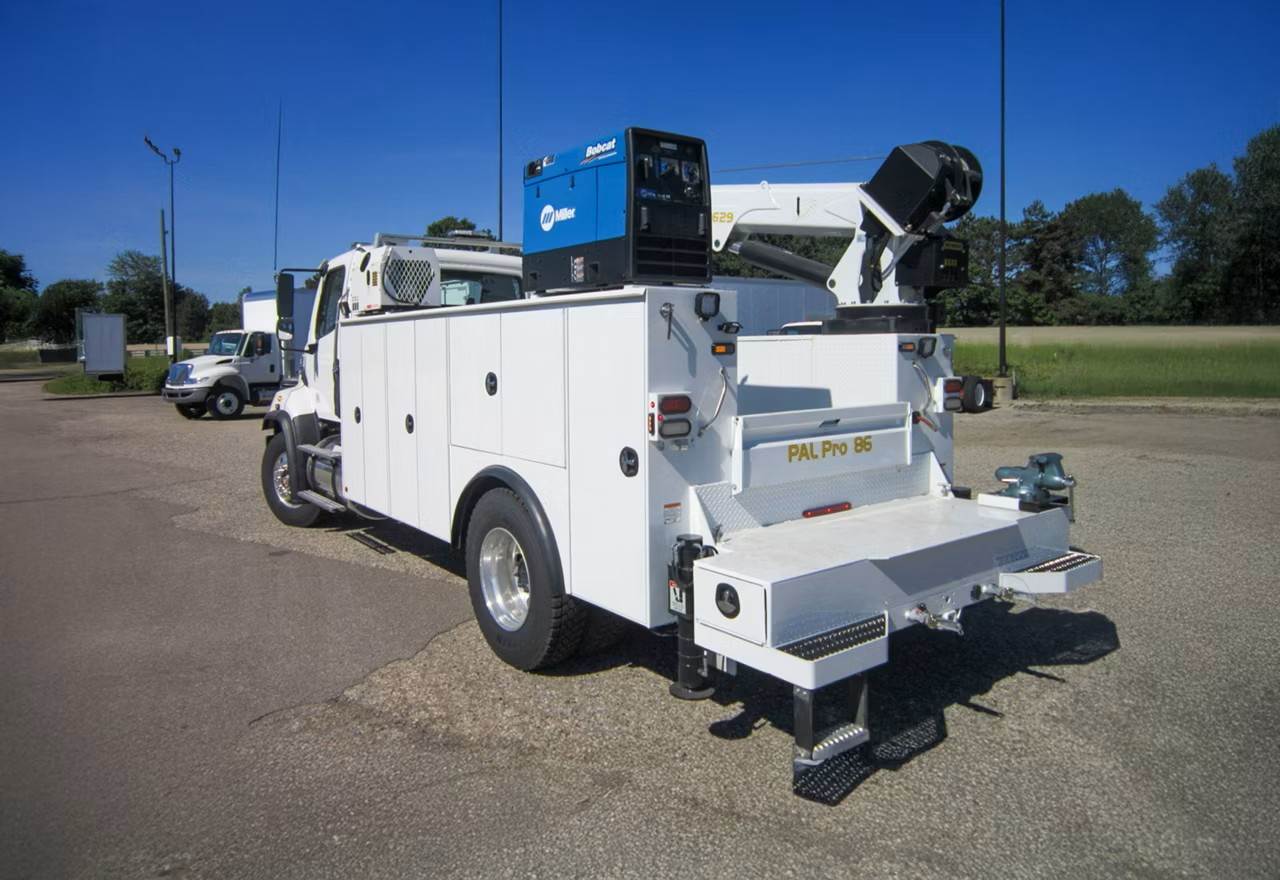

2026 Palfinger | Crane / Service Body | PAL Pro 86 Service Truck Body

2026 Palfinger | Crane / Service Body | PAL Pro 86

Take on heavy-duty lifting with PAL Pro 86—the largest mechanic's body we offer. With 86,000 ft.-lbs. crane capacity, rear and front outriggers, and A-60 galvanneal steel, it’s engineered for Class 6–7 chassis and maximum durability.

Highlights & Optional Features:

• Length: 14'
• 52" Tall H Sidepack Compartments
• 14" Tall One-Handed Tailgate
• Street-Side And / Or Curb-Side Front Compartments Raised To 60"
• Street-Side All Compartments Raised To 60"
• Treadplate Compartment Top Overlays
• Adjustable Non-Marring Boom Support E-Coated Black
• Line-X Ultra Interior Compartment Coating For Greater Protection
• Double Panel Doors With Internal C-Channel Stiffeners, Adhered With Structural Adhesive
• PALFINGER’s 12 Step Electrophoretic Deposition Dip Process Cleans The Body And Applies Primer To The Metal Surfaces, Ensuring Complete Coverage And Automotive Grade Corrosion Protection
• Dual Extending Rear Outriggers And A Single Front Extending Stabilizer Provide Maximum Overall Lifting Performance
• Every Raised Compartment Comes With PALFINGER's Engineered Gussets For Increased Protection Against The Body Cracking In The Door Corner
• Hybrid Torsion Box Designed For Crane Applications And Utilizing 10GA A-60 Galvanneal Steel Eliminates Truck Frame Twist And Side Pack Deflection
• Tubular 3”x 5” And 4" X 6" Structural Steel Cross-Members Interlace The Torsion Box To Support Compartment Loads
• Integrated Outrigger Tube Reduces Stress On Chassis Frame By Transferring The Crane Load Directly To The Ground
• Rear Shear Steel Plates Prevent Lateral Body Shift On Chassis, Providing Additional Support For Crane Loads
• 2” I.D. Integrated Hitch Receiver Tube, Attached Directly To Body Structure Rated For 16,000lbs Towing Capacity With 15-Ton Pintle Reinforcement Plate Included
• Boom Rest, Welder, Compressor, EnPak, Air-n-Arc And AirPak Mounts Are Available From The Factory To Eliminate The Need To Drill Holes In The Body
• A True Mechanics Workbench, Featuring A 30” Work Bench Bumper, Receiver Hitch, 5/16” Steel Top Plate And Thru Compartment For Additional Storage
• Headache Rack Light Bar Bracket With A Punched Screen Prevents Cargo Area Contents From Making Contact With The Rear Window Of The Cab - Saving You From Costly Rear Window Repairs & Cleanup
• Ergonomically Designed Handrail Option, With A Stable Surface To Grip, For Your Added Security Against Tripping Or Slipping Hazards
• Cranes Installed At Factory Rated Up To 14,000lbs Capacity And 86,000 Ft-Lbs Lifting Capacity
• Boom Extensions Available Up To 29'
• Personnel Basket With Quick-Connect Setup, 37' Reach, Collapsible Storage Box, And Lightweight Design Available
• Hydraulic Deck-Mounted Rotary Screw Air Compressor That Deliver 45 CFM At 150 PSI With 100% Duty Cycle Available

Call for more information and pricing!
