2026 Pitts TDH 8 Highwall

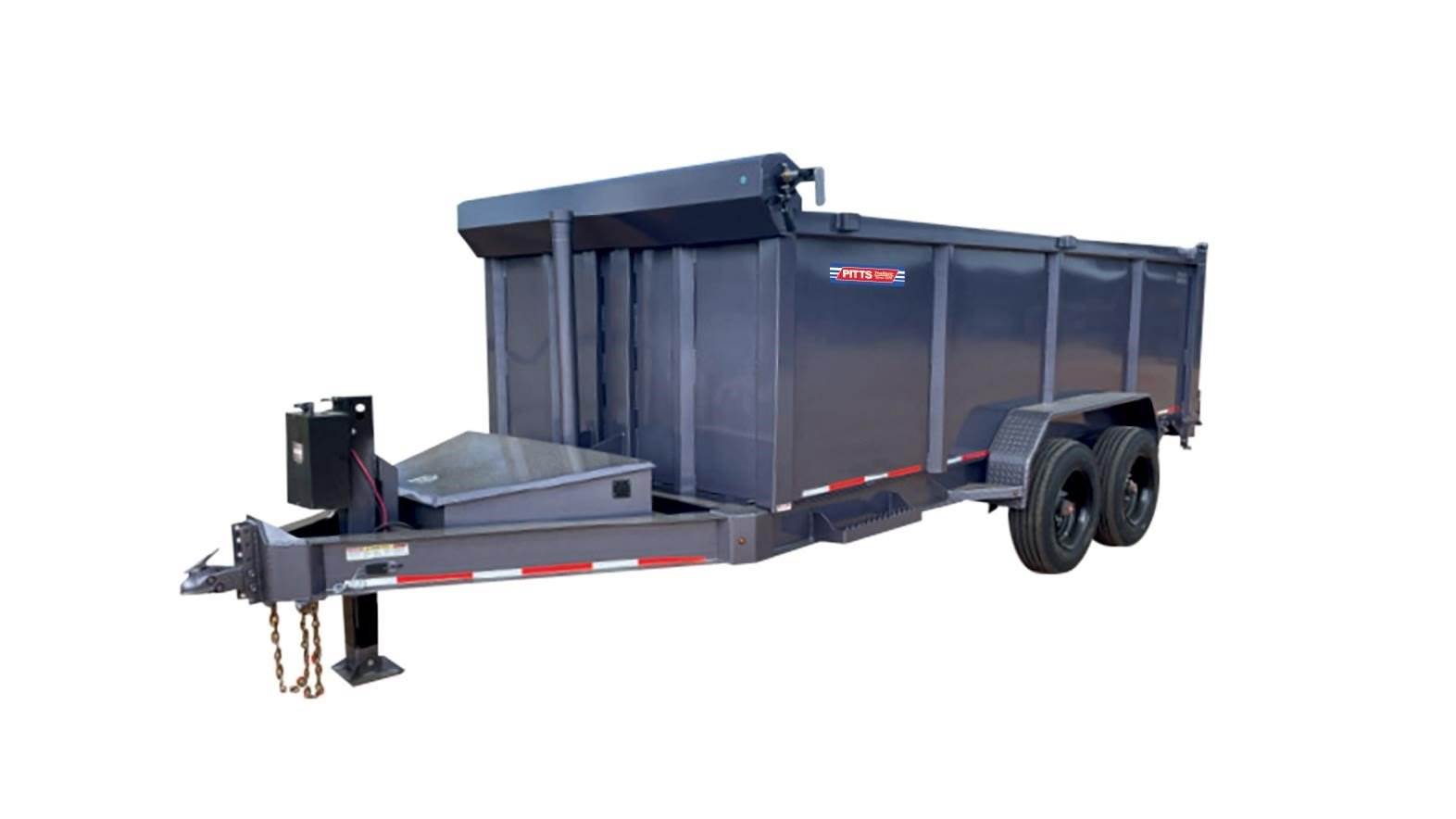

TDH8 | High Wall Equipment Dump Trailer

8-Ton High Wall Equipment Dump Trailer
Weight: 5,350 lbs
Overall Length: 23' 6"
Deck Length: 16'
Deck Width: 7'

Capacity

GVWR: 16,000 lbs

Total Weight (Trailer + Load): 16,000 lbs

Tongue / Drawbar

8" I-Beam with 2 5/16" Adjustable Ball Hitch

Coupler: Adjustable 2 5/16"

Landing Gear: Single 12K drop leg

Tool Box: In gooseneck tool tray (located in tongue)

Safety Chains: 3/8" Grade 43

Hoist System

Type: Telescoping cylinder

Pump: 12V hydraulic single-action

Battery Charger: Electric

Main Deck

Main Frame: One-piece 8" I-beam

Cross Members: 3" channel on 18" centers

Flooring: 3/16" (7-gauge) steel

Side Walls: 4' high, 10-gauge steel

Fenders: Diamond plate with steps

Gate: 3-way spreader/barn door style

Rear Loading Ramps: 6' slide-out ramps with stabilizer jacks

Cover: Manual tarp system

Axles, Suspension & Tires

Axles: (2) 8,000 lb capacity with EZ-lube hubs and breakaway

Brakes: Electric

Suspension: Multi-leaf slipper spring

Tires: (4) 215/75R17.5, 16-ply, 8-lug

Wheels: (4) steel disc wheels

Electrical

Lighting: DOT-approved LED system

Protective Coating

Surface Prep: Blasted and cleaned prior to paint

Paint: 2-stage high-solid urethane, black

Miscellaneous

Load Securement: 6 D-rings

Spare Tire & Mount: Mount only (on neck)


Delivery Charges May Apply
