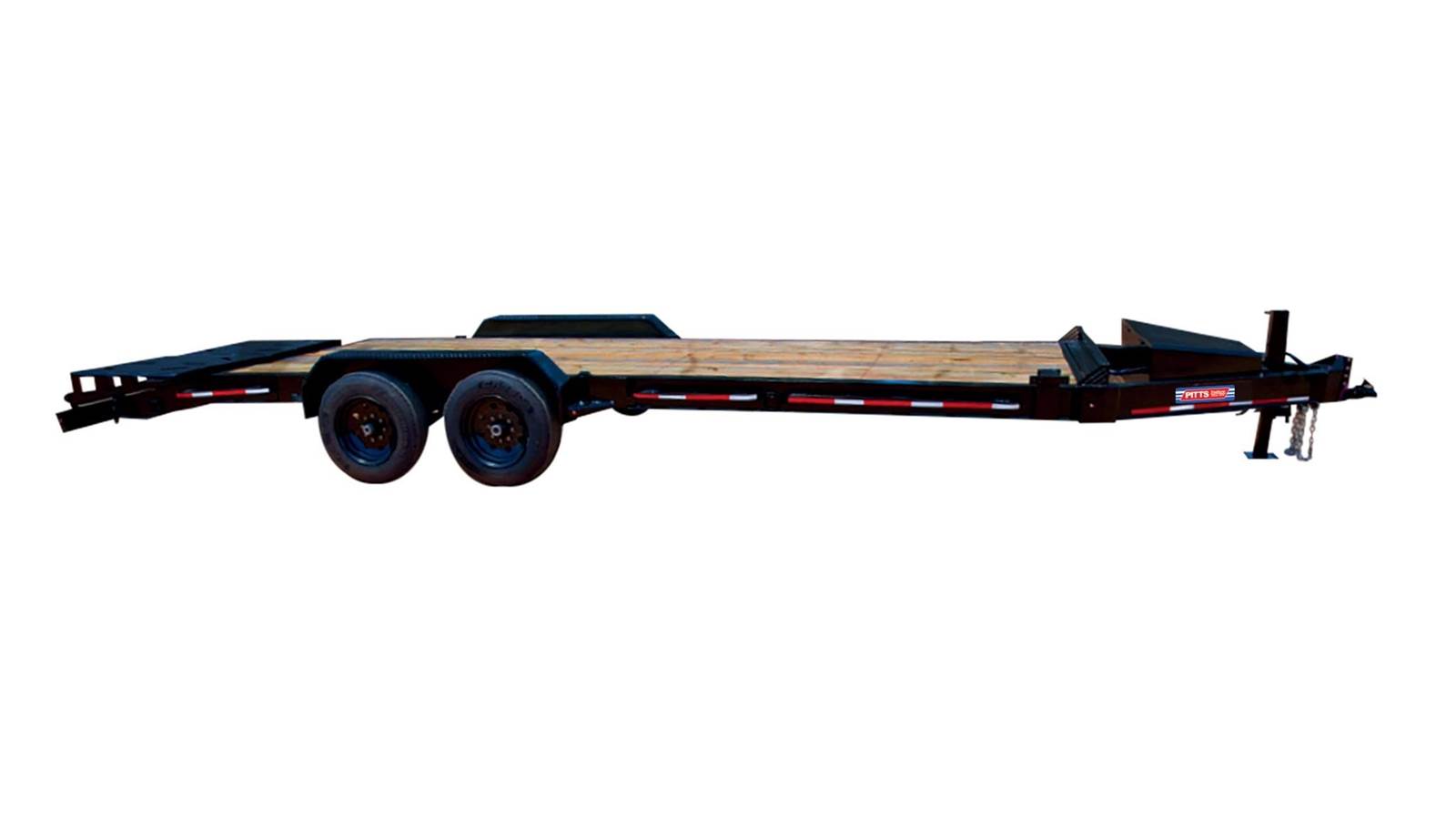

2026 Pitts TE8 EQUIPMENT DOVETAIL Trailer

2026 Pitts TE8 Equipment Dovetail

TE8 | Equipment Trailer

8-Ton Dovetail Equipment Trailer
Weight: 3,550 lbs
Overall Length: 26' 0"
Deck Length: 16'
Deck Width: 7'

Capacity

GVWR: 16,000 lbs

Total Weight (Trailer + Load): 16,000 lbs

Tongue / Drawbar

8" I-beam with 2 5/16" adjustable ball hitch

Coupler: Adjustable 2 5/16"

Landing Gear: Single 12K drop leg

Tool Box: In gooseneck tool tray (mounted in tongue)

Safety Chains: 3/8" Grade 43

Main Deck

Frame: One-piece main frame, 8" I-beam

Cross Members: 3" channel on 18" centers

Deck Design: Flat deck with beavertail and rear ramp

Deck Length: 16'

Deck Width: 7'

Flooring: Pressure-treated wood

Fenders: Diamond plate with steps

Dovetail: 4' self-cleaning design

Rear Loading Ramps: Lay-over tank ramps with spring assist and self-cleaning surface

Axles, Suspension & Tires

Axles: (2) 8,000 lb capacity with EZ-lube hubs and breakaway

Axle Spacing: 49"

Brakes: Electric

Suspension: Multi-leaf slipper spring

Tires: (4) 215/80R17.5, 16-ply, 8-lug

Wheels: (4) steel disc wheels

Electrical

Lighting: DOT-approved LED system

Protective Coating

Surface Prep: Blasted and cleaned prior to painting

Paint: 2-stage high-solid urethane, black

Miscellaneous

Load Securement:

Rub rails

(4) D-rings on each deck corner

Spare Tire & Mount: Mount only (on neck)

Ramps: Heavy-duty stand-up ramps with spring assist

Hydraulic Jack: Included

Delivery Charges May Apply
