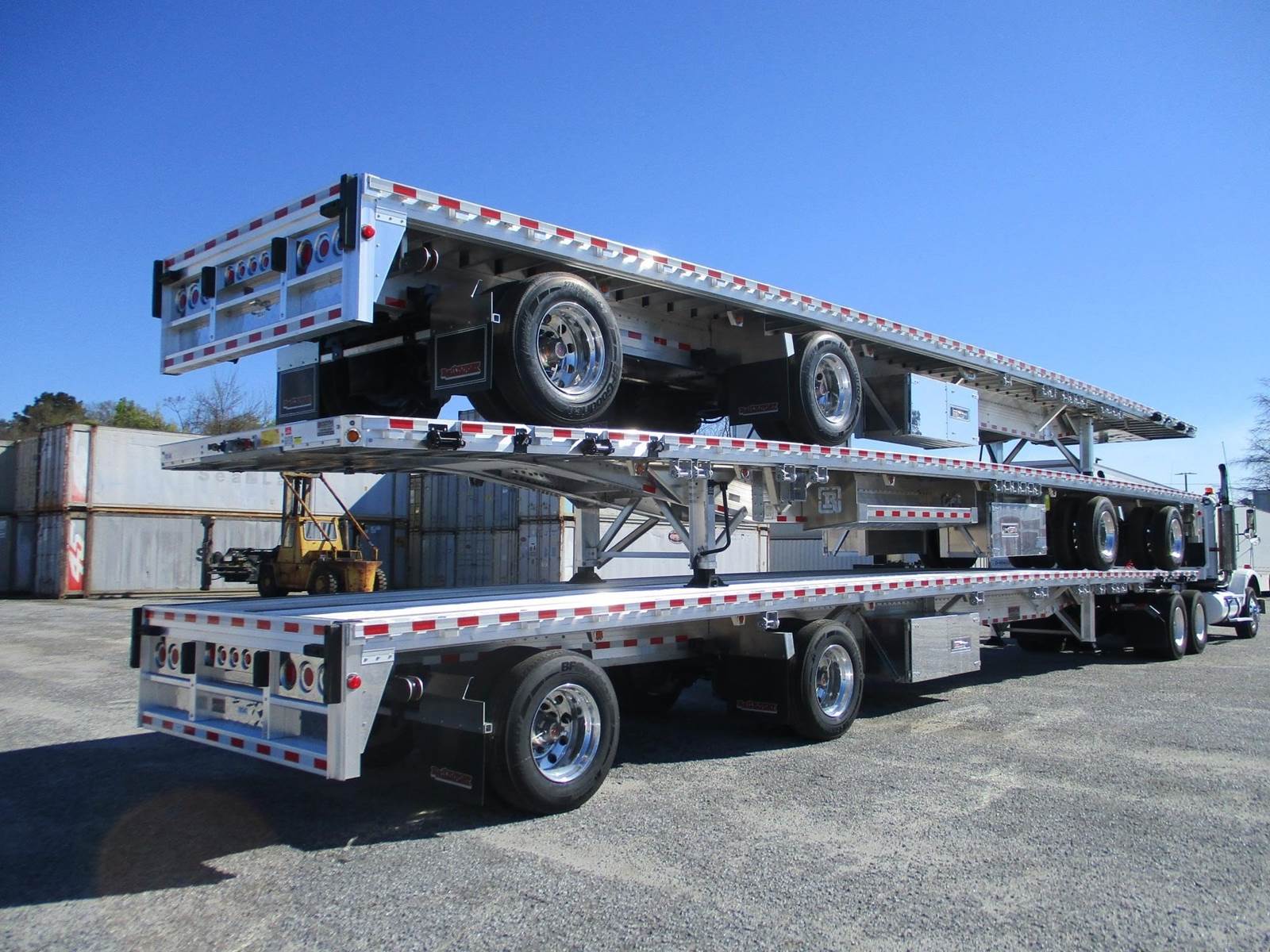

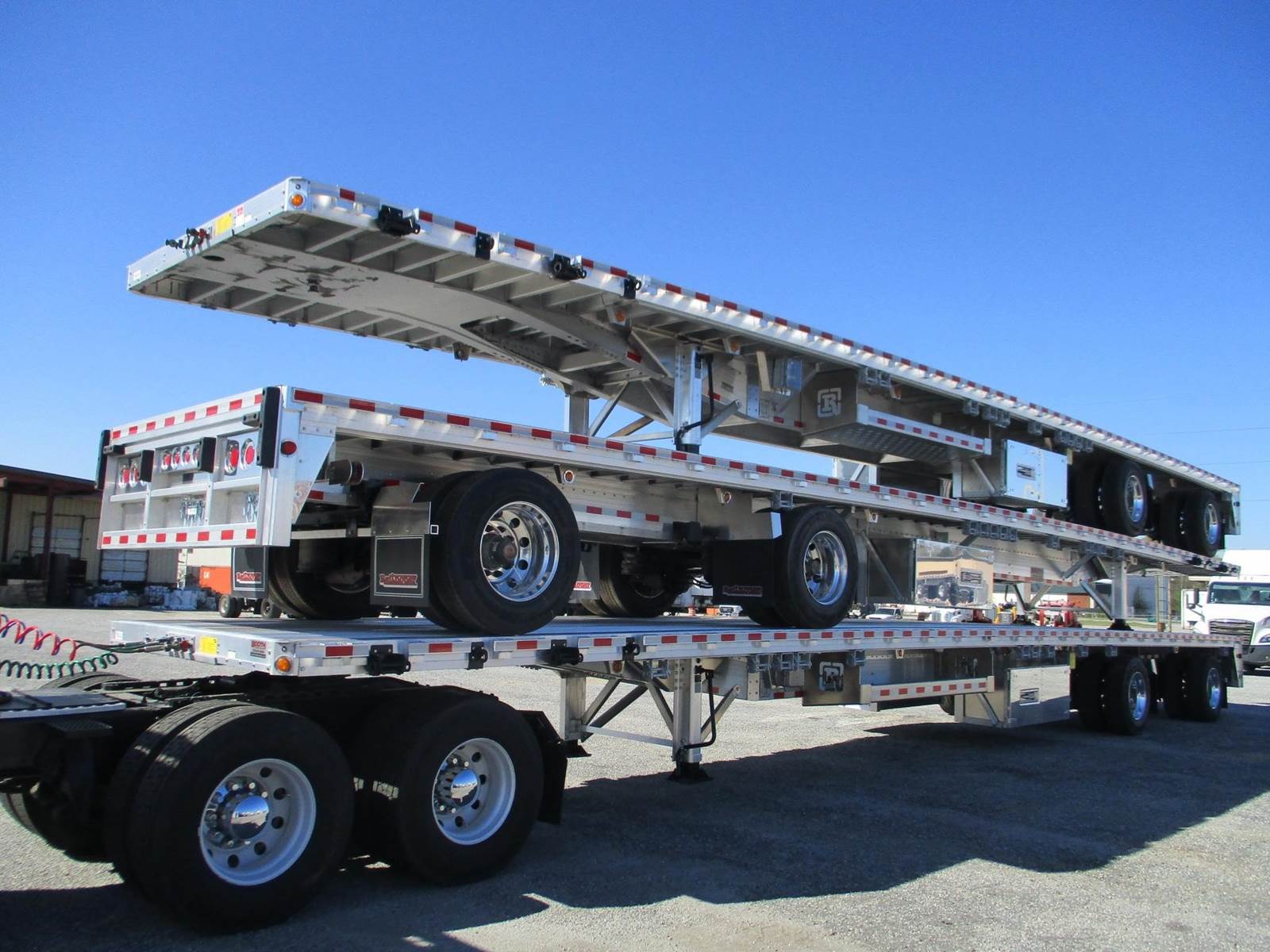

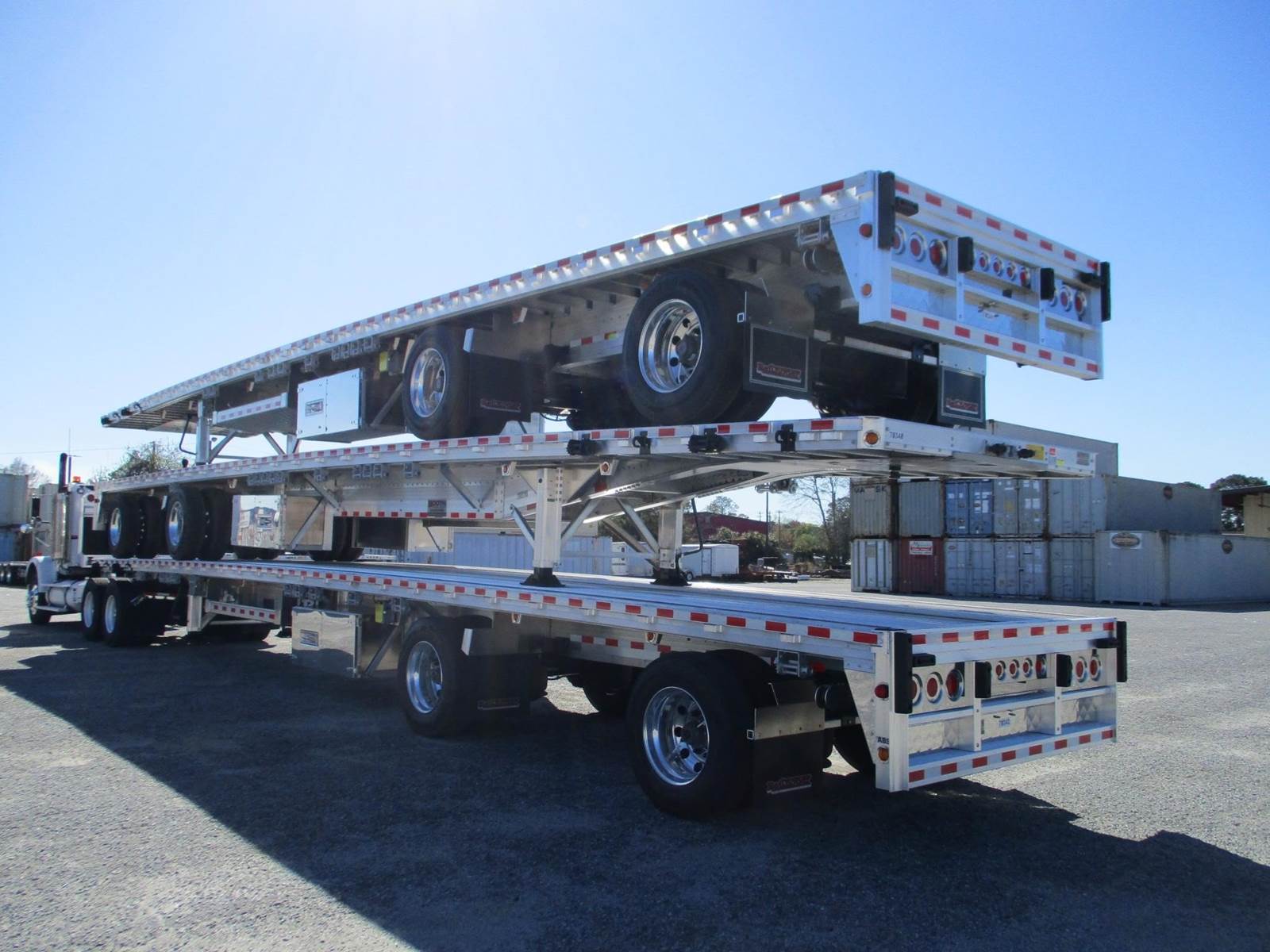

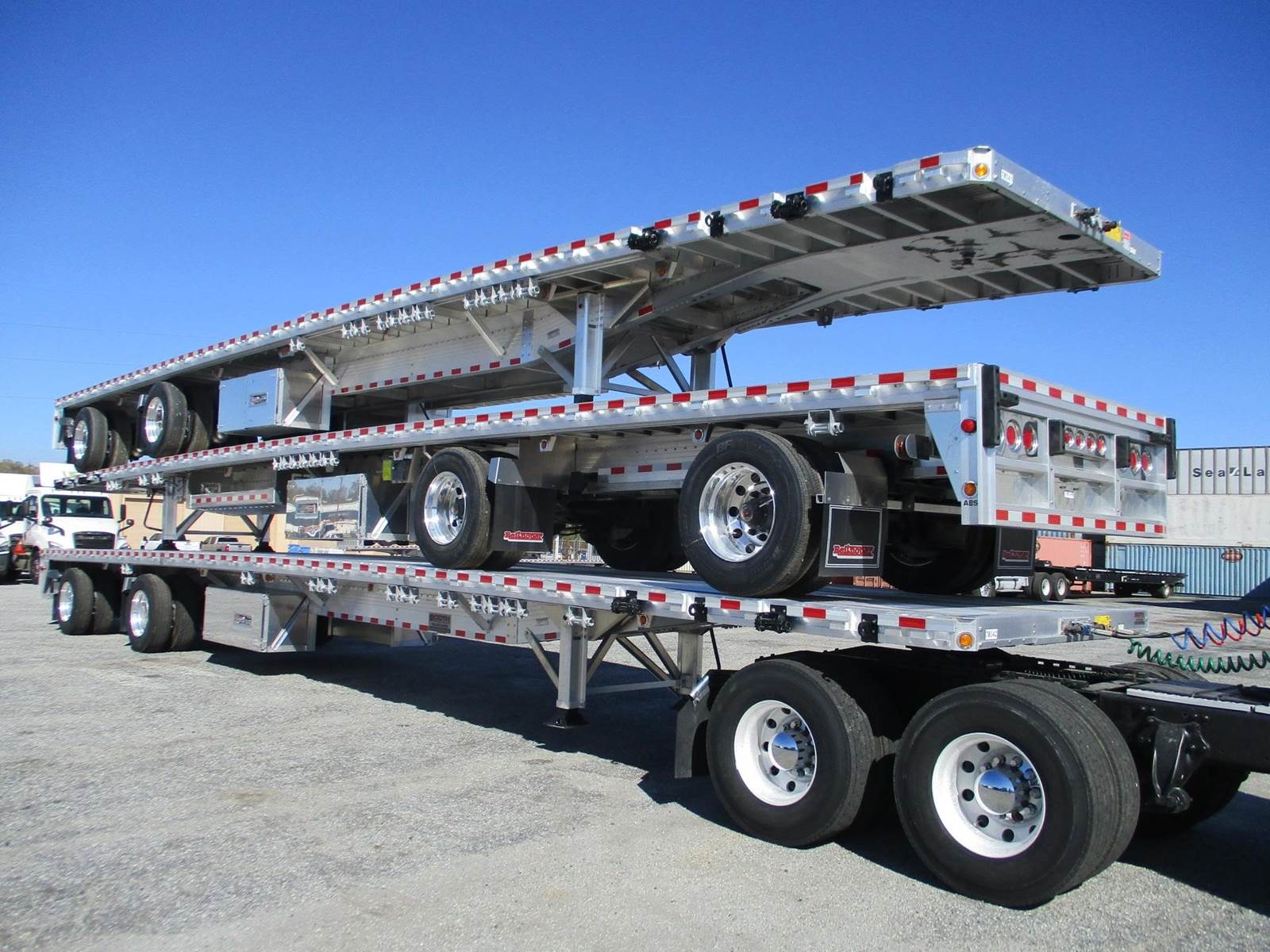

2026 Reitnouer 53x102 Aluminum Flatbed Trailer - Air Ride, Sliding Spread Axle

CONFIGURATION:
IN250L102P9-PRO (32453)
ABS INTRAAX 250L-9         P          QTY. 2 – SLIDING REAR AXLE
ADD 2” SPACERS TO FRONT AND REAR AIRBAGS
TIRE MAXX PRO INFLATION SYSTEM
BRAKE DUST COVERS
10 HOLE HUB PILOT       22.5   P   ALUM       QTY. 8

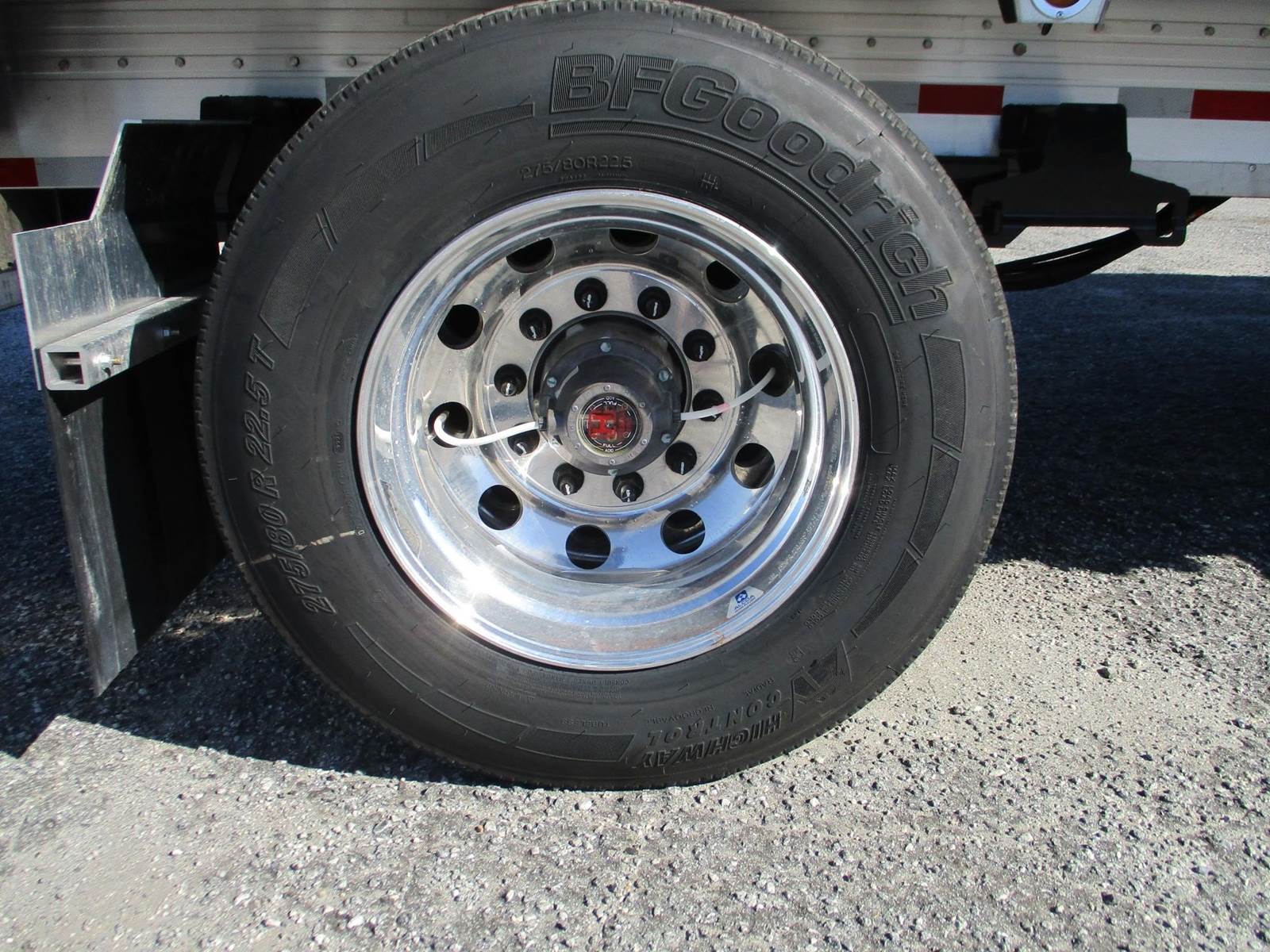

BF GOODRICH 70298 275/80R     22.5            QTY. 8
EXTRA REDUCED ARCH – 2-1/2”

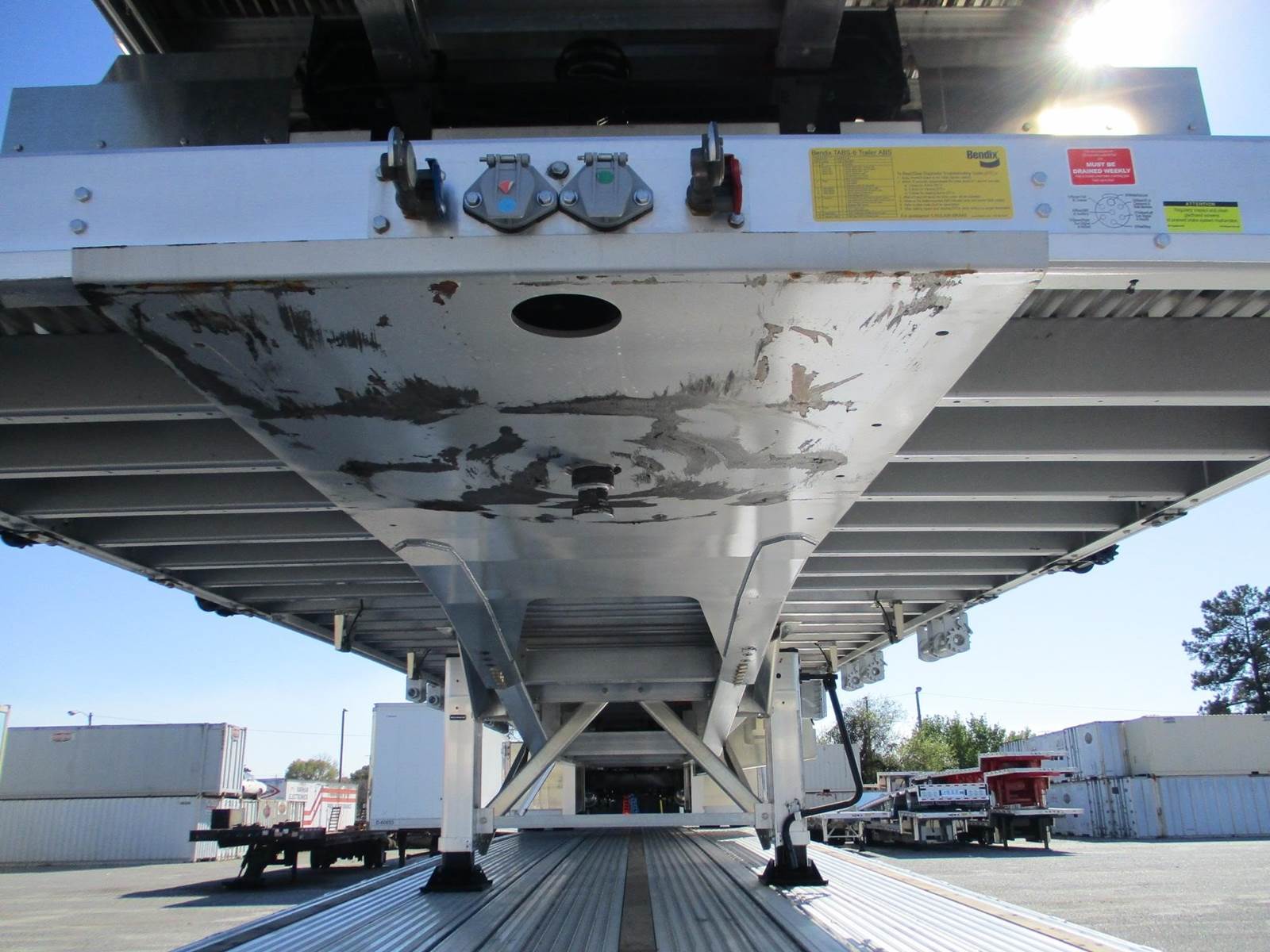

47” COUPLER HEIGHT
MAXIMUM DECK HEIGHTS: (54” FRONT) (56” MIDDLE) (52” REAR) OF TRAILER
10’ 2” AXLE SPACING (OPEN), 60” (CLOSED)
CAL.LEGAL – 40 FT. KINGPIN TO THE CENTER LINE OF REAR AXLE (CLOSED)
FULL COIL PACKAGE (12 INTERMEDIATES)
30” KING PIN - 7” STD - LOW PRO - 3/8” PLATE - DOUBLE BEND KING PIN
3 WOOD NAILER
STD 45 ANGLE FRONT CORNERS
CUSTOM SPOOL LAYOUT IN 7 NECK AREA, DOUBLE SPOOL ON BALANCE   (SEE DRAWING)

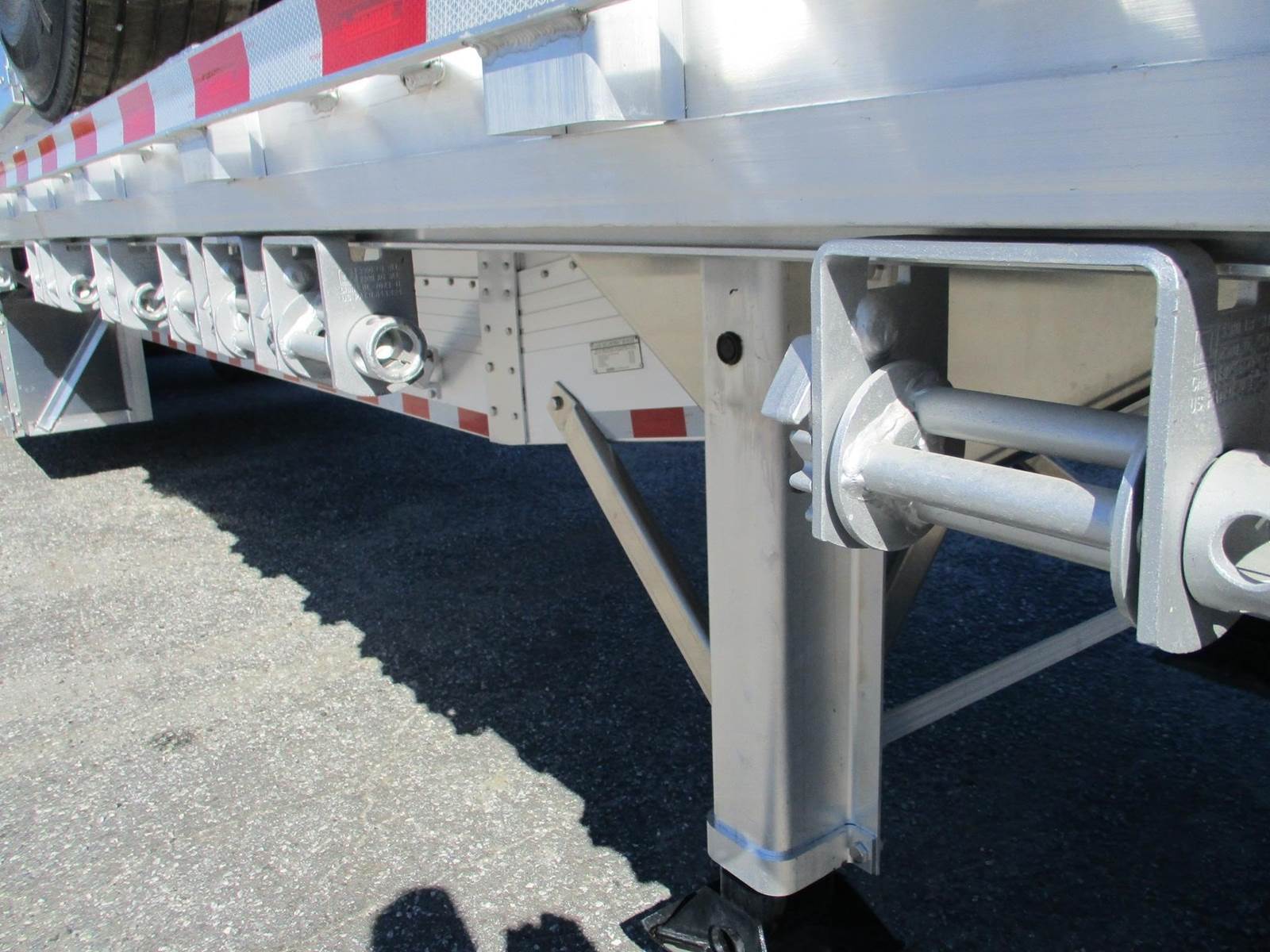

JOST ALUMINUM LANDING GEAR – LOW PRO (100550-AL-LP)
PREP FOR TARPING SYSTEM – LOWER LIGHTS & PUT DOT TAPE ON BOTH RUB RAIL & MAIN RAIL
LED 9 LIGHTS PER SIDE

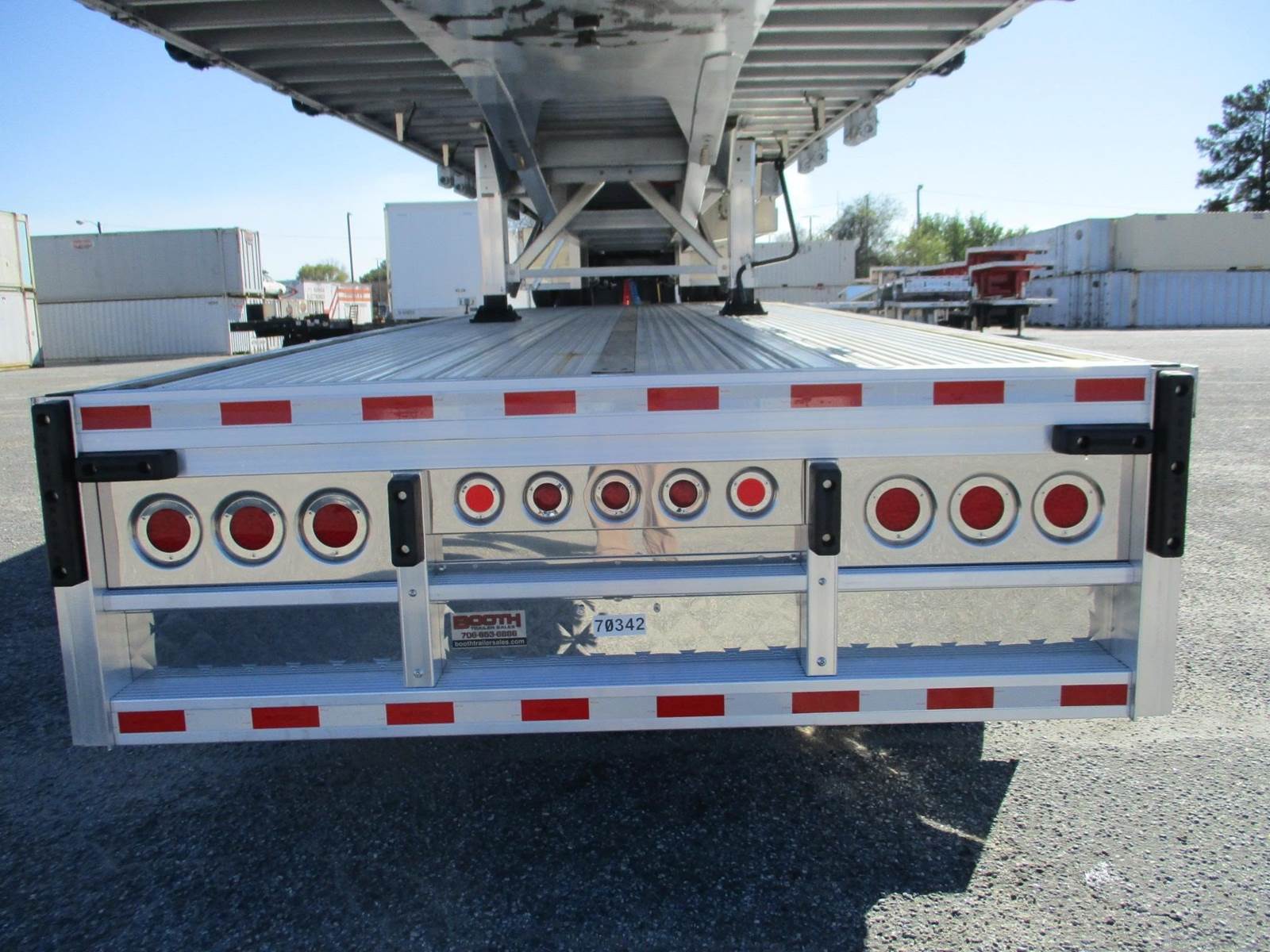

LED 3 S/T/T LAMPS, 5 CENTER CLEARANCE

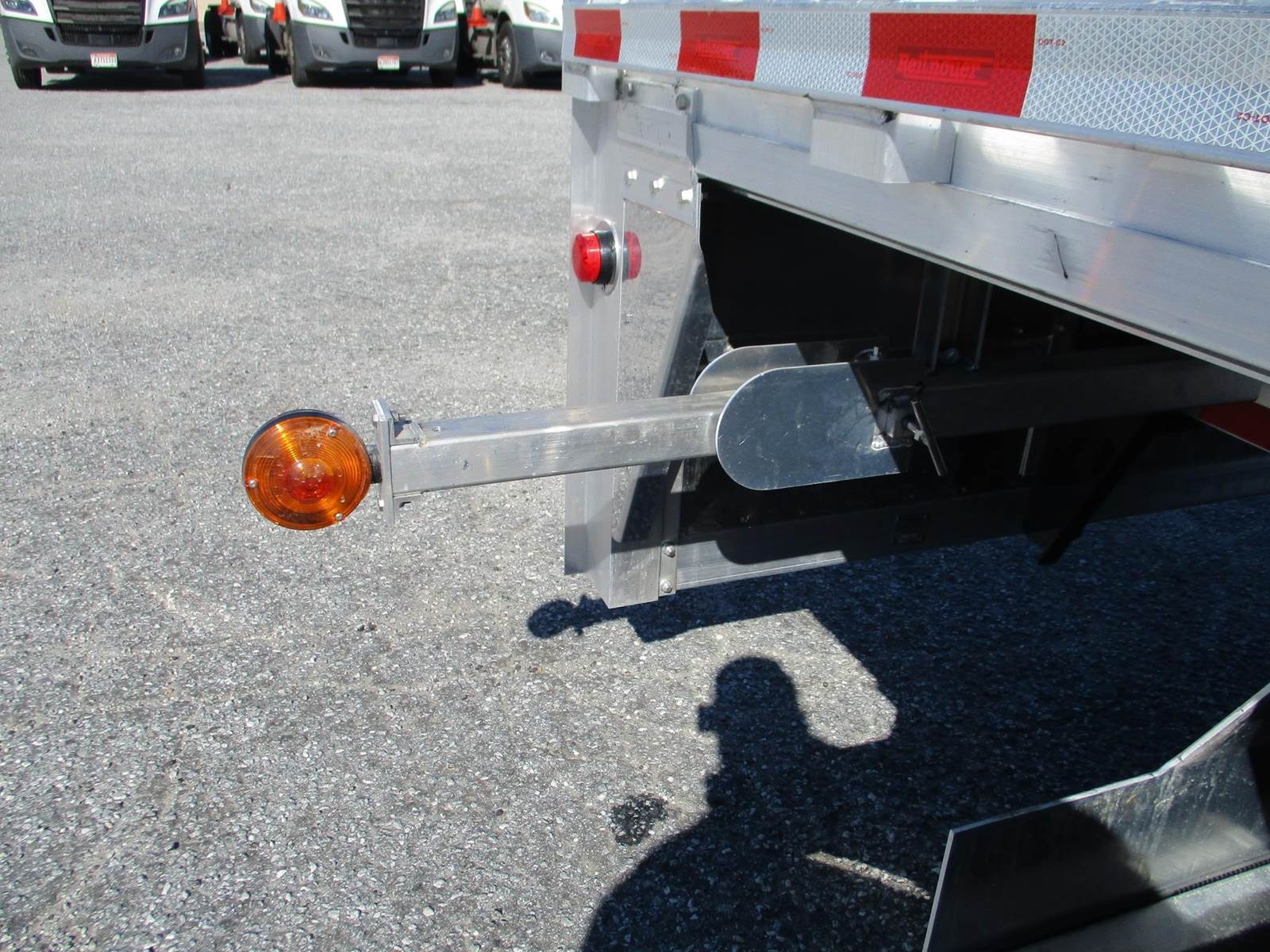

WIDE LOAD LIGHTS – MOUNT REAR OF TRAILER      QTY. 1 SET
FLAPS BEHIND BOTH AXLES
└►MUDFLAP BRACKETS TO BE CUT OUT TO ALLOW WINCH W/ STRAP TO PASS THROUGH
7 WIRE & 7 WIRE AUX RECEPTACLES

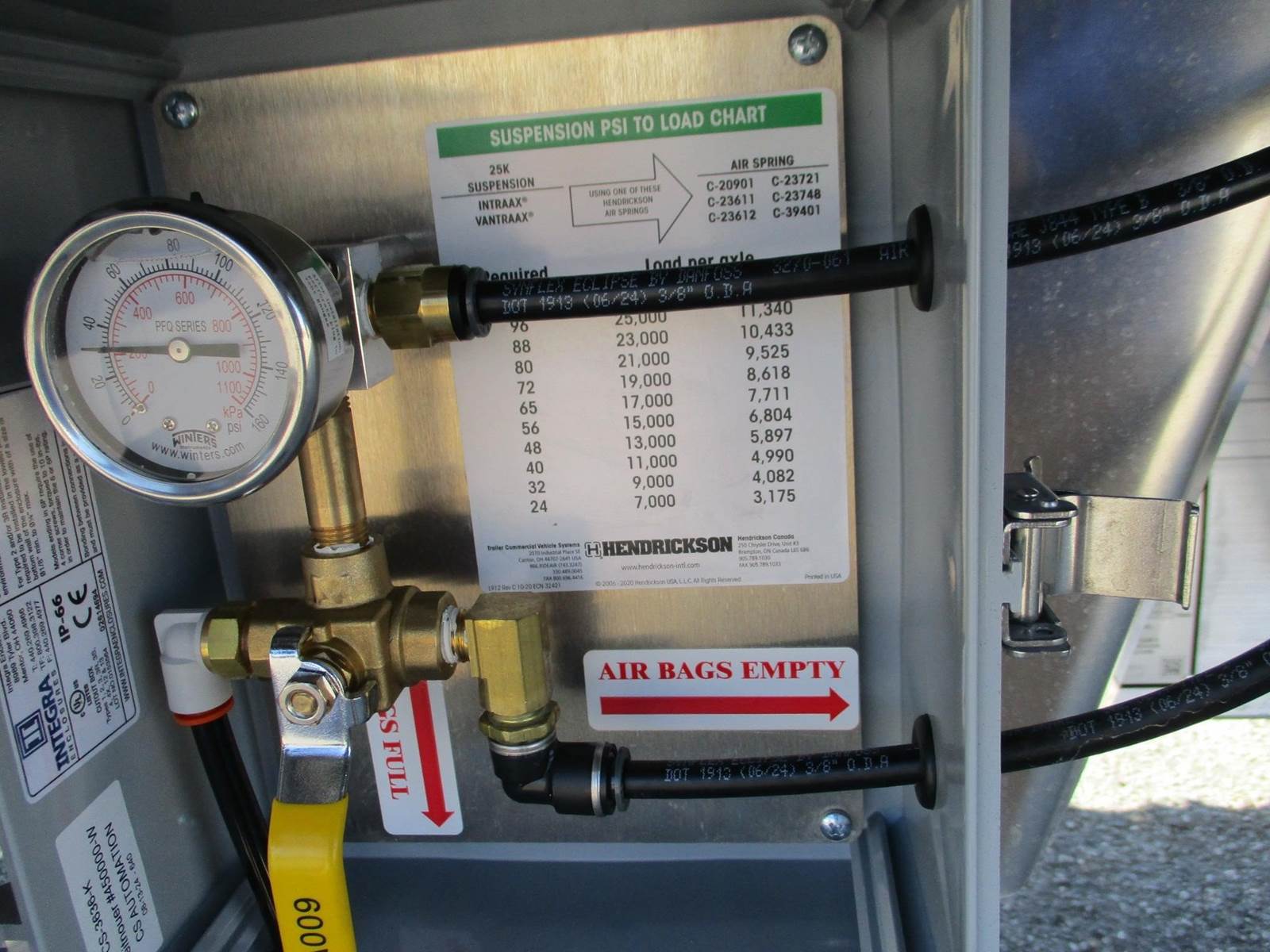

SCALAMATIC W/ MANUAL DUMP VALVE

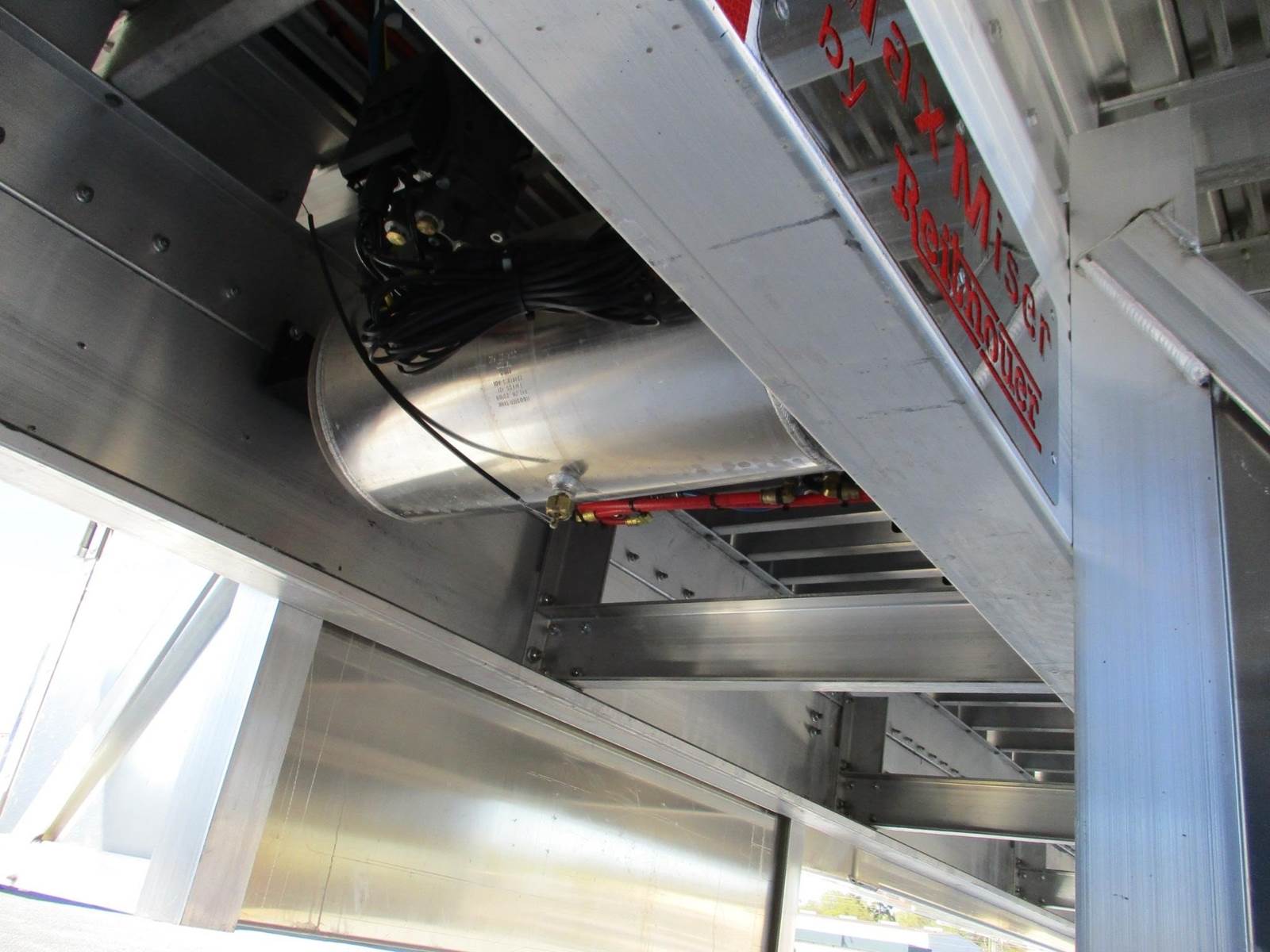

ALUMINUM AIR TANKS

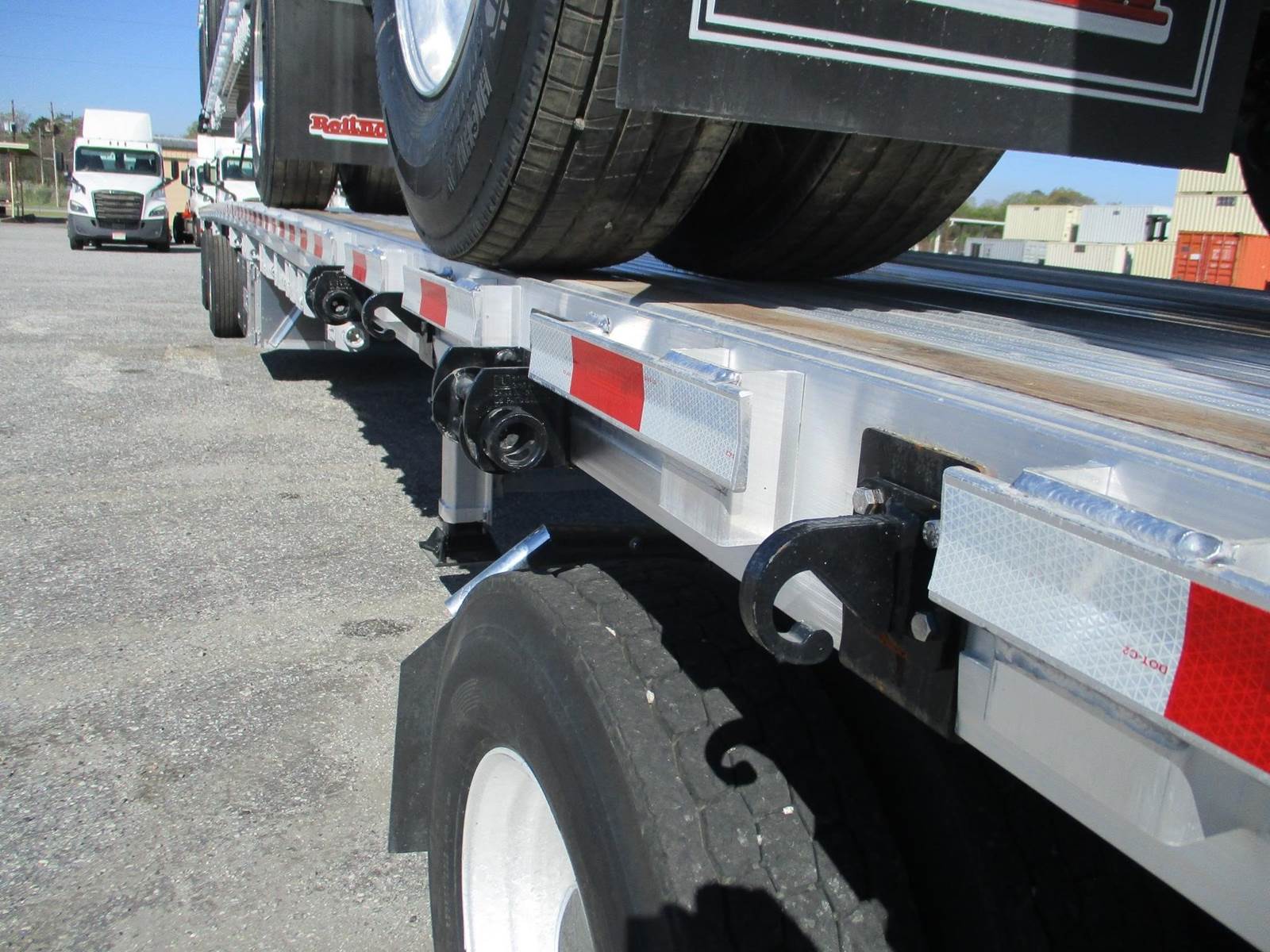

WINCH TRACK ON BOTH SIDES – FULL LENGTH
BOLT-ON WINCHES – THREE BAR – REINFORCED        QTY. 4 (2 PER SIDE BEFORE LANDING GEAR)
BOLT-ON HOOKS OPPOSITE OF WINCHES – REINFORCED QTY. 4 (2 PER SIDE BEFORE LANDING GEAR)
WINCHES –THREE BAR - GALVANIZED           QTY. 22 (11 PER SIDE)
TIEDOWNS – 6” OVAL                   QTY. 16

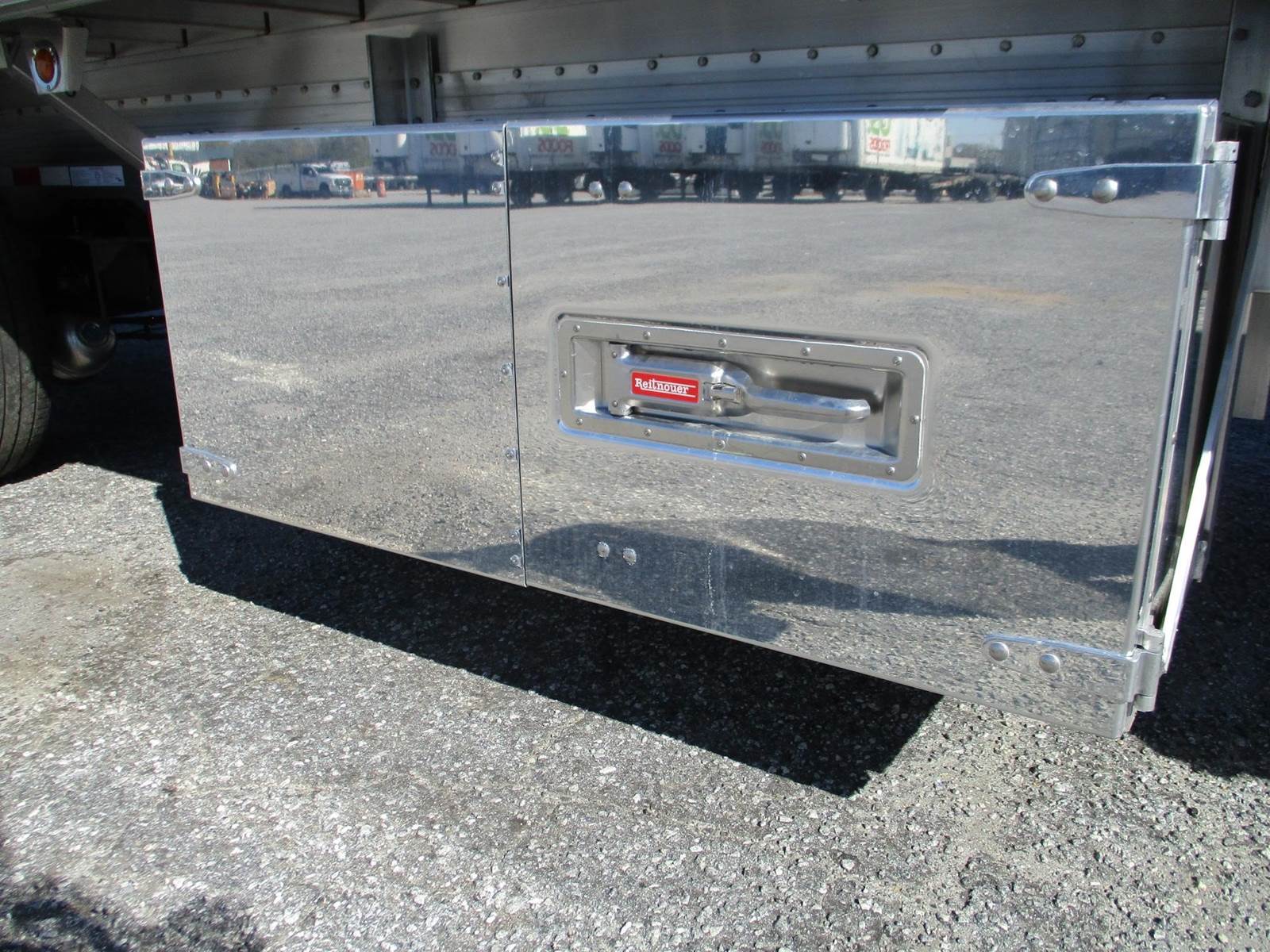

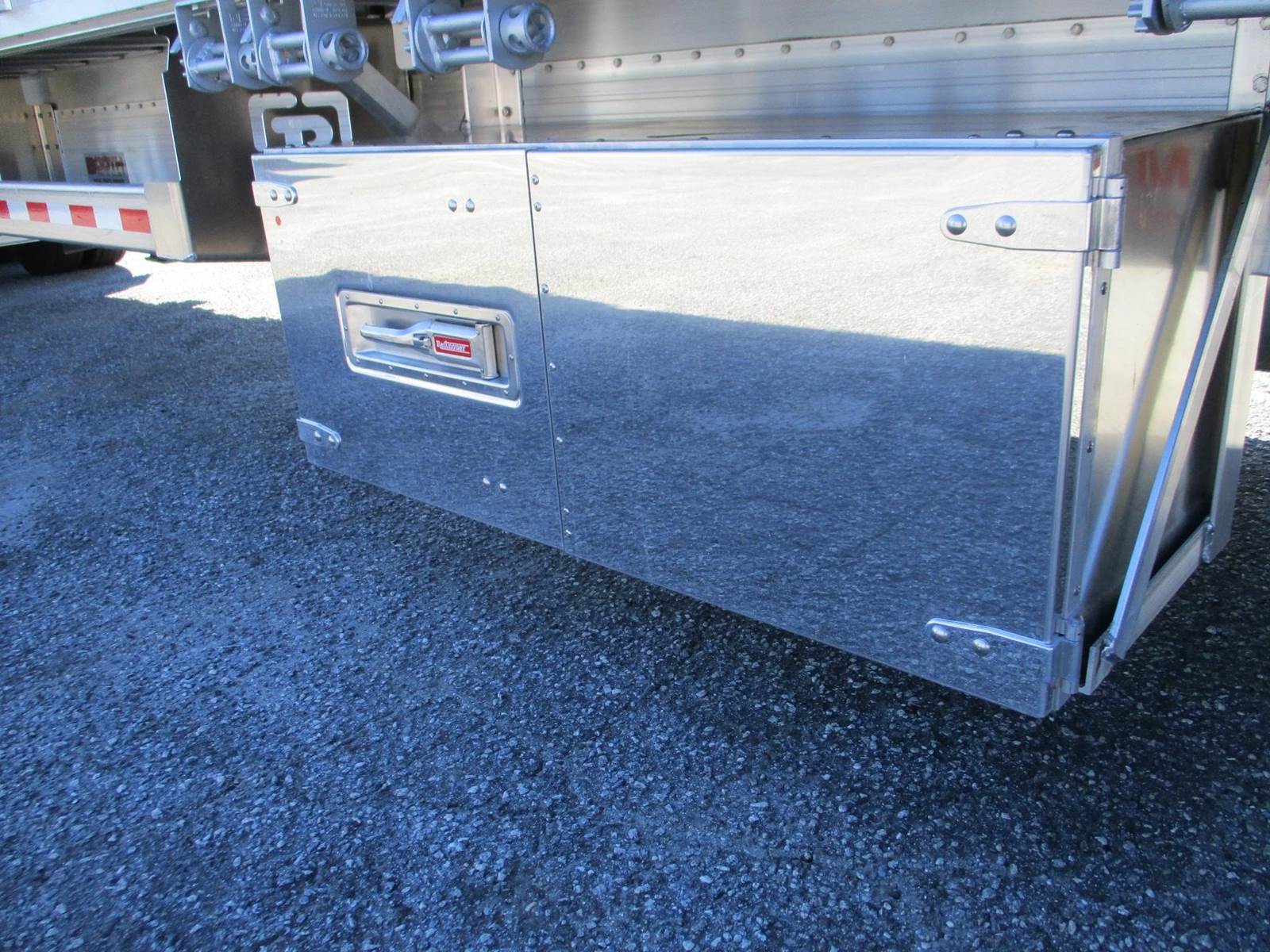

REITNOUER TOOLBOXES – 24H X 24D X 60L DBL DOORS W/ INTERNAL CAM-LOCK    QTY. 2
└► MOUNT (1) DRIVER’S SIDE & (1) CURBSIDE BEFORE FRONT AXLE

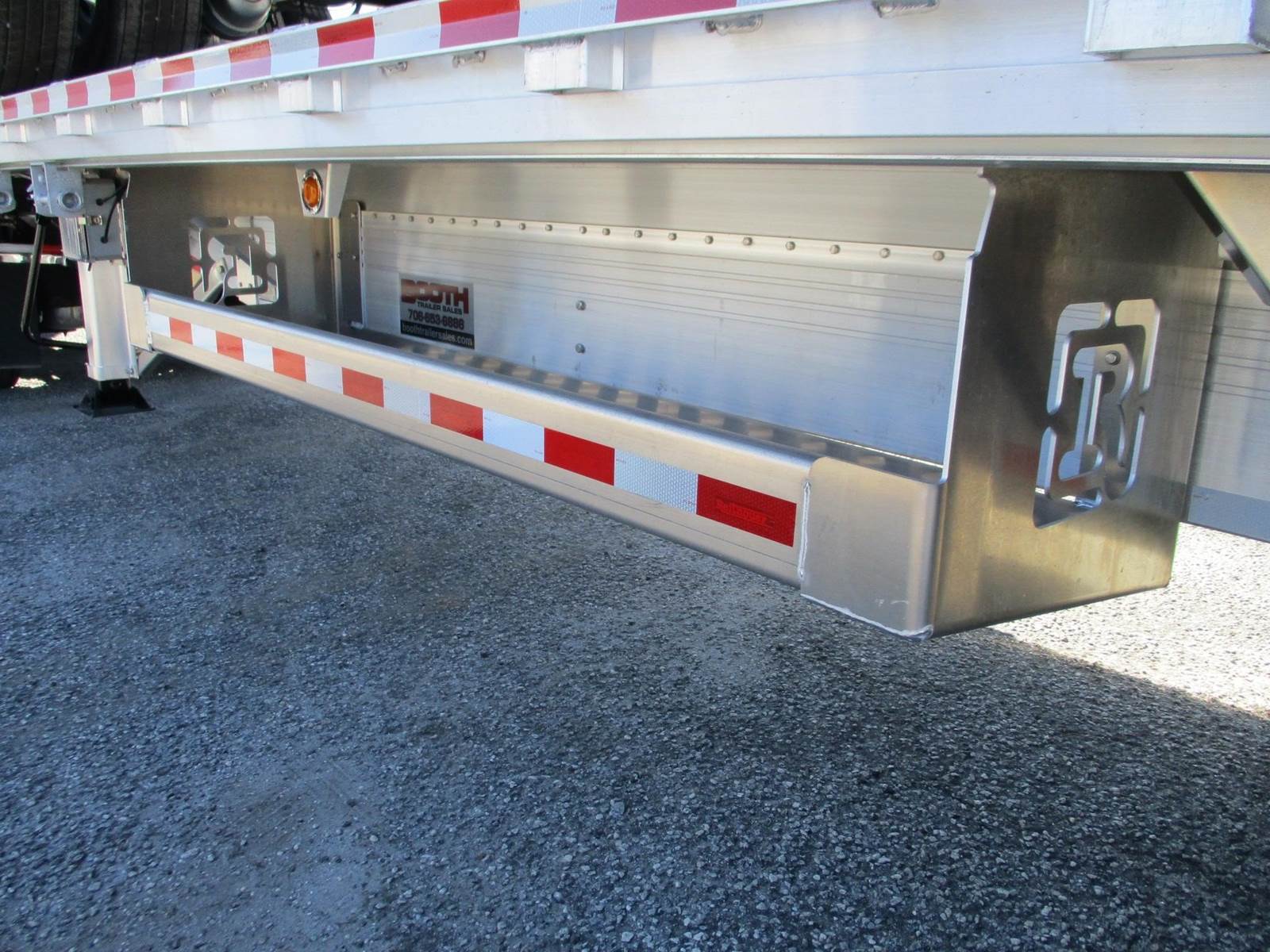

ENDCAP WITH BOTTOM TRAY DUNNAGE RACK               QTY. 1
└►MOUNT DRIVER’S SIDE FORWARD OF THE TOOLBOX
BLACK PAINT
10,737 Lbs. Empty
