2026 Reitnouer Big Bubba 48x102 Aluminum Flatbed Trailer - Air Ride, Fixed Spread Axle

FET Included in Price

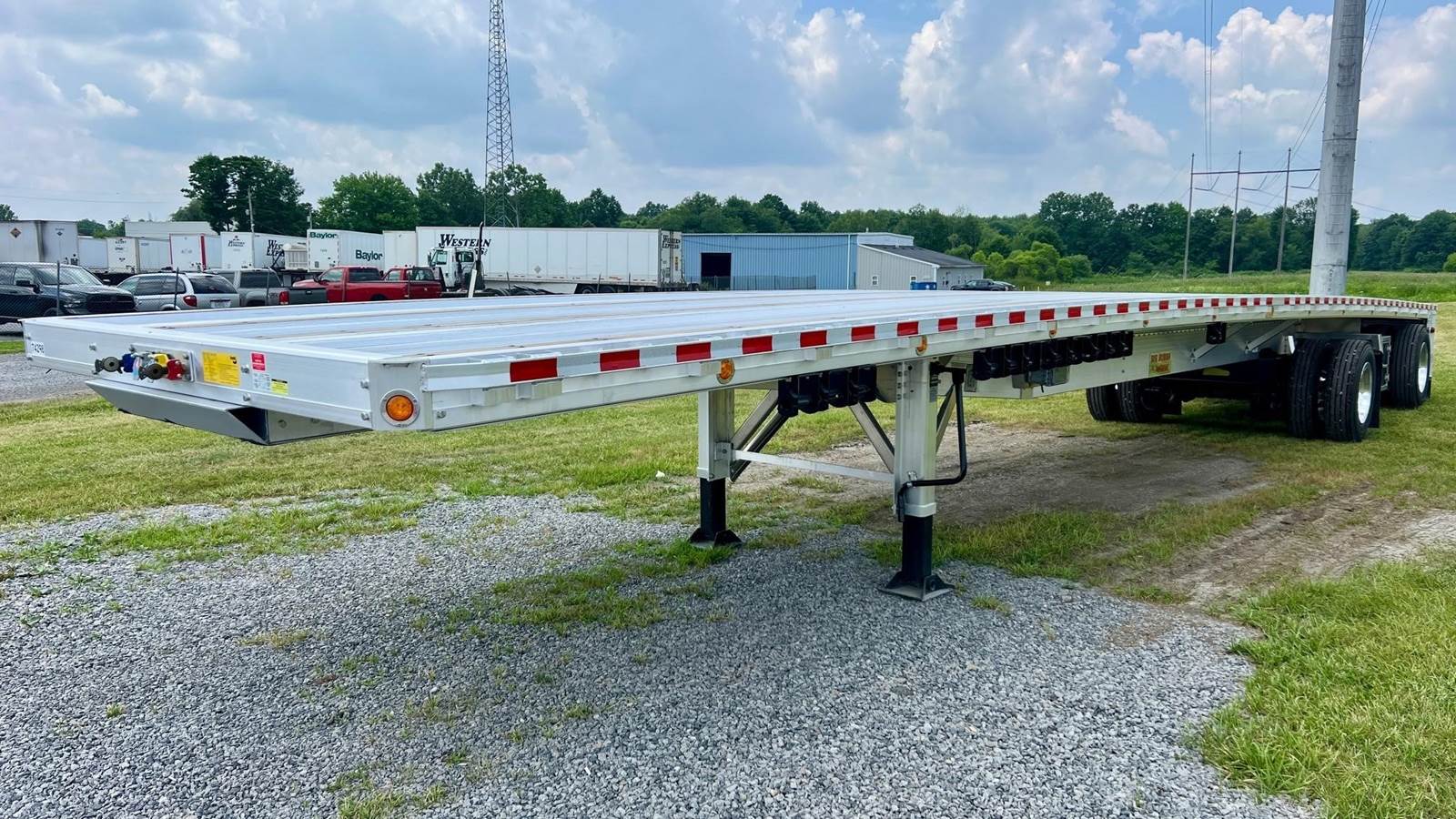

Top Trailer in Photos
Length 48'
Width 102"
Weight 9795 lbs. +/-3%
Unit Description TS-5
Flat Body
Floor Aluminum with Center Tie Down Track
Nailing Strips Four (4), Apitong
Chain Tiedowns 10 Pair, 6" Oval, Removable
Front/Rear Member Aluminum
Side Rail Aluminum
Pipe Spools Double
Winch Track Full Length with No Breaks, Roadside
Sliding Winches 12
Toolbox Two (2) 60"x24"x22" Cam Lock w SS Doors
Add. Receptacle ISO 7-Way
Side Rail Lights Thirteen (13) per Side, LED

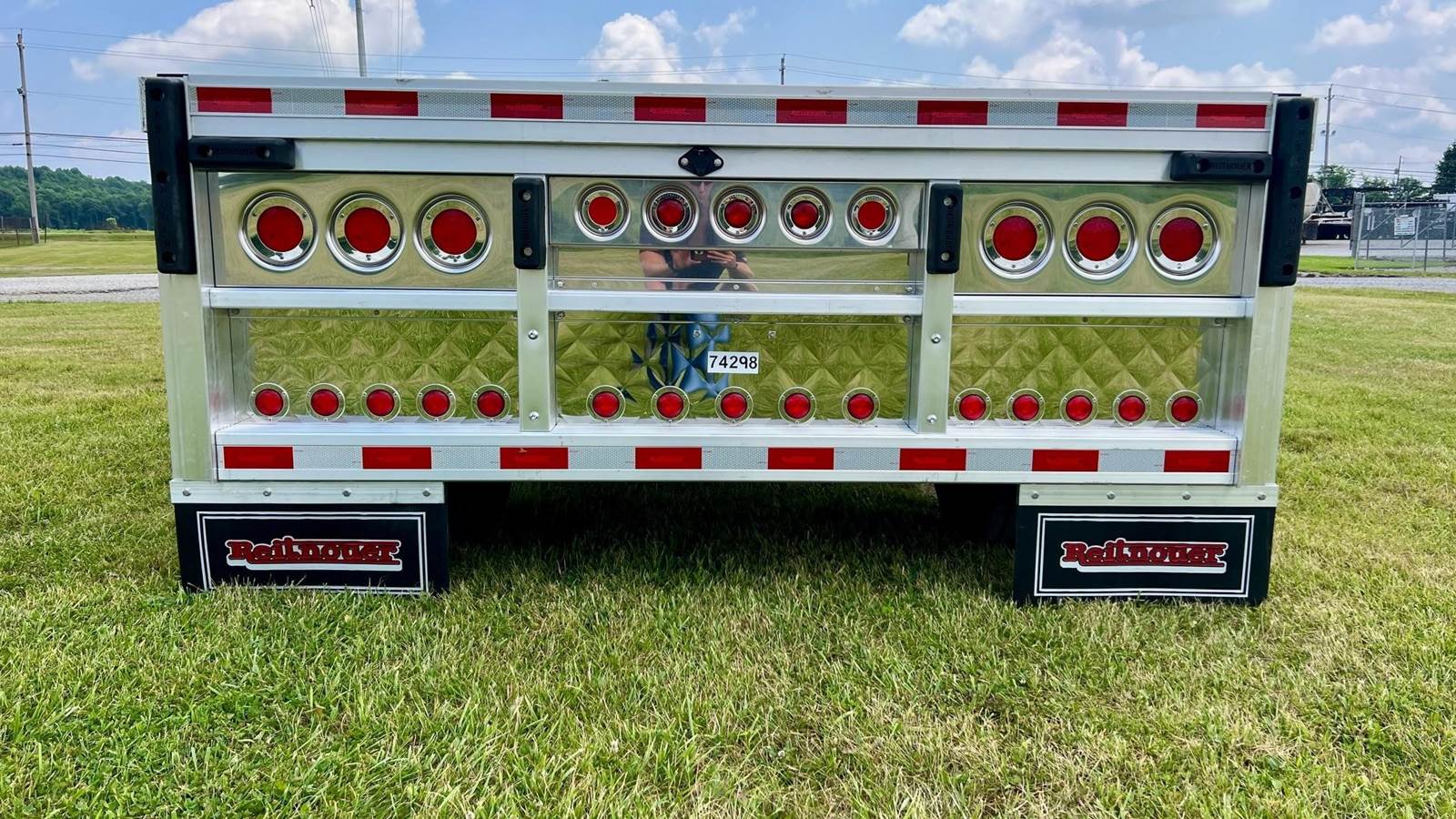

Rear Lights (3) Stop/Tail, (5) Clearance & (15) Add. Markers
Mud Flap Brackets Behind Front & Rear Axle

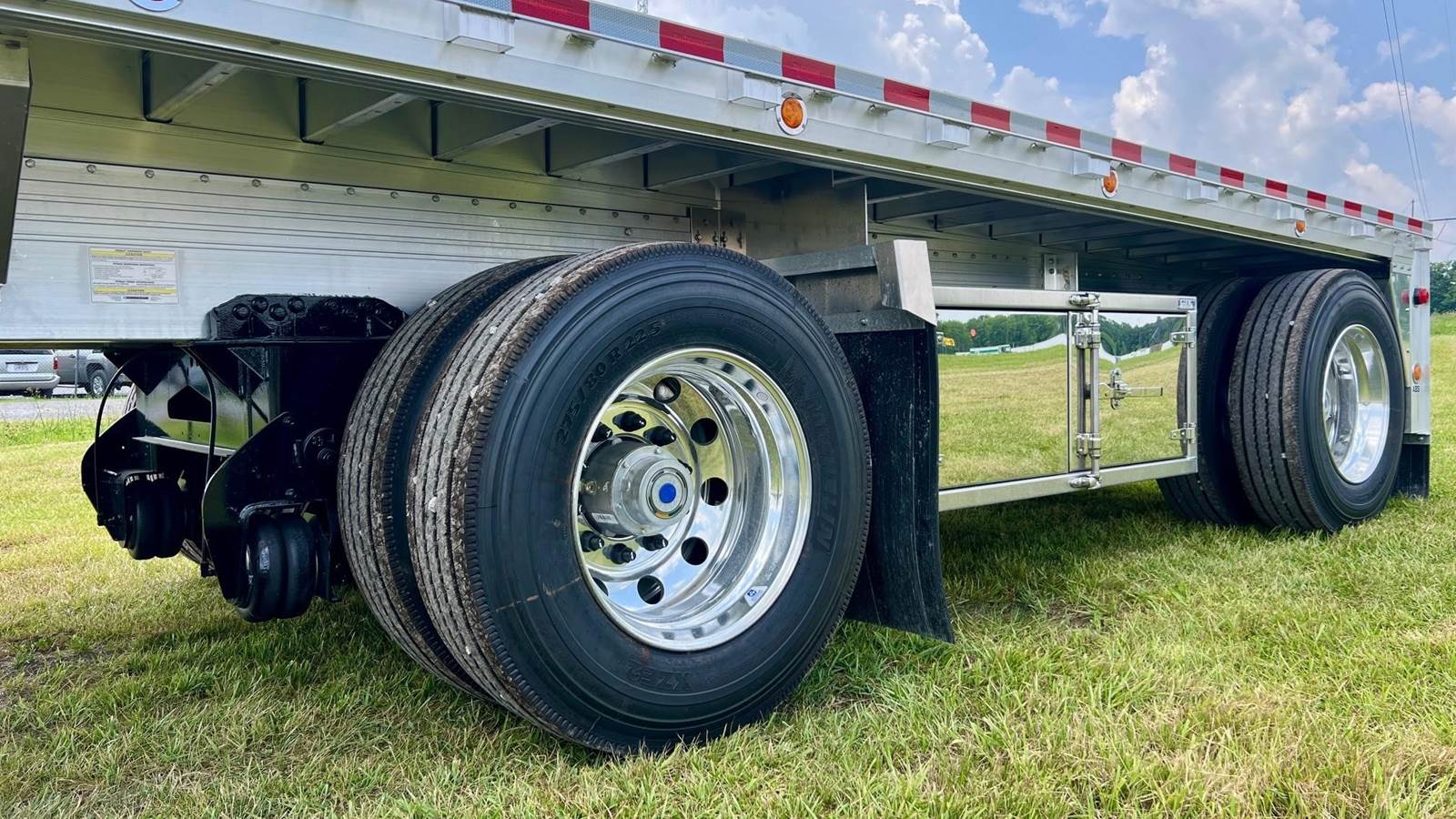

Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson Intraax 30K
Suspension Setting 10' 2" Spread, Set at Rearmost Position
Lift Axle Front Axle, Both Manual & Electric
Electric Dumpvalve Rear Axle - Wired to Center Pin of Aux 7-Way
Manual Dumpvalve Yes
Tire Brand Michelin XZE2
Tire Size 275/80R22.5
Wheels Aluminum, Outside Wheels Polished
UnderFrame
King Pin Setting 30"
Cross Member Center 12"
Coil Package Full Coil Package with 12 Extra Cross Members
Landing Gear Jost, Two-Speed, Aluminum Housing
Paint Black
Weight Ratings 70,000 lbs. in 10', 60,000 lbs. in 4'
Scalamatic
Lift Axle Wired to Red Wire of ISO 7-Way
Additional Wiring & Plugs for Rear Markers
4-Way Receptacle at Rear
